3CEP2960DW0

Product Details	S.P. Ref.	S.P. Code
Sold Out Lint Chute Assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	1	694283
Sold Out Washer, Support Regular price $0.00 Sale price $0.00 Regular price Unit price	2	3388703
Sold Out Seal, Lint Chute Regular price $0.00 Sale price $0.00 Regular price Unit price	4	347139
Sold Out Screw, 8 A X 3/8 Regular price $0.00 Sale price $0.00 Regular price Unit price	5	90767
Sold Out Thermal Fuse Regular price $0.00 Sale price $0.00 Regular price Unit price	6	694511
Sold Out Thermostat, Internal Bias Regular price $0.00 Sale price $0.00 Regular price Unit price	7	3387137
Sold Out Seal, Blower Regular price $0.00 Sale price $0.00 Regular price Unit price	8	3392123
Sold Out Thermal Cut-Off (Includes Item No.15) Regular price $0.00 Sale price $0.00 Regular price Unit price	9	3399848
Sold Out Wheel, Blower Regular price $0.00 Sale price $0.00 Regular price Unit price	10	694089
Sold Out Housing, Blower Regular price $0.00 Sale price $0.00 Regular price Unit price	11	3405016
Sold Out Clip Regular price $0.00 Sale price $0.00 Regular price Unit price	12	3398161
Sold Out Screw, 10-16 X 1/2 Regular price $0.00 Sale price $0.00 Regular price Unit price	13	343641
Sold Out Box, Heater Regular price $0.00 Sale price $0.00 Regular price Unit price	14	3397566
Sold Out Thermostat, 250-F (121.1-C) Regular price $0.00 Sale price $0.00 Regular price Unit price	15	696818
Sold Out Heater Element Regular price $0.00 Sale price $0.00 Regular price Unit price	17	3398062
Sold Out Wire Kit (For Heater Element Wiring Harness Repair) Regular price $0.00 Sale price $0.00 Regular price Unit price	18	279457
Sold Out Screw, 8-18 X 3/4 Regular price $0.00 Sale price $0.00 Regular price Unit price	20	3400800
Sold Out Pad, Blower Housing Regular price $0.00 Sale price $0.00 Regular price Unit price	23	3392247
Sold Out Ring, Tri Regular price $0.00 Sale price $0.00 Regular price Unit price	41	690997
Sold Out Shaft, L.H. Regular price $0.00 Sale price $0.00 Regular price Unit price	42	3399506
Sold Out Shaft, R.H. Regular price $0.00 Sale price $0.00 Regular price Unit price	43	3399507
Sold Out Roller, Support (2) Regular price $0.00 Sale price $0.00 Regular price Unit price	44	3397588
Sold Out Washer, Support (4) Regular price $0.00 Sale price $0.00 Regular price Unit price	46	348197
Sold Out Nut, 3/8-16 (2) Regular price $0.00 Sale price $0.00 Regular price Unit price	47	3359452
Sold Out Bulkhead Regular price $0.00 Sale price $0.00 Regular price Unit price	48	3397260
Sold Out Ring, Bearing Regular price $0.00 Sale price $0.00 Regular price Unit price	62	3394508
Sold Out Screw Regular price $0.00 Sale price $0.00 Regular price Unit price	63	97787
Sold Out Seal, Rear Drum Regular price $0.00 Sale price $0.00 Regular price Unit price	66	337449
Sold Out Drum Assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	67	3396776
Sold Out Baffle, Drum Regular price $0.00 Sale price $0.00 Regular price Unit price	68	342847
Sold Out Seal Regular price $0.00 Sale price $0.00 Regular price Unit price	73	339956
Sold Out Bracket, Support Shaft Regular price $0.00 Sale price $0.00 Regular price Unit price	74	348945
Sold Out Clip Regular price $0.00 Sale price $0.00 Regular price Unit price	75	90296
Sold Out Shield, Exhaust Regular price $0.00 Sale price $0.00 Regular price Unit price	77	696302

Product Details	S.P. Ref.	S.P. Code
Sold Out Cover, Lint Screen Regular price $0.00 Sale price $0.00 Regular price Unit price	2	691205
Sold Out Button (4) Regular price $0.00 Sale price $0.00 Regular price Unit price	3	3348587
Sold Out Switch, Pushbutton Regular price $0.00 Sale price $0.00 Regular price Unit price	4	3394078
Sold Out Funnel, Coin Regular price $0.00 Sale price $0.00 Regular price Unit price	5	385421
Sold Out Cap, End (R.H.) Regular price $0.00 Sale price $0.00 Regular price Unit price	6	63795
Sold Out Screw, Thread Cutting Regular price $0.00 Sale price $0.00 Regular price Unit price	7	98445
Sold Out End Cap (L.H.) Regular price $0.00 Sale price $0.00 Regular price Unit price	8	3347710
Sold Out Panel, Control Regular price $0.00 Sale price $0.00 Regular price Unit price	9	3393405
Sold Out Screen, Lint Regular price $0.00 Sale price $0.00 Regular price Unit price	10	339392
Sold Out Bracket, Control Regular price $0.00 Sale price $0.00 Regular price Unit price	11	3398113
Sold Out Hinge, L.H. Regular price $0.00 Sale price $0.00 Regular price Unit price	12	691194
Sold Out Hinge, R.H. Regular price $0.00 Sale price $0.00 Regular price Unit price	-	691193
Sold Out Screw, 8-15 X 3/8 Regular price $0.00 Sale price $0.00 Regular price Unit price	13	688983
Sold Out Panel, Rear Regular price $0.00 Sale price $0.00 Regular price Unit price	14	3387978
Sold Out Screw, 13-16 X 5/8 Regular price $0.00 Sale price $0.00 Regular price Unit price	15	97787
Sold Out Top Regular price $0.00 Sale price $0.00 Regular price Unit price	16	3402300
Sold Out Screw, 8A X 3/8 Regular price $0.00 Sale price $0.00 Regular price Unit price	17	90767
Sold Out Screw 8-18 X 3/8 Regular price $0.00 Sale price $0.00 Regular price Unit price	18	9424101
Sold Out Lens, Amber (3) Regular price $0.00 Sale price $0.00 Regular price Unit price	19	3348109
Sold Out Lights, Indicator (240 Volts) Regular price $0.00 Sale price $0.00 Regular price Unit price	20	3401760
Sold Out Bumper, Lint Lid Regular price $0.00 Sale price $0.00 Regular price Unit price	21	297535
Sold Out Screw, 10-16 X 1/2 Regular price $0.00 Sale price $0.00 Regular price Unit price	22	343641
Sold Out Guide, Drawer Regular price $0.00 Sale price $0.00 Regular price Unit price	23	3352295
Sold Out Case, Meter Regular price $0.00 Sale price $0.00 Regular price Unit price	26	3395378
Sold Out Bolt, 5/16-24 X 2 Regular price $0.00 Sale price $0.00 Regular price Unit price	27	3349065
Sold Out Plate & Nut Assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	29	3347825
Sold Out Screw Regular price $0.00 Sale price $0.00 Regular price Unit price	31	Not applicable
Sold Out Harness, Wiring Regular price $0.00 Sale price $0.00 Regular price Unit price	33	3401767
Sold Out Door, Service Regular price $0.00 Sale price $0.00 Regular price Unit price	34	3351136
Sold Out Nut, Push In Regular price $0.00 Sale price $0.00 Regular price Unit price	35	689559
Sold Out Cushion, Console Regular price $0.00 Sale price $0.00 Regular price Unit price	36	3348850
Sold Out Wire, Ground Regular price $0.00 Sale price $0.00 Regular price Unit price	37	690853
Sold Out Wire, Ground Regular price $0.00 Sale price $0.00 Regular price Unit price	38	340025
Sold Out Washer Regular price $0.00 Sale price $0.00 Regular price Unit price	39	237446
Sold Out Screw, 10-32 X 3/16 Regular price $0.00 Sale price $0.00 Regular price Unit price	40	339805
Sold Out Timer, 50 Hz. (Incl. 4 Pin Cam) Regular price $0.00 Sale price $0.00 Regular price Unit price	41	694307
Sold Out Cam, 3 Pin (60 Min.) Regular price $0.00 Sale price $0.00 Regular price Unit price	41	3387974
Sold Out Cam, 6 Pin (30 Min.) Regular price $0.00 Sale price $0.00 Regular price Unit price	42	343777
Sold Out Nut, Cage Regular price $0.00 Sale price $0.00 Regular price Unit price	44	90406
Sold Out Screw & Washer Regular price $0.00 Sale price $0.00 Regular price Unit price	45	358406
Sold Out Connector, 2-Way Regular price $0.00 Sale price $0.00 Regular price Unit price	47	358409
Sold Out Connector, Housing Regular price $0.00 Sale price $0.00 Regular price Unit price	48	717252
Sold Out Plug, Lock Hole Regular price $0.00 Sale price $0.00 Regular price Unit price	49	Not applicable
Sold Out Clip, Harness Regular price $0.00 Sale price $0.00 Regular price Unit price	50	387371
Sold Out Harness, Timer Regular price $0.00 Sale price $0.00 Regular price Unit price	51	689180
Sold Out Clip, Harness Regular price $0.00 Sale price $0.00 Regular price Unit price	52	3401691
Sold Out Bolt, Slide Mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	53	3394427
Sold Out Slide and Extension Regular price $0.00 Sale price $0.00 Regular price Unit price	54	---
Sold Out Slide Extension Bag Assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	55	---
Sold Out Key, (Service Door) Regular price $0.00 Sale price $0.00 Regular price Unit price	56	---
Sold Out Key, (Money Box) (Specify vendor of money box lock) Regular price $0.00 Sale price $0.00 Regular price Unit price	57	---
Sold Out Slide Mechanism (Specifiy number of coins and denominations) Regular price $0.00 Sale price $0.00 Regular price Unit price	58	---
Sold Out Security Lock & Cam Assembly Regular price $0.00 Sale price $0.00 Regular price Unit price		---
Sold Out Money Box W/ Lock Regular price $0.00 Sale price $0.00 Regular price Unit price		---

Product Details	S.P. Ref.	S.P. Code
Sold Out (Alt.) Regular price $0.00 Sale price $0.00 Regular price Unit price	1	343481
Sold Out (Alt.) Regular price $0.00 Sale price $0.00 Regular price Unit price	2	685441
Sold Out Bracket, Top Lock Regular price $0.00 Sale price $0.00 Regular price Unit price	3	688074
Sold Out Bolt, 5/16-18 X 2-3/4 Regular price $0.00 Sale price $0.00 Regular price Unit price	7	354730
Sold Out Nut, 5/16 Regular price $0.00 Sale price $0.00 Regular price Unit price	9	90984
Sold Out Wire, Ground Regular price $0.00 Sale price $0.00 Regular price Unit price	11	Not applicable
Sold Out Screw, 10-16 X 1/2 Regular price $0.00 Sale price $0.00 Regular price Unit price	13	343641
Sold Out Terminal Block Regular price $0.00 Sale price $0.00 Regular price Unit price	14	690261
Sold Out Bracket, Front Top Lock Regular price $0.00 Sale price $0.00 Regular price Unit price	15	3357341
Sold Out Clip, Toe Panel Regular price $0.00 Sale price $0.00 Regular price Unit price	16	3388229
Sold Out Pad, Top Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	17	18849
Sold Out Cover, Block Regular price $0.00 Sale price $0.00 Regular price Unit price	18	3396795
Sold Out Hinge, Top (2) Regular price $0.00 Sale price $0.00 Regular price Unit price	20	238088
Sold Out Clip, Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	21	297092
Sold Out Panel, Rear Regular price $0.00 Sale price $0.00 Regular price Unit price	22	3396807
Sold Out Locator, Top Regular price $0.00 Sale price $0.00 Regular price Unit price	23	98669
Sold Out Clip, Ground (2) Regular price $0.00 Sale price $0.00 Regular price Unit price	24	98234
Sold Out Seal & Bearing Assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	25	349462
Sold Out Screw, Hex Washer Head Regular price $0.00 Sale price $0.00 Regular price Unit price	26	693995
Sold Out Front Panel Assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	27	693980
Sold Out Foot Regular price $0.00 Sale price $0.00 Regular price Unit price	-	3392100
Sold Out Lever, Door Switch Regular price $0.00 Sale price $0.00 Regular price Unit price	28	691581
Sold Out Boot-Foot Regular price $0.00 Sale price $0.00 Regular price Unit price	29	3391943
Sold Out Foot-Optional (Extended Length Package of 2) Regular price $0.00 Sale price $0.00 Regular price Unit price	30	279810
Sold Out Cabinet (Includes Items 9, 15, 18, 25 & 39) Regular price $0.00 Sale price $0.00 Regular price Unit price	33	3399580
Sold Out Screw, Door Switch Regular price $0.00 Sale price $0.00 Regular price Unit price	34	98129
Sold Out Switch, Door Regular price $0.00 Sale price $0.00 Regular price Unit price	37	347207
Sold Out Lock Front Top (2) Regular price $0.00 Sale price $0.00 Regular price Unit price	38	188776
Sold Out Clip, Felt Pad (2) Regular price $0.00 Sale price $0.00 Regular price Unit price	39	685203
Sold Out Catch, Door Regular price $0.00 Sale price $0.00 Regular price Unit price	40	3389441
Sold Out Motor Assembly 50 Hz. Regular price $0.00 Sale price $0.00 Regular price Unit price	41	685815
Sold Out Base, Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	44	348780
Sold Out Belt, Drive Regular price $0.00 Sale price $0.00 Regular price Unit price	46	660997
Sold Out Bolt, 5/16-18 X 3/4 Regular price $0.00 Sale price $0.00 Regular price Unit price	-	3400500
Sold Out Idler & Pulley Regular price $0.00 Sale price $0.00 Regular price Unit price	-	691366
Sold Out Clamp, Motor (2) Regular price $0.00 Sale price $0.00 Regular price Unit price	48	660658
Sold Out Pulley, 50 Hz. Regular price $0.00 Sale price $0.00 Regular price Unit price	49	685064
Sold Out Switch, Centrifugal Regular price $0.00 Sale price $0.00 Regular price Unit price	50	3388235
Sold Out Nut, Cage Regular price $0.00 Sale price $0.00 Regular price Unit price	52	90406
Sold Out Seal, Door Regular price $0.00 Sale price $0.00 Regular price Unit price	54	3390734
Sold Out Strike, Door Regular price $0.00 Sale price $0.00 Regular price Unit price	58	696144
Sold Out Hinge & Pin Assembly (2) Regular price $0.00 Sale price $0.00 Regular price Unit price	59	348023
Sold Out Screw, Door Regular price $0.00 Sale price $0.00 Regular price Unit price	61	694091
Sold Out Door, Rear Regular price $0.00 Sale price $0.00 Regular price Unit price	62	695656
Sold Out Toe Panel Regular price $0.00 Sale price $0.00 Regular price Unit price	63	697095
Sold Out Door, Front Regular price $0.00 Sale price $0.00 Regular price Unit price	64	348205
Sold Out Handle, Door Regular price $0.00 Sale price $0.00 Regular price Unit price	66	686711
Sold Out Screw, 10-32 X 1/2 (Grounding) Regular price $0.00 Sale price $0.00 Regular price Unit price	71	697776
Sold Out Terminal, Tinned & Brass (3) Regular price $0.00 Sale price $0.00 Regular price Unit price	72	279318
Sold Out Screw Kit (For Terminal Block) Regular price $0.00 Sale price $0.00 Regular price Unit price	87	279393
Sold Out Wedge, Cone Regular price $0.00 Sale price $0.00 Regular price Unit price	89	356674
Sold Out Locator, Top Regular price $0.00 Sale price $0.00 Regular price Unit price	90	356837
Sold Out Screw, 1/20-7/8 Regular price $0.00 Sale price $0.00 Regular price Unit price	91	427190
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	92	271172
Sold Out Nut, 5/16-18 Regular price $0.00 Sale price $0.00 Regular price Unit price		90984

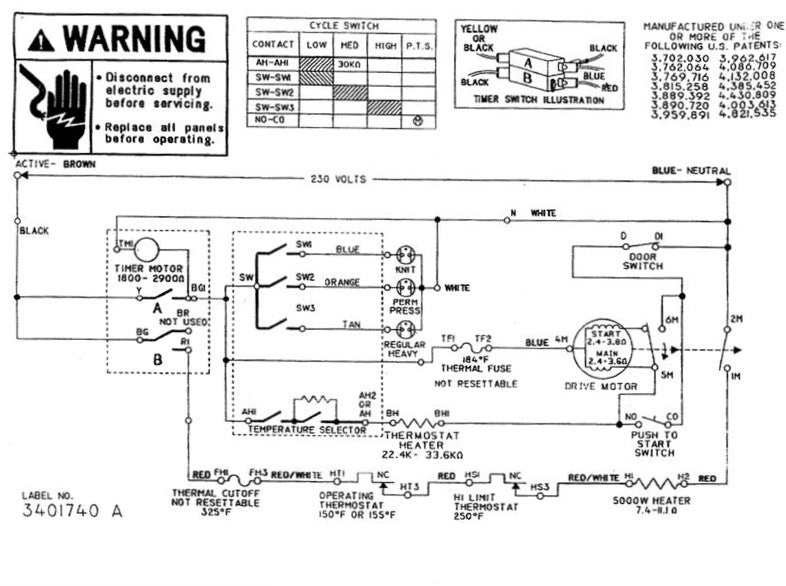

Wiring Diagram

Parts Manual

Search our store

3CEP2960DW0

3CEP2960DW0

694283

3388703

347139

90767

694511

3387137

3392123

3399848

694089

3405016

3398161

343641

3397566

696818

3398062

279457

3400800

3392247

690997

3399506

3399507

3397588

348197

3359452

3397260

3394508

97787

337449

3396776

342847

339956

348945

90296

696302

691205

3348587

3394078

385421

63795

98445

3347710

3393405

339392

3398113

691194

691193

688983

3387978

97787

3402300

90767

9424101

3348109

3401760

297535

343641

3352295

3395378

3349065

3347825

Not applicable

3401767

3351136

689559

3348850

690853

340025
