6 AKP 691/WH/02
6 AKP 691/WH/02

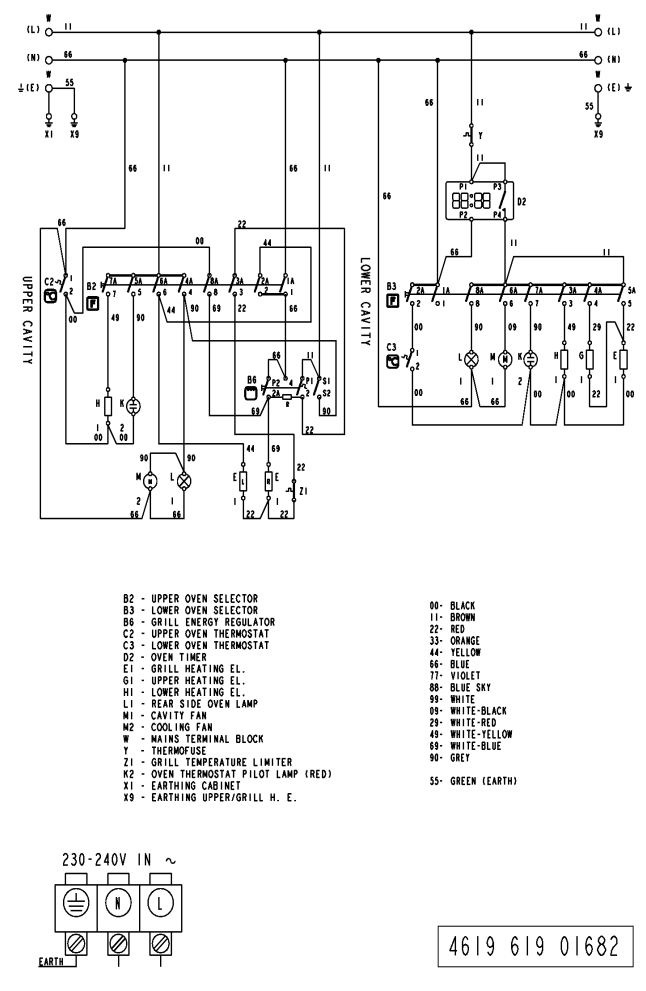

Wiring Diagram
Technical Data
Front Dimensions
| H x W x D | 888 x 595 x 21.2 | mm |
Dimensions of the Parts to Insert in the Cavity
| H x W x D | 865 x 550 x 533 | mm |
Oven Cavity Dimensions
| Upper Oven | 303 x 425 x 397 | mm |
| Lower Oven | 183 x 425 x 405 | mm |
Power Consumption
| Total Power Usable Simultaneously | 4950 | W |
| Rated Voltage | 230 / 50 V | Hz |
Electrical components
| Auto timer | Electronic |
| Thermostat Pilot Lamp | Red |
Oven Volumes
| Upper Oven Volume | 31 | dmÂł |
| Lower Oven Volume | 51 | dmÂł |
Heating Elements
| Upper Heating Element (Upper Oven) | 900 | W |
| Upper Heating Element (Lower Oven) | 900 | W |
| Lower Heating Element (Upper Oven) | 1000 | W |
| Lower Heating Element (Lower Oven) | 1000 | W |
| Grill Heating Element (Total) | 2450 | W |
| Grill Heating Element (One Zone Left) | 1350 | W |
| Grill Heating Element (One Zone Right) | 1050 | W |
