6 AKR 420 IX-1

Product Details	S.P. Ref.	S.P. Code
Sold Out Vapour flap glass Regular price $0.00 Sale price $0.00 Regular price Unit price	021 0	4819 442 68347
Sold Out Hinge vapour flap, pair Regular price $0.00 Sale price $0.00 Regular price Unit price	021 3	4819 462 38568
Sold Out Support right Regular price $0.00 Sale price $0.00 Regular price Unit price	021 5	4812 404 88018
Sold Out Support left Regular price $0.00 Sale price $0.00 Regular price Unit price	021 6	4812 404 88019
Sold Out Support motor Regular price $0.00 Sale price $0.00 Regular price Unit price	071 1	4819 404 79315
Sold Out Cover Regular price $0.00 Sale price $0.00 Regular price Unit price	251 0	4812 442 69016
Sold Out Panel, control cpl. Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4812 453 19588
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	401 0	4812 361 18357
Sold Out Lid Regular price $0.00 Sale price $0.00 Regular price Unit price	521 2	4812 462 79699
Sold Out Switch motor Regular price $0.00 Sale price $0.00 Regular price Unit price	622 0	4812 271 38437
Sold Out Lamp, T25L 40W Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4812 134 18021
Sold Out Holder, lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18173
Sold Out Cover lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 1	4819 459 48839
Sold Out Reflector, lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 2	4819 460 49765
Sold Out Switch light Regular price $0.00 Sale price $0.00 Regular price Unit price	655 0	4812 271 38438
Sold Out Fan wheel Regular price $0.00 Sale price $0.00 Regular price Unit price	727 1	4819 515 28292
Sold Out Conveyor Regular price $0.00 Sale price $0.00 Regular price Unit price	741 0	4812 464 18137
Sold Out Deflector Regular price $0.00 Sale price $0.00 Regular price Unit price	741 1	4819 442 68741
Sold Out Metalfilter Regular price $0.00 Sale price $0.00 Regular price Unit price	762 0	4819 480 48244
Sold Out Support Regular price $0.00 Sale price $0.00 Regular price Unit price	762 1	4819 404 78983
Sold Out Grid greasefilter Regular price $0.00 Sale price $0.00 Regular price Unit price	763 0	4812 458 58158
Sold Out Blocking, grid Regular price $0.00 Sale price $0.00 Regular price Unit price	763 1	4819 404 49894
Sold Out Button locking Regular price $0.00 Sale price $0.00 Regular price Unit price	763	4819 535 28019
Sold Out Carbon filter Regular price $0.00 Sale price $0.00 Regular price Unit price	765 0	4819 480 48319
Sold Out Flange Regular price $0.00 Sale price $0.00 Regular price Unit price	781 1	4819 462 79981
Sold Out Lid Regular price $0.00 Sale price $0.00 Regular price Unit price	781 3	4819 462 79992
Sold Out Nut motor Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4812 505 18391
Sold Out Vapour flap glass Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 442 68347
Sold Out Hinge vapour flap, pair Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 462 38568
Sold Out Support right Regular price $0.00 Sale price $0.00 Regular price Unit price		4812 404 88016
Sold Out Support left Regular price $0.00 Sale price $0.00 Regular price Unit price		4812 404 88017
Sold Out Support motor Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 404 79315
Sold Out Cover Regular price $0.00 Sale price $0.00 Regular price Unit price		4812 442 69016
Sold Out Clip, Fix Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 492 68622
Sold Out Control panel complete Regular price $0.00 Sale price $0.00 Regular price Unit price		4812 453 19571
Sold Out Knob, slide motor+light Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 462 38771
Sold Out Support Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 404 79316
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 361 58279
Sold Out Connection block Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 290 68423
Sold Out Units, pushbutton Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 290 68372
Sold Out Lamp Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 134 88088
Sold Out Holder, lamp Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 255 18173
Sold Out Reflector, lamp Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 460 49765
Sold Out Holder, lamp Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 404 79317
Sold Out Fan wheel Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 515 28274
Sold Out Conveyor Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 442 78413
Sold Out Flap Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 442 78298
Sold Out Lever Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 413 48133
Sold Out Metal Filter Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 480 48244
Sold Out Support Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 404 78983
Sold Out Grid grease filter Regular price $0.00 Sale price $0.00 Regular price Unit price		4812 458 58157
Sold Out Blocking , grid Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 404 49894
Sold Out Air regulator, grid Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 401 18447
Sold Out Carbon filter (Optional) Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 480 48316
Sold Out Flange Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 462 79981
Sold Out Lid Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 462 79992
Sold Out Nut Motor Regular price $0.00 Sale price $0.00 Regular price Unit price		4819 505 18246

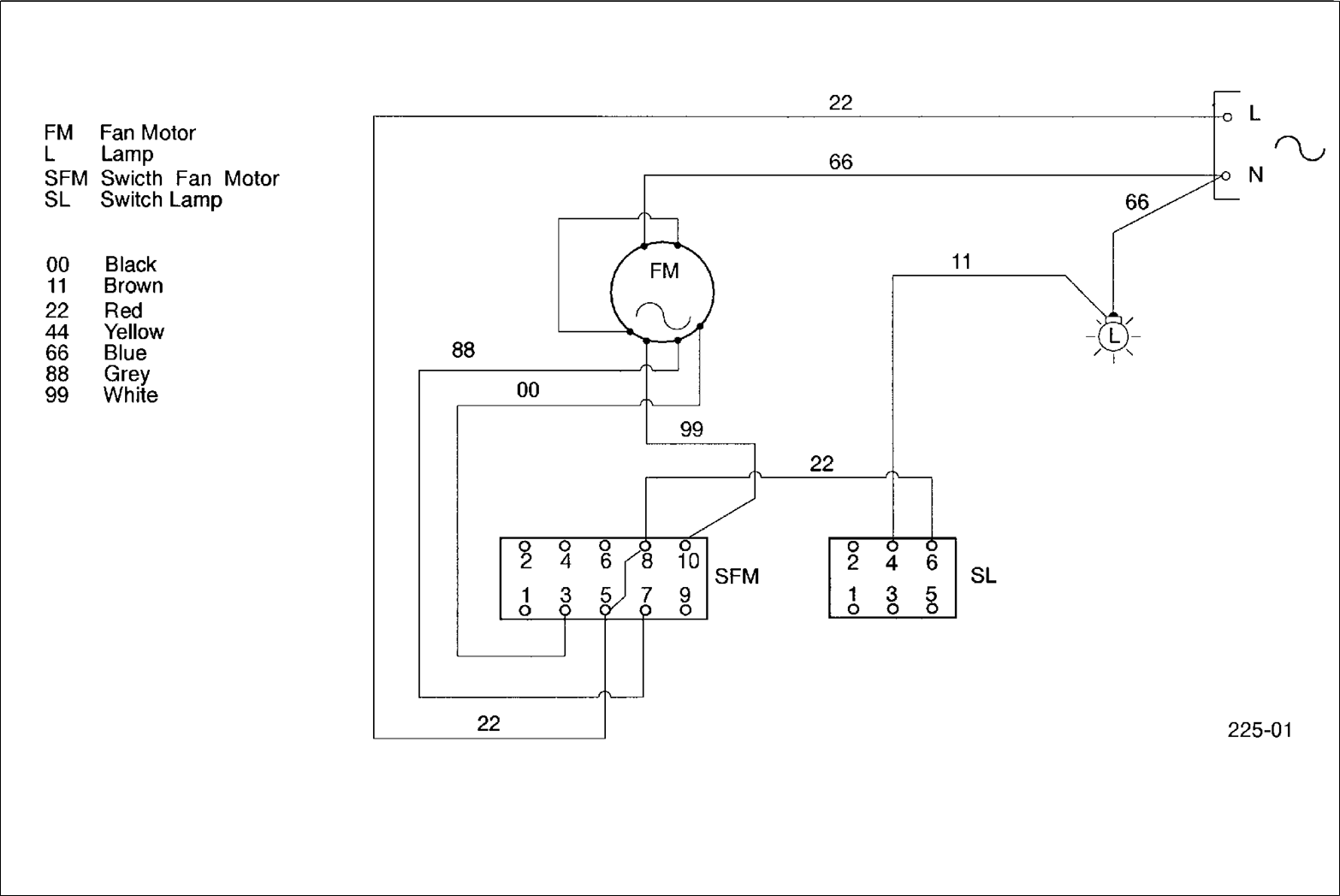

Wiring Diagram

Technical Data

Electricity

Voltage	220-240	V
Frequency	50	Hz

Power

Total	160	W
Fan motor	120	W
Illumination	40	W

Nominal air flow

Speed 1

External exhaustion	111	m³ /h
Recirculation	85	m³ /h

Speed 2

External exhaustion	131	m³ /h
Recirculation	110	m³ /h

Speed 3

External exhaustion	175	m³ /h
Recirculation	115	m³ /h

Noise level

Speed 1

External exhaustion	52	dB (A)
Recirculation	59	dB (A)

Speed 2

External exhaustion	59	dB (A)
Recirculation	62	dB (A)

Speed 3

External exhaustion	65	dB (A)
Recirculation	64	dB (A)

Distance from cooking area

Electric	650	mm
Gas	750	mm

Air exhaust

Flange

ø 100

Parts Manual
