6 AKR 420 WH-1
6 AKR 420 WH-1

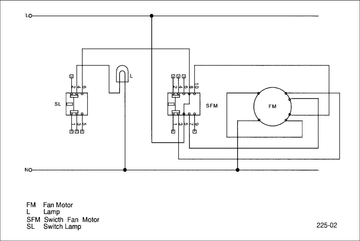

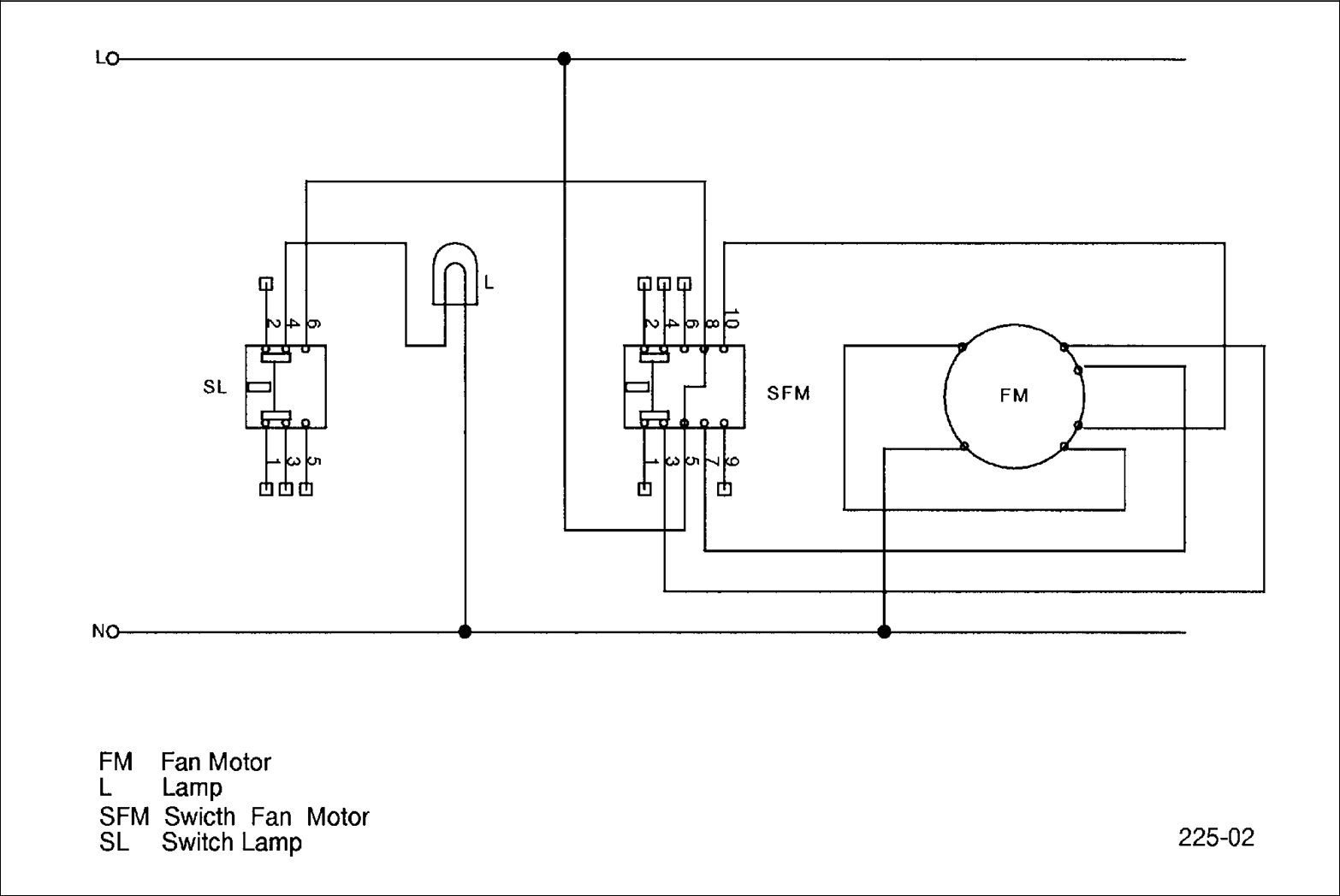

Wiring Diagram
Technical Data
Electricity
| Voltage | 240 | V |
| Frequency | 50 | Hz |
Power
| Total | 160 | W |
| Fan motor | 120 | W |
| Illumination | 40 | W |
Nominal air flow
Speed 1
| External exhaustion | 130 | m³ /h |
| Recirculation | 100 | m³ /h |
Speed 2
| External exhaustion | 150 | m³ /h |
| Recirculation | 130 | m³ /h |
Speed 3
| External exhaustion | 200 | m³ /h |
| Recirculation | 130 | m³ /h |
Noise level
Speed 1
| External exhaustion | 52 | dB (A) |
| Recirculation | 59 | dB (A) |
Speed 2
| External exhaustion | 59 | dB (A) |
| Recirculation | 62 | dB (A) |
Speed 3
| External exhaustion | 64 | dB (A) |
| Recirculation | 65 | dB (A) |
Distance from cooking area
| Electric | 650 | mm |
| Gas | 750 | mm |
Air exhaust
| Flange | ø 100 | mm |
