6AKP506/IX

Product Details	S.P. Ref.	S.P. Code
Sold Out Trim, side left Regular price $0.00 Sale price $0.00 Regular price Unit price	022 1	4819 460 78481
Sold Out Trim, side right Regular price $0.00 Sale price $0.00 Regular price Unit price	022 2	4819 460 78479
Sold Out Trim, lower Regular price $0.00 Sale price $0.00 Regular price Unit price	025 1	4819 460 78627
Sold Out Trim, lower Regular price $0.00 Sale price $0.00 Regular price Unit price	025 2	4819 460 78851
Sold Out Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	040 0	4812 417 18838
Sold Out Hinge runner mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	047 0	4812 417 18837
Sold Out Handle, door Regular price $0.00 Sale price $0.00 Regular price Unit price	110 0	4819 498 78005
Sold Out Rubber ring Regular price $0.00 Sale price $0.00 Regular price Unit price	110 1	4819 462 48456
Sold Out Inner door, oven Regular price $0.00 Sale price $0.00 Regular price Unit price	121 0	4819 442 39501
Sold Out Trim Regular price $0.00 Sale price $0.00 Regular price Unit price	121 3	4819 460 89431
Sold Out Oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	141 0	4819 450 69864
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	191 0	4819 468 18109
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	245 0	4819 458 68752
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	245 2	4819 458 19538
Sold Out Handle, griller pan Regular price $0.00 Sale price $0.00 Regular price Unit price	247 1	4819 395 48003
Sold Out Fat pan Regular price $0.00 Sale price $0.00 Regular price Unit price	247 2	4819 418 38328
Sold Out Shelf side rack, RHS Regular price $0.00 Sale price $0.00 Regular price Unit price	261 0	4819 458 68282
Sold Out Shelf side rack, LHS Regular price $0.00 Sale price $0.00 Regular price Unit price	261 1	4819 458 68283
Sold Out Control panel Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4819 453 58269
Sold Out Knob, thermostat Regular price $0.00 Sale price $0.00 Regular price Unit price	334 1	4819 411 29092
Sold Out Knob, selector switch Regular price $0.00 Sale price $0.00 Regular price Unit price	334 2	4819 411 29125
Sold Out Knob timer Regular price $0.00 Sale price $0.00 Regular price Unit price	334 8	4819 411 29168
Sold Out Pilot lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	351 0	4819 134 48424
Sold Out Lens red Regular price $0.00 Sale price $0.00 Regular price Unit price	354 0	4819 462 79749
Sold Out Guide pilot lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	354 3	4819 462 38759
Sold Out Motor 230 - 240 V, 22W Regular price $0.00 Sale price $0.00 Regular price Unit price	441 0	4819 361 18475
Sold Out Heating element upper/grill Regular price $0.00 Sale price $0.00 Regular price Unit price	452 0	4819 259 28851
Sold Out Heating element lower Regular price $0.00 Sale price $0.00 Regular price Unit price	456 0	4819 259 28847
Sold Out Connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	491 0	4812 290 68168
Sold Out Timer Regular price $0.00 Sale price $0.00 Regular price Unit price	503 0	4819 282 18675
Sold Out Thermostat Regular price $0.00 Sale price $0.00 Regular price Unit price	554 1	4819 282 28602
Sold Out Thermal fuse Regular price $0.00 Sale price $0.00 Regular price Unit price	562 0	4819 252 28078
Sold Out Switch, oven Regular price $0.00 Sale price $0.00 Regular price Unit price	620 9	4819 273 28401
Sold Out Lamp, oven, 25 W, 300°C Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 88153
Sold Out Holder, lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18237
Sold Out Lamp screen Regular price $0.00 Sale price $0.00 Regular price Unit price	656 0	4819 450 69844
Sold Out Stopper Regular price $0.00 Sale price $0.00 Regular price Unit price	694 2	4819 466 69505
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4819 505 18323
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	932 0	4819 492 68714
Sold Out Mounting kit Regular price $0.00 Sale price $0.00 Regular price Unit price	993 0	4819 310 39087

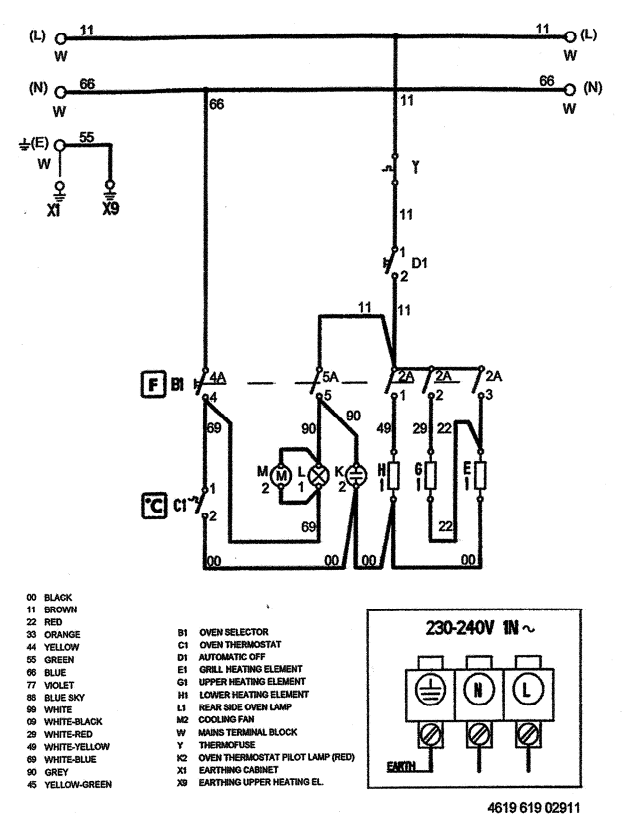

Wiring Diagram

Technical Data

Electrical Connection

Rated Voltage	230 - 240 V ~, 50	Hz
Main connection	Single Phase and neutral

Electrical Components

Auto Timer

Automatic-off (53.120.9.534.08)

Electrical Components

Auto timer

Electronic timer

Accessories

Fat pan enamelled	415 x 318	mm
Grid chrome	446.5 x 340	mm

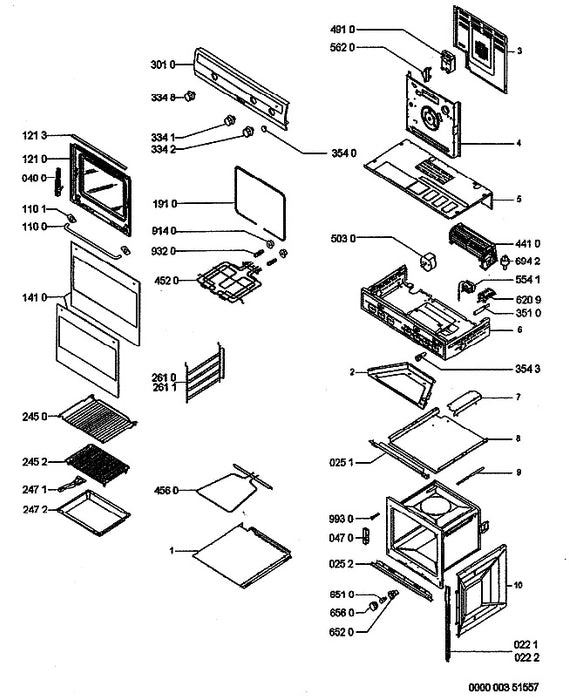

Parts Manual
