6AKP614/IX

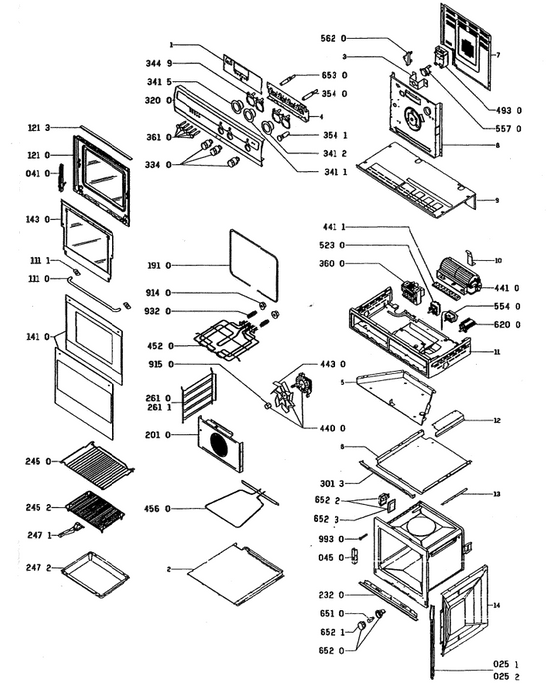

Product Details	S.P. Ref.	S.P. Code
Sold Out Trim, right side Regular price $0.00 Sale price $0.00 Regular price Unit price	025 1	4819 460 78189
Sold Out Trim, left side Regular price $0.00 Sale price $0.00 Regular price Unit price	025 2	4819 460 78191
Sold Out Hinge, door Regular price $0.00 Sale price $0.00 Regular price Unit price	041 0	4819 417 19458
Sold Out Hinge, runner mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	045 0	4819 466 89197
Sold Out Handle, door Regular price $0.00 Sale price $0.00 Regular price Unit price	111 0	4819 498 78005
Sold Out Handle gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	111 1	4819 462 48456
Sold Out Inner door & glass, oven Regular price $0.00 Sale price $0.00 Regular price Unit price	121 0	4819 442 38333
Sold Out Trim, top Regular price $0.00 Sale price $0.00 Regular price Unit price	121 3	4819 460 89431
Sold Out Glass, door front Regular price $0.00 Sale price $0.00 Regular price Unit price	141 0	4819 450 69864
Sold Out Frame Regular price $0.00 Sale price $0.00 Regular price Unit price	143 0	4819 459 28301
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	191 0	4819 468 18109
Sold Out Recirculating fan cover Regular price $0.00 Sale price $0.00 Regular price Unit price	201 0	4819 442 38093
Sold Out Trim Regular price $0.00 Sale price $0.00 Regular price Unit price	232 0	4819 460 78321
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	245 0	4819 458 68028
Sold Out Griller grid Regular price $0.00 Sale price $0.00 Regular price Unit price	245 2	4819 458 19538
Sold Out Handle, griller tray Regular price $0.00 Sale price $0.00 Regular price Unit price	247 1	4819 395 48003
Sold Out Fat pan Regular price $0.00 Sale price $0.00 Regular price Unit price	247 2	4819 418 38328
Sold Out Grid left Regular price $0.00 Sale price $0.00 Regular price Unit price	261 0	4819 458 19999
Sold Out Grid right Regular price $0.00 Sale price $0.00 Regular price Unit price	261 1	4819 458 19998
Sold Out Trim, lower Regular price $0.00 Sale price $0.00 Regular price Unit price	301 3	4819 460 89342
Sold Out Control panel Regular price $0.00 Sale price $0.00 Regular price Unit price	320 0	4819 453 58381
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	334 0	4819 411 29004
Sold Out Indication disc, thermostat Regular price $0.00 Sale price $0.00 Regular price Unit price	341 1	4819 413 79078
Sold Out Indication disc, function switch Regular price $0.00 Sale price $0.00 Regular price Unit price	341 2	4819 413 79081
Sold Out Indication disc, grill control knob Regular price $0.00 Sale price $0.00 Regular price Unit price	341 5	4819 413 79079
Sold Out Ring, control knob Regular price $0.00 Sale price $0.00 Regular price Unit price	344 9	4819 532 28269
Sold Out Lamp, indicator Regular price $0.00 Sale price $0.00 Regular price Unit price	354 0	4812 134 48021
Sold Out Lens red Regular price $0.00 Sale price $0.00 Regular price Unit price	354 1	4819 381 18076
Sold Out Timer Regular price $0.00 Sale price $0.00 Regular price Unit price	360 0	4819 282 18665
Sold Out Pushbutton, timer Regular price $0.00 Sale price $0.00 Regular price Unit price	361 0	4819 410 28689
Sold Out Fan, recirculating Regular price $0.00 Sale price $0.00 Regular price Unit price	440 0	4819 361 78231
Sold Out Motor, cooling fan Regular price $0.00 Sale price $0.00 Regular price Unit price	441 0	4819 361 18374
Sold Out Gasket, cooling fan Regular price $0.00 Sale price $0.00 Regular price Unit price	441 1	4819 468 18099
Sold Out Fan wheel, recirculating Regular price $0.00 Sale price $0.00 Regular price Unit price	443 0	4819 515 28115
Sold Out Heating element, griller/top oven Regular price $0.00 Sale price $0.00 Regular price Unit price	452 0	4819 259 28843
Sold Out Heating element, under oven Regular price $0.00 Sale price $0.00 Regular price Unit price	456 0	4819 259 28847
Sold Out Terminal block, mains Regular price $0.00 Sale price $0.00 Regular price Unit price	493 0	4819 290 68363
Sold Out Energy regulator, griller Regular price $0.00 Sale price $0.00 Regular price Unit price	523 0	4819 273 28321
Sold Out Thermostat, oven Regular price $0.00 Sale price $0.00 Regular price Unit price	554 0	4819 282 28603
Sold Out Thermal cutout Regular price $0.00 Sale price $0.00 Regular price Unit price	557 0	4819 282 28564
Sold Out Thermal fuse Regular price $0.00 Sale price $0.00 Regular price Unit price	562 0	4819 252 28078
Sold Out Switch, oven function Regular price $0.00 Sale price $0.00 Regular price Unit price	620 0	4819 273 28414
Sold Out Lamp, oven Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 88153
Sold Out Lampholder, rear Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18214
Sold Out Rear lamp lens Regular price $0.00 Sale price $0.00 Regular price Unit price	652 1	4819 450 69844
Sold Out Lampholder, side Regular price $0.00 Sale price $0.00 Regular price Unit price	652 2	4819 255 18203
Sold Out Side lamp lens Regular price $0.00 Sale price $0.00 Regular price Unit price	652 3	4819 450 69876
Sold Out Indicator Lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	653 0	4819 134 88189
Sold Out Nut, element hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4819 505 18323
Sold Out Nut, recirculating fan Regular price $0.00 Sale price $0.00 Regular price Unit price	915 0	4819 505 18145
Sold Out Spring, element hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	932 0	4819 492 68714
Sold Out Mounting kit Regular price $0.00 Sale price $0.00 Regular price Unit price	993 0	4819 310 39087

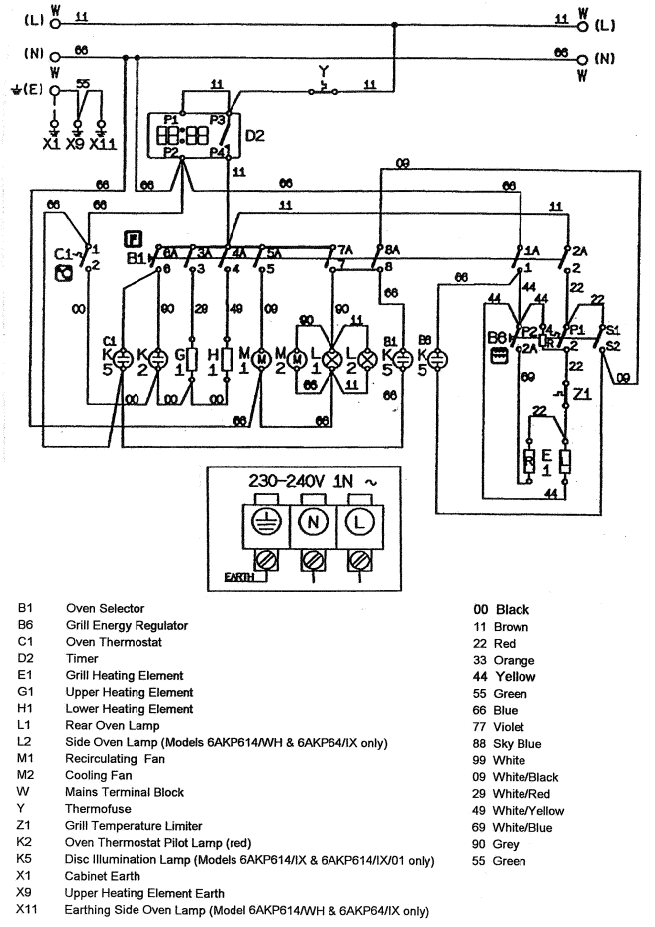

Wiring Diagram

Technical Data

Electrical Connection

Rated voltage	230 - 240	Volts AC
Main connection	Single Phase and Neutral
Maximum rated power	2550	Watts
Upper heating element	900	Watts
Lower heating element	1000	Watts
Grill heating element left	1350	Watts
Grill heating element right	1100	Watts

Electrical Components

Electronic timer type

DAC 88 C 0018

Accessories

Pan set enameled	415.5 x 318.5 x 40.5	mm
Griller grid - chrome	377 x 262 x 64	mm
Oven shelf	446.5 x 340	mm

Parts Manual
