6AKP635/WH

Product Details	S.P. Ref.	S.P. Code
Sold Out Trim side left Regular price $0.00 Sale price $0.00 Regular price Unit price	022 1	4819 460 78449
Sold Out Trim side right Regular price $0.00 Sale price $0.00 Regular price Unit price	022 2	4819 460 78448
Sold Out Angle iron left + righ Regular price $0.00 Sale price $0.00 Regular price Unit price	022 3	4819 310 39642
Sold Out Trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	025 1	4819 460 78628
Sold Out Trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	025 2	4819 460 78849
Sold Out Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	040 0	4812 417 18838
Sold Out Hinge running mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	047 0	4812 417 18837
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	110 0	4812 498 78058
Sold Out Oven door inner Regular price $0.00 Sale price $0.00 Regular price Unit price	121 0	4819 442 39501
Sold Out Oven glass WH Regular price $0.00 Sale price $0.00 Regular price Unit price	141 0	4812 450 58296
Sold Out Gasket 1045mm Regular price $0.00 Sale price $0.00 Regular price Unit price	191 0	4819 468 18109
Sold Out Panel rear Regular price $0.00 Sale price $0.00 Regular price Unit price	201 0	4812 442 69022
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	245 0	4819 458 68752
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	245 2	4819 458 19538
Sold Out Handle grid Regular price $0.00 Sale price $0.00 Regular price Unit price	247 1	4819 395 48003
Sold Out Fat pan Regular price $0.00 Sale price $0.00 Regular price Unit price	247 2	4812 418 38056
Sold Out Inset grid right Regular price $0.00 Sale price $0.00 Regular price Unit price	261 0	4819 458 68282
Sold Out Inset grid left Regular price $0.00 Sale price $0.00 Regular price Unit price	261 1	4819 458 68283
Sold Out Panel control Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4812 453 19532
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	334 0	4812 412 78554
Sold Out Pilot lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	351 0	4819 134 48424
Sold Out Lens red Regular price $0.00 Sale price $0.00 Regular price Unit price	354 0	4819 462 79749
Sold Out Guide pilot lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	354 3	4819 462 38759
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	440 0	4812 361 18302
Sold Out Motor tangential fan 240V Regular price $0.00 Sale price $0.00 Regular price Unit price	441 0	4819 361 18476
Sold Out Fan 6-blades Regular price $0.00 Sale price $0.00 Regular price Unit price	443 0	4819 515 48065
Sold Out Heating element 240 V Regular price $0.00 Sale price $0.00 Regular price Unit price	452 0	4812 259 28723
Sold Out Heating element lower Regular price $0.00 Sale price $0.00 Regular price Unit price	456 0	4819 259 28847
Sold Out Connectionblock Regular price $0.00 Sale price $0.00 Regular price Unit price	491 0	4812 290 68168
Sold Out Timer Regular price $0.00 Sale price $0.00 Regular price Unit price	503 0	4819 282 18675
Sold Out Thermostat Prodigy TR741-0112 Regular price $0.00 Sale price $0.00 Regular price Unit price	554 0	4812 282 28227
Sold Out Thermostat Regular price $0.00 Sale price $0.00 Regular price Unit price	557 0	4812 252 28035
Sold Out Oven switch Regular price $0.00 Sale price $0.00 Regular price Unit price	620 0	4812 273 28151
Sold Out Oven lamp 25W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 88153
Sold Out Holder lamp rear Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18237
Sold Out Lamp screen rear Regular price $0.00 Sale price $0.00 Regular price Unit price	656 0	4819 450 69844
Sold Out Stopper Regular price $0.00 Sale price $0.00 Regular price Unit price	694 2	4819 466 69505
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4819 505 18323
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	915 0	4819 505 18145
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	932 0	4819 492 68714
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	950 1	4819 468 18336
Sold Out Mounting kit Regular price $0.00 Sale price $0.00 Regular price Unit price	993 0	4819 310 39648

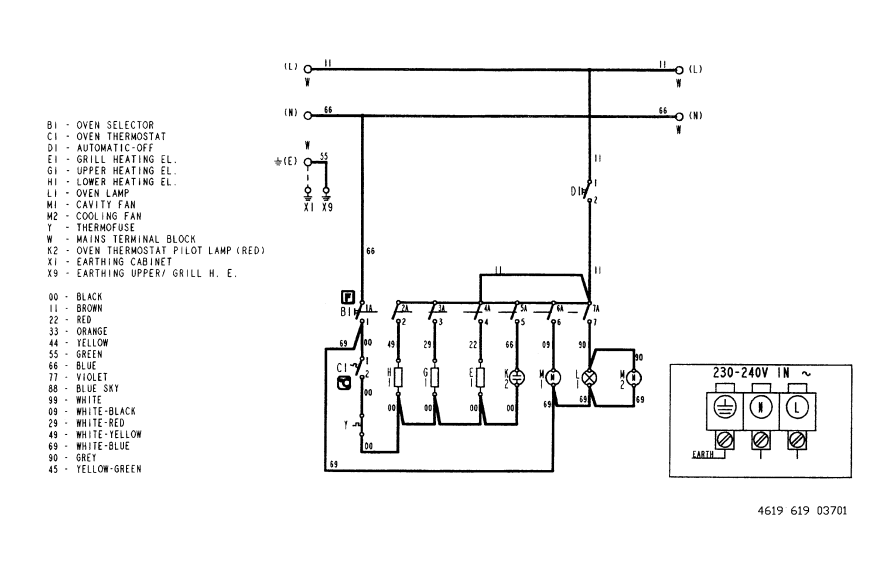

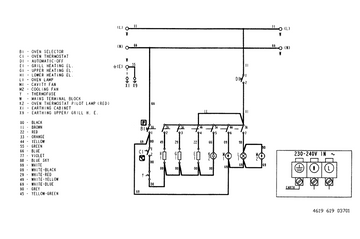

Wiring Diagram

Technical Data

Electrical base data

Rated Voltage	230 - 240	V
Main Connection	230 Hz - 240 V 1N~ 50	Hz

Power Consumption

Usable simultaneously	2400	W
Upper heating element	860	W
Lower heating element	960	W
Grill heating element	2400	W
Power Consumption	-

Electrical components

Auto timer

Automatic-off

Accessories

Grid chrome	446.5 x 340	mm
Pan set enameled	415 x 318	mm

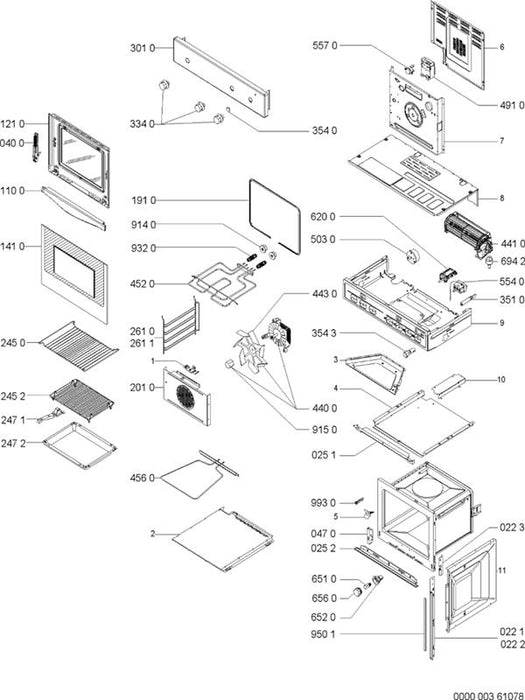

Parts Manual
