6AKR615/BL

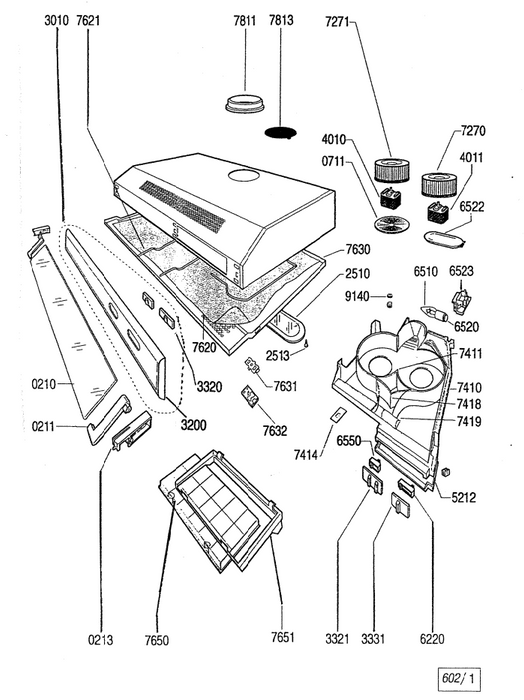

Product Details	S.P. Ref.	S.P. Code
Sold Out Glass panel Regular price $0.00 Sale price $0.00 Regular price Unit price	021 0	4819 442 28793
Sold Out End block, glass panel Regular price $0.00 Sale price $0.00 Regular price Unit price	021 1	4819 466 99121
Sold Out Hinge, glass panel, pair Regular price $0.00 Sale price $0.00 Regular price Unit price	021 3	4819 462 38568
Sold Out Fan guard Regular price $0.00 Sale price $0.00 Regular price Unit price	071 1	4819 404 79345
Sold Out Cover, lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	251 0	4819 462 79964
Sold Out Pin, lamp lens Regular price $0.00 Sale price $0.00 Regular price Unit price	251 3	4819 492 68622
Sold Out Control panel Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4819 452 99812
Sold Out Insert, light button Regular price $0.00 Sale price $0.00 Regular price Unit price	332 1	4819 535 28016
Sold Out Insert, fan button Regular price $0.00 Sale price $0.00 Regular price Unit price	333 1	4819 535 28017
Sold Out Motor, left Regular price $0.00 Sale price $0.00 Regular price Unit price	401 0	4819 361 18274
Sold Out Motor, right Regular price $0.00 Sale price $0.00 Regular price Unit price	401 1	4819 361 18415
Sold Out Cover Regular price $0.00 Sale price $0.00 Regular price Unit price	521 2	4819 462 79038
Sold Out Switch, fan motor Regular price $0.00 Sale price $0.00 Regular price Unit price	622 0	4819 276 18053
Sold Out Lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 88185
Sold Out Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18173
Sold Out Lamp reflector Regular price $0.00 Sale price $0.00 Regular price Unit price	652 2	4819 380 28018
Sold Out Lampholder Regular price $0.00 Sale price $0.00 Regular price Unit price	652 3	4819 255 18236
Sold Out Switch, light Regular price $0.00 Sale price $0.00 Regular price Unit price	655 0	4819 276 18054
Sold Out Fan wheel, right Regular price $0.00 Sale price $0.00 Regular price Unit price	727 0	4819 515 28266
Sold Out Fan wheel, left Regular price $0.00 Sale price $0.00 Regular price Unit price	727 1	4819 515 28265
Sold Out Chassis, moulded Regular price $0.00 Sale price $0.00 Regular price Unit price	741 0	4819 442 68914
Sold Out Fan housing Regular price $0.00 Sale price $0.00 Regular price Unit price	741 1	4819 442 68911
Sold Out Key Regular price $0.00 Sale price $0.00 Regular price Unit price	741 4	4819 535 28023
Sold Out Flap, left, moveable Regular price $0.00 Sale price $0.00 Regular price Unit price	741 8	4819 442 68913
Sold Out Flap, right, moveable Regular price $0.00 Sale price $0.00 Regular price Unit price	741 9	4819 442 68912
Sold Out Filter, grease Regular price $0.00 Sale price $0.00 Regular price Unit price	762 0	4819 480 48215
Sold Out Filter support Regular price $0.00 Sale price $0.00 Regular price Unit price	762 1	4819 459 48453
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	763 0	4819 458 58404
Sold Out Blocking, grid Regular price $0.00 Sale price $0.00 Regular price Unit price	763 1	4819 404 49894
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	763 2	4819 411 29304
Sold Out Carbon filter (Option only) Regular price $0.00 Sale price $0.00 Regular price Unit price	765 0	4819 480 48324
Sold Out Support, carbon filter Regular price $0.00 Sale price $0.00 Regular price Unit price	765 1	4819 480 48327
Sold Out Flange Regular price $0.00 Sale price $0.00 Regular price Unit price	781 1	4819 532 78235
Sold Out Flue blank Regular price $0.00 Sale price $0.00 Regular price Unit price	781 3	4819 462 79992
Sold Out Nut, motor Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4819 505 18362

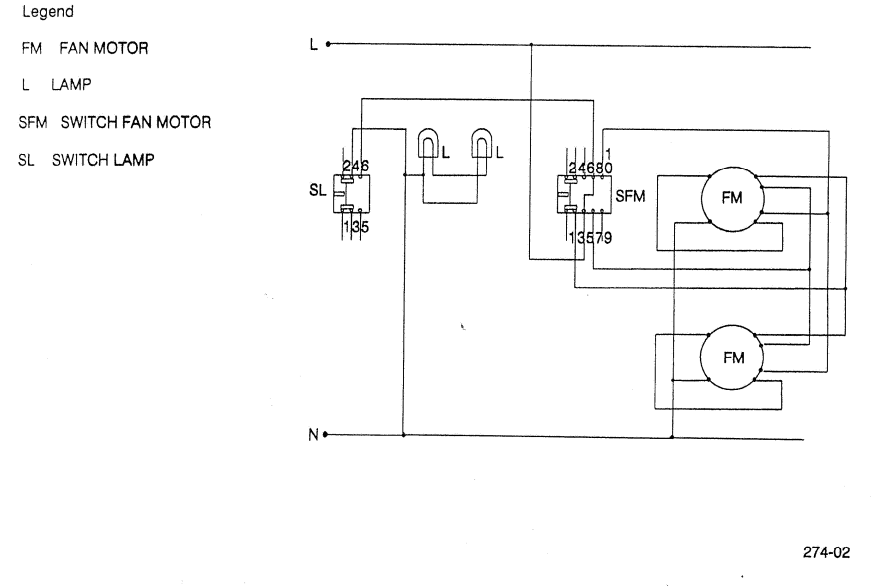

Wiring Diagram

Technical Data

Electrical Connection

Rated Voltage	230 - 240	W
Frequency	50	Hz

Rated Power

Fan motor	2 x 120	W
Illumination	2 x 40	W
Total	320	W

Nominal air flow

Speed 1

External venting	178	m³ /h
Recirculation	150	m³ /h

Speed 2

External venting	270	m³ /h
Recirculation	184	m³ /h

Speed 3 (Maximum)

External venting	337	m³ /h
Recirculation	205	m³ /h

Noise level

Speed 1

External venting	54	dB (A)
Recirculation	62	dB (A)

Speed 2

External venting	65	dB (A)
Recirculation	69	dB (A)

Speed 3 (Maximum)

External venting	71	dB (A)
Recirculation	71	dB (A)

INSTALLATION DETAILS

Minimum Vertical Distance from Cooktop Burner

Electric	650	mm
Gas	750	mm

Air exhaust

Flange	120	mm
Duct diameter	125	mm

Parts Manual
