6AKR930/WH

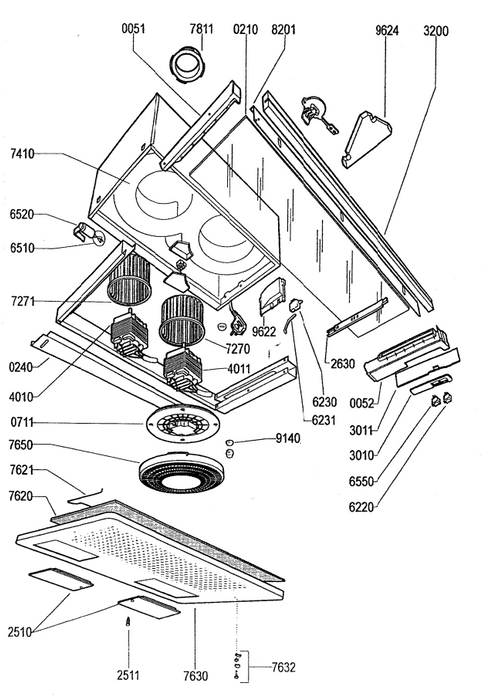

Product Details	S.P. Ref.	S.P. Code
Sold Out Mountain Kit (Not shown) Regular price $0.00 Sale price $0.00 Regular price Unit price	000 0	4819 310 39436
Sold Out Panel, left slide Regular price $0.00 Sale price $0.00 Regular price Unit price	005 1	4819 442 28035
Sold Out Panel, right slide Regular price $0.00 Sale price $0.00 Regular price Unit price	005 2	4819 442 28036
Sold Out Glass panel Regular price $0.00 Sale price $0.00 Regular price Unit price	021 0	4819 442 29365
Sold Out Rear cover plate Regular price $0.00 Sale price $0.00 Regular price Unit price	024 0	4819 460 78536
Sold Out Grille, motor Regular price $0.00 Sale price $0.00 Regular price Unit price	071 1	4819 404 79314
Sold Out Light lens Regular price $0.00 Sale price $0.00 Regular price Unit price	251 0	4819 462 79963
Sold Out Light lens fixing pin Regular price $0.00 Sale price $0.00 Regular price Unit price	251 1	4819 492 68622
Sold Out Moving slide Regular price $0.00 Sale price $0.00 Regular price Unit price	263 0	4819 462 38541
Sold Out Panel, control Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4819 442 28041
Sold Out Switch cover Regular price $0.00 Sale price $0.00 Regular price Unit price	301 1	4819 462 79787
Sold Out Slide front panel Regular price $0.00 Sale price $0.00 Regular price Unit price	320 0	4819 452 99693
Sold Out Motor, fan left Regular price $0.00 Sale price $0.00 Regular price Unit price	401 0	4819 361 18137
Sold Out Motor, fan right Regular price $0.00 Sale price $0.00 Regular price Unit price	401 1	4819 361 78136
Sold Out Switch, white, fan Regular price $0.00 Sale price $0.00 Regular price Unit price	622 0	4819 277 38009
Sold Out Microswitch Regular price $0.00 Sale price $0.00 Regular price Unit price	623 0	4819 271 38095
Sold Out Microswitch lever Regular price $0.00 Sale price $0.00 Regular price Unit price	623 1	4819 535 98602
Sold Out Lamp (E14) 230 - 240V 40W Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4812 047 29222
Sold Out Lampholder Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18197
Sold Out Light switch, white Regular price $0.00 Sale price $0.00 Regular price Unit price	655 0	4819 277 38008
Sold Out Fan wheel, right Regular price $0.00 Sale price $0.00 Regular price Unit price	727 0	4819 515 28276
Sold Out Fan wheel, left Regular price $0.00 Sale price $0.00 Regular price Unit price	727 1	4819 515 28275
Sold Out Fan housing Regular price $0.00 Sale price $0.00 Regular price Unit price	741 0	4819 442 68523
Sold Out Filter, grease Regular price $0.00 Sale price $0.00 Regular price Unit price	762 0	4819 480 48314
Sold Out Spring, filter Regular price $0.00 Sale price $0.00 Regular price Unit price	762 1	4819 492 68442
Sold Out Filter cover panel Regular price $0.00 Sale price $0.00 Regular price Unit price	763 0	4819 458 58398
Sold Out Clamp for filter cover panel Regular price $0.00 Sale price $0.00 Regular price Unit price	763 2	4819 401 18226
Sold Out Carbon filter, recirculating mode only Regular price $0.00 Sale price $0.00 Regular price Unit price	765 0	4819 480 48137
Sold Out Flange Regular price $0.00 Sale price $0.00 Regular price Unit price	781 1	4819 532 78218
Sold Out Flap, front Regular price $0.00 Sale price $0.00 Regular price Unit price	820 1	4819 442 29366
Sold Out Nut motor Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4819 505 18246
Sold Out Guard Regular price $0.00 Sale price $0.00 Regular price Unit price	962 2	4819 462 58195
Sold Out Cover, electrical Regular price $0.00 Sale price $0.00 Regular price Unit price	962 4	4819 462 79982

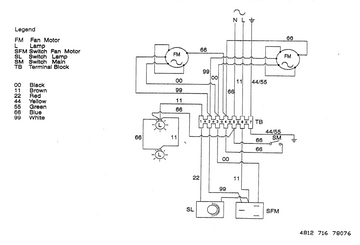

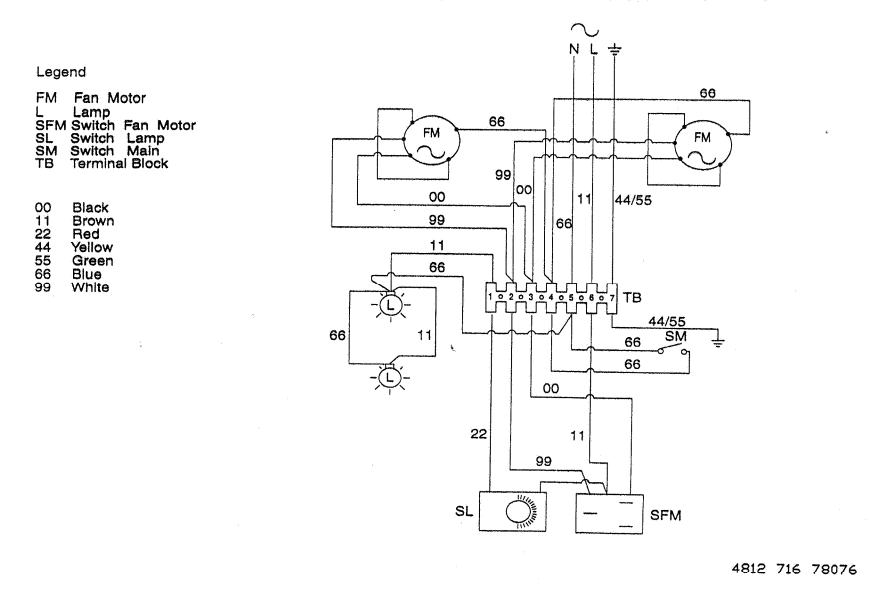

Wiring Diagram

Technical Data

Electrical Connection

Rated Voltage	230 - 240	W
Frequency	50	Hz

Rated Power

Fan motor	2 x 120	W
Illumination	2 x 40	W
Total	320td>	W

Nominal air flow

Speed 1

External venting	200	m³ /h
Recirculation	188	m³ /h

Speed 2

External venting	281	m³ /h
Recirculation	268	m³ /h

Noise level

Speed 1

External venting	59	dB (A)
Recirculation	62	dB (A)

Speed 2

External venting	66	dB (A)
Recirculation	67	dB (A)

Installation Details

Minimum Vertical Distance from Cooktop Burner

Electric	650	mm
Gas	750	mm

Air exhaust

Flange	120	mm
Duct diameter	125	mm

Parts Manual
