6AKR975/IX

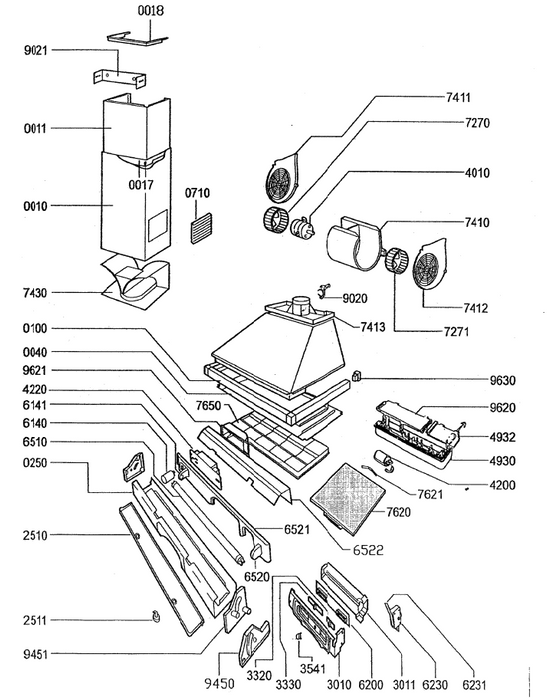

Product Details	S.P. Ref.	S.P. Code
Sold Out Flue cover, lower Regular price $0.00 Sale price $0.00 Regular price Unit price	001 0	4819 310 88629
Sold Out Flue cover, upper Regular price $0.00 Sale price $0.00 Regular price Unit price	001 1	4812 310 48005
Sold Out Chimney Regular price $0.00 Sale price $0.00 Regular price Unit price	001 7	4819 310 88608
Sold Out Flue cover, escutcheon Regular price $0.00 Sale price $0.00 Regular price Unit price	001 8	4819 310 88609
Sold Out Frame, control panel Regular price $0.00 Sale price $0.00 Regular price Unit price	004 0	4819 404 78753
Sold Out Frame, canopy Regular price $0.00 Sale price $0.00 Regular price Unit price	010 0	4819 459 48424
Sold Out Holder, control panel Regular price $0.00 Sale price $0.00 Regular price Unit price	025 0	4819 404 78778
Sold Out Louvred vent, flue cover Regular price $0.00 Sale price $0.00 Regular price Unit price	071 0	4819 442 68532
Sold Out Lamp lens Regular price $0.00 Sale price $0.00 Regular price Unit price	251 0	4819 442 28299
Sold Out Knob, lamp lens Regular price $0.00 Sale price $0.00 Regular price Unit price	251 1	4819 401 18449
Sold Out Control panel Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4819 452 99602
Sold Out Support, control panel Regular price $0.00 Sale price $0.00 Regular price Unit price	301 1	4819 404 79218
Sold Out Knob, slide light switch Regular price $0.00 Sale price $0.00 Regular price Unit price	332 0	4819 276 18138
Sold Out Knob, slide fan motor Regular price $0.00 Sale price $0.00 Regular price Unit price	333 0	4819 276 18137
Sold Out Lens, indicator lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	354 1	4819 381 18121
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	401 0	4819 361 18352
Sold Out Capacitor Regular price $0.00 Sale price $0.00 Regular price Unit price	420 0	4812 121 18096
Sold Out Fluorescent lamp ballast Regular price $0.00 Sale price $0.00 Regular price Unit price	422 0	4819 219 88006
Sold Out Enclosure, electrical parts Regular price $0.00 Sale price $0.00 Regular price Unit price	493 0	4819 418 79419
Sold Out Cover, connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	493 2	4819 462 79917
Sold Out Starter Regular price $0.00 Sale price $0.00 Regular price Unit price	614 0	4819 219 88005
Sold Out Lampholder Regular price $0.00 Sale price $0.00 Regular price Unit price	614 1	4819 255 18161
Sold Out Board, printed Regular price $0.00 Sale price $0.00 Regular price Unit price	620 0	4819 214 78499
Sold Out Microswitch Regular price $0.00 Sale price $0.00 Regular price Unit price	623 0	4819 271 38095
Sold Out Lever, microswitch Regular price $0.00 Sale price $0.00 Regular price Unit price	623 1	4819 535 98336
Sold Out Fluorescent lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 28032
Sold Out Lampholder Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18159
Sold Out Chassis, flourescent light Regular price $0.00 Sale price $0.00 Regular price Unit price	652 1	4819 404 79219
Sold Out Reflector fluorescent lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 1	4812 440 68009
Sold Out Fan wheel, left Regular price $0.00 Sale price $0.00 Regular price Unit price	727 0	4819 515 28263
Sold Out Fan wheel, right Regular price $0.00 Sale price $0.00 Regular price Unit price	727 1	4819 515 28262
Sold Out Fan housing Regular price $0.00 Sale price $0.00 Regular price Unit price	741 0	4819 442 68529
Sold Out Fan guard, left Regular price $0.00 Sale price $0.00 Regular price Unit price	741 1	4819 458 58701
Sold Out Fan guard, right Regular price $0.00 Sale price $0.00 Regular price Unit price	741 2	4819 458 58699
Sold Out Moulded canopy top Regular price $0.00 Sale price $0.00 Regular price Unit price	741 3	4819 526 48461
Sold Out Defector duct Regular price $0.00 Sale price $0.00 Regular price Unit price	743 0	4819 480 48296
Sold Out Filter, grease Regular price $0.00 Sale price $0.00 Regular price Unit price	762 0	4819 480 48155
Sold Out Spring clip, grease filter Regular price $0.00 Sale price $0.00 Regular price Unit price	762 1	4819 492 68617
Sold Out Carbon filter (Option only) Regular price $0.00 Sale price $0.00 Regular price Unit price	765 0	4819 480 48151
Sold Out Hook Regular price $0.00 Sale price $0.00 Regular price Unit price	902 0	4819 401 18448
Sold Out Bracket, wall Regular price $0.00 Sale price $0.00 Regular price Unit price	902 1	4819 310 88524
Sold Out Bearing, control enclosure Regular price $0.00 Sale price $0.00 Regular price Unit price	945 0	4819 466 88855
Sold Out Support, control enclosure Regular price $0.00 Sale price $0.00 Regular price Unit price	945 1	4819 418 79421
Sold Out Cover, connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	962 0	4819 462 79918
Sold Out Guard Regular price $0.00 Sale price $0.00 Regular price Unit price	962 1	4819 462 58266
Sold Out Cap, canopy frame Regular price $0.00 Sale price $0.00 Regular price Unit price	963 0	4812 462 78067

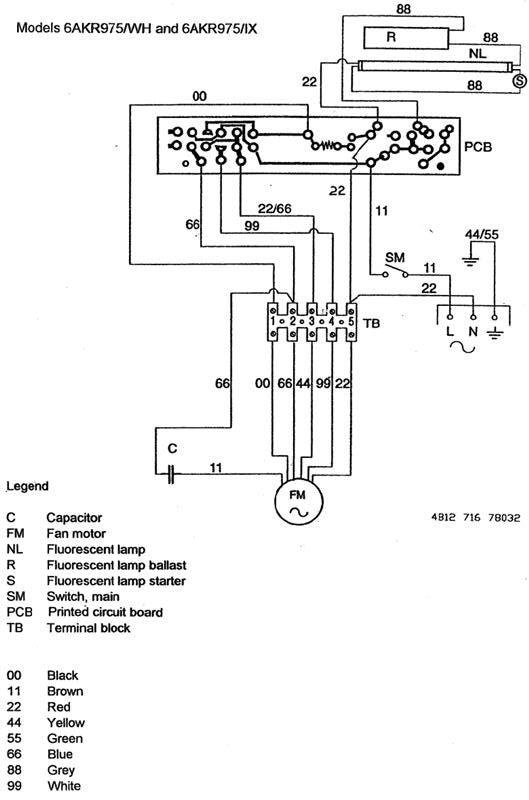

Wiring Diagram

Technical Data

Electrical Connection

Voltage	230 - 240	V
Frequency	50	Hz

Rated Power

Fan motor	186	W
Light	14	W
Total	200	W

Nominal air flow

Speed 1

External venting	194	m³ /h
Recirculation	155	m³ /h

Speed 2

External venting	312	m³ /h
Recirculation	256	m³ /h

Speed 3

External venting	417	m³ /h
Recirculation	340	m³ /h

Speed 4 (Maximum)

External venting	510	m³ /h
Recirculation	420	m³ /h

Noise level

Speed 1

External venting	50	dB (A)
Recirculation	51	dB (A)

Speed 2

External venting	61	dB (A)
Recirculation	62	dB (A)

Speed 3

External venting	68	dB (A)
Recirculation	69	dB (A)

Speed 4 (Maximum)

External venting	71	dB (A)
Recirculation	73	dB (A)

Installation Details

Vertical Distance from cooking area

Electric	650	mm
Gas	750	mm

Air exhaust

Flange	120	mm
Duct diameter	125	mm
