6AKZ 177 IX

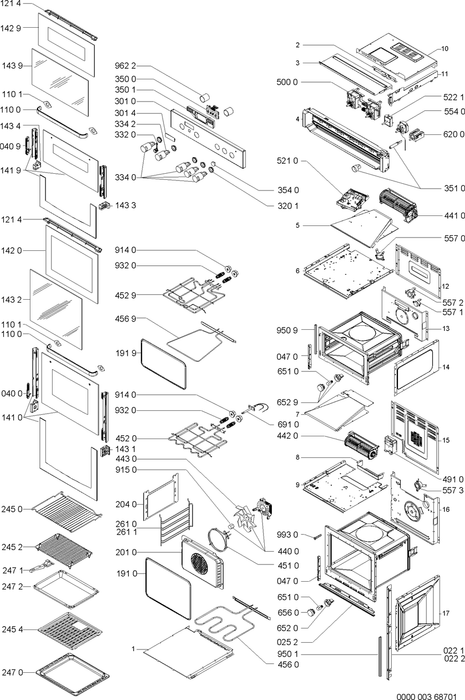

Product Details	S.P. Ref.	S.P. Code
Sold Out Trim side left Regular price $0.00 Sale price $0.00 Regular price Unit price	0221	4812 460 68632
Sold Out Trim side right Regular price $0.00 Sale price $0.00 Regular price Unit price	0222	4812 460 68631
Sold Out Profile Regular price $0.00 Sale price $0.00 Regular price Unit price	0252	4812 460 68641
Sold Out Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	0400	4801 211 00252
Sold Out Hinge 3 glass 3M Regular price $0.00 Sale price $0.00 Regular price Unit price	0409	4801 211 00256
Sold Out Cover hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	0470	4812 417 78152
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1100	4812 498 68259
Sold Out Rubber door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1101	4812 466 68858
Sold Out Exhaust fume Regular price $0.00 Sale price $0.00 Regular price Unit price	1214	4812 460 58418
Sold Out Oven door Regular price $0.00 Sale price $0.00 Regular price Unit price	1410	4810 613 03951
Sold Out Oven glass 3M Regular price $0.00 Sale price $0.00 Regular price Unit price	1419	4812 450 59821
Sold Out Inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1420	4812 450 59576
Sold Out Inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1429	4812 450 59679
Sold Out Support glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1431	4812 404 38808
Sold Out Inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1432	4812 450 59599
Sold Out Support door glass right Regular price $0.00 Sale price $0.00 Regular price Unit price	1433	4812 462 58102
Sold Out Support door glass left Regular price $0.00 Sale price $0.00 Regular price Unit price	1434	4812 462 58103
Sold Out Inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1439	4812 450 59678
Sold Out Gasket door 6M Regular price $0.00 Sale price $0.00 Regular price Unit price	1910	4812 466 68922
Sold Out Gasket door 3M Regular price $0.00 Sale price $0.00 Regular price Unit price	1919	4812 466 68923
Sold Out Panel rear Regular price $0.00 Sale price $0.00 Regular price Unit price	2010	4812 442 69506
Sold Out Panel Regular price $0.00 Sale price $0.00 Regular price Unit price	2040	4810 610 84062
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	2450	4819 458 68752
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	2452	4819 458 19538
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	2454	4819 418 38376
Sold Out Fat pan enamelled Regular price $0.00 Sale price $0.00 Regular price Unit price	2470	4810 104 26479
Sold Out Handle grid Regular price $0.00 Sale price $0.00 Regular price Unit price	2471	4819 395 48003
Sold Out Fat pan enameled Regular price $0.00 Sale price $0.00 Regular price Unit price	2472	4812 418 38149
Sold Out Inset grid right Regular price $0.00 Sale price $0.00 Regular price Unit price	2610	4819 458 68282
Sold Out Inset grid left Regular price $0.00 Sale price $0.00 Regular price Unit price	2611	4819 458 68283
Sold Out Panel control Regular price $0.00 Sale price $0.00 Regular price Unit price	3010	4812 452 49978
Sold Out Glass panel timer Regular price $0.00 Sale price $0.00 Regular price Unit price	3014	4819 453 59373
Sold Out Clamp ring Regular price $0.00 Sale price $0.00 Regular price Unit price	3201	4812 530 58163
Sold Out Push button Regular price $0.00 Sale price $0.00 Regular price Unit price	3320	4812 410 29472
Sold Out Knob oven Regular price $0.00 Sale price $0.00 Regular price Unit price	3340	4812 412 79179
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	3342	4812 412 78882
Sold Out Display Regular price $0.00 Sale price $0.00 Regular price Unit price	3500	4812 130 08762
Sold Out Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	3501	4812 404 78333
Sold Out Kit Pilot lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	3510	4801 310 00099
Sold Out Lens red Regular price $0.00 Sale price $0.00 Regular price Unit price	3540	4819 462 79749
Sold Out Fan motor Regular price $0.00 Sale price $0.00 Regular price Unit price	4400	4812 361 18466
Sold Out Air cooling fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4410	4812 361 18497
Sold Out Air cooling fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4420	4812 361 18496
Sold Out Fan 6-blades Regular price $0.00 Sale price $0.00 Regular price Unit price	4430	4819 515 48065
Sold Out Heating element forced air 2000W 240V Regular price $0.00 Sale price $0.00 Regular price Unit price	4510	4812 259 98405
Sold Out Heating element Regular price $0.00 Sale price $0.00 Regular price Unit price	4520	4812 259 98574
Sold Out Heating element dual grill Regular price $0.00 Sale price $0.00 Regular price Unit price	4529	4812 259 98494
Sold Out Heating element lower 240V 1450W Regular price $0.00 Sale price $0.00 Regular price Unit price	4560	4819 259 28989
Sold Out Heating element lower Regular price $0.00 Sale price $0.00 Regular price Unit price	4569	4819 259 28847
Sold Out Connectionblock Regular price $0.00 Sale price $0.00 Regular price Unit price	4910	4812 290 68168
Sold Out Control module G2 Regular price $0.00 Sale price $0.00 Regular price Unit price	5000	4812 214 58464
Sold Out power unit Antares Basic Regular price $0.00 Sale price $0.00 Regular price Unit price	5210	4801 310 00151
Sold Out Energy Regulator Regular price $0.00 Sale price $0.00 Regular price Unit price	5221	4812 273 18069
Sold Out Thermostat oven assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	5540	4812 282 38164
Sold Out Thermostat 130°C Regular price $0.00 Sale price $0.00 Regular price Unit price	5570	4812 282 28315
Sold Out Thermostat 70°C Regular price $0.00 Sale price $0.00 Regular price Unit price	5571	4812 282 28316
Sold Out Thermostat 250°C Regular price $0.00 Sale price $0.00 Regular price Unit price	5572	4812 282 28317
Sold Out Thermostat 115°C Regular price $0.00 Sale price $0.00 Regular price Unit price	5573	4812 282 28346
Sold Out Oven switch Regular price $0.00 Sale price $0.00 Regular price Unit price	6200	4812 273 18073
Sold Out Oven lamp 25W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	6510	4819 134 88153
Sold Out Holder lamp rear Regular price $0.00 Sale price $0.00 Regular price Unit price	6520	4819 255 18237
Sold Out Holder lamp assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	6529	4812 255 18213
Sold Out Lamp screen rear Regular price $0.00 Sale price $0.00 Regular price Unit price	6560	4812 450 28007
Sold Out Temperature sensor Regular price $0.00 Sale price $0.00 Regular price Unit price	6910	4812 210 58057
Sold Out Nut M4 Regular price $0.00 Sale price $0.00 Regular price Unit price	9140	4812 505 18421
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	9150	4819 505 18145
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	9320	4819 492 68714
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	9501	4812 466 88773
Sold Out Gasket lateral Regular price $0.00 Sale price $0.00 Regular price Unit price	9509	4812 466 88951
Sold Out Cover Regular price $0.00 Sale price $0.00 Regular price Unit price	9622	4812 462 28497
Sold Out Mounting kit Regular price $0.00 Sale price $0.00 Regular price Unit price	9930	4812 310 38986

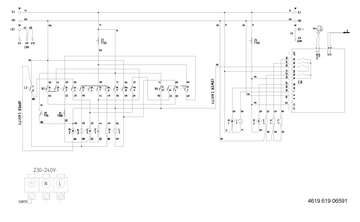

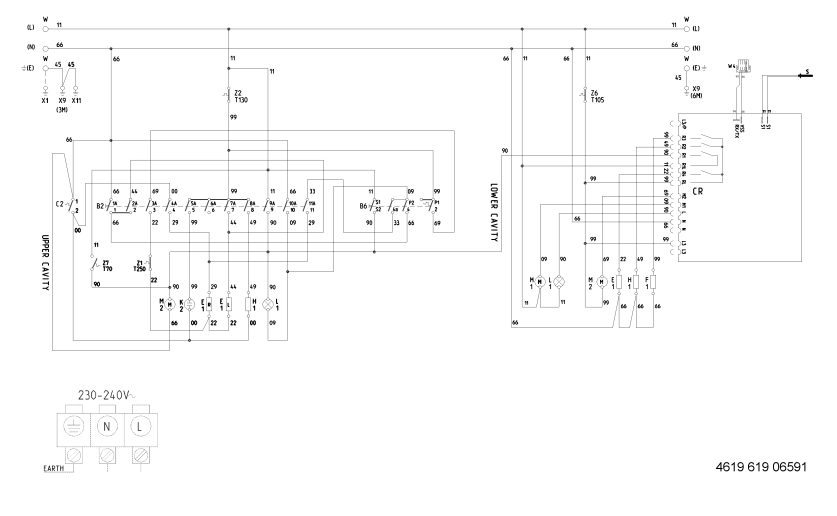

Wiring Diagram

Technical Data

Electrical Base Data

Rated Voltage	240 ~	V
Main Connection	240 V 50	Hz
Total Power	6100	W

Upper Oven

Cavity Dimensions	183 x 425 x 405	mm
Volume	31	dm³
Lower Heating Element	960	W
Dual Grill Left	1340	W
Dual Grill Total	2200	W

Lower Oven

Cavity Dimensions	303 x 425 x 397	W
Volume	51	dm³
Lower Heating Element	1390	W
Upper Heating Element / Grill	2350	W
Forced Air	1920	W

Electrical Components

Auto Timer	Interface Module
Thermostat Pilot Lamp	Red

Parts Manual
