6AKZ 449 IX

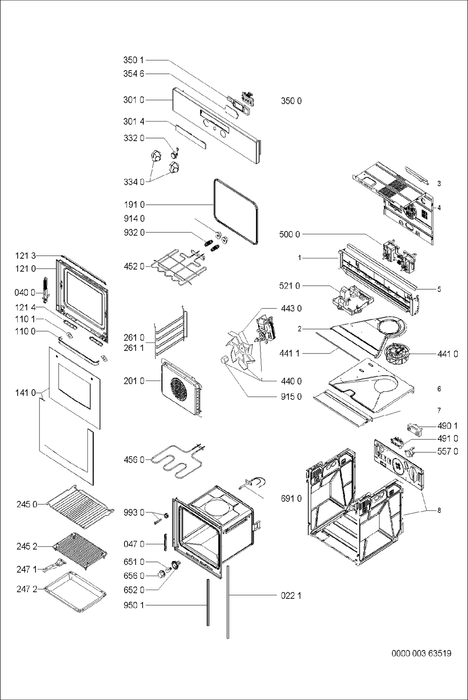

Product Details	S.P. Ref.	S.P. Code
Sold Out Trim, side Regular price $0.00 Sale price $0.00 Regular price Unit price	022 1	4812 460 79059
Sold Out Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	040 0	4812 417 19143
Sold Out Hinge run.mech. Regular price $0.00 Sale price $0.00 Regular price Unit price	047 0	4812 417 19137
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	110 0	4812 498 68215
Sold Out Rubber ring Regular price $0.00 Sale price $0.00 Regular price Unit price	110 1	4819 462 48456
Sold Out Door, inner + glass Regular price $0.00 Sale price $0.00 Regular price Unit price	121 0	4812 440 39326
Sold Out Profile Regular price $0.00 Sale price $0.00 Regular price Unit price	121 3	4812 460 78913
Sold Out Deflector Regular price $0.00 Sale price $0.00 Regular price Unit price	121 4	4812 460 98069
Sold Out Oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	141 0	4812 450 58725
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	191 0	4812 466 88684
Sold Out Panel, rear Regular price $0.00 Sale price $0.00 Regular price Unit price	201 0	4812 440 19701
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	245 0	4819 458 68752
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	245 2	4819 458 19538
Sold Out Plier grid Regular price $0.00 Sale price $0.00 Regular price Unit price	247 1	4819 395 48003
Sold Out Fat pan Regular price $0.00 Sale price $0.00 Regular price Unit price	247 2	4812 418 38056
Sold Out Inset grid right Regular price $0.00 Sale price $0.00 Regular price Unit price	261 0	4819 458 68282
Sold Out Inset grid left Regular price $0.00 Sale price $0.00 Regular price Unit price	261 1	4819 458 68283
Sold Out Panel, control Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4812 452 48901
Sold Out Panel Regular price $0.00 Sale price $0.00 Regular price Unit price	301 4	4812 130 38704
Sold Out Push button Regular price $0.00 Sale price $0.00 Regular price Unit price	332 0	4812 410 28991
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	334 0	4812 412 78886
Sold Out Display Regular price $0.00 Sale price $0.00 Regular price Unit price	350 0	4819 130 38087
Sold Out Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	350 1	4812 404 78333
Sold Out Panel glass Regular price $0.00 Sale price $0.00 Regular price Unit price	354 6	4819 902 00644
Sold Out Motor, fan Regular price $0.00 Sale price $0.00 Regular price Unit price	440 0	4812 361 18399
Sold Out Ventilator cooling Regular price $0.00 Sale price $0.00 Regular price Unit price	441 0	4812 361 18393
Sold Out Gasket border Regular price $0.00 Sale price $0.00 Regular price Unit price	443 0	4819 468 18387
Sold Out Fan wheel Regular price $0.00 Sale price $0.00 Regular price Unit price	452 0	4819 515 48065
Sold Out Heating element upper/grill Regular price $0.00 Sale price $0.00 Regular price Unit price	456 0	4812 259 98419
Sold Out Heating element lower heat 1450 W Regular price $0.00 Sale price $0.00 Regular price Unit price	490 1	4812 259 98418
Sold Out Clamp, cable Regular price $0.00 Sale price $0.00 Regular price Unit price	491 0	4812 290 68255
Sold Out Connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	500 0	4812 290 68273
Sold Out Unit control G2B 9 POS. Regular price $0.00 Sale price $0.00 Regular price Unit price	521 0	4819 214 78692
Sold Out Power unit Regular price $0.00 Sale price $0.00 Regular price Unit price	557 0	4812 214 58114
Sold Out Temper. limiter Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4812 282 28263
Sold Out Lamp, oven Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 134 88153
Sold Out Holder, lamp rear Regular price $0.00 Sale price $0.00 Regular price Unit price	656 0	4819 255 18237
Sold Out Lamp screen rear Regular price $0.00 Sale price $0.00 Regular price Unit price	691 0	4819 450 69844
Sold Out Sensor temper. Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4819 210 78097
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	915 0	4819 505 18323
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	932 0	4819 505 18145
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	950 1	4819 492 68714
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	993 0	4812 466 88685
Sold Out Mounting kit Regular price $0.00 Sale price $0.00 Regular price Unit price		4812 310 48185

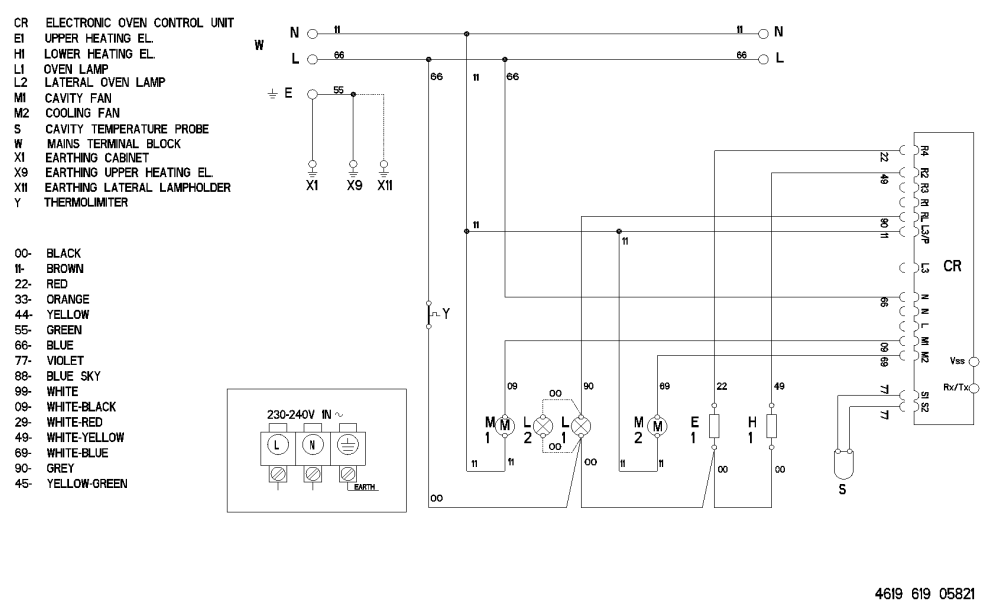

Wiring Diagram

Technical Data

Electrical connection

Rated Voltage	230-240		V
Main Connection	230-240 V	1N~ 50	Hz
Total Connected Load	2400		W
Upper Heating Element / Grill Element	2350		W
Lower Heating Element	1450		W

Electrical components

Auto timer

Interface module

Accessories

Pan set enameled	375 x 445.5	mm
Grid chrome	446.5 x 340	mm
