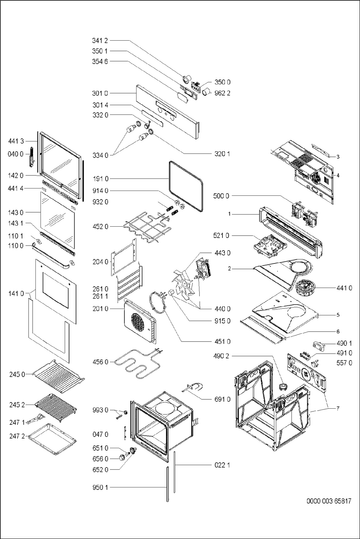

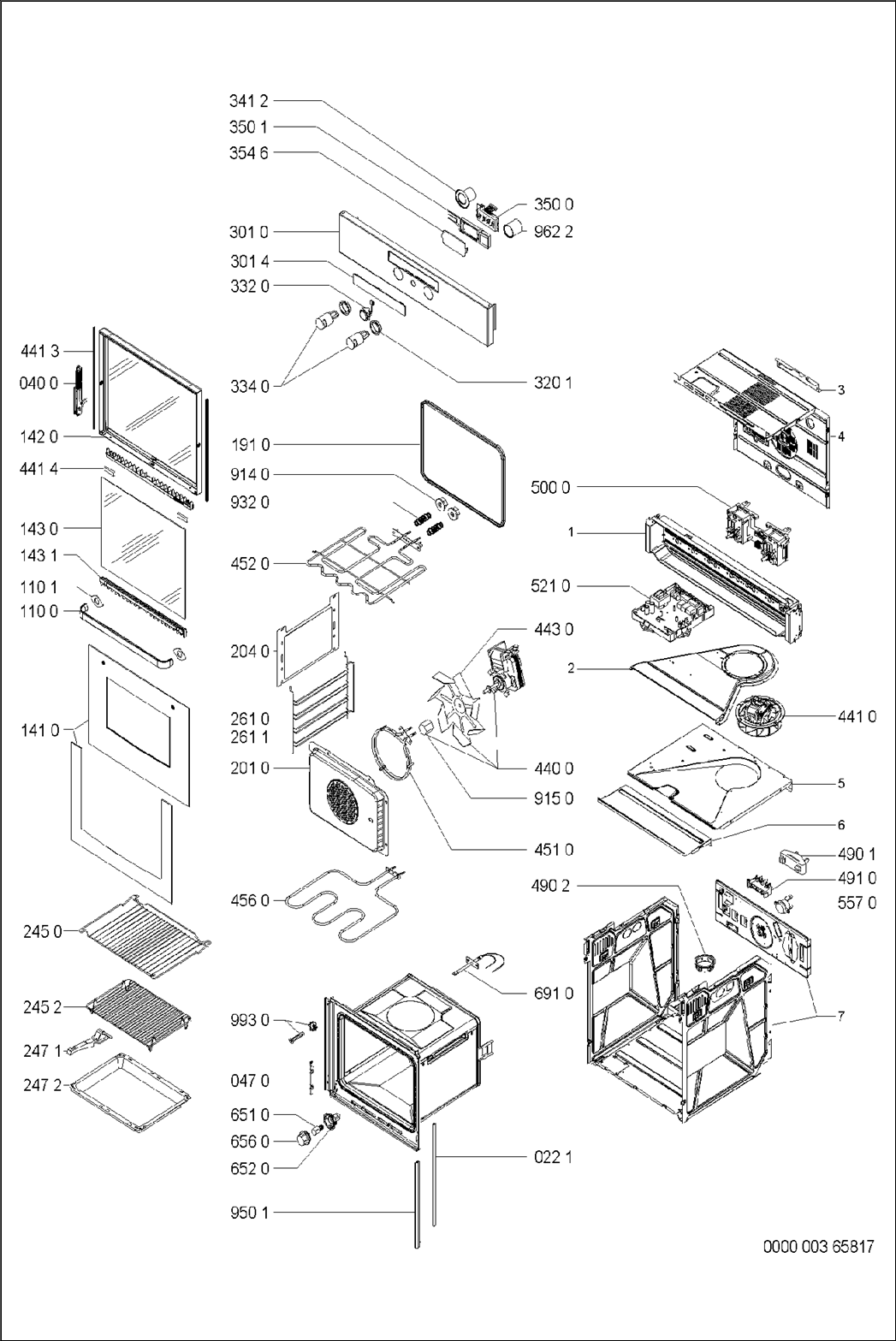

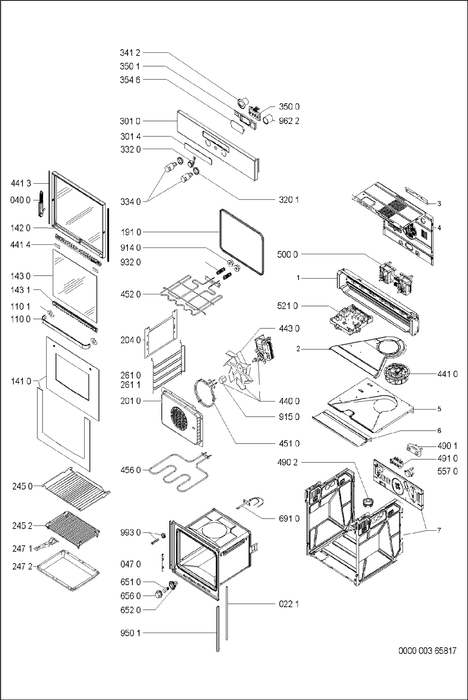

6AKZ 452/IX/01

Product Details	S.P. Ref.	S.P. Code
Sold Out Trim side kit Regular price $0.00 Sale price $0.00 Regular price Unit price	022 1	4812 460 49518
Sold Out Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	040 0	4812 417 19406
Sold Out Hinge run.mech. Regular price $0.00 Sale price $0.00 Regular price Unit price	047 0	4812 417 19137
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	110 0	4812 498 68259
Sold Out Rubber door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	110 1	4812 466 68858
Sold Out Oven glass + profile Regular price $0.00 Sale price $0.00 Regular price Unit price	141 0	4812 450 59449
Sold Out Inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	142 0	4812 450 59451
Sold Out Glass reflecting Regular price $0.00 Sale price $0.00 Regular price Unit price	143 0	4812 450 59587
Sold Out Holder glass Regular price $0.00 Sale price $0.00 Regular price Unit price	143 1	4812 404 38752
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	191 0	4812 466 88774
Sold Out Panel rear Regular price $0.00 Sale price $0.00 Regular price Unit price	201 0	4812 442 69506
Sold Out Side panel Regular price $0.00 Sale price $0.00 Regular price Unit price	204 0	4812 440 19702
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	245 0	4819 458 68752
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	245 2	4819 458 19538
Sold Out Plier grid Regular price $0.00 Sale price $0.00 Regular price Unit price	247 1	4819 395 48003
Sold Out Fat pan enameled Regular price $0.00 Sale price $0.00 Regular price Unit price	247 2	4812 418 38149
Sold Out Inset grid right Regular price $0.00 Sale price $0.00 Regular price Unit price	261 0	4819 458 68282
Sold Out Inset grid left Regular price $0.00 Sale price $0.00 Regular price Unit price	261 1	4819 458 68283
Sold Out Panel control Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4812 452 48572
Sold Out Display Regular price $0.00 Sale price $0.00 Regular price Unit price	301 4	4812 130 38701
Sold Out Clamp ring Regular price $0.00 Sale price $0.00 Regular price Unit price	320 1	4812 530 58163
Sold Out Button,push Regular price $0.00 Sale price $0.00 Regular price Unit price	332 0	4812 410 29481
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	334 0	4812 412 78882
Sold Out Indication disc Regular price $0.00 Sale price $0.00 Regular price Unit price	341 2	4812 413 78735
Sold Out Display G2 Stargate Regular price $0.00 Sale price $0.00 Regular price Unit price	350 0	4812 130 38766
Sold Out Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	350 1	4812 404 78333
Sold Out Panel glass Regular price $0.00 Sale price $0.00 Regular price Unit price	354 6	4819 902 00644
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	440 0	4812 361 18492
Sold Out Ventilator cooling Regular price $0.00 Sale price $0.00 Regular price Unit price	441 0	4812 361 18498
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	441 3	4812 466 68723
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	441 4	4812 466 88859
Sold Out Fan wheel Regular price $0.00 Sale price $0.00 Regular price Unit price	443 0	4819 515 48065
Sold Out Heating element forced-air 240 V Regular price $0.00 Sale price $0.00 Regular price Unit price	451 0	4812 259 98405
Sold Out Heating element upper/grill Regular price $0.00 Sale price $0.00 Regular price Unit price	452 0	4812 259 98471
Sold Out Heating element lower heat 1330 W 230 V Regular price $0.00 Sale price $0.00 Regular price Unit price	456 0	4812 259 98418
Sold Out Clamp cable Regular price $0.00 Sale price $0.00 Regular price Unit price	490 1	4812 290 68255
Sold Out Cap,feedtrough Regular price $0.00 Sale price $0.00 Regular price Unit price	490 2	4812 321 48026
Sold Out Connectionblock Regular price $0.00 Sale price $0.00 Regular price Unit price	491 0	4812 290 68329
Sold Out Interface module Regular price $0.00 Sale price $0.00 Regular price Unit price	500 0	4812 214 58327
Sold Out Power unit Regular price $0.00 Sale price $0.00 Regular price Unit price	521 0	4812 214 58393
Sold Out Temper.limiter Regular price $0.00 Sale price $0.00 Regular price Unit price	557 0	4812 282 28325
Sold Out Lamp,oven Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 88153
Sold Out Holder lamp rear Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18237
Sold Out Lamp screen rear Regular price $0.00 Sale price $0.00 Regular price Unit price	656 0	4812 450 28007
Sold Out Sensor temper. Regular price $0.00 Sale price $0.00 Regular price Unit price	691 0	4812 210 78034
Sold Out Nut M4 Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4812 505 18421
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	915 0	4819 505 18145
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	932 0	4819 492 68714
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	950 1	4812 466 88773
Sold Out Cover Regular price $0.00 Sale price $0.00 Regular price Unit price	962 2	4812 462 28497
Sold Out Mounting kit Regular price $0.00 Sale price $0.00 Regular price Unit price	993 0	4812 310 38846

Wiring Diagram

Technical Data

Electrical connection

Rated Voltage	230-240		V
Main Connection	230-240 V	1N~ 50	Hz
Total Connected Load	2400		W
Upper Heating Element / Grill Element	2350		W
Lower Heating Element	1330		W
Forced Air	1920		W

Electrical components

Auto timer

Interface module

Accessories

Pan set enameled	375 x 445.5	mm
Grid chrome	446.5 x 340	mm

Parts Manual
