6AKZ152/IX

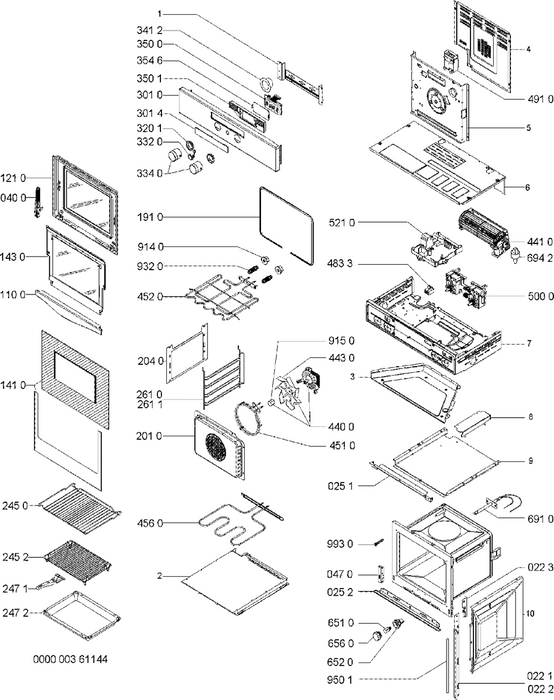

Product Details	S.P. Ref.	S.P. Code
Sold Out Trim, side left Regular price $0.00 Sale price $0.00 Regular price Unit price	022 1	4819 460 78452
Sold Out Trim, side right Regular price $0.00 Sale price $0.00 Regular price Unit price	022 2	4819 460 78451
Sold Out Angle bracket left & right Regular price $0.00 Sale price $0.00 Regular price Unit price	022 3	4819 310 39642
Sold Out Trim, lower Regular price $0.00 Sale price $0.00 Regular price Unit price	025 1	4819 460 78628
Sold Out Trim, lower Regular price $0.00 Sale price $0.00 Regular price Unit price	025 2	4819 460 78851
Sold Out Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	040 0	4812 417 18839
Sold Out Hinge runner mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	047 0	4812 417 18837
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	110 0	4812 498 78061
Sold Out Inner door, oven Regular price $0.00 Sale price $0.00 Regular price Unit price	121 0	4819 442 39501
Sold Out Outer glass Regular price $0.00 Sale price $0.00 Regular price Unit price	141 0	4812 450 58302
Sold Out Frame Regular price $0.00 Sale price $0.00 Regular price Unit price	143 0	4819 459 28301
Sold Out Gasket 1045 mm Regular price $0.00 Sale price $0.00 Regular price Unit price	191 0	4819 468 18109
Sold Out Panel, rear Regular price $0.00 Sale price $0.00 Regular price Unit price	201 0	4812 440 19701
Sold Out Side panel Regular price $0.00 Sale price $0.00 Regular price Unit price	204 0	4812 440 19702
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	245 0	4819 458 68752
Sold Out Griller grid Regular price $0.00 Sale price $0.00 Regular price Unit price	245 2	4819 458 19538
Sold Out Griller handle Regular price $0.00 Sale price $0.00 Regular price Unit price	247 1	4819 395 48003
Sold Out Fat pan Regular price $0.00 Sale price $0.00 Regular price Unit price	247 2	4812 418 38056
Sold Out Inset grid right Regular price $0.00 Sale price $0.00 Regular price Unit price	261 0	4819 458 68282
Sold Out Inset grid left Regular price $0.00 Sale price $0.00 Regular price Unit price	261 1	4819 458 68283
Sold Out Panel, control Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4812 452 48263
Sold Out Display Regular price $0.00 Sale price $0.00 Regular price Unit price	301 4	4812 130 38701
Sold Out Collar Regular price $0.00 Sale price $0.00 Regular price Unit price	320 1	4812 505 68013
Sold Out Microswitch Regular price $0.00 Sale price $0.00 Regular price Unit price	332 0	4812 276 18293
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	334 0	4812 411 28589
Sold Out Indication disc Regular price $0.00 Sale price $0.00 Regular price Unit price	341 2	4812 413 78554
Sold Out Display Regular price $0.00 Sale price $0.00 Regular price Unit price	350 0	4819 130 38087
Sold Out Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	350 1	4812 404 78333
Sold Out Panel glass Regular price $0.00 Sale price $0.00 Regular price Unit price	354 6	4819 902 00644
Sold Out Circulating fan, complete Regular price $0.00 Sale price $0.00 Regular price Unit price	440 0	4819 361 78242
Sold Out Cooling fan, complete Regular price $0.00 Sale price $0.00 Regular price Unit price	441 0	4819 361 18476
Sold Out Circulating fan blades Regular price $0.00 Sale price $0.00 Regular price Unit price	443 0	4819 515 48065
Sold Out Heating element, fan Regular price $0.00 Sale price $0.00 Regular price Unit price	451 0	4819 259 28823
Sold Out Heating element upper/grill Regular price $0.00 Sale price $0.00 Regular price Unit price	452 0	4819 259 28992
Sold Out Element lower KIT 240 V1450W Regular price $0.00 Sale price $0.00 Regular price Unit price	456 0	4819 259 28989
Sold Out Plug, female Regular price $0.00 Sale price $0.00 Regular price Unit price	483 3	4819 290 68357
Sold Out Connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	491 0	4812 290 68168
Sold Out Module, selector switch, 9 POS. Regular price $0.00 Sale price $0.00 Regular price Unit price	500 0	4819 214 78695
Sold Out Power unit electronic KIT 2 D Regular price $0.00 Sale price $0.00 Regular price Unit price	521 0	4819 310 39791
Sold Out Lamp, oven Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 88153
Sold Out Holder, lamp rear Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18237
Sold Out Lamp screen rear Regular price $0.00 Sale price $0.00 Regular price Unit price	656 0	4819 450 69844
Sold Out Sensor temperature Regular price $0.00 Sale price $0.00 Regular price Unit price	691 0	4819 210 78097
Sold Out Stopper Regular price $0.00 Sale price $0.00 Regular price Unit price	694 2	4819 466 69505
Sold Out Nut, grill element Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4819 505 18323
Sold Out Nut, circulating fan Regular price $0.00 Sale price $0.00 Regular price Unit price	915 0	4819 505 18145
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	932 0	4819 492 68714
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	950 1	4819 468 18336
Sold Out Accessories Regular price $0.00 Sale price $0.00 Regular price Unit price	993 0	4819 310 39669

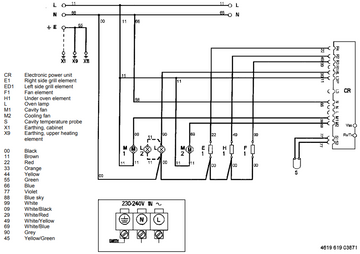

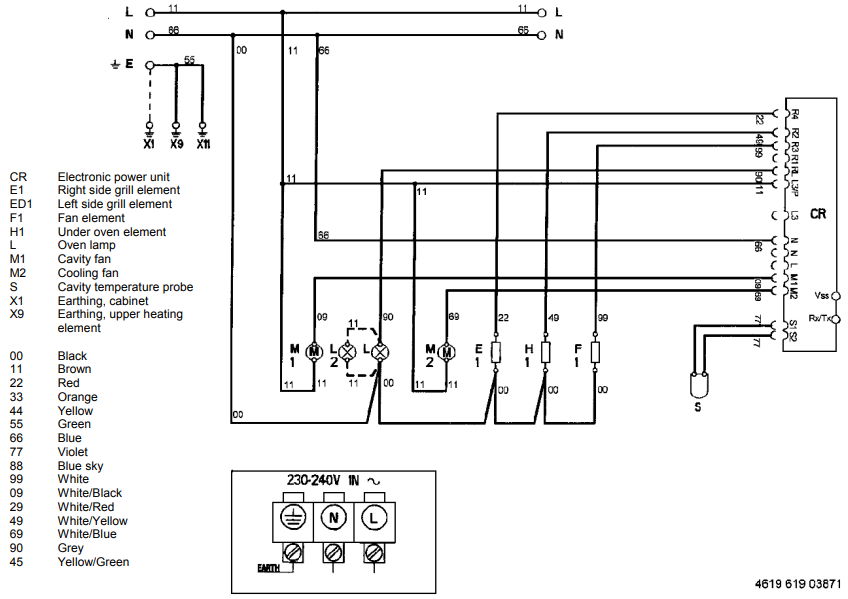

Wiring Diagram

Technical Data

Electrical Connection

Rated Voltage	230 - 240	V~
Main connection	230-240 V 1N~ 50	Hz
Total connected load	2400	W
Upper heating element/Grill	2350	W
Lower heating element	1450	W
Circulation heating element	1920	W

Electrical Components

Auto timer

Interface Module

Accessories

Pan set enamelled	415 x 318	mm
Grid Chrome	446.5 x 340	mm

Failure Codes

Fault	Defect	Intervention
F01	Temperature probe open or short circuit	Replace the temperature probe
F02	Overheating of the oven	Replace oven power unit
F03	Oven power unit failure	Replace oven power unit
F04	Oven power unit failure	Replace oven power unit

Parts Manual
