6AKZ452/WH/01

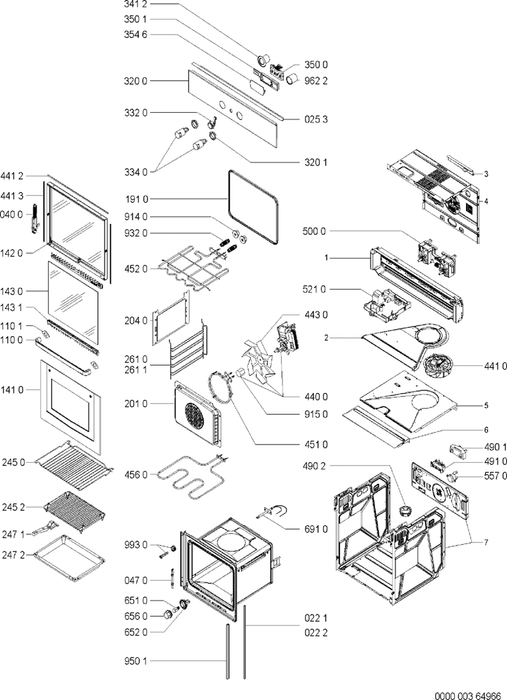

Product Details	S.P. Ref.	S.P. Code
Sold Out Trim side left Regular price $0.00 Sale price $0.00 Regular price Unit price	022 1	4812 460 49392
Sold Out Trim side right Regular price $0.00 Sale price $0.00 Regular price Unit price	022 2	4812 460 49391
Sold Out Trim upper Regular price $0.00 Sale price $0.00 Regular price Unit price	025 3	4812 460 49499
Sold Out Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	040 0	4812 417 19144
Sold Out Hinge running mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	047 0	4812 417 19137
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	110 0	4812 498 68213
Sold Out Rubber ring; ring Regular price $0.00 Sale price $0.00 Regular price Unit price	110 1	4819 462 48456
Sold Out Oven glass + profile Regular price $0.00 Sale price $0.00 Regular price Unit price	141 0	4812 450 59448
Sold Out Inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	142 0	4812 450 59451
Sold Out Glas cover Regular price $0.00 Sale price $0.00 Regular price Unit price	143 0	4812 450 58596
Sold Out Holder glass Regular price $0.00 Sale price $0.00 Regular price Unit price	143 1	4812 404 38752
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	191 0	4812 466 88774
Sold Out Panel rear Regular price $0.00 Sale price $0.00 Regular price Unit price	201 0	4812 442 69506
Sold Out Side panel Regular price $0.00 Sale price $0.00 Regular price Unit price	204 0	4812 440 19702
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	245 0	4819 458 68752
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	245 2	4819 458 19538
Sold Out Handle grid Regular price $0.00 Sale price $0.00 Regular price Unit price	247 1	4819 395 48003
Sold Out Fat pan Regular price $0.00 Sale price $0.00 Regular price Unit price	247 2	4812 418 38124
Sold Out Inset grid right Regular price $0.00 Sale price $0.00 Regular price Unit price	261 0	4819 458 68282
Sold Out Inset grid left Regular price $0.00 Sale price $0.00 Regular price Unit price	261 1	4819 458 68283
Sold Out Panel control + glass Regular price $0.00 Sale price $0.00 Regular price Unit price	320 0	4812 452 48673
Sold Out Collar Regular price $0.00 Sale price $0.00 Regular price Unit price	320 1	4812 505 68021
Sold Out Microswitch Regular price $0.00 Sale price $0.00 Regular price Unit price	332 0	4819 276 18434
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	334 0	4812 412 78922
Sold Out Indication disc Regular price $0.00 Sale price $0.00 Regular price Unit price	341 2	4812 413 78735
Sold Out Display G2 Stargate Regular price $0.00 Sale price $0.00 Regular price Unit price	350 0	4812 130 38742
Sold Out Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	350 1	4812 404 78333
Sold Out Panel glass Regular price $0.00 Sale price $0.00 Regular price Unit price	354 6	4819 902 00644
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	440 0	4812 361 18492
Sold Out Ventilator; cooling Regular price $0.00 Sale price $0.00 Regular price Unit price	441 0	4812 361 18393
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	441 2	4812 466 68719
Sold Out Gasket oven door Regular price $0.00 Sale price $0.00 Regular price Unit price	441 3	4812 466 68723
Sold Out Fan 6-blades Regular price $0.00 Sale price $0.00 Regular price Unit price	443 0	4819 515 48065
Sold Out Heating element forced air 2000W 240V Regular price $0.00 Sale price $0.00 Regular price Unit price	451 0	4812 259 98405
Sold Out Heating element upper/grill Regular price $0.00 Sale price $0.00 Regular price Unit price	452 0	4812 259 98471
Sold Out Heating element lower 1330W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	456 0	4812 259 98418
Sold Out Clamp cable Regular price $0.00 Sale price $0.00 Regular price Unit price	490 1	4812 290 68255
Sold Out Cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	490 2	4812 321 48026
Sold Out Connectionblock Regular price $0.00 Sale price $0.00 Regular price Unit price	491 0	4812 290 68273
Sold Out Module G2e 9 POS. Regular price $0.00 Sale price $0.00 Regular price Unit price	500 0	4819 214 78695
Sold Out Power unit c2 220V Regular price $0.00 Sale price $0.00 Regular price Unit price	521 0	4812 310 28197
Sold Out Thermostat 165°C Regular price $0.00 Sale price $0.00 Regular price Unit price	557 0	4812 282 28314
Sold Out Oven lamp 25W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 88153
Sold Out Holder lamp rear Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18237
Sold Out Lamp screen rear Regular price $0.00 Sale price $0.00 Regular price Unit price	656 0	4812 450 28007
Sold Out Temperature sensor Regular price $0.00 Sale price $0.00 Regular price Unit price	691 0	4812 210 78034
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4819 505 18323
Sold Out Nut fan motor Regular price $0.00 Sale price $0.00 Regular price Unit price	915 0	4819 505 18145
Sold Out Spring upper heating element Regular price $0.00 Sale price $0.00 Regular price Unit price	932 0	4819 492 68714
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	950 1	4812 466 88773
Sold Out Cover Regular price $0.00 Sale price $0.00 Regular price Unit price	962 2	4812 462 28497
Sold Out Mounting kit Regular price $0.00 Sale price $0.00 Regular price Unit price	993 0	4812 310 38846

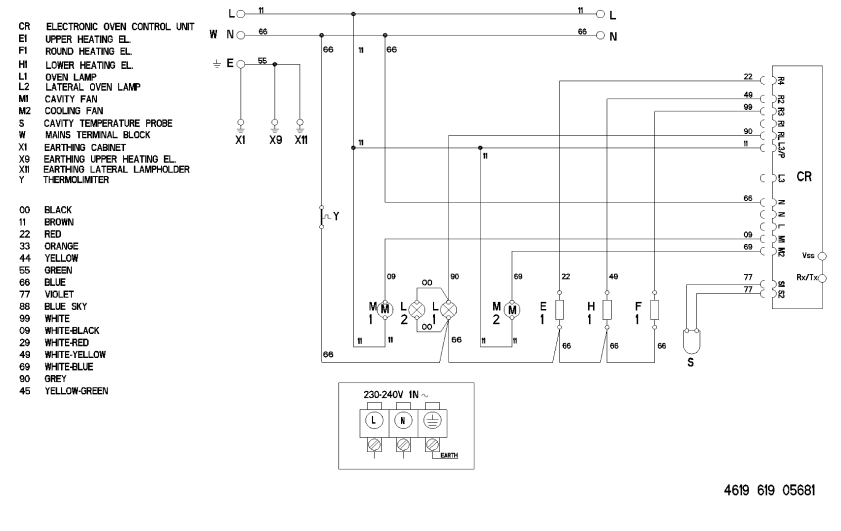

Wiring Diagram

Technical Data

Electrical connection

Rated Voltage	230-240		V
Main Connection	230-240 V	1N~ 50	Hz

Power Consumption

Total Connected Load	2400	W
Upper Heating Element / Grill Element	2350	W
Lower Heating Element	1330	W
Forced Air	1920	W

Electrical components

Auto timer

Interface module

Accessories

Grid Chrome	446.5 x 340	mm
Pan Set Enameled	375 x 445.5	mm

Configuration Code

Code
