6AKZ486/IX/01

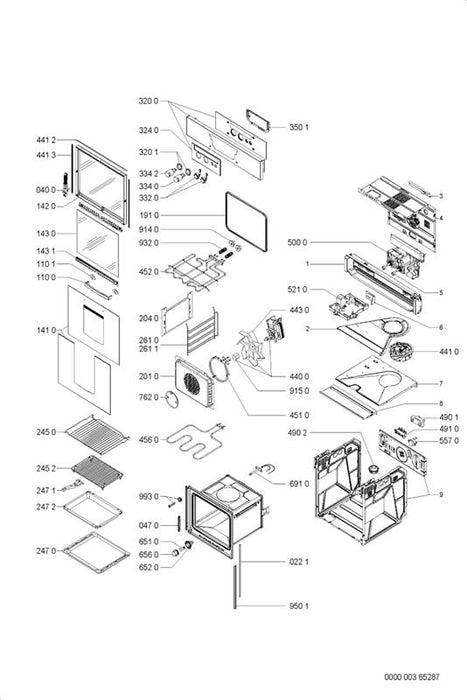

Product Details	S.P. Ref.	S.P. Code
Sold Out Trim side kit Regular price $0.00 Sale price $0.00 Regular price Unit price	022 1	4812 460 49518
Sold Out Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	040 0	4812 417 19144
Sold Out Hinge running mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	047 0	4812 417 19137
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	110 0	4812 498 68169
Sold Out Rubber ring; ring Regular price $0.00 Sale price $0.00 Regular price Unit price	110 1	4819 462 48456
Sold Out Oven glass + profile Regular price $0.00 Sale price $0.00 Regular price Unit price	141 0	4812 450 59479
Sold Out Inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	142 0	4812 450 59478
Sold Out Glass panel Regular price $0.00 Sale price $0.00 Regular price Unit price	143 0	4812 450 59466
Sold Out Holder glass Regular price $0.00 Sale price $0.00 Regular price Unit price	143 1	4812 404 38752
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	191 0	4812 466 88774
Sold Out Panel rear Regular price $0.00 Sale price $0.00 Regular price Unit price	201 0	4812 442 69506
Sold Out Side panel Regular price $0.00 Sale price $0.00 Regular price Unit price	204 0	4812 440 19702
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	245 0	4819 458 68752
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	245 2	4819 458 19538
Sold Out Fat pan Regular price $0.00 Sale price $0.00 Regular price Unit price	247 0	4812 418 38138
Sold Out Handle grid Regular price $0.00 Sale price $0.00 Regular price Unit price	247 1	4819 395 48003
Sold Out Fat pan Regular price $0.00 Sale price $0.00 Regular price Unit price	247 2	4812 418 38124
Sold Out Inset grid right Regular price $0.00 Sale price $0.00 Regular price Unit price	261 0	4819 458 68282
Sold Out Inset grid left Regular price $0.00 Sale price $0.00 Regular price Unit price	261 1	4819 458 68283
Sold Out Panel control + glass Regular price $0.00 Sale price $0.00 Regular price Unit price	320 0	4812 452 48668
Sold Out Clamp ring Regular price $0.00 Sale price $0.00 Regular price Unit price	320 1	4812 530 58163
Sold Out Small plate,mid Regular price $0.00 Sale price $0.00 Regular price Unit price	324 0	4812 459 58021
Sold Out Microswitch Regular price $0.00 Sale price $0.00 Regular price Unit price	332 0	4812 276 18352
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	334 0	4812 412 78884
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	334 2	4812 412 78935
Sold Out Support display Regular price $0.00 Sale price $0.00 Regular price Unit price	350 1	4812 404 38707
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	440 0	4812 361 18492
Sold Out Ventilator Regular price $0.00 Sale price $0.00 Regular price Unit price	441 0	4812 361 18498
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	441 2	4812 466 68719
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	441 3	4812 466 68723
Sold Out Fan 6-blades Regular price $0.00 Sale price $0.00 Regular price Unit price	443 0	4819 515 48065
Sold Out Heating element forced air 2000W 240V Regular price $0.00 Sale price $0.00 Regular price Unit price	451 0	4812 259 98405
Sold Out Heating element grill dual Regular price $0.00 Sale price $0.00 Regular price Unit price	452 0	4812 259 28696
Sold Out Heating element lower 1330W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	456 0	4812 259 98418
Sold Out Clamp cable Regular price $0.00 Sale price $0.00 Regular price Unit price	490 1	4812 290 68255
Sold Out Cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	490 2	4812 321 48026
Sold Out Connectionblock Regular price $0.00 Sale price $0.00 Regular price Unit price	491 0	4812 290 68273
Sold Out Unit control Regular price $0.00 Sale price $0.00 Regular price Unit price	500 0	4812 214 58117
Sold Out Power unit C3 220V Regular price $0.00 Sale price $0.00 Regular price Unit price	521 0	4812 310 28199
Sold Out Temper.limiter Regular price $0.00 Sale price $0.00 Regular price Unit price	557 0	4812 282 28314
Sold Out Oven lamp 25W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 88153
Sold Out Holder lamp rear Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18237
Sold Out Lamp screen rear Regular price $0.00 Sale price $0.00 Regular price Unit price	656 0	4812 450 28007
Sold Out Temperature sensor Regular price $0.00 Sale price $0.00 Regular price Unit price	691 0	4812 210 78034
Sold Out Filter,grease Regular price $0.00 Sale price $0.00 Regular price Unit price	762 0	4819 480 48329
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4819 505 18323
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	915 0	4819 505 18145
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	932 0	4819 492 68714
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	950 1	4812 466 88773
Sold Out Mounting kit Regular price $0.00 Sale price $0.00 Regular price Unit price	993 0	4812 310 38846

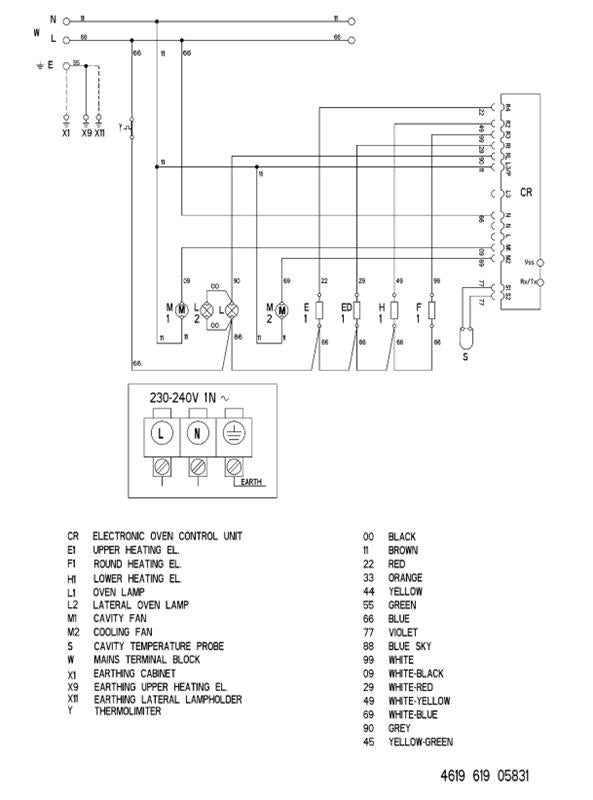

Wiring Diagram

Technical Data

Electrical connection

Rated Voltage	230-240		V
Main Connection	230-240 V	1N~ 50	Hz

Power Consumption

Total Connected Load	2400	W
Lower Heating Element	1330	W
Dual Grill Left	1440	W
Dual Grill Total	2350	W
Forced Air	1920	W

Electrical Components

Auto timer

Interface module

Accessories

Fat Pan Enameled	375 x 445.5	mm
Grid Chrome	446.5 x 340	mm
Pan Set Enameled	375 x 445.5	mm

Configuration Code

Code

Parts Manual
