6EB21DKXDW00

6EB21DKXDW00

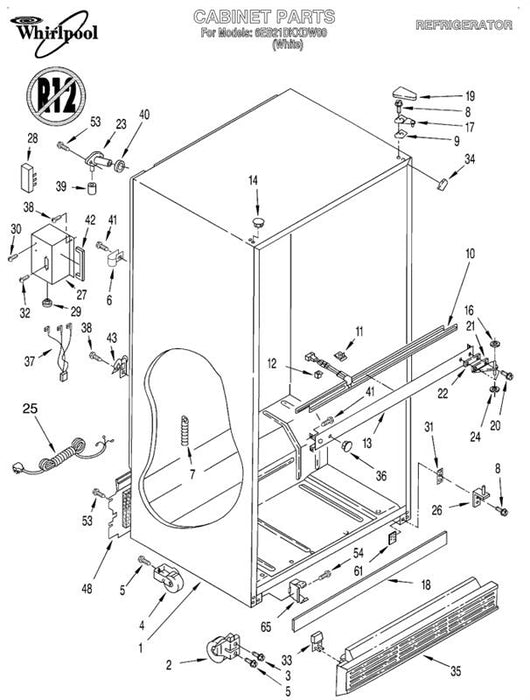

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Cabinet (Not A Serviceable Part)

$0.00
$0.00
1
---

Roller, Front

$0.00
$0.00
2
2174748

Screw

$0.00
$0.00
3
489456

Roller, Rear (2)

$0.00
$0.00
4
981122

Screw

$0.00
$0.00
5
489427

Clamp, Tube

$0.00
$0.00
6
489385

Drain Fitting

$0.00
$0.00
7
940139

Screw

$0.00
$0.00
8
489367

Shim

$0.00
$0.00
9
2157269

Heater, Mullion

$0.00
$0.00
10
2158635

Clip, Center Rail (4)

$0.00
$0.00
11
2149060

Spacer (3)

$0.00
$0.00
12
1115105

Center Rail

$0.00
$0.00
13
2172707

Hole Plug

$0.00
$0.00
14
2151652

Washer, Nylon

$0.00
$0.00
16
487802

Hinge, Top

$0.00
$0.00
17
2157591

Deck Rail Cover

$0.00
$0.00
18
2172708

Hinge Cover

$0.00
$0.00
19
2160403

Screw

$0.00
$0.00
20
489105

Hinge, Center

$0.00
$0.00
21
2183129

Shim, Hinge Center

$0.00
$0.00
22
836194

Fitting-Water Tube

$0.00
$0.00
23
2174760

Washer

$0.00
$0.00
24
488184

Service Cord

$0.00
$0.00
25
1129331

Hinge, Butt Bottom

$0.00
$0.00
26
2157300

Enclosure, Terminal Block

$0.00
$0.00
27
2158579

Terminal Block

$0.00
$0.00
28
1129346

Bushing

$0.00
$0.00
29
1129449

Screw

$0.00
$0.00
30
489211

Spacer

$0.00
$0.00
31
2172744

Screw

$0.00
$0.00
32
489399

Corner Filler, Grille

$0.00
$0.00
33
1125665

Filler, Wrap Corner

$0.00
$0.00
34
1118058

Grille

$0.00
$0.00
35
1125663

Hole Plug

$0.00
$0.00
36
1129062

Wire Assembly, Terminal Block

$0.00
$0.00
37
2165297

Ground Screw, 8-32 x 1/2

$0.00
$0.00
38
489048

Cap

$0.00
$0.00
39
487996

Gasket

$0.00
$0.00
40
1106508

Screw, 8 x 1/2

$0.00
$0.00
41
489242

Gasket

$0.00
$0.00
42
2167227

Clamp

$0.00
$0.00
43
489348

Cover And Air Scoop Assembly

$0.00
$0.00
48
2165718

Screw

$0.00
$0.00
53
489084

Screw

$0.00
$0.00
54
489242

Tap-Plate, Bottom Hinge

$0.00
$0.00
61
2157315

Clip, Grille

$0.00
$0.00
65
2155013

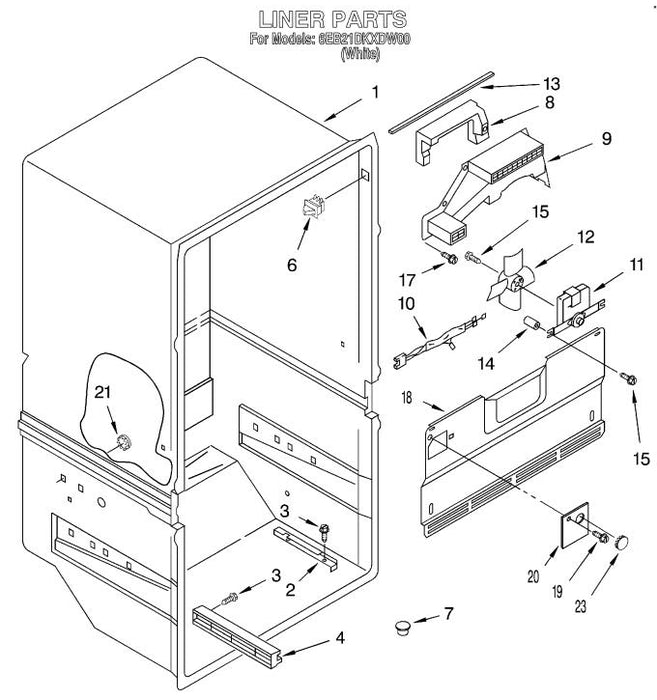

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
---

Slide, Basket

$0.00
$0.00
2
---

Right Side

$0.00
$0.00
-
986382

Left Side

$0.00
$0.00
-
986383

Screw

$0.00
$0.00
3
487042

Shelf, Track

$0.00
$0.00
4
---

Right Side

$0.00
$0.00
-
2149175

Left Side

$0.00
$0.00
-
2149174

Rocker Arm Switch

$0.00
$0.00
6
1118894

Drain Ferrule

$0.00
$0.00
7
2155556

Insert, Scroll

$0.00
$0.00
8
2160525

Scroll, Fan

$0.00
$0.00
9
2152779

Wiring Assembly, Fan Motor

$0.00
$0.00
10
1127434

Fan Motor

$0.00
$0.00
11
2165686

Fan Blade

$0.00
$0.00
12
2169141

Gasket, Fan Scroll

$0.00
$0.00
13
2160533

Grommet (2)

$0.00
$0.00
14
531933

Screw

$0.00
$0.00
15
489168

Screw

$0.00
$0.00
17
489242

Cover, Evaporator

$0.00
$0.00
18
2152796

Screw

$0.00
$0.00
19
489451

Hole Cover, Evaporator

$0.00
$0.00
20
2163406

Hole Plug (3)

$0.00
$0.00
21
941839

Hole Plug

$0.00
$0.00
23
1103725

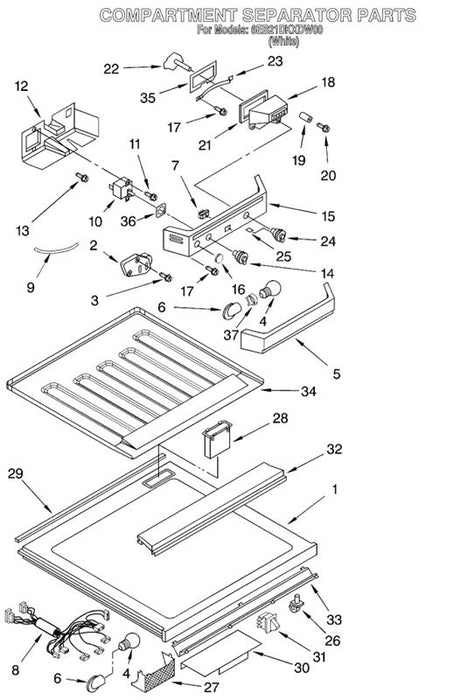

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Compartment Separator Assembly (Includes Center Rail and Heater Assembly)

$0.00
$0.00
1
2165717

Defrost Timer

$0.00
$0.00
2
2162346

Screw

$0.00
$0.00
3
489386

Light Bulb

$0.00
$0.00
4
851682

Light Lens

$0.00
$0.00
5
983910

Light Socket

$0.00
$0.00
6
2162085

Switch, Toggle

$0.00
$0.00
7
938049

Wiring Assembly, Control Box

$0.00
$0.00
8
2152787

Thermostat Tube Barrier

$0.00
$0.00
9
513573

Thermostat

$0.00
$0.00
10
2177057

Screw, 8-15 x 3/8

$0.00
$0.00
11
488974

Bracket, Thermostat

$0.00
$0.00
12
2152896

Screw, 8-32 x 3/8

$0.00
$0.00
13
488974

Control Knob

$0.00
$0.00
14
2148656

Control Panel

$0.00
$0.00
15
2165690

Hole Plug

$0.00
$0.00
16
2148655

Screw

$0.00
$0.00
17
489242

Air Diffuser Assembly

$0.00
$0.00
18
2160470

Spacer

$0.00
$0.00
19
836667

Screw

$0.00
$0.00
20
487534

Gasket

$0.00
$0.00
21
2160428

Air Damper

$0.00
$0.00
22
984658

Retainer, Air Damper

$0.00
$0.00
23
836493

Knob, Air Diffuser (Includes

$0.00
$0.00
24
2148657

Retainer, Knob

$0.00
$0.00
25
837444

Stud

$0.00
$0.00
26
2155555

Light Lens

$0.00
$0.00
27
983359

Insert, Air Return

$0.00
$0.00
28
987019

Gasket, Comp. Sep.

$0.00
$0.00
29
1116698

Lens-Light

$0.00
$0.00
30
2149068

Switch

$0.00
$0.00
31
1115373

Separator Top-Front

$0.00
$0.00
32
1121213

Air Deflector

$0.00
$0.00
33
2160531

Separator, Top-Rear

$0.00
$0.00
34
2152789

Gasket, Damper

$0.00
$0.00
35
2160454

Retainer

$0.00
$0.00
36
2165773

Shroud

$0.00
$0.00
37
2169193

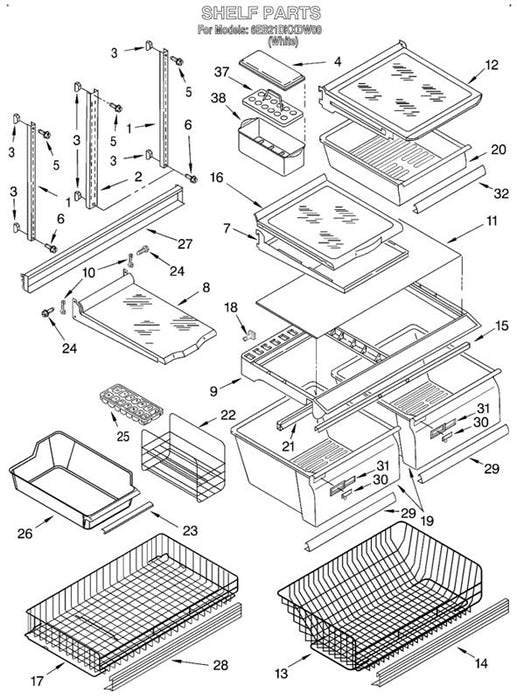

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shelf, Ladder (2)

$0.00
$0.00
1
1127413

Shelf, Ladder Center

$1.00
$1.00
2
1127414

Screw, Support (6)

$2.00
$2.00
3
520965

Cover

$3.00
$3.00
4
2169935

Screw

$0.00
$0.00
5
489345

Screw

$0.00
$0.00
6
489474

Frame Assembly, Cantilever (3)

$6.00
$6.00
7
2174036

Shelf, Slide

$7.00
$7.00
8
2174224

Crisper Cover

$8.00
$8.00
9
2174134

Hook, Shelf

$9.00
$9.00
10
2169608

Glass, Crisper Cover

$10.00
$10.00
11
2174143

Shelf, Meat Pan

$11.00
$11.00
12
2174043

Freezer Basket, (Lower)

$12.00
$12.00
13
2152799

Trim, Basket (Lower)

$13.00
$13.00
14
2179512

Crisper, Support

$14.00
$14.00
15
2172748

Glass, Shelf

$15.00
$15.00
16
2174035

Freezer Basket, (Upper)

$16.00
$16.00
17
2179448

Stud (2)

$17.00
$17.00
18
1106612

Pan, Crisper (Includes Items 29,

$18.00
$18.00
19
2175363

Pan, Meat (Includes Item 32)

$19.00
$19.00
20
2175367

Crisper Gasket, Front

$20.00
$20.00
21
2179392

Rack, Ice Tray

$21.00
$21.00
22
2152823

Trim, Ice Bucket

$22.00
$22.00
23
2176360

Screw

$23.00
$23.00
24
489419

Ice Tray (2)

$24.00
$24.00
25
841180

Ice Bucket

$25.00
$25.00
26
2193266

Slide, Track

$26.00
$26.00
27
2169793

Trim, Basket (Upper)

$27.00
$27.00
28
2179513

Trim, Crisper Pan

$28.00
$28.00
29
2179239

Slide, Humidity Control

$29.00
$29.00
30
2179342

Body, Humidity Control

$30.00
$30.00
31
2179343

Trim, Meat Pan

$31.00
$31.00
32
2192761

Egg Carrier

$32.00
$32.00
37
2177817

Egg Bin

$33.00
$33.00
38
2169933

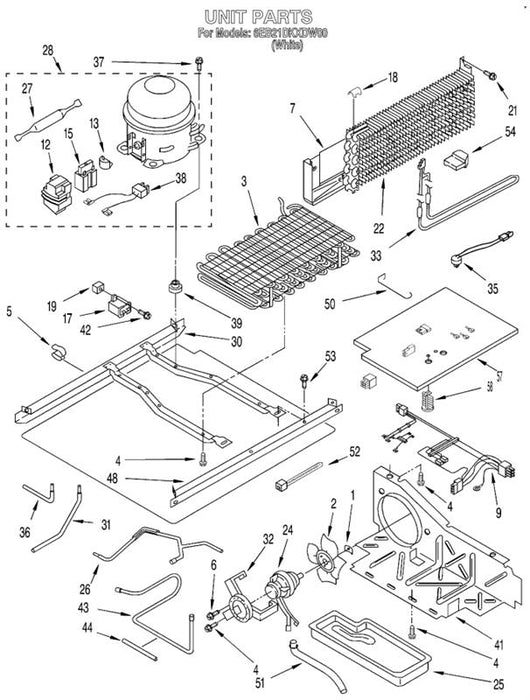

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Speed Nut

$33.00
$33.00
1
486692

Fan, Blade

$33.00
$33.00
2
2190685

Condenser Assembly

$33.00
$33.00
3
2164513

Screw

$33.00
$33.00
4
489337

Clip, Wire

$33.00
$33.00
5
2155658

Screw, 8-32 x 3/8

$33.00
$33.00
6
489099

Drain Pan & Heat Shield Assy.

$33.00
$33.00
7
2152771

Wire Assy

$33.00
$33.00
9
2165708

Cover

$33.00
$33.00
12
2162358

Overload (Includes Relay)

$33.00
$33.00
13
2169412

Relay (See Overload)

$33.00
$33.00
15
---

Running Capacitor

$33.00
$33.00
17
2154718

Clip

$33.00
$33.00
18
9791833

Screw Grommet

$33.00
$33.00
19
509812

Screw

$33.00
$33.00
21
489242

Evaporator

$33.00
$33.00
22
2152776

Fan Motor

$33.00
$33.00
24
2162066

Tray, Evaporator

$33.00
$33.00
25
2154114

Tube, Discharge

$33.00
$33.00
26
2162475

Drier

$33.00
$33.00
27
2174865

Compressor (Includes Items 11,12,13,15,17,27,38) (Also Order)

$33.00
$33.00
28
2169449

Tube Kit

$33.00
$33.00
-
876765

Unit Mounting Frame

$33.00
$33.00
30
2160500

Tube, Condenser To Heat Loop

$33.00
$33.00
31
2154032

Fan, Motor Bracket

$33.00
$33.00
32
548695

Heater, Defrost

$33.00
$33.00
33
2165681

Bi-Metal, Defrost

$33.00
$33.00
35
2183072

Tube, Process

$33.00
$33.00
36
2154109

Screw

$33.00
$33.00
37
489373

Wire Assembly

$33.00
$33.00
38
2172890

Grommet

$33.00
$33.00
39
1100826

Air Baffle

$33.00
$33.00
41
2162457

Screw

$33.00
$33.00
42
488687

Tube, Suction

$33.00
$33.00
43
2162472

Sleeve

$33.00
$33.00
44
2162499

Unit Mounting Rail

$33.00
$33.00
48
2149717

Guard, Fan

$33.00
$33.00
50
1105612

Drain Extension

$33.00
$33.00
51
2152822

Strap

$33.00
$33.00
52
2155774

Screw

$33.00
$33.00
53
489427

Support

$33.00
$33.00
54
1115128

Cover-Unit Btm.

$33.00
$33.00
57
2160505

Clip

$33.00
$33.00
58
489396

Refrigerator Door Panel (Also Order Item

$33.00
$33.00
2174866

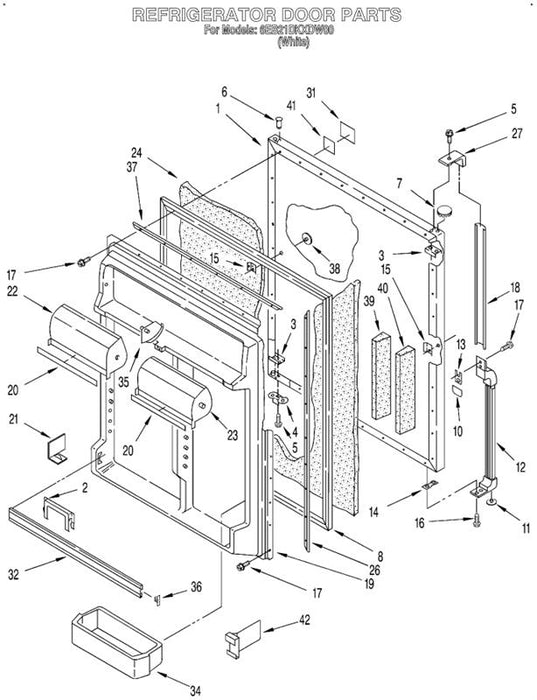

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Refrigerator Door Panel (Also Order Item 24)

$0.00
$0.00
1
2174866

Retainer, Bottle

$34.00
$34.00
2
2173643

Plate, Tap (4)

$35.00
$35.00
3
2183198

Bracket, Door Stop

$36.00
$36.00
4
944035

Screw, 8 x 1/2

$37.00
$37.00
5
488921

Thimble

$38.00
$38.00
6
2183003

Hole Plug

$39.00
$39.00
7
844478

Door Gasket, Magnetic

$40.00
$40.00
8
2160435

Shim

$41.00
$41.00
10
2179398

Hole Plug

$42.00
$42.00
11
2174433

Handle, Center

$43.00
$43.00
12
2183121

Shim, Handle

$44.00
$44.00
13
2183124

Shim, Bottom

$45.00
$45.00
14
2151813

Screw Anchor

$46.00
$46.00
15
941242

Screw

$0.00
$0.00
16
489006

Screw

$0.00
$0.00
17
489442

Extension

$49.00
$49.00
18
2179599

Interior Door Panel

$50.00
$50.00
19
2174741

Trim, Door Compartment

$51.00
$51.00
20
2164839

Divider-Door

$52.00
$52.00
21
1123293

Foam Insulation (Required When Replacing

$55.00
$55.00
22
876029

Gasket Retainer, Side (2)

$56.00
$56.00
23
986008

End Cap, Extension

$57.00
$57.00
24
2183829

Nameplate

$58.00
$58.00
26
2175380

Trim, Door Shelf

$59.00
$59.00
27
2177228

Bin, Door Shelf

$60.00
$60.00
31
2179604

Hinge Pin, Center

$61.00
$61.00
32
1118001

Plug, Trim (2)

$62.00
$62.00
34
2159300

Gasket Retainer, Top & Bottom

$63.00
$63.00
35
1122552

Hole Plug, Handle

$64.00
$64.00
36
2183044

Reinforcement-Mid

$65.00
$65.00
37
2174751

Reinforcement-Side

$66.00
$66.00
38
1122709

Tape Strip

$67.00
$67.00
39
991259

Divider-Bin

$68.00
$68.00
40
2171284

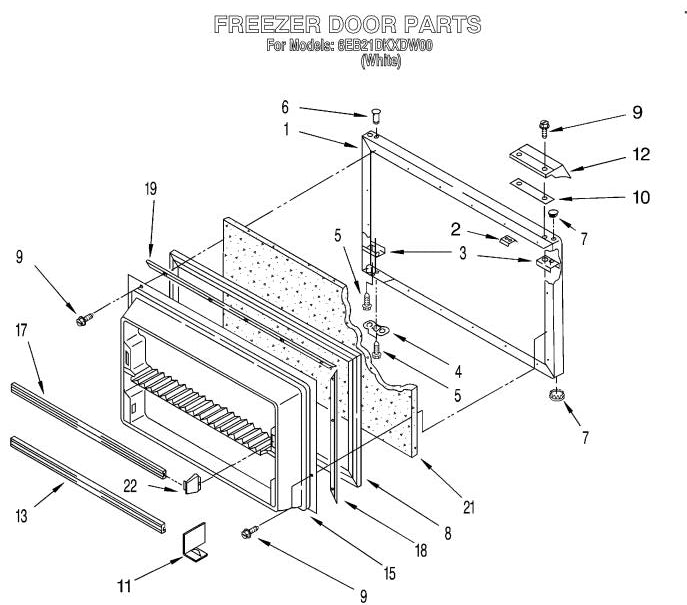

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer Door Panel (Also Order Item 21)

$69.00
$69.00
1
2174870

Screw Anchor

$70.00
$70.00
2
2157332

Plate, Tap (4)

$71.00
$71.00
3
2183198

Bracket, Door Stop

$72.00
$72.00
4
944036

Screw, 8 x 1/2

$73.00
$73.00
5
488921

Thimble

$74.00
$74.00
6
2183003

Hole Plug

$75.00
$75.00
7
844478

Door Gasket

$76.00
$76.00
8
2160436

Screw

$77.00
$77.00
9
489442

Shim

$78.00
$78.00
10
2183024

Divider-Shelf

$79.00
$79.00
11
1123293

Handle

$80.00
$80.00
12
2179593

Trim, Door Shelf

$81.00
$81.00
13
2171395

Interior Door Panel

$82.00
$82.00
15
2152814

Trim, Door

$83.00
$83.00
17
2171394

Gasket Retainer, Side (2)

$84.00
$84.00
18
986015

Gasket Retainer, Top & Bottom

$85.00
$85.00
19
1122552

Kit, Foam Slab (Required When Replacing Exterior Door Panel)

$86.00
$86.00
21
876029

EndCap, Trim (2)

$87.00
$87.00
22
1105685
