Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

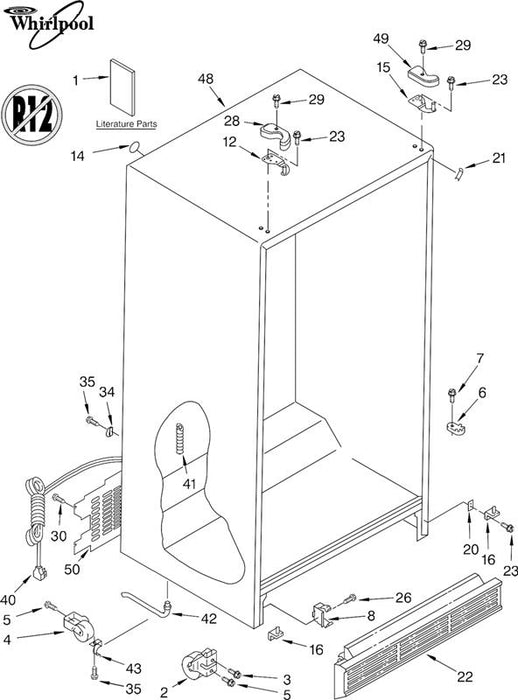

LITERATURE PARTS Service & Wiring Sheet

$0.00
$0.00
1
LIT2214779

Use & Care Guide

$0.00
$0.00
-
LIT2211657

Energy Label

$0.00
$0.00
-
LIT2214780

Front Roller (2)

$0.00
$0.00
2
2174748

Screw

$0.00
$0.00
3
3400517

Roller (Rear) (2)

$0.00
$0.00
4
2196236

Screw

$0.00
$0.00
5
489427

Door Closer, Lower Cam (2)

$0.00
$0.00
6
2155311

Screw

$0.00
$0.00
7
489483

Clip, Grille

$0.00
$0.00
8
2155013

Hinge, Top (FC)

$0.00
$0.00
9
2203770

Hole Seal

$0.00
$0.00
12
2185731

Hinge, Top (RC)

$0.00
$0.00
1
2203771

Hinge Bottom

$0.00
$0.00
15
2217075

Spacer, Hinge

$0.00
$0.00
16
2209697

Filler, Wrapper

$0.00
$0.00
20
2196094

Grille

$0.00
$0.00
21
2198469W

Screw

$0.00
$0.00
22
489497

Screw

$0.00
$0.00
23
489478

Hinge Cover (FC)

$0.00
$0.00
26
2203407W

Screw

$0.00
$0.00
28
8281227

Screw

$0.00
$0.00
29
489084

Clamp

$0.00
$0.00
30
489348

Screw

$0.00
$0.00
34
489464

Service Cord

$0.00
$0.00
35
2205330

Drain Ferrule

$0.00
$0.00
40
940139

Extension Tube

$0.00
$0.00
41
1108438

Clip, Drain Tube

$0.00
$0.00
42
1108439

Cabinet (Not A Serviceable Part)

$0.00
$0.00
43
---

Hinge Cover (RC)

$0.00
$0.00
48
2203408W

Cover, Unit

$0.00
$0.00
49
2214573
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

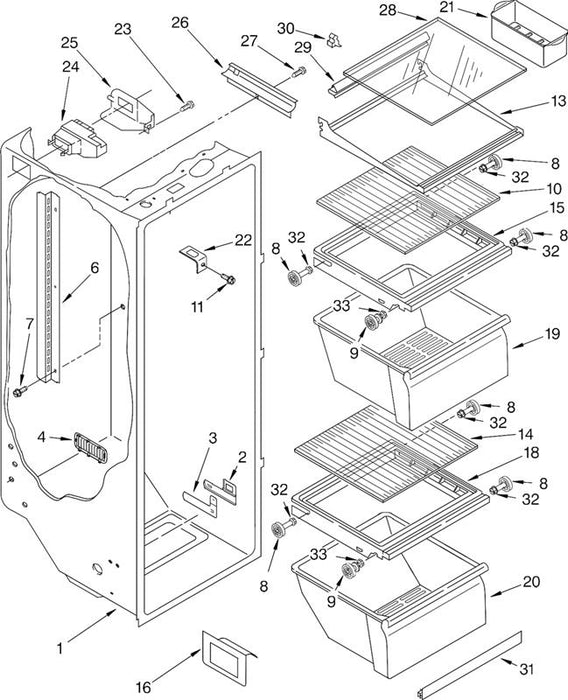

Liner (Not A Serviceable Part)

$0.00
$0.00
1
---

Escutcheon, Meat Pan Control

$0.00
$0.00
2
2194744

Slide, Meat Pan Control

$0.00
$0.00
3
2182757

Louver

$0.00
$0.00
4
2182147

Shelf Ladder (2)

$0.00
$0.00
6
2206270

Screw (6)

$0.00
$0.00
7
487539

Glass, Cover

$0.00
$0.00
8
2174150

Screw (2)

$0.00
$0.00
9
489290

Shelf, Cantilever

$0.00
$0.00
10
2173178

Glass, Meat Cover

$0.00
$0.00
11
2179259

Crisper Cover

$0.00
$0.00
13
2209698

Deflector

$0.00
$0.00
14
2179350

Meat Pan Cover

$0.00
$0.00
15
2217039

Crisper Pan

$0.00
$0.00
16
2196481

Meat Pan

$0.00
$0.00
18
2196162

Egg Bin

$0.00
$0.00
19
2216624

Bracket Retainer

$0.00
$0.00
20
1123919

Screw

$0.00
$0.00
21
489478

Air Diffuser Assembly

$0.00
$0.00
22
2209752

Air Diffuser Cover

$0.00
$0.00
23
2212240

Cover, Conduit

$0.00
$0.00
24
2150330

Screw

$0.00
$0.00
25
486298

Glass, Shelf

$0.00
$0.00
26
2177978

Reflector

$0.00
$0.00
27
1125594

Clip, Air Duct

$0.00
$0.00
28
842534

Extension, Pan Cover

$0.00
$0.00
29
2209704

Screw

$0.00
$0.00
30
8281158

Screw

$0.00
$0.00
31
3400894
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

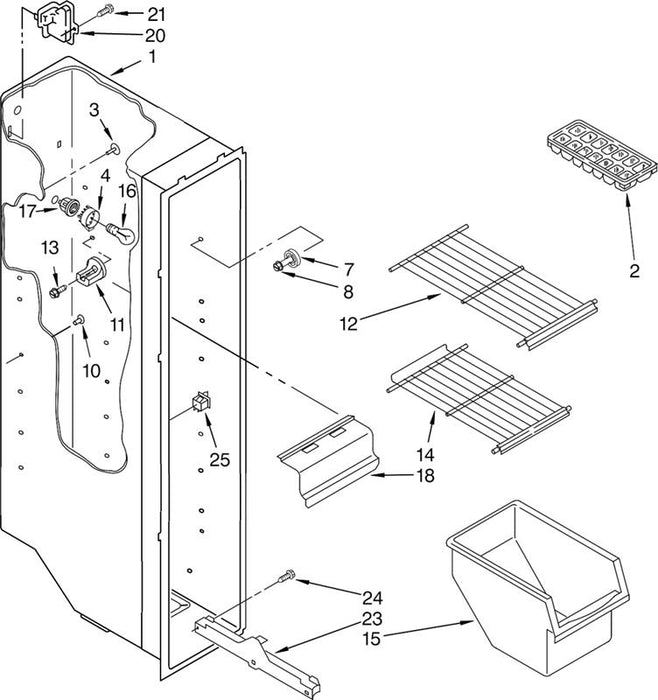

Liner (Not A Seviceable Part)

$0.00
$0.00
1
---

Ice Tray (2)

$0.00
$0.00
2
841180

Hole Plug

$0.00
$0.00
3
941839

Shroud, Light

$0.00
$0.00
4
2167012

Stud Assembly

$0.00
$0.00
7
2196483

Screw

$0.00
$0.00
8
8281158

Grommet (10)

$0.00
$0.00
10
2176134

Stud, Rear

$0.00
$0.00
11
2196207

Shelf

$0.00
$0.00
12
2163612

Screw

$0.00
$0.00
13
3400893

Shelf (2)

$0.00
$0.00
14
2174270

Shelf (1)

$0.00
$0.00
-
2174269

Freezer Bin

$0.00
$0.00
15
2171707

Light Bulb

$0.00
$0.00
16
851682

Socket, Assembly

$0.00
$0.00
17
2155597

Light Lens

$0.00
$0.00
18
2155595

Cover, Wiring

$0.00
$0.00
20
2155571

Screw

$0.00
$0.00
21
489355

Slide, Freezer Bin

$0.00
$0.00
23
----

Right Side

$0.00
$0.00
-
1119293

Left Side

$0.00
$0.00
-
1115383

Screw

$0.00
$0.00
24
489100

Rocker Arm Switch

$0.00
$0.00
25
1118894
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

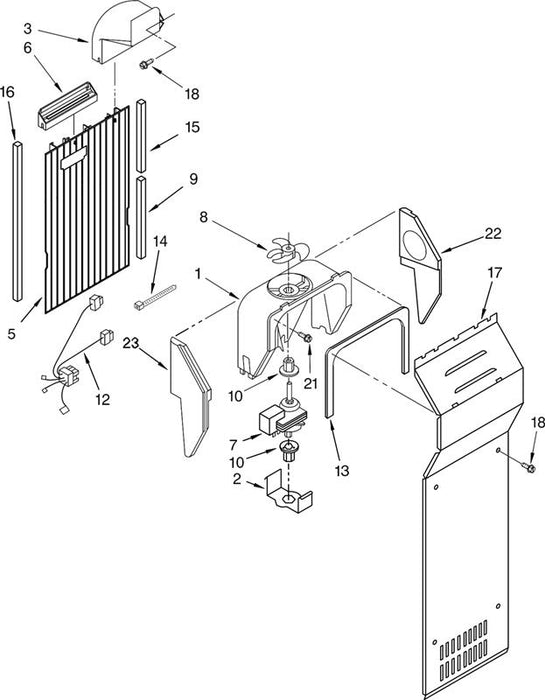

Fan Scroll

$0.00
$0.00
1
2182119

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Air Duct Freezer

$0.00
$0.00
5
2203592

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
2187151

Fan Blade

$0.00
$0.00
8
2169142

Gasket

$0.00
$0.00
9
2209604

Grommet, Fan (2)

$0.00
$0.00
10
2176759

Harness, Fan, Evaporator, And Heater

$0.00
$0.00
12
2206505

Gasket, Fan Scroll

$0.00
$0.00
13
2155788

Strap

$0.00
$0.00
14
2172840

Gasket

$0.00
$0.00
15
2209605

Gasket

$0.00
$0.00
16
2203875

Cover, Evaporator

$0.00
$0.00
17
2203840

Screw

$0.00
$0.00
18
489355

Screw

$0.00
$0.00
21
489478

Support, R.S.

$0.00
$0.00
22
2203595

Support, L.S.

$0.00
$0.00
23
2203596
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

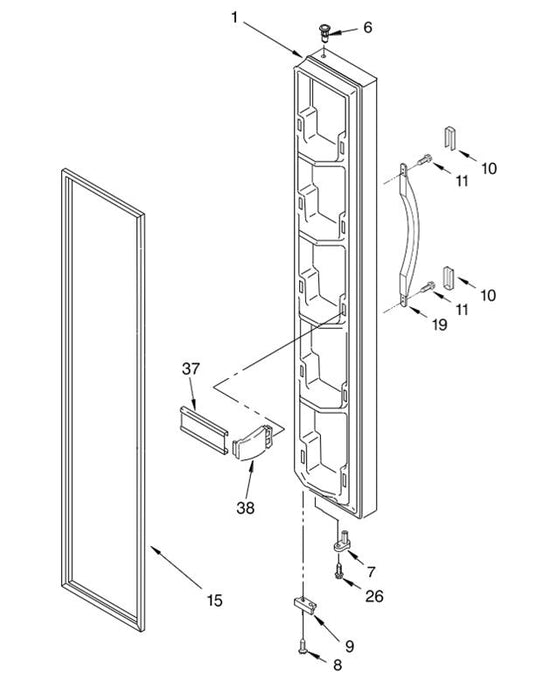

Freezer Door (Includes Item 15)

$0.00
$0.00
1
2206823W

Thimble−Top

$0.00
$0.00
6
2182180

Door Closer, Upper Cam

$0.00
$0.00
7
2182178

Screw

$0.00
$0.00
8
489420

Bracket, Door Stop

$0.00
$0.00
9
2206629

Endcap, Handle

$0.00
$0.00
10
2193353W

Screw

$0.00
$0.00
11
489491

Door Gasket,

$0.00
$0.00
15
2196240

Magnetic Handle, Center

$0.00
$0.00
19
2186649W

Screw

$0.00
$0.00
26
3400012

Trim, Door Shelf (5)

$0.00
$0.00
37
2195919

Endcap, Trim

$0.00
$0.00
38
---

Right Side (5)

$0.00
$0.00
-
2195916

Left Side (5)

$0.00
$0.00
-
2195917
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

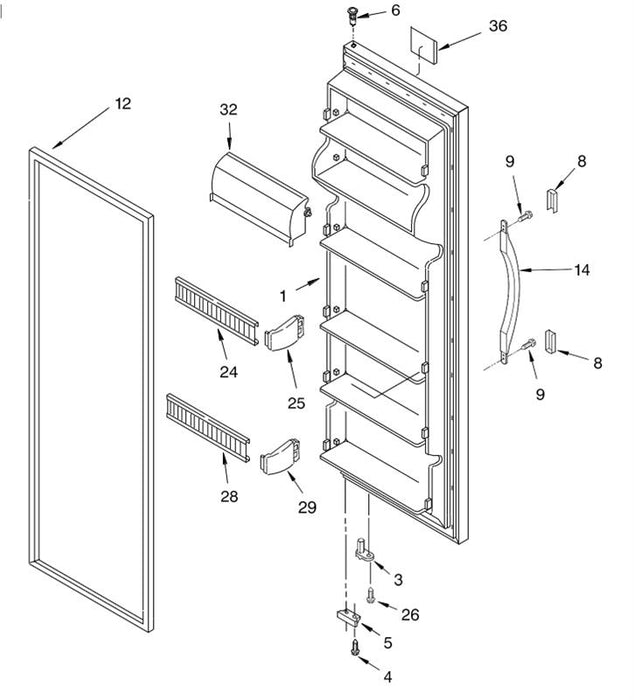

Refrigerator Door (Includes Item 12)

$0.00
$0.00
1
2206828W

Door Closer, Upper Cam

$0.00
$0.00
3
2182178

Screw

$0.00
$0.00
4
489420

Bracket, Door Stop

$0.00
$0.00
5
2206629

Thimble−Top

$0.00
$0.00
6
2182180

Endcap, Handle

$0.00
$0.00
8
2193353W

Screw

$0.00
$0.00
9
489491

Door Gasket,

$0.00
$0.00
12
2196239

Magnetic Handle, Center

$0.00
$0.00
14
2186649W

Trim, Door Shelf

$0.00
$0.00
24
2195934

Endcap, Trim (2)

$0.00
$0.00
25
2195915

Screw

$0.00
$0.00
26
3400012

Trim, Door Shelf (5)

$0.00
$0.00
28
2182190

Endcap, Trim (8)

$0.00
$0.00
29
2195916

Compartment Door

$0.00
$0.00
32
2177105

Nameplate

$0.00
$0.00
36
2195063
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

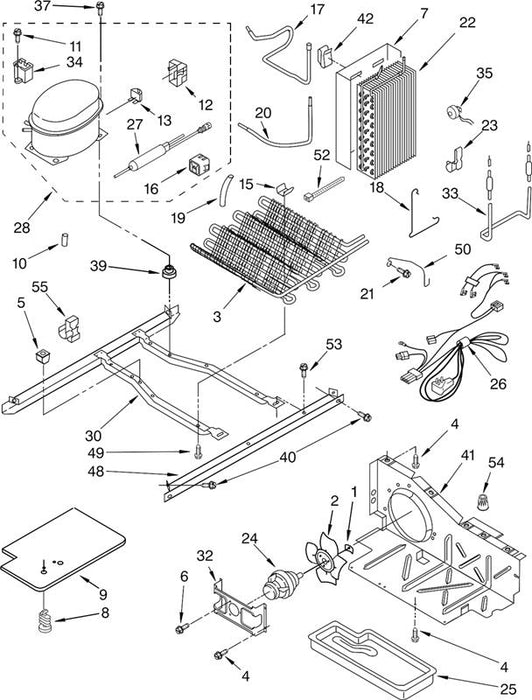

Speed Nut

$0.00
$0.00
1
486692

Fan, Blade

$0.00
$0.00
2
2190685

Condenser Assembly

$0.00
$0.00
3
2204484

Screw

$0.00
$0.00
4
489464

Grommet

$0.00
$0.00
5
509812

Screw

$0.00
$0.00
6
489099

Heat Shield And Drain Pan

$0.00
$0.00
7
2149293

Clip

$0.00
$0.00
8
489396

Cover, Unit Compartment

$0.00
$0.00
9
2200451

Dampner

$0.00
$0.00
10
2158826

Screw

$0.00
$0.00
11
488687

Cover (Service)

$0.00
$0.00
12
4387959

Overload (Service, Includes Relay)

$0.00
$0.00
13
4388101

Clip, Condenser

$0.00
$0.00
-
2216914

Start−Device, Combination (Start relay and Overload) For Production

$0.00
$0.00
15
2188508

Tube Suction

$0.00
$0.00
16
2204238

Clip, Defrost Heater

$0.00
$0.00
17
2161324

Sleeve

$0.00
$0.00
18
2161302

Tube, Condenser to Heat Loop

$0.00
$0.00
19
2211760

Screw

$0.00
$0.00
20
489478

Evaporator

$0.00
$0.00
21
2164518

Clip, Heater (2)

$0.00
$0.00
22
2161330

Fan, Motor

$0.00
$0.00
23
2198747

Tray, Evaporator

$0.00
$0.00
24
1105523

Harness, Unit

$0.00
$0.00
25
2216446

Drier

$0.00
$0.00
26
2199167

Compressor (Includes Items 10, 11, 12, 13, 15, 27 & 34)

$0.00
$0.00
27
2187162

Unit Mounting Frame

$0.00
$0.00
28
2160498

Fan, Motor Bracket

$0.00
$0.00
30
2181929

Heater, Defrost

$0.00
$0.00
32
2188176

Capacitor (Production)

$0.00
$0.00
33
2201147

(Service)

$0.00
$0.00
34
4387874

Bi−Metal, Defrost

$0.00
$0.00
35
2196155

Screw

$0.00
$0.00
37
489473

Grommet (4)

$0.00
$0.00
39
2183042

Screw

$0.00
$0.00
40
489340

Air Baffle

$0.00
$0.00
41
2196201

Clip, Heat Shield

$0.00
$0.00
42
2155547

Unit Mounting Rail

$0.00
$0.00
48
2149718

Screw

$0.00
$0.00
49
8281232

Guard, Fan

$0.00
$0.00
50
1105612

Strap

$0.00
$0.00
52
2172840

Screw

$0.00
$0.00
53
489427

Wire Connector

$0.00
$0.00
54
850145

Clip, Wire And Water Tube

$0.00
$0.00
55
2208280

Valve, Access (1/4")

$0.00
$0.00
-
978025

Valve, Access (5/16")

$0.00
$0.00
-
978026

Valve, Access (3/8")

$0.00
$0.00
-
978027

Valve, Access (1/2")

$0.00
$0.00
-
978028

Valve, Access (5/8")

$0.00
$0.00
-
978029

Valve, Access (3/4")

$0.00
$0.00
-
978030

Valve, Access (3/16")

$0.00
$0.00
-
876764
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

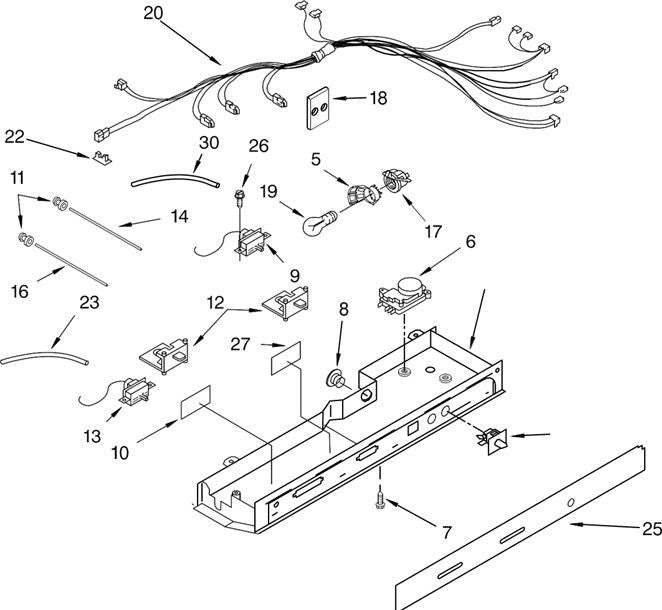

Control Box

$0.00
$0.00
1
2200135

Light Switch

$0.00
$0.00
4
2149705

Shroud, Light

$0.00
$0.00
5
2175210

Defrost Timer

$0.00
$0.00
6
2187157

Screw (2)

$0.00
$0.00
7
489398

Hole Plug

$0.00
$0.00
8
940014

Thermostat (RC)

$0.00
$0.00
9
2183739

Window

$0.00
$0.00
10
2172940

Grommet, Light Bar

$0.00
$0.00
11
2172906

Slide, Thermostat

$0.00
$0.00
12
2161466

Thermostat (FC)

$0.00
$0.00
13
2187158

Light Bar (FC)

$0.00
$0.00
14
2179920

Light Bar (RC)

$0.00
$0.00
16
2179921

Light Socket

$0.00
$0.00
17
2162085

Heat Shield

$0.00
$0.00
18
2172931

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2187325

Clip, Wiring

$0.00
$0.00
22
1115375

Tube Barrier, Thermostat (FC)

$0.00
$0.00
23
2196003

Escutcheon, Control Box

$0.00
$0.00
25
2175064

Screw

$0.00
$0.00
26
489214

Window

$0.00
$0.00
27
2172941

Tube Barrier Thermostat (RC)

$0.00
$0.00
30
2182151

Production Compressor Only

$0.00
$0.00
-
----

Primer, White (13 Oz. Spray Can)

$0.00
$0.00
-
350942

Enamel, Black (13 Oz. Spray Can)

$0.00
$0.00
-
350939

Enamel, White (13 Oz. Spray Can)

$0.00
$0.00
-
350930

Enamel, Golden Harvest (13 Oz. Spray Can)

$0.00
$0.00
-
261890

Enamel, Almond (13 Oz. Spray Can)

$0.00
$0.00
-
350956

Brush Touch−Up Kit (White)

$0.00
$0.00
-
72017

Brush Touch−Up Kit (Almond)

$0.00
$0.00
-
72107

Brush Touch−up kit (Black)

$0.00
$0.00
-
72032

Brush Touch−Up kit (Golden Harvest)

$0.00
$0.00
-
72110

Sealer, Gum (4 Feet)

$0.00
$0.00
-
212643

Tape, Vinyl (3/4 x 108")

$0.00
$0.00
-
479502

Kit, Insulation (2 Pcs. x 3" x 24" X 48")

$0.00
$0.00
-
876370

Kit, Insulation(14 Pcs. x 3"x 24" x 48")

$0.00
$0.00
-
876305

Insulation, Fiberglass (63−1/2" x 35−1/2" X 2−5/8)

$0.00
$0.00
-
978941

Kit, Foam Slab (30" x 32−1/2" x 1−1/2")

$0.00
$0.00
-
876029

Sealer, Mastic (1 Qt.)

$0.00
$0.00
-
505587

Cork, Sealer (1/4 Pound)

$0.00
$0.00
-
503695

Touch−Up, White Porcelain (2 Oz.)

$0.00
$0.00
-
511873

Grease, Silicone (1/2 Oz.)

$0.00
$0.00
-
542638

Cement, Alumilastic (1−1/4 Oz.)

$0.00
$0.00
-
542639

Bag, Insulation (36−5/8" x 46")

$0.00
$0.00
-
606755

Kit, Evaporator Repair (Aluminum Epoxy)

$0.00
$0.00
-
799833

Kit, Terminal Connector

$0.00
$0.00
-
833938

Enamel, Black (1 Qt. Uncut)

$0.00
$0.00
-
799340

Enamel, White (1 Qt. Uncut)

$0.00
$0.00
-
799344

Enamel, Almond (1 Qt. Uncut)

$0.00
$0.00
-
978883
