6ED0GTKXKQ01

6ED0GTKXKQ01

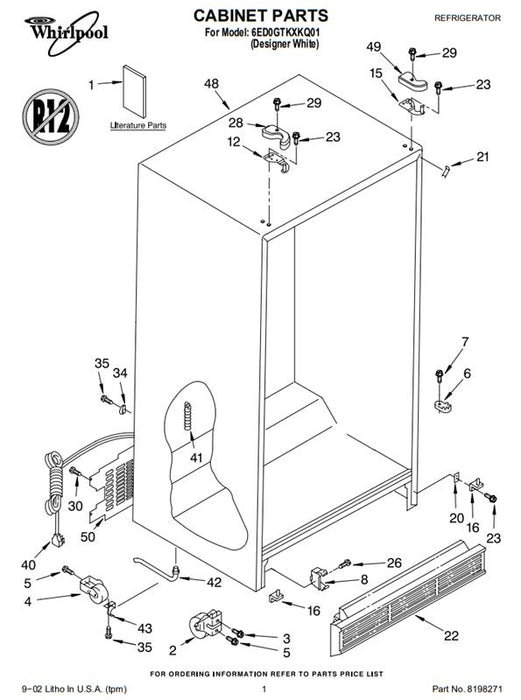

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

LITERATURE PARTS

$0.00
$0.00
1
---

Service & Wiring Sheet

$0.00
$0.00
-
LIT2255047

Use & Care Guide

$0.00
$0.00
-
LIT2254915

Energy Label

$0.00
$0.00
-
LIT2214780

Front Roller (2)

$0.00
$0.00
2
2174748

Screw

$0.00
$0.00
3
3400517

Roller (Rear) (2)

$0.00
$0.00
4
2196236

Screw

$0.00
$0.00
5
489427

Door Closer, Lower Cam (2)

$0.00
$0.00
6
2155311

Screw

$0.00
$0.00
7
489483

Clip, Grille

$0.00
$0.00
8
2155013

Hinge, Top (FC)

$0.00
$0.00
12
2203770

Hinge, Top (RC)

$0.00
$0.00
15
2203771

Hinge Bottom

$0.00
$0.00
16
2217075

Spacer, Hinge

$0.00
$0.00
20
2209697

Filler, Wrapper

$0.00
$0.00
21
2196094

Grille

$1.00
$1.00
22
2198469W

Screw

$0.00
$0.00
23
489497

Screw

$0.00
$0.00
26
489478

Hinge Cover (FC)

$0.00
$0.00
28
2203407W

Screw

$0.00
$0.00
29
8281227

Screw

$0.00
$0.00
30
489084

Clamp

$0.00
$0.00
34
489348

Screw

$0.00
$0.00
35
489464

Service Cord

$0.00
$0.00
40
2205330

Drain Ferrule

$0.00
$0.00
41
940139

Extension Tube

$0.00
$0.00
43
1108438

Clip, Drain Tube

$0.00
$0.00
48
1108439

Cabinet (Not A Serviceable Part)

$0.00
$0.00
49
---

Hinge Cover (RC)

$0.00
$0.00
50
2203408W

Cover, Unit

$0.00
$0.00
2214573

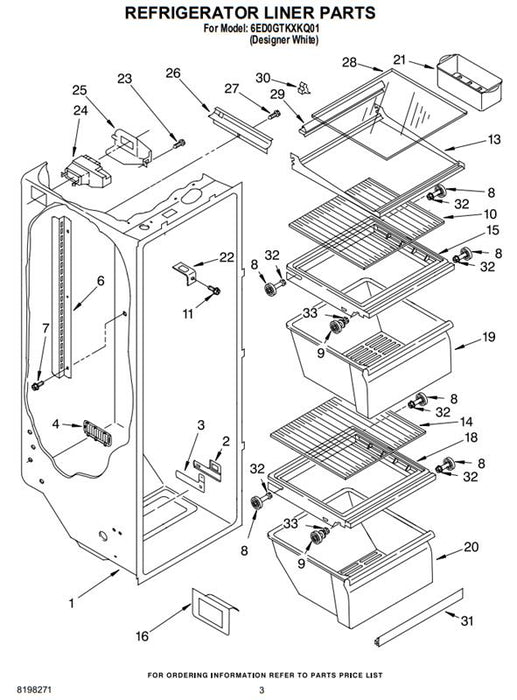

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
---

Escutcheon, Meat Pan Control

$0.00
$0.00
2
2194744

Slide, Meat Pan Control

$0.00
$0.00
3
2182757

Louver

$0.00
$0.00
4
2182147

Shelf Ladder (2)

$0.00
$0.00
6
2206270

Screw (6)

$0.00
$0.00
7
487539

Stud Assembly

$0.00
$0.00
8
2196483

Stud Assembly

$0.00
$0.00
9
2196485

Glass, Cover

$0.00
$0.00
10
2174150

Screw (2)

$0.00
$0.00
11
489290

Shelf, Cantilever

$0.00
$0.00
13
2173178

Glass, Meat Cover

$0.00
$0.00
14
2179259

Crisper Cover

$0.00
$0.00
15
2209698

Deflector

$0.00
$0.00
16
2179350

Meat Pan Cover

$0.00
$0.00
18
2217039

Crisper Pan

$0.00
$0.00
19
2196481

Meat Pan

$0.00
$0.00
20
2196162

Egg Bin

$0.00
$0.00
21
2216624

Bracket Retainer

$0.00
$0.00
22
1123919

Screw

$0.00
$0.00
23
489478

Air Diffuser Assembly

$0.00
$0.00
24
2209752

Air Diffuser Cover

$0.00
$0.00
25
2212240

Cover, Conduit

$0.00
$0.00
26
2150330

Screw

$0.00
$0.00
27
486298

Glass, Shelf

$0.00
$0.00
28
2177978

Reflector

$0.00
$0.00
29
1125594

Clip, Air Duct

$0.00
$0.00
30
842534

Extension, Pan Cover

$0.00
$0.00
31
2209704

Screw

$0.00
$0.00
32
3400894

Screw

$0.00
$0.00
33
8281158

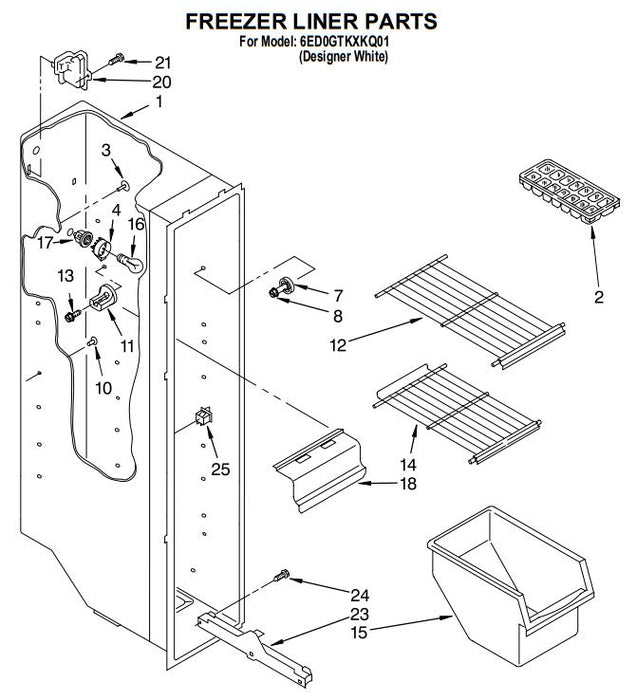

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Seviceable Part)

$0.00
$0.00
1
---

Ice Tray (2)

$0.00
$0.00
2
841180

Hole Plug

$0.00
$0.00
3
941839

Shroud, Light

$0.00
$0.00
4
2167012

Stud Assembly

$0.00
$0.00
7
2196483

Screw

$0.00
$0.00
8
8281158

Grommet (10)

$0.00
$0.00
10
2176134

Stud, Rear

$0.00
$0.00
11
2196207

Shelf

$0.00
$0.00
12
2163612

Screw

$0.00
$0.00
13
3400893

Shelf (2)

$0.00
$0.00
14
2174270

Shelf (1)

$0.00
$0.00
-
2174269

Freezer Bin

$0.00
$0.00
15
2171707

Light Bulb

$0.00
$0.00
16
851682

Socket, Assembly

$0.00
$0.00
17
2155597

Light Lens

$0.00
$0.00
18
2155595

Cover, Wiring

$0.00
$0.00
20
2160912

Screw

$0.00
$0.00
21
489355

Slide, Freezer Bin

$0.00
$0.00
23
---

Right Side

$0.00
$0.00
-
1119293

Left Side

$0.00
$0.00
-
1115383

Screw

$0.00
$0.00
24
489100

Rocker Arm Switch

$0.00
$0.00
25
1118894

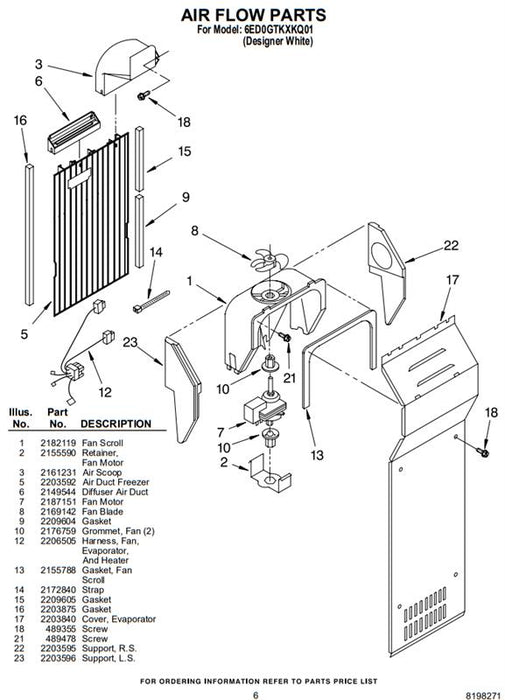

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Fan Scroll

$0.00
$0.00
1
2182119

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Air Duct Freezer

$0.00
$0.00
5
2203592

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
2187151

Fan Blade

$0.00
$0.00
8
2169142

Gasket

$0.00
$0.00
9
2209604

Grommet, Fan (2)

$0.00
$0.00
10
2176759

Harness, Fan, Evaporator, And Heater

$0.00
$0.00
12
2206505

Gasket, Fan Scroll

$0.00
$0.00
13
2155788

Strap

$0.00
$0.00
14
2172840

Gasket

$0.00
$0.00
15
2209605

Gasket

$0.00
$0.00
16
2203875

Cover, Evaporator

$0.00
$0.00
17
2203840

Screw

$0.00
$0.00
18
489355

Screw

$0.00
$0.00
21
489478

Support, R.S.

$0.00
$0.00
22
2203595

Support, L.S.

$0.00
$0.00
23
2203596

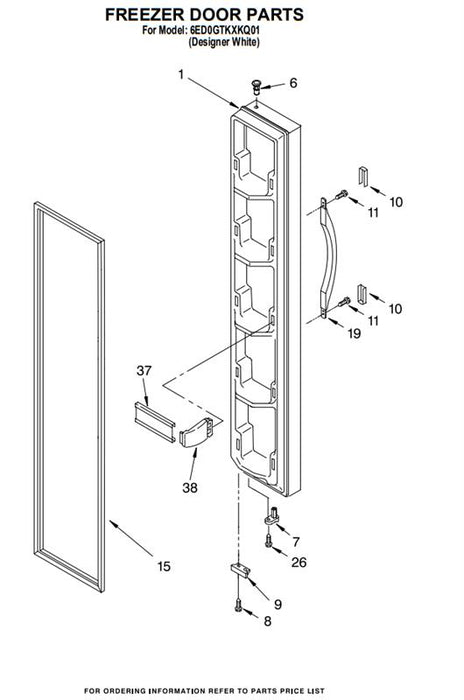

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer Door (Includes Item 15)

$0.00
$0.00
1
2206823W

Thimble−Top

$0.00
$0.00
6
2182180

Door Closer, Upper Cam

$0.00
$0.00
7
2182178

Screw

$0.00
$0.00
8
489420

Bracket, Door Stop

$0.00
$0.00
9
2206629

Endcap, Handle

$0.00
$0.00
10
2193353W

Screw

$0.00
$0.00
11
489491

Door Gasket, Magnetic

$0.00
$0.00
15
2221301

Handle, Center

$0.00
$0.00
19
2186649W

Screw

$0.00
$0.00
26
3400012

Trim, Door Shelf (5)

$0.00
$0.00
37
2195919

Endcap, Trim

$0.00
$0.00
38
---

Right Side (5)

$0.00
$0.00
-
2195916

Left Side (5)

$0.00
$0.00
-
2195917

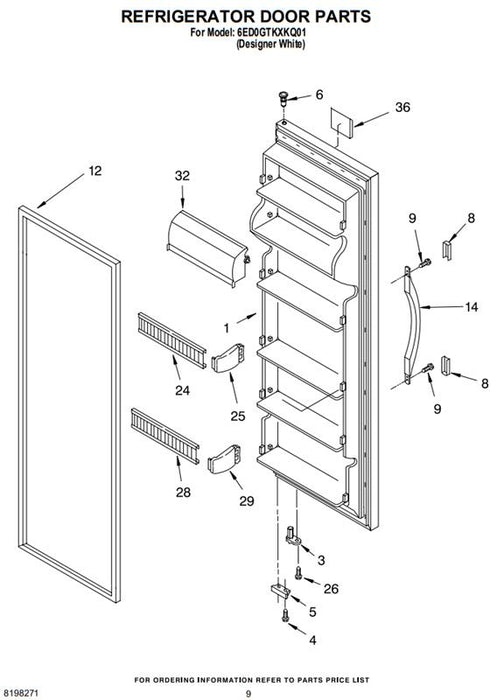

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Refrigerator Door (Includes Item 12)

$0.00
$0.00
1
2206828W

Door Closer, Upper Cam

$0.00
$0.00
3
2182178

Screw

$0.00
$0.00
4
489420

Bracket, Door Stop

$0.00
$0.00
5
2206629

Thimble−Top

$0.00
$0.00
6
2182180

Endcap, Handle

$0.00
$0.00
8
2193353W

Screw

$0.00
$0.00
9
489491

Door Gasket, Magnetic

$0.00
$0.00
12
2221300

Handle, Center

$0.00
$0.00
14
2186649W

Trim, Door Shelf

$0.00
$0.00
24
2195934

Endcap, Trim (2)

$0.00
$0.00
25
2195915

Screw

$0.00
$0.00
26
3400012

Trim, Door Shelf (5)

$0.00
$0.00
28
2182190

Endcap, Trim (8)

$0.00
$0.00
29
2195916

Compartment Door

$0.00
$0.00
32
2177105

Nameplate

$0.00
$0.00
36
2195063

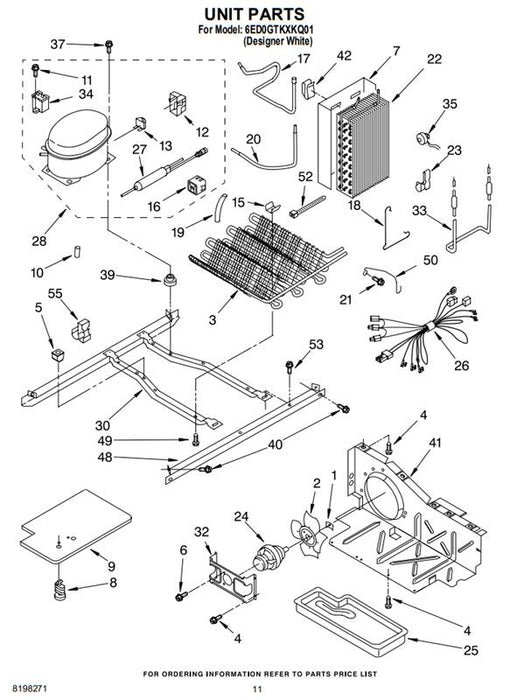

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Speed Nut

$0.00
$0.00
1
486692

Fan, Blade

$0.00
$0.00
2
2190685

Condenser Assembly

$0.00
$0.00
3
2204484

Screw

$0.00
$0.00
4
489464

Grommet

$0.00
$0.00
5
509812

Screw

$0.00
$0.00
6
489099

Heat Shield And Drain Pan

$0.00
$0.00
7
2149293

Clip

$0.00
$0.00
8
489396

Cover, Unit Compartment

$0.00
$0.00
9
2200451

Dampner

$0.00
$0.00
10
2158826

Screw

$0.00
$0.00
11
488687

Cover (Service)

$0.00
$0.00
12
4387959

Overload

$0.00
$0.00
13
4388101

(Service, Includes Relay)

$0.00
$0.00
-
2216914

Clip, Condenser

$0.00
$0.00
15
2188508

Start−Device, Combination (Start relay and Overload) For Production

$0.00
$0.00
16
2205764

Tube Suction

$0.00
$0.00
17
2161324

Clip, Defrost Heater

$0.00
$0.00
18
2161302

Sleeve

$0.00
$0.00
19
2211760

Tube, Condenser to Heat Loop

$0.00
$0.00
20
489478

Screw

$0.00
$0.00
21
2164518

Evaporator

$0.00
$0.00
22
2161330

Clip, Heater (2)

$0.00
$0.00
23
2188539

Fan, Motor

$0.00
$0.00
24
1105523

Tray, Evaporator

$0.00
$0.00
25
2187404

Harness, Unit

$0.00
$0.00
26
2199167

Drier

$0.00
$0.00
27
2187162

Compressor (Includes Items 10, 11, 12, 13, 15, 27 & 34)

$0.00
$0.00
28
2160499

Unit Mounting Frame

$0.00
$0.00
30
2181929

Fan, Motor Bracket

$0.00
$0.00
32
2188176

Heater, Defrost Capacitor

$0.00
$0.00
33
---

(Production)

$0.00
$0.00
34
2201147

(Service)

$0.00
$0.00
-
4387874

Bi−Metal, Defrost

$0.00
$0.00
-
2196155

Screw

$0.00
$0.00
35
489473

Grommet (4)

$0.00
$0.00
37
2183042

Screw

$0.00
$0.00
39
489340

Air Baffle

$0.00
$0.00
40
2196201

Clip, Heat Shield

$0.00
$0.00
41
2155547

Unit Mounting Rail

$0.00
$0.00
42
2149718

Screw

$0.00
$0.00
48
8281232

Guard, Fan

$0.00
$0.00
49
1105612

Strap

$0.00
$0.00
50
2221306

Screw

$0.00
$0.00
52
489427

Clip, Wire And Water Tube

$0.00
$0.00
53
2208280

Valve, Access (1/4")

$0.00
$0.00
55
978025

Valve, Access (5/16")

$0.00
$0.00
978026

Valve, Access (3/8")

$0.00
$0.00
978027

Valve, Access (1/2")

$0.00
$0.00
978028

Valve, Access (5/8")

$0.00
$0.00
978029

Valve, Access (3/4")

$0.00
$0.00
978030

Valve, Access (3/16")

$0.00
$0.00
876764

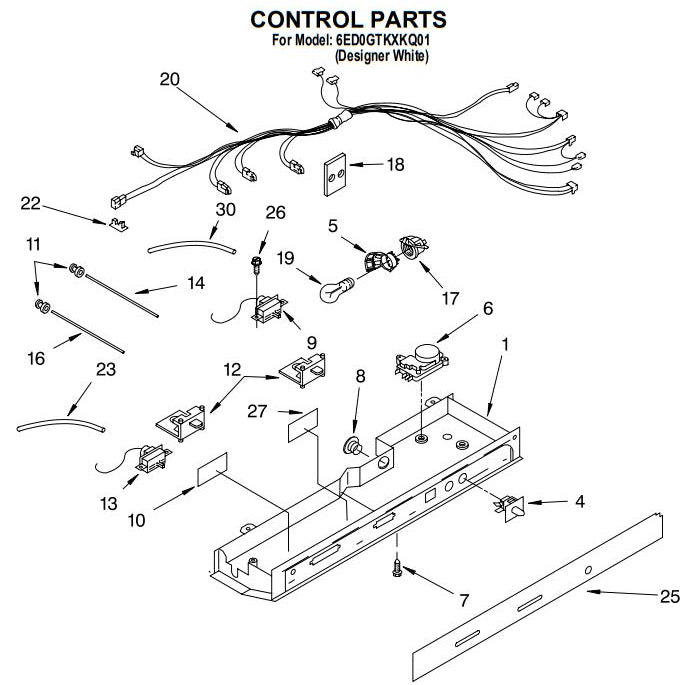

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Control Box

$0.00
$0.00
1
2200135

Light Switch

$0.00
$0.00
4
2149705

Shroud, Light

$0.00
$0.00
5
2175210

Defrost Timer

$0.00
$0.00
6
2188380

Screw (2)

$0.00
$0.00
7
489398

Hole Plug

$0.00
$0.00
8
940014

Thermostat (RC)

$0.00
$0.00
9
2183739

Window

$0.00
$0.00
10
2172940

Grommet, Light Bar

$0.00
$0.00
11
2172906

Slide, Thermostat

$0.00
$0.00
12
2161466

Thermostat (FC)

$0.00
$0.00
13
2187158

Light Bar (FC)

$0.00
$0.00
14
2179920

Light Bar (RC)

$0.00
$0.00
16
2179921

Light Socket

$0.00
$0.00
17
2162085

Heat Shield

$0.00
$0.00
18
2172931

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2187325

Clip, Wiring

$0.00
$0.00
22
1115375

Tube Barrier, Thermostat (FC)

$0.00
$0.00
23
2196003

Escutcheon, Control Box

$0.00
$0.00
25
2175064

Screw

$0.00
$0.00
26
489214

Window

$0.00
$0.00
27
2172941

Tube Barrier Thermostat (RC)

$0.00
$0.00
30
2182151

Production Compressor Only

$0.00
$0.00
---

Primer, White (13 Oz. Spray Can)

$0.00
$0.00
350942

Enamel, Black (13 Oz. Spray Can)

$0.00
$0.00
350939

Enamel, White (13 Oz. Spray Can)

$0.00
$0.00
350930

Enamel, Golden Harvest (13 Oz. Spray Can)

$0.00
$0.00
261890

Enamel, Almond (13 Oz. Spray Can)

$0.00
$0.00
350956

Brush Touch−Up Kit (White)

$0.00
$0.00
72017

Brush Touch−Up Kit (Almond)

$0.00
$0.00
72107

Brush Touch−up kit (Black)

$0.00
$0.00
72032

Brush Touch−Up kit (Golden Harvest)

$1.00
$1.00
72110

Sealer, Gum (4 Feet)

$2.00
$2.00
212643

Tape, Vinyl (3/4 x 108")

$3.00
$3.00
479502

Kit, Insulation (2 Pcs. x 3" x 24" X 48")

$4.00
$4.00
876370

Kit, Insulation (14 Pcs. x 3" x 24" x 48")

$5.00
$5.00
876305

Insulation, Fiberglass (63−1/2" x 35−1/2" X 2−5/8)

$6.00
$6.00
978941

Kit, Foam Slab (30" x 32−1/2" x 1−1/2")

$7.00
$7.00
876029

Sealer, Mastic (1 Qt.)

$8.00
$8.00
505587

Cork, Sealer (1/4 Pound)

$9.00
$9.00
503695

Touch−Up, White Porcelain (2 Oz.)

$10.00
$10.00
511873

Grease, Silicone (1/2 Oz.)

$11.00
$11.00
542638

Cement, Alumilastic (1−1/4 Oz.)

$12.00
$12.00
542639

Bag, Insulation (36−5/8" x 46")

$13.00
$13.00
606755

Kit, Evaporator Repair (Aluminum Epoxy)

$14.00
$14.00
799833

Kit, Terminal Connector

$15.00
$15.00
833938

Enamel, Black (1 Qt. Uncut)

$16.00
$16.00
799340

Enamel, White (1 Qt. Uncut

$17.00
$17.00
799344

Enamel, Almond (1 Qt. Uncut)

$18.00
$18.00
978883

3ECKMF87

$19.00
$19.00
1129317

Torx Key

$20.00
$20.00
1117510
