6ED20PKXAW00

6ED20PKXAW00

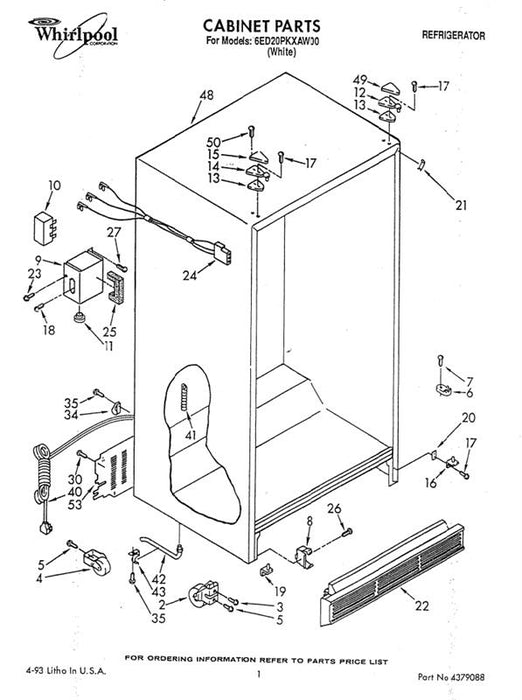

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Front Roller (2)

$0.00
$0.00
2
2152011

Screw

$0.00
$0.00
3
489393

Roller (Rear) (2)

$0.00
$0.00
4
981122

Screw

$0.00
$0.00
5
488454

Door Closer, Lower Cam (2)

$0.00
$0.00
6
1115901

Screw

$0.00
$0.00
7
489375

Clip, Grille

$0.00
$0.00
8
2155013

Cover Terminal Block

$0.00
$0.00
9
2158579

Terminal Block

$0.00
$0.00
10
1129346

Bushing

$0.00
$0.00
11
1129449

Hinge, Top

$0.00
$0.00
12
1123514

Shim, Hinge (2)

$0.00
$0.00
13
1123515

Hinge, Top

$0.00
$0.00
14
1123510

Hinge Cover

$0.00
$0.00
15
1129262

Hinge Bottom (R.H)

$0.00
$0.00
16
2151619

Screw

$0.00
$0.00
17
489367

Screw

$0.00
$0.00
18
489211

Hinge Bottom (L.H)

$0.00
$0.00
19
2151620

Spacer, Hinge

$0.00
$0.00
20
836196

Filler, Wrapper

$0.00
$0.00
21
1110708

Grille

$0.00
$0.00
22
1129001

Screw

$0.00
$0.00
23
489346

Wiring Assembly

$0.00
$0.00
24
2165297

Gasket

$0.00
$0.00
25
2158999

Screw

$0.00
$0.00
26
489242

Screw

$0.00
$0.00
27
489048

Screw

$0.00
$0.00
30
489084

Clamp

$0.00
$0.00
34
489348

Screw

$0.00
$0.00
35
489337

Service Cord

$0.00
$0.00
40
1129331

Drain Ferrule

$0.00
$0.00
41
940139

Extension Tube

$0.00
$0.00
42
1108438

Clip, Drain Tube

$0.00
$0.00
43
1108439

Cabinet (Not A Serviceable Part)

$0.00
$0.00
48
-

Hinge Cover

$0.00
$0.00
49
1119787

Screw

$0.00
$0.00
50
489284

Cover, Unit

$0.00
$0.00
53
2161366

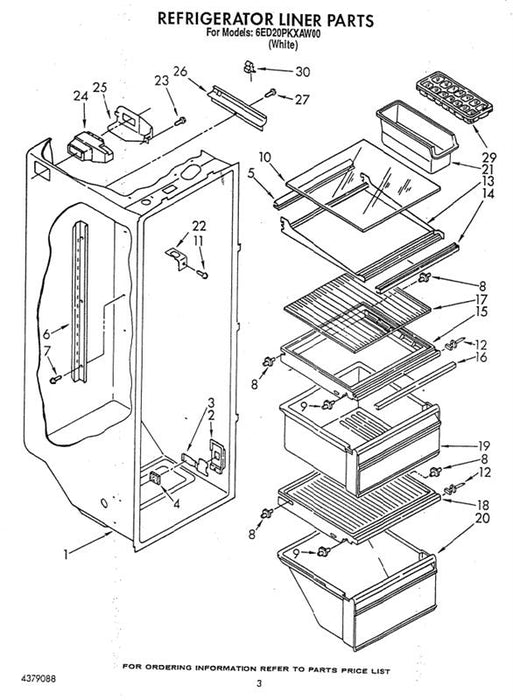

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
---

Escutcheon, Meat Pan Control

$0.00
$0.00
2
985468

Slide, Meat Pan Control

$0.00
$0.00
3
984102

Foam Pad

$0.00
$0.00
4
992358

Reflector

$0.00
$0.00
5
1114306

Shelf Ladder (2)

$0.00
$0.00
6
1108433

Screw

$0.00
$0.00
7
487539

Stud (4)

$0.00
$0.00
8
1110718

Stud, Left Front

$0.00
$0.00
9
2149540

Glass Shelf

$0.00
$0.00
10
2148108

Screw (2)

$0.00
$0.00
11
489290

Stud, Right Front

$0.00
$0.00
12
2147997

Shelf, Cantilever

$0.00
$0.00
13
2148087

Trim, Shelf (3)

$0.00
$0.00
14
1114302

Crisper Cover

$0.00
$0.00
15
2148093

Trim, Cover

$0.00
$0.00
16
1110795

Glass, Shelf

$0.00
$0.00
17
1114687

Meat Pan Cover

$0.00
$0.00
18
2157051

Crisper Pan

$0.00
$0.00
19
2148193

Meat Pan

$0.00
$0.00
20
2148192

Container

$0.00
$0.00
21
-

White

$0.00
$0.00
-
1116917

Haze

$0.00
$0.00
-
2148079

Bracker Retainer

$0.00
$0.00
22
1123919

Screw

$0.00
$0.00
23
489242

Air Diffuser Assembly

$0.00
$0.00
24
2161251

Air Diffuser Cover

$0.00
$0.00
25
2152019

Cover, Conduit

$0.00
$0.00
26
2150330

Screw

$0.00
$0.00
27
486298

Ice Tray (2)

$0.00
$0.00
29
841180

Clip, Air Duct

$0.00
$0.00
30
842534

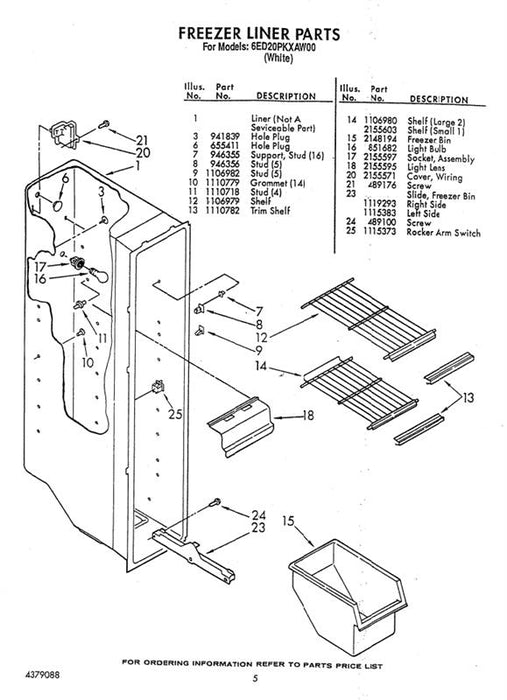

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Hole Plug

$0.00
$0.00
3
941839

Hole Plug

$0.00
$0.00
6
655411

Support, Stud (16)

$0.00
$0.00
7
946355

Stud (5)

$0.00
$0.00
8
946356

Stud (5)

$0.00
$0.00
9
1106982

Grommet (14)

$0.00
$0.00
10
1110779

Stud (4)

$0.00
$0.00
11
1110718

Shelf

$0.00
$0.00
12
1106979

Trim Shelf

$0.00
$0.00
13
1110782

Shelf (Large 2)

$0.00
$0.00
14
1106980

Shelf (Small 1)

$0.00
$0.00
-
2155603

Freezer Bin

$0.00
$0.00
15
2148194

Light Bulb

$0.00
$0.00
16
851682

Socket, Assembly

$0.00
$0.00
17
2155597

Light Lens

$0.00
$0.00
18
2155595

Cover, Wiring

$0.00
$0.00
20
2155571

Screw

$0.00
$0.00
21
489176

Slide, Freezer Bin

$0.00
$0.00
23
-

Right Side

$0.00
$0.00
-
1119293

Left Side

$0.00
$0.00
-
1115383

Screw

$0.00
$0.00
24
489100

Rocker Arm Switch

$0.00
$0.00
25
1115373

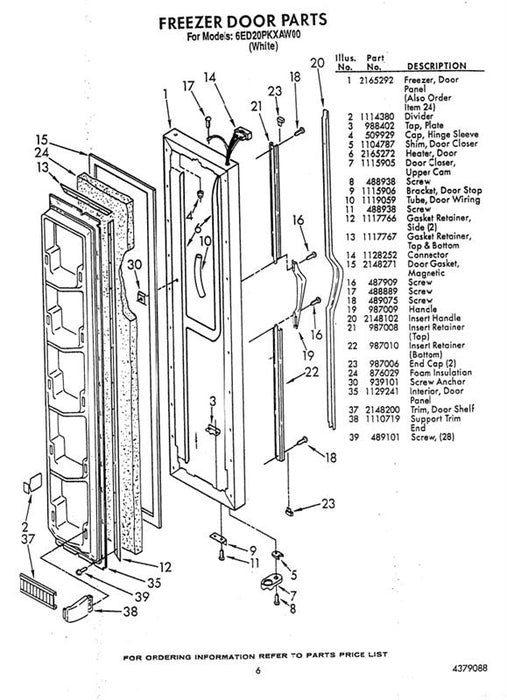

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer, Door Panel (Also Order Item 24)

$0.00
$0.00
1
2165292

Divider

$0.00
$0.00
2
1114380

Tap, Plate

$0.00
$0.00
3
988402

Cap, Hinge Sleeve

$0.00
$0.00
4
509929

Shim, Door Closer

$0.00
$0.00
5
1104787

Heater, Door

$0.00
$0.00
6
2165272

Door Closer, Upper Cam

$0.00
$0.00
7
1115905

Screw

$0.00
$0.00
8
488938

Bracket, Door Stop

$0.00
$0.00
9
1115906

Tube, Door Wiring

$0.00
$0.00
10
1119059

Screw

$0.00
$0.00
11
488938

Gasket Retainer, Side (2)

$0.00
$0.00
12
1117766

Gasket Retainer, Top & Bottom

$0.00
$0.00
13
1117767

Connector

$0.00
$0.00
14
1128252

Door Gasket, Magnetic

$0.00
$0.00
15
2148271

Screw

$0.00
$0.00
16
487909

Screw

$0.00
$0.00
17
488889

Screw

$0.00
$0.00
18
489075

Handle

$0.00
$0.00
19
987009

Insert Handle

$0.00
$0.00
20
2148102

Insert Retainer (Top)

$0.00
$0.00
21
987008

Insert Retainer (Bottom)

$0.00
$0.00
22
987010

End Cap (2)

$0.00
$0.00
23
987006

Foam Insulation

$0.00
$0.00
24
876029

Screw Anchor

$0.00
$0.00
30
939101

Interior, Door Panel

$0.00
$0.00
35
1129241

Trim, Door Shelf

$0.00
$0.00
37
2148200

Support Trim End

$0.00
$0.00
38
1110719

Screw (28)

$0.00
$0.00
39
489101

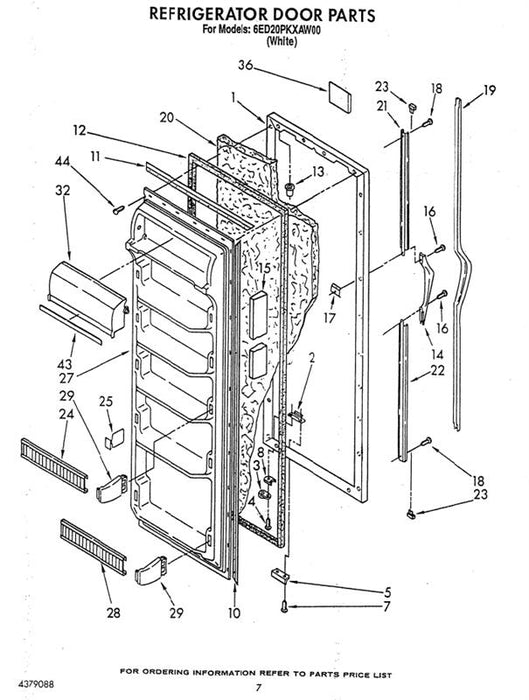

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Refrigerator, Door Panel (Also Order Item 20)

$0.00
$0.00
1
1106923

Tap, Plate

$0.00
$0.00
2
988402

Door Closer, Upper Cam

$0.00
$0.00
3
1115905

Screw

$0.00
$0.00
4
488938

Bracket, Door Stop

$0.00
$0.00
5
1115906

Screw

$0.00
$0.00
7
488938

Shim, Door Closer

$0.00
$0.00
8
1104787

Gasket Retainer, Side (2)

$0.00
$0.00
10
1117766

Gasket Retainer, Top & Bottom

$0.00
$0.00
11
1118301

Door Gasket, Magnetic

$0.00
$0.00
12
2148270

Cap, Hinge Sleeve

$0.00
$0.00
13
509929

Handle

$0.00
$0.00
14
987009

Reinforcement, Shelf

$0.00
$0.00
15
2152266

Screw

$0.00
$0.00
16
487909

Screw, Anchor

$0.00
$0.00
17
939101

Screw

$0.00
$0.00
18
489075

Insert, Handle

$0.00
$0.00
19
2148102

Foam Insulation (Required When Replacing Exterior Door Panel)

$0.00
$0.00
20
876029

Insert Retainer (Top)

$0.00
$0.00
21
987008

Insert Retainer (Bottom)

$0.00
$0.00
22
987010

End Cap

$0.00
$0.00
23
987006

Trim, Door Shelf (2)

$0.00
$0.00
24
2148267

Divider, Shelf

$0.00
$0.00
25
2160049

Interior, Door Panel Also Order Item 15 (3)

$0.00
$0.00
27
1124961

Trim, Door Shelf (2)

$0.00
$0.00
28
2148268

Retainer, Door Trim (8)

$0.00
$0.00
29
1124877

Compartment Door

$0.00
$0.00
32
2148218

Nameplate

$0.00
$0.00
36
2165148

Trim, Door Compartment

$0.00
$0.00
43
1110717

Screw (30)

$0.00
$0.00
44
489101

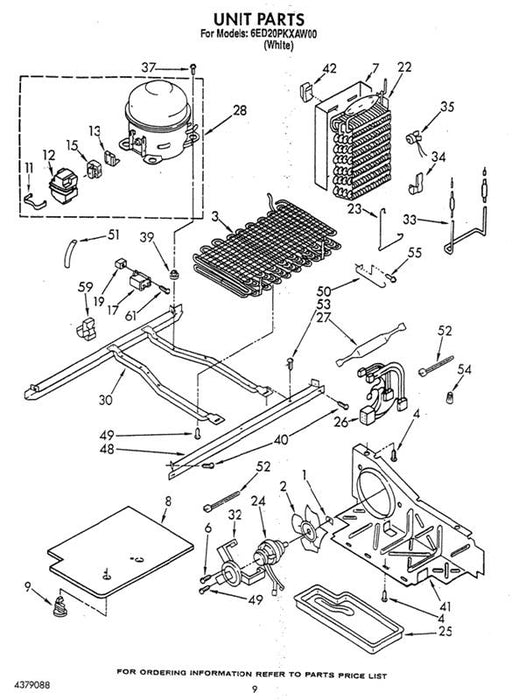

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Speed Nut

$0.00
$0.00
1
486692

Fan, Blade

$0.00
$0.00
2
1108179

Condenser Assembly

$0.00
$0.00
3
2154010

Screw

$0.00
$0.00
4
489337

Screw

$0.00
$0.00
6
489019

Heat Shield and Drain Pan

$0.00
$0.00
7
2149293

Cover, Unit Compartment

$0.00
$0.00
8
2160505

Clip

$0.00
$0.00
9
489396

Strap

$0.00
$0.00
11
2154721

Cover

$0.00
$0.00
12
2154722

Overload (Includes Relay)

$0.00
$0.00
13
2158785

Relay (See Overload)

$0.00
$0.00
15
-

Capacitor

$0.00
$0.00
17
2154717

Scew, Grommet

$0.00
$0.00
19
509812

Evaporator

$0.00
$0.00
22
2155500

Clip

$0.00
$0.00
23
2161324

Fan, Motor

$0.00
$0.00
24
2154976

Tray, Evaporator

$0.00
$0.00
25
1105523

Harness, Intermediate

$0.00
$0.00
26
2165296

Drier

$0.00
$0.00
27
2154002

Compressor (Includes Items 11, 12, 13, 15 & 17) (Also Order 876765 Tube Kit)

$0.00
$0.00
28
2154723

Unit Mounting Frame

$0.00
$0.00
30
2160498

Fan, Motor Bracket

$0.00
$0.00
32
2162062

Heater, Defrost

$0.00
$0.00
33
2162213

Clip, Heater

$0.00
$0.00
34
2161330

Bi-Metal, Defrost

$0.00
$0.00
35
2161331

Screw

$0.00
$0.00
37
489387

Grommet (4)

$0.00
$0.00
39
2162067

Screw

$0.00
$0.00
40
489340

Air Baffle

$0.00
$0.00
41
1127938

Clip, Heat Shield

$0.00
$0.00
42
2155547

Unit Mounting Rail

$0.00
$0.00
48
2149717

Screw

$0.00
$0.00
49
488624

Guard, Fan

$0.00
$0.00
50
1105612

Sleeve

$0.00
$0.00
51
2161302

Strap

$0.00
$0.00
52
2155774

Screw

$0.00
$0.00
53
489339

Wire Connector

$0.00
$0.00
54
850145

Screw

$0.00
$0.00
55
489242

Clip, Wire And Water Tube

$0.00
$0.00
59
2155658

Screw

$0.00
$0.00
61
488687

Valve, Access (1/4")

$0.00
$0.00
978025

Valve, Access (5/16")

$0.00
$0.00
978026

Valve, Access (3/8")

$0.00
$0.00
978027

Valve, Access (1/2")

$0.00
$0.00
978028

Valve, Access (5/8")

$0.00
$0.00
978029

Valve, Access (3/4")

$0.00
$0.00
978030

Valve, Access (3/16")

$0.00
$0.00
876764

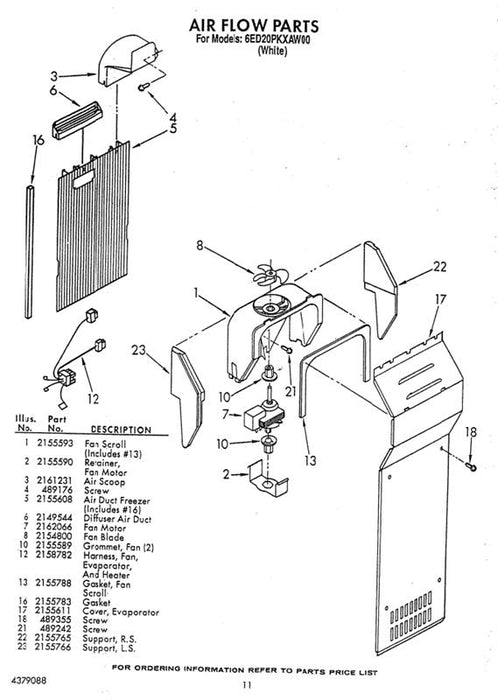

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Fan Scroll (Includes #13)

$0.00
$0.00
1
2155593

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Screw

$0.00
$0.00
4
489176

Air Duct Freezer (Includes #16)

$0.00
$0.00
5
2155608

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
2162066

Fan Blade

$0.00
$0.00
8
2154800

Grommet, Fan (2)

$0.00
$0.00
10
2155589

Harness, Fan, Evaporator, and Heater

$0.00
$0.00
12
2158782

Gasket, Fan Scroll

$0.00
$0.00
13
2155788

Gasket

$0.00
$0.00
16
2155783

Cover, Evaporator

$0.00
$0.00
17
2155611

Screw

$0.00
$0.00
18
489355

Screw

$0.00
$0.00
21
489242

Support, R.S

$0.00
$0.00
22
2155765

Support, L.S

$0.00
$0.00
23
2155766

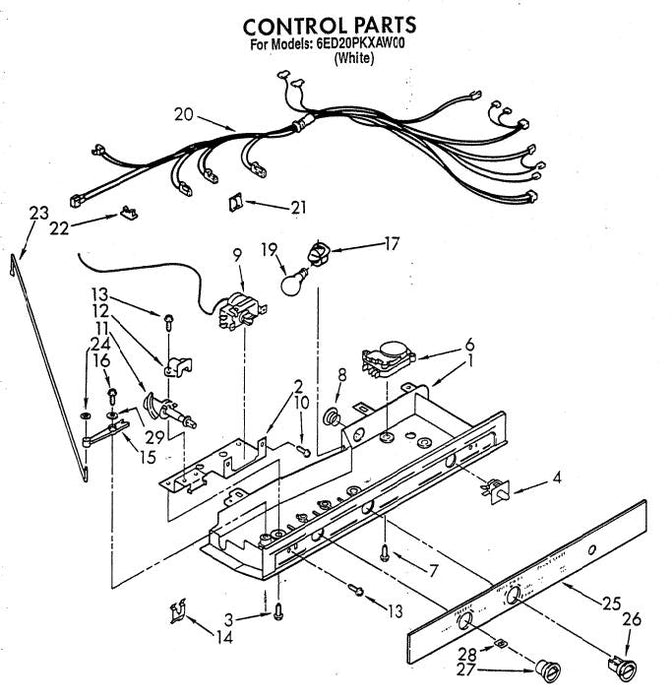

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Control Box

$0.00
$0.00
1
2155518

Mounting Bracket

$0.00
$0.00
2
110629

Screw (2)

$0.00
$0.00
3
489397

Light Switch

$0.00
$0.00
4
2149705

Defrost Timer

$0.00
$0.00
6
2162057

Screw (2)

$0.00
$0.00
7
489398

Hole Plug

$0.00
$0.00
8
940014

Thermostat Assembly

$0.00
$0.00
9
2161283

Screw

$0.00
$0.00
10
487869

Cam Assembly

$0.00
$0.00
11
2161250

Bearing Body

$0.00
$0.00
12
1110560

Screw

$0.00
$0.00
13
489242

Retainer, Damper

$0.00
$0.00
14
938439

Pivot Arm

$0.00
$0.00
15
1110559

Screw

$0.00
$0.00
16
627068

Light Socket

$0.00
$0.00
17
1129370

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2149185

Clip, Wiring

$0.00
$0.00
21
1115374

Clip, Wiring

$0.00
$0.00
22
1115375

Connecting Rod

$0.00
$0.00
23
1123959

Fastener, Push-On

$0.00
$0.00
24
489285

Escutcheon, Control Box

$0.00
$0.00
25
2161213

Thermostat knob

$0.00
$0.00
26
1116852

Knob, Air Control

$0.00
$0.00
27
1116853

Retainer, Knob

$0.00
$0.00
28
837444

Spring Washer

$0.00
$0.00
29
489203

Primer, White (13 Oz. Spray Can)

$0.00
$0.00
350942

Leveler, Enamel (13 Oz. Spray Can)

$0.00
$0.00
350941

Enamel, Black (13 Oz. Spray Can)

$0.00
$0.00
350939

Enamel, White (13 Oz. Spray Can)

$0.00
$0.00
350930

Enamel, Golden Harvest (13 Oz. Spray Can)

$0.00
$0.00
261890

Enamel, Almond (13 Oz. Spray Can)

$0.00
$0.00
350956

Brush Touch-Up Kit (White)

$0.00
$0.00
72017

Brush Touch-Up Kit (Almond)

$0.00
$0.00
72107

Brush Touch-Up Kit (Black)

$0.00
$0.00
72032

Brush Touch-Up Kit (Golden Harvest)

$0.00
$0.00
72110

Sealer, Gum (4 Feet)

$0.00
$0.00
212643

Tape, Vinyl (3/4 x 108")

$0.00
$0.00
479502

Kit, Insulation (2 Pcs. x 3" x 24" x 48")

$0.00
$0.00
876370

Kit, Insulation (14 Pcs. X 3" x 24" x 48")

$0.00
$0.00
876305

Insulation, Fiberglass (63-1/2" x 35-1/2" x 2-5/8)

$0.00
$0.00
978941

Kit, Foam Slab (30" x 32-1/2" x 1-1/2")

$0.00
$0.00
876029

Sealer, Mastic (1 Qt.)

$0.00
$0.00
505587

Cork, Sealer (1/4 Pound)

$0.00
$0.00
503695

Touch-Up, White Porcelain (2 Oz.)

$0.00
$0.00
511873

Grease, Silicone (1/2 Oz.)

$0.00
$0.00
542638

Cement, Alumilastic (1-1/4 Oz.)

$0.00
$0.00
542639

Bag, Insulation (36-5/8" x 46")

$0.00
$0.00
606755

Kit, Evaporator Repair (Aluminum Epoxy)

$0.00
$0.00
799833

Kit, Terminal Connector

$0.00
$0.00
833938

Transformer (115-230 Volts)

$0.00
$0.00
515393

Enamel, Black (1 Qt. Uncut)

$0.00
$0.00
799340

Enamel, White (1 Qt. Uncut)

$0.00
$0.00
799344

Enamel, Almond (1 Qt. Uncut)

$0.00
$0.00
978883

Enamel, Golden Harvest (1 Qt. Uncut)

$0.00
$0.00
261891

Service & Wiring Sheet

$0.00
$0.00
LIT2165353

Care & Use Guide

$0.00
$0.00
LIT2165357

Energy Label

$0.00
$0.00
LIT2165359

Parts List

$0.00
$0.00
LIT4379088

Torx Key

$0.00
$0.00
1117510
