6ED20TKXFW00

6ED20TKXFW00

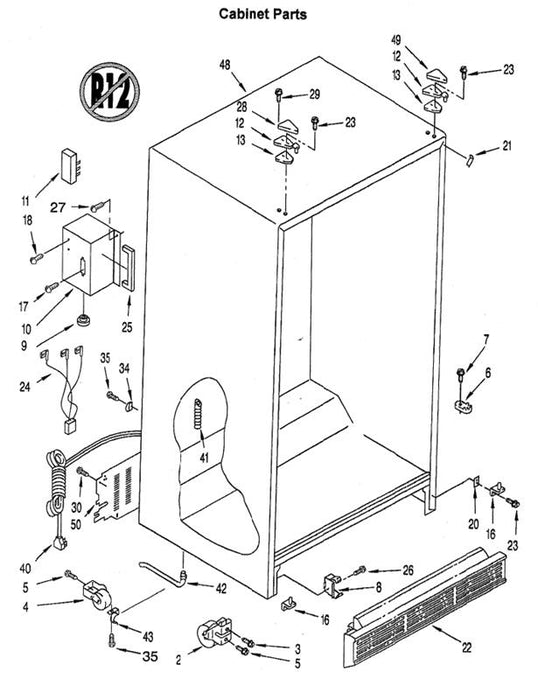

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Front Roller (2)

$0.00
$0.00
2
2174748

Screw

$0.00
$0.00
3
489456

Roller (Rear) (2)

$0.00
$0.00
4
981122

screw

$0.00
$0.00
5
489427

Door Closer, Lower Cam (2)

$0.00
$0.00
6
2155311

Screw

$0.00
$0.00
7
489420

Clip, Grille

$0.00
$0.00
8
2155013

Bushing

$0.00
$0.00
9
1129449

Enclosure, Terminal Block

$0.00
$0.00
10
2158579

Terminal Block

$0.00
$0.00
11
1129346

Hinge, Top (2)

$0.00
$0.00
12
2196046

Shim, Hinge (2)

$0.00
$0.00
13
2196048

Hinge Bottom

$0.00
$0.00
16
2171851

Screw

$0.00
$0.00
17
489478

Screw

$0.00
$0.00
18
489463

Spacer, Hinge

$0.00
$0.00
20
2181911

Filler, Wrapper

$0.00
$0.00
21
1110708

Grille

$0.00
$0.00
22
2155477

Screw

$0.00
$0.00
23
489497

Wiring Assembly

$0.00
$0.00
24
2165297

Gasket

$0.00
$0.00
25
2167227

Hinge Cover

$0.00
$0.00
26
1119787

Clamp

$0.00
$0.00
27
489348

Screw

$0.00
$0.00
28
489464

Service Cord

$0.00
$0.00
29
1129331

Drain Ferrule

$0.00
$0.00
30
940139

Extension Tube

$0.00
$0.00
34
1108438

Clip, Drain Tube

$0.00
$0.00
35
1108439

Cabinet (Not A Service Part)

$0.00
$0.00
40
---

Hinge Cover

$0.00
$0.00
41
1129262

Cover, Unit

$0.00
$0.00
42
2189681

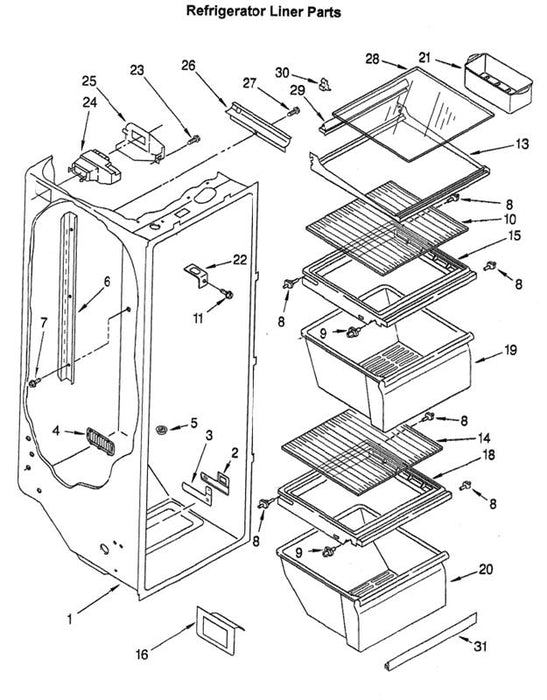

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Escutcheon, Meat Pan Control

$0.00
$0.00
2
2194744

Slide, Meat Pan Control

$0.00
$0.00
3
2182757

Louvre

$0.00
$0.00
4
2182147

Release Valve

$0.00
$0.00
5
2171846

Shelf Ladder (2)

$0.00
$0.00
6
2181796

Screw (8)

$0.00
$0.00
7
487539

Stud (8)

$0.00
$0.00
8
1110718

Stud, Left Front

$0.00
$0.00
9
2172943

Glass, Cover

$0.00
$0.00
10
2174150

Screw (2)

$0.00
$0.00
11
489290

Shelf, Cantilever

$0.00
$0.00
13
2173178

Glass, Meat 0V9F

$0.00
$0.00
14
2179259

Crisper Cover

$0.00
$0.00
15
2194578

Deflector

$0.00
$0.00
16
2179350

Meat Pan Cover

$0.00
$0.00
18
2189601

Crisper Pan

$0.00
$0.00
19
2174109

Meat Pan

$0.00
$0.00
20
2174118

Egg Bin

$0.00
$0.00
21
2164333

Bracket Retainer

$0.00
$0.00
22
1123018

Screw

$0.00
$0.00
23
489478

Air Diffuser Assembly

$0.00
$0.00
24
2176173

Air Diffuser Cover

$0.00
$0.00
25
2152019

Cover, Conduit

$0.00
$0.00
26
2150330

Screw

$0.00
$0.00
27
486298

Glass,Shelf

$0.00
$0.00
28
2177978

Reflector

$0.00
$0.00
29
1125594

Clip, Air Duct

$0.00
$0.00
30
842534

Extension, Pan Cover

$0.00
$0.00
31
2179561

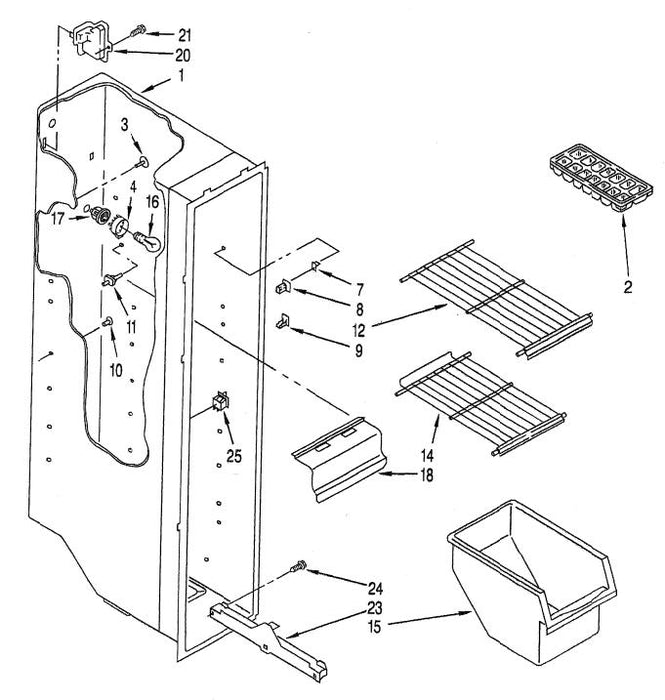

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Ice Tray (2)

$0.00
$0.00
2
841180

Hole Plug

$0.00
$0.00
3
941839

Shroud, Light

$0.00
$0.00
4
2167012

Support, Stud (10)

$0.00
$0.00
7
946355

Stud, Front (4)

$0.00
$0.00
8
946356

Stud R.S. Raar (4)

$0.00
$0.00
9
1106982

Grommet (10)

$0.00
$0.00
10
2176134

Stud (4)

$0.00
$0.00
11
1110718

Shelf

$0.00
$0.00
12
2163612

Shelf (2)

$0.00
$0.00
14
2174270

Shelf (1)

$0.00
$0.00
14
2174269

Freezer Bln

$0.00
$0.00
15
2171707

Light Bulb

$0.00
$0.00
16
851682

Socket, Assembly

$0.00
$0.00
17
2155597

Light Lens

$0.00
$0.00
18
2155595

Cover, Wiring

$0.00
$0.00
20
2155571

Screw

$0.00
$0.00
21
489355

Slide, Freezer Bin, Right Side

$0.00
$0.00
23
1119293

Slide, Freezer Bin, Left Slde

$0.00
$0.00
23
1115383

Screw

$0.00
$0.00
24
489100

Rocker Arm Switch

$0.00
$0.00
25
1115373

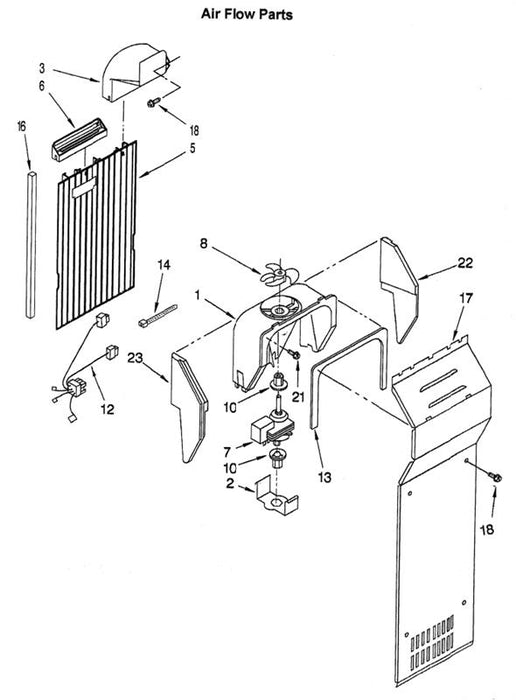

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Fan Scroll (Includes Item 13)

$0.00
$0.00
1
2182119

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Air Duct Freezer (Includes Item 16)

$0.00
$0.00
5
2155608

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
2154976

Fan Blade

$0.00
$0.00
8
2169142

Grommet, Fan (2)

$0.00
$0.00
10
2176759

Harness, Fan, Evaporator and Heater

$0.00
$0.00
12
2189564

Gasket, Fan Scroll

$0.00
$0.00
13
2155788

Strap

$0.00
$0.00
14
2172840

Gasket

$0.00
$0.00
16
2155783

Cover, Evaporator

$0.00
$0.00
17
2155611

Screw

$0.00
$0.00
18
489355

Screw

$0.00
$0.00
21
489478

Support, R.S.

$0.00
$0.00
22
2161484

Support, L.S.

$0.00
$0.00
23
2155766

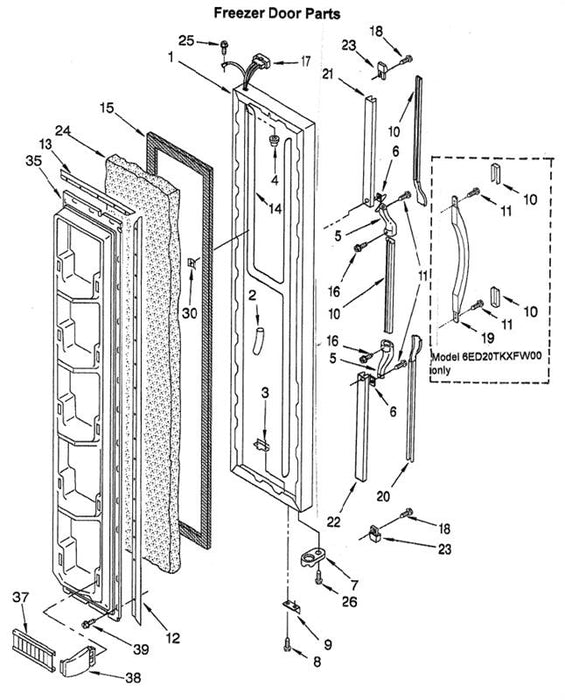

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer Door Panel (Also Order Item 24)

$0.00
$0.00
1
2194610W

Tube, Door Wiring

$0.00
$0.00
2
1119059

Tap, Plate

$0.00
$0.00
3
2155335

Cap, Hinge Sleeve

$0.00
$0.00
4
509929

End Cap (2)

$0.00
$0.00
5
Not Applicable

Shim

$0.00
$0.00
6
Not Applicable

Door Closer, Upper Cam

$0.00
$0.00
7
2182132

Screw

$0.00
$0.00
8
489367

Bracket, Door Stop

$0.00
$0.00
9
2195950

Insert, Top

$0.00
$0.00
10
2193353W

Screw

$0.00
$0.00
11
489491

Gasket Retainer, Side (2)

$0.00
$0.00
12
1117766

Gasket Retainer, Top & Bottom

$0.00
$0.00
13
1117767

Heater, Door

$0.00
$0.00
14
2165272

Door Gasket, Magnetic

$0.00
$0.00
15
1129267

Screw

$0.00
$0.00
16
Not Applicable

Connector

$0.00
$0.00
17
2154491

Screw

$0.00
$0.00
18
Not Applicable

Handle, Center

$0.00
$0.00
19
2193345W

Insert, Bottom

$0.00
$0.00
20
Not Applicable

Insert Retainer (Top)

$0.00
$0.00
21
Not Applicable

Insert Retainer (Bottom)

$0.00
$0.00
22
Not Applicable

End Cap (2)

$0.00
$0.00
23
Not Applicable

Foam Insulation (For door panel)

$0.00
$0.00
24
876029

Screw

$0.00
$0.00
25
Not Applicable

Screw

$0.00
$0.00
26
3400012

Screw Anchor

$0.00
$0.00
30
941242

Interior, Door Panel

$0.00
$0.00
35
1129241

Trim, Door Shelf

$0.00
$0.00
37
2198484

Support Trim End

$0.00
$0.00
38
2196100

Screw, (28)

$0.00
$0.00
39
489101

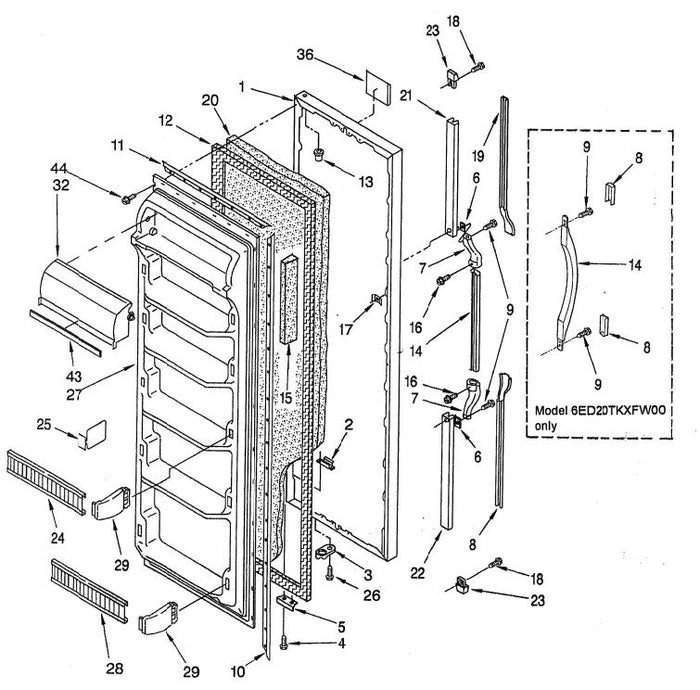

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Refrigerator Door Panel (Order Item 20)

$0.00
$0.00
1
2194611W

Tap Plate

$0.00
$0.00
2
2155335

Door Closer, Upper Cam

$0.00
$0.00
3
2182132

Screw

$0.00
$0.00
4
489367

Bracket, Door Stop

$0.00
$0.00
5
2195950

Shim

$0.00
$0.00
6
Not Applicable

End Cap (2)

$0.00
$0.00
7
Not Applicable

Insert, Bottom

$0.00
$0.00
8
2193353W

Screw

$0.00
$0.00
9
489491

Gasket Retainer, Side (2)

$0.00
$0.00
10
1117766

Gasket Retainer, Top & Bottom

$0.00
$0.00
11
118301

Door Gasket, Magnetic

$0.00
$0.00
12
1129266

Cap, Hinge Sleeve

$0.00
$0.00
13
509929

Handle, Center

$0.00
$0.00
14
2193345W

Reinforcement, Shelf

$0.00
$0.00
15
21152266

Screw

$0.00
$0.00
16
Not Applicable

Screw, Anchor

$0.00
$0.00
17
941242

Screw

$0.00
$0.00
18
Not Applicable

Insert, Top

$0.00
$0.00
19
Not Applicable

Foam Insulation (For door panel)

$0.00
$0.00
20
876029

Insert Retainer (Top)

$0.00
$0.00
21
Not Applicable

Insert Retainer (Bottom)

$0.00
$0.00
22
Not Applicable

End Cap (2)

$0.00
$0.00
23
Not Applicable

Trim, Door Shelf (2)

$0.00
$0.00
24
2198487

Divider, Shelf

$0.00
$0.00
25
Not Applicable

Screw

$0.00
$0.00
26
3400012

Interior, Door Panel (Order Item 15)

$0.00
$0.00
27
1124961

Trim, Door Shelf (2)

$0.00
$0.00
28
2182188

Endcap, Trim, Left Side (4)

$0.00
$0.00
29
2182122

Endcap, Trim, Right Side (4)

$0.00
$0.00
29
2182123

Compartment Door

$0.00
$0.00
32
2148289

Nameplate

$0.00
$0.00
36
2175383

Trim, Door Compartment

$0.00
$0.00
43
2188148

Screw (30)

$0.00
$0.00
44
489101

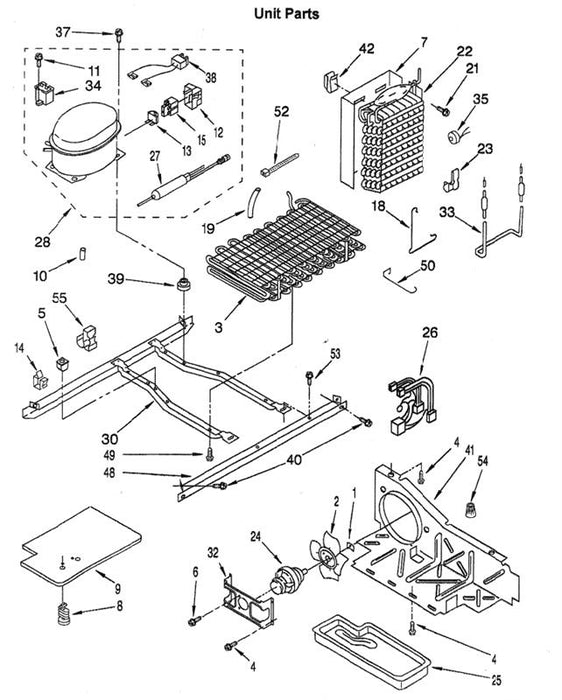

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Speed Nut

$0.00
$0.00
1
486692

Fan, Blade

$0.00
$0.00
2
1108179

Condenser Assembly

$0.00
$0.00
3
2198175

Screw

$0.00
$0.00
4
489464

Grommet

$0.00
$0.00
5
509812

Screw

$0.00
$0.00
6
489099

Heat Shield And Drain Pan

$0.00
$0.00
7
2149293

Clip

$0.00
$0.00
8
489396

Cover, Unit Compartment

$0.00
$0.00
9
2182057

Dampener

$0.00
$0.00
10
2158826

Screw

$0.00
$0.00
11
488687

Cover

$0.00
$0.00
12
2162358

Overload

$0.00
$0.00
13
2169412

Clip

$0.00
$0.00
14
940073

Relay

$0.00
$0.00
15
2154755

Clip, Defrost Heater

$0.00
$0.00
18
2161324

Sleeve

$0.00
$0.00
19
2161302

Screw

$0.00
$0.00
21
487869

Evaporator

$0.00
$0.00
22
2164518

Clip, Heater (2)

$0.00
$0.00
23
2161330

Fan, Motor

$0.00
$0.00
24
2198746

Tray, Evaporator

$0.00
$0.00
25
1105523

Harness, Intermediate

$0.00
$0.00
26
2195106

Drier

$0.00
$0.00
27
2164409

Compressor (Incl 10,11,12,13,15,27&34)

$0.00
$0.00
28
2183423

Unit Mounting Frame

$0.00
$0.00
30
2160498

Fan, Motor Bracket

$0.00
$0.00
32
2181929

Heater, Defrost

$0.00
$0.00
33
2175046

Capacitor

$0.00
$0.00
34
2154718

Bi-metal, Defrost

$0.00
$0.00
35
2176066

Screw

$0.00
$0.00
37
489373

Wire

$0.00
$0.00
38
1127675

Grommet (4)

$0.00
$0.00
39
1100828

Screw

$0.00
$0.00
40
489340

Air Baffle

$0.00
$0.00
41
2155301

Clip, Heat Shield

$0.00
$0.00
42
2155547

Unit Mounting Rail

$0.00
$0.00
48
2149717

Screw

$0.00
$0.00
49
488624

Guard, Fan

$0.00
$0.00
50
1105612

Strap

$0.00
$0.00
52
2172840

Screw

$0.00
$0.00
53
489427

Clip, Wire And Water Tube

$0.00
$0.00
54
2155658

Wire Connector

$0.00
$0.00
55
850145

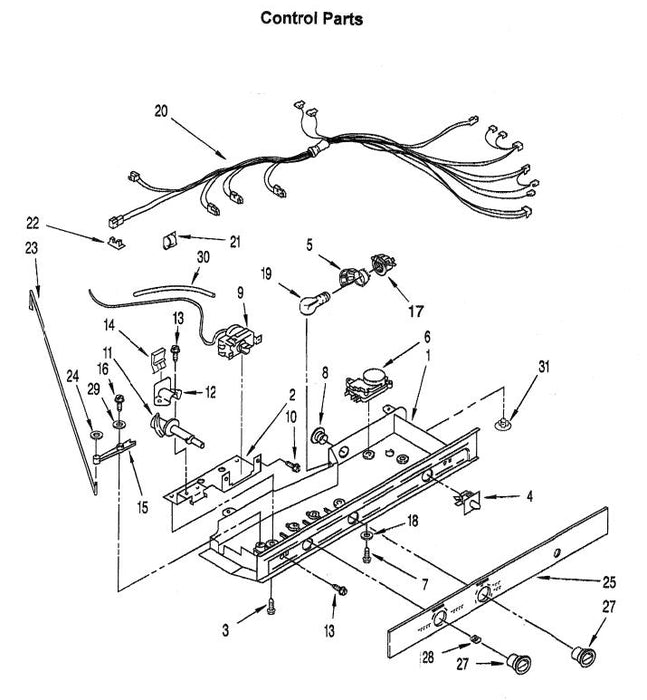

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Control Box

$0.00
$0.00
1
2169147

Mounting Bracket

$0.00
$0.00
2
1110629

Screw (2)

$0.00
$0.00
3
489397

Light Switch

$0.00
$0.00
4
2149705

Shroud, Light

$0.00
$0.00
5
2175210

Defrost Timer

$0.00
$0.00
6
2176651

Screw (2)

$0.00
$0.00
7
489398

Hole Plug

$0.00
$0.00
8
940014

Thermostat, Refrigerator

$0.00
$0.00
9
2198201

Screw

$0.00
$0.00
10
487869

Cam Assembly

$0.00
$0.00
11
2182195

Bearing Body

$0.00
$0.00
12
1110560

Screw

$0.00
$0.00
13
489478

Clip, Damper Control

$0.00
$0.00
14
2196062

Pivot Arm

$0.00
$0.00
15
1110559

Screw

$0.00
$0.00
16
627068

Light Socket

$0.00
$0.00
17
2162085

Washer

$0.00
$0.00
18
486632

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2198307

Clip, Wiring

$0.00
$0.00
21
1115374

Clip, Wiring

$0.00
$0.00
22
1115375

Connecting Rod

$0.00
$0.00
23
1123959

Fastener, Push-on

$0.00
$0.00
24
489285

Escutcheon, Control Box

$0.00
$0.00
25
2194977

Thermostat Knob

$0.00
$0.00
26
2197871

Knob, Air Control

$0.00
$0.00
27
2197871

Retainer, Knob

$0.00
$0.00
28
Not Applicable

Spring Washer

$0.00
$0.00
29
489203

Tube Barrier

$0.00
$0.00
30
2196002

Hole Plug

$0.00
$0.00
31
2166844
