6ED20TKXFW01

6ED20TKXFW01

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

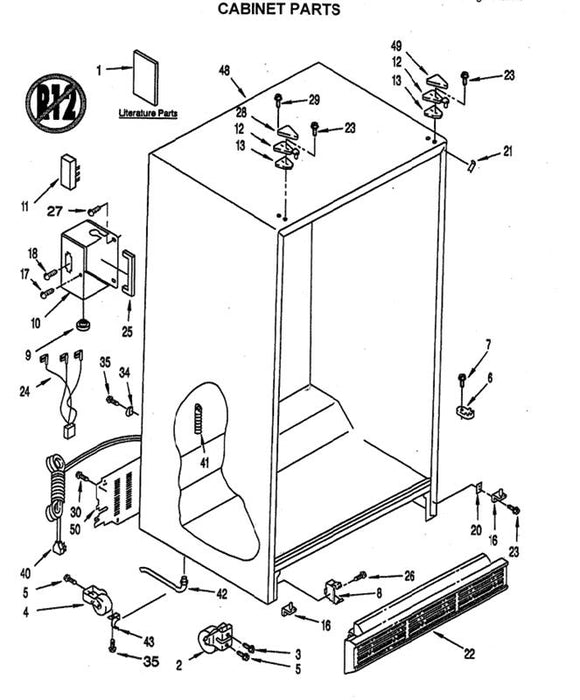

Service & Wiring Sheet

$0.00
$0.00
1
LIT2186933

Use & Care Guide

$0.00
$0.00
1
LIT2187141

Front Roller (2)

$0.00
$0.00
2
2174748

Screw

$0.00
$0.00
3
489456

Roller (Rear) (2)

$0.00
$0.00
4
2196236

screw

$0.00
$0.00
5
489427

Door Closer, Lower Cam (2)

$0.00
$0.00
6
2155311

Screw

$0.00
$0.00
7
489420

Clip, Grille

$0.00
$0.00
8
2155013

Bushing

$0.00
$0.00
9
1129449

Enclosure, Terminal Block

$0.00
$0.00
10
2188194

Terminal Block

$0.00
$0.00
11
1129346

Hinge, Top (2)

$0.00
$0.00
12
2196046

Shim, Hinge (2)

$0.00
$0.00
13
2196048

Hinge Bottom

$0.00
$0.00
16
2171851

Screw

$0.00
$0.00
17
489211

Screw

$0.00
$0.00
18
489399

Screw Spacer, Hinge

$0.00
$0.00
20
2181911

Filler, Wrapper

$0.00
$0.00
21
2196094

Grille

$0.00
$0.00
22
2198469W

Screw

$0.00
$0.00
23
489497

Wiring Assembly

$0.00
$0.00
24
2165297

Gasket

$0.00
$0.00
25
2167227

Screw

$0.00
$0.00
26
489478

Screw

$0.00
$0.00
27
489463

Hinge Cover

$0.00
$0.00
28
1119787

Screw

$0.00
$0.00
29
489284

Screw

$0.00
$0.00
30
489084

Clamp

$0.00
$0.00
34
489348

Screw

$0.00
$0.00
35
489464

Service Cord

$0.00
$0.00
40
1129331

Drain Ferrule

$0.00
$0.00
41
940139

Extension Tube

$0.00
$0.00
42
1108438

Clip, Drain Tube

$0.00
$0.00
43
1108439

Cabinet (Not A Service Part)

$0.00
$0.00
48
---

Hinge Cover

$0.00
$0.00
49
1129262

Cover, Unit

$0.00
$0.00
50
2204422
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

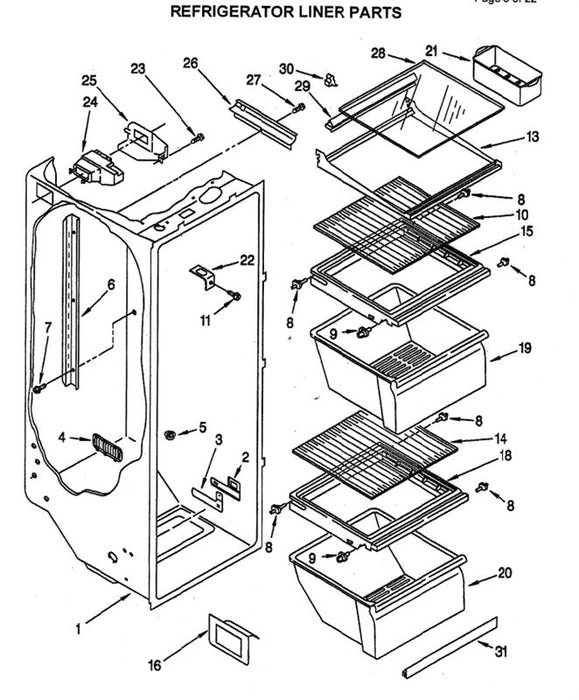

Liner (Not A Serviceable Part)

$0.00
$0.00
1
---

Escutcheon, Meat Pan Control

$0.00
$0.00
2
2194744

Slide, Meat Pan Control

$0.00
$0.00
3
2182757

Louvre

$0.00
$0.00
4
2182147

Release Valve

$0.00
$0.00
5
2171846

Shelf Ladder (2)

$0.00
$0.00
6
2181796

Screw (6)

$0.00
$0.00
7
487539

Stud (8)

$0.00
$0.00
8
1110718

Stud, Left Front

$0.00
$0.00
9
2172943

Glass, Cover

$0.00
$0.00
10
2174150

Screw (2)

$0.00
$0.00
11
489290

Shelf, Cantilever

$0.00
$0.00
13
2173178

Glass, Meat Cover

$0.00
$0.00
14
2179259

Crisper Cover

$0.00
$0.00
15
2194578

Deflector

$0.00
$0.00
16
2179350

Meat Pan Cover

$0.00
$0.00
18
2189601

Crisper Pan

$0.00
$0.00
19
2196481

Meat Pan Cover

$0.00
$0.00
20
2196162

Egg Bin

$0.00
$0.00
21
2164333

Bracket Retainer

$0.00
$0.00
22
1123919

Screw

$0.00
$0.00
23
489478

Air Diffuser Assembly

$0.00
$0.00
24
2208271

Air Diffuser Cover

$0.00
$0.00
25
2152019

Cover, Conduit

$0.00
$0.00
26
2150330

Screw

$0.00
$0.00
27
486298

Glass, Shelf

$0.00
$0.00
28
2177978

Reflector

$0.00
$0.00
29
1125594

Clip, Air Duct

$0.00
$0.00
30
842534

Extension, Pan Cover

$0.00
$0.00
31
2179561
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

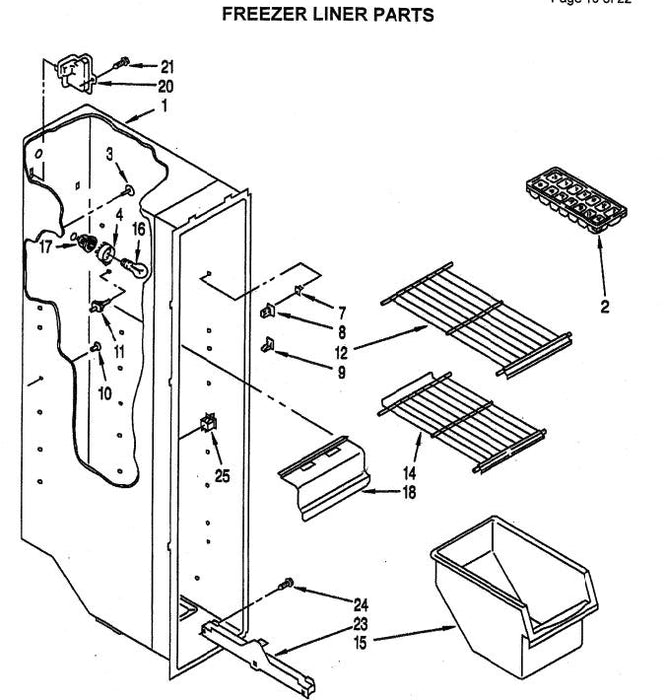

Liner (Not A Serviceable Part)

$0.00
$0.00
1
---

Ice Tray (2)

$0.00
$0.00
2
841180

Hole Plug

$0.00
$0.00
3
941839

Shroud, Light

$0.00
$0.00
4
2167012

Support, Stud (10)

$0.00
$0.00
7
946355

Stud, Front (4)

$0.00
$0.00
8
946356

Stud R.S. Rear (4)

$0.00
$0.00
9
1106982

Grommet (10)

$0.00
$0.00
10
2176134

Stud (4)

$0.00
$0.00
11
1110718

Shelf

$0.00
$0.00
12
2163612

Shelf (2)

$0.00
$0.00
14
2174270

Shelf (1)

$0.00
$0.00
14
2174269

Freezer Bin

$0.00
$0.00
15
2171707

Light Bulb

$0.00
$0.00
16
851682

Socket, Assembly

$0.00
$0.00
17
2155597

Light Lens

$0.00
$0.00
18
2155595

Cover, Wiring

$0.00
$0.00
20
2155571

Screw

$0.00
$0.00
21
489355

Slide, Freezer Bin, Right Side

$0.00
$0.00
23
1119293

Slide, Freezer Bin, Left Side

$0.00
$0.00
23
1115383

Screw

$0.00
$0.00
24
489100

Rocker Arm Switch

$0.00
$0.00
25
1115373
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

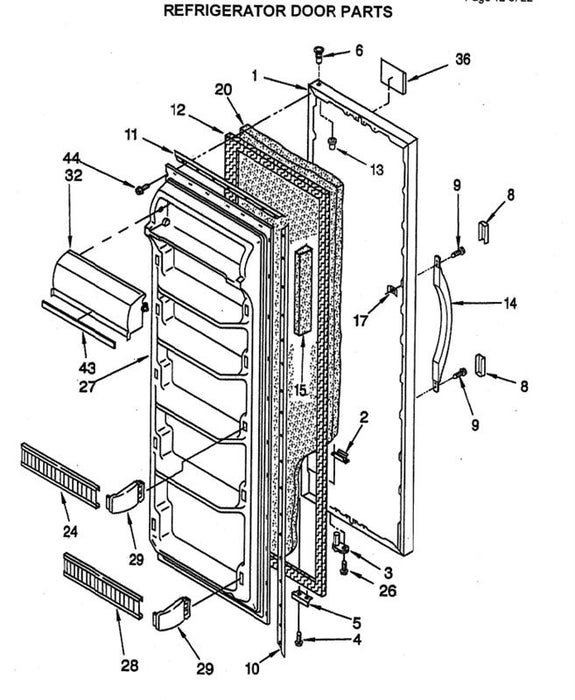

Refrigerator Door Panel (Order Item 20 for version 00 only. Not required for version 01)

$0.00
$0.00
1
2194612W

Tap Plate

$0.00
$0.00
2
2196135

Door Closer. Upper Cam

$0.00
$0.00
3
2182178

Screw

$0.00
$0.00
4
489367

Bracket, Door Stop

$0.00
$0.00
5
2195950

Thimble-Top

$0.00
$0.00
6
2182180

Insert, Bottom

$0.00
$0.00
8
2193353W

Screw

$0.00
$0.00
9
489491

Gasket Retainer, Side (2)

$0.00
$0.00
10
1117766

Gasket Retainer, Top & Bottom

$0.00
$0.00
11
1118301

Door Gasket, Magnetic

$0.00
$0.00
12
1129266

Cap, Hinge Sleeve

$0.00
$0.00
13
Not applicable

Handle. Centre

$0.00
$0.00
14
2186649W

Reinforcement, Shelf

$0.00
$0.00
15
2152266

Screw, Anchor

$0.00
$0.00
17
941242

Foam Insulation (For door panel)

$0.00
$0.00
20
876029

Trim, Door Shelf (2)

$0.00
$0.00
24
2198487

Screw

$0.00
$0.00
26
3400012

Interior Door Panel (Order Item 15)

$0.00
$0.00
27
2196137

Trim, Door Shelf (2)

$0.00
$0.00
28
2198488

Endcap, Trim, Left Side (4)

$0.00
$0.00
29
2196190

Endcap, Trim, Right Side (4)

$0.00
$0.00
29
2196189

Compartment Door Nameplate

$0.00
$0.00
32
2148289

Nameplate

$0.00
$0.00
36
2175383

Trim, Door Compartment

$0.00
$0.00
43
2188148

Screw (30)

$0.00
$0.00
44
489101
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

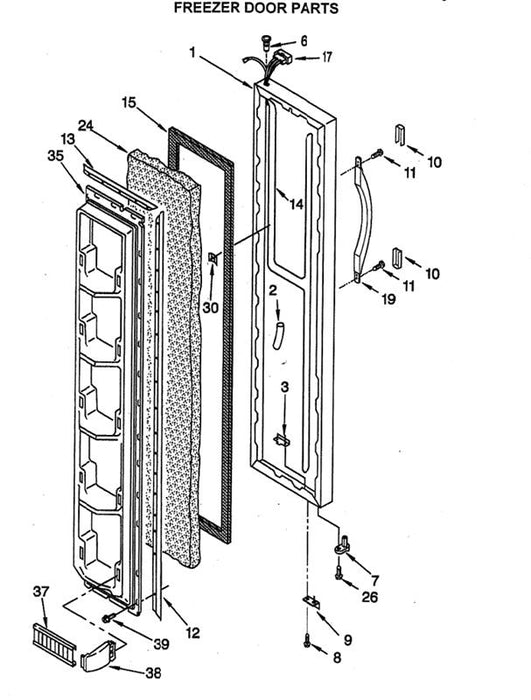

Freezer Door Panel (Also Order Item 24 for 00 version only. Not required for version 01)

$0.00
$0.00
1
2197659W

Tube, Door Wiring

$0.00
$0.00
2
2196116

Tap Plate

$0.00
$0.00
3
2196135

Cap, Hinge Sleeve

$0.00
$0.00
4
Not applicable

Thimble-Top

$0.00
$0.00
6
2182181

Door Closer, Upper Cam

$0.00
$0.00
7
2182178

Screw

$0.00
$0.00
8
489367

Bracket, Door Stop

$0.00
$0.00
9
2195950

Insert, Top

$0.00
$0.00
10
2193353W

Screw

$0.00
$0.00
11
489491

Gasket Retainer, Side (2)

$0.00
$0.00
12
1117766

Gasket Retainer, Top & Bottom

$0.00
$0.00
13
1117767

Heater, Door

$0.00
$0.00
14
2165272

Door Gasket, Magnetic

$0.00
$0.00
15
1129267

Connector

$0.00
$0.00
17
2154491

Handle. Centre

$0.00
$0.00
19
2186649W

Foam Insulation (For door panel)

$0.00
$0.00
24
876029

Screw

$0.00
$0.00
26
3400012

Screw Anchor

$0.00
$0.00
30
941242

Interior, Door Panel

$0.00
$0.00
35
2196141

Trim, Door Shelf

$0.00
$0.00
37
2198484

Support Trim End

$0.00
$0.00
38
2196100

Screw, (28)

$0.00
$0.00
39
489101
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

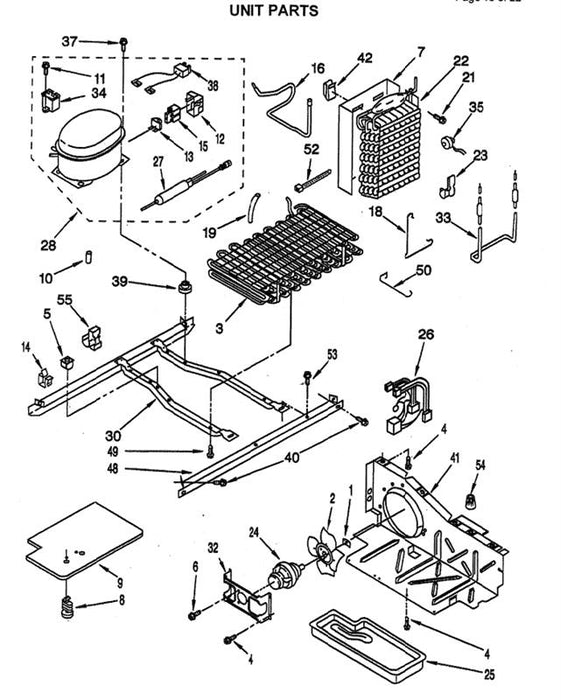

Speed Nut

$0.00
$0.00
1
486692

Fan, Blade

$0.00
$0.00
2
2190685

Condenser Assembly

$0.00
$0.00
3
2204242B

Screw

$0.00
$0.00
4
489464

Grommet

$0.00
$0.00
5
509812

Screw

$0.00
$0.00
6
489099

Heat Shield And Drain Pan

$0.00
$0.00
7
2149293

Clip

$0.00
$0.00
8
489396

Cover, Unit Compartment

$0.00
$0.00
9
2182057

Dampener

$0.00
$0.00
10
2158826

Screw

$0.00
$0.00
11
488687

Cover

$0.00
$0.00
12
2162358

Overload (Production)

$0.00
$0.00
13
2169412

Overload (Service, Includes Relay)

$0.00
$0.00
13
4388101

Clip

$0.00
$0.00
14
940073

Relay (Production) (Service, See Overload)

$0.00
$0.00
15
2154755

Tube Suction

$0.00
$0.00
16
2204238

Clip, Defrost Heater

$0.00
$0.00
18
2161324

Sleeve

$0.00
$0.00
19
2161302

Screw

$0.00
$0.00
21
487869

Evaporator

$0.00
$0.00
22
2164518

Clip, Heater (2)

$0.00
$0.00
23
2161330

Fan, Motor

$0.00
$0.00
24
2198746

Tray, Evaporator

$0.00
$0.00
25
1105523

Harness, Intermediate

$0.00
$0.00
26
2204427

Drier

$0.00
$0.00
27
2199167

Compressor (Incl 10,11,12,13,15,27&34)

$0.00
$0.00
28
2183423

Unit Mounting Frame

$0.00
$0.00
30
2160498

Fan, Motor Bracket

$0.00
$0.00
32
2181929

Heater, Defrost

$0.00
$0.00
33
2188176

Capacitor (Production)

$0.00
$0.00
34
2154718

Capacitor (Service)

$0.00
$0.00
34
4387874

Bi-metal, Defrost

$0.00
$0.00
35
2196155

Screw

$0.00
$0.00
37
489387

Wire

$0.00
$0.00
38
1127675

Grommet (4)

$0.00
$0.00
39
2183042

Screw

$0.00
$0.00
40
489340

Air Baffle

$0.00
$0.00
41
2196201

Clip, Heat Shield

$0.00
$0.00
42
2155547

Unit Mounting Rail

$0.00
$0.00
48
2149717

Screw

$0.00
$0.00
49
488624

Guard, Fan

$0.00
$0.00
50
1105612

Strap

$0.00
$0.00
52
2172840

Screw

$0.00
$0.00
53
489427

Wire Connector

$0.00
$0.00
54
850145

Clip, Wire and Water Tube

$0.00
$0.00
55
2155658
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

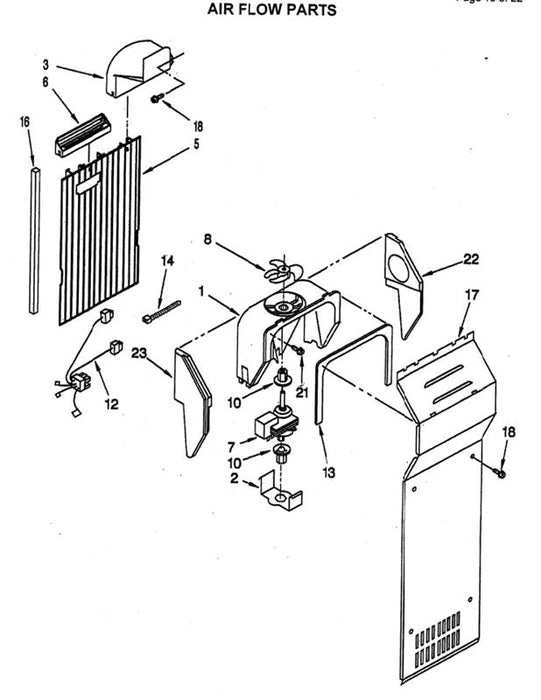

Fan Scroll (Includes Item 13)

$0.00
$0.00
1
2182119

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Air Duct Freezer (Includes Item 16)

$0.00
$0.00
5
2203592

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
2154976

Fan Blade

$0.00
$0.00
8
2169142

Grommet, Fan (2)

$0.00
$0.00
10
2176759

Harness, Fan, Evaporator and Heater

$0.00
$0.00
12
2186799

Gasket, Fan Scroll

$0.00
$0.00
13
2155788

Strap

$0.00
$0.00
14
2172840

Gasket

$0.00
$0.00
16
2203875

Cover, Evaporator

$0.00
$0.00
17
2203840

Screw

$0.00
$0.00
18
489478

Screw

$0.00
$0.00
21
489355

Support, R.S

$0.00
$0.00
22
2203595

Support, L.S

$0.00
$0.00
23
2203596

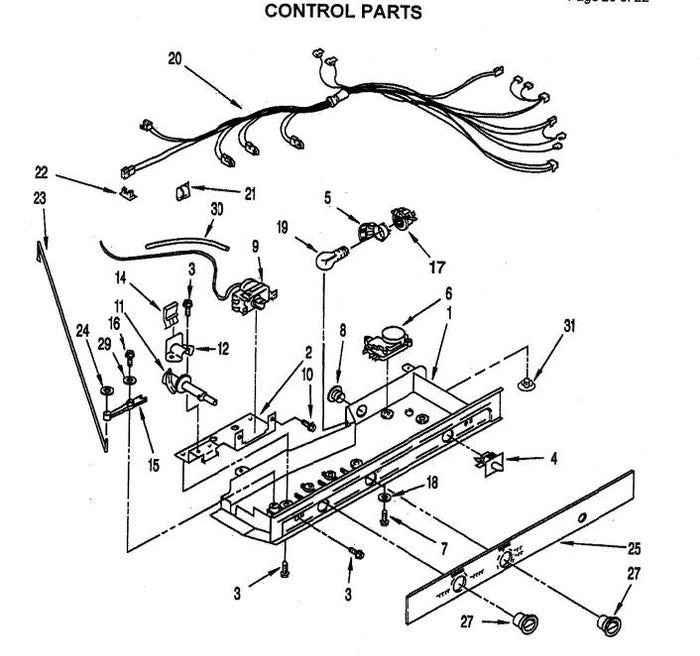

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Control Box

$0.00
$0.00
1
2200137

Mounting Bracket

$0.00
$0.00
2
1110629

Screw

$0.00
$0.00
3
3196537

Light Switch

$0.00
$0.00
4
2149705

Shroud, Light

$0.00
$0.00
5
2175210

Defrost Timer

$0.00
$0.00
6
2176651

Screw (2)

$0.00
$0.00
7
489398

Hole Plug

$0.00
$0.00
8
940014

Thermostat, Refrigerator

$0.00
$0.00
9
2198201

Screw

$0.00
$0.00
10
487869

Cam Assembly

$0.00
$0.00
11
2182195

Bearing Body

$0.00
$0.00
12
1110560

Screw

$0.00
$0.00
13
Not applicable

Clip, Damper Control

$0.00
$0.00
14
2196062

Pivot Arm

$0.00
$0.00
15
1110559

Screw

$0.00
$0.00
16
627068

Light Socket

$0.00
$0.00
17
216205

Washer

$0.00
$0.00
18
486632

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2186801

Clip, Wiring

$0.00
$0.00
21
1115374

Clip, Wiring

$0.00
$0.00
22
1115375

Connecting Rod

$0.00
$0.00
23
1123959

Fastener, Push-on

$0.00
$0.00
24
489285

Escutcheon, Control Box

$0.00
$0.00
25
2194977

Knob, Control

$0.00
$0.00
27
2197871

Spring Washer

$0.00
$0.00
29
489203

Tube Barrier

$0.00
$0.00
30
2196002

Hole Plug

$0.00
$0.00
31
2166844

Valve, Access (1/4")

$0.00
$0.00
978025

Valve, Access (5/16”)

$0.00
$0.00
978026

Valve, Access (3/8”)

$0.00
$0.00
978027

Valve, Access (1/2")

$0.00
$0.00
978028

Valve, Access (5/8")

$0.00
$0.00
978029

Valve, Access (3/4")

$0.00
$0.00
978030

Valve, Access (3/16")

$0.00
$0.00
876764

Start Kit

$0.00
$0.00
482278

Insulation, Fibreglass (1613 x 927 x 67mm)

$0.00
$0.00
978941

Sealer, Gum (1220 mm)

$0.00
$0.00
212643

Tape, Vinyl (18mm x 2743mm)

$0.00
$0.00
479502

Kit, Insulation (14 Pieces 76 x 610 x 1220mm)

$0.00
$0.00
876305

Kit, Insulation (2 Pieces 76 x 610 x 1220mm

$0.00
$0.00
876370

Kit, Foam Slab (762mm x 826mm x 38mm)

$0.00
$0.00
876029

Sealer, Mastic (1 Quart)

$0.00
$0.00
505587

Touch-up, White Porcelain (2 Oz)

$0.00
$0.00
511873

Grease, Silicon (1/2 Oz)

$0.00
$0.00
542638

Cement, Alumilastic (1-1/4 Oz)

$0.00
$0.00
542639

Bag, Insulation (36-5/8" x 46")

$0.00
$0.00
606755

Kit, Evaporator Repair (Aluminium Epoxy)

$0.00
$0.00
799833

Cork Sealer, 1/4 Pound

$0.00
$0.00
503695

Kit, Terminal Connector

$0.00
$0.00
833938

Ice Container Assembly

$0.00
$0.00
2182102

Primer, White (13 Oz. Spray Can)

$0.00
$0.00
350942

Enamel, White (13 Oz. Spray Can)

$0.00
$0.00
350930

Brush Touch-Up Kit (White)

$0.00
$0.00
72017

Enamel, White (1 Qt. Uncut)

$0.00
$0.00
799344

Kit, Terminal Connector

$0.00
$0.00
833938

Torx Key

$0.00
$0.00
1117510
