6ED22DQXBW00

6ED22DQXBW00

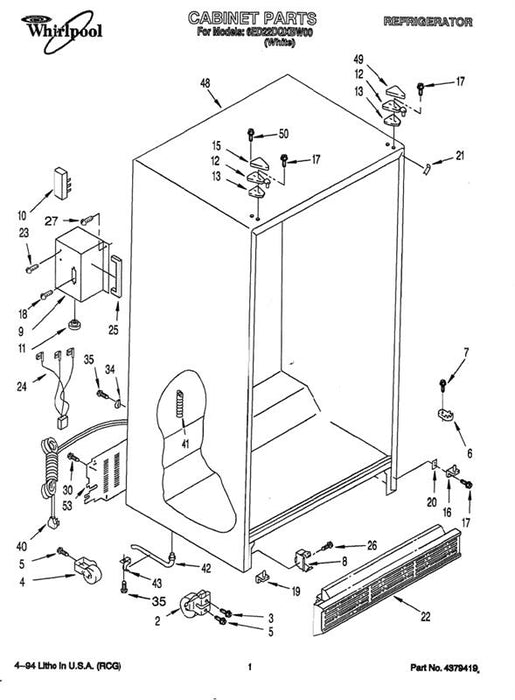

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Front Roller (2)

$0.00
$0.00
2
2152011

Screw

$0.00
$0.00
3
489393

Roller (Rear) (2)

$0.00
$0.00
4
981122

Screw

$0.00
$0.00
5
4884545

Door Closer, Lower Cam (2)

$0.00
$0.00
6
986759

Screw

$0.00
$0.00
7
489375

Clip, Grille

$0.00
$0.00
8
2155013

Cover, Terminal Block

$0.00
$0.00
9
2158579

Terminal Block

$0.00
$0.00
10
1129346

Bushing

$0.00
$0.00
11
1129449

Hinge, Top (2)

$0.00
$0.00
12
1123514

Shim, Hinge (2)

$0.00
$0.00
13
1123515

Hinge, Top

$0.00
$0.00
15
1123510

Hinge Cover

$0.00
$0.00
16
1129262

Hinge Bottom (R.H)

$0.00
$0.00
17
2151629

Screw

$0.00
$0.00
18
489367

Screw

$0.00
$0.00
19
489211

Hinge Bottom (L.H)

$0.00
$0.00
20
2151630

Spacer, Hinge

$0.00
$0.00
21
836196

Filler, Wrapper

$0.00
$0.00
22
1110708

Grille

$0.00
$0.00
23
2147467

Screw

$0.00
$0.00
24
489346

Wiring Assembly

$0.00
$0.00
25
2165297

Gasket

$0.00
$0.00
26
2167227

Screw

$0.00
$0.00
27
489242

Screw

$0.00
$0.00
30
489048

Screw

$0.00
$0.00
34
489084

Clamp

$0.00
$0.00
35
489348

Screw

$0.00
$0.00
40
489337

Service Cord

$0.00
$0.00
41
1129331

Drain Farrule

$0.00
$0.00
42
940139

Extension Tube

$0.00
$0.00
43
1108438

Clip, Drain Tube

$0.00
$0.00
48
1108439

Cabinet (Not A Serviceable Part)

$0.00
$0.00
49
-

Hinge Cover

$0.00
$0.00
50
1119787

Screw

$0.00
$0.00
53
489284

Cover, Unit

$0.00
$0.00
2160521

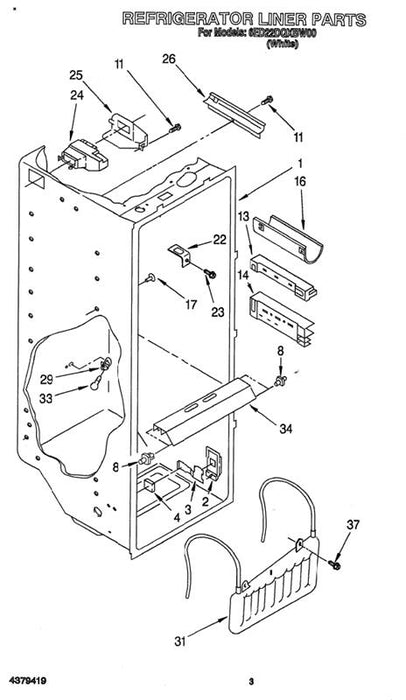

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Escutcheon, Meat Pan Control

$0.00
$0.00
2
985468

Slide Meat Pan Control

$0.00
$0.00
3
984102

Foam Pad

$0.00
$0.00
4
992358

Stud

$0.00
$0.00
8
1110718

Screw (2)

$0.00
$0.00
11
486298

Track, Shelf

$0.00
$0.00
13
-

Right Side (2)

$0.00
$0.00
-
1114632

Left Side (2)

$0.00
$0.00
-
1114633

Track, Shelf

$0.00
$0.00
14
-

Right Side

$0.00
$0.00
-
1115264

Left Side

$0.00
$0.00
-
1115265

Wine Rack

$0.00
$0.00
16
1124828

Support, Stud (24)

$0.00
$0.00
17
1114631

Bracket Retainer

$0.00
$0.00
22
1123919

Screw, (2)

$0.00
$0.00
23
489290

Air Diffuser Assembly

$0.00
$0.00
24
2161251

Air Diffuser Cover

$0.00
$0.00
25
2152019

Cover, Conduit

$0.00
$0.00
26
2150331

Socket

$0.00
$0.00
29
851067

Reservoir

$0.00
$0.00
31
2155290

Light Bulb

$0.00
$0.00
33
851682

Light Lens

$0.00
$0.00
34
1115330

Screw (2)

$0.00
$0.00
37
488280

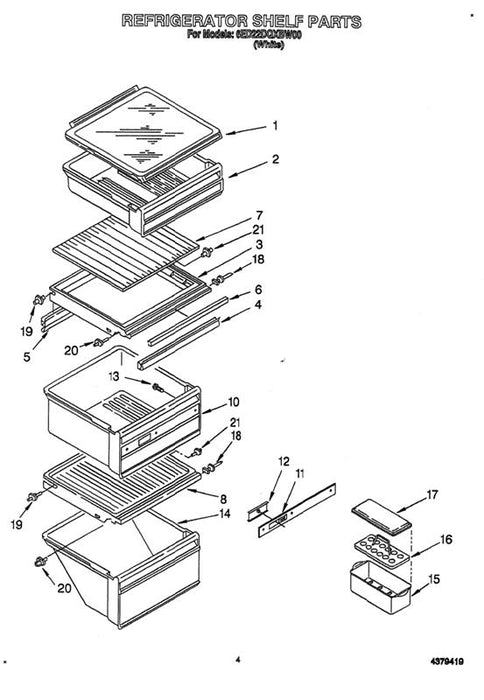

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shelf Assembly, Glass Sliding (3)

$0.00
$0.00
1
2162564

Snack Bin

$0.00
$0.00
2
1124829

Cover, Crisper

$0.00
$0.00
3
2149093

Gasket, Crisper (Front)

$0.00
$0.00
4
1115291

Gasket, Crisper (Rear)

$0.00
$0.00
5
1121385

Trim, Crisper Cover

$0.00
$0.00
6
1119190

Glass, Crisper Cover

$0.00
$0.00
7
1114687

Cover, Meat Pan

$0.00
$0.00
8
1124812

Crisper Pan

$0.00
$0.00
10
1114682

Front, Crisper Pan

$0.00
$0.00
11
1124825

Slide, Humidity Control

$0.00
$0.00
12
1124819

Screw (3)

$0.00
$0.00
13
489268

Meat Pan

$0.00
$0.00
14
2162932

Egg Bin

$0.00
$0.00
15
2170522

Egg Carrier

$0.00
$0.00
16
2164373

Cover

$0.00
$0.00
17
2164374

Shelf Stud

$0.00
$0.00
18
2147997

Shelf Stud

$0.00
$0.00
19
1115290

Shelf Stud

$0.00
$0.00
20
2149540

Shelf Stud

$0.00
$0.00
1110718

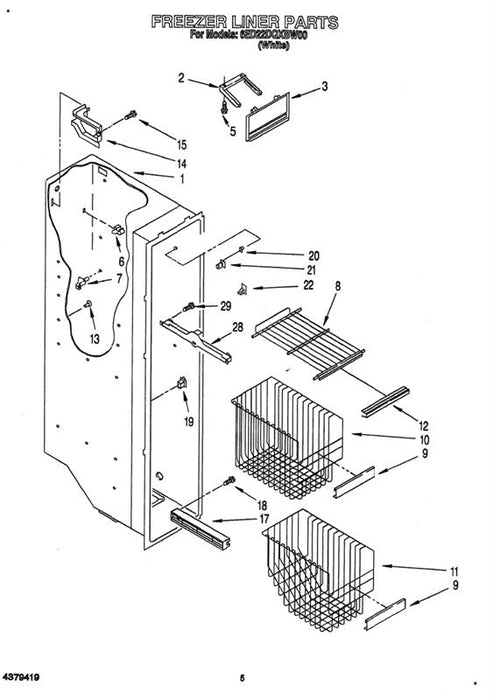

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Slide. Ice Door

$0.00
$0.00
2
1115380

Door, Ice Compartment

$0.00
$0.00
3
2149091

Screw

$0.00
$0.00
5
489242

Clip, Air Duct (2)

$0.00
$0.00
6
842534

Support, Stud (4)

$0.00
$0.00
7
1115317

Shelf

$0.00
$0.00
8
2155640

Trim, Basket

$0.00
$0.00
9
2149088

Basket, Tall

$0.00
$0.00
10
2152087

Basket, Slope

$0.00
$0.00
11
2152089

Trim, Shelf

$0.00
$0.00
12
2149090

Grommet

$0.00
$0.00
13
1110779

Wiring Cover

$0.00
$0.00
14
2155572

Screw

$0.00
$0.00
15
489176

Shelf Track

$0.00
$0.00
17
-

Right Side (4)

$0.00
$0.00
-
1126354

Left Side (4)

$0.00
$0.00
-
1126355

Screw

$0.00
$0.00
18
487042

Switch, Rocker Arm

$0.00
$0.00
19
1115373

Stud

$0.00
$0.00
20
946355

Stud, R.S Front

$0.00
$0.00
21
946353

Stud, L.S Rear

$0.00
$0.00
22
1106982

Slide, Ice Container

$0.00
$0.00
28
-

L.S

$0.00
$0.00
-
1119237

R.S

$0.00
$0.00
-
1119293

Screw

$0.00
$0.00
29
489100

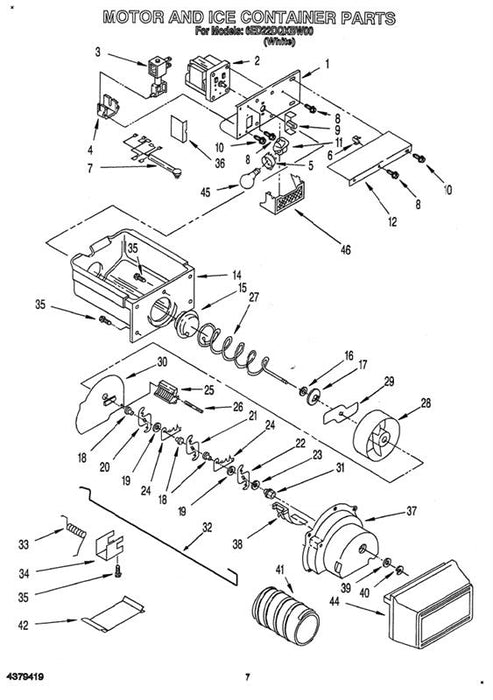

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Bracket, Motor

$0.00
$0.00
1
2149001

Motor, Dispenser

$0.00
$0.00
2
2165212

Soleniod Assembly

$0.00
$0.00
3
2165210

Guide, Solenoid

$0.00
$0.00
4
2149100

Clip, Wiring

$0.00
$0.00
5
1115374

Wiring Assembly, Ice Dispenser

$0.00
$0.00
6
2149192

Screw

$0.00
$0.00
7
489399

Coupling, Motor

$0.00
$0.00
8
983663

Screw

$0.00
$0.00
9
489242

Socket, Light

$0.00
$0.00
10
1129370

Cover, Motor

$0.00
$0.00
11
1115210

Ice Container

$0.00
$0.00
12
2152704

Coupling, Conveyor

$0.00
$0.00
14
983668

Stop, Cone

$0.00
$0.00
15
1118480

Feeder Cone

$0.00
$0.00
16
1119074

Spacer, Step (3)

$0.00
$0.00
117
1119005

Spacer, Flat (2)

$0.00
$0.00
18
1119007

Blade, Rotary

$0.00
$0.00
19
1119006

Blade, Rotary

$0.00
$0.00
20
1119012

Blade, Rotary

$0.00
$0.00
21
1119013

Washer, Plain

$0.00
$0.00
22
489235

Blade, Fixed (2)

$0.00
$0.00
23
1119009

Block, Blade

$0.00
$0.00
24
2157405

Roll Pin

$0.00
$0.00
25
489229

Conveyor

$0.00
$0.00
26
2152734

Drum

$0.00
$0.00
27
2157406

Drive Bar

$0.00
$0.00
28
1118470

Floating Baffle

$0.00
$0.00
29
2157404

Nut, Bearing

$0.00
$0.00
30
1119018

Control Arm

$0.00
$0.00
31
21553231

Spring, Return

$0.00
$0.00
32
1119020

Retainer Clip, Rod

$0.00
$0.00
33
1119021

Screw

$0.00
$0.00
34
488886

Shield, Wiring

$0.00
$0.00
35
1129563

Housing, Crusher

$0.00
$0.00
36
2157407

Detector, Ice

$0.00
$0.00
37
1119017

Washer, Plain

$0.00
$0.00
38
489234

Retainer Ring

$0.00
$0.00
39
489236

Sleeve

$0.00
$0.00
40
2152021

Housing, Filler

$0.00
$0.00
41
2152700

Front Cover, Ice Container

$0.00
$0.00
42
2149005

Light Bulb

$0.00
$0.00
44
851682

Light Lens, Dispenser

$0.00
$0.00
45
983359

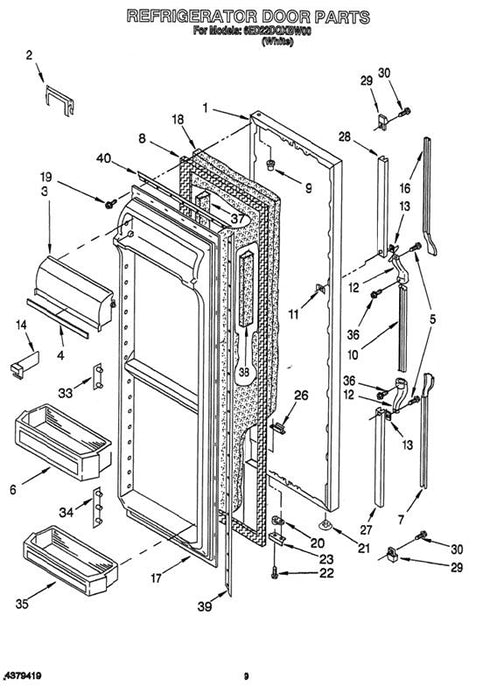

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Refrigerator Door Panel (Also Order Item 18)

$0.00
$0.00
1
1115273

Trim, Compartment Door

$0.00
$0.00
2
1118208

Screw

$0.00
$0.00
3
489022

Shelf Bin (2)

$0.00
$0.00
4
1124847

Insert, Handle

$0.00
$0.00
5
1119361

Door Gasket, Magnetic

$0.00
$0.00
6
1125927

Cap, Hinge Sleeve

$0.00
$0.00
7
509929

Handle, Center

$0.00
$0.00
8
1124713

Screw Anchor (2)

$0.00
$0.00
9
941242

End Cap, Center Handle

$0.00
$0.00
10
1119359

Shim

$0.00
$0.00
11
935075

Divider, Bin

$0.00
$0.00
12
2152335

Insert, Handle

$0.00
$0.00
13
1119367

Panel, Interior Door

$0.00
$0.00
14
1129278

Foam Insulation (Required When Replacing Exterior Door Panel)

$0.00
$0.00
16
876029

Screw

$0.00
$0.00
17
489101

Door Closer, Upper Cam

$0.00
$0.00
18
986758

Hole Plug

$0.00
$0.00
19
1104787

Screw

$0.00
$0.00
20
488938

Bracket, Door Stop

$0.00
$0.00
21
988420

Tap Plate

$0.00
$0.00
22
988402

Retainer, Insert (Bottom)

$0.00
$0.00
23
1119360

Retainer, Insert

$0.00
$0.00
26
1119366

End Cap (2)

$0.00
$0.00
27
2156220

Screw

$0.00
$0.00
28
489075

Pin Plate (6)

$0.00
$0.00
29
1118048

Pin Plate (8)

$0.00
$0.00
30
1116986

Shelf Bin (2)

$0.00
$0.00
33
1124846

Screw

$0.00
$0.00
34
489022

Door Dike, Hinge Side

$0.00
$0.00
35
1115379

Door Dike, Handle Side

$0.00
$0.00
36
1119055

Gasket Retainer, Side (2)

$0.00
$0.00
37
1117766

Gasket Retainer, Top & Bottom

$0.00
$0.00
38
1118301

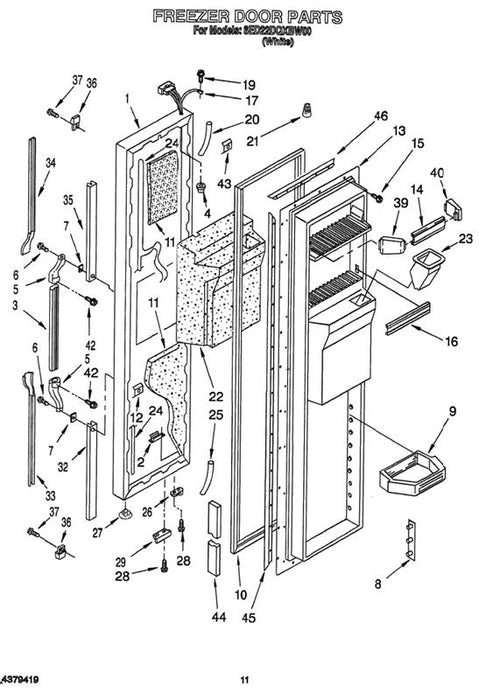

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer, Door Panel (Also Order Item 11)

$0.00
$0.00
1
1115235

Tap Plate

$0.00
$0.00
2
988402

Handle, Center

$0.00
$0.00
3
1124713

Seal, Hinge Pin

$0.00
$0.00
4
939886

End Cap (2)

$0.00
$0.00
5
1119359

Screw

$0.00
$0.00
6
489022

Shim, End Cap (2)

$0.00
$0.00
7
935075

Pin Plate (6)

$0.00
$0.00
8
1116986

Shelf Bin (3)

$0.00
$0.00
9
2149085

Door Gasket, Magnetic

$0.00
$0.00
10
1125926

Foam Insulation (Required When Replacing Exterior Door Panel)

$0.00
$0.00
11
876029

Screw Anchor (2)

$0.00
$0.00
12
941242

Panel, Interior Door

$0.00
$0.00
13
2149009

Trim, Door Shelf

$0.00
$0.00
14
2149084

Screw

$0.00
$0.00
15
489101

Trim, Door Shelf

$0.00
$0.00
16
2149083

Harness, Door

$0.00
$0.00
17
2167055

Screw

$0.00
$0.00
19
488889

Tube, Door Wiring

$0.00
$0.00
20
1119059

Wire Connector

$0.00
$0.00
21
227991

Insulation, Dispenser

$0.00
$0.00
22
2149014

Chute, Ice

$0.00
$0.00
23
1119036

Door Heater

$0.00
$0.00
24
2165376

Tube, Door Wiring

$0.00
$0.00
25
2147080

Door Closer, Upper Cam

$0.00
$0.00
26
986758

Hole Plug

$0.00
$0.00
27
1104787

Screw

$0.00
$0.00
28
488938

Bracket, Door Stop

$0.00
$0.00
29
988420

Retainer, Insert

$0.00
$0.00
32
1119360

Retainer, Insert

$0.00
$0.00
33
1119366

End Cap (2)

$0.00
$0.00
34
2156220

Screw

$0.00
$0.00
35
489075

End Cap, Trim

$0.00
$0.00
36
1115333

End Cap, Trim

$0.00
$0.00
37
1115364

Screw

$0.00
$0.00
39
489022

Screw Anchor (2)

$0.00
$0.00
40
939101

Door Dike (2)

$0.00
$0.00
42
1115378

Gasket Retainer, Side (2)

$0.00
$0.00
43
1117766

Gasket Retainer, Top & Bottom

$0.00
$0.00
44
1117767

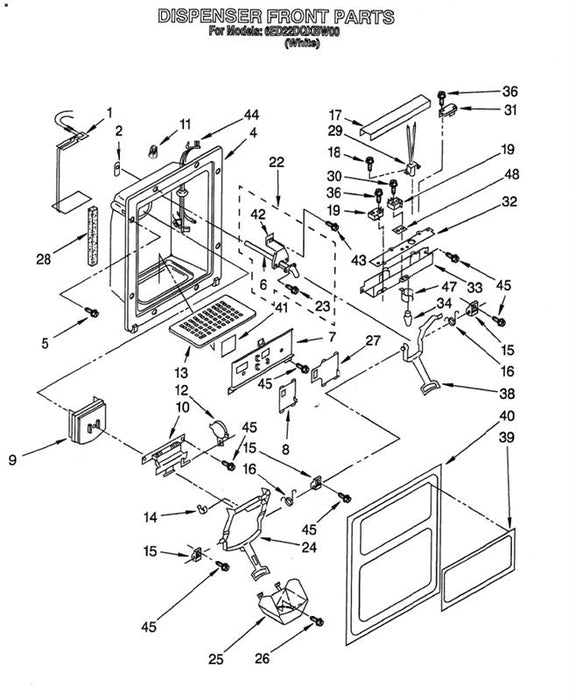

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Heater, Dispenser

$0.00
$0.00
1
2165241

Grommet

$0.00
$0.00
2
987048

Housing, Dispenser

$0.00
$0.00
4
1124715

Screw

$0.00
$0.00
5
488687

Water Tube (See Item #22)

$0.00
$0.00
6
-

Frame, Slides

$0.00
$0.00
7
2152717

Slide, Cube/Crush Switch

$0.00
$0.00
8
2152720

Door, Ice

$0.00
$0.00
9
2147168

Door Mechanism Assembly (Includes Item 9)

$0.00
$0.00
10
2147167

Wire Connector

$0.00
$0.00
11
227991

Mechanism Delay

$0.00
$0.00
12
1120581

Grille, Overflow

$0.00
$0.00
13
983900

Clip, Bearing (2)

$0.00
$0.00
14
987917

Bearing, Lever (3)

$0.00
$0.00
15
983697

Spring, Lever (2)

$0.00
$0.00
16
983696

Shield, Wiring

$0.00
$0.00
17
2147165

Screw

$0.00
$0.00
18
488500

Switch, Light

$0.00
$0.00
19
313125

Water Fitting Assembly (Includes Water Tube)

$0.00
$0.00
22
2155020

Screw

$0.00
$0.00
23
487916

Lever, Ice Dispenser

$0.00
$0.00
24
1124718

Guide, Ice

$0.00
$0.00
25
1124730

Screw

$0.00
$0.00
26
488892

Slide, Light Switch

$0.00
$0.00
27
2152726

Seal

$0.00
$0.00
28
482672

Lamp Holder

$0.00
$0.00
29
2147131

Screw

$0.00
$0.00
30
488361

Switch, Water

$0.00
$0.00
31
2162361

Insulator, Control Bracket

$0.00
$0.00
32
2147164

Bracket, Control

$0.00
$0.00
33
2147163

Bulb, Light

$0.00
$0.00
34
989331

Screw

$0.00
$0.00
36
489155

Lever, Water Dispenser

$0.00
$0.00
38
2159197

Plaque, Front Cover

$0.00
$0.00
39
2150318

Front Cover, Housing (Includes Item 39)

$0.00
$0.00
40
2150314

Heat Shield, frame

$0.00
$0.00
41
2147172

Bracket, Water

$0.00
$0.00
42
987049

Screw

$0.00
$0.00
43
488316

Wiring Assembly, Door

$0.00
$0.00
44
2147166

Screw

$0.00
$0.00
45
489000

Shroud, Bracket

$0.00
$0.00
47
1129333

Spacer

$0.00
$0.00
48
625834
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Speed Nut

$0.00
$0.00
1
486692

Fan, Blade

$0.00
$0.00
2
1108179

Condenser Assembly

$0.00
$0.00
3
2154010

Screw

$0.00
$0.00
4
489337

Screw

$0.00
$0.00
6
489019

Heat Shield And Drain Pan

$0.00
$0.00
7
2149293

Cover, Unit Compartment

$0.00
$0.00
8
2160505

Clip

$0.00
$0.00
9
489396

Strap

$0.00
$0.00
11
2154721

Cover

$0.00
$0.00
12
2154722

Overload

$0.00
$0.00
13
2158785

Overload Spring

$0.00
$0.00
14
943320

Relay

$0.00
$0.00
15
2154720

Capacitor

$0.00
$0.00
17
2154717

Screw, Grommet

$0.00
$0.00
19
509812

Evaporator

$0.00
$0.00
22
2155500

Clip

$0.00
$0.00
23
2161324

Fan, Motor

$0.00
$0.00
24
2154976

Tray, Evaporator

$0.00
$0.00
25
2154114

Harness, Intermediate

$0.00
$0.00
26
2167065

Drier

$0.00
$0.00
27
2154002

Compressor (Includes Items 11, 12, 13, 15, & 17) (Also Order)

$0.00
$0.00
28
2154723

Tube Kit

$0.00
$0.00
-
876765

Unit Mounting Frame

$0.00
$0.00
30
2160500

Fan, Motor Bracket

$0.00
$0.00
32
2162062

Heater, Defrost

$0.00
$0.00
33
2162213

Clip, Heater

$0.00
$0.00
34
2161330

Bi-Metal, Defrost

$0.00
$0.00
35
2161331

Screw

$0.00
$0.00
37
489387

Grommet (4)

$0.00
$0.00
39
2162067

Screw

$0.00
$0.00
40
489340

Air Baffle

$0.00
$0.00
41
2149128

Clip, Heat Shield

$0.00
$0.00
42
2155547

Unit Mounting Rail

$0.00
$0.00
48
2149717

Screw

$0.00
$0.00
49
488624

Guard, Fan

$0.00
$0.00
50
1105612

Sleeve

$0.00
$0.00
51
2161302

Strap

$0.00
$0.00
52
2155774

Screw

$0.00
$0.00
54
489339

Wire Connector

$0.00
$0.00
55
850145

Screw

$0.00
$0.00
56
489242

Spring Tube

$0.00
$0.00
57
983659

Union

$0.00
$0.00
59
2150347

Clip, Wire And Water Tube

$0.00
$0.00
60
2155658

Screw

$0.00
$0.00
488687

Valve, Access (1/4")

$0.00
$0.00
978025

Valve, Access (5/16")

$0.00
$0.00
978026

Valve, Access (3/8")

$0.00
$0.00
978027

Valve, Access (1/2”)

$0.00
$0.00
978028

Valve, Access (5/8")

$0.00
$0.00
978029

Valve, Access (3/4")

$0.00
$0.00
978030

Valve, Access (3/16")

$0.00
$0.00
876764

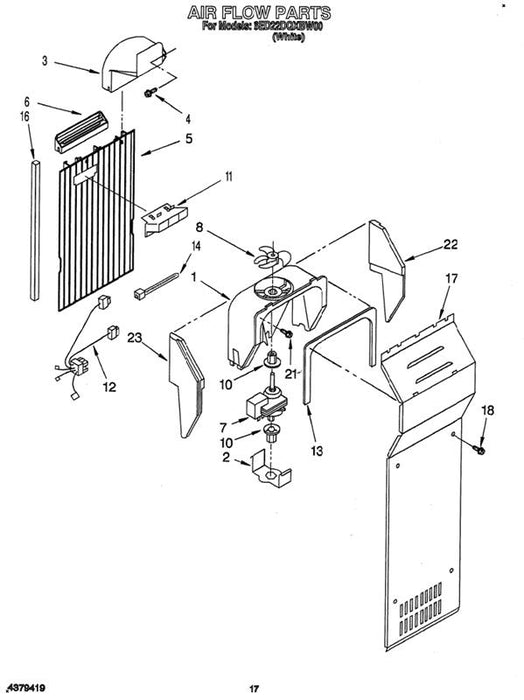

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Fan Scroll

$0.00
$0.00
1
2155593

Retained, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Screw

$0.00
$0.00
4
489176

Air Duct Freezer

$0.00
$0.00
5
2155574

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
2162066

Fan Blade

$0.00
$0.00
8
2154800

Fan Trommet (2)

$0.00
$0.00
10
2155589

Duct, Icemaker

$0.00
$0.00
11
1115381

Harness, Fan Evaporator, And Heater, Bi-Metal

$0.00
$0.00
12
2158782

Gasket Cover

$0.00
$0.00
13
2155788

Wire Tie

$0.00
$0.00
14
2155774

Gasket

$0.00
$0.00
16
2155783

Cover, Evaporator

$0.00
$0.00
17
2155611

Screw

$0.00
$0.00
18
489335

Screw

$0.00
$0.00
21
489242

Support, R.S

$0.00
$0.00
22
2155765

Support, L S

$0.00
$0.00
23
2155766

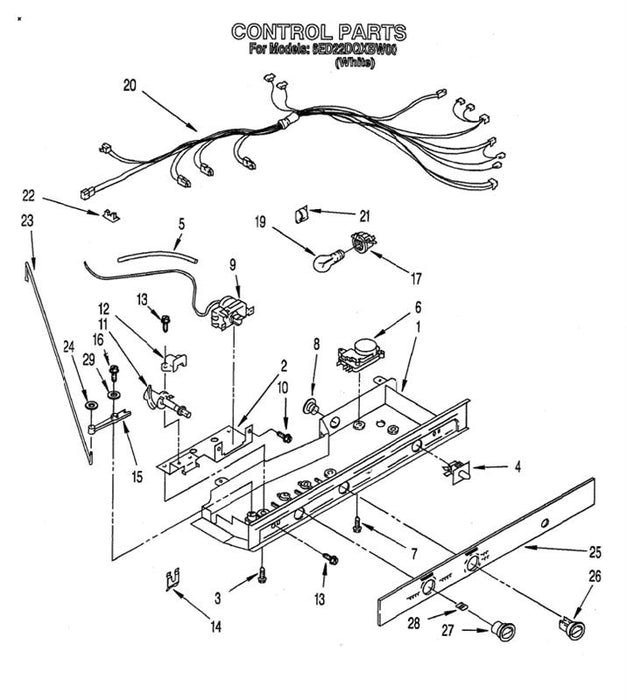

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Control Box

$0.00
$0.00
1
2169147

Mounting Bracket

$0.00
$0.00
2
1110629

Screw (2)

$0.00
$0.00
3
489397

Light Switch

$0.00
$0.00
4
2149705

Tube Barrier

$0.00
$0.00
5
1115241

Defrost Timer (10 Hr.)

$0.00
$0.00
6
2162057

Screw (2)

$0.00
$0.00
7
489398

Hole Plug

$0.00
$0.00
8
940014

Thermostat Assembly

$0.00
$0.00
9
2161284

Screw

$0.00
$0.00
10
487869

Cam Assembly

$0.00
$0.00
11
2161250

Bearing Body

$0.00
$0.00
12
1110560

Screw, (2)

$0.00
$0.00
13
489242

Retainer, Damper

$0.00
$0.00
14
938439

Pivot Arm

$0.00
$0.00
15
1110559

Screw

$0.00
$0.00
16
627068

Light Socket

$0.00
$0.00
17
851067

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2149186

Clip, Wiring

$0.00
$0.00
21
1115374

Clip, Wiring

$0.00
$0.00
22
1115375

Connecting Rod

$0.00
$0.00
23
1123960

Fastener, Push-On

$0.00
$0.00
24
489285

Escutcheon, Control Box

$0.00
$0.00
25
2161213

Thermostat Knob

$0.00
$0.00
26
1116852

Knob, Air Control

$0.00
$0.00
27
1116853

Retainer, Knob

$0.00
$0.00
28
837444

Spring Washer

$0.00
$0.00
29
489203

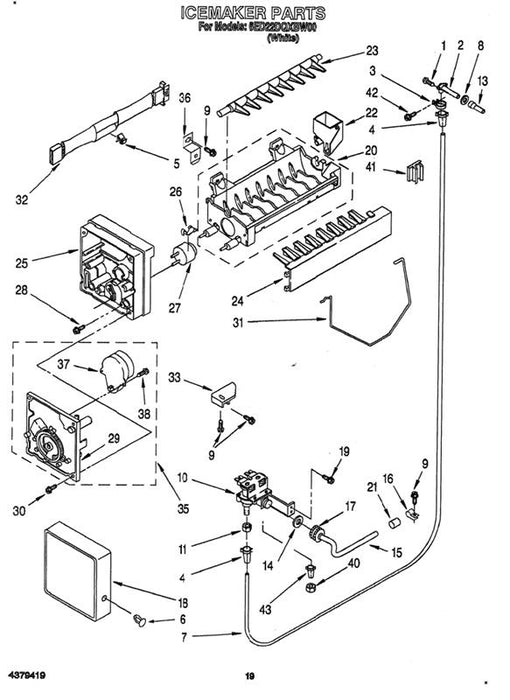

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Screw

$0.00
$0.00
1
489084

Fitting, Water Tube

$0.00
$0.00
2
836489

Clamp, Tube

$0.00
$0.00
3
488878

Insert, Tube

$0.00
$0.00
4
841707

Clip, Fuse

$0.00
$0.00
5
628379

Clip

$0.00
$0.00
6
489115

Tube, Water

$0.00
$0.00
7
1108197

Seal, Gasket

$0.00
$0.00
8
1106508

Screw

$0.00
$0.00
9
448649

Valve, Solenoid

$0.00
$0.00
10
2165238

Nut, Compression

$0.00
$0.00
11
627018

Screw

$0.00
$0.00
13
486214

Tube, Water Inlet

$0.00
$0.00
14
2155247

Tube, Inlet Valve

$0.00
$0.00
15
627860

Washer

$0.00
$0.00
16
628337

Clamp, Tube

$0.00
$0.00
17
510716

Nut Valve

$0.00
$0.00
18
737588

Cover

$0.00
$0.00
19
628329

Screw

$0.00
$0.00
-
488649

Mold & Heater Assembly (Also Order)

$0.00
$0.00
21
628282

Silicone Grease

$0.00
$0.00
22
542638

Dampener

$0.00
$0.00
23
836074

Cup-Water Fill

$0.00
$0.00
24
628356

Ejector

$0.00
$0.00
25
627843

Ice Striper

$0.00
$0.00
26
627788

Support

$0.00
$0.00
27
627790

Retainer, Thermostat

$0.00
$0.00
-
627796

Thermostat (Also Order)

$0.00
$0.00
28
627985

Cement Alumilastic

$0.00
$0.00
29
542369

Screw,

$0.00
$0.00
30
489322

Motor Module

$0.00
$0.00
31
628377

Screw

$0.00
$0.00
32
489276

Shut Off Arm

$0.00
$0.00
33
628187

Harness, Wiring

$0.00
$0.00
35
628281

Bracket

$0.00
$0.00
36
628320

Module Assembly (Includes Items 29, 37 & 38)

$0.00
$0.00
37
628367

Clip, Support (2)

$0.00
$0.00
38
2155021

Motor

$0.00
$0.00
40
628303

Screw

$0.00
$0.00
41
489136

Nut, Compression

$0.00
$0.00
42
1129179

Clip

$0.00
$0.00
43
2154101

Screw

$0.00
$0.00
488886

Insert

$0.00
$0.00
1129177

Primer, White (13 Oz. Spray Can)

$0.00
$0.00
350942

Leveled, Enamel (13 Oz. Spray Can)

$0.00
$0.00
350941

Enamel, Black (13 Oz. Spray Can)

$0.00
$0.00
350939

Enamel, White (13 Oz. Spray Can)

$0.00
$0.00
350930

Enamel, Almond (13 Oz. Spray Can)

$0.00
$0.00
350956

Brush Touch-Up Kit (White)

$0.00
$0.00
72017

Brush Touch-Up Kit (Almond)

$0.00
$0.00
72107

Brush Touch-Up Kit (Black)

$0.00
$0.00
72032

Sealer, Gum (4 Feet)

$0.00
$0.00
212643

Tape, Vinyl (3/4 X 108”)

$0.00
$0.00
479502

Kit, Insulation (2 Pcs. X 3” X 24" X 48")

$0.00
$0.00
876370

Kit, Insulation (14 Pcs. X 3" X 24" X 48”)

$0.00
$0.00
876305

Insulation, Fiberglass (63-1/2" X 35-1/2" X 2-5/8)

$0.00
$0.00
978941

Kit, Foam Slab (30" X 32-1/2" X 1-1/2")

$0.00
$0.00
876029

Sealer, Mastic (1 Qt.)

$0.00
$0.00
505587

Cork, Sealer (1/4 Pound)

$0.00
$0.00
503695

Touch-Up, White Porcelain (2 Oz.)

$0.00
$0.00
511873

Grease, Silicone (1/2 Oz.)

$0.00
$0.00
542638

Cement, Alumilastic (1-1/4 Oz.)

$0.00
$0.00
542639

Bag, Insulation (36-5/8" X 46”)

$0.00
$0.00
606755

Kit, Evaporator Repair (Aluminum Epoxy)

$0.00
$0.00
799833

Kit, Terminal Connector

$0.00
$0.00
833938

Transformer (115-230 Volts)

$0.00
$0.00
515393

Enamel, Black (1 Qt. Uncut)

$0.00
$0.00
799340

Enamel, White (1 Qt. Uncut)

$0.00
$0.00
799344

Enamel, Almond (1 Qt. Uncut)

$0.00
$0.00
978883

Use & Care Guide

$0.00
$0.00
LIT2170269

Service & Wiring Sheet

$0.00
$0.00
LIT2165259

Modular Icemaker Service Sheet

$0.00
$0.00
LIT62837I

Torx Key

$0.00
$0.00
1117510

Ice Crusher Assembly

$0.00
$0.00
2153725
