6ED22DQXDW01

6ED22DQXDW01

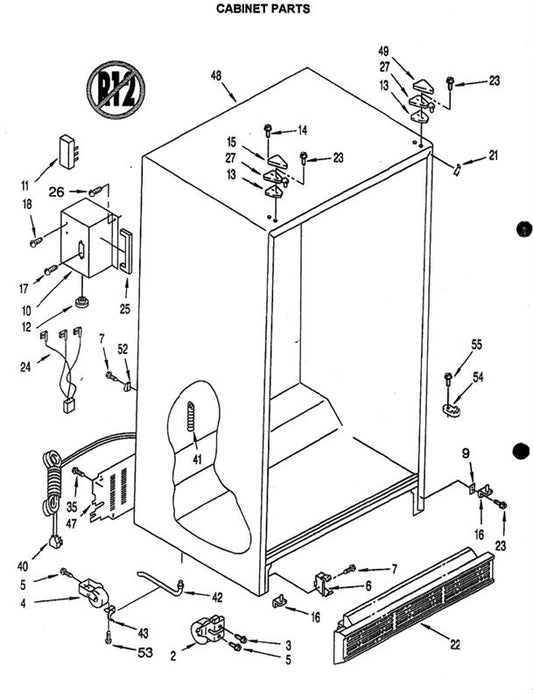

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Front Roller (2)

$0.00
$0.00
2
2174748

Screw

$0.00
$0.00
3
489456

Roller (Rear) (2)

$0.00
$0.00
4
981122

Screw

$0.00
$0.00
5
489427

Clip, Grille

$0.00
$0.00
6
2155013

Screw

$0.00
$0.00
7
489478

Insert, Air Baffle

$0.00
$0.00
8
Not applicable

Shim

$0.00
$0.00
9
2181011

Enclosure, Terminal Block

$0.00
$0.00
10
2158579

Terminal Block

$0.00
$0.00
11
1129348

Bushing

$0.00
$0.00
12
1129449

Shim, Hinge Top

$0.00
$0.00
13
2196048

Screw

$0.00
$0.00
14
489284

Hinge Cover

$0.00
$0.00
15
1128282

Hinge Bottom (2)

$0.00
$0.00
16
2171851

Screw

$0.00
$0.00
17
489211

Screw

$0.00
$0.00
18
489399

Filler, Wrapper

$0.00
$0.00
21
1110708

Grille

$0.00
$0.00
22
2155477

Screw

$0.00
$0.00
23
489367

Wiring Assembly

$0.00
$0.00
24
2165297

Gasket

$0.00
$0.00
25
2167227

Screw

$0.00
$0.00
26
489463

Hinge, Top (2)

$0.00
$0.00
27
2196046

Screw

$0.00
$0.00
35
489464

Service Cord

$0.00
$0.00
40
1129331

Drain Fitting

$0.00
$0.00
41
940139

Extension Tube

$0.00
$0.00
42
1108438

Clip, Drain Tube

$0.00
$0.00
43
1108439

Flapper, Extension

$0.00
$0.00
44
Not applicable

Cover,Unit

$0.00
$0.00
47
2189587

Cabinet (Not A Serviceable Part)

$0.00
$0.00
48
-

Hinge Cover

$0.00
$0.00
49
1119787

Clamp

$0.00
$0.00
52
489348

Screw

$0.00
$0.00
53
489084

Door Closer, Lower Cam (2)

$0.00
$0.00
54
2155311

Screw

$0.00
$0.00
55
489483
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

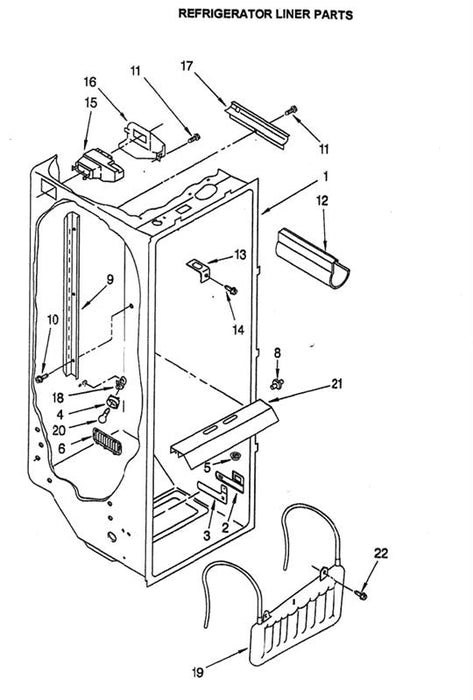

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Slide Meat Pan Control

$0.00
$0.00
2
2182757

Escutcheon, Meat Pan Control

$0.00
$0.00
3
2194744

Shroud, Bracket

$0.00
$0.00
4
2169193

Release Valve

$0.00
$0.00
5
2171846

Louvre

$0.00
$0.00
6
2182147

Stud, Rear (6)

$0.00
$0.00
8
1110718

Shelf Ladder

$0.00
$0.00
9
2181796

Screw

$0.00
$0.00
10
487539

Screw (2)

$0.00
$0.00
11
486298

Wine Rack

$0.00
$0.00
12
2179374

Bracket Retainer

$0.00
$0.00
13
1123919

Screw

$0.00
$0.00
14
489290

Air Diffuser Assembly

$0.00
$0.00
15
2175155

Air Diffuser Cover

$0.00
$0.00
16
2161470

Cover, Conduit

$0.00
$0.00
17
2150331

Socket

$0.00
$0.00
18
2162085

Reservoir

$0.00
$0.00
19
2155290

Light Bulb

$0.00
$0.00
20
851682

Light Lens

$0.00
$0.00
21
2174436

Screw (2)

$0.00
$0.00
22
488280

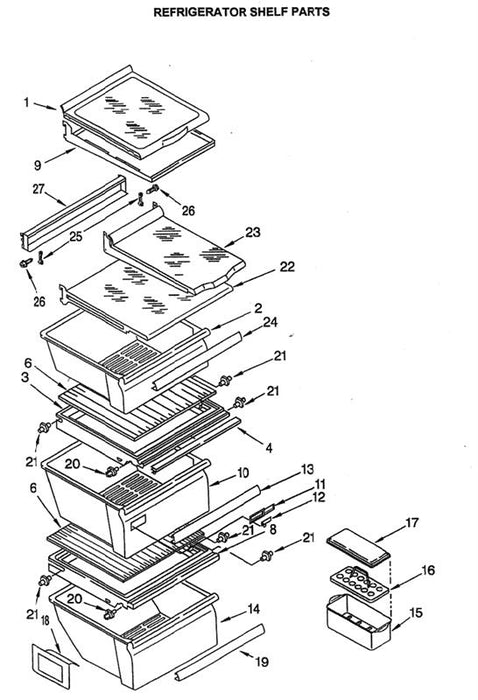

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shelf Assembly, Glass Sliding (2)

$0.00
$0.00
1
2174041

Snack Bin

$0.00
$0.00
2
2189531

Cover, Crisper

$0.00
$0.00
3
2189618

Gasket, Cover (Front)

$0.00
$0.00
4
2174442

Glass, Meat Cover

$0.00
$0.00
6
2179259

Cover, Meat Pan

$0.00
$0.00
8
2189601

Frame, Shelf (2)

$0.00
$0.00
9
2174042

Crisper Pan

$0.00
$0.00
10
2189529

Front, Crisper Pan

$0.00
$0.00
11
2179343

Slide, Humidity Control

$0.00
$0.00
12
2179342

Trim, Handle

$0.00
$0.00
13
2189533

Meat Pan

$0.00
$0.00
14
2189530

Egg Bin

$0.00
$0.00
15
2169033

Egg Carrier

$0.00
$0.00
16
2164373

Cover

$0.00
$0.00
17
2169935

Deflector

$0.00
$0.00
18
2179350

Trim, Handle

$0.00
$0.00
199
2189532

Shelf Stud

$0.00
$0.00
20
2172943

Shelf Stud

$0.00
$0.00
21
1110718

Shell, Snack Bin

$0.00
$0.00
22
2174045

Shelf, Slide (Side To Side)

$0.00
$0.00
23
2174468

Trim, Handle

$0.00
$0.00
24
2189620

Hook, Shelf

$0.00
$0.00
25
2169608

Screw

$0.00
$0.00
26
489419

Track, Shelf

$0.00
$0.00
27
2174422

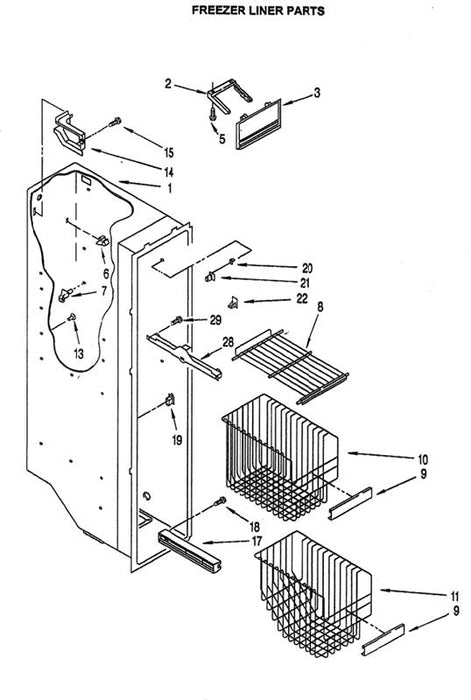

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Slide, Ice Door

$0.00
$0.00
2
1115380

Door, Ice Compartment

$0.00
$0.00
3
2171712

Screw

$0.00
$0.00
5
489478

Clip, Air Duct (2)

$0.00
$0.00
6
842534

Support, Stud (4)

$0.00
$0.00
7
1115317

Shelf

$0.00
$0.00
8
2174249

Trim, Basket

$0.00
$0.00
9
2195902

Basket, Tall

$0.00
$0.00
10
2181761

Basket, Slope

$0.00
$0.00
11
2181762

Grommet (4)

$0.00
$0.00
13
2176134

Wiring Cover

$0.00
$0.00
14
2155572

Screw

$0.00
$0.00
15
489355

Shelf Track, Right Side (2)

$0.00
$0.00
17
2181760

Shelf Track, Left Side (2)

$0.00
$0.00
17
2181759

Screw

$0.00
$0.00
18
487042

Switch, Rocker Arm

$0.00
$0.00
19
1115373

Stud

$0.00
$0.00
20
946355

Stud, R.H.. Front

$0.00
$0.00
21
948356

Stud, L.H. Rear

$0.00
$0.00
22
1106982

Slide, Ice Container, Left Side

$0.00
$0.00
28
1119237

Slide, Ice Container, Right Side

$0.00
$0.00
28
1119293

Screw

$0.00
$0.00
29
489100

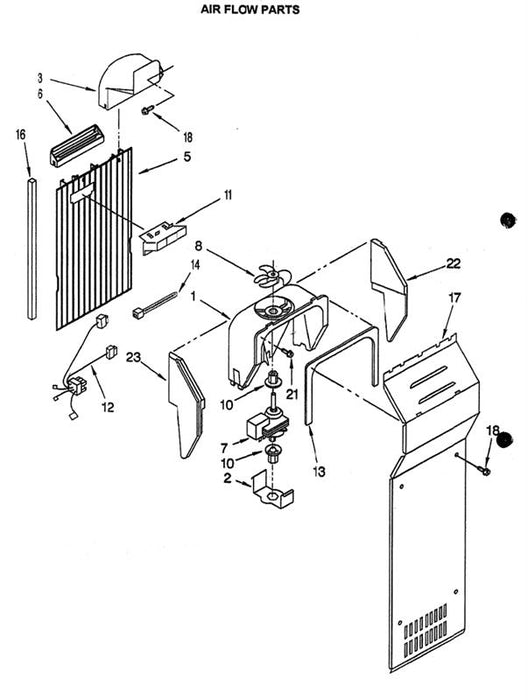

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Fan Scroll

$0.00
$0.00
1
2182119

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Air Duct Freezer

$0.00
$0.00
5
2176071

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
2154978

Fan Blade

$0.00
$0.00
8
2169142

Fan Grommet (2)

$0.00
$0.00
10
2178759

Duct, Icemaker

$0.00
$0.00
11
2182146

Harness, Fan Evaporator, And Heater, Bi-Metal

$0.00
$0.00
12
2189564

Gasket Cover

$0.00
$0.00
13
2155788

Wire Tie

$0.00
$0.00
14
2172840

Gasket

$0.00
$0.00
16
2155783

Cover, Evaporator

$0.00
$0.00
17
2155611

Support, R.H.

$0.00
$0.00
18
2181484

Support, L.H.

$0.00
$0.00
21
2155766
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

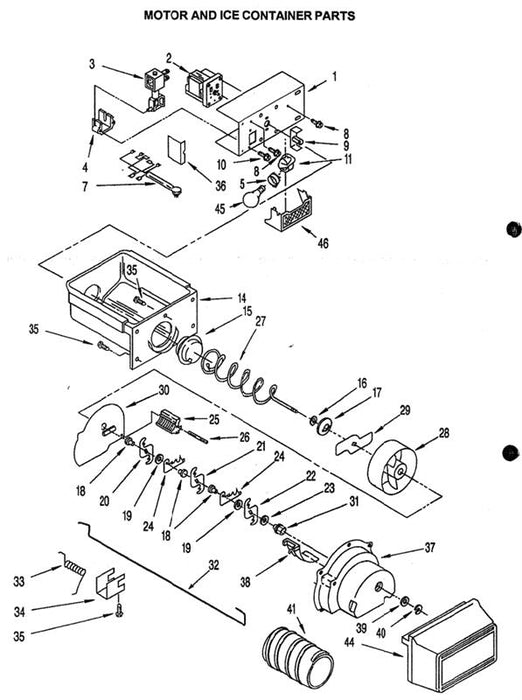

Bracket, Motor

$0.00
$0.00
1
2183728

Motor, Dispenser

$0.00
$0.00
2
2165212

Solenoid Assembly

$0.00
$0.00
3
2165210

Guide, Solenold

$0.00
$0.00
4
2149100

Shroud, Bracket

$0.00
$0.00
5
2169193

Clip, Wiring

$0.00
$0.00
6
1115374

Wiring Assembly, Ice Dispenser

$0.00
$0.00
7
2169490

Screw

$0.00
$0.00
8
489399

Coupling, Motor

$0.00
$0.00
9
983663

Screw

$0.00
$0.00
10
489478

Socket, Ught

$0.00
$0.00
11
2162085

Cover, Motor

$0.00
$0.00
12
Not applicable

Ice Container

$0.00
$0.00
14
2182082

Coupling, Conveyor

$0.00
$0.00
15
983668

Stop, Cone

$0.00
$0.00
16
1118480

Feeder Cone

$0.00
$0.00
17
1118074

Spacer, Step (3)

$0.00
$0.00
18
1119005

Spacer, Flat (2)

$0.00
$0.00
19
1119007

Blade, Rotary

$0.00
$0.00
20
1119006

Blade, Rotary

$0.00
$0.00
21
1119012

Washer, Plain

$0.00
$0.00
22
489235

Blade, Fixed (2)

$0.00
$0.00
23
1119009

Block, Blade

$0.00
$0.00
24
2157405

Roll Pin

$0.00
$0.00
25
488220

Conveyor

$0.00
$0.00
26
2181956

Drum

$0.00
$0.00
27
2171681

Drive Bar

$0.00
$0.00
28
1118470

Floating Baffle

$0.00
$0.00
29
2171682

Nut, Bearing

$0.00
$0.00
30
1119018

Control Arm

$0.00
$0.00
31
2155231

Spring, Return

$0.00
$0.00
32
1119020

Retainer Clip, Rod

$0.00
$0.00
33
1119021

Screw

$0.00
$0.00
34
488886

Shield, Wiring

$0.00
$0.00
35
1129563

Housing, Crusher

$0.00
$0.00
36
2180348

Detector, Ice

$0.00
$0.00
37
1119017

Washer, Plain

$0.00
$0.00
38
489234

Retainer Ring

$0.00
$0.00
39
480236

Sleeve

$0.00
$0.00
40
2152021

Housing, Filler

$0.00
$0.00
41
Not applicable

Front Cover, Ice Container

$0.00
$0.00
42
2171709

Light Bulb

$0.00
$0.00
44
851882

Light Lens Dispenser

$0.00
$0.00
45
2171700

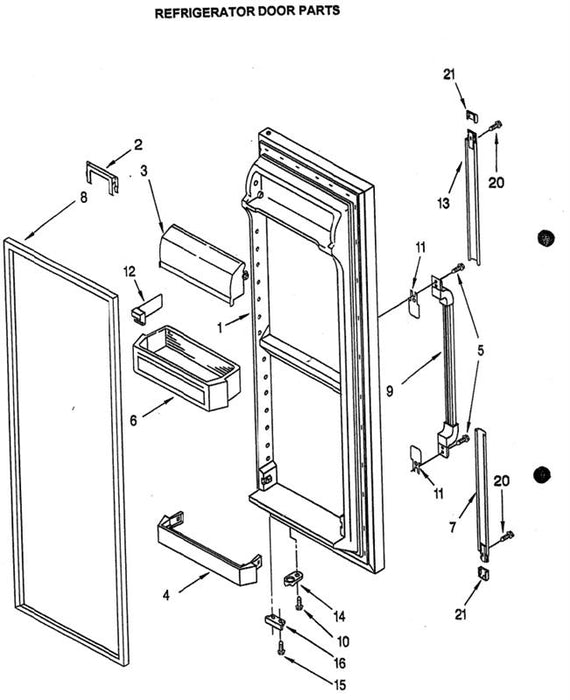

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Refrigerator Door (Includes Item 8)

$0.00
$0.00
1
2194275W

Retainer, Bottle

$0.00
$0.00
2
2173643

Door, Compartment

$0.00
$0.00
3
2177105

Trivet, Shelf

$0.00
$0.00
4
2156022

Screw

$0.00
$0.00
5
489463

Shelf Bin (3)

$0.00
$0.00
6
2179607

Extension, Bottom

$0.00
$0.00
7
2194766W

Door Gasket, Magnetic (Service)

$0.00
$0.00
8
2159073

Handle, Centre

$0.00
$0.00
9
2194759W

Screw

$0.00
$0.00
10
3400012

Shim

$0.00
$0.00
11
Not applicable

Divider, Bin

$0.00
$0.00
12
2194596

Extension, Top

$0.00
$0.00
13
2194764W

Door Closer, Upper Cam

$0.00
$0.00
14
2182132

Screw

$0.00
$0.00
15
489367

Bracket, Door Stop

$0.00
$0.00
16
2195950

Screw

$0.00
$0.00
20
489084

Cover, End Cap

$0.00
$0.00
21
2174006
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

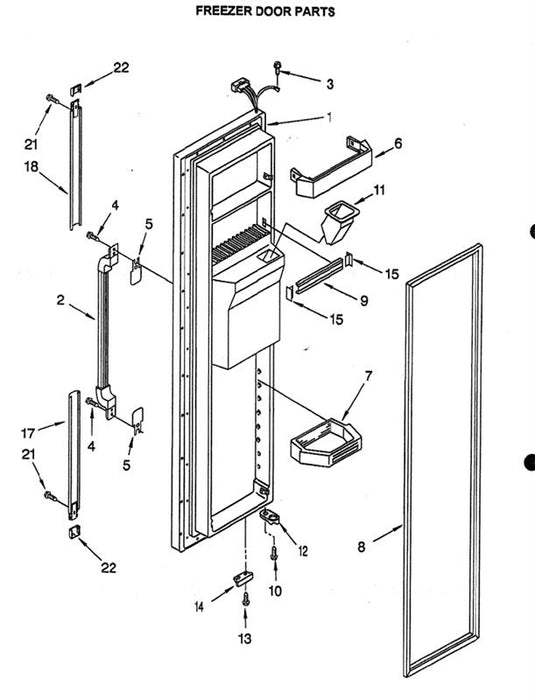

Freezer Door (Incl Item 8 and Dispenser Front )

$0.00
$0.00
1
2197783W

Handle, Centre

$0.00
$0.00
2
2194758W

Screw

$0.00
$0.00
3
489422

Screw

$0.00
$0.00
4
489463

Shim, End Cap (2)

$0.00
$0.00
5
2179599

Trivet, Shelf (2)

$0.00
$0.00
6
2156021

Shelf Bin (2)

$0.00
$0.00
7
2179578

Door Gasket, Magnetic (Service)

$0.00
$0.00
8
2159072

Trim, Door Shelf

$0.00
$0.00
9
2195926

Screw

$0.00
$0.00
10
3400012

Chute, Ice

$0.00
$0.00
11
2156146

Door Closer, Upper Cam

$0.00
$0.00
12
21821332

Screw

$0.00
$0.00
13
489367

Bracket, Door Stop

$0.00
$0.00
14
2195950

Plug, Trim

$0.00
$0.00
15
2156008

Extension, Bottom

$0.00
$0.00
17
2194766W

Extension, Top

$0.00
$0.00
18
2194764W

Screw

$0.00
$0.00
21
489084

Cover, End Cap

$0.00
$0.00
22
2174006

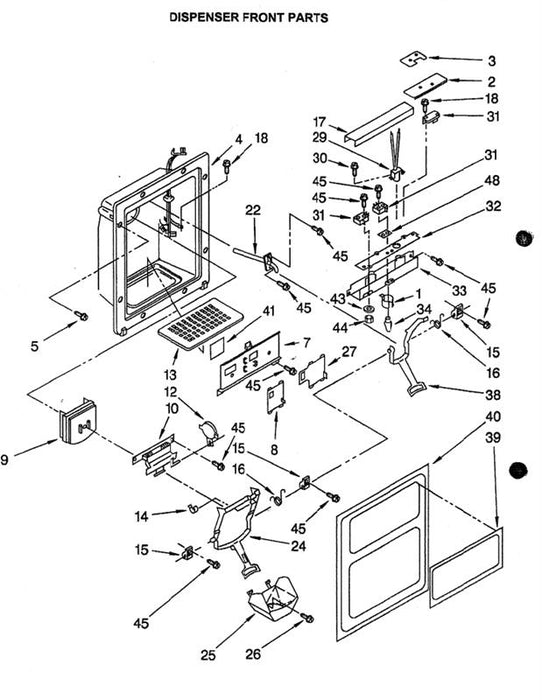

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shroud, Bracket

$0.00
$0.00
1
2168858

Switch Guard

$0.00
$0.00
2
2175226

Switch Guard

$0.00
$0.00
3
2175227

Housing, Dispenser (Not Serviced)

$0.00
$0.00
4
-

Screw

$0.00
$0.00
5
489101

Flame, Slides

$0.00
$0.00
7
2152717

Slide, Cube/Crush Switch

$0.00
$0.00
8
2152720

Door, Ice

$0.00
$0.00
9
2167269

Door Mechanism Assembly

$0.00
$0.00
10
2157650

Mechanism Delay

$0.00
$0.00
12
1120581

Grille, Overflow

$0.00
$0.00
13
1126120

Clip, Beartng (2)

$0.00
$0.00
14
987917

Bearing, Lever (3)

$0.00
$0.00
15
983697

Spring, Lever (2)

$0.00
$0.00
16
985696

Shield, Wiring

$0.00
$0.00
17
2147165

Screw

$0.00
$0.00
18
488500

Water Fitting Assembly (Includes Water Tube)

$0.00
$0.00
22
2157744

Lever, Ice Dispenser

$0.00
$0.00
24
2177144

Guide, Ice

$0.00
$0.00
25
1124730

Screw

$0.00
$0.00
26
488892

Slide, Light Switch

$0.00
$0.00
27
2152726

Lamp Holder

$0.00
$0.00
29
2168862

Screw

$0.00
$0.00
30
488361

Switch (4)

$0.00
$0.00
31
2162301

Insulator, Control Bracket

$0.00
$0.00
32
2147164

Bracket, Control

$0.00
$0.00
33
2147183

Bulb, Llght

$0.00
$0.00
34
989331

Lever, Water Dispenser

$0.00
$0.00
38
2177149

Plaque, Front Cover

$0.00
$0.00
39
2174331

Front Cover, Housing (Includes Item 39)

$0.00
$0.00
40
2174309

Heat Shleld, Frame

$0.00
$0.00
41
2147172

Nut

$0.00
$0.00
43
489476

Lock Washer

$0.00
$0.00
44
486734

Screw

$0.00
$0.00
45
488382

Spacer

$0.00
$0.00
48
625834

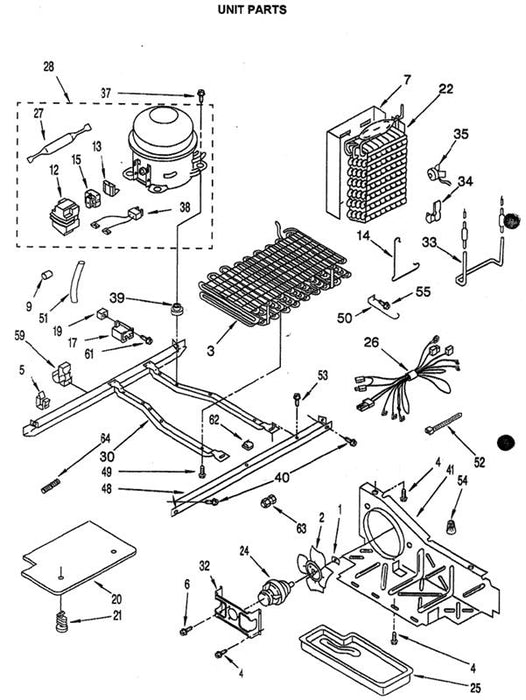

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Speed Nut

$0.00
$0.00
1
488692

Fan, Blade

$0.00
$0.00
2
1108179

Condenser Assembly

$0.00
$0.00
3
2198175

Screw

$0.00
$0.00
4
489464

Clip

$0.00
$0.00
5
940073

Screw

$0.00
$0.00
6
489099

Heat Shield And Drain Pan

$0.00
$0.00
7
2149293

Damper

$0.00
$0.00
9
2158826

Cover

$0.00
$0.00
12
2162358

Ovedoad

$0.00
$0.00
13
2169412

Clip, Defrost Heater

$0.00
$0.00
14
2181324

Relay

$0.00
$0.00
15
2154755

Capacitor

$0.00
$0.00
17
2154718

Screw Grommet

$0.00
$0.00
19
509812

Unit Cover, Bottom

$0.00
$0.00
20
2182057

Clip

$0.00
$0.00
21
489396

Evaporator

$0.00
$0.00
22
2164518

Motor, Fan

$0.00
$0.00
24
2T98745

Tray, Evaporator

$0.00
$0.00
25
2154114

Harness, Intermediate

$0.00
$0.00
26
2195108

Drier

$0.00
$0.00
27
2183423

Compressor (Includes Items 12,13,15,17,27 & 38 - Also order: Tube Kit)

$0.00
$0.00
28
876765

Tube Kit (Not Illustrated)

$0.00
$0.00
-
2180500

Unit Mounting Frame

$0.00
$0.00
30
2181929

Bracket, Fan Motor

$0.00
$0.00
32
2175046

Heater , Defrost

$0.00
$0.00
33
2161330

Bi-Metal , Defrost

$0.00
$0.00
34
2176066

Screw

$0.00
$0.00
35
488373

Wire Assem..

$0.00
$0.00
37
2172890

Grommet {4)

$0.00
$0.00
38
1100826

Screw

$0.00
$0.00
39
486340

Air Baffle

$0.00
$0.00
40
2149128

Unit Mounting Rall

$0.00
$0.00
41
2149717

Screw

$0.00
$0.00
48
488624

Guard, Fan

$0.00
$0.00
49
1105612

Sleeve

$0.00
$0.00
50
2161302

Wire Tie

$0.00
$0.00
51
2172840

Screw

$0.00
$0.00
52
489427

Wire Connector

$0.00
$0.00
53
850145

Screw

$0.00
$0.00
54
489478

Clip, Wire & Tube

$0.00
$0.00
55
2155058

Screw

$0.00
$0.00
59
488687

Clip, Tube (3)

$0.00
$0.00
61
934011

Union

$0.00
$0.00
62
2150347

Tube, Spring

$0.00
$0.00
63
983659

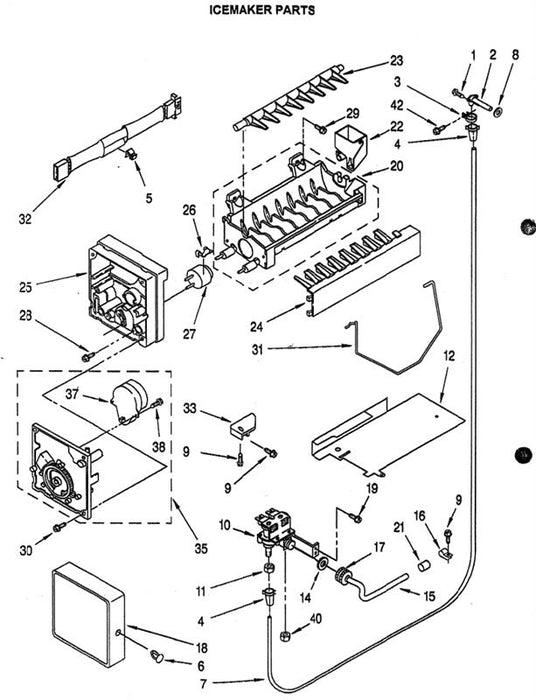

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Fitting, Water Tube

$0.00
$0.00
1
2182015

Clamp, Tube

$0.00
$0.00
2
488878

Insert, Tube

$0.00
$0.00
3
2181939

Clip, Fuse

$0.00
$0.00
4
628379

Clip

$0.00
$0.00
5
489115

Tube, Water

$0.00
$0.00
6
2181943

Seal, Gasket

$0.00
$0.00
7
1106508

Screw

$0.00
$0.00
8
489478

Valve, Solenoid

$0.00
$0.00
9
2175056

Nut, Compression

$0.00
$0.00
10
627018

Heat Shield

$0.00
$0.00
11
2182414

Tube, Water Inlet

$0.00
$0.00
12
Not applicable

Washer

$0.00
$0.00
13
828337

Tube, Inlet Valve

$0.00
$0.00
14
627861

Clamp, Tube

$0.00
$0.00
15
510716

Nut

$0.00
$0.00
16
537588

Cover

$0.00
$0.00
17
2174183

Screw

$0.00
$0.00
18
488849

Mould & Heater Ass'y (Also Order Silicone Grease)

$0.00
$0.00
19
628282

Silicone Grease

$0.00
$0.00
20
542638

Damper

$0.00
$0.00
-
836074

Cup-Water Fill

$0.00
$0.00
21
628356

Ejector

$0.00
$0.00
22
627843

Ice Stripper

$0.00
$0.00
23
2182124

Support

$0.00
$0.00
24
2195914

Retainer, Thermostat

$0.00
$0.00
25
827796

Thermostat (Also Order)

$0.00
$0.00
26
627985

Cement Alumllastlc

$0.00
$0.00
27
542369

Screw

$0.00
$0.00
-
489322

Screw

$0.00
$0.00
28
489486

Screw

$0.00
$0.00
29
489276

Shut Off Arm

$0.00
$0.00
30
2171593

Harness, \/\/iring

$0.00
$0.00
31
628281

Bracket

$0.00
$0.00
32
628320

Module Assembly (Includes Items 29, 37 & 38)

$0.00
$0.00
33
628377

Clip, Support (2)

$0.00
$0.00
35
Not applicable

Motor

$0.00
$0.00
36
828303

Screw

$0.00
$0.00
37
488136

Nut, Compression

$0.00
$0.00
38
1129179

Screw

$0.00
$0.00
40
488886

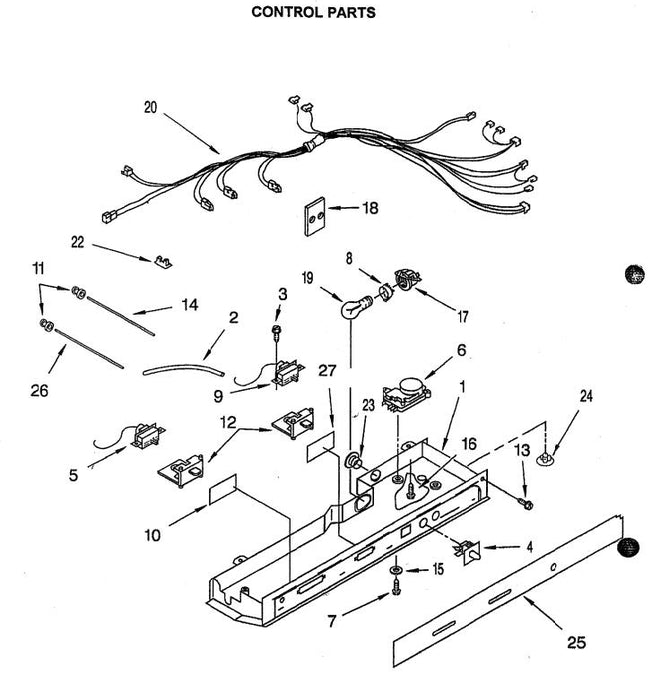

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Control Box

$0.00
$0.00
1
2161459

Tube Barrier, Thermostat

$0.00
$0.00
2
2196003

Screw (3)

$0.00
$0.00
3
480214

Light Switch

$0.00
$0.00
4
2149705

Thermostat, Freezer

$0.00
$0.00
5
2182770

Defrost Timer

$0.00
$0.00
6
2162057

Screw (2)

$0.00
$0.00
7
489398

Shroud, Light

$0.00
$0.00
8
2169193

Thermostat, Refrigerator

$0.00
$0.00
9
2181460

Window

$0.00
$0.00
10
2172940

Grommet, Light Bar

$0.00
$0.00
11
2172906

Slide, Thermostat

$0.00
$0.00
12
2161486

Screw (2)

$0.00
$0.00
13
489084

Light Bar, Refrigerator Compartment

$0.00
$0.00
14
2179920

Washer

$0.00
$0.00
15
486632

Screw (2)

$0.00
$0.00
16
489290

Light Socket

$0.00
$0.00
17
2182085

Heat Shield

$0.00
$0.00
18
2172931

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2183733

Clip, Wiring

$0.00
$0.00
21
Not Applicable

Clip, Wiring

$0.00
$0.00
22
1115375

Hole Plug

$0.00
$0.00
23
940014

Hole Plug

$0.00
$0.00
24
2166844

Escutcheon, Control Box

$0.00
$0.00
25
2175179

Light Bar, Freezer Compartment

$0.00
$0.00
26
2179921

Window

$0.00
$0.00
27
2172941
