6ED22PKXFW00

6ED22PKXFW00

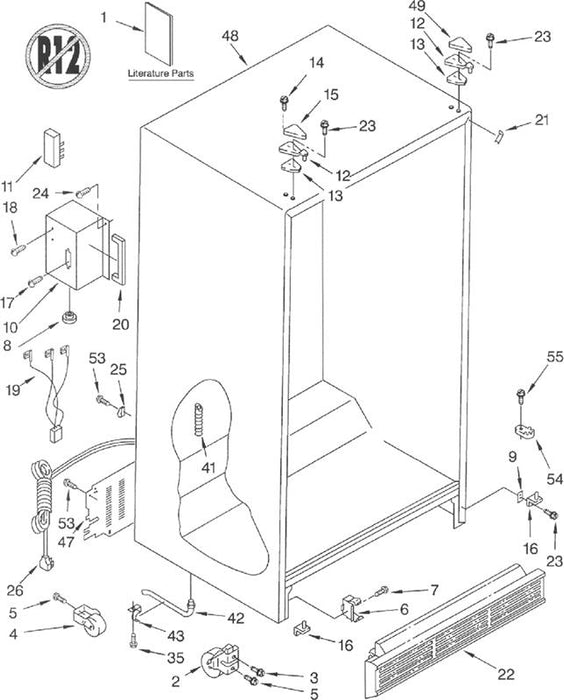

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Use & Care Guide

$0.00
$0.00
1
LIT2195167

Service & Wiring Sheet

$0.00
$0.00
1
LIT2186926

Front Roller (2)

$0.00
$0.00
2
4386774

Screw

$0.00
$0.00
3
489456

Roller (Rear) (2)

$0.00
$0.00
4
981122

Screw

$0.00
$0.00
5
489427

Clip, Grille

$0.00
$0.00
6
2155013

Screw

$0.00
$0.00
7
489478

Bushing

$0.00
$0.00
8
1129449

Shim

$0.00
$0.00
9
2181911

Enclosure Terminal Block

$0.00
$0.00
10
2158579

Terminal Block

$0.00
$0.00
11
1129346

Hinge Top (2)

$0.00
$0.00
12
2196046

Shim, Hinge Top

$0.00
$0.00
13
2196048

Screw

$0.00
$0.00
14
489284

Hinge Cover

$0.00
$0.00
15
1129262

Hinge Bottom (2)

$0.00
$0.00
16
4386946

Screw

$0.00
$0.00
17
489211

Screw

$0.00
$0.00
18
489399

Wiring Assembly, Terminal Block

$0.00
$0.00
19
2165297

Gasket

$0.00
$0.00
20
2158999

Filler, Wrapper

$0.00
$0.00
21
1110708

Grille

$0.00
$0.00
22
2155477

Screw

$0.00
$0.00
23
489497

Screw

$0.00
$0.00
24
489463

Clamp

$0.00
$0.00
25
596171

Service Cord

$0.00
$0.00
26
1129331

Seal, Hole

$0.00
$0.00
27
-

Screw

$0.00
$0.00
35
489464

Drain Fitting

$0.00
$0.00
41
940139

Extension Tube

$0.00
$0.00
42
1108438

Clip, Drain Tube

$0.00
$0.00
43
1108439

Cover, Unit

$0.00
$0.00
47
2189681

Cabinet (Not A Serviceable Part)

$0.00
$0.00
48
-

Hinge Cover

$0.00
$0.00
49
1119787

Screw

$0.00
$0.00
53
489084

Door Closer, Lower Cam (2)

$0.00
$0.00
54
2155311

Screw

$0.00
$0.00
55
489483

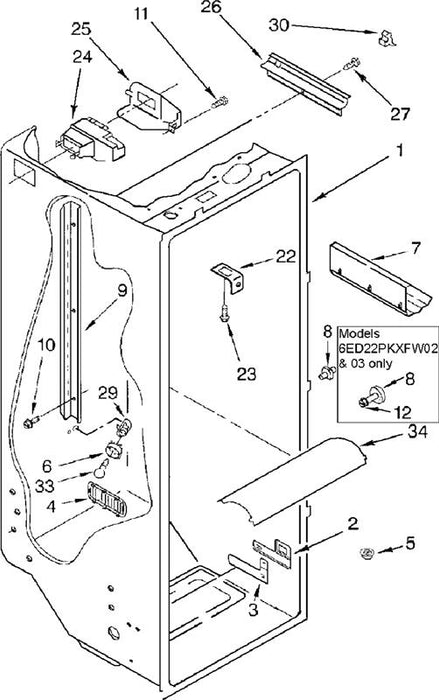

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Escutcheon, Meat Pan Control

$0.00
$0.00
2
2194744

Slide Meat

$0.00
$0.00
3
2182757

Louvre Pan Control

$0.00
$0.00
4
2182147

Release Valve

$0.00
$0.00
5
2171846

Shroud, Light

$0.00
$0.00
6
2169193

Rack, Wine and Egg

$0.00
$0.00
7
2179404

Stud (8)

$0.00
$0.00
8
1110718

Ladder, Shelf (2)

$0.00
$0.00
9
2181796

Screw (6)

$0.00
$0.00
10
487539

Screw

$0.00
$0.00
11
489478

Screw

$0.00
$0.00
12
NA

Bracket Retainer

$0.00
$0.00
22
1123919

Screw (2)

$0.00
$0.00
23
489290

Air Diffuser Assembly

$0.00
$0.00
24
2175155

Air Diffuser Cover

$0.00
$0.00
25
2161470

Cover, Conduit

$0.00
$0.00
26
2150331

Screw

$0.00
$0.00
27
486298

Socket

$0.00
$0.00
29
4387478

Clip, Air Duct

$0.00
$0.00
30
842534

Light Bulb

$0.00
$0.00
33
851682

Light Lens

$0.00
$0.00
34
2174436

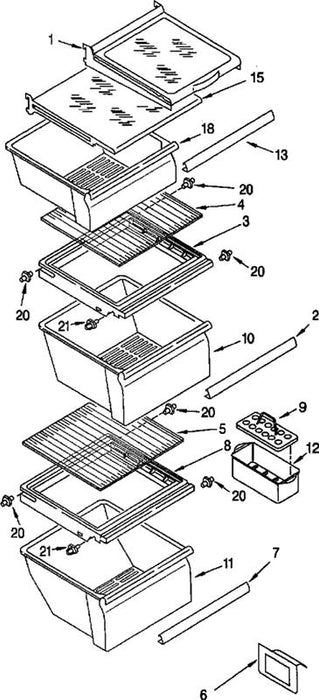

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shelf, Cantilever (2)

$0.00
$0.00
1
2194281

Trim, Pan

$0.00
$0.00
2
2194905

Cover, Crisper

$0.00
$0.00
3
2194578

Glass, Cover

$0.00
$0.00
4
2174150

Glass, Cover

$0.00
$0.00
5
2179259

Deflector

$0.00
$0.00
6
2179350

Trim, Meat Pan

$0.00
$0.00
7
2194906

Cover, Meat Pan

$0.00
$0.00
8
2189593

Egg Carrier

$0.00
$0.00
9
2164373

Crisper Pan

$0.00
$0.00
10
2194904

Meat Pan

$0.00
$0.00
11
2194907

Egg Bin

$0.00
$0.00
12
2182730

Trim, Snack Pan

$0.00
$0.00
13
2179243

Shelf Assembly

$0.00
$0.00
15
2194734

Screw

$0.00
$0.00
16
NA

Screw

$0.00
$0.00
17
NA

Snack Bin

$0.00
$0.00
18
2194916

Shelf Stud

$0.00
$0.00
20
1110718

Shelf Stud

$0.00
$0.00
21
2172943

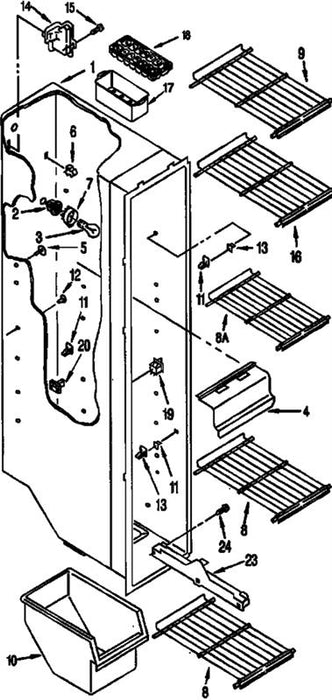

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Light Socket

$0.00
$0.00
2
2155597

Light Bulb

$0.00
$0.00
3
851682

Light Lens

$0.00
$0.00
4
2155595

Hole Plug

$0.00
$0.00
5
941839

Clip, Air Duct (2)

$0.00
$0.00
6
842534

Shroud, Light

$0.00
$0.00
7
4387478

Shelf (1)

$0.00
$0.00
8A
2174249

Shelf (2)

$0.00
$0.00
8
2174265

Shelf

$0.00
$0.00
9
2174266

Freezer Bin

$0.00
$0.00
10
2171707

Stud-Support (8)

$0.00
$0.00
11
946355

Grommet (10)

$0.00
$0.00
12
2176134

Stud-Front (3) R.S.

$0.00
$0.00
13
946356

Wiring Cover

$0.00
$0.00
14
2155571

Screw

$0.00
$0.00
15
489355

Shelf

$0.00
$0.00
16
2179325

Ice Container

$0.00
$0.00
17
2164333

Ice Tray (2)

$0.00
$0.00
18
841180

Switch, Rocker Arm

$0.00
$0.00
19
1118894

Stud-Rear (3) R.S.

$0.00
$0.00
20
1106982

Seal, Hole

$0.00
$0.00
21
NA

Screw

$0.00
$0.00
22
NA

Slide, Freezer Bin, Left Side

$0.00
$0.00
23
1115383

Slide, Freezer Bin, Right Side

$0.00
$0.00
23
1119293

Screw

$0.00
$0.00
24
489100

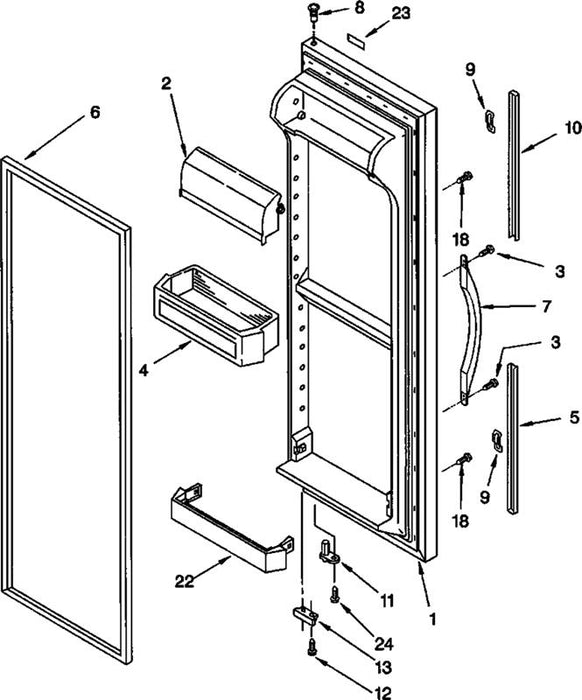

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Refrigerator Door (Includes Item 6)

$0.00
$0.00
1
2194275W

Door, Compartment

$0.00
$0.00
2
2177105

Screw

$0.00
$0.00
3
489491

Shelf Bin (3)

$0.00
$0.00
4
2194917

Extension, Bottom, White

$0.00
$0.00
5
2194969W

Door Gasket, Magnetic (Service)

$0.00
$0.00
6
2159073

Handle, Centre

$0.00
$0.00
7
2186649W

Thimble-Top

$0.00
$0.00
8
NA

Clip (4)

$0.00
$0.00
9
2195327

Extension, Top

$0.00
$0.00
10
2194971W

Door Closer, Upper Cam

$0.00
$0.00
11
2182132

Screw

$0.00
$0.00
12
489420

Bracket, Door Stop

$0.00
$0.00
13
2195950

Screw

$0.00
$0.00
18
3400852

Trivet, Shelf

$0.00
$0.00
22
2177962

Nameplate

$0.00
$0.00
23
2175383

Screw

$0.00
$0.00
24
3400012

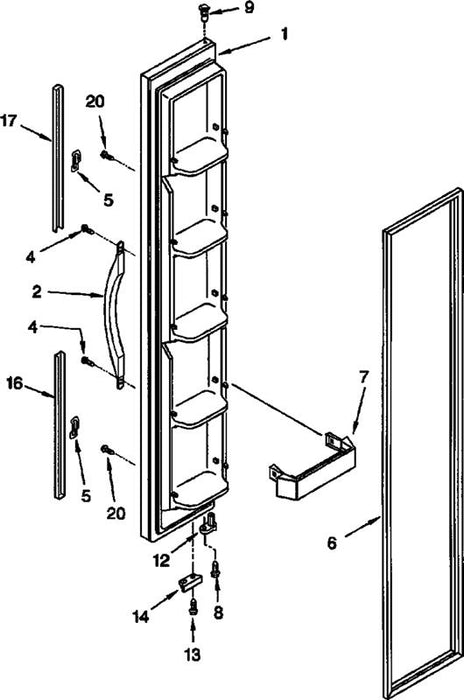

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer Door (Includes Item 6)

$0.00
$0.00
1
2194198W

Handle, Centre, White

$0.00
$0.00
2
2186649W

Screw

$0.00
$0.00
4
489491

Clip (4)

$0.00
$0.00
5
2195327

Door Gasket, Magnetic (Service)

$0.00
$0.00
6
2159072

Trivet, Door Shelf (5)

$0.00
$0.00
7
2194286

Screw

$0.00
$0.00
8
3400012

Thimble-Top

$0.00
$0.00
9
NA

Door Closer, Upper Cam

$0.00
$0.00
12
2182132

Screw

$0.00
$0.00
13
489420

Bracket, Door Stop

$0.00
$0.00
14
2195950

Extension, Bottom, White

$0.00
$0.00
16
2194969W

Extension, Top, White

$0.00
$0.00
17
2194971W

Screw

$0.00
$0.00
20
3400852

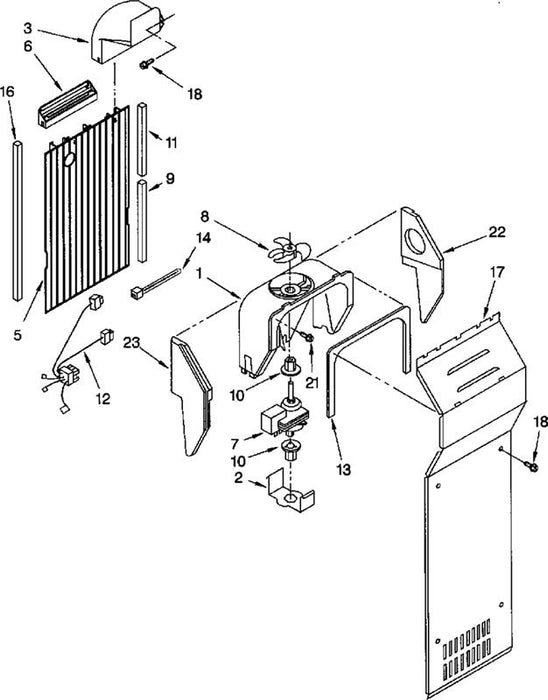

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Fan Scroll

$0.00
$0.00
1
2182119

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Air Duct Freezer

$0.00
$0.00
5
2155608

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
2154976

Fan Blade

$0.00
$0.00
8
2169142

Gasket

$0.00
$0.00
9
NA

Fan Grommet (2)

$0.00
$0.00
10
2176759

Gasket

$0.00
$0.00
11
NA

Harness, Fan Evaporator, Heater, Bi-metal

$0.00
$0.00
12
2189564

Gasket Cover

$0.00
$0.00
13
2155789

Wire Tie

$0.00
$0.00
14
3347868

Gasket

$0.00
$0.00
16
2155783

Cover, Evaporator

$0.00
$0.00
17
2155611

Screw

$0.00
$0.00
18
489355

Screw

$0.00
$0.00
21
489478

Support, R.S

$0.00
$0.00
22
2161484

Support, L.S

$0.00
$0.00
23
2155766

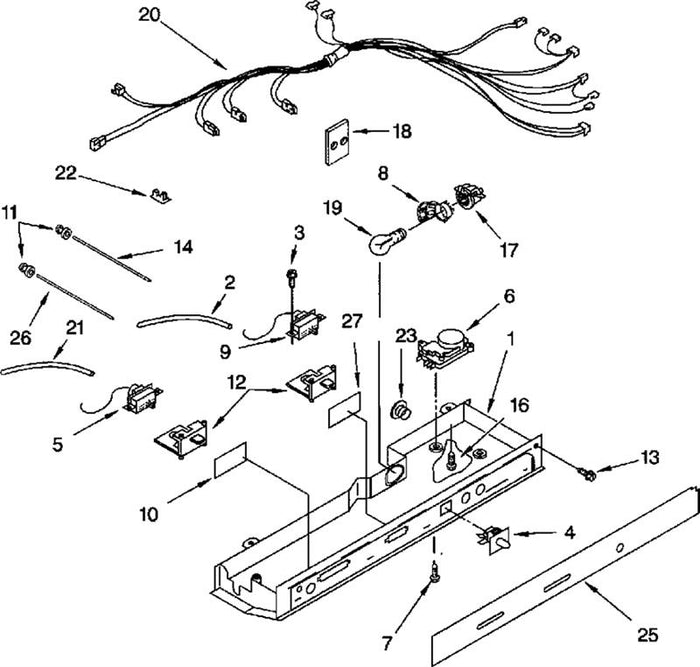

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Control Box

$0.00
$0.00
1
2200135

Tube, Barrier, Thermostat (RC)

$0.00
$0.00
2
2172948

Screw (3)

$0.00
$0.00
3
489214

Light Switch

$0.00
$0.00
4
2149705

Thermostat (FC)

$0.00
$0.00
5
2195172

Defrost Timer

$0.00
$0.00
6
2162057

Screw (2)

$0.00
$0.00
7
489398

Shroud, Light

$0.00
$0.00
8
2175210

Thermostat (RC)

$0.00
$0.00
9
2161460

Window

$0.00
$0.00
10
2172940

Grommet, Light Bar

$0.00
$0.00
11
2172906

Slide, Thermostat

$0.00
$0.00
12
2161466

Screw (2)

$0.00
$0.00
13
489084

Light Bar (RC)

$0.00
$0.00
14
2179920

Washer

$0.00
$0.00
15
486632

Screw

$0.00
$0.00
16
489290

Light Socket

$0.00
$0.00
17
4387478

Heat Shield

$0.00
$0.00
18
2172931

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2183733

Tube Barrier Thermostat

$0.00
$0.00
21
2172948

Clip, Wiring

$0.00
$0.00
22
1115375

Hole Plug

$0.00
$0.00
23
940014

Hole Plug

$0.00
$0.00
24
2166844

Escutcheon, Control Box

$0.00
$0.00
25
2175064

Light Bar (FC)

$0.00
$0.00
26
2179921

Window

$0.00
$0.00
27
2172941

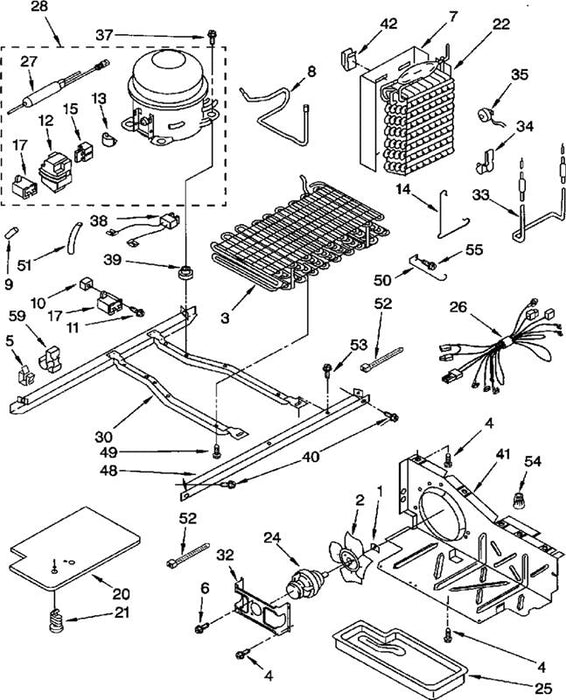

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Speed Nut

$0.00
$0.00
1
486692

Fan, Blade

$0.00
$0.00
2
1108179

Condenser Assembly

$0.00
$0.00
3
2198175

Screw

$0.00
$0.00
4
489464

Clip

$0.00
$0.00
5
940073

Screw

$0.00
$0.00
6
489099

Heat Shield And Drain Pipe

$0.00
$0.00
7
2149293

Tube Suction And Drain Pan

$0.00
$0.00
8
NA

Dampener

$0.00
$0.00
9
2158826

Grommet

$0.00
$0.00
10
937252

Screw

$0.00
$0.00
11
488687

Cover, (Production)

$0.00
$0.00
12
2162358

Cover, (Service)

$0.00
$0.00
12
NA

Overload, (Production)

$0.00
$0.00
13
2169412

Overload, (Service, Includes Relay)

$0.00
$0.00
13
NA

Clip, Defrost Heater

$0.00
$0.00
14
2161324

Relay, (Production)

$0.00
$0.00
15
2154755

Relay, (Service--See Overload)

$0.00
$0.00
15
NA

Clip, Condenser

$0.00
$0.00
16
NA

Capacitor, (Production)

$0.00
$0.00
17
2154718

Capacitor, (Service)

$0.00
$0.00
17
NA

Tube, Condenser To Heat Loop

$0.00
$0.00
18
NA

Unit Cover, Bottom

$0.00
$0.00
20
2182057

Clip

$0.00
$0.00
21
489396

Evaporator

$0.00
$0.00
22
2164518

Motor, Fan

$0.00
$0.00
24
2198746

Tray, Evaporator

$0.00
$0.00
25
2154114

Harness, Intermediate

$0.00
$0.00
26
2195106

Drier

$0.00
$0.00
27
2164409

Compressor (Inc Items 12,13,15,17,27&38) (Order Tube Kit 876765 for Mod 00,01&02)

$0.00
$0.00
28
2183423

Unit Mounting Frame

$0.00
$0.00
30
2160500

Bracket, Fan Motor

$0.00
$0.00
32
2181929

Heater, Defrost

$0.00
$0.00
33
2188176

Clip

$0.00
$0.00
34
2161330

Bi-Metal, Defrost

$0.00
$0.00
35
2176066

Screw

$0.00
$0.00
37
489373

Wire Assembly

$0.00
$0.00
38
2172890

Grommet (4)

$0.00
$0.00
39
1100826

Screw

$0.00
$0.00
40
489340

Air Baffle

$0.00
$0.00
41
2149128

Clip, Heat

$0.00
$0.00
42
2155547

Unit Mounting Rail

$0.00
$0.00
48
2149717

Screw

$0.00
$0.00
49
488624

Guard, Fan

$0.00
$0.00
50
1105612

Sleeve

$0.00
$0.00
51
2162499

Wire Tie

$0.00
$0.00
52
3347868

Screw

$0.00
$0.00
53
489427

Wire Connector

$0.00
$0.00
54
227991

Screw

$0.00
$0.00
55
489478

Clip, Wire & tube

$0.00
$0.00
59
2155658

Valve, Access (1/4")

$0.00
$0.00
978025

Valve, Access (5/16")

$0.00
$0.00
978026

Valve, Access (3/8")

$0.00
$0.00
978027

Valve, Access (1/2")

$0.00
$0.00
978028

Valve, Access (5/8")

$0.00
$0.00
978029

Valve, Access (3/4")

$0.00
$0.00
978030

Valve, Access (3/16")

$0.00
$0.00
876764

Start Kit

$0.00
$0.00
482278

Insulation, Fibreglass (1613 x 927 x 67mm)

$0.00
$0.00
978941

Sealer, Gum (1220 mm)

$0.00
$0.00
212643

Tape, Vinyl (18mm x 2743mm)

$0.00
$0.00
479502

Kit, Insulation (14 Pieces 76 x 610 x 1220mm)

$0.00
$0.00
876305

Kit, Insulation (2 Pieces 76 x 610 x 1220mm

$0.00
$0.00
876370

Kit, Foam Slab (762mm x 826mm x 38mm)

$0.00
$0.00
876029

Sealer, Mastic (1 Quart)

$0.00
$0.00
505587

Touch-up, White Porcelain (2 Oz)

$0.00
$0.00
511873

Grease, Silicon (1/2 Oz)

$0.00
$0.00
542638

Cement, Alumilastic (1-1/4 Oz)

$0.00
$0.00
542639

Bag, Insulation (36-5/8" x 46")

$0.00
$0.00
606755

Kit, Evaporator Repair (Aluminium Epoxy)

$0.00
$0.00
799833

Cork Sealer, 1/4 Pound

$0.00
$0.00
503695

Kit, Terminal Connector

$0.00
$0.00
833938

Ice Container Assembly

$0.00
$0.00
2182102

Primer, White (13 Oz. Spray Can)

$0.00
$0.00
350942

Enamel, White (13 Oz. Spray Can)

$0.00
$0.00
350930

Brush Touch-Up Kit (White)

$0.00
$0.00
72017

Enamel, White (1 Qt. Uncut)

$0.00
$0.00
799344

Kit, Terminal Connector

$0.00
$0.00
833938

Torx Key

$0.00
$0.00
1117510
