6ED22RQXWW00

6ED22RQXWW00

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

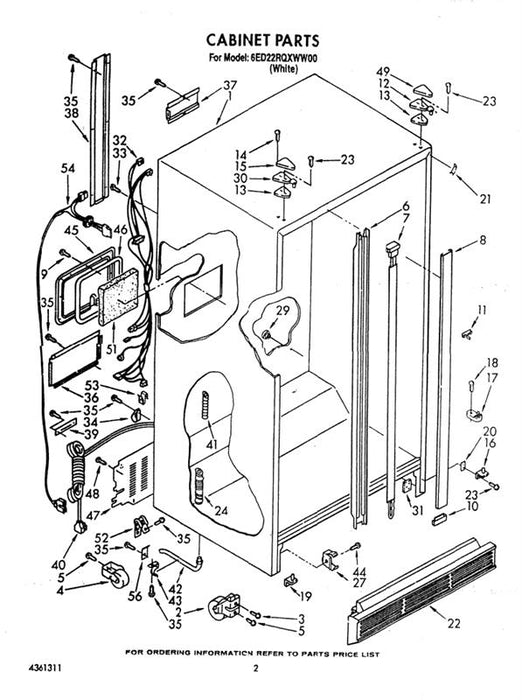

Cabinet (Not A Serviceable Part)

$0.00
$0.00
1
-

Front Roller (2)

$0.00
$0.00
2
2152011

Screw

$0.00
$0.00
3
489393

Roller (Rear) (2)

$0.00
$0.00
4
981122

Screw, (4) 1/4-28 x 1/2

$0.00
$0.00
5
488454

Mullion Rail

$0.00
$0.00
6
2155015

Heater Mullion

$0.00
$0.00
7
1129453

Front Mullion Rail

$0.00
$0.00
8
1123966

Screw (11)

$0.00
$0.00
9
489337

Filler Bottom Mullion

$0.00
$0.00
10
1118361

Clip Ground

$0.00
$0.00
11
1110607

Hinge, Top

$0.00
$0.00
12
1123514

Shim, Hinge Top

$0.00
$0.00
13
1123515

Screw, Bind

$0.00
$0.00
14
489284

Hinge Cover

$0.00
$0.00
15
1129262

Hinge Bottom (R.H)

$0.00
$0.00
16
2151629

Door Closer Lower Cam (2)

$0.00
$0.00
17
986759

Screw, (2)

$0.00
$0.00
18
489375

Hinge Bottom (L.H)

$0.00
$0.00
19
2151630

Spacer, Hinge

$0.00
$0.00
20
1129868

Shim. 030

$0.00
$0.00
21
836196

Filler, Wrapper

$0.00
$0.00
22
1110708

Grille

$0.00
$0.00
23
2147467

Screw,

$0.00
$0.00
24
489327

Fitting, Drain

$0.00
$0.00
27
942768

Clip, Grille Retainer (2)

$0.00
$0.00
29
2155013

Grommet

$0.00
$0.00
30
1129178

Hinge, Top (L.H)

$0.00
$0.00
31
1123510

Tap Plate (2)

$0.00
$0.00
32
2147310

Cabinet Harness

$0.00
$0.00
33
2155156

Screw, Ground

$0.00
$0.00
34
489048

Clamp

$0.00
$0.00
35
937357

Screw

$0.00
$0.00
36
489337

Cover, Wiring

$0.00
$0.00
37
1129193

Wiring Shield, Short

$0.00
$0.00
38
1108440

Wiring Shield, Long

$0.00
$0.00
39
1108441

Tube Clamp (2)

$0.00
$0.00
40
1105607

Service Cord

$0.00
$0.00
41
1129331

Drain Ferrule

$0.00
$0.00
42
2155556

Extension Tube

$0.00
$0.00
43
1108438

Clip, Drain Tube

$0.00
$0.00
44
1108439

Screw

$0.00
$0.00
45
489242

Cover, Plug

$0.00
$0.00
46
1108443

Sealing Gasket

$0.00
$0.00
47
1115321

Cover, Unit

$0.00
$0.00
48
1129479

Screw, 8 x 1/2 (6)

$0.00
$0.00
49
489084

Hinge Cover

$0.00
$0.00
51
1119787

Insulation

$0.00
$0.00
52
1118236

Clamp, Service Cord

$0.00
$0.00
53
549193

Clip, Wire

$0.00
$0.00
54
548745

Wiring Assembly (Icemaker)

$0.00
$0.00
56
1129189

Clamp, Water Line (2)

$0.00
$0.00
836472

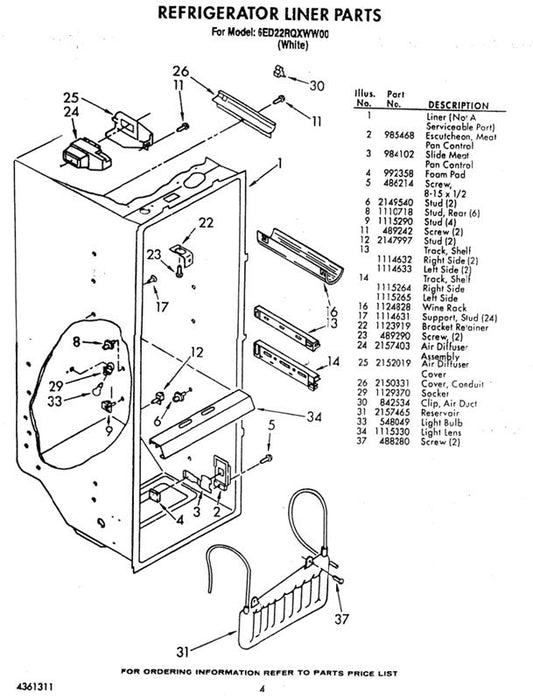

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Escutcheon, Meat Pan Control

$0.00
$0.00
2
985468

Slide Meat Pan Control

$0.00
$0.00
3
984102

Foam Pad

$0.00
$0.00
4
992358

Screw, 8-15 x 1/2

$0.00
$0.00
5
486214

Stud (2)

$0.00
$0.00
6
2149540

Stud Rear (6)

$0.00
$0.00
8
1110718

Stud (4)

$0.00
$0.00
9
1115290

Screw (2)

$0.00
$0.00
11
489242

Stud (2)

$0.00
$0.00
12
2147997

Track, Shelf

$0.00
$0.00
13
-

Right Side (2)

$0.00
$0.00
-
1114632

Left Side (2)

$0.00
$0.00
-
1114633

Track, Shelf

$0.00
$0.00
14
-

Right Side

$0.00
$0.00
-
1115264

Left Side

$0.00
$0.00
-
1115265

Wine Rack

$0.00
$0.00
16
1124828

Support, Stud (24)

$0.00
$0.00
17
1114631

Bracket Retainer

$0.00
$0.00
22
1123919

Screw, (2)

$0.00
$0.00
23
489290

Air Diffuser Assembly

$0.00
$0.00
24
2157403

Air Diffuser Cover

$0.00
$0.00
25
2152019

Cover, Conduit

$0.00
$0.00
26
2150331

Socket

$0.00
$0.00
29
1129370

Clip, Air Duct

$0.00
$0.00
30
842534

Reservoir

$0.00
$0.00
31
2157465

Light Bulb

$0.00
$0.00
33
548049

Light Lens

$0.00
$0.00
34
1115330

Screw (2)

$0.00
$0.00
37
488280

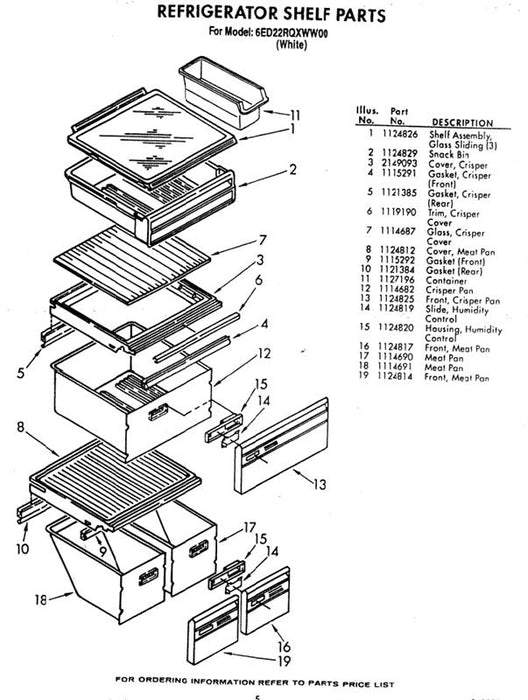

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shelf Assembly, Glass Sliding (3)

$0.00
$0.00
1
1124826

Snack Bin

$0.00
$0.00
2
1124829

Cover, Crisper

$0.00
$0.00
3
2149093

Gasket, Crisper (Front)

$0.00
$0.00
4
1115291

Gasket, Crisper (Rear)

$0.00
$0.00
5
1121385

Trim, Crisper Cover

$0.00
$0.00
6
1119190

Glass, Crisper Cover

$0.00
$0.00
7
1114687

Cover, Meat Pan

$0.00
$0.00
8
1124812

Gasket (Front)

$0.00
$0.00
9
1115292

Gasket (Rear)

$0.00
$0.00
10
1121384

Contaiiner

$0.00
$0.00
11
1127196

Crisper Pan

$0.00
$0.00
12
1114682

Front, Crisper Pan

$0.00
$0.00
13
1124825

Slide, Humidity Control

$0.00
$0.00
114
1124819

Housing, Humidity Control

$0.00
$0.00
15
1124820

Front, Meat Pan

$0.00
$0.00
16
1124817

Meat Pan

$0.00
$0.00
17
1114690

Meat Pan

$0.00
$0.00
18
1114691

Front, Meat Pan

$0.00
$0.00
19
1124814
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

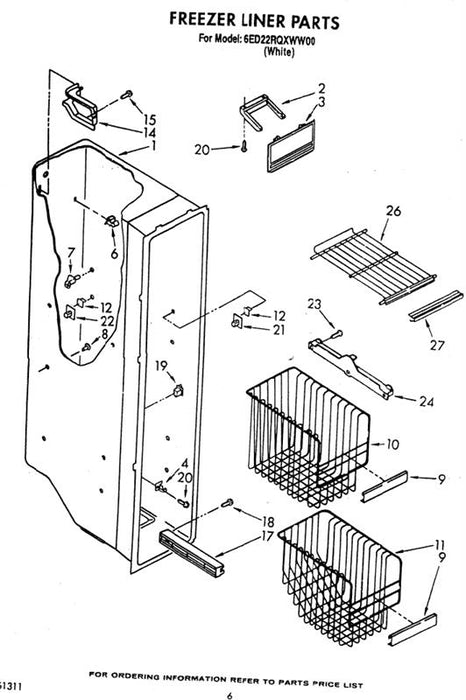

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Slide, Ice Door

$0.00
$0.00
2
1115380

Door, Ice Compartment

$0.00
$0.00
3
2149091

Evaporator, Support

$0.00
$0.00
4
1108436

Clip, Air Duct (2)

$0.00
$0.00
6
842534

Support, Stud (4)

$0.00
$0.00
7
1115317

Grommet (2)

$0.00
$0.00
8
1110779

Trim, Basket

$0.00
$0.00
9
2149088

Basket, Tall

$0.00
$0.00
10
2152087

Basket, Slope

$0.00
$0.00
11
2152089

Support, Stud (4)

$0.00
$0.00
12
946355

Wiring Cover

$0.00
$0.00
14
1114607

Screw

$0.00
$0.00
15
489176

Shelf Track

$0.00
$0.00
17
-

Right Side (2)

$0.00
$0.00
-
1126354

Left Side (2)

$0.00
$0.00
-
1126355

Screw (8)

$0.00
$0.00
18
487042

Switch, Rocker Arm

$0.00
$0.00
19
1115373

Screw

$0.00
$0.00
20
489242

Stud, Front (2)

$0.00
$0.00
21
946356

Stud, Rear (2)

$0.00
$0.00
22
1106982

Screw (4)

$0.00
$0.00
23
489100

Slide, Container

$0.00
$0.00
24
-

Left Side

$0.00
$0.00
-
1119237

Right Side

$0.00
$0.00
-
1119293

Shelf (2)

$0.00
$0.00
26
1118165

Trim, Shelf

$0.00
$0.00
27
2149090
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

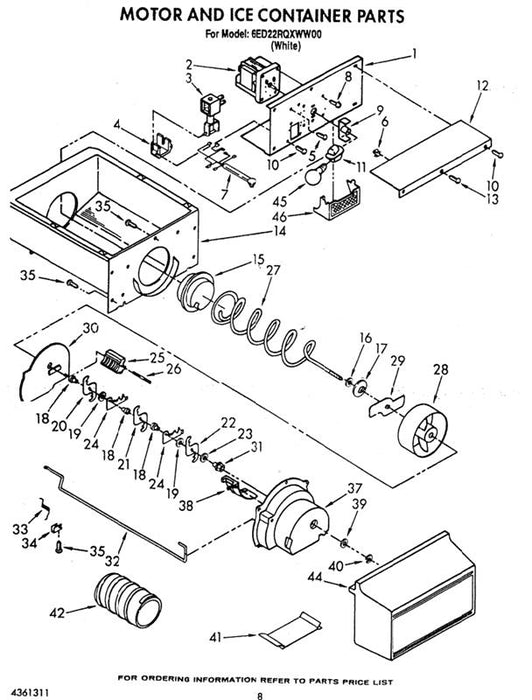

Bracket, Motor

$0.00
$0.00
1
2149001

Motor, Dispenser

$0.00
$0.00
2
2152118

Soleniod Assembly

$0.00
$0.00
3
2152713

Guide, Solenoid

$0.00
$0.00
4
2149100

Screw (2)

$0.00
$0.00
5
487523

Clip, Wiring

$0.00
$0.00
6
1115374

Wiring Assembly, Ice Dispenser

$0.00
$0.00
7
2155171

Screw, 8-32 x 5/16 (4)

$0.00
$0.00
8
488906

Coupling, Motor

$0.00
$0.00
9
983663

Screw

$0.00
$0.00
10
489242

Socket, Light

$0.00
$0.00
11
1129370

Cover, Motor

$0.00
$0.00
12
1115210

Screw, 8-32 x 3/8

$0.00
$0.00
13
487294

Ice Container

$0.00
$0.00
14
2152704

Coupling, Conveyor

$0.00
$0.00
15
983668

Stop, Cone

$0.00
$0.00
16
1118480

Feeder Cone

$0.00
$0.00
17
1119074

Spacer, Step (3)

$0.00
$0.00
18
1119005

Spacer, Flat (2)

$0.00
$0.00
19
1119007

Blade, Rotary

$0.00
$0.00
20
1119006

Blade, Rotary

$0.00
$0.00
21
1119012

Blade, Rotary

$0.00
$0.00
22
1119013

Washer, Plain

$0.00
$0.00
23
489235

Blade, Fixed (2)

$0.00
$0.00
24
1119009

Block, Blade

$0.00
$0.00
25
2157405

Roll Pin

$0.00
$0.00
26
489229

Coveyor

$0.00
$0.00
27
2152734

Drum

$0.00
$0.00
28
2157406

Drive Bar

$0.00
$0.00
29
1118470

Floating Baffle

$0.00
$0.00
30
2157404

Nut, Bearing

$0.00
$0.00
31
1119018

Control Arm

$0.00
$0.00
32
2155231

Spring, Return

$0.00
$0.00
33
1119020

Retainer Clip, Rod

$0.00
$0.00
34
1119021

Screw, 8-18 x 1/2

$0.00
$0.00
35
488886

Housing, Crusher

$0.00
$0.00
37
2157407

Deflector, Ice

$0.00
$0.00
38
1119017

Washer, Plain

$0.00
$0.00
39
489234

Retainer Ring

$0.00
$0.00
40
489236

Housing Filler

$0.00
$0.00
41
2152700

Sleeve, Auger

$0.00
$0.00
42
2152021

Front Cover, Ice Container

$0.00
$0.00
44
2149005

Light Bulb

$0.00
$0.00
45
527949

Light Lens, Dispense

$0.00
$0.00
46
983359
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

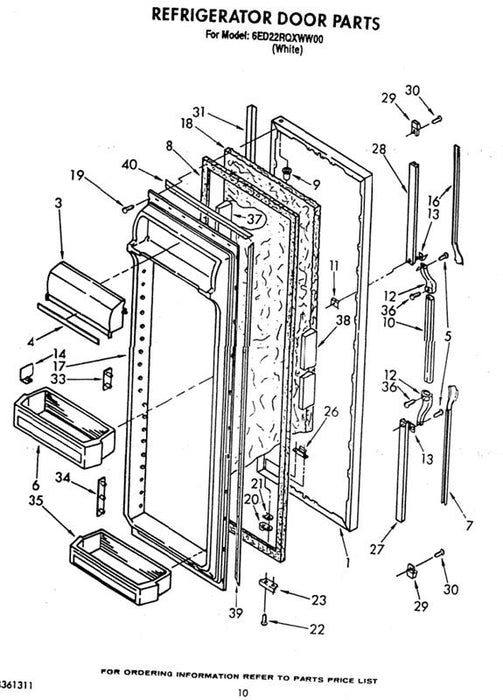

Refrigerator Door (Also Order Item 18)

$0.00
$0.00
1
1115273

Door, Compartment

$0.00
$0.00
3
1124845

Trim, Compartment Door

$0.00
$0.00
4
1118208

Screw, 8 x 1/2 (4)

$0.00
$0.00
5
489084

Shelf Bin (2)

$0.00
$0.00
6
1124846

Insert, Handle

$0.00
$0.00
7
1119361

Door Gasket, Magnetic

$0.00
$0.00
8
1125927

Cap, Hinge Sleeve

$0.00
$0.00
9
509929

Handle, Center

$0.00
$0.00
10
1124713

Screw Anchor (2)

$0.00
$0.00
11
941242

End Cap, Center Handle

$0.00
$0.00
12
1119359

Shim

$0.00
$0.00
13
935075

Divider, Bin

$0.00
$0.00
14
2152335

Insert, Handle

$0.00
$0.00
16
1119367

Panel, Interior Door

$0.00
$0.00
17
1129278

Foam Insulation (Required When Replacing Exterior Door Panel)

$0.00
$0.00
18
876029

Screw, 7 x 1/2 (30)

$0.00
$0.00
19
489101

Screw (Repair)

$0.00
$0.00
-
489084

Door Closer, Upper Cam

$0.00
$0.00
20
986758

Shim, Door Closer

$0.00
$0.00
21
1104787

Screw, 8 x 1/2

$0.00
$0.00
22
488938

Bracket, Door Stop

$0.00
$0.00
23
988420

Tap Plate

$0.00
$0.00
26
988402

Retainer, Insert (Bottom)

$0.00
$0.00
27
1119360

Retainer, Insert

$0.00
$0.00
28
1119366

End Cap (2)

$0.00
$0.00
29
2156220

Screw, 10-32 x 5/8 (2)

$0.00
$0.00
30
489075

Trim, Door

$0.00
$0.00
31
1119061

Pin Plate (6)

$0.00
$0.00
33
1118048

Pin Plate (8)

$0.00
$0.00
34
1116986

Shelf Bin (2)

$0.00
$0.00
35
1124847

Screw, 6-20 x 3/8 (4)

$0.00
$0.00
36
489022

Door Dike, Hinge Side

$0.00
$0.00
37
1115379

Door Dike, Handle Side

$0.00
$0.00
38
1119055

Gasket Retainer, Side (2)

$0.00
$0.00
39
1117766

Gasket Retainer, Top & Bottom

$0.00
$0.00
40
1118301
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

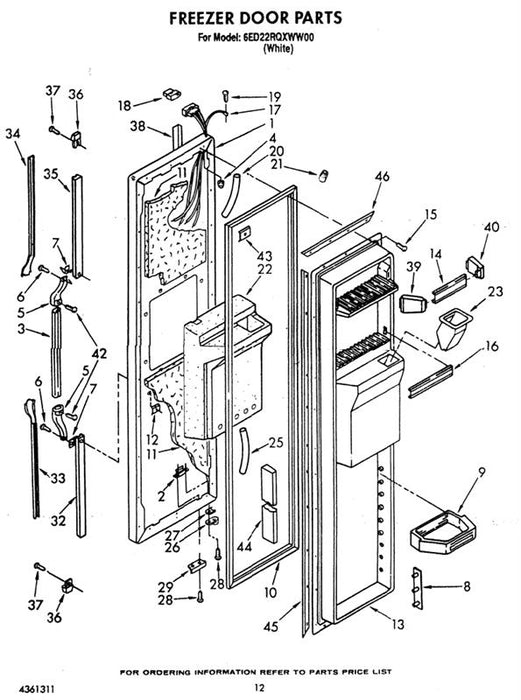

Freezer Door Panel (Als Order Item 11)

$0.00
$0.00
1
1115235

Tap Plate

$0.00
$0.00
2
988402

Handle, Center

$0.00
$0.00
3
1124713

Seal, Hinge Pin

$0.00
$0.00
4
939886

End Cap (2)

$0.00
$0.00
5
1119359

Screw, 8 x 1/2 (4)

$0.00
$0.00
6
489084

Shim, End Cap (2)

$0.00
$0.00
7
935075

Pin Plate (6)

$0.00
$0.00
8
1116986

Shelf Bin (3)

$0.00
$0.00
9
2149085

Door Gasket, Magnetic

$0.00
$0.00
10
1125926

Foam Insulation

$0.00
$0.00
11
876029

Screw, Anchor (2)

$0.00
$0.00
12
941242

Panel, Interior Door

$0.00
$0.00
13
2149009

Trim, Door Shelf

$0.00
$0.00
14
2149084

Screw, 7 x 1/2 (28)

$0.00
$0.00
15
489101

Screw (Repair)

$0.00
$0.00
-
489084

Trim, Door Shelf

$0.00
$0.00
16
2149083

Harness, Door (Includes Item 18)

$0.00
$0.00
17
1119212

Connector, Plug

$0.00
$0.00
18
936183

Screw, 8-32 x 5/32

$0.00
$0.00
19
488889

Tube, Door Wiring

$0.00
$0.00
20
1119059

Wire Connector

$0.00
$0.00
21
227991

Insulation, Dispenser

$0.00
$0.00
22
2149014

Chute, Ice

$0.00
$0.00
23
1119036

Tube, Door Wiring

$0.00
$0.00
24
2147080

Door Closer, Upper Cam

$0.00
$0.00
25
986758

Shim, Door Closer

$0.00
$0.00
26
1104787

Screw, 8 x 1/2

$0.00
$0.00
27
488938

Bracket, Door Stop

$0.00
$0.00
28
988420

Retainer, Insert

$0.00
$0.00
29
1119360

Insert, Handle

$0.00
$0.00
32
1119361

Insert, Handle

$0.00
$0.00
33
1119367

Retainer, Insert

$0.00
$0.00
34
1119366

End Cap (2)

$0.00
$0.00
35
2156220

Screw, 10-32 x 5/8 (2)

$0.00
$0.00
36
489075

Trim, Door

$0.00
$0.00
37
1119061

End Cap, Trim

$0.00
$0.00
38
1115333

End Cap, Trim

$0.00
$0.00
39
1115364

Screw, 6-20 x 3/8 (4)

$0.00
$0.00
40
489022

Screw Anchor (2)

$0.00
$0.00
42
939101

Door Dike (2)

$0.00
$0.00
43
1115378

Gasket Retainer, Side (2)

$0.00
$0.00
44
1117766

Gasket Retainer, Top & Bottom

$0.00
$0.00
45
1117767
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Heater, Dispenser

$0.00
$0.00
1
2154791

Grommet

$0.00
$0.00
2
987048

Insert, Tube

$0.00
$0.00
3
841707

Housing, Dispenser

$0.00
$0.00
4
1124715

Screw, 8 x 5/8 (10)

$0.00
$0.00
5
488687

Tube, Water

$0.00
$0.00
6
987053

Frame, Slides

$0.00
$0.00
7
2152717

Slide, Cube/Crush Switch

$0.00
$0.00
8
2152720

Door, Ice

$0.00
$0.00
9
2147168

Door Mechanism Assembly (Includes Item 9)

$0.00
$0.00
10
2147167

Wire Connector

$0.00
$0.00
11
227991

Mechanism Delay

$0.00
$0.00
12
1120581

Grille, Overflow

$0.00
$0.00
13
983900

Clip, Bearing (2)

$0.00
$0.00
14
987917

Bearing, Lever (3)

$0.00
$0.00
15
983697

Spring, Lever (2)

$0.00
$0.00
16
983696

Shield, Wiring

$0.00
$0.00
17
2147165

Screw, 8 -32 x 3/8 (2)

$0.00
$0.00
18
488500

Spacer, Switch

$0.00
$0.00
19
625834

Screw, 8-18 x 1/2

$0.00
$0.00
20
488886

Clamp

$0.00
$0.00
21
488878

Fitting, Water Inlet

$0.00
$0.00
22
2155056

Screw, 8 x 3/8 (2)

$0.00
$0.00
23
487916

Lever Assembly, Ice Dispenser

$0.00
$0.00
24
1124718

Guide, Ice

$0.00
$0.00
25
1124730

Screw

$0.00
$0.00
26
488892

Slide, Light Switch

$0.00
$0.00
27
2152726

Seal

$0.00
$0.00
28
482672

Lamp Holder

$0.00
$0.00
29
2147131

Washer

$0.00
$0.00
30
489336

Screw (2)

$0.00
$0.00
31
488361

Insulator, Control Bracket

$0.00
$0.00
32
2147164

Bracket, Control

$0.00
$0.00
33
2147163

Bulb, Light

$0.00
$0.00
34
851389

Screw (2)

$0.00
$0.00
35
489360

Screw 4-40 x 9/16 (6)

$0.00
$0.00
36
489155

Switch (3)

$0.00
$0.00
37
313125

Lever Assembly, Water Dispensor

$0.00
$0.00
38
1124721

Plaque, Front Cover

$0.00
$0.00
39
2150318

Front Cover, Housing (Includes Item 39)

$0.00
$0.00
40
2150314

Heat Shield, Frame

$0.00
$0.00
41
2147172

Bracket, Water

$0.00
$0.00
42
987049

Screw, 8-18 x 3/4

$0.00
$0.00
43
488316

Wiring Assembly, Door

$0.00
$0.00
44
2147166

Screw, 9-12 x 1/2

$0.00
$0.00
45
489000

Switch, Water

$0.00
$0.00
46
841336

Shroud, Light

$0.00
$0.00
47
1129333
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

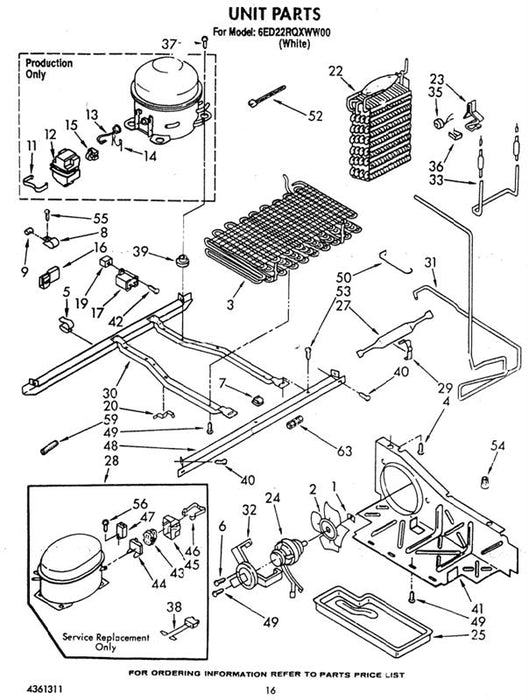

Speed Nut

$0.00
$0.00
1
486692

Fan Blade

$0.00
$0.00
2
1108179

Condenser Assembly

$0.00
$0.00
3
1105640

Screw

$0.00
$0.00
4
488624

Clip, Wire (2)

$0.00
$0.00
5
548745

Screw 8-32 x 3/8

$0.00
$0.00
6
489019

Clip (3)

$0.00
$0.00
7
934011

Tube Clamp

$0.00
$0.00
8
510716

Dampener

$0.00
$0.00
9
510769

Spring, Relay Case

$0.00
$0.00
11
943322

Overload

$0.00
$0.00
12
1105055

Overload Spring

$0.00
$0.00
13
1118862

Relay, Order Overload To Obtain Relay

$0.00
$0.00
14
943320

Housing Plug

$0.00
$0.00
15
1118850

Running Capacitor

$0.00
$0.00
16
1114291

Screw Grommet

$0.00
$0.00
17
509812

Clip, Unit Cover (2)

$0.00
$0.00
19
548744

Evaporator

$0.00
$0.00
20
1106987

Clamp (4)

$0.00
$0.00
22
1108431

Fan, Motor

$0.00
$0.00
23
2149963

Tray, Evaporator

$0.00
$0.00
24
1105524

Drier

$0.00
$0.00
25
1105550

Compressor (Includes Items 43, 44, 45, 46, 47 & 56) (Also Order 876765 Tube Kit)

$0.00
$0.00
27
4317962

Clamp, Drier

$0.00
$0.00
28
1127590

Unit Mounting Frame

$0.00
$0.00
29
1127944

Exchanger, Heat

$0.00
$0.00
30
2158940

Fan, Motor Bracket

$0.00
$0.00
31
2162062

Heater, Defrost

$0.00
$0.00
32
2154542

Bi-Metal, Defrost

$0.00
$0.00
33
2154544

Clamp

$0.00
$0.00
35
513584

Screw

$0.00
$0.00
36
489116

Wire, Connector

$0.00
$0.00
37
1127675

Grommet (4)

$0.00
$0.00
38
1100826

Screw

$0.00
$0.00
39
489340

Air Baffle

$0.00
$0.00
40
1105530

Screw, 8 x 5/8

$0.00
$0.00
41
488687

Relay

$0.00
$0.00
42
1108143

Overload

$0.00
$0.00
43
2154697

Cover

$0.00
$0.00
44
1108115

Strap

$0.00
$0.00
45
938384

Capacitor

$0.00
$0.00
46
1118581

Unit Mounting Rail

$0.00
$0.00
47
2149717

Screw

$0.00
$0.00
48
488624

Guard, Fan

$0.00
$0.00
49
1105614

Strap

$0.00
$0.00
50
851095

Screw, 1/4-28 x 1/2 (2)

$0.00
$0.00
52
489339

Wire Connector

$0.00
$0.00
53
227991

Screw, 8-32 x 1/2

$0.00
$0.00
54
488649

Screw

$0.00
$0.00
55
487240

Spring, Tube Forming

$0.00
$0.00
56
983659

Union

$0.00
$0.00
59
2150347

Valve, Access (1/4")

$0.00
$0.00
63
978025

Valve, Access (5/16")

$0.00
$0.00
978026

Valve, Access (3/8")

$0.00
$0.00
978027

Valve, Access (1/2")

$0.00
$0.00
978028

Valve, Access (5/8")

$0.00
$0.00
978029

Valve, Access (3/4")

$0.00
$0.00
978030

Valve, Access (3/16")

$0.00
$0.00
876764
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

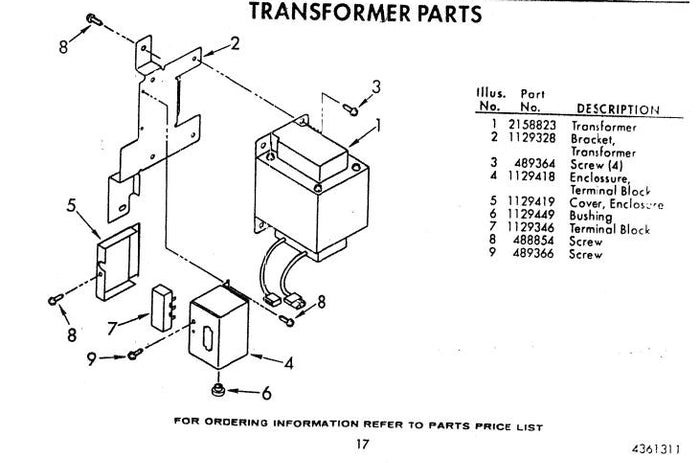

Transformer

$0.00
$0.00
1
2158823

Bracket, Transformer

$0.00
$0.00
2
1129328

Screw (4)

$0.00
$0.00
3
489364

Enclosure, Terminal Block

$0.00
$0.00
4
1129418

Cover, Enclosure

$0.00
$0.00
5
1129419

Bushing

$0.00
$0.00
6
1129449

Terminal Block

$0.00
$0.00
7
1129346

Screw

$0.00
$0.00
8
488854

Screw

$0.00
$0.00
9
489366
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

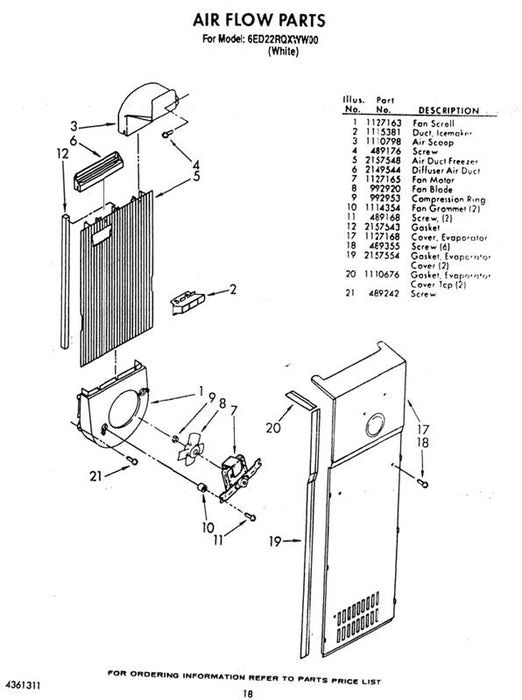

Fan Scroll

$0.00
$0.00
1
1127163

Duct, Icemaker

$0.00
$0.00
2
1115381

Air Scoop

$0.00
$0.00
3
1110798

Screw

$0.00
$0.00
4
489176

Air Duct Freezer

$0.00
$0.00
5
2157548

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
1127165

Fan Blade

$0.00
$0.00
8
992920

Compression Ring

$0.00
$0.00
9
992953

Fan Grommet (2)

$0.00
$0.00
10
1114354

Screw, (2)

$0.00
$0.00
11
489168

Gasket

$0.00
$0.00
12
2157543

Cover, Evaporator

$0.00
$0.00
17
1127168

Screw (6)

$0.00
$0.00
18
489355

Gasket, Evaporator Cover (2)

$0.00
$0.00
19
2157554

Gasket, Evaporator Cover Top (2)

$0.00
$0.00
20
1110676

Screw

$0.00
$0.00
21
489242
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Control Box

$0.00
$0.00
1
1129413

Mounting Bracket

$0.00
$0.00
2
1110629

Screw (2)

$0.00
$0.00
3
489190

Light Switch

$0.00
$0.00

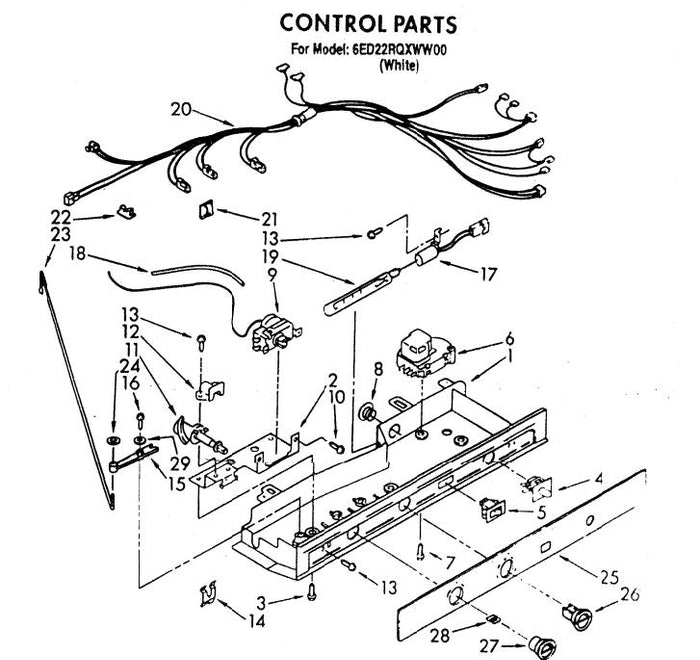

4
1123923

Switch, Lighted Power Miser

$0.00
$0.00
5
938049

Defrost, Timer (10 Hr.)

$0.00
$0.00
6
2154652

Screw (2)

$0.00
$0.00
7
489192

Hole Plug

$0.00
$0.00
8
940014

Thermostat Assembly

$0.00
$0.00
9
1115244

Screw, 8 x 3/8 (2)

$0.00
$0.00
10
487869

Cam Assembly

$0.00
$0.00
11
1110566

Bearing Body

$0.00
$0.00
12
1110560

Screw

$0.00
$0.00
13
489242

Retainer, Damper

$0.00
$0.00
14
938439

Pivot Arm

$0.00
$0.00
15
1110559

Screw

$0.00
$0.00
16
627068

Light Socket

$0.00
$0.00
17
1110690

Tube, Barrier

$0.00
$0.00
18
1115241

Light Bulb

$0.00
$0.00
19
527949

Control Box Harness

$0.00
$0.00
20
2149750

Clip, Wiring

$0.00
$0.00
21
1115374

Clip, Wiring

$0.00
$0.00
22
1115375

Connecting rod

$0.00
$0.00
23
1123960

Fastener, Push-On

$0.00
$0.00
24
489285

Escutcheon, Control Box

$0.00
$0.00
25
2148238

Thermostat knob

$0.00
$0.00
26
1116852

Knob, Air Control

$0.00
$0.00
27
1116853

Retainer, Knob

$0.00
$0.00
28
837444

Spring Washer

$0.00
$0.00
29
489203

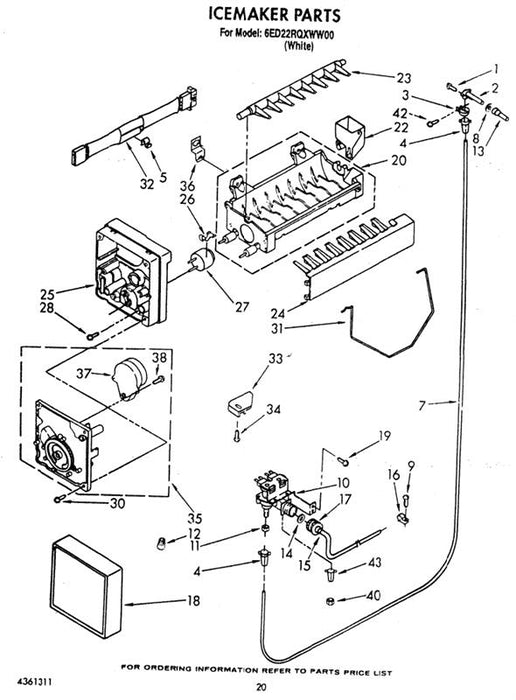

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Screw, 8 x 1/2

$0.00
$0.00
1
489084

Fitting, Water Tube

$0.00
$0.00
2
836489

Clamp, Tube

$0.00
$0.00
3
488878

Insert, Tube

$0.00
$0.00
4
841707

Clip, Fuse

$0.00
$0.00
5
628379

Tube, Water

$0.00
$0.00
7
937669

Seal, Gasket

$0.00
$0.00
8
1106508

Screw

$0.00
$0.00
9
489242

Valve, Soleniod

$0.00
$0.00
10
628295

Nut, Compression

$0.00
$0.00
11
627018

Connector, Wire

$0.00
$0.00
12
227991

Tube, Water Inlet

$0.00
$0.00
13
21555064

Washer

$0.00
$0.00
14
628337

Tube, Inlet Valve

$0.00
$0.00
15
627860

Clamp, Tube

$0.00
$0.00
16
510716

Nut, Valve

$0.00
$0.00
17
537588

Cover

$0.00
$0.00
18
628329

Screw, 8-32 x 1/2

$0.00
$0.00
19
488649

Mold & Heater Assembly (Also Order 542638 Silicon Grease)

$0.00
$0.00
20
628228

Cup, Water Fill

$0.00
$0.00
22
628356

Ejector

$0.00
$0.00
23
627843

Ice Striper

$0.00
$0.00
24
627788

Support

$0.00
$0.00
25
627790

Retainer, Thermostat

$0.00
$0.00
26
627796

Thermostat (Also Order 542369 Cement Alumilastic)

$0.00
$0.00
27
627985

Screw,

$0.00
$0.00
28
489322

Screw

$0.00
$0.00
30
489276

Shut Off Arm

$0.00
$0.00
31
628187

Harness, Wiring

$0.00
$0.00
32
628281

Bracket

$0.00
$0.00
33
628320

Screw, 8-32 x 27/64

$0.00
$0.00
34
489365

Module Assembly (Includes Items 29, 37 & 38)

$0.00
$0.00
35
628366

Clip, Support (2)

$0.00
$0.00
36
2155021

Motor

$0.00
$0.00
37
628258

Screw, 3-24 x 23/64

$0.00
$0.00
38
489136

Nut, Compression

$0.00
$0.00
40
1129179

Screw, 8-18 x 1/2

$0.00
$0.00
42
488886

Insert, Tube

$0.00
$0.00
43
1129177

Complete Icemaker Assembly

$0.00
$0.00
100
4317943

Primer, White (13 Oz. Spray Can)

$0.00
$0.00
350942

Leveler, Enamel (13 Oz. Spray Can)

$0.00
$0.00
350941

Enamel, Black (13 Oz. Spray Can)

$0.00
$0.00
350939

Enamel, White (13 Oz. Spray Can)

$0.00
$0.00
350930

Brush Touch-Up Kit (White)

$0.00
$0.00
72017

Brush Touch-Up Kit (Black)

$0.00
$0.00
72032

Enamel, Black (1 Qt. Uncut)

$0.00
$0.00
799340

Enamel, White (1 Qt. Uncut)

$0.00
$0.00
799344

Sealer, Gum (4 Feet)

$0.00
$0.00
212643

Tape, Vinyl (3/4 x 108")

$0.00
$0.00
479502

Kit, Insulation (2 Pcs. x 3" x 24" x 48")

$0.00
$0.00
876370

Kit, Insulation (14 Pcs. x 3" x 24" x 48")

$0.00
$0.00
876305

Insulation, Fiberglass (63-1/2" x 35-12" x 2-5/8)

$0.00
$0.00
978941

Kit, Foam Slab (30" x 32-1/2" x 1-1/2")

$0.00
$0.00
876029

Sealer, Mastic (1 Qt.)

$0.00
$0.00
505587

Cork, Sealer (1/4 Pound)

$0.00
$0.00
503695

Touch-Up, White Porcelain (2 Oz.)

$0.00
$0.00
511873

Grease, Silicone (1/2 Oz.)

$0.00
$0.00
542638

Cement, Alumilastic (1-1/4 Oz.)

$0.00
$0.00
542639

Bag, Insulation (36-5/8" x 46")

$0.00
$0.00
606755

Kit, Evaporator Repair (Aluminum Epoxy)

$0.00
$0.00
799833

Kit, Terminal Connector

$0.00
$0.00
833938

Transformer (115-230 Volts)

$0.00
$0.00
515393

Use & Care Guide

$0.00
$0.00
LIT2149042

Service & Wiring Sheet

$0.00
$0.00
LIT2156439

Energy Label

$0.00
$0.00
LIT2156562

Modular Icemaker Service Sheet

$0.00
$0.00
LIT628370

Parts List

$0.00
$0.00
LIT4361311

Torx Key

$0.00
$0.00
1117510
