6ED22ZRXBW00

6ED22ZRXBW00

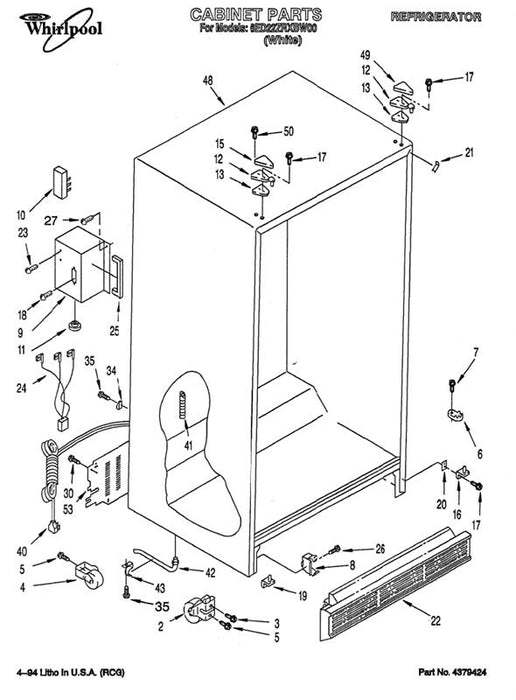

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Front Roller (2)

$0.00
$0.00
2
2152011

Screw

$0.00
$0.00
3
489393

Roller (Rear) (2)

$0.00
$0.00
4
981122

Screw

$0.00
$0.00
5
488454

Door Closer, Lower Cam (2)

$0.00
$0.00
6
2155309

Screw

$0.00
$0.00
7
489420

Clip, Grille

$0.00
$0.00
8
2155013

Terminal Block

$0.00
$0.00
9
1129346

Cover, Terminal Block

$0.00
$0.00
10
2158579

Bushing

$0.00
$0.00
11
1129449

Hinge, Top (2)

$0.00
$0.00
12
2155449

Shim, Hinge (2)

$0.00
$0.00
13
1123515

Hinge Cover

$0.00
$0.00
15
1129262

Hinge Bottom (R.H)

$0.00
$0.00
16
2155320

Screw

$0.00
$0.00
17
489367

Screw

$0.00
$0.00
18
489211

Hinge Bottom (L.H)

$0.00
$0.00
19
2155322

Spacer, Hinge

$0.00
$0.00
20
836196

Filler, Wrapper

$0.00
$0.00
21
1110708

Grille

$0.00
$0.00
22
2155476

Screw

$0.00
$0.00
23
489346

Wiring Assembly

$0.00
$0.00
24
2165297

Gasket

$0.00
$0.00
25
2167227

Screw

$0.00
$0.00
26
489242

Screw

$0.00
$0.00
27
489048

Screw

$0.00
$0.00
30
489084

Clamp

$0.00
$0.00
34
489348

Screw

$0.00
$0.00
35
489337

Service Cord

$0.00
$0.00
40
1129331

Drain Ferrule

$0.00
$0.00
41
940139

Extension Tube

$0.00
$0.00
42
1108438

Cabinet (Not A Serviceable Part)

$0.00
$0.00
43
-

Clip, Drain Tube

$0.00
$0.00
48
1108439

Hinge Cover

$0.00
$0.00
49
1119787

Screw

$0.00
$0.00
50
489284

Cover, Unit

$0.00
$0.00
53
2160521

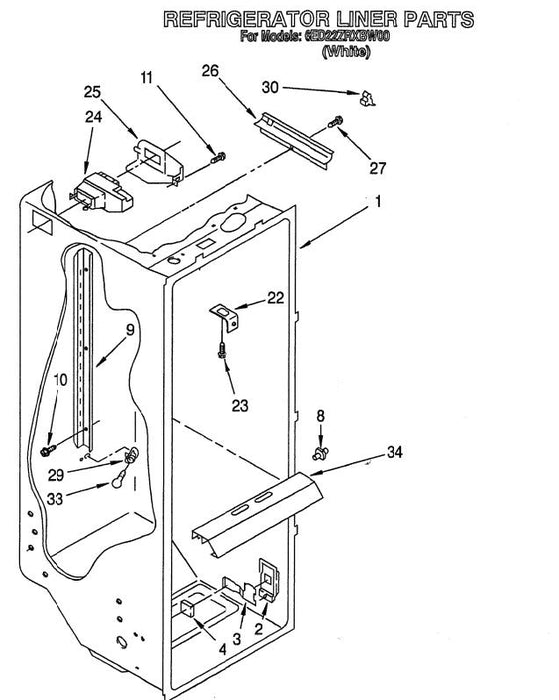

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Escutcheon, Meat Pan Control

$0.00
$0.00
2
985468

Slide Meat Pan Control

$0.00
$0.00
3
984102

Foam Pad

$0.00
$0.00
4
992358

Stud (8)

$0.00
$0.00
8
1110718

Ladder, Shelf (2)

$0.00
$0.00
9
1108433

Screw (6)

$0.00
$0.00
10
487539

Screw (2)

$0.00
$0.00
11
489242

Bracket Retainer

$0.00
$0.00
22
1123919

Screw, (2)

$0.00
$0.00
23
489290

Air Diffuser Assembly

$0.00
$0.00
24
2161251

Air Diffuser Cover

$0.00
$0.00
25
2152019

Cover, Conduit

$0.00
$0.00
26
2150331

Screw

$0.00
$0.00
27
486298

Socket

$0.00
$0.00
29
851067

Clip, Air Duct

$0.00
$0.00
30
842534

Light Bulb

$0.00
$0.00
33
851682

Light Lens

$0.00
$0.00
34
1114624

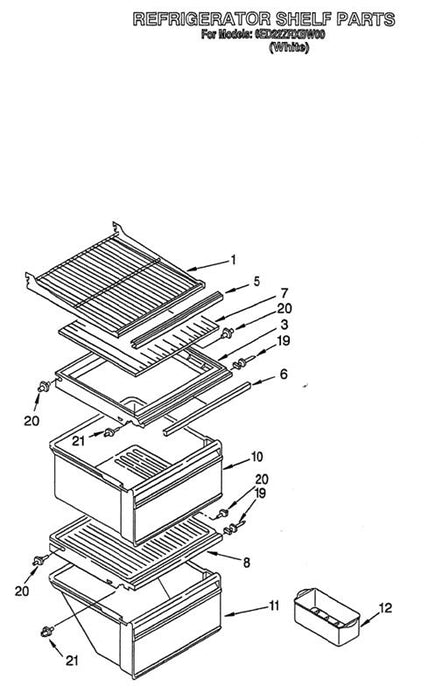

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shelf, Cantilever (3)

$0.00
$0.00
1
1116890

Cover, Crisper

$0.00
$0.00
3
2170660

Trim, Shelf

$0.00
$0.00
5
2170597

Trim, Crisper Cover

$0.00
$0.00
6
2170835

Glass, Crisper Cover

$0.00
$0.00
7
1114687

Cover, Meat Pan

$0.00
$0.00
8
2170965

Crisper Pan

$0.00
$0.00
10
2170962

Meat Pan

$0.00
$0.00
11
2170961

Egg Bin

$0.00
$0.00
12
2170968

Shelf Stud

$0.00
$0.00
19
2147997

Shelf Stud

$0.00
$0.00
20
1110718

Shelf Stud

$0.00
$0.00
21
2149540

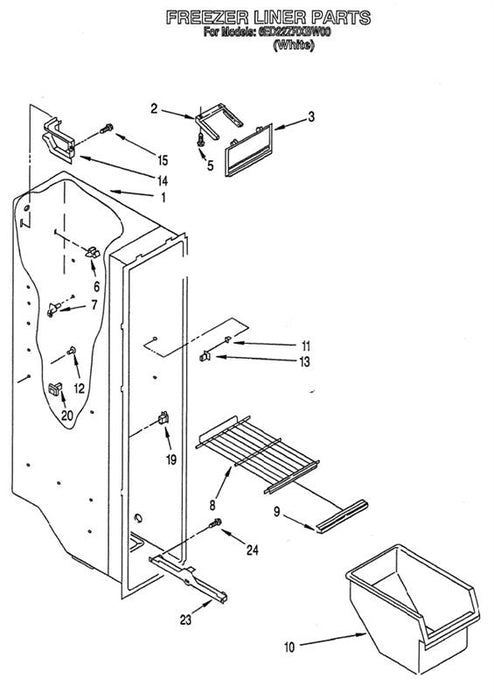

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Seviceable Part)

$0.00
$0.00
1
-

Slide, Ice Door

$0.00
$0.00
2
1115380

Door, Ice Compartment

$0.00
$0.00
3
2170788

Screw

$0.00
$0.00
5
489242

Clip, Air Duct (2)

$0.00
$0.00
6
842534

Support, Stud (2) L.S. Rear

$0.00
$0.00
7
1115317

Shelf(Long)

$0.00
$0.00
8
1114609

Shelf(Short)

$0.00
$0.00
-
1118165

Trim, Shelf

$0.00
$0.00
9
2162938

Freezer Bin

$0.00
$0.00
10
2148194

Stud-Support (8)

$0.00
$0.00
11
946355

Grommet (8)

$0.00
$0.00
12
1110779

Stud-Front (3) R.S.

$0.00
$0.00
13
946356

Witing Cover

$0.00
$0.00
14
2155572

Screw

$0.00
$0.00
15
489176

Switch, Rocker Arm

$0.00
$0.00
19
1115373

Stud-Rear (3) R.S.

$0.00
$0.00
20
1106982

Slide, Freezer Bin

$0.00
$0.00
23
-

Left Side

$0.00
$0.00
-
1115383

Right Side

$0.00
$0.00
-
1119293

Screw

$0.00
$0.00
24
489100

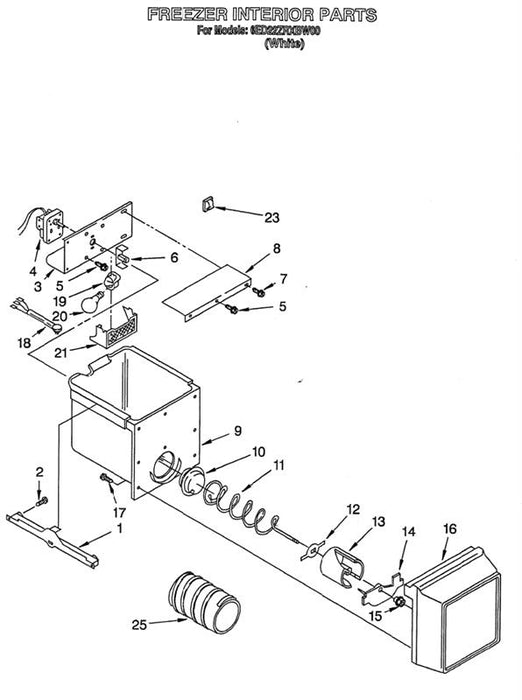

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Slide, Container

$0.00
$0.00
1
-

Left Side

$0.00
$0.00
-
1119237

Right Side

$0.00
$0.00
-
1119293

Screw

$0.00
$0.00
2
489100

Bracket, Ice Dispenser

$0.00
$0.00
3
1115208

Motor

$0.00
$0.00
4
2167013

Screw

$0.00
$0.00
5
489399

Coupling, Motor

$0.00
$0.00
6
983663

Screw

$0.00
$0.00
7
489242

Cover, Motor

$0.00
$0.00
8
1115210

Ice Container

$0.00
$0.00
9
2152703

Coupling

$0.00
$0.00
10
983668

Conveyor

$0.00
$0.00
11
1115214

Drive Bar

$0.00
$0.00
12
946192

Drum

$0.00
$0.00
13
946193

Baffle

$0.00
$0.00
14
1115362

Bearing Nut

$0.00
$0.00
15
946195

Front Cover Ice Container

$0.00
$0.00
16
2171259

Screw

$0.00
$0.00
17
488886

Wiring Assembly, Ice Dispenser

$0.00
$0.00
18
2149193

Socket, Light

$0.00
$0.00
19
851067

Light Bulb

$0.00
$0.00
20
851682

Lens, Dispenser Light

$0.00
$0.00
21
983359

Clip, Wiring

$0.00
$0.00
23
1115374

Sleeve, Auger

$0.00
$0.00
25
2152021

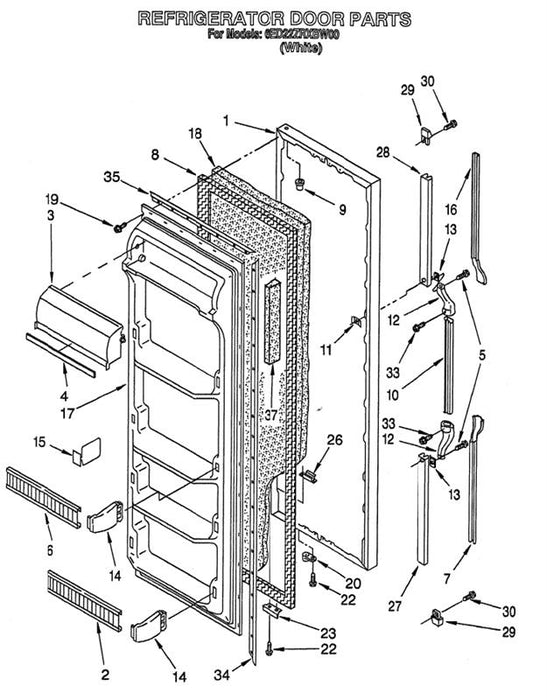

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Refrigerator Door (Also Order Item 18)

$0.00
$0.00
1
4362040

Shelf Bin (2)

$0.00
$0.00
2
2170587

Door, Compartment

$0.00
$0.00
3
2170966

Trim, Compartment Door

$0.00
$0.00
4
2162896

Screw

$0.00
$0.00
5
489084

Shelf Bin (2)

$0.00
$0.00
6
2170586

Insert, Handle

$0.00
$0.00
7
1119361

Door Gasket, Magnetic

$0.00
$0.00
8
1129266

Cap, Hinge Sleeve

$0.00
$0.00
9
509929

Handle, Center

$0.00
$0.00
10
1118417

Screw Anchor (2)

$0.00
$0.00
11
941242

End Cap, Center Handle

$0.00
$0.00
12
1119359

Shim

$0.00
$0.00
13
935075

End Cap (8)

$0.00
$0.00
14
1124877

Divider, Bin

$0.00
$0.00
15
2160050

Insert, Handle

$0.00
$0.00
16
1119367

Panel, Interior Door

$0.00
$0.00
17
1124961

Foam Insulation (Required When Replacing Exterior Door Panel)

$0.00
$0.00
18
876029

Screw

$0.00
$0.00
19
489101

Door Closer, Upper Cam

$0.00
$0.00
20
2155312

Screw

$0.00
$0.00
22
489367

Bracket, Door Stop

$0.00
$0.00
23
2155334

Tap Plate

$0.00
$0.00
26
2155335

Retainer, Insert (Bottom)

$0.00
$0.00
27
1119360

Retainer, Insert

$0.00
$0.00
28
1119366

End Cap (2)

$0.00
$0.00
29
2156220

Screw

$0.00
$0.00
30
489075

Screw

$0.00
$0.00
33
489022

Gasket Retainer, Side (2)

$0.00
$0.00
34
1117766

Gasket Retainer, Top & Bottom

$0.00
$0.00
35
1118301

Reinforcement, Shelf

$0.00
$0.00
37
2152266

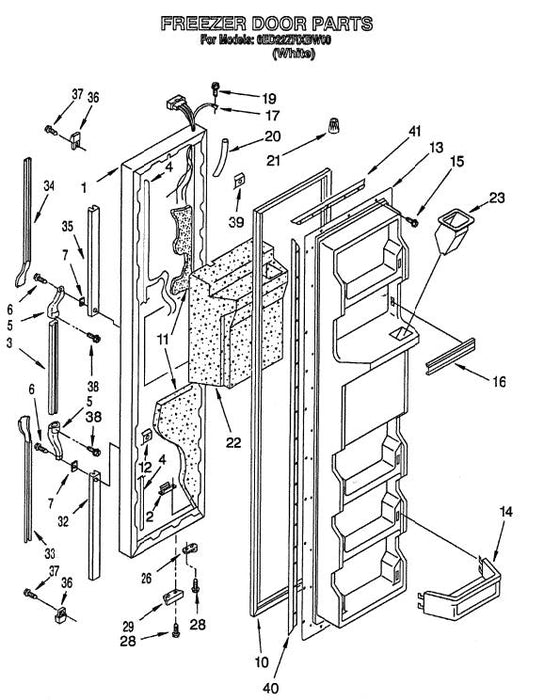

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer, Door Panel (Also Order Item 11)

$0.00
$0.00
1
1115235

Tap Plate

$0.00
$0.00
2
2155335

Handle, Center

$0.00
$0.00
3
1118417

Heater, Door

$0.00
$0.00
4
2165376

End Cap (2)

$0.00
$0.00
5
1119359

Screw

$0.00
$0.00
6
489084

Shim, End Cap (2)

$0.00
$0.00
7
935075

Door Gasket, Magnetic

$0.00
$0.00
10
1129267

Foam Insulation (Required When Replacing Exterior Door Panel)

$0.00
$0.00
11
876029

Screw Anchor (2)

$0.00
$0.00
12
941242

Panel, Interior Door

$0.00
$0.00
13
1125649

Trim, Door Shelf(4)

$0.00
$0.00
14
2170705

Screw

$0.00
$0.00
15
489101

Trim, Door Shelf

$0.00
$0.00
16
2170582

Harness, Door

$0.00
$0.00
17
2170320

Screw

$0.00
$0.00
19
489422

Tube, Door Wiring

$0.00
$0.00
20
1119059

Wire Connector

$0.00
$0.00
21
227991

Insulation, Dispenser

$0.00
$0.00
22
1116821

Chute, Ice

$0.00
$0.00
23
1109488

Door Closer, Upper Cam

$0.00
$0.00
26
2155312

Screw

$0.00
$0.00
28
489367

Bracket, Door Stop

$0.00
$0.00
29
2155334

Retainer, Insert

$0.00
$0.00
32
1119360

Insert, Handle

$0.00
$0.00
33
1119361

Insert, Handle

$0.00
$0.00
34
1119367

Retainer, Insert

$0.00
$0.00
35
1119366

End Cap (2)

$0.00
$0.00
36
2156220

Screw

$0.00
$0.00
37
489075

Screw

$0.00
$0.00
38
489022

Screw Anchor (2)

$0.00
$0.00
39
939101

Gasket Retainer, Side (2)

$0.00
$0.00
40
1117766

Gasket Retainer, Top & Bottom

$0.00
$0.00
41
1117767

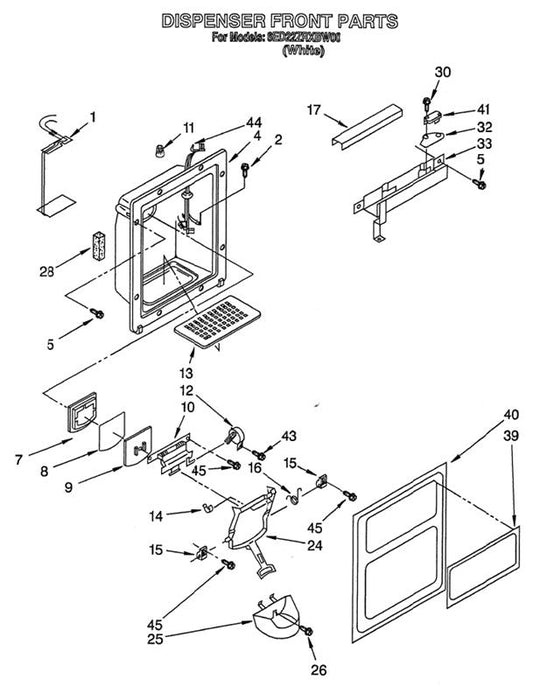

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Heater, Dispenser

$0.00
$0.00
1
2170314

Screw, Ground

$0.00
$0.00
2
488500

Housing, Dispenser

$0.00
$0.00
4
1116820

Screw

$0.00
$0.00
5
488687

Gasket, Door

$0.00
$0.00
7
983691

Shield, Ice Door

$0.00
$0.00
8
987121

Door, Ice

$0.00
$0.00
9
983690

Door Mechanism Assembly

$0.00
$0.00
10
938669

Wire Connector

$0.00
$0.00
11
227991

Mechanism Delay

$0.00
$0.00
12
1120581

Cirille, Overflow

$0.00
$0.00
13
983900

Clip, Bearing (2)

$0.00
$0.00
14
987917

Bearing, Lever (3)

$0.00
$0.00
15
983697

Spring, Lever (2)

$0.00
$0.00
16
983696

Shield, Witing

$0.00
$0.00
17
984494

Lever, Ice Dispenser

$0.00
$0.00
24
1127421

Guide, Ice

$0.00
$0.00
25
1119035

Screw

$0.00
$0.00
26
489197

Seal

$0.00
$0.00
28
482672

Screw

$0.00
$0.00
30
489155

Insulator, Switch

$0.00
$0.00
32
984683

Bracket, Control

$0.00
$0.00
33
1116811

Plaque, Pront Cover

$0.00
$0.00
39
2148685

Front Cover, Housing (Includes Item 39)

$0.00
$0.00
40
2148684

Switch

$0.00
$0.00
41
313125

Screw

$0.00
$0.00
43
488316

Wiring Assembly, Door

$0.00
$0.00
44
1118374

Screw

$0.00
$0.00
45
489000
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

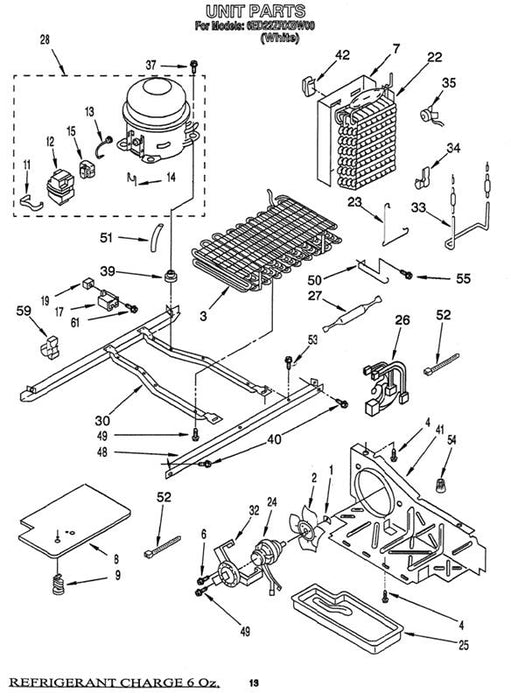

Speed Nut

$0.00
$0.00
1
486692

Fan, Blade

$0.00
$0.00
2
1108179

Condenser Assembly

$0.00
$0.00
3
2164513

Screw

$0.00
$0.00
4
489337

Screw

$0.00
$0.00
6
489019

Heat Shield And Drain Pan

$0.00
$0.00
7
2149293

Cover, Unit Compartment

$0.00
$0.00
8
2160505

Clip

$0.00
$0.00
9
489396

Strap

$0.00
$0.00
11
2154721

Cover

$0.00
$0.00
12
2154722

Overload

$0.00
$0.00
13
2158785

Overload Spring

$0.00
$0.00
14
943320

Relay

$0.00
$0.00
15
2154720

Capacitor

$0.00
$0.00
17
2154717

Screw, Grommet

$0.00
$0.00
19
509812

Evaporator

$0.00
$0.00
22
2164518

Clip

$0.00
$0.00
23
2161324

Fan, Motor

$0.00
$0.00
24
2162066

Tray, Evaporator

$0.00
$0.00
25
2154114

Harness, Intermediate

$0.00
$0.00
26
2165296

Drier

$0.00
$0.00
27
2164409

Compressor (Includes Items 11, 12, 13, 14, 15 & 17) (Also Order)

$0.00
$0.00
-
2154723

Tube Kit

$0.00
$0.00
30
876765

Unit Mounting Frame

$0.00
$0.00
32
2160500

Fan, Motor Bracket

$0.00
$0.00
33
2162062

Heater, Defrost

$0.00
$0.00
34
2162213

Clip, Heater

$0.00
$0.00
35
2161330

Bi-Metal, Defrost

$0.00
$0.00
37
2161331

Screw

$0.00
$0.00
39
489387

Grommet (4)

$0.00
$0.00
40
2162067

Screw

$0.00
$0.00
41
489340

Air Baffle

$0.00
$0.00
42
2149128

Clip, Heat Shield

$0.00
$0.00
48
2155547

Unit Mounting Rail

$0.00
$0.00
49
2149717

Screw

$0.00
$0.00
50
488624

Guard, Fan

$0.00
$0.00
51
1105612

Sleeve

$0.00
$0.00
52
2161302

Strap

$0.00
$0.00
53
2165001

Screw

$0.00
$0.00
54
489339

Wire Connector

$0.00
$0.00
55
850145

Screw

$0.00
$0.00
59
489242

Clip, Wire And Water Tube

$0.00
$0.00
61
2155658

Screw

$0.00
$0.00
488687

Valve, Access (1/4”)

$0.00
$0.00
978025

Valve, Access (5/16")

$0.00
$0.00
978026

Valve, Access (3/8")

$0.00
$0.00
978027

Valve, Access (1/2")

$0.00
$0.00
978028

Valve, Access (5/8”)

$0.00
$0.00
978029

Valve, Access (3/4")

$0.00
$0.00
978030

Valve. Access (3/16“)

$0.00
$0.00
876764

Screw

$0.00
$0.00
489337
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

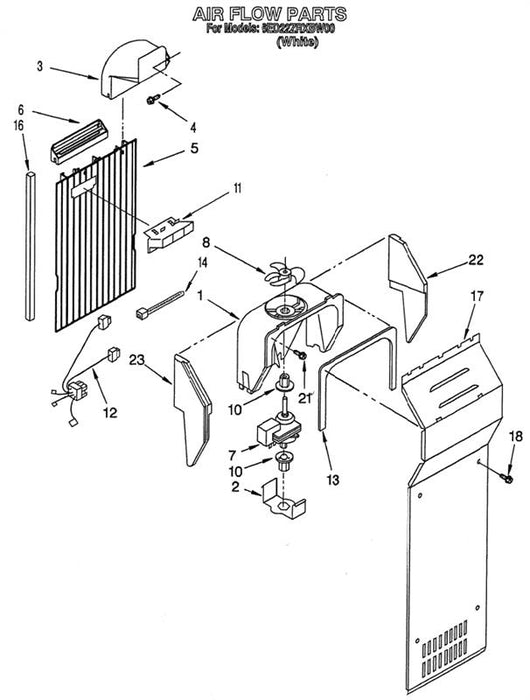

Fan Scroll

$0.00
$0.00
1
2155593

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Screw

$0.00
$0.00
4
489176

Air Duct Freezer

$0.00
$0.00
5
2155574

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
2154976

Fan Blade

$0.00
$0.00
8
2169142

Fan Grommet (2)

$0.00
$0.00
10
2155589

Duct, Icemaker

$0.00
$0.00
11
1115381

Harness, Fan Evaporator, And Heater, Bi-Metal

$0.00
$0.00
12
2158782

Gasket Cover

$0.00
$0.00
13
2155788

Wire Tie

$0.00
$0.00
14
2172840

Gasket

$0.00
$0.00
16
2155783

Cover, Evaporator

$0.00
$0.00
17
2155611

Screw

$0.00
$0.00
18
489355

Screw

$0.00
$0.00
21
489242

Support, R.S

$0.00
$0.00
22
2155765

Support, L.S

$0.00
$0.00
23
2155766
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

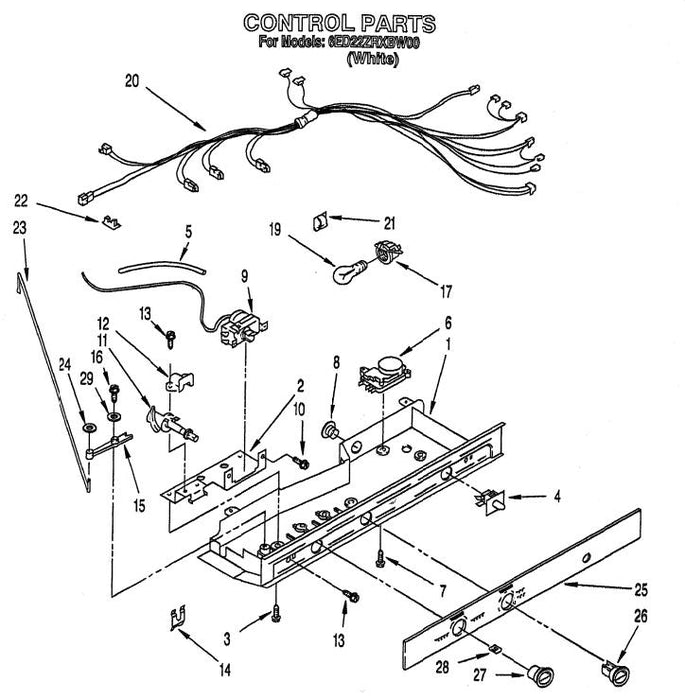

Control Box

$0.00
$0.00
1
2169147

Mounting Bracket

$0.00
$0.00
2
1110629

Screw (2)

$0.00
$0.00
3
489397

Light Switch

$0.00
$0.00
4
2149705

Tube Barrier

$0.00
$0.00
5
1115241

Defrost Timer (10 Hr.)

$0.00
$0.00
6
2162057

Screw (2)

$0.00
$0.00
7
489398

Hole Plug

$0.00
$0.00
8
940014

Thermostat Assembly

$0.00
$0.00
9
2161284

Screw

$0.00
$0.00
10
487869

Cam Assembly

$0.00
$0.00
11
2161250

Bearing Body

$0.00
$0.00
12
1110560

Screw, (2)

$0.00
$0.00
13
489242

Retainer, Damper

$0.00
$0.00
14
938439

Pivot Arm

$0.00
$0.00
15
1110559

Screw

$0.00
$0.00
16
627068

Light Socket

$0.00
$0.00
17
1129370

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2149186

Clip, Wiring

$0.00
$0.00
21
1115374

Clip, Wiring

$0.00
$0.00
22
1115375

Connecting Rod

$0.00
$0.00
23
1123960

Fastener, Push-On

$0.00
$0.00
24
489285

Escutcheon, Control Box

$0.00
$0.00
25
2170787

Thermostat Knob

$0.00
$0.00
26
1116852

Knob, Air Control

$0.00
$0.00
27
1116853

Retainer, Knob

$0.00
$0.00
28
837444

Spring Washer

$0.00
$0.00
29
489203
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

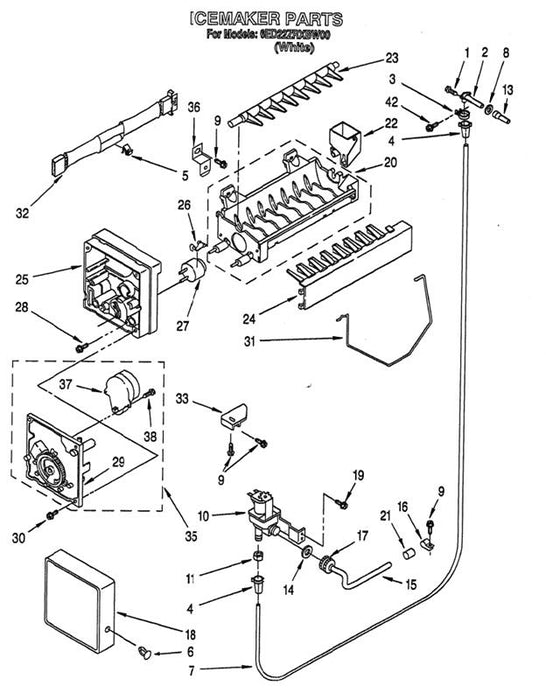

Screw

$0.00
$0.00
1
489084

Fitting, Water Tube

$0.00
$0.00
2
836489

Clamp, Tube

$0.00
$0.00
3
488878

Insert, Tube

$0.00
$0.00
4
841707

Clip, Fuse

$0.00
$0.00
5
628379

Clip

$0.00
$0.00
6
489115

Tube, Water

$0.00
$0.00
7
1108197

Seal, Gasket

$0.00
$0.00
8
1106508

Screw

$0.00
$0.00
9
488649

Valve, Solenoid

$0.00
$0.00
10
2166614

Nut, Compression

$0.00
$0.00
11
627018

Tube, Water Inlet

$0.00
$0.00
13
2155247

Washer

$0.00
$0.00
14
628337

Tube, Inlet Valve

$0.00
$0.00
15
627860

Clamp, Tube

$0.00
$0.00
16
510716

Nut Valve

$0.00
$0.00
17
537588

Cover

$0.00
$0.00
18
628329

Screw

$0.00
$0.00
19
488649

Mold & Heater Assembly (Also Order)

$0.00
$0.00
20
628282

Silicone Grease

$0.00
$0.00
21
542638

Dampener

$0.00
$0.00
22
836074

Cup-Water Fill

$0.00
$0.00
23
628356

Ejector

$0.00
$0.00
24
627843

Ice Striper

$0.00
$0.00
25
627788

Support

$0.00
$0.00
26
627790

Retainer, Thermostat

$0.00
$0.00
27
627796

Thermostat (Also Order)

$0.00
$0.00
-
627985

Cement Alumilastic

$0.00
$0.00
28
542369

Screw,

$0.00
$0.00
29
489322

Motor Module

$0.00
$0.00
30
628377

Screw

$0.00
$0.00
31
489276

Shut Off Arm

$0.00
$0.00
32
2171593

Harness, Witing

$0.00
$0.00
33
628281

Bracket

$0.00
$0.00
35
628320

Module Assembly (Includes Items 29, 37 & 38)

$0.00
$0.00
36
628367

Clip, Support (2)

$0.00
$0.00
37
2155021

Motor

$0.00
$0.00
38
628303

Screw

$0.00
$0.00
42
489136

Screw

$0.00
$0.00
488886

*Primer, White (13 Oz. Spray Can)

$0.00
$0.00
350942

*Leveled, Enamel (13 Oz. Spray Can)

$0.00
$0.00
350941

*Enamel, Black (l3 Oz. Spray Can)

$0.00
$0.00
350939

*Enamel, White (13 Oz. Spray Can)

$0.00
$0.00
350930

*Enamel, Almond (13 Oz. Spray Can)

$0.00
$0.00
350956

Brush Touch-Up Kit (White)

$0.00
$0.00
72017

Brush Touch-Up Kit (Almond)

$0.00
$0.00
72107

Brush Touch-Up Kit (Black)

$0.00
$0.00
72032

Sealer, Gum (4 Feet)

$0.00
$0.00
212643

Tape, Vinyl (3/4 X 108")

$0.00
$0.00
479502

Kit, Insulation (2 Pcs. X 3" X 24” X 48")

$0.00
$0.00
876370

Kit, Insulation (14 Pcs. X 3" X 24” X 48”)

$0.00
$0.00
876305

Insulation, Fiberglass (63-1/2" X 35-1/2" X 2-5/8)

$0.00
$0.00
978941

Kit, Foam Slab (30" X 32-1/2" X 1-1/2")

$0.00
$0.00
876029

Sealer, Mastic (1 Qt.)

$0.00
$0.00
505587

Cork, Sealer (1/4 Pound)

$0.00
$0.00
503695

Touch-Up, White Porcelain (2 Oz.)

$0.00
$0.00
511873

Grease, Silicone (1/2 Oz.)

$0.00
$0.00
542638

Cement, Alumilastic (1-1/4 Oz.)

$0.00
$0.00
542639

Bag, Insulation (36-5/8" X 46")

$0.00
$0.00
606755

Kit, Evaporator Repair (Aluminum Epoxy)

$0.00
$0.00
799833

Kit, Terminal Connector

$0.00
$0.00
833938

Transformer (115-230 Volts)

$0.00
$0.00
515393

Enamel, Black (1 Qt. Uncut)

$0.00
$0.00
799340

Enamel, White (1 Qt. Uncut)

$0.00
$0.00
799344

Enamel, Almond (1 Qt. Uncut)

$0.00
$0.00
978883

Use & Care Guide

$0.00
$0.00
LIT2170304

Service & Wiring Sheet

$0.00
$0.00
LIT2170315

Modular Icemaker Service Sheet

$0.00
$0.00
LIT628371

Torx Key

$0.00
$0.00
1117510

Ice Crusher Assembly

$0.00
$0.00
2152708
