6ED25DQXBW00

6ED25DQXBW00

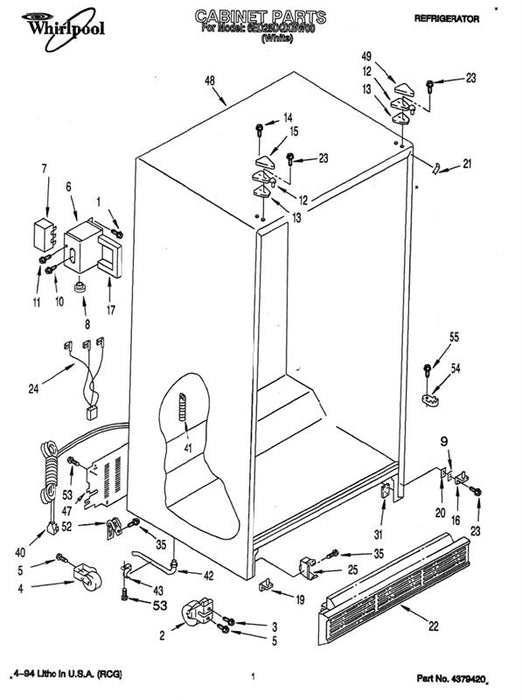

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Screw

$0.00
$0.00
1
489048

Front Roller (2)

$0.00
$0.00
2
2152011

Screw,

$0.00
$0.00
3
489393

Roller (Rear) (2)

$0.00
$0.00
4
981122

Screw

$0.00
$0.00
5
488454

Cover, Terminal Block

$0.00
$0.00
6
2158579

Terminal Block

$0.00
$0.00
7
1129346

Bushing

$0.00
$0.00
8
1129449

Shim

$0.00
$0.00
9
836196

Screw

$0.00
$0.00
10
489211

Screw

$0.00
$0.00
11
489346

Hinge Top (2)

$0.00
$0.00
12
2155449

Shim, Hinge Top

$0.00
$0.00
13
1123515

Screw

$0.00
$0.00
14
489284

Hinge Cover

$0.00
$0.00
15
1129262

Hinge Bottom (R.H)

$0.00
$0.00
16
2155321

Gasket

$0.00
$0.00
17
2167227

Hinge Bottom (L.H)

$0.00
$0.00
19
2155323

Spacer, Hinge

$0.00
$0.00
20
1129868

Filler, Wrapper

$0.00
$0.00
21
1110708

Grille

$0.00
$0.00
22
2155486

Screw

$0.00
$0.00
23
489367

Wiring Assembly

$0.00
$0.00
24
2165297

Clip, Grille

$0.00
$0.00
25
2155013

Tap Plate (2)

$0.00
$0.00
31
2147310

Screw

$0.00
$0.00
35
489242

Service Cord

$0.00
$0.00
40
1129331

Drain Fitting

$0.00
$0.00
41
940139

Extension Tube

$0.00
$0.00
42
1108438

Clip, Drain Tube

$0.00
$0.00
43
1108439

Cover, Unit

$0.00
$0.00
47
2167191

Cabinet (Not A Serviceable Part)

$0.00
$0.00
48
-

Hinge Cover

$0.00
$0.00
49
1119787

Clamp, Service Cord

$0.00
$0.00
52
489348

Screw

$0.00
$0.00
53
489084

Door Closer, Lower Cam (2)

$0.00
$0.00
54
2155310

Screw

$0.00
$0.00
55
489420

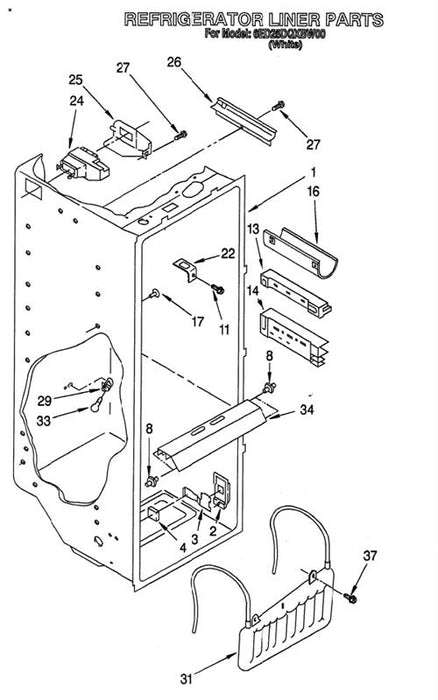

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Escutcheon, Meat Pan Control

$0.00
$0.00
2
985468

Slide, Meat Pan Control

$0.00
$0.00
3
984102

Foam Pad

$0.00
$0.00
4
992358

Stud (6)

$0.00
$0.00
8
1110718

Screw (2)

$0.00
$0.00
11
489290

Track, Shelf

$0.00
$0.00
13
-

Right Side (3)

$0.00
$0.00
-
1114632

Left Side (3)

$0.00
$0.00
-
1114633

Track, Shelf

$0.00
$0.00
14
-

Right Side

$0.00
$0.00
-
1115264

Left Side

$0.00
$0.00
-
1115265

Wine Rack

$0.00
$0.00
16
1124828

Support, Stud (32)

$0.00
$0.00
17
1114631

Bracket Retainer

$0.00
$0.00
22
1123919

Air Diffuser Assembly

$0.00
$0.00
24
2161251

Air Diffuser Cover

$0.00
$0.00
25
2152019

Cover, Conduit

$0.00
$0.00
26
2150331

Screw

$0.00
$0.00
27
486298

Socket

$0.00
$0.00
29
851067

Reservoir

$0.00
$0.00
31
2155290

Light Bulb

$0.00
$0.00
33
851682

Light Lens

$0.00
$0.00
34
1115330

Screw (2)

$0.00
$0.00
37
488280

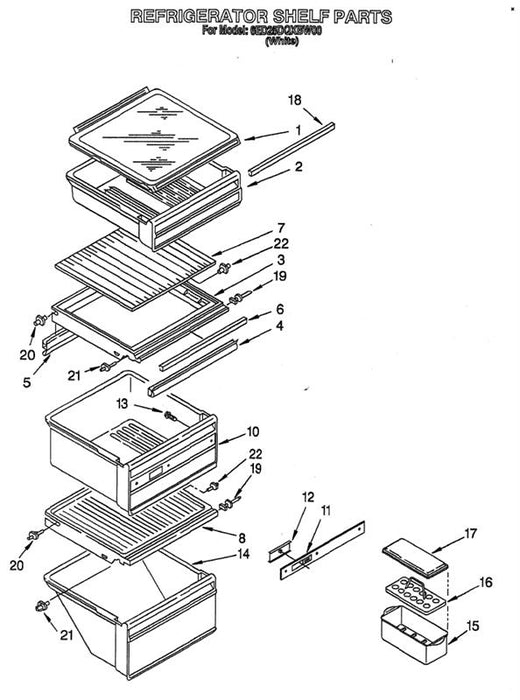

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shelf Assembly, Glass Sliding (3)

$0.00
$0.00
1
2162991

Snack Bin

$0.00
$0.00
2
2170578

Cover, Crisper

$0.00
$0.00
3
2162915

Gasket, Crisper (Front)

$0.00
$0.00
4
1115291

Gasket, Crisper (Rear)

$0.00
$0.00
5
1121353

Trim, Crisper Cover

$0.00
$0.00
6
2162845

Glass, Crisper Cover

$0.00
$0.00
7
2162983

Cover, Meat Pan

$0.00
$0.00
8
2162790

Crisper Pan

$0.00
$0.00
10
2162860

Front, Crisper Pan

$0.00
$0.00
11
2162854

Slide, Humidity Control

$0.00
$0.00
12
2162849

Screw (3)

$0.00
$0.00
13
489268

Meat Pan

$0.00
$0.00
14
2162932

Egg Bin

$0.00
$0.00
15
2170522

Egg Carrier

$0.00
$0.00
16
2164373

Cover

$0.00
$0.00
17
2164374

Trim

$0.00
$0.00
18
2162989

Shelf Stud

$0.00
$0.00
19
2147997

Shelf Stud

$0.00
$0.00
20
1115290

Shelf Stud

$0.00
$0.00
21
2149540

Shelf Stud

$0.00
$0.00
22
1110718

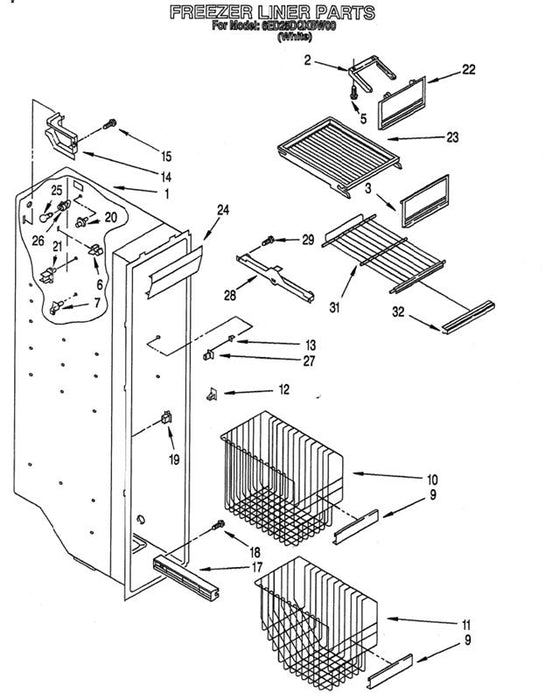

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Seviceable Part)

$0.00
$0.00
1
-

Slide, Ice Door

$0.00
$0.00
2
1115380

Door, Ice Compartment

$0.00
$0.00
3
2162946

Screw

$0.00
$0.00
5
489242

Clip, Air Duct (2)

$0.00
$0.00
6
842534

Support, Stud (4)

$0.00
$0.00
7
1115317

Trim, Basket

$0.00
$0.00
9
2162834

Basket, Tall

$0.00
$0.00
10
2152088

Basket, Slope

$0.00
$0.00
11
2152090

Stud, Rear

$0.00
$0.00
12
1106982

Stud, Support

$0.00
$0.00
13
946355

Wiring Cover

$0.00
$0.00
14
2155572

Screw

$0.00
$0.00
15
489176

Shelf Track

$0.00
$0.00
17
-

Right Side (4)

$0.00
$0.00
-
1126354

Left Side (4)

$0.00
$0.00
-
1126355

Screw

$0.00
$0.00
18
487042

Switch, Rocker Arm

$0.00
$0.00
19
1115373

Stud (4)

$0.00
$0.00
20
1110718

Stud, Shelf(4)

$0.00
$0.00
21
1115386

Door, Top Compartment

$0.00
$0.00
22
2162947

Shelf, Top Compartment

$0.00
$0.00
23
1115256

Light Lens

$0.00
$0.00
24
1115389

Light Bulb

$0.00
$0.00
25
851682

Light Socket

$0.00
$0.00
26
851067

Stud, Front

$0.00
$0.00
27
946356

Slide, Container

$0.00
$0.00
28
-

Left Side

$0.00
$0.00
-
1119237

Right Side

$0.00
$0.00
-
1119293

Screw

$0.00
$0.00
29
489100

Shelf

$0.00
$0.00
31
2155604

Trim, Shelf

$0.00
$0.00
32
2162939
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

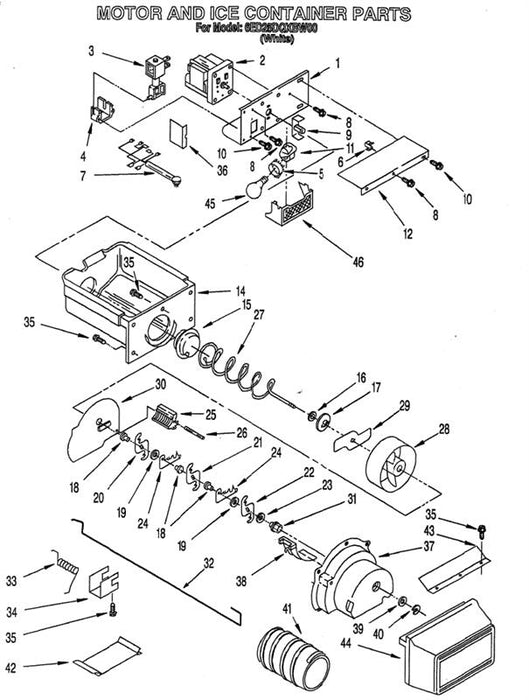

Bracket, Motor

$0.00
$0.00
1
1118386

Motor, Dispenser

$0.00
$0.00
2
2165212

Soleniod Assembly

$0.00
$0.00
3
2165210

Guide, Solenoid

$0.00
$0.00
4
2149100

Shroud, Bracket

$0.00
$0.00
5
2169193

Clip, Wiring

$0.00
$0.00
6
1115374

Wiring Assembly, Ice Dispenser

$0.00
$0.00
7
2169490

Screw

$0.00
$0.00
8
489399

Coupling, Motor

$0.00
$0.00
9
983663

Screw

$0.00
$0.00
10
489242

Socket, Light

$0.00
$0.00
11
2162085

Cover, Motor

$0.00
$0.00
12
1115339

Ice Container

$0.00
$0.00
14
2152702

Coupling, Conveyor

$0.00
$0.00
15
983668

Stop, Cone

$0.00
$0.00
16
1118480

Feeder Cone

$0.00
$0.00
17
1119074

Spacer, Step (3)

$0.00
$0.00
18
1119005

Spacer, Flat (2)

$0.00
$0.00
19
1119007

Blade, Rotary

$0.00
$0.00
20
1119006

Blade, Rotary

$0.00
$0.00
21
1119012

Blade, Rotary

$0.00
$0.00
22
1119013

Washer, Plain

$0.00
$0.00
23
489235

Blade, Fixed (2)

$0.00
$0.00
24
1119009

Block, Blade

$0.00
$0.00
25
2157405

Roll Pin

$0.00
$0.00
26
489229

Conveyor

$0.00
$0.00
27
1119003

Drum

$0.00
$0.00
28
2171681

Drive Bar

$0.00
$0.00
29
1118470

Floating Baffle

$0.00
$0.00
30
2171682

Nut, Bearing

$0.00
$0.00
31
1119018

Control Arm

$0.00
$0.00
32
2155231

Spring, Return

$0.00
$0.00
33
1119020

Retainer Clip, Rod

$0.00
$0.00
34
1119021

Screw

$0.00
$0.00
35
488856

Shield, Wiring

$0.00
$0.00
36
1129563

Housing, Crusher

$0.00
$0.00
37
2157407

Deflector, Ice

$0.00
$0.00
38
1119017

Washer, Plain

$0.00
$0.00
39
489234

Retainer Ring

$0.00
$0.00
40
489236

Sleeve, Auger

$0.00
$0.00
41
2152021

Housing Filler

$0.00
$0.00
42
2152700

Deflector, Ice Container

$0.00
$0.00
43
1119043

Front Cover, Ice Container

$0.00
$0.00
44
2162949

Light Bulb

$0.00
$0.00
45
851682

Light Lens, Dispenser

$0.00
$0.00
46
983359
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

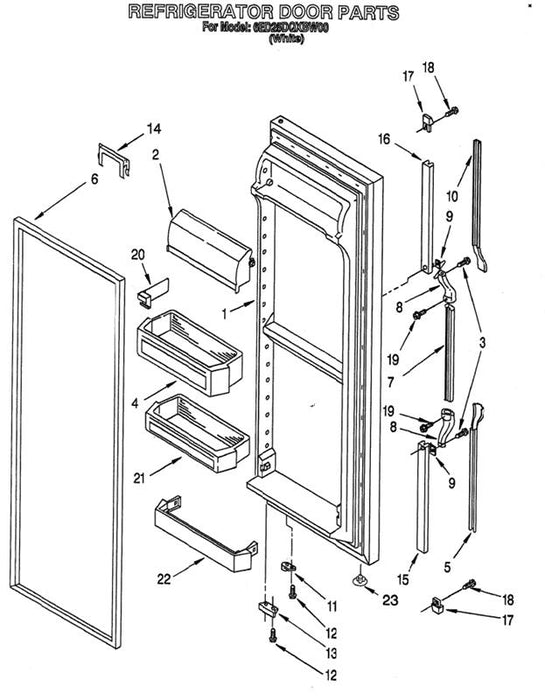

Refrigerator Door (Includes Item 6)

$0.00
$0.00
1
2159337

Door, Compartment

$0.00
$0.00
2
2162903

Shelf Bin (2)

$0.00
$0.00
3
2162888

Screw

$0.00
$0.00
4
488500

Insert, Handle

$0.00
$0.00
5
1119373

Door Gasket, Magnetic (Repair)

$0.00
$0.00
6
2159079

Handle, Center

$0.00
$0.00
7
1124713

End Cap, Center Handle

$0.00
$0.00
8
1119359

Shim

$0.00
$0.00
9
935075

Insert, Handle

$0.00
$0.00
10
1119361

Door Closer, Upper Cam

$0.00
$0.00
11
2155313

Screw

$0.00
$0.00
12
489367

Bracket, Door Stop

$0.00
$0.00
13
2155332

Retainer, Bottle

$0.00
$0.00
14
2163566

Retainer, Insert (Bottom)

$0.00
$0.00
15
1119360

Retainer, Insert

$0.00
$0.00
16
1119372

End Cap (2)

$0.00
$0.00
17
2156220

Screw

$0.00
$0.00
18
489075

Screw,

$0.00
$0.00
19
489022

Divider (3)

$0.00
$0.00
20
2152335

Shelf Bin

$0.00
$0.00
21
2162889

Trivet, Shelf

$0.00
$0.00
22
2171163

Hole Plug

$0.00
$0.00
23
2151653

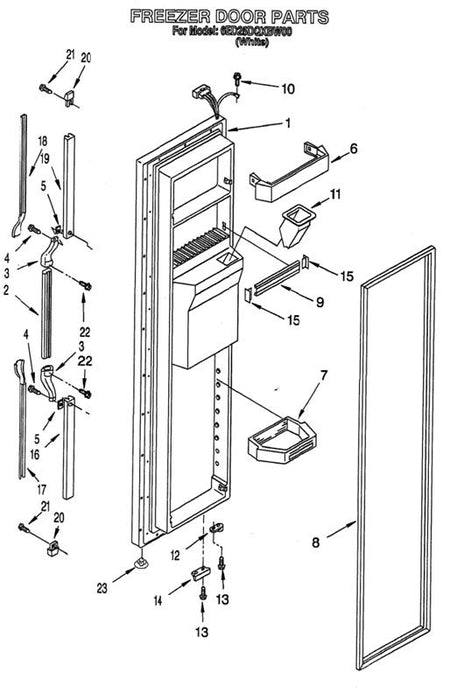

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer Door (Includes Item 8 And Dispenser Front Parts)

$0.00
$0.00
1
2170237

Handle, Center

$0.00
$0.00
2
1124713

End Cap (2)

$0.00
$0.00
3
1119359

Screw

$0.00
$0.00
4
4885004

Shim, End Cap (2)

$0.00
$0.00
5
935075

Trivet, Shelf (2)

$0.00
$0.00
6
2171166

Shelf Bin (2)

$0.00
$0.00
7
2171166

Door Gasket, Magnetic (Repair)

$0.00
$0.00
8
2171166

Trim, Door Shelf

$0.00
$0.00
9
2170920

Screw

$0.00
$0.00
10
489422

Chute, Ice

$0.00
$0.00
11
2156146

Door Closer, Upper Cam

$0.00
$0.00
12
2155313

Screw

$0.00
$0.00
13
489367

Bracket, Door Stop

$0.00
$0.00
14
2155332

Plug, Trim

$0.00
$0.00
15
2156006

Retainer, Insert

$0.00
$0.00
16
1119360

Insert, Handle

$0.00
$0.00
17
1119373

Insert, Handle

$0.00
$0.00
18
1119361

Retainer, Insert

$0.00
$0.00
19
1119372

End Cap (2)

$0.00
$0.00
20
2156220

Screw

$0.00
$0.00
21
489075

Screw

$0.00
$0.00
22
489022

Hole Plug

$0.00
$0.00
23
2151653
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

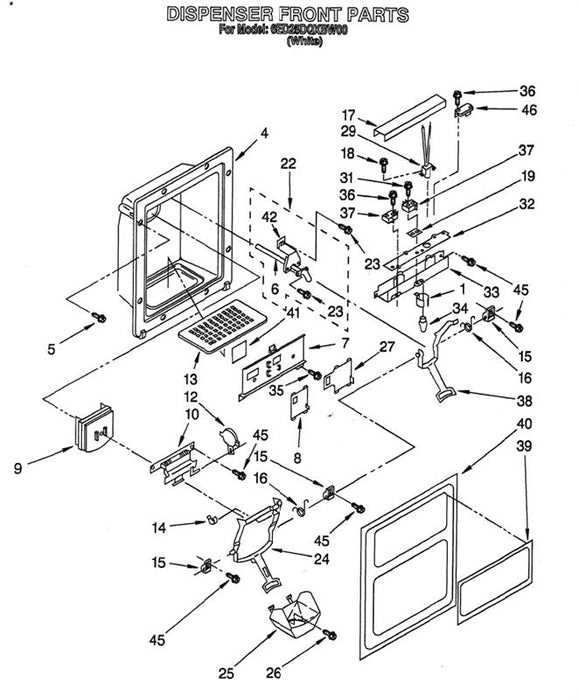

Shroud, Bracket

$0.00
$0.00
1
1129333

Housing Dispenser (Not A Servicable Item)

$0.00
$0.00
4
-

Screw

$0.00
$0.00
5
488687

Tube, Water (See Item #22)

$0.00
$0.00
6
-

Frame, Slides

$0.00
$0.00
7
2152717

Slide, Cube/Crush Switch

$0.00
$0.00
8
2152720

Door, Ice

$0.00
$0.00
9
2167269

Door Mechanism Assembly

$0.00
$0.00
10
2157650

Mechanism Delay

$0.00
$0.00
12
1120581

Grille, Overflow

$0.00
$0.00
13
1126120

Clip, Bearing (2)

$0.00
$0.00
14
987917

Bearing, Lever (3)

$0.00
$0.00
15
983697

Spring, Lever (2)

$0.00
$0.00
16
983696

Shield, Wiring

$0.00
$0.00
17
2147165

Screw

$0.00
$0.00
18
488500

Spacer, Switch

$0.00
$0.00
19
625384

Water Fitting Assembly (Includes Water Tube)

$0.00
$0.00
22
2155020

Screw

$0.00
$0.00
23
487916

Lever Assembly, Ice Dispenser

$0.00
$0.00
24
1124718

Guide, Ice

$0.00
$0.00
25
1124730

Screw

$0.00
$0.00
26
488892

Slide, Light Switch

$0.00
$0.00
27
2152726

Lamp Holder

$0.00
$0.00
29
2147131

Screw

$0.00
$0.00
31
488361

Insulator, Control Bracket

$0.00
$0.00
32
2147164

Bracket, Control

$0.00
$0.00
33
2147163

Bulb, Light

$0.00
$0.00
34
989331

Switch (3)

$0.00
$0.00
35
313125

Lever Assembly, Water Dispenser

$0.00
$0.00
36
2159197

Plaque, Front Cover

$0.00
$0.00
37
2162923

Front Cover, Housing (Includes Item 39)

$0.00
$0.00
38
2162926

Heat Shield, Frame

$0.00
$0.00
39
2147172

Bracket, Water

$0.00
$0.00
40
987049

Screw

$0.00
$0.00
41
489000

Switch-Water

$0.00
$0.00
42
2162361

Screw

$0.00
$0.00
45
489101

Screw

$0.00
$0.00
46
489155
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

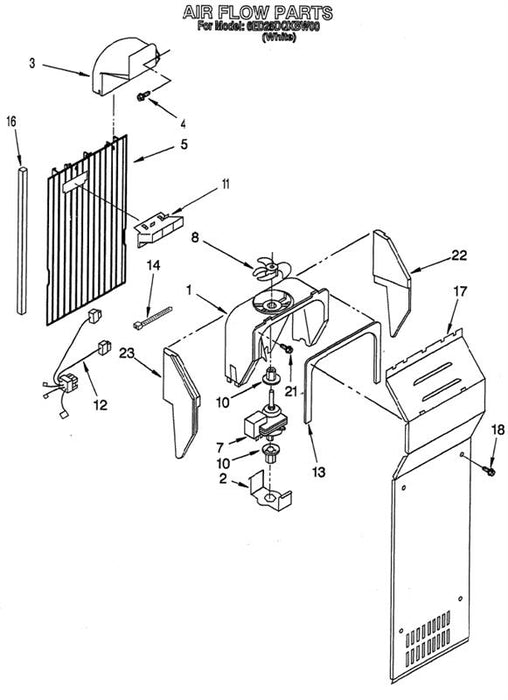

Fan Scroll

$0.00
$0.00
1
2155594

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Screw

$0.00
$0.00
4
489176

Air Duct Freezer

$0.00
$0.00
5
2155575

Fan Motor

$0.00
$0.00
8
2154976

Fan Blade

$0.00
$0.00
10
2169142

Fan Grommet (2)

$0.00
$0.00
11
2155589

Duct, Icemaker

$0.00
$0.00
12
1115381

Harness, Fan Evaporator, And Heater, Bi-Metal

$0.00
$0.00
13
2158782

Gasket Cover

$0.00
$0.00
14
2155789

Wire Tie

$0.00
$0.00
16
2172840

Gasket

$0.00
$0.00
17
2155782

Cover, Evaporator

$0.00
$0.00
18
2155612

Screw

$0.00
$0.00
21
489355

Screw

$0.00
$0.00
22
489242

Support, R S

$0.00
$0.00
23
2155765

Support, L.S

$0.00
$0.00
2155766
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

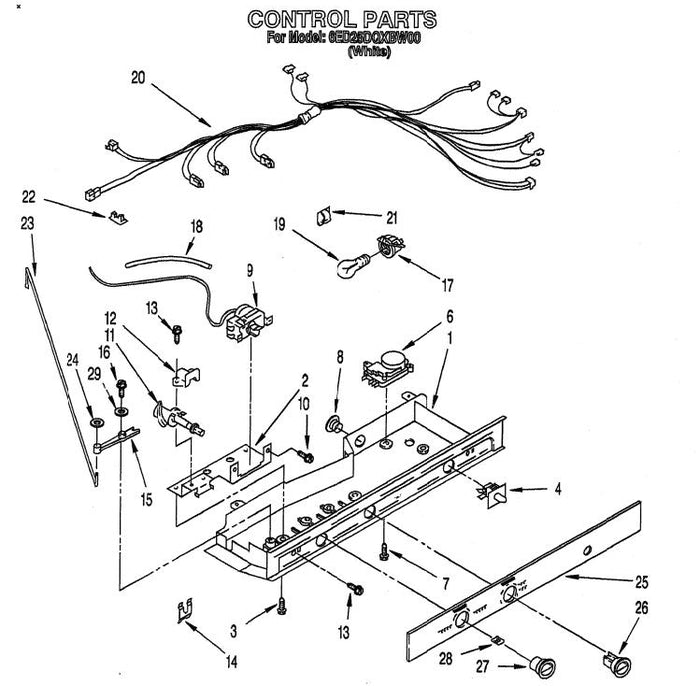

Control Box

$0.00
$0.00
1
2169147

Mounting Bracket

$0.00
$0.00
2
1110629

Screw (2)

$0.00
$0.00
3
489397

Light Switch

$0.00
$0.00
4
2149705

Defrost Timer

$0.00
$0.00
6
2162057

Screw (2)

$0.00
$0.00
7
489398

Hole Plug

$0.00
$0.00
8
940014

Thermostat Assembly

$0.00
$0.00
9
2161284

Screw

$0.00
$0.00
10
487869

Cam Assembly

$0.00
$0.00
11
2161250

Bearing Body

$0.00
$0.00
12
1110560

Screw

$0.00
$0.00
13
489242

Retainer, Damper

$0.00
$0.00
14
938439

Pivot Arm

$0.00
$0.00
15
1110559

Screw

$0.00
$0.00
16
627068

Light Socket

$0.00
$0.00
17
1129370

Thermostat, Barrier

$0.00
$0.00
18
1115241

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2149186

Clip, Wiring

$0.00
$0.00
21
1115374

Clip, Wiring

$0.00
$0.00
22
1115375

Connecting Rod

$0.00
$0.00
23
1123960

Fastener, Push-On

$0.00
$0.00
24
489285

Escutcheon, Control Box

$0.00
$0.00
25
2161213

Thermostat Knob

$0.00
$0.00
26
1116852

Knob, Air Control

$0.00
$0.00
27
1116853

Retainer, Knob

$0.00
$0.00
28
837444

Spring Washer

$0.00
$0.00
29
489203
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

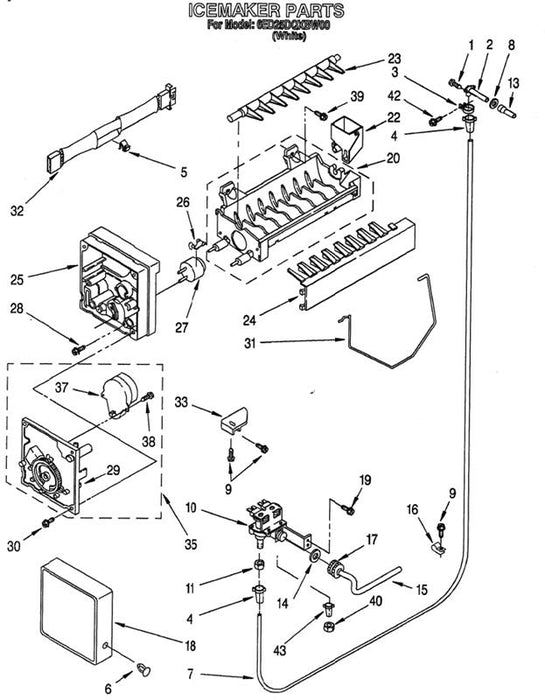

Screw

$0.00
$0.00
1
489084

Fitting, Water Tube

$0.00
$0.00
2
836489

Clamp, Tube

$0.00
$0.00
3
488878

Insert, Tube

$0.00
$0.00
4
841707

Clip, Fuse

$0.00
$0.00
5
628379

Clip

$0.00
$0.00
6
489115

Tube, Water

$0.00
$0.00
7
2155294

Seal, Gasket

$0.00
$0.00
8
1106508

Screw

$0.00
$0.00
9
489242

Valve, Solenoid

$0.00
$0.00
10
2165238

Nut, Compression

$0.00
$0.00
11
627018

Tube, Water Inlet

$0.00
$0.00
13
2155247

Washer

$0.00
$0.00
14
628337

Tube, Inlet Valve

$0.00
$0.00
15
627860

Clamp

$0.00
$0.00
16
510716

Nut Valve

$0.00
$0.00
17
537588

Cover

$0.00
$0.00
18
628329

Screw

$0.00
$0.00
19
488649

Mold & Heater Assembly (Also Order 542638)

$0.00
$0.00
20
628282

Cup, Water Fill

$0.00
$0.00
22
628356

Ejector

$0.00
$0.00
23
627843

Ice Striper

$0.00
$0.00
24
627788

Support

$0.00
$0.00
25
627790

Retainer, Thermostat

$0.00
$0.00
26
627796

Thermostat (Also Order)

$0.00
$0.00
27
627985

Cement Alumilastic

$0.00
$0.00
-
542369

Screw

$0.00
$0.00
28
489322

Module Assembly

$0.00
$0.00
29
628377

Screw

$0.00
$0.00
30
489276

Shut Off Arm

$0.00
$0.00
31
2171593

Harness, Wiring

$0.00
$0.00
32
628281

Bracket

$0.00
$0.00
33
628320

Module Assembly (Includes Items 29, 37 & 38)

$0.00
$0.00
35
628367

Motor

$0.00
$0.00
37
628303

Screw

$0.00
$0.00
38
489136

Screw

$0.00
$0.00
39
488208

Nut, Compression

$0.00
$0.00
40
1129179

Screw

$0.00
$0.00
42
488886

Insert

$0.00
$0.00
43
1129177
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

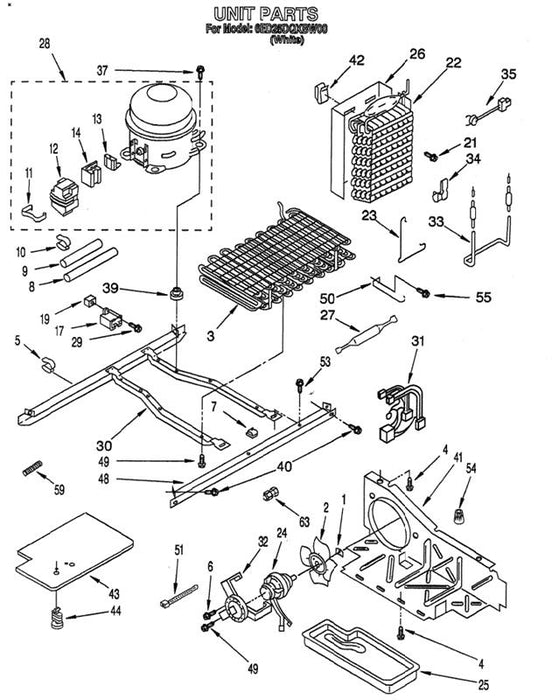

Speed Nut

$0.00
$0.00
1
486692

Fan, Blade

$0.00
$0.00
2
1108179

Condenser Assembly

$0.00
$0.00
3
2164504

Screw

$0.00
$0.00
4
489337

Clip, Wire

$0.00
$0.00
5
2155658

Screw

$0.00
$0.00
6
489019

Clip, Tube (3)

$0.00
$0.00
7
934011

Sleeve

$0.00
$0.00
8
2161302

Dampened

$0.00
$0.00
9
2158826

Clip

$0.00
$0.00
10
940073

Strap

$0.00
$0.00
11
938384

Cover

$0.00
$0.00
12
1108115

Overload (Includes Relay)

$0.00
$0.00
13
2154755

Relay (See Overload)

$0.00
$0.00
14
-

Capacitor

$0.00
$0.00
17
2154718

Screw Grommet

$0.00
$0.00
19
509812

Screw

$0.00
$0.00
21
489242

Evaporator

$0.00
$0.00
22
2164519

Clamp

$0.00
$0.00
23
2161324

Fan, Motor

$0.00
$0.00
24
2162066

Tray, Evaporator

$0.00
$0.00
25
1110674

Heat Shield

$0.00
$0.00
26
2149294

Drier

$0.00
$0.00
27
2164409

Compressor (Includes Items 11, 12, 13, 14 & 17) (Also Order)

$0.00
$0.00
28
2154754

Tube Kit

$0.00
$0.00
-
876765

Screw

$0.00
$0.00
29
488687

Unit Mounting Frame

$0.00
$0.00
30
2157396

Unit, Harness

$0.00
$0.00
31
2167065

Fan, Motor Bracket

$0.00
$0.00
32
2162062

Heater, Defrost

$0.00
$0.00
33
2162214

Clip

$0.00
$0.00
34
2161330

Bi-Metal, Defrost

$0.00
$0.00
35
2161331

Screw

$0.00
$0.00
37
489373

Grommet (4)

$0.00
$0.00
39
1100826

Screw

$0.00
$0.00
40
489340

Air Baffle

$0.00
$0.00
41
2149128

Clip, Heat Shield

$0.00
$0.00
42
2155547

Cover Unit, Bottom

$0.00
$0.00
43
2161363

Clip

$0.00
$0.00
44
489396

Unit Mounting Rail

$0.00
$0.00
48
1127906

Screw

$0.00
$0.00
49
488624

Guard, Fan

$0.00
$0.00
50
1110663

Strap

$0.00
$0.00
51
2165001

Screw

$0.00
$0.00
53
489339

Wire Connector

$0.00
$0.00
54
227991

Screw

$0.00
$0.00
55
488649

Spring-Tube

$0.00
$0.00
59
983659

Union

$0.00
$0.00
63
2150347

Valve, Access (1/4")

$0.00
$0.00
978025

Valve, Access (5/16")

$0.00
$0.00
978026

Valve, Access (3/8")

$0.00
$0.00
978027

Valve, Access (1/2")

$0.00
$0.00
978028

Valve, Access (5/8")

$0.00
$0.00
978029

Valve, Access (3/4")

$0.00
$0.00
978030

Valve, Access (3/16")

$0.00
$0.00
876764

*Primer, White (13 Oz, Spray Can)

$0.00
$0.00
350942

*Leveled, Enamel (13 Oz. Spray Can)

$0.00
$0.00
350941

*Enamel, Black (13 Oz. Spray Can)

$0.00
$0.00
350939

*Enamel, White (13 Oz. Spray Can)

$0.00
$0.00
350930

*Enamel, Almond (13 Oz. Spray Can)

$0.00
$0.00
350956

Brush Touch-Up Kit (White)

$0.00
$0.00
72017

Brush Touch-Up Kit (Almond)

$0.00
$0.00
72107

Brush Touch-Up Kit (Black)

$0.00
$0.00
72032

Enamel, Black (1 Qt. Uncut)

$0.00
$0.00
799340

Enamel, White (l Qt. Uncut)

$0.00
$0.00
799344

Enamel, Almond (1 Qt. Uncut)

$0.00
$0.00
978883

Sealer, Gum (4 Feet) Tape, Vinyl (3/4 X 108")

$0.00
$0.00
212643

Tape, Vinyl (3/4 X 108")

$0.00
$0.00
479502

Kit, Insulation (2 Pcs. X 3" X 24" X 48")

$0.00
$0.00
876370

Kit, Insulation (14 Pcs. X 3" X 24" X 48")

$0.00
$0.00
876305

Insulation, Fiberglass (63-1/2" X 35-1/2" X 2-5/8)

$0.00
$0.00
978941

Kit, Foam Slab (30" X 32-1/2" X 1-1/2")

$0.00
$0.00
876029

Sealer, Mastic (1 Qt.)

$0.00
$0.00
505587

Cork, Sealer (1/4 Pound)

$0.00
$0.00
503695

Touch-Up, White Porcelain (2 Oz.)

$0.00
$0.00
511873

Grease, Silicone (1/2 Oz.)

$0.00
$0.00
542638

Cement, Alumilastic (1-1/4 Oz.)

$0.00
$0.00
542639

Bag, Insulation (36-5/8" X 46”)

$0.00
$0.00
606755

Kit, Evaporator Repair (Aluminum Epoxy)

$0.00
$0.00
799833

Kit, Terminal Connector

$0.00
$0.00
833938

Transformer (115-230 Volts)

$0.00
$0.00
515393

Use & Care Guide

$0.00
$0.00
LIT2170269

Service & Wiring Sheet

$0.00
$0.00
LIT2167329

Modular Icemaker Service Sheet

$0.00
$0.00
LIT628371

Torx Key

$0.00
$0.00
1117510

Ice Crusher Assembly

$0.00
$0.00
2149072
