6ED25DQXDB01

6ED25DQXDB01

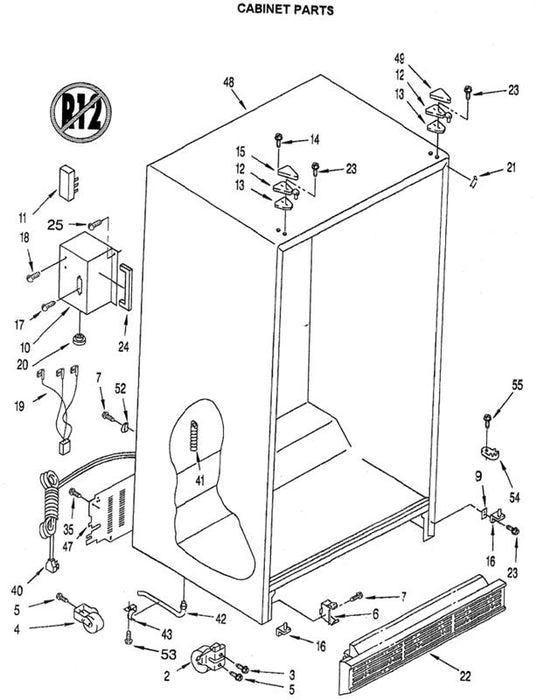

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Front Roller (2)

$0.00
$0.00
2
2174748

Screw

$0.00
$0.00
3
489456

Rear Roller (2)

$0.00
$0.00
4
981122

Screw

$0.00
$0.00
5
489427

Clip, Grille

$0.00
$0.00
6
2155013

Screw

$0.00
$0.00
7
489478

Shim

$0.00
$0.00
9
2156056

Enclosure, Terminal Block

$0.00
$0.00
10
2158579

Terminal Block

$0.00
$0.00
11
1129346

Hinge Top (2)

$0.00
$0.00
12
2196406

Shim, Hinge Top

$0.00
$0.00
13
2196048

Screw

$0.00
$0.00
14
489284

Hinge Cover, White

$0.00
$0.00
15
1129262

Hinge Cover, Black

$0.00
$0.00
-
2151694

Hinge Bottom (2)

$0.00
$0.00
16
2171851

Screw

$0.00
$0.00
17
489211

Screw

$0.00
$0.00
18
489399

Wiring Assembly, Terminal Block

$0.00
$0.00
19
2165297

Bushing

$0.00
$0.00
20
1129449

Filler, Wrapper, White

$0.00
$0.00
21
1110708

Filler, Wrapper, Black

$0.00
$0.00
-
1127272

Grille, White

$0.00
$0.00
22
2155486

Grllle, Black

$0.00
$0.00
-
2155485

Screw

$0.00
$0.00
23
489367

Gasket

$0.00
$0.00
24
2167227

Screw

$0.00
$0.00
25
489463

Screw

$0.00
$0.00
35
489464

Service Cord

$0.00
$0.00
40
1129331

Drain Fitting

$0.00
$0.00
41
940139

Extension Tube

$0.00
$0.00
42
1108438

Clip, Drain Tube

$0.00
$0.00
43
1108439

Cover, Unit

$0.00
$0.00
47
2189570

Cabinet ( Not A Serviceable Part )

$0.00
$0.00
48
-

Hinge Cover, White

$0.00
$0.00
49
1119787

Hinge Cover, Black

$0.00
$0.00
-
2155938

Clamp

$0.00
$0.00
52
489348

Screw

$0.00
$0.00
53
489084

Door Closer, Lower Carn (2)

$0.00
$0.00
54
2155311

Screw

$0.00
$0.00
55
489483

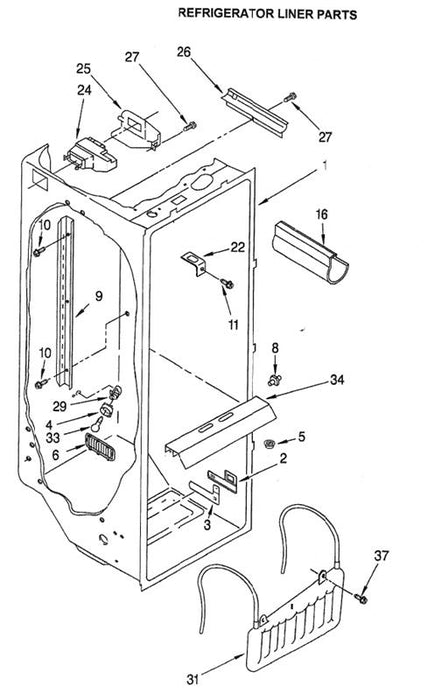

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner ( Not A Serviceable Part )

$0.00
$0.00
1
-

Escutcheon, Meat Pan Control

$0.00
$0.00
2
2194744

Slide, Meat Pan Control

$0.00
$0.00
3
2182757

Shroud, Light

$0.00
$0.00
4
2169193

Release Valve

$0.00
$0.00
5
2171846

Louvre

$0.00
$0.00
6
2182147

Stud

$0.00
$0.00
8
1110718

Ladder, Shelf

$0.00
$0.00
9
2181796

Screw

$0.00
$0.00
10
487539

Screw (2)

$0.00
$0.00
11
489290

Wine Rack

$0.00
$0.00
16
2179374

Bracket Retainer

$0.00
$0.00
22
1123919

Air Diffuser Assembly

$0.00
$0.00
24
2175155

Air Diffuser Cover

$0.00
$0.00
25
2161470

Cover, Conduit

$0.00
$0.00
26
2150331

Screw

$0.00
$0.00
27
486298

Socket

$0.00
$0.00
29
2162085

Reservoir

$0.00
$0.00
31
2155290

Light Bulb

$0.00
$0.00
33
851082

Light Lens

$0.00
$0.00
34
2174436

Screw (2)

$0.00
$0.00
37
488280

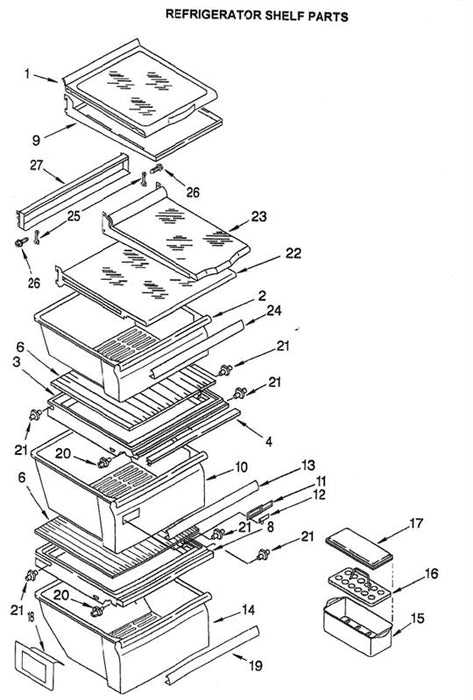

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shelf Assembly, Glass Sliding (2)

$0.00
$0.00
1
2174041

Snack Bin

$0.00
$0.00
2
2189531

Cover, Crisper

$0.00
$0.00
3
2189617

Gasket, Cover ( Front )

$0.00
$0.00
4
2174442

Glass, Cover (2)

$0.00
$0.00
6
2179259

Cover, Meat Pan

$0.00
$0.00
8
2189601

Frame, Shelf (2)

$0.00
$0.00
9
2174042

Crisper Pan

$0.00
$0.00
10
2189529

Front, Crisper Pan

$0.00
$0.00
11
2179343

Slide, Humidity Control

$0.00
$0.00
12
2179342

Trim, Handle

$0.00
$0.00
13
21899533

Meat Pan

$0.00
$0.00
14
2189530

Egg Bin

$0.00
$0.00
15
2169933

Egg Carrier

$0.00
$0.00
16
2164373

Cover

$0.00
$0.00
17
2169935

Deflector

$0.00
$0.00
18
2179350

Trim, Handle

$0.00
$0.00
19
2189532

Shelf Stud

$0.00
$0.00
20
2172943

Shelf Stud

$0.00
$0.00
21
1110718

Shelf, Snack Bin

$0.00
$0.00
22
2174045

Shelf, Slide ( Side To Side )

$0.00
$0.00
23
2174468

Trim, Handle

$0.00
$0.00
24
2189620

Hook, Shelf

$0.00
$0.00
25
2169608

Screw

$0.00
$0.00
26
489419

Track, Shelf

$0.00
$0.00
27
2174422

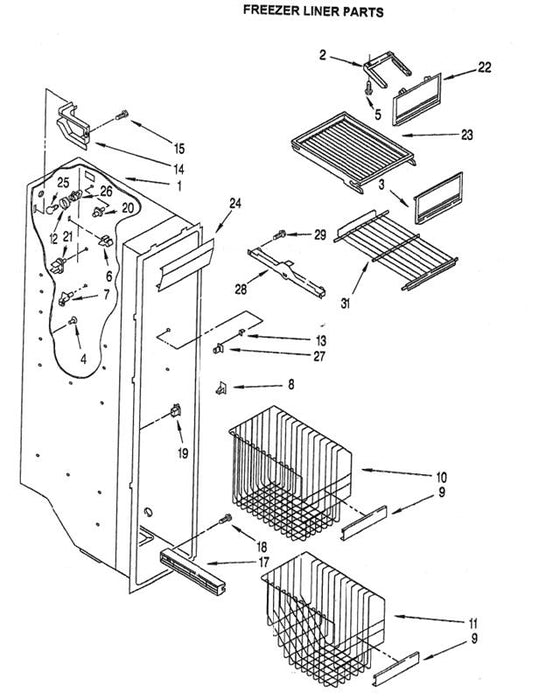

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner ( Not A Serviceable Part )

$0.00
$0.00
1
-

Slide, Ice Door

$0.00
$0.00
2
1115380

Door, Ice Compartment

$0.00
$0.00
3
2171713

Grommet

$0.00
$0.00
4
2176134

Screw

$0.00
$0.00
5
489478

Clip, Air Duct (2)

$0.00
$0.00
6
842534

Support, Stud (4)

$0.00
$0.00
7
1115317

Stud Rear

$0.00
$0.00
8
1106982

Trim, Basket

$0.00
$0.00
9
2195903

Basket

$0.00
$0.00
10
2181765

Basket, Slope

$0.00
$0.00
11
2181764

Shroud, Light

$0.00
$0.00
12
2169193

Stud, Support

$0.00
$0.00
13
946355

Wiring Cover

$0.00
$0.00
14
2155572

Screw

$0.00
$0.00
15
489355

Slide, Basket, Right Side (2)

$0.00
$0.00
17
2181760

Slide, Basket, Left Side (2)

$0.00
$0.00
17
2181759

Screw

$0.00
$0.00
18
487042

Switch, Rocker Arm

$0.00
$0.00
19
1115373

Stud (4)

$0.00
$0.00
20
1110718

Stud, Shelf (4)

$0.00
$0.00
21
1115386

Door, Top Compartment

$0.00
$0.00
22
2194090

Shelf, Top Compartment

$0.00
$0.00
23
2171714

Light Lens

$0.00
$0.00
24
2171705

Light Bulb

$0.00
$0.00
25
851682

Light Socket

$0.00
$0.00
26
2162085

Stud, Front Right Side

$0.00
$0.00
27
946356

Stud, Rear Right Side

$0.00
$0.00
27
1106982

Slide, Container, Left Side

$0.00
$0.00
28
1119237

Slide, Container, Right Side

$0.00
$0.00
28
1119293

Screw

$0.00
$0.00
29
489100

Shelf

$0.00
$0.00
31
2174267

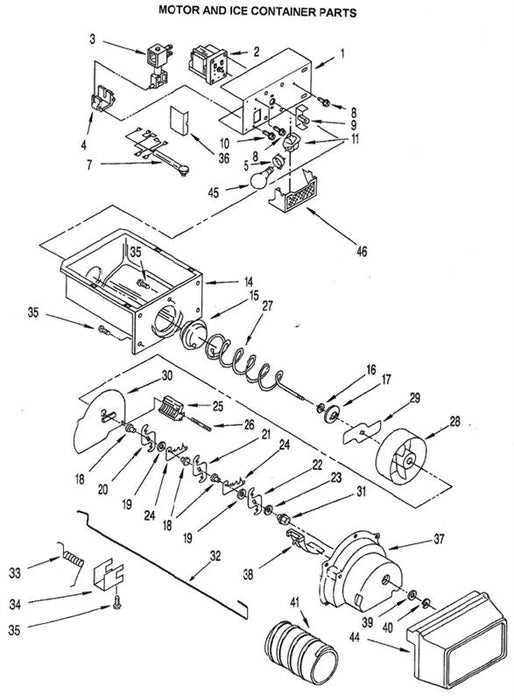

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Bracket, Motor

$0.00
$0.00
1
2183726

Motor, Dispenser

$0.00
$0.00
2
2165212

Solenoid Assembly

$0.00
$0.00
3
2185210

Guide, Solenoid

$0.00
$0.00
4
2149100

Shroud, Light

$0.00
$0.00
5
2169193

Wiring Assembly, Ice Dispenser

$0.00
$0.00
7
2169490

Screw

$0.00
$0.00
8
489399

Coupling, Motor

$0.00
$0.00
9
983683

Screw

$0.00
$0.00
10
489478

Socket, Light

$0.00
$0.00
11
2162085

Ice Container

$0.00
$0.00
14
2182100

Coupling, Conveyor

$0.00
$0.00
15
983668

Stop, Cone

$0.00
$0.00
16
1118480

Feeder Cone

$0.00
$0.00
17
1119074

Spacer, Step (3)

$0.00
$0.00
18
1119005

Spacer, Flat (2)

$0.00
$0.00
19
1119007

Blade, Rotary

$0.00
$0.00
20
1119006

Blade, Rotary

$0.00
$0.00
21
1119012

Blade, Rotary

$0.00
$0.00
22
1119013

Washer, Plain

$0.00
$0.00
23
489235

Blade, Fixed (2)

$0.00
$0.00
24
1119009

Block, Blade

$0.00
$0.00
25
2157405

Roll Pin

$0.00
$0.00
26
489229

Conveyor

$0.00
$0.00
27
2181955

Drum

$0.00
$0.00
28
2171681

Driver Bar

$0.00
$0.00
29
1118470

Floating Baffle

$0.00
$0.00
30
2171682

Nut, Bearing

$0.00
$0.00
31
1119018

Control Arm

$0.00
$0.00
32
2155231

Spring, Return

$0.00
$0.00
33
1119020

Retainer Clip, Rod

$0.00
$0.00
34
1119021

Screw

$0.00
$0.00
35
488886

Shield, Wiring

$0.00
$0.00
36
1129563

Housing, Crusher

$0.00
$0.00
37
2180348

Detector, Ice

$0.00
$0.00
38
1119017

Washer, Plain

$0.00
$0.00
39
489234

Retainer Ring

$0.00
$0.00
40
489236

Sleeve, Auger

$0.00
$0.00
41
2152021

Front Cover, Ice Container

$0.00
$0.00
44
2196004

Light Bulb

$0.00
$0.00
45
851682

Light Lens, Dispenser

$0.00
$0.00
46
2171706

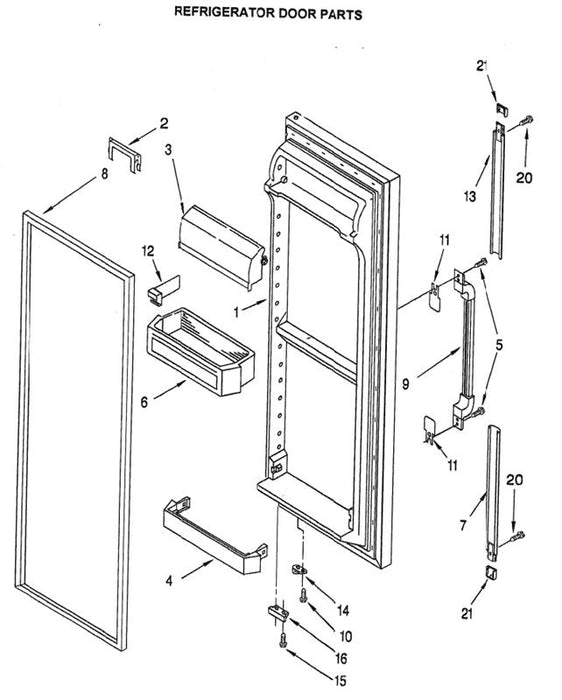

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Refrigerator Door, White ( Incl Item #8 )

$0.00
$0.00
1
2194509W

Refrigerator Door, Black ( Incl Item #8 )

$0.00
$0.00
-
2194509B

Retainer, Bottle

$0.00
$0.00
2
2173643

Door, Compartment

$0.00
$0.00
3
2177105

Trivet, Shelf

$0.00
$0.00
4
2156022

Screw

$0.00
$0.00
5
489463

Shelf Bin (3)

$0.00
$0.00
6
2179607

Extension, Bottom, White

$0.00
$0.00
7
2194509W

Extension, Bottom, Black

$0.00
$0.00
-
2194509B

Door Gasket, Magnetic, Mist Biege (Service)

$0.00
$0.00
8
2159075

Door Gasket, Magnetic, Black (Service)

$0.00
$0.00
-
2159083

Handle, Complete White

$0.00
$0.00
9
2194759W

Handle, Complete, Black

$0.00
$0.00
-
2194759B

-

$0.00
$0.00
10
Not applicable

Shim

$0.00
$0.00
11
2179399

Divider, Bin

$0.00
$0.00
12
2195496

Extension, Top, White

$0.00
$0.00
13
2194765W

Extension, Top, Black

$0.00
$0.00
-
2T947658

Door Closer, Upper Cam

$0.00
$0.00
14
2182132

Screw

$0.00
$0.00
15
489420

Bracket, Door Stop, Chrome

$0.00
$0.00
-
2195950

Bracket, Door Stop, Black

$0.00
$0.00
16
2195952

Screw

$0.00
$0.00
20
489084

Cover, End Cap, White

$0.00
$0.00
21
2174006

Cover, End Cap, Black

$0.00
$0.00
-
2174008

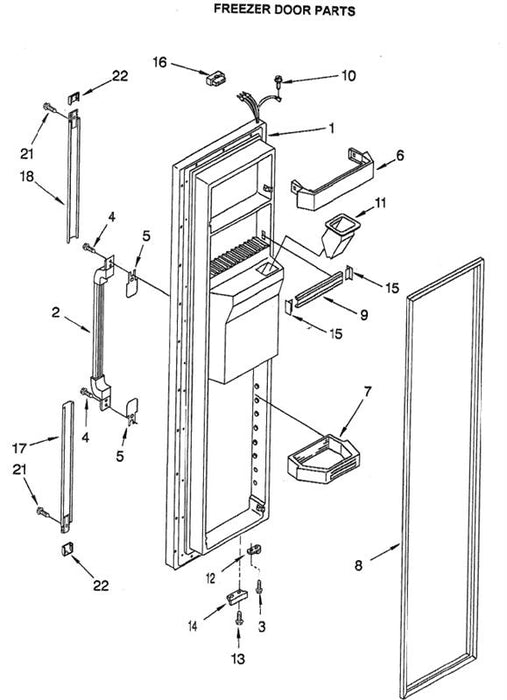

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer Door White (Incl ltem 8 & Disp. Front Parts)

$0.00
$0.00
1
2197762W

Freezer Door Black (Incl Item 8 & Disp. Front Parts)

$0.00
$0.00
-
2197762B

Handle, Complete, White

$0.00
$0.00
2
2194759W

Handle, Complete, Black

$0.00
$0.00
-
2194759B

Screw

$0.00
$0.00
3
3400012

Screw

$0.00
$0.00
4
Not applicable

Shim, End Cap (2)

$0.00
$0.00
5
2179399

Trivet, Shelf (2)

$0.00
$0.00
6
2171157

Shelf Bin (2)

$0.00
$0.00
7
2179576

Door Gasket, Magnetic, Mist Blege (Service)

$0.00
$0.00
8
2159074

Door Gasket, Magnetic, Black (Service)

$0.00
$0.00
-
2159082

Trim, Door Shelf

$0.00
$0.00
9
2195931

Screw

$0.00
$0.00
10
489422

Chute, Ice

$0.00
$0.00
11
2156146

Door Closer, Upper Cam

$0.00
$0.00
12
2182132

Screw

$0.00
$0.00
13
489420

Bracket, Door Stop, Chrome

$0.00
$0.00
14
2195950

Bracket, Door Stop, Black

$0.00
$0.00
-
2195952

Plug, Trim

$0.00
$0.00
15
2156006

Connector

$0.00
$0.00
16
2162412

Extension, Bottom, White

$0.00
$0.00
17
2194788W

Extension, Bottom, Black

$0.00
$0.00
-
2184766B

Extension, Top, White

$0.00
$0.00
18
2194765W

Extension, Top, Black

$0.00
$0.00
-
2194765B

Screw

$0.00
$0.00
21
489084

Cover, End Cap, White

$0.00
$0.00
22
2174006

Cover, End Cap, Black

$0.00
$0.00
-
2174008
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

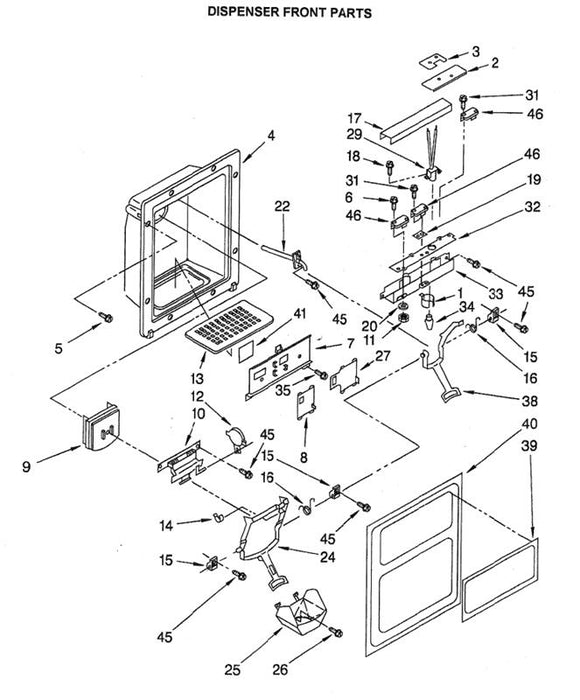

Shroud, Bracket

$0.00
$0.00
1
2188856

Switch Guard

$0.00
$0.00
2
2175228

Switch Guard

$0.00
$0.00
3
2175227

Housing Dispenser ( Not A Serviceable ltem )

$0.00
$0.00
4
-

Screw

$0.00
$0.00
5
468362

-

$0.00
$0.00
6
Not applicable

Frame, Slides, White

$0.00
$0.00
7
2152717

Frame, Slides, Black

$0.00
$0.00
-
2152718

Slide, Cube/Crust Switch, White

$0.00
$0.00
8
2152720

Slide, Cube/Crush Switch, Black

$0.00
$0.00
-
2152716

Door, Ice

$0.00
$0.00
9
2187289

Door Mechanism Assembly (Includes Item 8)

$0.00
$0.00
10
2157650

Nut

$0.00
$0.00
11
489476

Mechanism Delay

$0.00
$0.00
12
1120581

Grille, Overflow, Whlte

$0.00
$0.00
13
1126120

Grllle, Overflow, Black

$0.00
$0.00
-
2152678

Clip, Bearing (2)

$0.00
$0.00
14
987617

Bearing, Lever (3)

$0.00
$0.00
15
983697

Spring, Lever (2)

$0.00
$0.00
16
983698

Shield, Wiring

$0.00
$0.00
17
2147165

Screw

$0.00
$0.00
18
488500

Spacer, Switch

$0.00
$0.00
19
625834

Lock Washer

$0.00
$0.00
20
488734

Water Fitting Assembly

$0.00
$0.00
22
2157744

Lever Assembly, Ice Dispenser, White

$0.00
$0.00
24
2177144

Lever Assembly, Ice Dispenser, Black

$0.00
$0.00
-
2177143

Guide, Ice, White

$0.00
$0.00
25
1124730

Gulde, Ice, Black

$0.00
$0.00
-
1116035

Screw

$0.00
$0.00
26
488862

Slide, Light Switch, Whlte

$0.00
$0.00
27
2152726

Slide, Light Switch, Black

$0.00
$0.00
-
2152724

Lamp Holder

$0.00
$0.00
29
2188862

Screw

$0.00
$0.00
31
468301

Insulator, Control Bracket

$0.00
$0.00
32
2147164

Bracket, Control

$0.00
$0.00
33
2147163

Bulb, Light

$0.00
$0.00
34
989331

Screw

$0.00
$0.00
35
489101

Levar Assembly, Water Dispenser, White

$0.00
$0.00
38
2177149

Lever Assembly, Water Dispenser, Black

$0.00
$0.00
-
2177148

Plaque, Front Cover, White

$0.00
$0.00
39
2174331

Plaque, Front Cover, Black

$0.00
$0.00
-
2179207

Front Cover, Housing, White (Includes Item 39)

$0.00
$0.00
40
2174310

Front Cover, Housing, elack (Includes Item 39)

$0.00
$0.00
-
2179203

Heat Shield, Frame

$0.00
$0.00
41
2147172

Screw

$0.00
$0.00
45
489000

Switch, Micro (4)

$0.00
$0.00
46
2162381
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

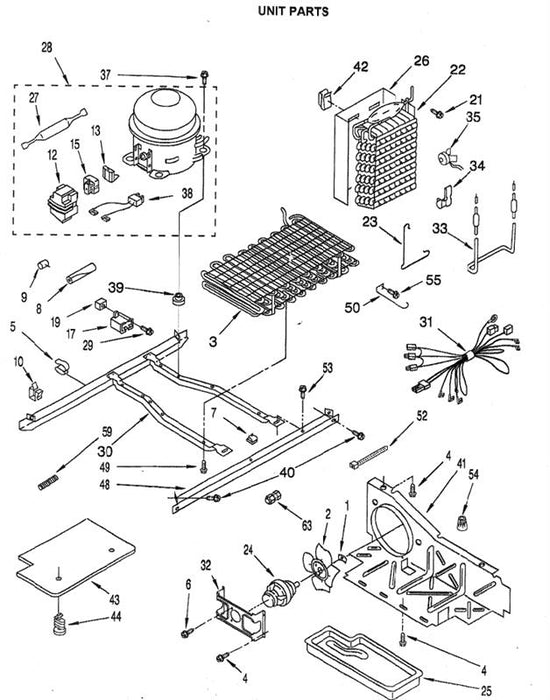

Speed Nut

$0.00
$0.00
1
488692

Fan, Blade

$0.00
$0.00
2
1108179

Condenser Assembly

$0.00
$0.00
3
2198177

Screw

$0.00
$0.00
4
489464

Clip, Wire

$0.00
$0.00
5
2155658

Screw

$0.00
$0.00
6
489099

Clip, Tube (3)

$0.00
$0.00
7
934011

Sleeve

$0.00
$0.00
8
2161302

Dampener

$0.00
$0.00
9
2158826

Clip

$0.00
$0.00
10
940073

Cover

$0.00
$0.00
12
2162358

Overload

$0.00
$0.00
13
2176860

Relay

$0.00
$0.00
15
2154755

Capacitor

$0.00
$0.00
17
2154718

Screw, Grommet

$0.00
$0.00
19
509812

Screw

$0.00
$0.00
21
489478

Evaporator

$0.00
$0.00
22
2164519

Clamp

$0.00
$0.00
23
2161324

Fan, Motor

$0.00
$0.00
24
2198746

Tray, Evaporator

$0.00
$0.00
25
1110674

Heat Shield

$0.00
$0.00
26
2149294

Drier

$0.00
$0.00
27
2164400

Compressor (Includes Items 12,13,15,17,27 & 38)

$0.00
$0.00
28
2183443

Tube Kit

$0.00
$0.00
-
876765

Screw

$0.00
$0.00
29
488887

Unit Mounting Frame

$0.00
$0.00
30
2157396

Unit, Harness

$0.00
$0.00
31
2195108

Fan, Motor Bracket

$0.00
$0.00
32
2181929

Heater, Defrost

$0.00
$0.00
33
2175047

Clip

$0.00
$0.00
34
2161330

Bi-Metal, Defrost

$0.00
$0.00
35
2176066

Screw

$0.00
$0.00
37
489373

Wire, Connector

$0.00
$0.00
38
2172890

Grommet (4)

$0.00
$0.00
39
1100826

Screw

$0.00
$0.00
40
489340

Air Baffle

$0.00
$0.00
41
2149128

Clip, Heat Shield

$0.00
$0.00
42
2155547

Unit Cover, Bottom

$0.00
$0.00
43
2182058

Cup

$0.00
$0.00
44
489386

Unit Mounting Rail

$0.00
$0.00
48
1127906

Screw

$0.00
$0.00
49
488824

Guard, Fan

$0.00
$0.00
50
1110063

Strap

$0.00
$0.00
52
2172840

Screw

$0.00
$0.00
53
489427

Wire Connector

$0.00
$0.00
54
227891

Screw

$0.00
$0.00
55
488649

Spring - Tube

$0.00
$0.00
59
983659

Union

$0.00
$0.00
63
2150347
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

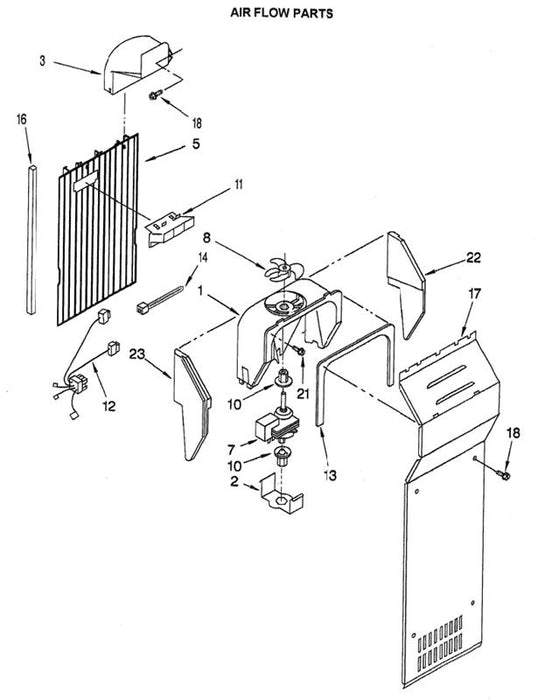

Fan Scroll

$0.00
$0.00
1
2182120

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Air Duct Freezer

$0.00
$0.00
5
2182063

Fan Motor

$0.00
$0.00
7
2154976

Fan Blade

$0.00
$0.00
8
2169142

Fan Grommet (2)

$0.00
$0.00
10
2176759

Duct, lcemaker

$0.00
$0.00
11
2182146

Harness, Fan Evaporator, And Heater, BI-Metal

$0.00
$0.00
12
2189504

Gasket Cover

$0.00
$0.00
13
2155789

Wire Tie

$0.00
$0.00
14
2172840

Gasket

$0.00
$0.00
16
2155782

Cover, Evaporator

$0.00
$0.00
17
2155612

Screw

$0.00
$0.00
18
489355

Screw

$0.00
$0.00
21
488478

Support, Right Side.

$0.00
$0.00
22
2161484

Support, Left Side

$0.00
$0.00
23
2155766
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

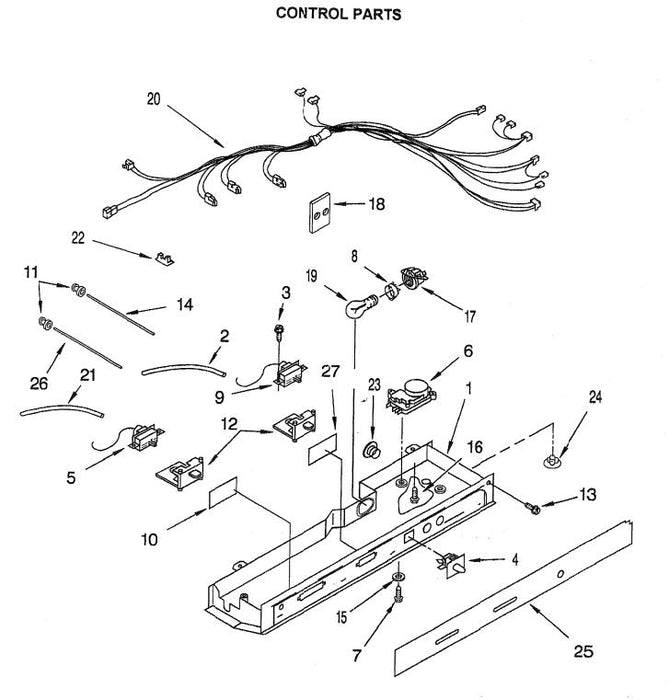

Control Box

$0.00
$0.00
1
2161459

Tube Barrier, Thermostat

$0.00
$0.00
2
2182150

Screw (3)

$0.00
$0.00
3
489214

Light Switch

$0.00
$0.00
4
2149705

Thermostat (FC)

$0.00
$0.00
5
2182770

Defrost Timer

$0.00
$0.00
6
2162057

Screw (2)

$0.00
$0.00
7
489398

Shroud, Light

$0.00
$0.00
8
2169193

Thermostat ( R.C.)

$0.00
$0.00
9
2161460

Window

$0.00
$0.00
10
2172940

Grommet, Light Bar

$0.00
$0.00
11
2172906

Slide, Thermostat

$0.00
$0.00
12
2161466

Screw (2)

$0.00
$0.00
13
489084

Light Bar (RC)

$0.00
$0.00
14
2179920

Washer

$0.00
$0.00
15
486632

Screw (2)

$0.00
$0.00
16
489290

Light Socket

$0.00
$0.00
17
2162085

Heat Shield

$0.00
$0.00
18
2172931

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2183733

Clip, Wiring

$0.00
$0.00
21
2196003

Clip, Wiring

$0.00
$0.00
22
1115375

Escutcheon, Control Box

$0.00
$0.00
25
2175179

Light Bar (FC)

$0.00
$0.00
26
2179921

Window

$0.00
$0.00
27
2172941
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

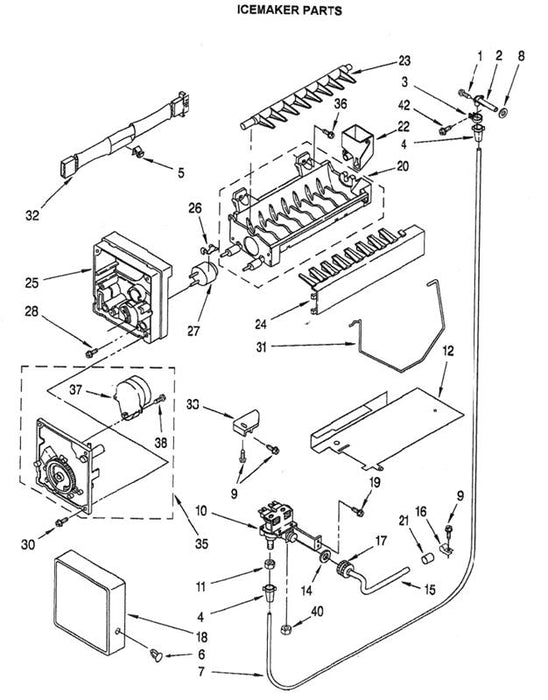

Screw

$0.00
$0.00
1
489084

Fitting, Water Tube

$0.00
$0.00
2
2182015

Clamp, Tube

$0.00
$0.00
3
488878

Insert, Tube

$0.00
$0.00
4
2181939

Clip, Fuse

$0.00
$0.00
5
628379

Clip

$0.00
$0.00
6
489115

Tube, Water

$0.00
$0.00
7
2181940

Seal, Gasket

$0.00
$0.00
8
1106508

Screw

$0.00
$0.00
9
489478

Valve, Solenoid

$0.00
$0.00
10
2175056

Nut, Compression

$0.00
$0.00
11
627018

Heat Shield

$0.00
$0.00
12
2182414

Tube, Water Inlet

$0.00
$0.00
13
Not applicable

Washer

$0.00
$0.00
14
628337

Tube, Inlet Valve

$0.00
$0.00
15
627861

Clamp

$0.00
$0.00
16
510716

Nut

$0.00
$0.00
17
537588

Cover

$0.00
$0.00
18
2174183

Screw

$0.00
$0.00
19
488649

Mould & Heater Assembly ( Also Order )

$0.00
$0.00
20
628282

Silicone Grease

$0.00
$0.00
-
542638

Dampener

$0.00
$0.00
21
836074

Cup, Water Fill

$0.00
$0.00
22
628356

Ejector

$0.00
$0.00
23
627843

Ice Stripper

$0.00
$0.00
24
2182124

Support

$0.00
$0.00
25
2195914

Retainer, Thermostat

$0.00
$0.00
26
627796

Thermostat ( Also Order)

$0.00
$0.00
27
627985

Cement Alumilastic

$0.00
$0.00
-
542309

Screw

$0.00
$0.00
28
489322

Screw

$0.00
$0.00
30
489276

Shut Off Arm

$0.00
$0.00
31
2171593

Harness, Wiring

$0.00
$0.00
32
628281

Bracket

$0.00
$0.00
33
628320

Module Assembly ( Includes Items 37 & 38 )

$0.00
$0.00
35
628377

Screw

$0.00
$0.00
36
488208

Motor

$0.00
$0.00
37
828303

Screw

$0.00
$0.00
38
489136

Nut, Compression

$0.00
$0.00
40
1129179

Screw

$0.00
$0.00
42
488886
