6ED2FHGXSQ00

6ED2FHGXSQ00

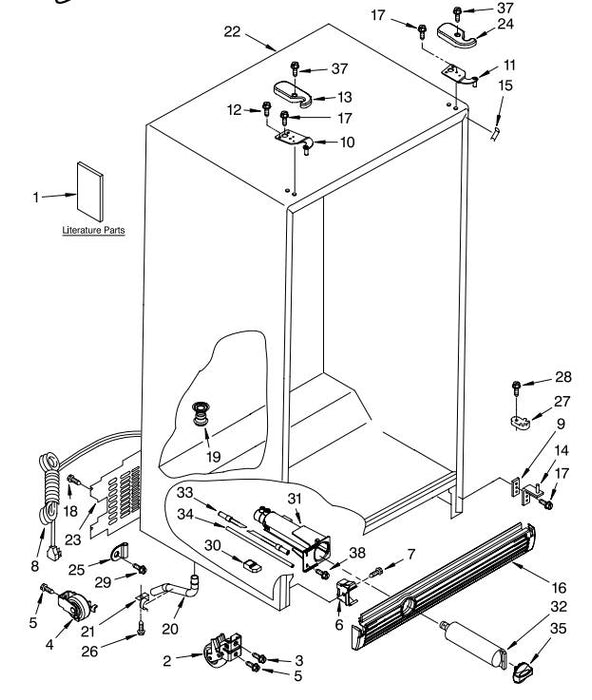

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Literature Parts

$0.00
$0.00
1
---

Use & Care Guide

$0.00
$0.00
-
2308181

Service & Wiring Sheet

$0.00
$0.00
-
2317465

Energy Label

$0.00
$0.00
-
2318268

Modular Icemaker Service Sheet

$0.00
$0.00
-
628371

Front Roller (2)

$0.00
$0.00
2
2174748

Screw

$0.00
$0.00
3
3400517

Roller (Rear) (2)

$0.00
$0.00
4
2196236

Screw

$0.00
$0.00
5
489427

Clip, Grille

$0.00
$0.00
6
2155013

Screw

$0.00
$0.00
7
488500

Service Cord

$0.00
$0.00
8
2187915

Shim (2)

$0.00
$0.00
9
2209697

Hinge Top, FC

$0.00
$0.00
10
2203770

Hinge Top, RC

$0.00
$0.00
11
2203771

Screw

$0.00
$0.00
12
8281149

Hinge Cover, FC

$0.00
$0.00
13
---

White

$0.00
$0.00
-
2203407W

Black

$0.00
$0.00
-
2203407B

Hinge Bottom (2)

$0.00
$0.00
14
2304322

Filler, Wrapper

$0.00
$0.00
15
---

White

$0.00
$0.00
-
2196094

Black

$0.00
$0.00
-
2196097

Grille

$0.00
$0.00
16
---

White

$0.00
$0.00
-
2198467W

Black

$0.00
$0.00
-
2198467B

Screw (2)

$0.00
$0.00
17
3400113

Screw

$0.00
$0.00
18
489464

Drain Fitting

$0.00
$0.00
19
940139

Extension Tube

$0.00
$0.00
20
1108438

Clip, Drain Tube

$0.00
$0.00
21
1108439

Cabinet (Not A Service Part)

$0.00
$0.00
22
---

Cover, Unit

$0.00
$0.00
23
2220757

Hinge Cover, RC

$0.00
$0.00
24
---

White

$0.00
$0.00
-
2203408W

Black

$0.00
$0.00
-
2203408B

Clamp, Cord

$0.00
$0.00
25
489348

Screw

$0.00
$0.00
26
489084

Door Closer, Lower Cam (2)

$0.00
$0.00
27
2155311

Screw

$0.00
$0.00
28
489483

Screw

$0.00
$0.00
29
488687

Block, Housing Support

$0.00
$0.00
30
2186489

Housing, Water Filter

$0.00
$0.00
31
2186443

Water Filter

$0.00
$0.00
32
4392857

Tube, Filter Inlet

$0.00
$0.00
33
2304697

Tube, Filter Outlet

$0.00
$0.00
34
2255012

Cap, Water Filter

$0.00
$0.00
35
---

White

$0.00
$0.00
-
2186494W

Black

$0.00
$0.00
-
2186494B

Screw

$0.00
$0.00
37
8281227

Screw (2)

$0.00
$0.00
38
489500
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

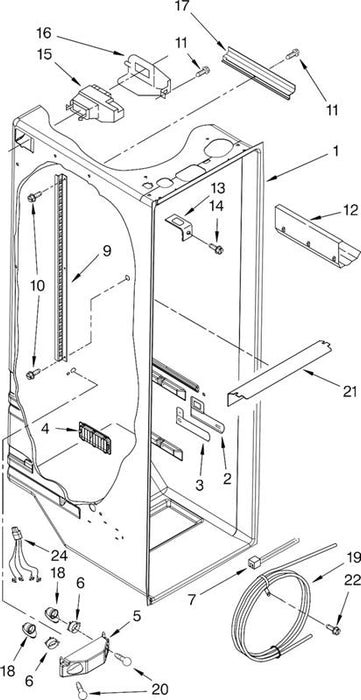

Liner (Not A Serviceable Part)

$0.00
$0.00
1
---

Escutcheon, Meat Pan Control

$0.00
$0.00
2
2194744

Slide Meat Pan Control

$0.00
$0.00
3
2182757

Louver

$0.00
$0.00
4
2257741

Bracket, Dual Crisper Light

$0.00
$0.00
5
2256035

Shroud, Light

$0.00
$0.00
6
2169193

Wire Tie

$0.00
$0.00
7
2205813

Shelf Ladder

$0.00
$0.00
9
2206270

Screw

$0.00
$0.00
10
489478

Screw (2)

$0.00
$0.00
11
W10004810

Rack, Wine & Egg

$0.00
$0.00
12
2179404K

Bracket Retainer

$0.00
$0.00
13
2256085

Screw

$0.00
$0.00
14
489290

Air Diffuser Assembly

$0.00
$0.00
15
2209752

Air Diffuser Cover

$0.00
$0.00
16
2212240

Cover, Conduit

$0.00
$0.00
17
2150331

Socket

$0.00
$0.00
18
2317419

Reservoir

$0.00
$0.00
19
2256126

Light Bulb

$0.00
$0.00
20
851682

Light Lens

$0.00
$0.00
21
2209769

Screw (2)

$0.00
$0.00
22
488280

Wire Harness, Crisper Light

$0.00
$0.00
24
2256037
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

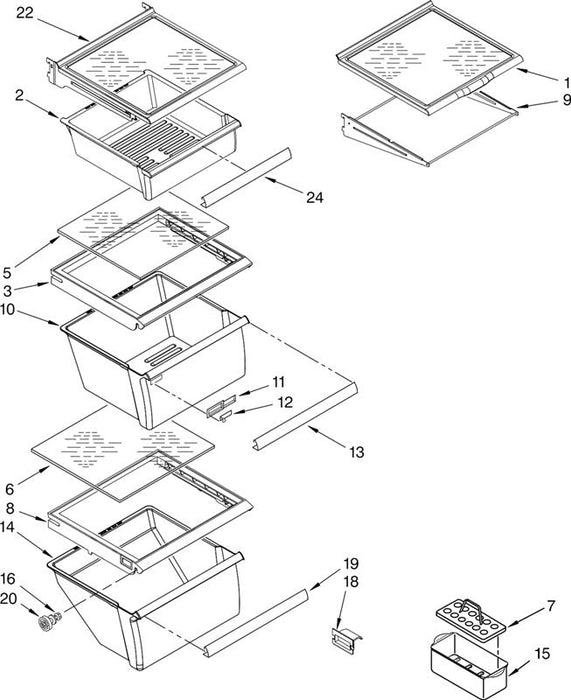

Shelf Assembly, Glass Sliding (2)

$0.00
$0.00
1
2194736

Snack Bin

$0.00
$0.00
2
2188667

Cover, Crisper

$0.00
$0.00
3
2209698

Glass, Cover

$0.00
$0.00
5
2174150

Glass, Cover

$0.00
$0.00
6
2179259

Egg Carrier

$0.00
$0.00
7
2177817

Cover, Meat Pan

$0.00
$0.00
8
2311726

Frame, Shelf (2)

$0.00
$0.00
9
2195975

Crisper Pan

$0.00
$0.00
10
2188652

Front, Crisper Pan

$0.00
$0.00
11
2179343

Slide, Humidity Control

$0.00
$0.00
12
2179342

Trim, Handle

$0.00
$0.00
13
2255593

Meat Pan

$0.00
$0.00
14
2188654

Egg Bin

$0.00
$0.00
15
2216625

Screw

$0.00
$0.00
16
3400894

Deflector

$0.00
$0.00
18
2179350

Trim, Handle

$0.00
$0.00
19
2255592

Stud Assembly

$0.00
$0.00
20
2196485

Shelf, Snack Bin

$0.00
$0.00
22
2206347

Trim, Handle

$0.00
$0.00
24
2179243

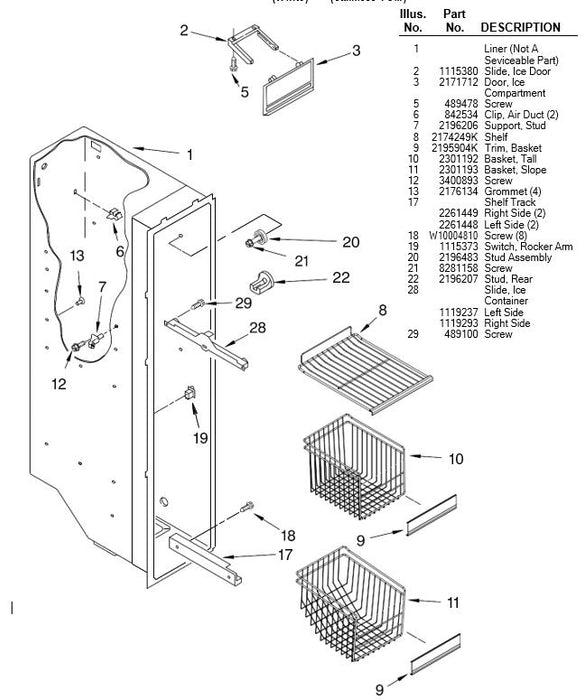

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Seviceable Part)

$0.00
$0.00
1
---

Slide, Ice Door

$0.00
$0.00
2
1115380

Door, Ice Compartment

$0.00
$0.00
3
2171712

Screw

$0.00
$0.00
5
489478

Clip, Air Duct (2)

$0.00
$0.00
6
842534

Support, Stud

$0.00
$0.00
7
2196206

Shelf

$0.00
$0.00
8
2174249K

Trim, Basket

$0.00
$0.00
9
2195904K

Basket, Tall

$0.00
$0.00
10
2301192

Basket, Slope

$0.00
$0.00
11
2301193

Screw

$0.00
$0.00
12
3400893

Grommet (4)

$0.00
$0.00
13
2176134

Shelf Track

$0.00
$0.00
17
---

Right Side (2)

$0.00
$0.00
-
2261449

Left Side (2)

$0.00
$0.00
-
2261448

Screw (8)

$0.00
$0.00
18
W10004810

Switch, Rocker Arm

$0.00
$0.00
19
1115373

Stud Assembly

$0.00
$0.00
20
2196483

Screw

$0.00
$0.00
21
8281158

Stud, Rear

$0.00
$0.00
22
2196207

Slide, Ice Container

$0.00
$0.00
28
---

Left Side

$0.00
$0.00
-
1119237

Right Side

$0.00
$0.00
-
1119293

Screw

$0.00
$0.00
29
489100
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

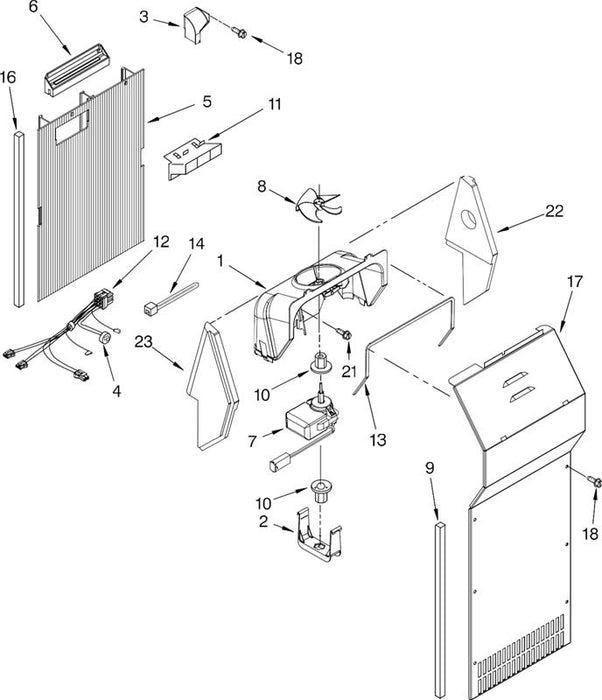

Fan Scroll

$0.00
$0.00
1
2182119

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Bi−Metal, Defrost

$0.00
$0.00
4
2188824

Air Duct Freezer

$0.00
$0.00
5
2203591

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
2303346

Fan Blade

$0.00
$0.00
8
2169142

Fan Grommet (2)

$0.00
$0.00
9
2176759

Gasket, Evaporator Cover (2)

$0.00
$0.00
10
2304241

Duct, Icemaker

$0.00
$0.00
11
2182146

Harness, Fan Evaporator (Includes #4)

$0.00
$0.00
12
2310130

Gasket, Fan Scroll

$0.00
$0.00
13
2155788

Wire Tie

$0.00
$0.00
14
2172840

Gasket (2)

$0.00
$0.00
16
2203875

Cover, Evaporator (Includes #9)

$0.00
$0.00
17
2203840

Screw (6)

$0.00
$0.00
18
8281159

Screw

$0.00
$0.00
21
489478

Support, R.S

$0.00
$0.00
22
2203595

Support, L.S

$0.00
$0.00
23
2203596
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

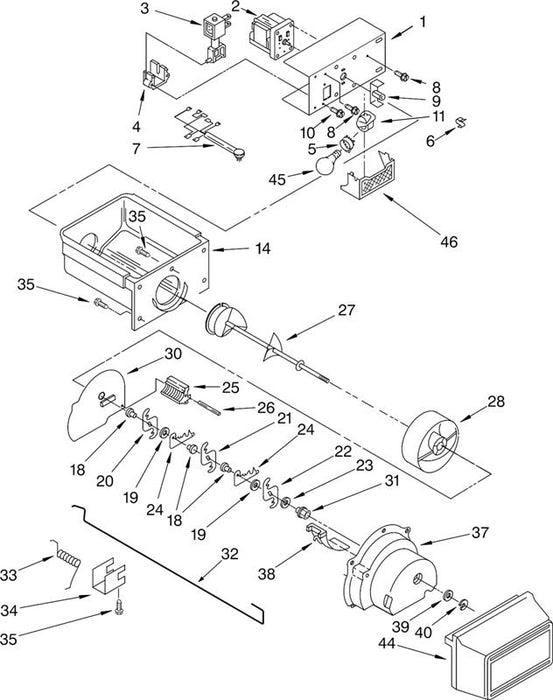

Bracket, Motor

$0.00
$0.00
1
2183728

Motor, Dispenser

$0.00
$0.00
2
2188386

Soleniod Assembly

$0.00
$0.00
3
2165210

Guide, Solenoid

$0.00
$0.00
4
2149100

Shroud, Light

$0.00
$0.00
5
2169193

Shield, Wiring

$0.00
$0.00
6
1129563

Wiring Assembly, Ice Dispenser

$0.00
$0.00
7
2206501

Screw

$0.00
$0.00
8
489399

Coupling, Motor

$0.00
$0.00
9
2205716

Screw

$0.00
$0.00
10
489478

Socket, Light

$0.00
$0.00
11
2317419

Ice Container

$0.00
$0.00
14
2196089

Spacer, Step (3)

$0.00
$0.00
18
1119005

Spacer, Flat (2)

$0.00
$0.00
19
1119007

Blade, Rotary

$0.00
$0.00
20
2257022

Blade, Rotary

$0.00
$0.00
21
2257023

Blade, Rotary

$0.00
$0.00
22
2257024

Washer, Plain

$0.00
$0.00
23
489235

Blade, Fixed (2)

$0.00
$0.00
24
1119009

Block, Blade

$0.00
$0.00
25
2157405

Roll Pin

$0.00
$0.00
26
489229

Auger

$0.00
$0.00
27
2196295

Drum

$0.00
$0.00
28
2209781

Floating Baffle

$0.00
$0.00
30
2171682

Nut, Bearing

$0.00
$0.00
31
1119018

Control Arm

$0.00
$0.00
32
2155231

Spring, Return

$0.00
$0.00
33
1119020

Retainer Clip, Rod

$0.00
$0.00
34
1119021

Screw

$0.00
$0.00
35
488886

Housing, Crusher

$0.00
$0.00
37
2180348

Deflector, Ice

$0.00
$0.00
38
1119017

Washer, Plain

$0.00
$0.00
39
489234

Retainer Ring

$0.00
$0.00
40
489236

Front Cover, Ice Container

$0.00
$0.00
44
2171709

Light Bulb

$0.00
$0.00
45
851682

Light Lens, Dispenser

$0.00
$0.00
46
2171706

Ice Container Assembly

$0.00
$0.00
100
2209779
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

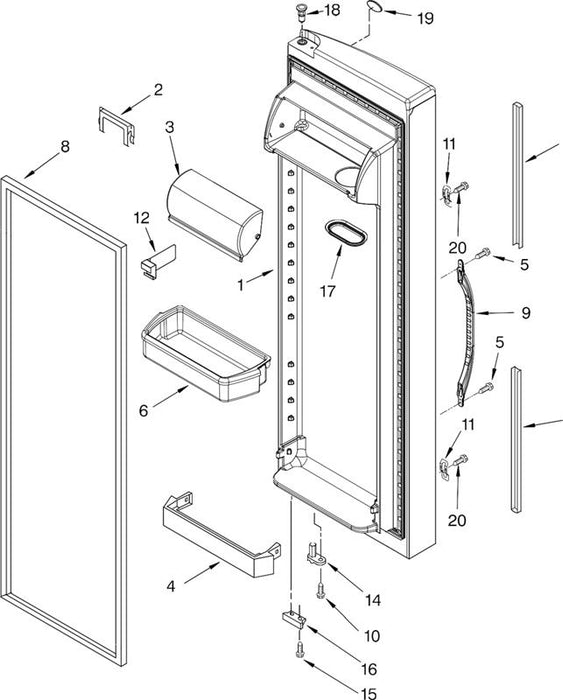

Refrigerator Door (Includes #8)

$0.00
$0.00
1
---

White

$0.00
$0.00
-
2318241W

Stainless VCM

$0.00
$0.00
-
2206716LG

Retainer, Bottle

$0.00
$0.00
2
2173643K

Door, Compartment

$0.00
$0.00
3
2256101

Trivet

$0.00
$0.00
4
2156022

Screw

$0.00
$0.00
5
489491

Shelf Bin (3)

$0.00
$0.00
6
2304235K

Extension, Bottom

$0.00
$0.00
7
---

White

$0.00
$0.00
-
2194969W

Black

$0.00
$0.00
-
2194969B

Door Gasket, Magnetic

$0.00
$0.00
8
---

Mist Beige

$0.00
$0.00
-
2221300

Black

$0.00
$0.00
-
2221311

Handle, Center

$0.00
$0.00
9
---

White

$0.00
$0.00
-
2186649W

Black

$0.00
$0.00
-
2186649B

Screw

$0.00
$0.00
10
3400012

Divider, Bin

$0.00
$0.00
11
2195496K

Clip

$0.00
$0.00
12
2195327

Extension, Top

$0.00
$0.00
13
---

White

$0.00
$0.00
-
2194971W

Black

$0.00
$0.00
-
2194971B

Door Closer, Upper Cam

$0.00
$0.00
14
2182178

Screw

$0.00
$0.00
15
489420

Bracket, Door Stop

$0.00
$0.00
16
---

Chrome

$0.00
$0.00
-
2206629

Black

$0.00
$0.00
-
2206629B

Butter Dish

$0.00
$0.00
17
2165792K

Thimble, Top

$0.00
$0.00
18
2308091

Nameplate

$0.00
$0.00
19
2255121

Screw

$0.00
$0.00
20
3400852
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

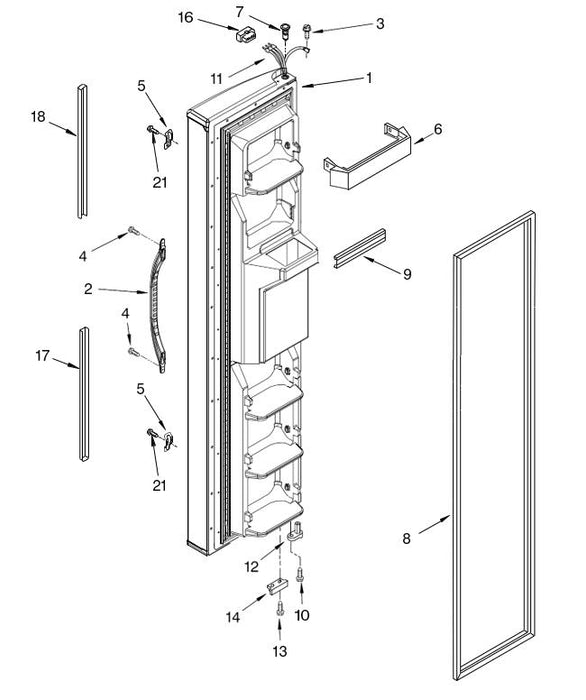

Freezer Door (Includes Item #8 And Dispenser Front Parts)

$0.00
$0.00
1
---

White

$0.00
$0.00
-
2318252W

Stainless VCM

$0.00
$0.00
-
2318253LG

Handle, Center

$0.00
$0.00
2
---

White

$0.00
$0.00
-
2186649W

Black

$0.00
$0.00
-
2186649B

Clip

$0.00
$0.00
3
2195327

Screw

$0.00
$0.00
4
488500

Screw

$0.00
$0.00
5
489491

Trivet, Shelf (4)

$0.00
$0.00
6
2156021K

Thimble, Top

$0.00
$0.00
7
2182181

Door Gasket, Magnetic

$0.00
$0.00
8
---

Mist Beige

$0.00
$0.00
-
2221301

Black

$0.00
$0.00
-
2221312

Trim, Door Shelf

$0.00
$0.00
9
2209680

Screw

$0.00
$0.00
10
3400012

Wire Harness

$0.00
$0.00
11
2206602

Door Closer, Upper Cam

$0.00
$0.00
12
2182179

Screw

$0.00
$0.00
13
489420

Bracket, Door Stop

$0.00
$0.00
14
---

Chrome

$0.00
$0.00
-
2206629

Black

$0.00
$0.00
-
2206629B

Connector

$0.00
$0.00
16
2154473

Extension, Bottom

$0.00
$0.00
17
---

White

$0.00
$0.00
-
2194969W

Black

$0.00
$0.00
-
2194969B

Extension, Top

$0.00
$0.00
18
---

White

$0.00
$0.00
-
2194971W

Black

$0.00
$0.00
-
2194971B

Screw

$0.00
$0.00
21
3400852
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

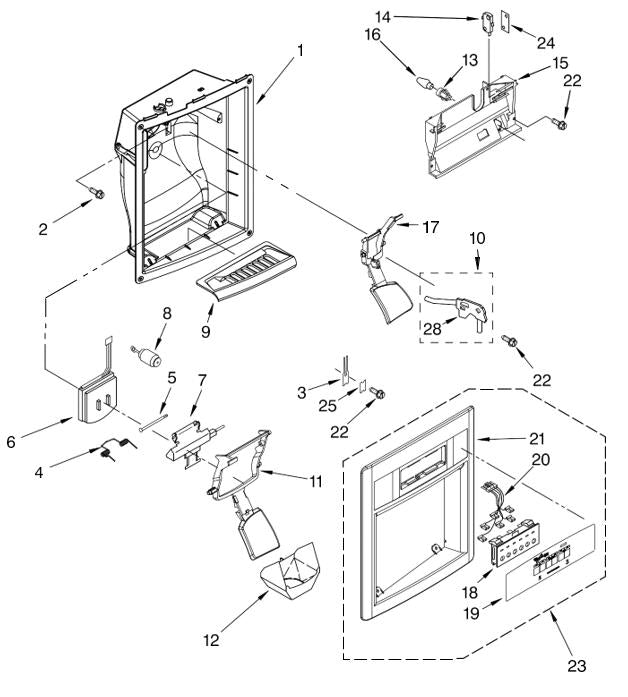

Housing, Dispenser (Not Serviced)

$0.00
$0.00
1
---

Screw

$0.00
$0.00
2
3196537

Retainer, Levers

$0.00
$0.00
3
2194719

Spring, Torsion

$0.00
$0.00
4
2304772

Pin

$0.00
$0.00
5
2196195

Door, Ice

$0.00
$0.00
6
2180353

Door Mechanism Assembly

$0.00
$0.00
7
2304355

Mechanism Delay

$0.00
$0.00
8
2205686

Grille, Overflow

$0.00
$0.00
9
---

White

$0.00
$0.00
-
2206671W

Black

$0.00
$0.00
-
2206671B

Water Fitting Assembly (Includes Water Tube)

$0.00
$0.00
10
2304317

Lever, Ice

$0.00
$0.00
11
---

White

$0.00
$0.00
-
2255431W

Black

$0.00
$0.00
-
2255431B

Dispenser

$0.00
$0.00
12
---

Guide, Ice

$0.00
$0.00
13
2180224

Lamp Holder

$0.00
$0.00
14
2180200

Switch (2)

$0.00
$0.00
15
2162361

Bracket, Control

$0.00
$0.00
16
2183771

Bulb, Light

$0.00
$0.00
17
989331

Lever, Water

$0.00
$0.00
-
---

White

$0.00
$0.00
-
2255432W

Black

$0.00
$0.00
18
2255432B

Dispenser

$0.00
$0.00
19
---

Switch Assembly (Not Available, Order #23)

$0.00
$0.00
20
---

Overlay, Front Cover (Not Available, Order #23)

$0.00
$0.00
21
---

Wire Assembly

$0.00
$0.00
22
2187408

Front Cover, Housing (Not Available, Order #23)

$0.00
$0.00
23
---

Screw

$0.00
$0.00
-
489000

Front Cover Assembly

$0.00
$0.00
-
---

White

$0.00
$0.00
24
2318257W

Black

$0.00
$0.00
25
2318257B

(Includes Items 18, 19, 20 & 21)

$0.00
$0.00
28
---

Spacer, Switch (2)

$0.00
$0.00
625834

Strain Relief

$0.00
$0.00
2195051

Bracket, Dispenser

$0.00
$0.00
2304673
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

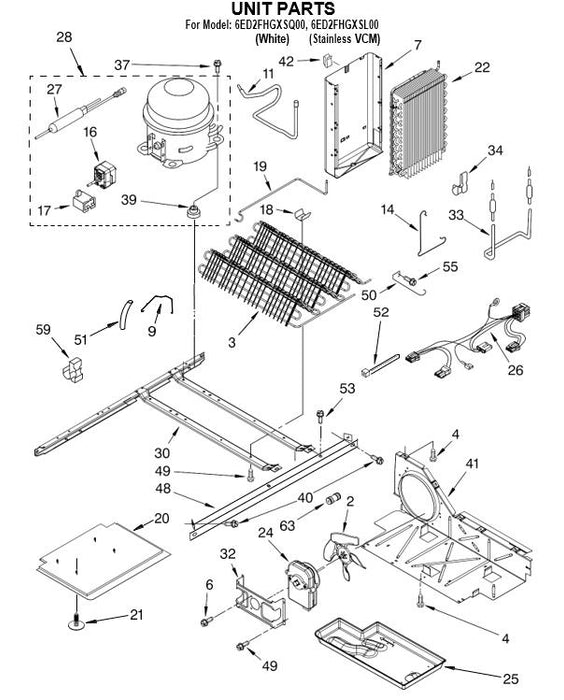

Fan, Blade

$0.00
$0.00
2
2225834

Condenser Assembly

$0.00
$0.00
3
2304902

Heat Shield And Drain Pan

$0.00
$0.00
4
2304288

Strap, Bale

$0.00
$0.00
6
2302129

Tube Suction

$0.00
$0.00
7
2205764

Clip, Defrost Heater

$0.00
$0.00
9
2161324

Start−Device, Combination (Start Relay and Overload) For Production & Srvc Compressor

$0.00
$0.00
11
2303344

Capacitor

$0.00
$0.00
14
2254217

Clip, Condenser

$0.00
$0.00
16
2216914

Tube, Condenser to Heat Loop

$0.00
$0.00
17
2261599

Unit Cover, Bottom

$0.00
$0.00
18
2304900

Clip

$0.00
$0.00
19
489396

Evaporator

$0.00
$0.00
20
2188822

Motor, Fan

$0.00
$0.00
21
2188879

Tray, Evaporator

$0.00
$0.00
22
1105523

Harness, Unit

$0.00
$0.00
24
2187932

Drier

$0.00
$0.00
25
2317845

Compressor (Includes Items 16, 17, 27 & 39) (Also Order 876765 Tube Kit)

$0.00
$0.00
26
2303342

Unit Mounting Frame

$0.00
$0.00
27
2304903

Bracket, Fan Motor

$0.00
$0.00
28
2181929

Heater, Defrost

$0.00
$0.00
30
2313330

Clip

$0.00
$0.00
32
2304287

Screw

$0.00
$0.00
33
489373

Grommet (4)

$0.00
$0.00
34
---

Production

$0.00
$0.00
37
1100826

Service

$0.00
$0.00
39
4387558

Screw

$0.00
$0.00
-
489340

Air Baffle

$0.00
$0.00
-
2196202

Clip, Heat

$0.00
$0.00
40
2155547

Unit Mounting Rail

$0.00
$0.00
41
2149718

Screw

$0.00
$0.00
42
8281232

Guard, Fan

$0.00
$0.00
48
2186496

Sleeve

$0.00
$0.00
49
2161302

Wire Tie

$0.00
$0.00
50
2172840

Screw

$0.00
$0.00
51
489427

Screw

$0.00
$0.00
52
489478

Clip, Wire & Tube

$0.00
$0.00
53
2208280

Connector, Water Tube

$0.00
$0.00
55
2209709

Valve, Access (1/4")

$0.00
$0.00
59
978025

Valve, Access (5/16")

$0.00
$0.00
63
978026

Valve, Access (3/8")

$0.00
$0.00
978027

Valve, Access (1/2")

$0.00
$0.00
978028

Valve, Access (5/8")

$0.00
$0.00
978029

Valve, Access (3/4")

$0.00
$0.00
978030

Valve, Access (3/16")

$0.00
$0.00
876764
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

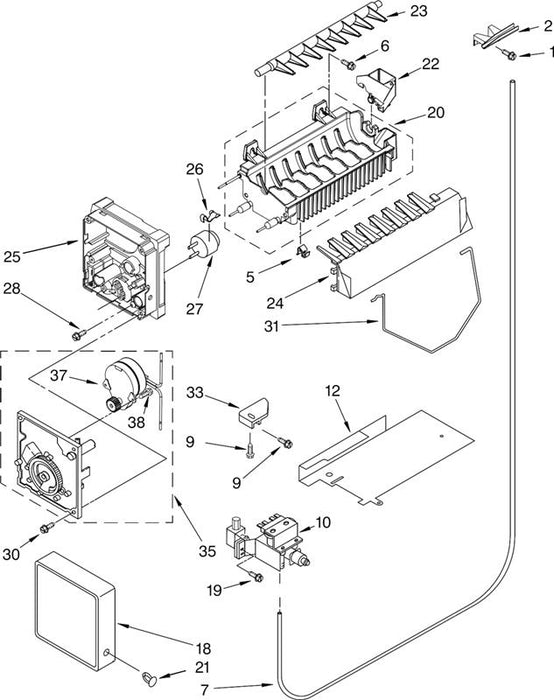

Screw

$0.00
$0.00
1
489084

Chute, Water

$0.00
$0.00
2
2209774

Clip, Fuse

$0.00
$0.00
5
628379

Screw

$1.00
$1.00
6
488208

Tube, Water

$2.00
$2.00
7
2304859

Screw

$3.00
$3.00
9
489478

Filter Valve Asm

$4.00
$4.00
10
2304756

Heat Shield

$5.00
$5.00
12
2182414

Clamp, Tube

$6.00
$6.00
16
489385

Cover

$7.00
$7.00
18
2174183

Screw

$8.00
$8.00
19
488649

Mold & Heater Assembly (Also Order 542638 Silicone Grease)

$9.00
$9.00
20
628548

Clip

$10.00
$10.00
21
489115

Cup−Water Fill

$11.00
$11.00
22
628356

Ejector

$12.00
$12.00
23
627843

Ice Striper

$13.00
$13.00
24
2182124

Support

$14.00
$14.00
25
2195914

Retainer, Thermostat

$15.00
$15.00
26
2315522

Thermostat (Also Order 542369 Cement Alumilastic)

$16.00
$16.00
27
627985

Screw

$0.00
$0.00
28
8533917

Screw

$0.00
$0.00
30
489276

Shut Off Arm

$0.00
$0.00
31
2304354

Bracket

$0.00
$0.00
33
628320

Module Assembly (Includes Items 37 & 38)

$0.00
$0.00
35
2187134

Motor

$0.00
$0.00
37
628530

Screw

$0.00
$0.00
38
489136
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

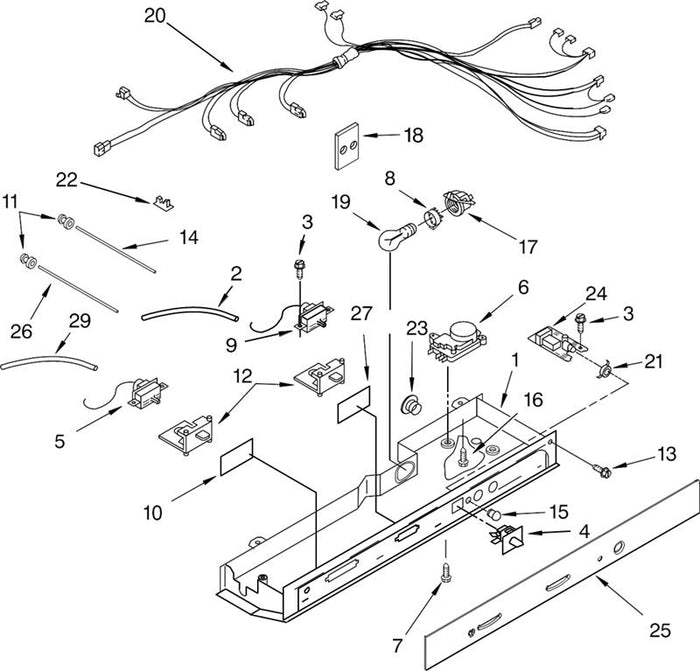

Control Box

$0.00
$0.00
1
2200135

Tube Barrier, Thermostat

$0.00
$0.00
2
2182150

Screw (3)

$0.00
$0.00
3
489214

Light Switch

$0.00
$0.00
4
2313410

Thermostat (FC)

$0.00
$0.00
5
2187158

Timer, Defrost

$0.00
$0.00
6
2188380

Screw (2)

$0.00
$0.00
7
489398

Shroud, Light

$0.00
$0.00
8
2175210

Thermostat (RC)

$0.00
$0.00
9
2161460

Window

$0.00
$0.00
10
2172940

Grommet, Light Bar

$0.00
$0.00
11
2172906

Slide Thermostat

$0.00
$0.00
12
2161466

Screw (2)

$0.00
$0.00
13
489084

Light Bar (RC)

$0.00
$0.00
14
2179920

Cover, Indicator Light Lens

$0.00
$0.00
15
2200096

Screw (2)

$0.00
$0.00
16
489290

Light Socket

$0.00
$0.00
17
2317419

Heat Shield

$0.00
$0.00
18
2172931

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2310066

Retainer, Light Lens

$0.00
$0.00
21
2200097

Clip, Wiring

$0.00
$0.00
22
1115375

Hole Plug

$0.00
$0.00
23
940014

P.C. Board Filter Indicator

$0.00
$0.00
24
2205787

Escutcheon, Control Box

$0.00
$0.00
25
2261751

Light Bar (FC)

$0.00
$0.00
26
2179921

Window

$0.00
$0.00
27
2172941

Tube Barrier, Thermostat

$0.00
$0.00
29
2196003

Primer, White

$0.00
$0.00
350942

Black

$0.00
$0.00
350939

White

$0.00
$0.00
350930

Graphite

$0.00
$0.00
8171357

White

$0.00
$0.00
72017

Black

$0.00
$0.00
72032

Graphite

$0.00
$0.00
80051

Black

$0.00
$0.00
799340

White

$0.00
$0.00
799344

Graphite

$0.00
$0.00
8171358

Sealer, Gum (4 Feet)

$0.00
$0.00
212643

Tape, Vinyl (3/4 x 108")

$0.00
$0.00
479502

Sealer, Mastic (1 Qt.)

$0.00
$0.00
505587

Cork, Sealer (1/4 Pound)

$0.00
$0.00
503695

Grease, Silicone (1/2 Oz.)

$0.00
$0.00
542638

Cement, Alumilastic (1−1/4 Oz.)

$0.00
$0.00
542639

Kit, Evaporator Repair (Aluminum Epoxy)

$0.00
$0.00
799833

Kit, Terminal Connector

$0.00
$0.00
833938

Torx Key

$0.00
$0.00
1117510
