6ED2FHGXVQ01

6ED2FHGXVQ01

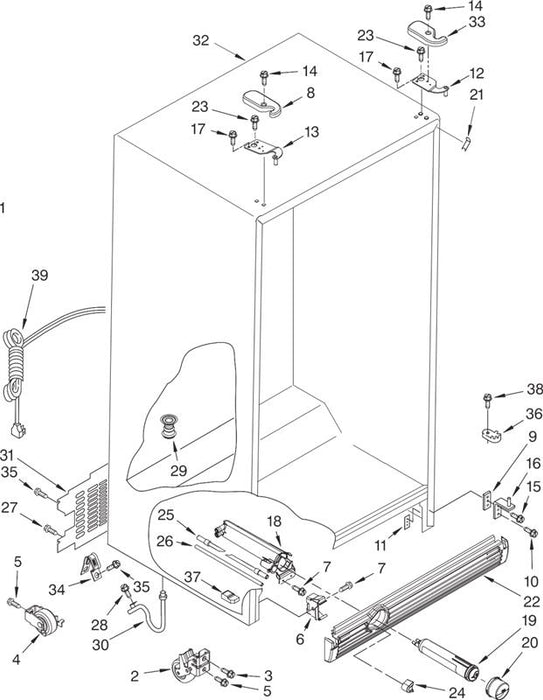

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Literature Parts Use & Care Guide

$0.00
$0.00
1
W10217561

Service & Wiring Sheet

$0.00
$0.00
-
W10154822

Energy Guide

$0.00
$0.00
-
W10144366

Instruction Sheet, Door Removal

$0.00
$0.00
-
W10180407

Front Roller (2)

$0.00
$0.00
-
2174748

Screw

$0.00
$0.00
2
3400517

Roller (Rear) (2)

$0.00
$0.00
3
2196236

Screw

$0.00
$0.00
4
489427

Clip, Grille

$0.00
$0.00
5
2155013

Screw

$0.00
$0.00
6
488500

Hinge Cover, FC

$0.00
$0.00
7
----

White

$0.00
$0.00
8
W10138581

Apollo Grey

$0.00
$0.00
-
W10138584

Shim (2)

$0.00
$0.00
-
2209697

Screw (2)

$0.00
$0.00
9
3400103

Plate, Screw (2)

$0.00
$0.00
10
2304249

Hinge Top, RC

$0.00
$0.00
11
2203771

Hinge Top, FC

$0.00
$0.00
12
2203770

Screw

$0.00
$0.00
13
8281227

Screw (4)

$0.00
$0.00
14
3400113

Hinge Bottom (2)

$0.00
$0.00
15
2217075

Screw

$0.00
$0.00
16
3400858

Housing, Filter

$0.00
$0.00
17
W10121138

Water Filter

$0.00
$0.00
18
4396841

Cap, Water Filter

$0.00
$0.00
19
---

White

$0.00
$0.00
20
2260502W

Midnight Grey

$0.00
$0.00
-
2260502MG

Filler, Wrapper

$0.00
$0.00
-
---

White

$0.00
$0.00
21
2201014

Grey

$0.00
$0.00
-
2254507

Grille

$0.00
$0.00
-
---

White

$0.00
$0.00
22
W10184869

Midnight Grey

$0.00
$0.00
-
W10184882

Screw (6)

$0.00
$0.00
-
489497

Button, Filter

$0.00
$0.00
23
---

White

$0.00
$0.00
24
2260503W

Midnight Grey

$0.00
$0.00
-
2260503MG

Tube, Inlet

$0.00
$0.00
-
2304697

Tube, Outlet

$0.00
$0.00
25
2255012

Drain Fitting

$0.00
$0.00
26
2304888

Extension Tube

$0.00
$0.00
27
W10153550

Cover, Unit

$0.00
$0.00
28
2220757

Cabinet (Not A Serviceable Part)

$0.00
$0.00
29
---

Hinge Cover, RC

$0.00
$0.00
30
---

White

$0.00
$0.00
31
W10138576

Apollo Grey

$0.00
$0.00
32
W10138579

Clamp, Service Cord

$0.00
$0.00
33
489348

Screw

$0.00
$0.00
-
488687

Door Closer, Lower Cam (2)

$0.00
$0.00
-
2155311

Block, Housing

$0.00
$0.00
34
2260519

Screw

$0.00
$0.00
35
489483

Service Cord

$0.00
$0.00
36
W10123616

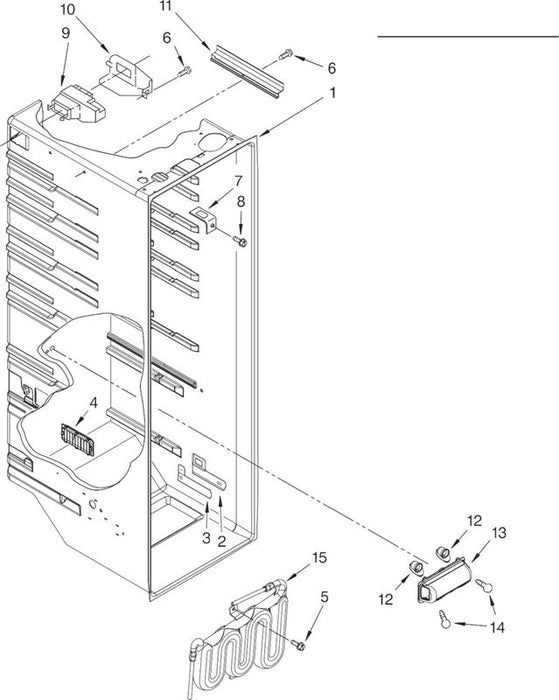

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
---

Escutcheon, Meat Pan Control

$0.00
$0.00
2
W10175967

Slide Meat Pan Control

$0.00
$0.00
3
2182757

Louver

$0.00
$0.00
4
2257741

Screw

$0.00
$0.00
5
488280

Screw

$0.00
$0.00
6
486298

Bracket, Retainer

$0.00
$0.00
7
2256085

Screw

$0.00
$0.00
8
489290

Air Diffuser Assembly

$0.00
$0.00
9
W10151378

Air Diffuser Cover

$0.00
$0.00
10
2212240

Cover, Conduit

$0.00
$0.00
11
2150331

Socket

$0.00
$0.00
12
W10134764

Light Lens

$0.00
$0.00
13
W10166019

Light Bulb

$0.00
$0.00
14
851682

Reservoir

$0.00
$0.00
15
W10204356

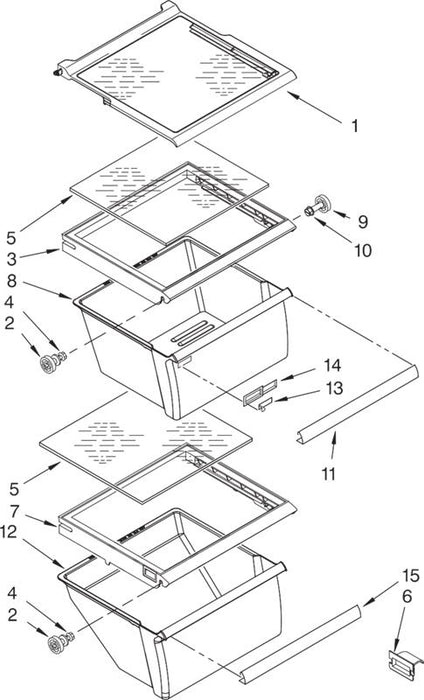

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shelf Assembly, Spillguard (3)

$0.00
$0.00
1
2309524

Stud Assembly

$0.00
$0.00
2
2196485

Cover, Crisper

$0.00
$0.00
3
2209698

Screw

$0.00
$0.00
4
3400894

Glass, Meat Cover

$0.00
$0.00
5
2179259

Deflector Cover

$0.00
$0.00
6
2179350

Cover, Meat Pan (Includes #16)

$0.00
$0.00
7
2311726

Crisper Pan

$0.00
$0.00
8
2188652

Stud Assembly

$0.00
$0.00
9
2196483

Screw

$0.00
$0.00
10
8281158

Trim, Handle

$0.00
$0.00
11
2255593

Meat Pan

$0.00
$0.00
12
2188654

Slide, Humidity Control

$0.00
$0.00
13
2179342

Body, Humidity Control

$0.00
$0.00
14
2179343

Trim, Handle

$0.00
$0.00
15
2255592

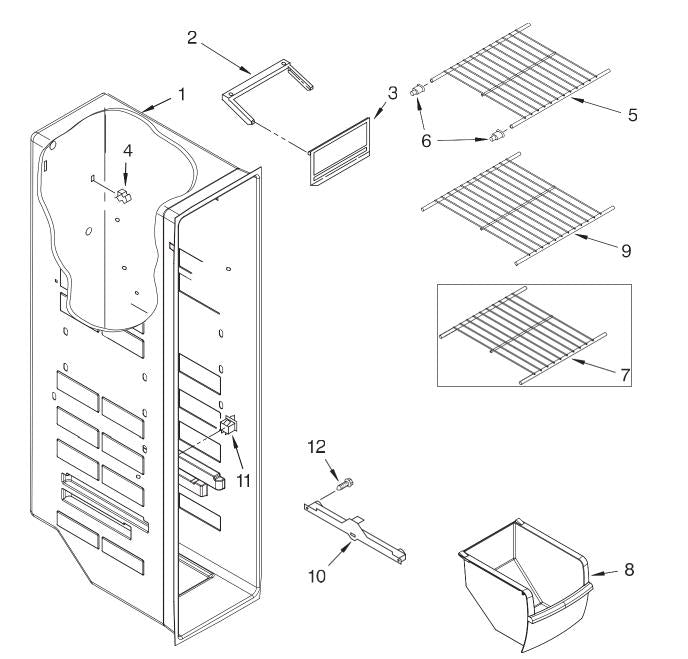

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Seviceable Part)

$0.00
$0.00
1
---

Slide, Ice Door

$0.00
$0.00
2
1115380

Door, Ice Compartment

$0.00
$0.00
3
2171712

Clip, Air Duct (2)

$0.00
$0.00
4
842534

Shelf, Wire

$0.00
$0.00
5
2309632

Shelf Cup

$0.00
$0.00
6
W10130299

Shelf

$0.00
$0.00
7
2309634

Freezer Bin

$0.00
$0.00
8
2309758

Shelf, Wire

$0.00
$0.00
9
2309633

Slide

$0.00
$0.00
10
----

Left Side

$0.00
$0.00
-
1119237

Right Side

$0.00
$0.00
-
1119293

Switch, Rocker Arm

$0.00
$0.00
11
2321285

Screw

$0.00
$0.00
12
489100

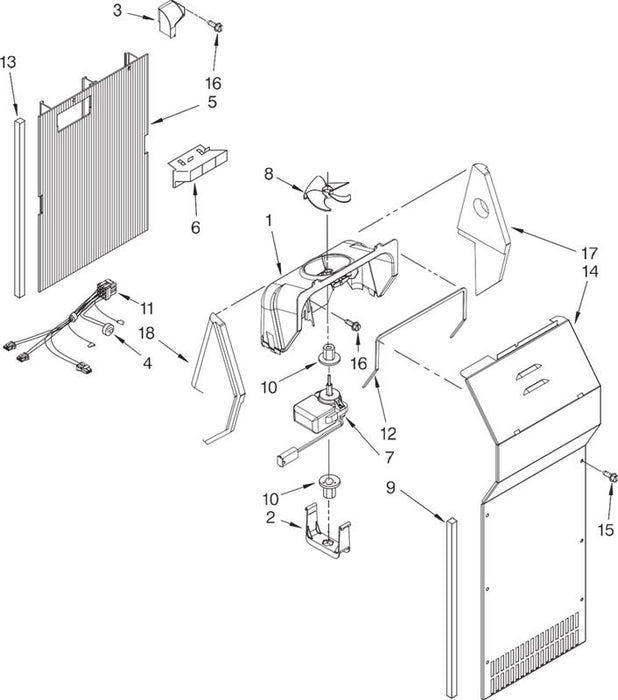

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Fan Scroll

$0.00
$0.00
1
2182119

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161229

Bi−Metal, Defrost

$0.00
$0.00
4
2188824

Air Duct Freezer

$0.00
$0.00
5
2203591

Duct, Icemaker

$0.00
$0.00
6
2182146

Fan Motor

$0.00
$0.00
7
2321275

Fan Blade

$0.00
$0.00
8
2169142

Gasket, Evaporator Cover (2)

$0.00
$0.00
9
2304241

Fan Grommet (2)

$0.00
$0.00
10
2176759

Harness, Fan Evaporator (Includes #4)

$0.00
$0.00
11
W10129781

Gasket, Fan Scroll

$0.00
$0.00
12
2155788

Gasket

$0.00
$0.00
13
2203875

Cover, Evaporator (Includes #9)

$0.00
$0.00
14
2203840

Screw (6)

$0.00
$0.00
15
8281159

Screw

$0.00
$0.00
16
489478

Support, R.S

$0.00
$0.00
17
2203595

Support, L.S

$0.00
$0.00
18
2203596

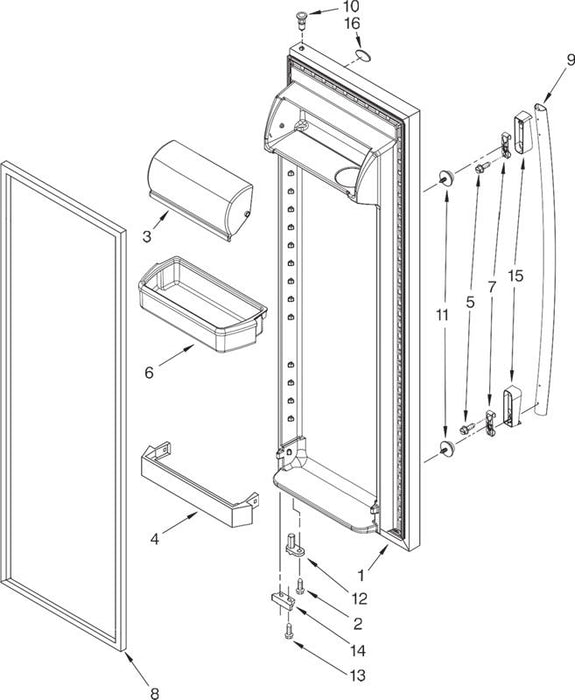

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Refrigerator Door (Includes Item #8)

$0.00
$0.00
1
---

White

$0.00
$0.00
-
2325248W

Satina/Apollo

$0.00
$0.00
-
2309622LA

Screw

$0.00
$0.00
2
3400012

Door, Compartment

$0.00
$0.00
3
2256101

Trivet, Shelf

$0.00
$0.00
4
2309941

Screw (4)

$0.00
$0.00
5
W10155511

Shelf Bin (3)

$0.00
$0.00
6
W10158506

Clip

$0.00
$0.00
7
2255411

Door Gasket, Magnetic (Service)

$0.00
$0.00
8
---

Mist Beige

$0.00
$0.00
-
2309600

Apollo Grey

$0.00
$0.00
-
2327161

Handle

$0.00
$0.00
9
---

White

$0.00
$0.00
-
W10127765

Satina

$0.00
$0.00
-
W10127768

Thimble−Top

$0.00
$0.00
10
2308091

Screw, Mounting

$0.00
$0.00
11
W10129563

Door Closer, Upper Cam

$0.00
$0.00
12
2182178

Screw

$0.00
$0.00
13
489420

Bracket, Door Stop

$0.00
$0.00
14
2206629

Endcap

$0.00
$0.00
15
---

White

$0.00
$0.00
-
W10127769

Apollo Grey

$0.00
$0.00
-
W10152862

Nameplate

$0.00
$0.00
16
2255121

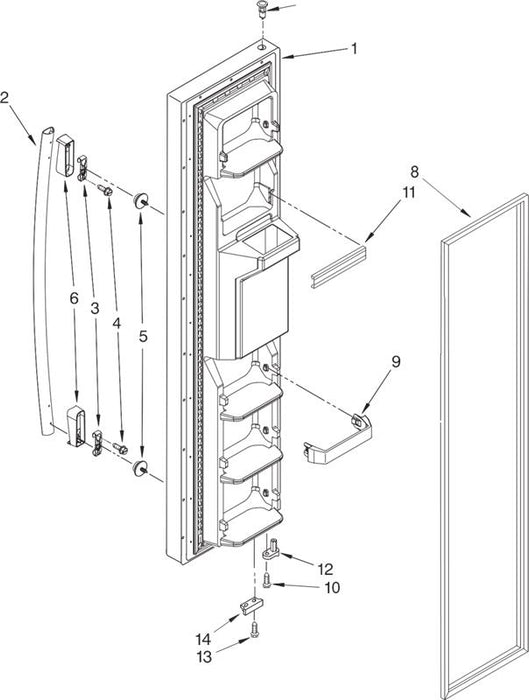

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer Door (Includes Item #8)

$0.00
$0.00
1
---

White

$0.00
$0.00
-
W10191401

Satina/Apollo

$0.00
$0.00
-
W10193079

Handle

$0.00
$0.00
2
---

White

$0.00
$0.00
-
W10127765

Satina

$0.00
$0.00
-
W10127768

Clip

$0.00
$0.00
3
2255411

Screw (4)

$0.00
$0.00
4
W10155511

Screw, Mounting

$0.00
$0.00
5
W10129563

Endcap

$0.00
$0.00
6
---

White

$0.00
$0.00
-
W10127769

Apollo Grey

$0.00
$0.00
-
W10152862

Thimble−Top

$0.00
$0.00
7
2308091

Door Gasket, Magnetic (Service)

$0.00
$0.00
8
----

Mist Beige

$0.00
$0.00
-
2309604

Apollo Grey

$0.00
$0.00
-
2327162

Trivet (4)

$0.00
$0.00
9
2309717

Screw

$0.00
$0.00
10
3400012

Trim, Door

$0.00
$0.00
11
2209680

Screw

$0.00
$0.00
12
489420

Door Closer, Upper Cam

$0.00
$0.00
13
2182178

Bracket, Door Stop

$0.00
$0.00
14
2206629

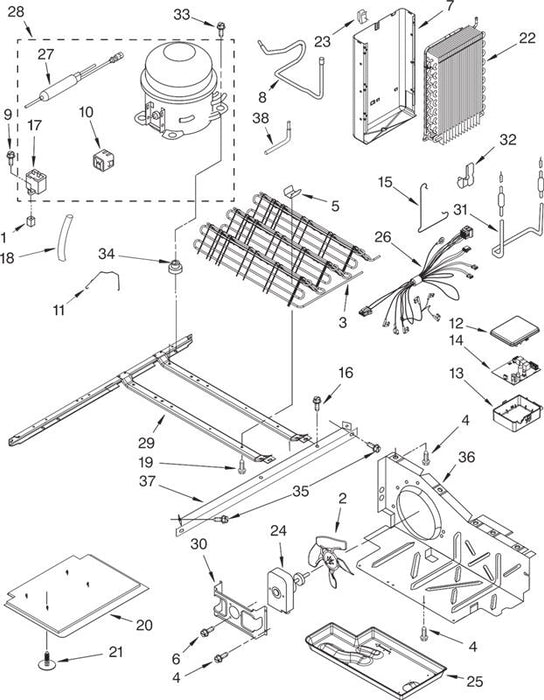

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Grommet, Screw

$0.00
$0.00
1
509812

Fan, Blade

$0.00
$0.00
2
2225834

Condenser Assembly

$0.00
$0.00
3
W10121484

Screw

$0.00
$0.00
4
489464

Clip, Condenser

$0.00
$0.00
5
2311725

Screw

$0.00
$0.00
6
8533993

Heat Shield And Drain Pan

$0.00
$0.00
7
W10194474

Tube−Suction

$0.00
$0.00
8
2205764

Screw

$0.00
$0.00
9
488687

Start−Device, Combination (Start Relay and Overload)

$0.00
$0.00
10
---

Production

$0.00
$0.00
-
2312007

Service

$0.00
$0.00
-
2312007

Bale Strap

$0.00
$0.00
11
2302129

Box Cover

$0.00
$0.00
12
W10132975

Control Box

$0.00
$0.00
13
W10132976

Elec. Control

$0.00
$0.00
14
2321818

Clip, Defrost Heater

$0.00
$0.00
15
2161324

Screw

$0.00
$0.00
16
489427

Capacitor

$0.00
$0.00
17
---

Production

$0.00
$0.00
-
2321245

Service

$0.00
$0.00
-
2254217

Sleeve

$0.00
$0.00
18
2161302

Screw

$0.00
$0.00
19
8281232

Unit Cover, Bottom

$0.00
$0.00
20
2304898

Clip

$0.00
$0.00
21
489396

Evaporator

$0.00
$0.00
22
2188822

Clip, Heat

$0.00
$0.00
23
2155547

Motor, Fan

$0.00
$0.00
24
2321271

Tray, Evaporator

$0.00
$0.00
25
1105523

Harness, Unit

$0.00
$0.00
26
W10139143

Drier

$0.00
$0.00
27
---

Production

$0.00
$0.00
-
W10177049

Service

$0.00
$0.00
-
W10143759

Compressor (Includes Items 10, 17, 27 & 34) (Also Order 876765 Tube Kit)

$0.00
$0.00
28
W10120455

Unit Mounting Frame

$0.00
$0.00
29
2304903

Bracket, Fan Motor

$0.00
$0.00
30
2181929

Heater, Defrost

$0.00
$0.00
31
W10123612

Clip

$0.00
$0.00
32
2161324

Screw

$0.00
$0.00
33
489373

Grommet (4)

$0.00
$0.00
34
---

Production

$0.00
$0.00
-
1100826

Service

$0.00
$0.00
-
1100826

Screw

$0.00
$0.00
36
489340

Air Baffle

$0.00
$0.00
37
W10163483

Unit Mounting Rail

$0.00
$0.00
38
W10207512

Process Tube

$0.00
$0.00
2325479

Valve, Access (1/4")

$0.00
$0.00
978025

Valve, Access (5/16")

$0.00
$0.00
978026

Valve, Access (3/8")

$0.00
$0.00
978027

Valve, Access (1/2")

$0.00
$0.00
978028

Valve, Access (5/8")

$0.00
$0.00
978029

Valve, Access (3/4")

$0.00
$0.00
978030

Valve, Access (3/16")

$0.00
$0.00
876764

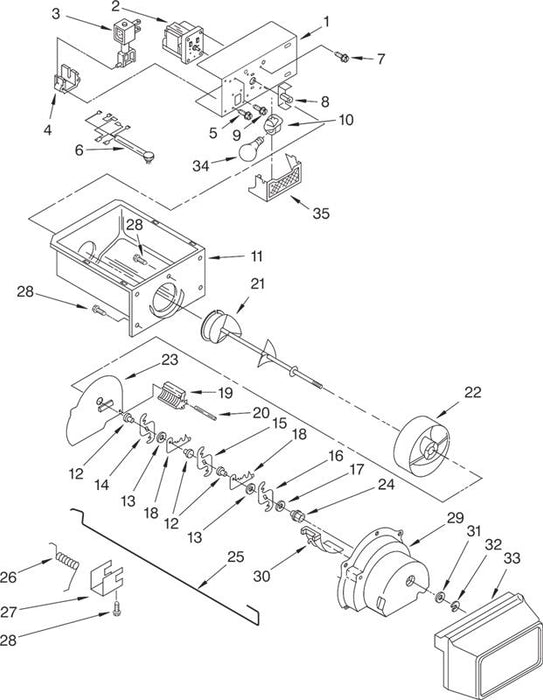

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Bracket, Motor

$0.00
$0.00
1
2254588

Motor, Dispenser

$0.00
$0.00
2
2321276

Soleniod Assembly

$0.00
$0.00
3
2321298

Guide, Solenoid

$0.00
$0.00
4
2149100

Screw (2)

$0.00
$0.00
5
489355

Wiring Assembly, Ice Dispenser

$0.00
$0.00
6
W10123604

Screw (6)

$0.00
$0.00
7
489399

Coupling, Motor

$0.00
$0.00
8
W10169511

Screw

$0.00
$0.00
9
489478

Socket, Light

$0.00
$0.00
10
W10134764

Ice Container

$0.00
$0.00
11
2196089

Spacer, Step (3)

$0.00
$0.00
12
1119005

Spacer, Flat (2)

$0.00
$0.00
13
1119007

Blade, Rotary

$0.00
$0.00
14
2257022

Blade, Rotary

$0.00
$0.00
15
2257023

Blade, Rotary

$0.00
$0.00
16
2257024

Washer, Plain

$0.00
$0.00
17
489235

Blade, Fixed (2)

$0.00
$0.00
18
1119009

Block, Blade

$0.00
$0.00
19
2157405

Roll Pin

$0.00
$0.00
20
489229

Auger

$0.00
$0.00
21
2196295

Drum

$0.00
$0.00
22
2305377

Floating Baffle

$0.00
$0.00
23
2171682

Nut, Bearing

$0.00
$0.00
24
1119018

Control Arm

$0.00
$0.00
25
2155231

Spring, Return

$0.00
$0.00
26
1119020

Retainer Clip, Rod

$0.00
$0.00
27
1119021

Screw

$0.00
$0.00
28
488886

Housing, Crusher

$0.00
$0.00
29
2180348

Deflector, Ice

$0.00
$0.00
30
1119017

Washer, Plain

$0.00
$0.00
31
489234

Retainer Ring

$0.00
$0.00
32
489236

Front Cover, Ice Container

$0.00
$0.00
33
2171709

Light Bulb

$0.00
$0.00
34
851682

Light Lens, Dispenser

$0.00
$0.00
35
2171706

Ice Container (Complete)

$0.00
$0.00
100
W10192854

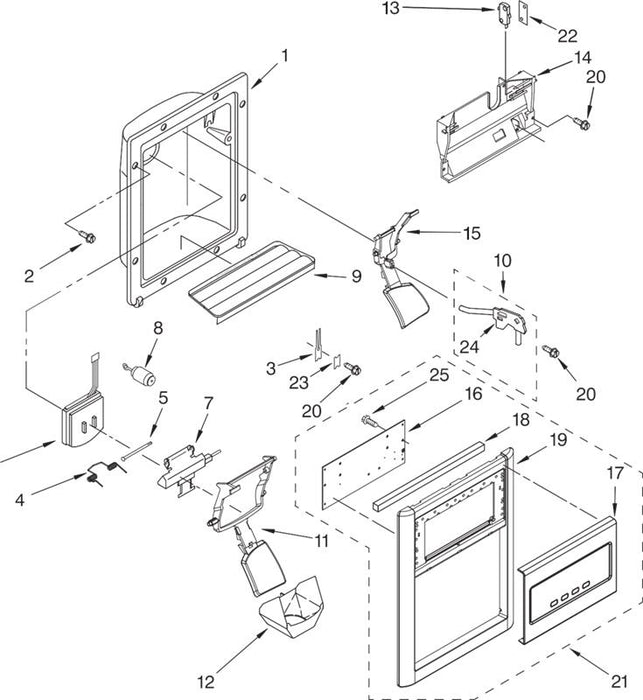

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Housing, Dispenser (Not Serviced)

$0.00
$0.00
1
---

Screw

$0.00
$0.00
2
3196537

Retainer, Levers

$0.00
$0.00
3
2194719

Spring, Torsion

$0.00
$0.00
4
2304772

Pin

$0.00
$0.00
5
2196195

Door, Ice

$0.00
$0.00
6
2180353

Door Mechanism Assembly

$0.00
$0.00
7
2304355

Mechanism Delay

$0.00
$0.00
8
2205686

Grille, Overflow

$0.00
$0.00
9
---

White

$0.00
$0.00
-
2206671W

Nickel One

$0.00
$0.00
-
W10171992

Water Fitting Assembly (Includes Water Tube)

$0.00
$0.00
10
2304317

Lever, Ice Dispenser

$0.00
$0.00
11
---

White

$0.00
$0.00
-
W10152853

Apollo Grey

$0.00
$0.00
-
W10155161

Guide, Ice

$0.00
$0.00
12
2180224

Switch (2)

$0.00
$0.00
13
2162361

Bracket, Control

$0.00
$0.00
14
W10206221

Lever, Water Dispenser

$0.00
$0.00
15
---

White

$0.00
$0.00
-
W10152858

Apollo Grey

$0.00
$0.00
-
W10155162

Control Board, LCD (Not Available Order #21)

$0.00
$0.00
16
---

Fascia, Disp (Not Available Order #21)

$0.00
$0.00
17
---

Gasket

$0.00
$0.00
18
2305571

Bezel, Disp (Not Available, Order #21)

$0.00
$0.00
19
---

Screw

$0.00
$0.00
20
489000

Front Cover Assembly (Includes Items 16, 17, 18 & 19)

$0.00
$0.00
21
---

White

$0.00
$0.00
-
W10201249

Nickel One

$0.00
$0.00
-
W10201251

Spacer, Switch (2)

$0.00
$0.00
22
625834

Strain Relief

$0.00
$0.00
23
2195051

Bracket, Dispenser

$0.00
$0.00
24
2304673

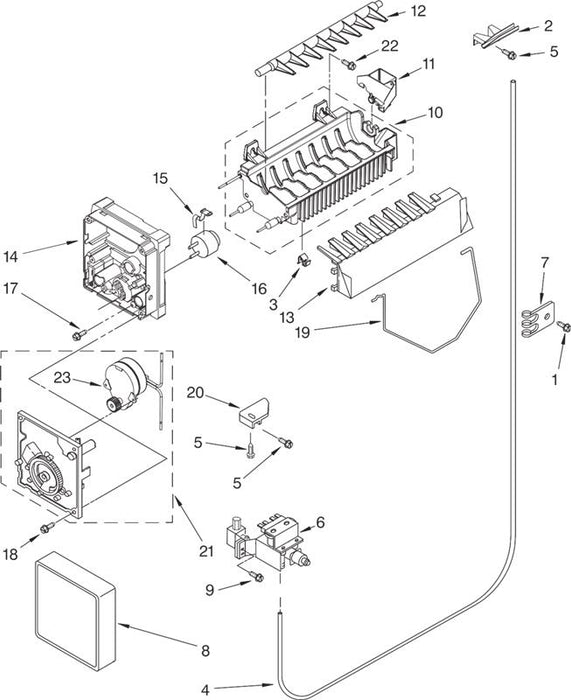

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Chute, Water

$0.00
$0.00
1
2209774

Clip, Fuse

$0.00
$0.00
2
628379

Tube, Water

$0.00
$0.00
3
2304859

Screw

$0.00
$0.00
4
489478

Filter Valve Asm

$0.00
$0.00
5
W10158157

Tube Clamp

$0.00
$0.00
6
489385

Cover

$0.00
$0.00
7
2174183

Screw (2)

$0.00
$0.00
8
488649

Mold & Heater Assembly (Also Order 542638

$0.00
$0.00
9
W10122523

Cup, Water Fill

$0.00
$0.00
10
628515

Ejector

$0.00
$0.00
11
627843

Ice Striper

$0.00
$0.00
12
2182124

Support

$0.00
$0.00
13
2195914

Retainer, Thermostat

$0.00
$0.00
14
2315522

Thermostat (Also Order 542369 Cement Alumilastic)

$0.00
$0.00
15
2321258

Screw

$0.00
$0.00
16
W10001280

Screw

$0.00
$0.00
17
W10001240

Shut Off Arm

$0.00
$0.00
18
2304354

Bracket

$0.00
$0.00
19
628320

Module Assembly

$0.00
$0.00
20
W10122522

Screw

$0.00
$0.00
21
488208

Motor (Not Serviced, Order #21)

$0.00
$0.00
22
---

Complete Icemaker Assembly

$0.00
$0.00
23
W10190958

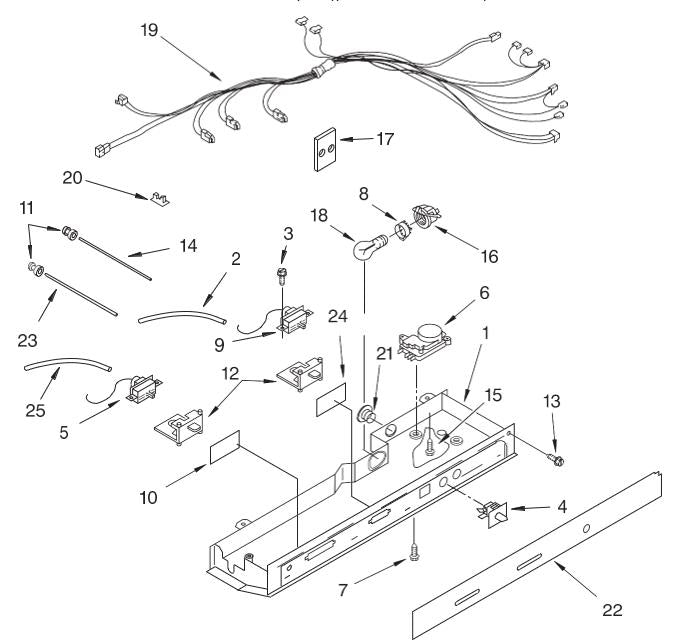

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Control Box

$0.00
$0.00
1
2200135

Tube Barrier, Thermostat

$0.00
$0.00
2
2182150

Screw

$0.00
$0.00
3
489214

Light Switch

$0.00
$0.00
4
2321287

Thermostat (FC)

$0.00
$0.00
5
2321289

Defrost Timer

$0.00
$0.00
6
2321261

Screw (2)

$0.00
$0.00
7
489398

Shroud, Light

$0.00
$0.00
8
W10119914

Thermostat (RC)

$0.00
$0.00
9
2321305

Window

$0.00
$0.00
10
2172940

Grommet, Light Bar

$0.00
$0.00
11
2172906

Slide Thermostat

$0.00
$0.00
12
2161466

Screw (2)

$0.00
$0.00
13
489084

Light Bar (RC)

$0.00
$0.00
14
2179920

Screw (2)

$0.00
$0.00
15
489290

Light Socket

$0.00
$0.00
16
W10134764

Heat Shield

$0.00
$0.00
17
W10173095

Light Bulb

$0.00
$0.00
18
851682

Control Box Harness

$0.00
$0.00
19
W10129766

Clip, Wiring

$0.00
$0.00
20
1115375

Hole Plug

$1.00
$1.00
21
940014

Escutcheon, Control Box

$2.00
$2.00
22
W10203047

Light Bar (FC)

$3.00
$3.00
23
2179921

Window

$4.00
$4.00
24
2172940

Tube Barrier, Thermostat

$5.00
$5.00
25
2196003

Primer, White

$6.00
$6.00
350942

Sealer, Gum (4 Feet)

$10.00
$10.00
212643

Tape, Vinyl (3/4 x 108")

$11.00
$11.00
479502

Sealer, Mastic (1 Qt.)

$12.00
$12.00
505587

Cork, Sealer (1/4 Pound)

$13.00
$13.00
503695

Grease, Silicone (1/2 Oz.)

$14.00
$14.00
542638

Cement, Alumilastic (1−1/4 Oz.)

$15.00
$15.00
542639

Kit, Evaporator Repair (Aluminum Epoxy)

$16.00
$16.00
799833

Kit, Terminal Connector

$17.00
$17.00
833938

Cleaner, Stainless Steel

$0.00
$0.00
2217192

Torx Key

$0.00
$0.00
1117510

ECKMF94

$0.00
$0.00
2155469
