6ED2FHKXRL00

6ED2FHKXRL00

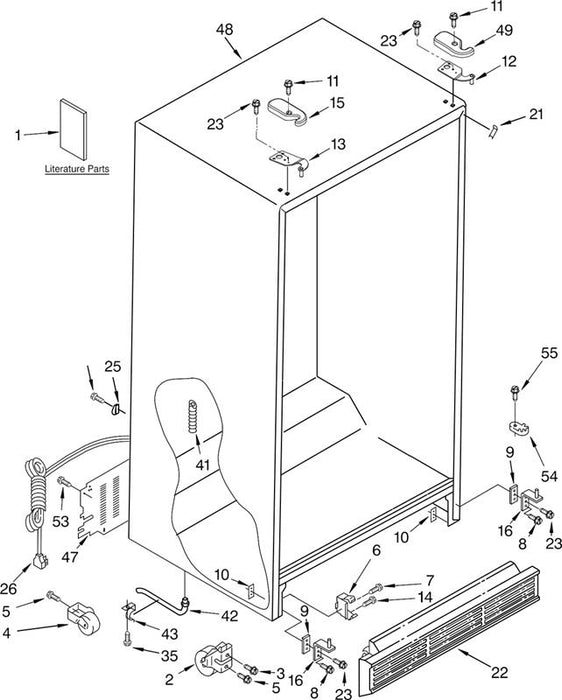

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Literature Parts Use & Care Guide

$0.00
$0.00
1
2308181

Service & Wiring Sheet

$0.00
$0.00
-
2255047

Energy Label

$0.00
$0.00
-
2308367

Front Roller (2)

$0.00
$0.00
2
2174748

Screw

$0.00
$0.00
3
3400517

Roller (Rear) (2)

$0.00
$0.00
4
2196236

Screw

$0.00
$0.00
5
489427

Clip, Grille

$0.00
$0.00
6
2155013

Screw

$0.00
$0.00
7
489483

Screw

$0.00
$0.00
8
489478

Shim

$0.00
$0.00
9
2209697

Plate, Screw

$0.00
$0.00
10
2304249

Screw

$0.00
$0.00
11
8281227

Hinge Top, RC

$0.00
$0.00
12
2203771

Hinge Top, FC

$0.00
$0.00
13
2203770

Screw

$0.00
$0.00
14
488500

Hinge Cover, FC Black

$0.00
$0.00
15
2203407B

Hinge Bottom (2)

$0.00
$0.00
16
2217075

Filler, Wrapper Black

$0.00
$0.00
21
2196097

Grille, Black

$0.00
$0.00
22
2198469B

Screw

$0.00
$0.00
23
3400113

Clamp

$0.00
$0.00
25
489348

Service Cord

$0.00
$0.00
26
2187915

Screw

$0.00
$0.00
35
489464

Drain Fitting

$0.00
$0.00
41
940139

Extension Tube

$0.00
$0.00
42
1108438

Clip, Drain Tube

$0.00
$0.00
43
1108439

Cover, Unit

$0.00
$0.00
47
2214573

Cabinet (Not A Serviceable Part)

$0.00
$0.00
48
---

Hinge Cover, RC Black

$0.00
$0.00
49
2203408B

Screw

$0.00
$0.00
53
489084

Door Closer, Lower Cam (2)

$0.00
$0.00
54
2155311

Screw

$0.00
$0.00
55
3400103
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

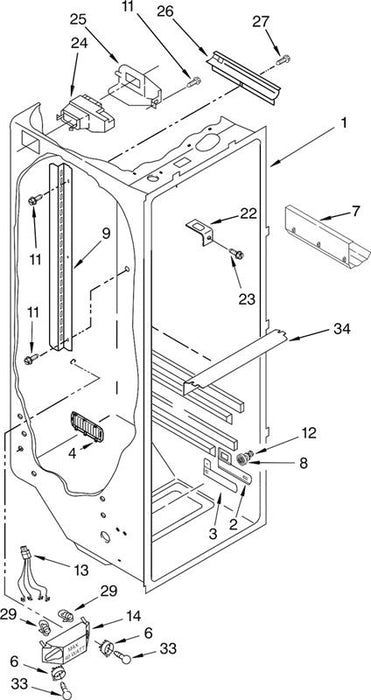

Liner (Not A Serviceable Part)

$0.00
$0.00
1
---

Escutcheon, Meat Pan Control

$0.00
$0.00
2
2194744

Slide Meat

$0.00
$0.00
3
2182757

Louver Pan Control

$0.00
$0.00
4
2257741

Shroud, Light

$0.00
$0.00
6
2169193

Rack, Wine & Egg

$0.00
$0.00
7
2179404K

Stud Assembly

$0.00
$0.00
8
2196485

Ladder, Shelf (2)

$0.00
$0.00
9
2206270

Wire Harness, Crisper Light

$0.00
$0.00
11
2256037

Bracket, Dual Crisper Light

$0.00
$0.00
12
2256035

Bracket Retainer

$0.00
$0.00
13
1123919

Screw, (2)

$0.00
$0.00
14
489290

Air Diffuser Assembly

$0.00
$0.00
22
2209752

Air Diffuser Cover

$0.00
$0.00
23
2212240

Cover, Conduit

$0.00
$0.00
24
2150331

Screw

$0.00
$0.00
25
486298

Socket

$0.00
$0.00
26
2162085

Light Bulb

$0.00
$0.00
27
851682

Light Lens

$0.00
$0.00
29
2209769

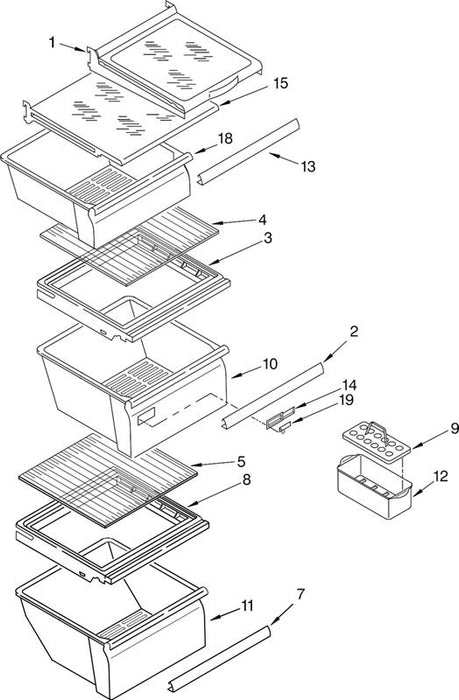

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shelf, Cantilever (2)

$0.00
$0.00
1
2188695

Trim, Pan

$0.00
$0.00
2
2255593

Cover, Crisper

$0.00
$0.00
3
2209698

Glass, Cover

$0.00
$0.00
4
2174150

Glass, Cover

$0.00
$0.00
5
2179259

Deflector

$0.00
$0.00
6
2179350

Trim, Meat Pan

$0.00
$0.00
7
2255592

Cover, Meat Pan

$0.00
$0.00
8
2217039

Egg Carrier

$0.00
$0.00
9
2177817

Crisper Pan

$0.00
$0.00
10
2188652

Meat Pan

$0.00
$0.00
11
2188654

Egg Bin

$0.00
$0.00
12
2216625

Trim, Snack Pan

$0.00
$0.00
13
2179243

Body, Humidity Control

$0.00
$0.00
14
2179343

Shelf Assembly

$0.00
$0.00
15
2206347

Snack Bin

$0.00
$0.00
18
2188655

Slide, Humidity Control

$0.00
$0.00
19
2179342
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

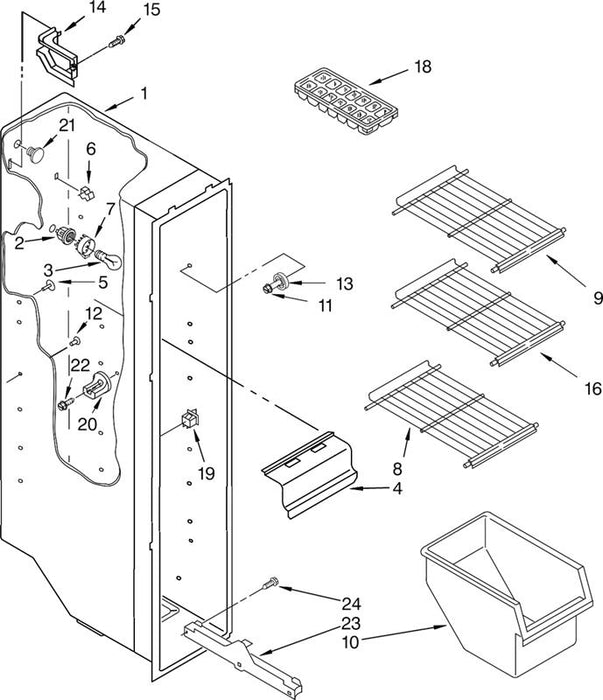

Liner (Not A Seviceable Part)

$0.00
$0.00
1
---

Light Socket

$0.00
$0.00
2
2155597

Light Bulb

$0.00
$0.00
3
851682

Light Lens

$0.00
$0.00
4
2155595

Hole Plug

$0.00
$0.00
5
941839

Clip, Air Duct (2)

$0.00
$0.00
6
842534

Shroud, Light

$0.00
$0.00
7
2167012

Shelf (1)

$0.00
$0.00
8
2174249

Shelf (2)

$0.00
$0.00
-
2174265

Shelf

$0.00
$0.00
9
2179325

Freezer Bin

$0.00
$0.00
10
2171707

Screw

$0.00
$0.00
11
8281158

Grommet (10)

$0.00
$0.00
12
2176134

Stud Assembly

$0.00
$0.00
13
2196483

Cover, Wiring

$0.00
$0.00
14
2160912

Screw

$0.00
$0.00
15
489478

Shelf

$0.00
$0.00
16
2174266

Ice Tray (2)

$0.00
$0.00
18
841180

Switch, Rocker Arm

$0.00
$0.00
19
1118894

Stud, Rear

$0.00
$0.00
20
2196207

Plug, Fill Tube

$0.00
$0.00
21
2223173

Screw

$0.00
$0.00
22
3400893

Slide, Freezer Bin

$0.00
$0.00
23
---

Left Side

$0.00
$0.00
-
1115383

Right Side

$0.00
$0.00
-
1119293

Screw

$0.00
$0.00
24
489100
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

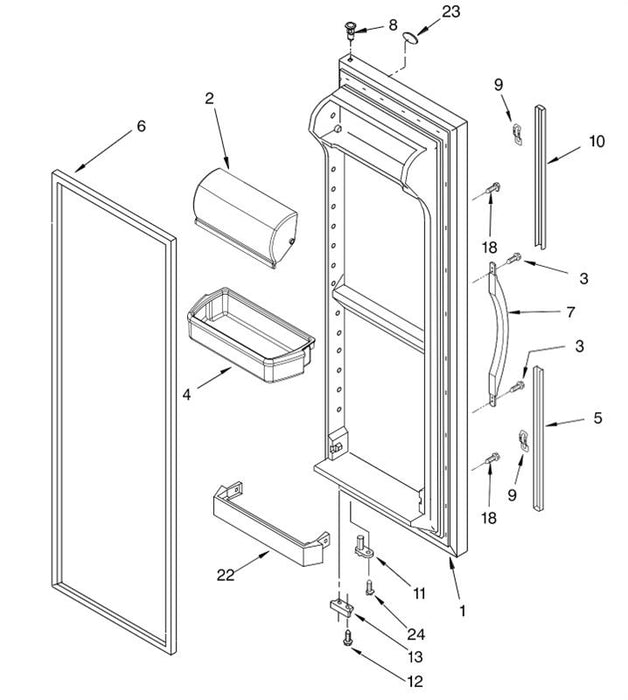

Refrigerator Door (Includes #6)

$0.00
$0.00
1
---

Stainless−VCM

$0.00
$0.00
-
2206716L

Door, Compartment

$0.00
$0.00
2
2256101

Screw

$0.00
$0.00
3
489491

Shelf Bin (3)

$0.00
$0.00
4
2187172

Extension, Bottom Black

$0.00
$0.00
5
2194969B

Door Gasket,

$0.00
$0.00
6
2221311

Magnetic Handle, Center Black

$0.00
$0.00
7
2186649B

Thimble−Top

$0.00
$0.00
8
2308091

Clip

$0.00
$0.00
9
2195327

Extension, Top Black

$0.00
$0.00
10
2194971B

Door Closer, Upper Cam

$0.00
$0.00
11
2182178

Screw

$0.00
$0.00
12
489420

Bracket, Door Stop

$0.00
$0.00
13
2206629B

Screw

$0.00
$0.00
18
3400852

Trivet, Shelf

$0.00
$0.00
22
2177962

Nameplate

$0.00
$0.00
23
2255121

Screw

$0.00
$0.00
24
3400012
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

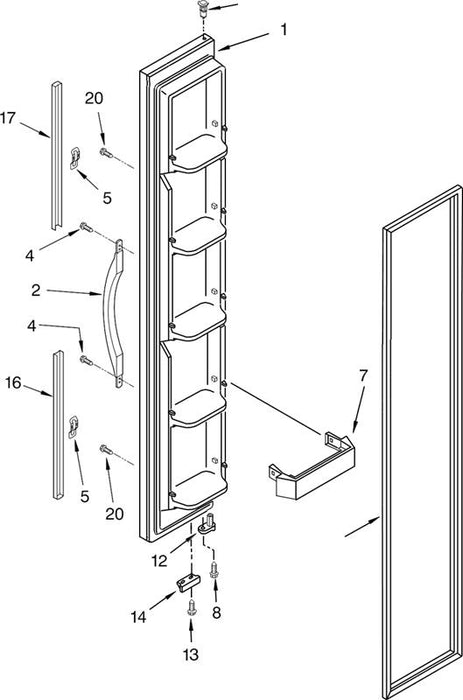

Freezer Door (Includes #6)

$0.00
$0.00
1
---

Stainless−VCM Handle, Center

$0.00
$0.00
-
2206725L

Handle, Center Black

$0.00
$0.00
2
2186649B

Screw

$0.00
$0.00
4
489491

Clip

$0.00
$0.00
5
2195327

Door Gasket,

$0.00
$0.00
6
2221312

Magnetic Trivet, Door Shelf (5)

$0.00
$0.00
7
2156021

Screw

$0.00
$0.00
8
3400012

Thimble−Top

$0.00
$0.00
9
2308091

Door Closer, Upper Cam

$0.00
$0.00
12
2182178

Screw

$0.00
$0.00
13
489420

Bracket, Door Stop

$0.00
$0.00
14
2206629B

Extension, Bottom Black

$0.00
$0.00
16
2194969B

Extension, Top Black

$0.00
$0.00
17
2194971B

Screw

$0.00
$0.00
20
3400852
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

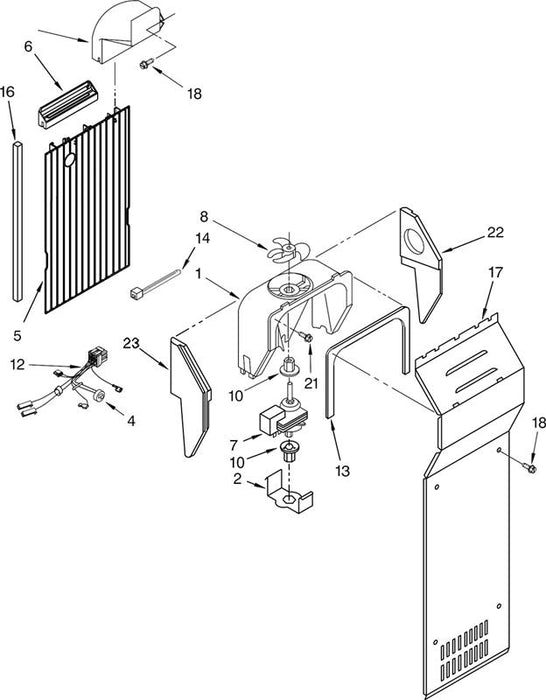

Fan Scroll

$0.00
$0.00
1
2182119

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Bi−Metal, Defrost

$0.00
$0.00
4
2188824

Air Duct Freezer

$0.00
$0.00
5
2203592

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
2303346

Fan Blade

$0.00
$0.00
8
2169142

Fan Grommet (2)

$0.00
$0.00
10
2176759

Harness, Fan Evaporator (Includes #4)

$0.00
$0.00
12
2187930

Gasket Cover

$0.00
$0.00
13
2155788

Wire Tie

$0.00
$0.00
14
2172840

Gasket

$0.00
$0.00
16
2203875

Cover, Evaporator

$0.00
$0.00
17
2203840

Screw

$0.00
$0.00
18
489355

Screw

$0.00
$0.00
21
489478

Support, R.S

$0.00
$0.00
22
2203595

Support, L.S

$0.00
$0.00
23
2203596
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

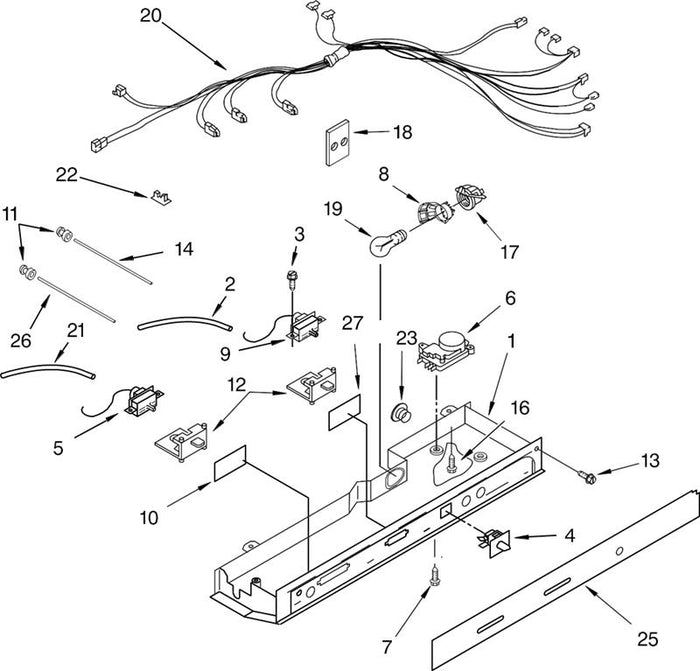

Control Box

$0.00
$0.00
1
2200135

Tube, Barrier Thermostat (RC)

$0.00
$0.00
2
2182150

Screw (3)

$0.00
$0.00
3
489214

Light Switch

$0.00
$0.00
4
2149705

Thermostat (FC)

$0.00
$0.00
5
2187158

Defrost Timer

$0.00
$0.00
6
2188380

Screw (2)

$0.00
$0.00
7
489398

Shroud, Light

$0.00
$0.00
8
2175210

Thermostat (RC)

$0.00
$0.00
9
2161460

Window

$0.00
$0.00
10
2172940

Grommet, Light Bar

$0.00
$0.00
11
2172906

Slide, Thermostat

$0.00
$0.00
12
2161466

Screw (2)

$0.00
$0.00
13
489084

Light, Bar (RC)

$0.00
$0.00
14
2179920

Screw

$0.00
$0.00
16
489290

Light Socket

$0.00
$0.00
17
2162085

Heat Shield

$0.00
$0.00
18
2172931

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2206509

Tube, Barrier Thermostat (FC)

$0.00
$0.00
21
2196003

Clip, Wiring

$0.00
$0.00
22
1115375

Hole Plug

$0.00
$0.00
23
940014

Escutcheon, Control Box

$0.00
$0.00
25
2261750

Light Bar (FC)

$0.00
$0.00
26
2179921

Window

$0.00
$0.00
27
2172941
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

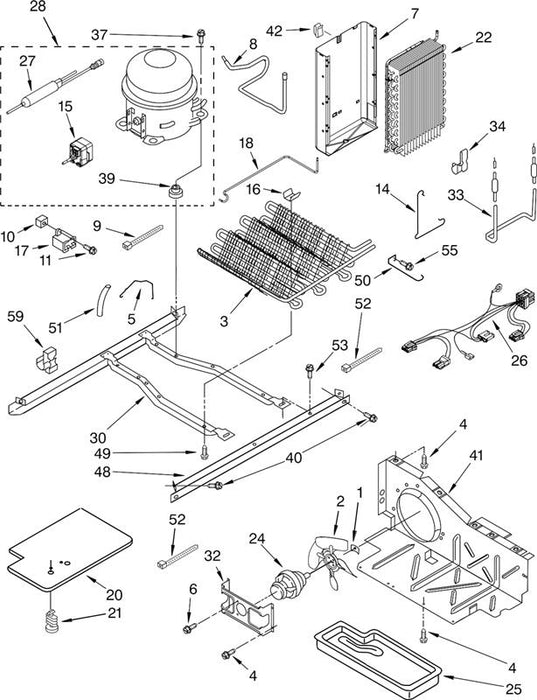

Speed Nut

$0.00
$0.00
1
486692

Fan, Blade

$0.00
$0.00
2
2190685

Condenser Assembly

$0.00
$0.00
3
2223953

Screw

$0.00
$0.00
4
489464

Strap, Bale

$0.00
$0.00
5
2302129

Screw

$0.00
$0.00
6
489099

Heat Shield

$0.00
$0.00
7
2304288

Tube Suction

$0.00
$0.00
8
2205764

Wire Tie

$0.00
$0.00
9
2205813

Grommet

$0.00
$0.00
10
509812

Screw

$0.00
$0.00
11
488687

Clip, Defrost Heater

$0.00
$0.00
14
2161324

Start−Device, Combination (Start Relay and Overload) for Production & Srvc Compressor

$0.00
$0.00
15
2303344

Clip, Condenser

$0.00
$0.00
16
2216914

Capacitor

$0.00
$0.00
17
2254217

Tube, Condenser to Heat Loop

$0.00
$0.00
18
2261599

Unit Cover, Bottom

$0.00
$0.00
20
2200465

Clip

$0.00
$0.00
21
489396

Evaporator

$0.00
$0.00
22
2188822

Motor, Fan

$0.00
$0.00
24
2188539

Tray, Evaporator

$0.00
$0.00
25
1105523

Harness, Unit

$0.00
$0.00
26
2187931

Drier

$0.00
$0.00
27
---

Production

$0.00
$0.00
-
2199167

Service

$0.00
$0.00
28
4387019

Compressor (Includes Items 15, 27 & 39)

$0.00
$0.00
30
2313117

Unit Mounting Frame

$0.00
$0.00
32
2160501

Bracket, Fan Motor

$0.00
$0.00
33
2181929

Heater, Defrost

$0.00
$0.00
34
2188176

Clip

$0.00
$0.00
37
2304287

Screw Grommet (4)

$0.00
$0.00
39
489373

Production

$0.00
$0.00
-
1100826

Service

$0.00
$0.00
40
4387558

Screw

$0.00
$0.00
41
489340

Air Baffle

$0.00
$0.00
42
2196202

Clip, Heat

$0.00
$0.00
48
2155547

Unit Mounting Rail

$0.00
$0.00
49
2149718

Screw

$0.00
$0.00
50
8281232

Guard, Fan

$0.00
$0.00
51
1105612

Sleeve

$0.00
$0.00
52
2161302

Wire Tie

$0.00
$0.00
53
2172840

Screw

$0.00
$0.00
55
489427

Screw

$0.00
$0.00
59
489478

Clip, Wire & Tube

$0.00
$0.00
-
2208280

Valve, Access (1/4")

$0.00
$0.00
-
978025

Valve, Access (5/16")

$1.00
$1.00
-
978026

Valve, Access (3/8")

$2.00
$2.00
-
978027

Valve, Access (1/2")

$3.00
$3.00
-
978028

Valve, Access (5/8")

$4.00
$4.00
-
978029

Valve, Access (3/4")

$5.00
$5.00
-
978030

Valve, Access (3/16")

$6.00
$6.00
-
876764

Primer, White (13 Oz. Spray Can)

$7.00
$7.00
-
350942

Enamel, Black (13 Oz. Spray Can)

$8.00
$8.00
-
350939

Enamel, White (13 Oz. Spray Can)

$9.00
$9.00
-
350930

Enamel, Almond (13 Oz. Spray Can)

$10.00
$10.00
-
350956

Brush Touch−Up Kit (White)

$11.00
$11.00
-
72017

Brush Touch−Up Kit (Almond)

$12.00
$12.00
-
72107

Brush Touch−up kit (Black)

$13.00
$13.00
-
72032

Sealer, Gum (4 Feet)

$14.00
$14.00
-
212643

Tape, Vinyl (3/4 x 108")

$15.00
$15.00
-
479502

Kit, Insulation (2 Pcs. x 3" x 24" X 48")

$16.00
$16.00
-
876370

Kit, Insulation (14 Pcs. x 3" x 24" x 48")

$17.00
$17.00
-
876305

Insulation, Fiberglass (63−1/2" x 35−1/2" X 2−5/8)

$18.00
$18.00
-
978941

Kit, Foam Slab (30" x 32−1/2" x 1−1/2")

$19.00
$19.00
-
876029

Sealer, Mastic (1 Qt.)

$20.00
$20.00
-
505587

Cork, Sealer (1/4 Pound)

$21.00
$21.00
-
503695

Touch−Up, White Porcelain (2 Oz.)

$22.00
$22.00
-
511873

Grease, Silicone (1/2 Oz.)

$23.00
$23.00
-
542638

Cement, Alumilastic (1−1/4 Oz.)

$24.00
$24.00
-
542639

Bag, Insulation (36−5/8" x 46")

$25.00
$25.00
-
606755

Kit, Evaporator Repair (Aluminum Epoxy)

$26.00
$26.00
-
799833

Kit, Terminal Connector

$27.00
$27.00
-
833938

Enamel, Black (1 Qt. Uncut)

$28.00
$28.00
-
799340

Enamel, White (1 Qt. Uncut)

$29.00
$29.00
-
799344

Enamel, Almond (1 Qt. Uncut)

$30.00
$30.00
-
978883

3ECKMF87

$31.00
$31.00
-
1129317

Torx Key

$32.00
$32.00
-
1117510
