6ED2FHKXRL01

6ED2FHKXRL01

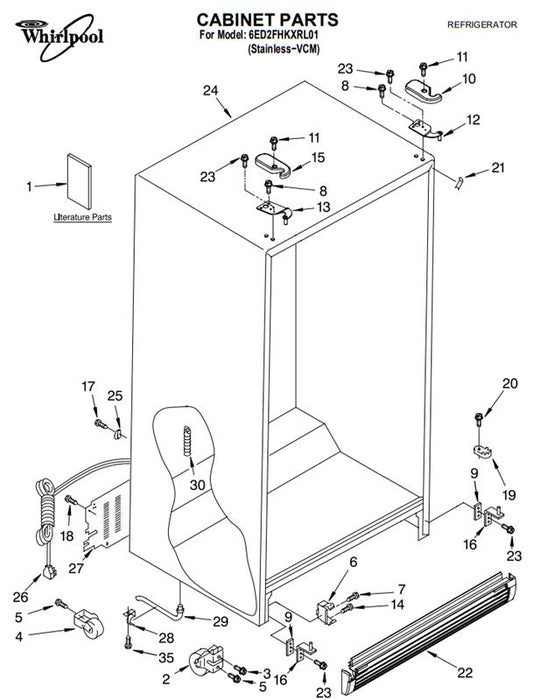

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Literature Parts

$0.00
$0.00
1
---

Use & Care Guide

$0.00
$0.00
-
2308181

Service & Wiring Sheet

$0.00
$0.00
-
2255047

Energy Label

$0.00
$0.00
-
2315174

Front Roller (2)

$0.00
$0.00
-
2174748

Screw

$0.00
$0.00
2
3400517

Roller (Rear) (2)

$0.00
$0.00
3
2196236

Screw

$0.00
$0.00
4
489427

Clip, Grille

$0.00
$0.00
5
2155013

Screw

$0.00
$0.00
6
489478

Screw

$0.00
$0.00
7
3400858

Shim

$0.00
$0.00
8
2209697

Hinge Cover, RC

$0.00
$0.00
9
---

Black

$0.00
$0.00
10
2203408B

Screw

$0.00
$0.00
-
8281227

Hinge Top, RC

$0.00
$0.00
11
2203771

Hinge Top, FC

$1.00
$1.00
12
2203770

Screw

$0.00
$0.00
13
488500

Hinge Cover, FC

$0.00
$0.00
14
---

Black

$0.00
$0.00
15
2203407B

Hinge Bottom (2)

$0.00
$0.00
-
2304322

Screw

$0.00
$0.00
16
488687

Screw

$0.00
$0.00
17
489084

Door Closer, Lower Cam (2)

$0.00
$0.00
18
2155311

Screw

$0.00
$0.00
19
489483

Filler, Wrapper

$0.00
$0.00
20
---

Black

$0.00
$0.00
21
2196097

Grille

$0.00
$0.00
-
---

Black

$0.00
$0.00
22
2198469B

Screw

$0.00
$0.00
-
489497

Cabinet (Not a Serviceable Part)

$0.00
$0.00
23
---

Clamp

$0.00
$0.00
24
489348

Service Cord

$0.00
$0.00
25
2187915

Unit Cover

$0.00
$0.00
26
2313329

Clip, Drain Tube

$0.00
$0.00
27
1108439

Extension Tube

$0.00
$0.00
28
1108438

Drain Fitting

$0.00
$0.00
29
940139

Screw

$0.00
$0.00
30
489464

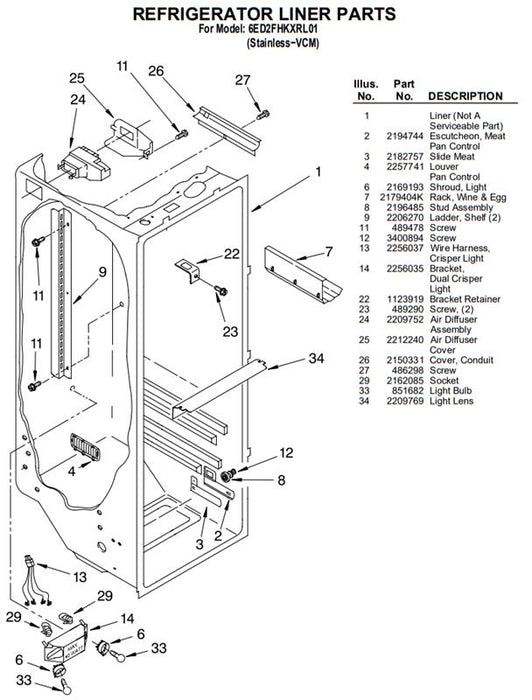

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
---

Escutcheon, Meat Pan Control

$0.00
$0.00
2
2194744

Slide Meat

$0.00
$0.00
3
2182757

Louver Pan Control

$0.00
$0.00
4
2257741

Shroud, Light

$0.00
$0.00
6
2169193

Rack, Wine & Egg

$0.00
$0.00
7
2179404K

Stud Assembly

$0.00
$0.00
8
2196485

Ladder, Shelf (2)

$0.00
$0.00
9
2206270

Screw

$0.00
$0.00
11
489478

Screw

$0.00
$0.00
12
3400894

Wire Harness, Crisper Light

$0.00
$0.00
13
2256037

Bracket, Dual Crisper Light

$0.00
$0.00
14
2256035

Bracket Retainer

$0.00
$0.00
22
1123919

Screw, (2)

$0.00
$0.00
23
489290

Air Diffuser Assembly

$0.00
$0.00
24
2209752

Air Diffuser Cover

$0.00
$0.00
25
2212240

Cover, Conduit

$0.00
$0.00
26
2150331

Screw

$0.00
$0.00
27
486298

Socket

$0.00
$0.00
29
2162085

Light Bulb

$0.00
$0.00
33
851682

Light Lens

$0.00
$0.00
34
2209769

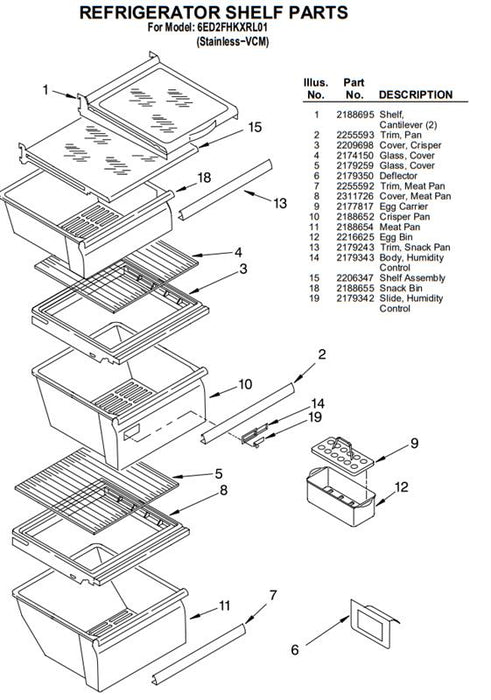

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shelf, Cantilever (2)

$0.00
$0.00
1
2188695

Trim, Pan

$0.00
$0.00
2
2255593

Cover, Crisper

$0.00
$0.00
3
2209698

Glass, Cover

$0.00
$0.00
4
2174150

Glass, Cover

$0.00
$0.00
5
2179259

Deflector

$0.00
$0.00
6
2179350

Trim, Meat Pan

$0.00
$0.00
7
2255592

Cover, Meat Pan

$0.00
$0.00
8
2311726

Egg Carrier

$0.00
$0.00
9
2177817

Crisper Pan

$0.00
$0.00
10
2188652

Meat Pan

$0.00
$0.00
11
2188654

Egg Bin

$0.00
$0.00
12
2216625

Trim, Snack Pan

$0.00
$0.00
13
2179243

Body, Humidity Control

$0.00
$0.00
14
2179343

Shelf Assembly

$0.00
$0.00
15
2206347

Snack Bin

$0.00
$0.00
18
2188655

Slide, Humidity Control

$0.00
$0.00
19
2179342

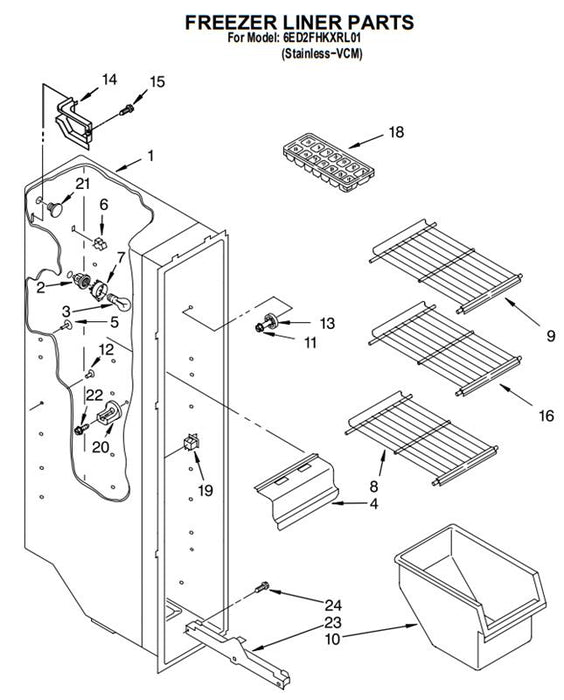

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Seviceable Part)

$0.00
$0.00
1
---

Light Socket

$0.00
$0.00
2
2155597

Light Bulb

$0.00
$0.00
3
851682

Light Lens

$0.00
$0.00
4
2155595

Hole Plug

$0.00
$0.00
5
941839

Clip, Air Duct (2)

$0.00
$0.00
6
842534

Shroud, Light

$0.00
$0.00
7
2167012

Shelf (1)

$0.00
$0.00
8
2174249K

Shelf (2)

$0.00
$0.00
-
2174265K

Shelf

$0.00
$0.00
9
2179325K

Freezer Bin

$0.00
$0.00
10
2171707

Screw

$0.00
$0.00
11
8281158

Grommet (10)

$0.00
$0.00
12
2176134

Stud Assembly

$0.00
$0.00
13
2196483

Cover, Wiring

$0.00
$0.00
14
2160912

Screw

$0.00
$0.00
15
489478

Shelf

$0.00
$0.00
16
2174266K

Ice Tray (2)

$0.00
$0.00
18
841180

Switch, Rocker Arm

$0.00
$0.00
19
1118894

Stud, Rear

$0.00
$0.00
20
2196207

Plug, Fill Tube

$0.00
$0.00
21
2223173

Screw

$0.00
$0.00
22
3400893

Slide, Freezer Bin

$0.00
$0.00
23
---

Left Side

$0.00
$0.00
-
1115383

Right Side

$0.00
$0.00
-
1119293

Screw

$0.00
$0.00
24
489100

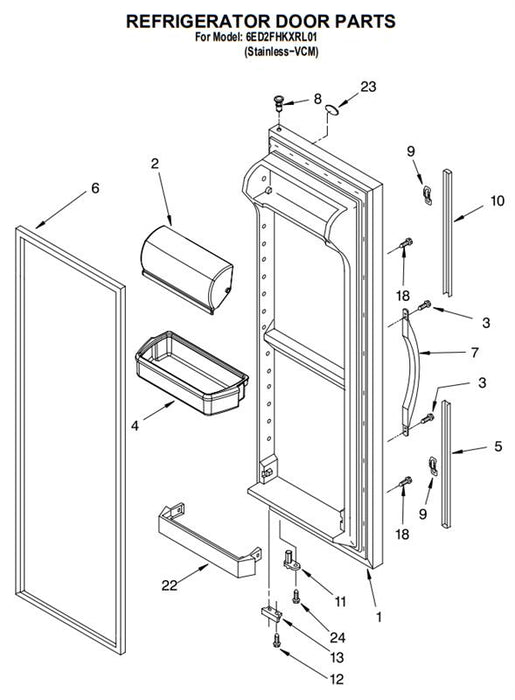

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Refrigerator Door (Includes #6)

$0.00
$0.00
1
---

Stainless−VCM

$0.00
$0.00
-
2206716LG

Door, Compartment

$0.00
$0.00
2
2256101

Screw

$0.00
$0.00
3
489491

Shelf Bin (3)

$0.00
$0.00
4
2187172K

Extension, Bottom

$0.00
$0.00
5
---

Black

$0.00
$0.00
-
2194969B

Door Gasket, Magnetic

$0.00
$0.00
6
2221311

Handle, Center

$0.00
$0.00
7
---

Black

$0.00
$0.00
-
2186649B

Thimble−Top

$0.00
$0.00
8
2308091

Clip

$0.00
$0.00
9
2195327

Etension, Top

$0.00
$0.00
10
---

Black

$0.00
$0.00
-
2194971B

Door Closer, Upper Cam

$0.00
$0.00
11
2182178

Screw

$0.00
$0.00
12
489420

Bracket, Door Stop

$0.00
$0.00
13
2206629B

Screw

$0.00
$0.00
18
3400852

Trivet, Shelf

$0.00
$0.00
22
2177962

Nameplate

$0.00
$0.00
23
2255121

Screw

$0.00
$0.00
24
3400012

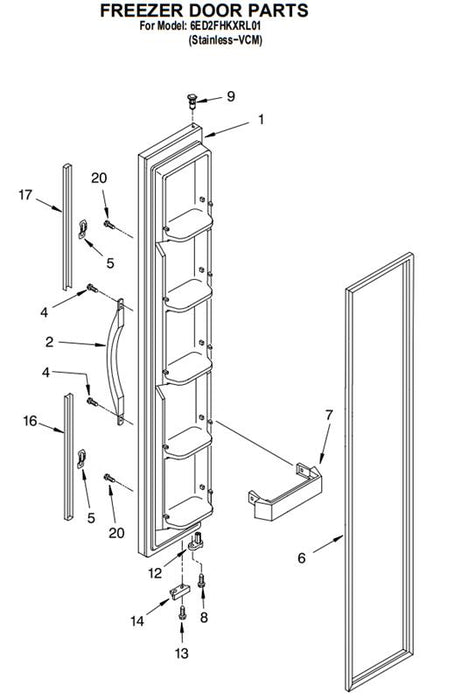

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer Door (Includes #6)

$0.00
$0.00
1
---

Stainless−VCM

$0.00
$0.00
-
2206725LG

Handle, Center

$0.00
$0.00
2
---

Black

$0.00
$0.00
-
2186649B

Screw

$0.00
$0.00
4
489491

Clip

$0.00
$0.00
5
2195327

Door Gasket, Magnetic

$0.00
$0.00
6
2221312

Trivet, Door Shelf (5)

$0.00
$0.00
7
2156021K

Screw

$0.00
$0.00
8
3400012

Thimble−Top

$0.00
$0.00
9
2308091

Door Closer, Upper Cam

$0.00
$0.00
12
2182178

Screw

$0.00
$0.00
13
489420

Bracket, Door Stop

$0.00
$0.00
14
2206629B

Extension, Bottom

$0.00
$0.00
16
---

Black

$0.00
$0.00
17
2194969B

Extension, Top

$0.00
$0.00
20
---

Black

$0.00
$0.00
2194971B

Screw

$0.00
$0.00
3400852

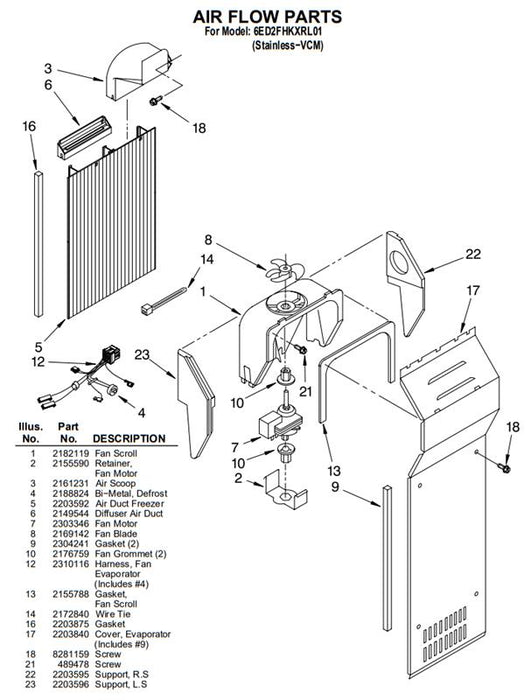

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Fan Scroll

$0.00
$0.00
1
2182119

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Bi−Metal, Defrost

$0.00
$0.00
4
2188824

Air Duct Freezer

$0.00
$0.00
5
2203592

Diffuser Air Duct

$0.00
$0.00
6
2149544

Fan Motor

$0.00
$0.00
7
2303346

Fan Blade

$0.00
$0.00
8
2169142

Gasket (2)

$0.00
$0.00
9
2304241

Fan Grommet (2)

$0.00
$0.00
10
2176759

Harness, Fan Evaporator (Includes #4)

$0.00
$0.00
12
2310116

Gasket, Fan Scrol

$0.00
$0.00
13
2155788

Wire Tie

$0.00
$0.00
14
2172840

Gasket

$0.00
$0.00
16
2203875

Cover, Evaporator (Includes #9)

$0.00
$0.00
17
2203840

Screw

$0.00
$0.00
18
8281159

Screw

$0.00
$0.00
21
489478

Support, R.S

$0.00
$0.00
22
2203595

Support, L.S

$0.00
$0.00
23
2203596

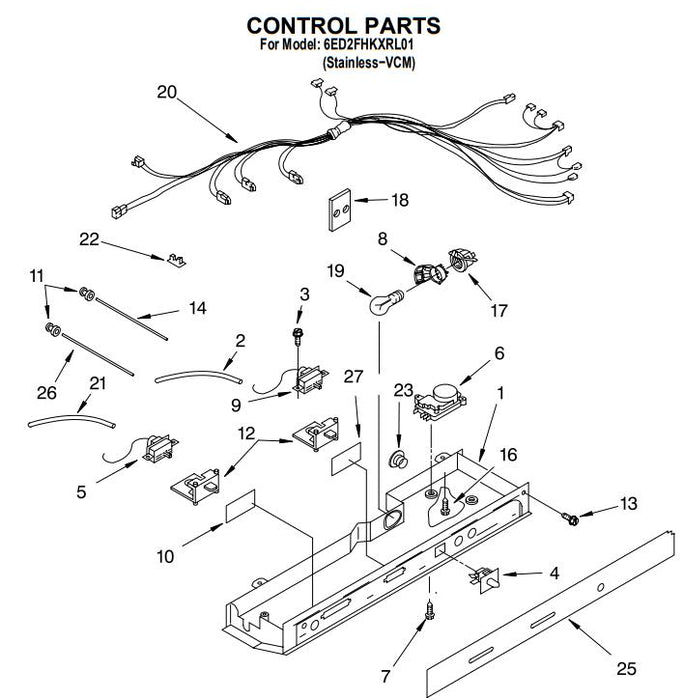

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Control Box

$0.00
$0.00
1
2200135

Tube, Barrier Thermostat (RC)

$0.00
$0.00
2
2182150

Screw (3)

$0.00
$0.00
3
489214

Light Switch

$0.00
$0.00
4
2149705

Thermostat (FC)

$0.00
$0.00
5
2187158

Defrost Timer

$0.00
$0.00
6
2188380

Screw (2)

$0.00
$0.00
7
489398

Shroud, Light

$0.00
$0.00
8
2175210

Thermostat (RC)

$0.00
$0.00
9
2161460

Window

$0.00
$0.00
10
2172940

Grommet, Light Bar

$0.00
$0.00
11
2172906

Slide, Thermostat

$0.00
$0.00
12
2161466

Screw (2)

$0.00
$0.00
13
489084

Light, Bar (RC)

$0.00
$0.00
14
2179920

Screw

$0.00
$0.00
16
489290

Light Socket

$0.00
$0.00
17
2162085

Heat Shield

$0.00
$0.00
18
2172931

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2310068

Tube, Barrier Thermostat (FC)

$0.00
$0.00
21
2196003

Clip, Wiring

$0.00
$0.00
22
1115375

Hole Plug

$0.00
$0.00
23
940014

Escutcheon, Control Box

$0.00
$0.00
25
2261750

Light Bar (FC)

$0.00
$0.00
26
2179921

Window

$0.00
$0.00
27
2172941

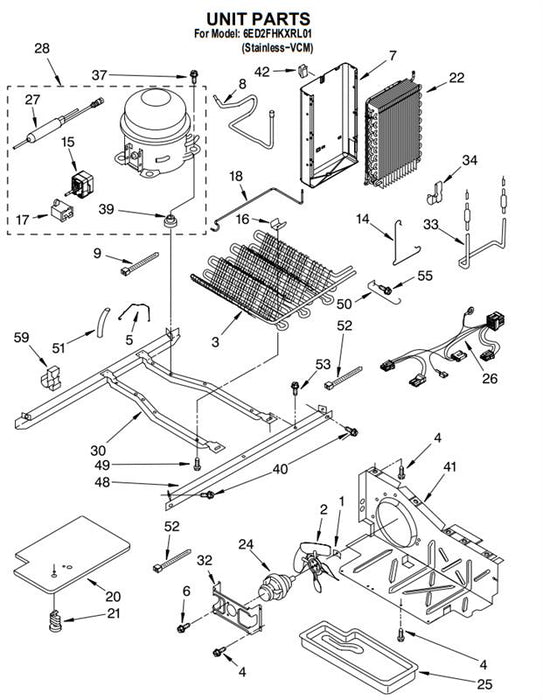

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Speed Nut

$0.00
$0.00
1
486692

Fan, Blade

$0.00
$0.00
2
2190685

Condenser Assembly

$0.00
$0.00
3
2223953

Screw

$0.00
$0.00
4
489464

Strap, Bale

$0.00
$0.00
5
2302129

Screw

$0.00
$0.00
6
489099

Heat Shield

$0.00
$0.00
7
2304288

Tube Suction

$0.00
$0.00
8
2205764

Wire Tie

$0.00
$0.00
9
2205813

Clip, Defrost Heater

$0.00
$0.00
14
2161324

Start−Device, Combination (Start Relay and Overload)for Production & Srvc Compressor

$0.00
$0.00
15
2303344

Clip, Condenser

$0.00
$0.00
16
2216914

Capacitor

$0.00
$0.00
17
2254217

Tube, Condenser to Heat Loop

$0.00
$0.00
18
2261599

Unit Cover, Bottom

$0.00
$0.00
20
2200465

Clip

$0.00
$0.00
21
489396

Evaporator

$0.00
$0.00
22
2188822

Motor, Fan

$0.00
$0.00
24
2188539

Tray, Evaporator

$0.00
$0.00
25
1105523

Harness, Unit

$0.00
$0.00
26
2187931

Drier

$0.00
$0.00
27
---

Production

$0.00
$0.00
-
2199167

Service

$0.00
$0.00
-
4387019

Compressor (Includes Items 15, 17, 27 & 39)

$0.00
$0.00
28
2303342

Unit Mounting Frame

$0.00
$0.00
30
2160501

Bracket, Fan Motor

$0.00
$0.00
32
2181929

Heater, Defrost

$0.00
$0.00
33
2313330

Clip

$0.00
$0.00
34
2304287

Screw

$0.00
$0.00
37
489373

Grommet (4)

$0.00
$0.00
39
---

Production

$0.00
$0.00
-
1100826

Service

$0.00
$0.00
-
4387558

Screw

$0.00
$0.00
40
489340

Air Baffle

$0.00
$0.00
41
2196202

Clip, Heat

$0.00
$0.00
42
2155547

Unit Mounting Rail

$0.00
$0.00
48
2149718

Screw

$0.00
$0.00
49
8281232

Guard, Fan

$0.00
$0.00
50
1105612

Sleeve

$0.00
$0.00
51
2161302

Wire Tie

$0.00
$0.00
52
2172840

Screw

$0.00
$0.00
53
489427

Valve, Access (1/4")

$0.00
$0.00
55
978025

Valve, Access (5/16")

$0.00
$0.00
59
978026

Valve, Access (3/8")

$0.00
$0.00
978027

Valve, Access (1/2")

$0.00
$0.00
978028

Valve, Access (5/8")

$0.00
$0.00
978029

Valve, Access (3/4")

$0.00
$0.00
978030

Valve, Access (3/16")

$0.00
$0.00
876764

Primer, White - PAINT, PRESSURIZED SPRAY (12 oz.)

$0.00
$0.00
350942

Graphite - PAINT, PRESSURIZED SPRAY (12 oz.)

$0.00
$0.00
8171357

Graphite - PAINT, TOUCH−UP (1/2oz.)

$0.00
$0.00
80051

Graphite - PAINT, BULK (1 qt.)

$0.00
$0.00
8171358

Sealer, Gum (4 Feet)

$0.00
$0.00
212643

Tape, Vinyl (3/4 x 108")

$0.00
$0.00
479502

Sealer, Mastic (1 Qt.)

$0.00
$0.00
505587

Cork, Sealer (1/4 Pound)

$0.00
$0.00
503695

Grease, Silicone (1/2 Oz.)

$0.00
$0.00
542638

Cement, Alumilastic (1−1/4 Oz.)

$0.00
$0.00
542639

Kit, Evaporator Repair (Aluminum Epoxy)

$0.00
$0.00
799833

Kit, Terminal Connector

$0.00
$0.00
833938

3ECKMF87

$0.00
$0.00
1129317

Torx Key

$0.00
$0.00
1117510
