6GS5SHGXRS00

6GS5SHGXRS00

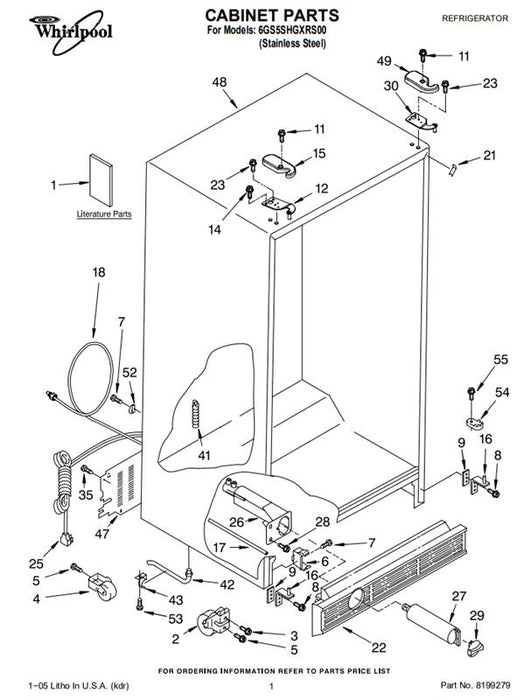

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Literature Parts

$0.00
$0.00
1
-

Use & Care Guide

$0.00
$0.00
-
2308181

Service & Wiring Sheet

$0.00
$0.00
-
2255042

Energy Label

$0.00
$0.00
-
2308368

Modular Icemaker Service Sheet

$0.00
$0.00
-
628371

Front Roller (2)

$0.00
$0.00
2
2174748

Screw

$0.00
$0.00
3
3400517

Roller (Rear) (2)

$0.00
$0.00
4
2196236

Screw

$0.00
$0.00
5
489427

Clip, Grille

$0.00
$0.00
6
2155013

Screw

$0.00
$0.00
7
489478

Screw

$0.00
$0.00
8
3400113

Shim (2)

$0.00
$0.00
9
2156056

Screw

$0.00
$0.00
11
8281227

Hinge Top (FC)

$0.00
$0.00
12
2203770

Screw

$0.00
$0.00
14
8281149

Hinge Cover

$0.00
$0.00
15
-

Black

$0.00
$0.00
-
2203407B

Hinge Bottom (2)

$0.00
$0.00
16
2304322

Tube, Filter Outlet

$0.00
$0.00
17
2186493

Tube, Filter Inlet

$0.00
$0.00
18
2186492

Filler, Wrapper

$0.00
$0.00
21
-

Black

$0.00
$0.00
-
2196097

Grille

$0.00
$0.00
22
-

Black

$0.00
$0.00
-
2198468B

Screw

$0.00
$0.00
23
489497

Service Cord

$0.00
$0.00
25
2187915

Housing, Water Filter

$0.00
$0.00
26
2186443

Water Filter

$0.00
$0.00
27
2203220

Screw

$0.00
$0.00
28
489500

Cap, Water Filter

$0.00
$0.00
29
-

Black

$0.00
$0.00
-
2186494B

Hinge Top (RC)

$0.00
$0.00
30
2203771

Screw

$0.00
$0.00
35
489464

Drain Fitting

$0.00
$0.00
41
940139

Extension Tube

$0.00
$0.00
42
1108438

Clip, Drain Tube

$0.00
$0.00
43
1108439

Cover, Unit

$0.00
$0.00
47
2214571

Cabinet (Not A Serviceable Part)

$0.00
$0.00
48
-

Hinge Cover

$0.00
$0.00
49
-

Black

$0.00
$0.00
-
2203408B

Clamp Cord

$0.00
$0.00
52
489348

Screw

$0.00
$0.00
53
489084

Door Closer, Lower Cam (2)

$0.00
$0.00
54
2155311

Screw

$0.00
$0.00
55
489483
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

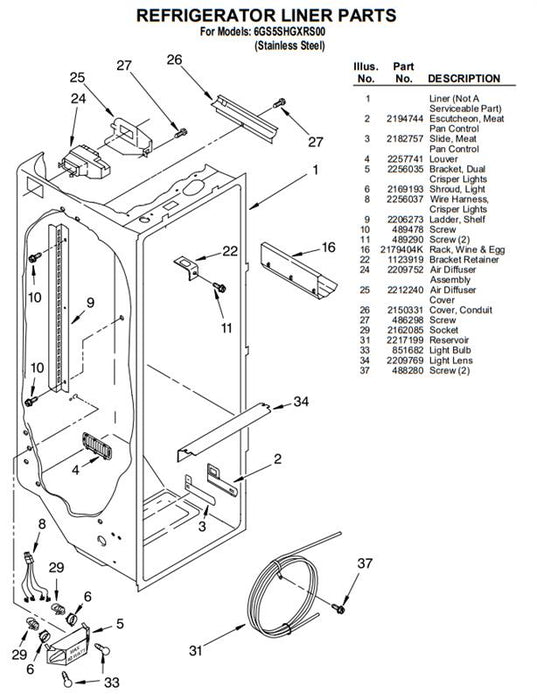

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Escutcheon, Meat Pan Control

$0.00
$0.00
2
2194744

Slide, Meat Pan Control

$0.00
$0.00
3
2182757

Louver

$0.00
$0.00
4
2257741

Bracket, Dual Crisper Lights

$0.00
$0.00
5
2256035

Shroud, Light

$0.00
$0.00
6
2169193

Wire Harness, Crisper Lights

$0.00
$0.00
8
2256037

Ladder, Shelf

$0.00
$0.00
9
2206273

Screw

$0.00
$0.00
10
489478

Screw (2)

$0.00
$0.00
11
489290

Rack, Wine & Egg

$0.00
$0.00
16
2179404K

Bracket Retainer

$0.00
$0.00
22
1123919

Air Diffuser Assembly

$0.00
$0.00
24
2209752

Air Diffuser Cover

$0.00
$0.00
25
2212240

Cover, Conduit

$0.00
$0.00
26
2150331

Screw

$0.00
$0.00
27
486298

Socket

$0.00
$0.00
29
2162085

Reservoir

$0.00
$0.00
31
2217199

Light Bulb

$0.00
$0.00
33
851682

Light Lens

$0.00
$0.00
34
2209769

Screw (2)

$0.00
$0.00
37
488280
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

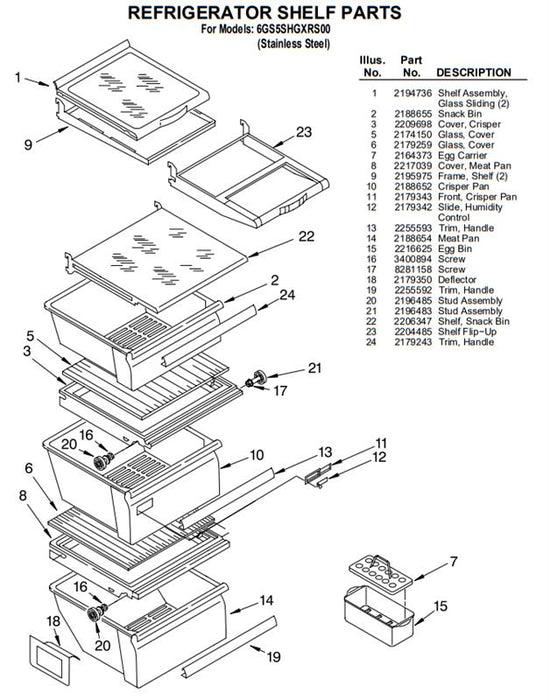

Shelf Assembly, Glass Sliding (2)

$0.00
$0.00
1
2194736

Snack Bin

$0.00
$0.00
2
2188655

Cover, Crisper

$0.00
$0.00
3
2209698

Glass, Cover

$0.00
$0.00
5
2174150

Glass, Cover

$0.00
$0.00
6
2179259

Egg Carrier

$0.00
$0.00
7
2164373

Cover, Meat Pan

$0.00
$0.00
8
2217039

Frame, Shelf (2)

$0.00
$0.00
9
2195975

Crisper Pan

$0.00
$0.00
10
2188652

Front, Crisper Pan

$0.00
$0.00
11
2179343

Slide, Humidity Control

$0.00
$0.00
12
2179342

Trim, Handle

$0.00
$0.00
13
2255593

Meat Pan

$0.00
$0.00
14
2188654

Egg Bin

$0.00
$0.00
15
2216625

Screw

$0.00
$0.00
16
3400894

Screw

$0.00
$0.00
17
8281158

Deflector

$0.00
$0.00
18
2179350

Trim, Handle

$0.00
$0.00
19
2255592

Stud Assembly

$0.00
$0.00
20
2196485

Stud Assembly

$0.00
$0.00
21
2196483

Shelf, Snack Bin

$0.00
$0.00
22
2206347

Shelf Flip−Up

$0.00
$0.00
23
2204485

Trim, Handle

$0.00
$0.00
24
2179243
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

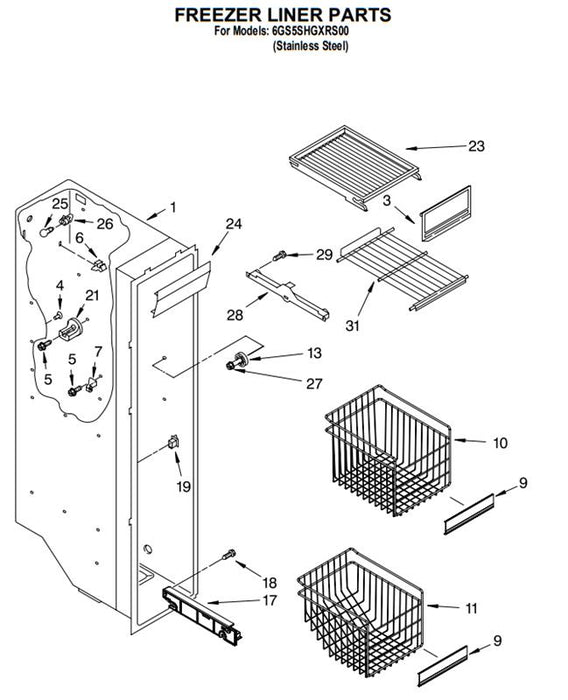

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Door, Ice Compartment

$0.00
$0.00
3
2171713

Grommet

$0.00
$0.00
4
2176134

Screw

$0.00
$0.00
5
3400893

Support, Stud

$0.00
$0.00
6
2196206

Clip, Air Duct (2)

$0.00
$0.00
7
842534

Trim, Basket

$0.00
$0.00
9
2195905

Basket, Tall

$0.00
$0.00
10
2301190

Basket, Slope

$0.00
$0.00
11
2301191

Stud Assembly(6)

$0.00
$0.00
13
2196483

Slide, Basket

$0.00
$0.00
17
-

Right Side (2)

$0.00
$0.00
-
2261449

Left Side (2)

$0.00
$0.00
-
2261448

Screw

$0.00
$0.00
18
486298

Switch, Rocker Arm

$0.00
$0.00
19
1115373

Stud, Rear

$0.00
$0.00
21
2196207

Shelf, Top Compartment

$0.00
$0.00
23
2171714

Light Lens

$0.00
$0.00
24
2171705

Light Bulb

$0.00
$0.00
25
851682

Light Socket

$0.00
$0.00
26
2162085

Screw(6)

$0.00
$0.00
27
8281158

Slide, Container

$0.00
$0.00
28
-

Left Side

$0.00
$0.00
-
1119237

Right Side

$0.00
$0.00
-
1119293

Screw

$0.00
$0.00
29
489100

Shelf

$0.00
$0.00
31
2174267
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

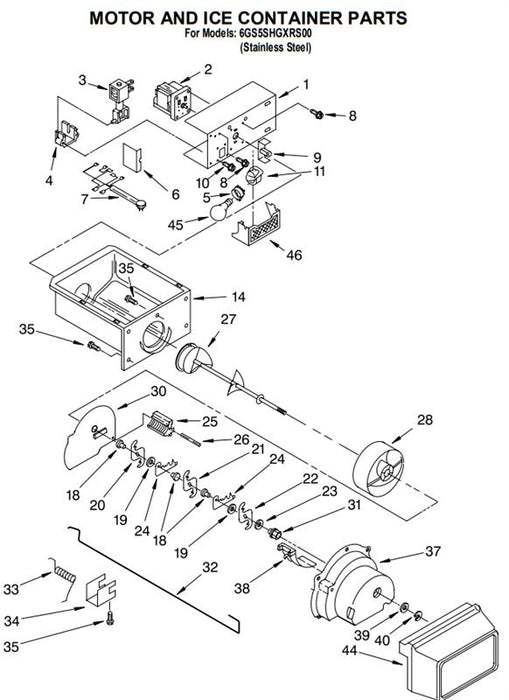

Bracket, Motor

$0.00
$0.00
1
2183726

Motor, Dispenser

$0.00
$0.00
2
2188386

Soleniod Assembly

$0.00
$0.00
3
2165210

Guide, Solenoid

$0.00
$0.00
4
2149100

Shroud, Light

$0.00
$0.00
5
2169193

Shield, Wiring

$0.00
$0.00
6
1129563

Wiring Assembly, Ice Dispenser

$0.00
$0.00
7
2206501

Screw

$0.00
$0.00
8
489399

Coupling, Motor

$0.00
$0.00
9
2205716

Screw

$0.00
$0.00
10
489478

Socket, Light

$0.00
$0.00
11
2162085

Ice Container

$0.00
$0.00
14
2196091

Spacer, Step (3)

$0.00
$0.00
18
1119005

Spacer, Flat (2)

$0.00
$0.00
19
1119007

Blade, Rotary

$0.00
$0.00
20
2257022

Blade, Rotary

$0.00
$0.00
21
2257023

Blade, Rotary

$0.00
$0.00
22
2257024

Washer, Plain

$0.00
$0.00
23
489235

Blade, Fixed (2)

$0.00
$0.00
24
1119009

Block, Blade

$0.00
$0.00
25
2157405

Roll Pin

$0.00
$0.00
26
489229

Auger

$0.00
$0.00
27
2196295

Drum

$0.00
$0.00
28
2209781

Floating Baffle

$0.00
$0.00
30
2171682

Nut, Bearing

$0.00
$0.00
31
1119018

Control Arm

$0.00
$0.00
32
2155231

Spring, Return

$0.00
$0.00
33
1119020

Retainer Clip, Rod

$0.00
$0.00
34
1119021

Screw

$0.00
$0.00
35
488886

Housing, Crusher

$0.00
$0.00
37
2180348

Deflector, Ice

$0.00
$0.00
38
1119017

Washer, Plain

$0.00
$0.00
39
489234

Retainer Ring

$0.00
$0.00
40
489236

Front Cover, Ice Container

$0.00
$0.00
44
2204321

Light Bulb

$0.00
$0.00
45
851682

Light Lens, Dispenser

$0.00
$0.00
46
2171706
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

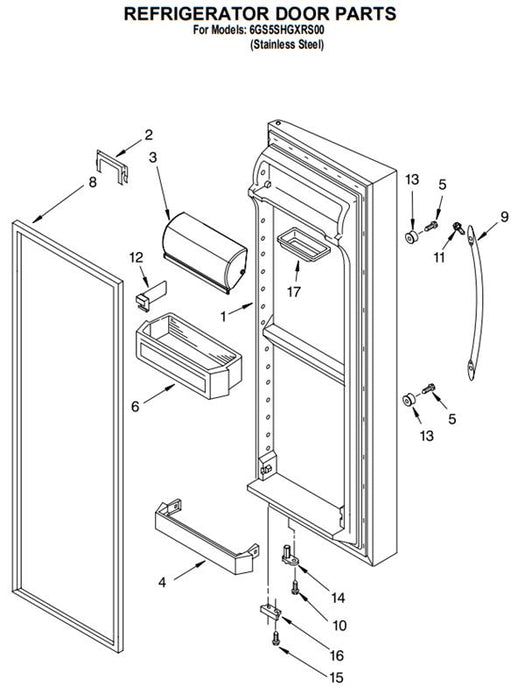

Refrigerator Door (Includes Item #8)

$0.00
$0.00
1
-

Stainless Steel

$0.00
$0.00
-
2254938SB

Retainer, Bottle

$0.00
$0.00
2
2173643K

Door, Compartment

$0.00
$0.00
3
2256101

Trivet, Shelf

$0.00
$0.00
4
2156022

Screw

$0.00
$0.00
5
488208

Shelf Bin (3)

$0.00
$0.00
6
2179607

Door Gasket, Magnetic

$0.00
$0.00
8
-

Black

$0.00
$0.00
-
2221313

Handle (Includes #11)

$0.00
$0.00
9
-

Stainless Steel

$0.00
$0.00
-
2255516S

Screw

$0.00
$0.00
10
3400012

Screw, Set

$0.00
$0.00
11
8533976

Divider, Bin

$0.00
$0.00
12
2195496K

Stud, Handle

$0.00
$0.00
13
2219698

Door Closer, Upper Cam

$0.00
$0.00
14
2182178

Screw

$0.00
$0.00
15
489420

Bracket, Door Stop

$0.00
$0.00
16
-

Black

$0.00
$0.00
-
2200082B

Butter Dish

$0.00
$0.00
17
2165792K
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

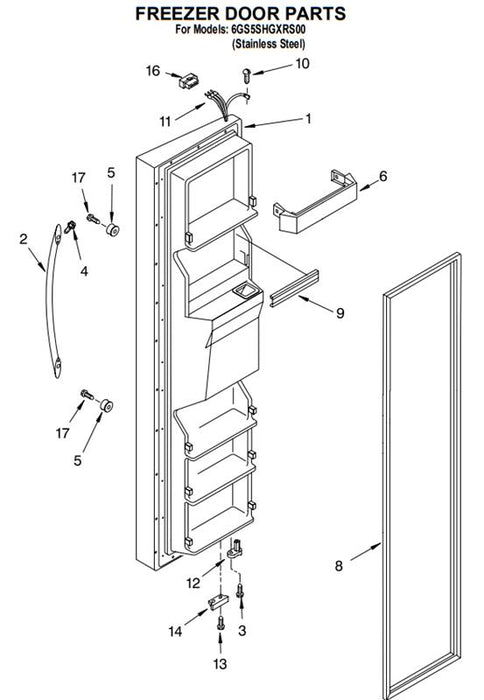

Freezer Door (Includes Item #8 And Dispenser Front Parts)

$0.00
$0.00
1
-

Stainless Steel

$0.00
$0.00
-
2261781SB

Handle (Includes #4)

$0.00
$0.00
2
-

Stainless Steel

$0.00
$0.00
-
2255516S

Screw

$0.00
$0.00
3
3400012

Screw, Set

$0.00
$0.00
4
8533976

Stud, Handle

$0.00
$0.00
5
2219698

Trivet, Shelf (4)

$0.00
$0.00
6
2171157

Door Gasket, Magnetic

$0.00
$0.00
8
-

Black

$0.00
$0.00
-
2221314

Trim, Door Shelf

$0.00
$0.00
9
2209681

Screw

$0.00
$0.00
10
488500

Wiring Harness

$0.00
$0.00
11
2187271

Door Closer, Upper Cam

$0.00
$0.00
12
2182179

Screw

$0.00
$0.00
13
489420

Bracket, Door Stop

$0.00
$0.00
14
2200082B

Connector

$0.00
$0.00
16
2154473

Screw

$0.00
$0.00
17
488208
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

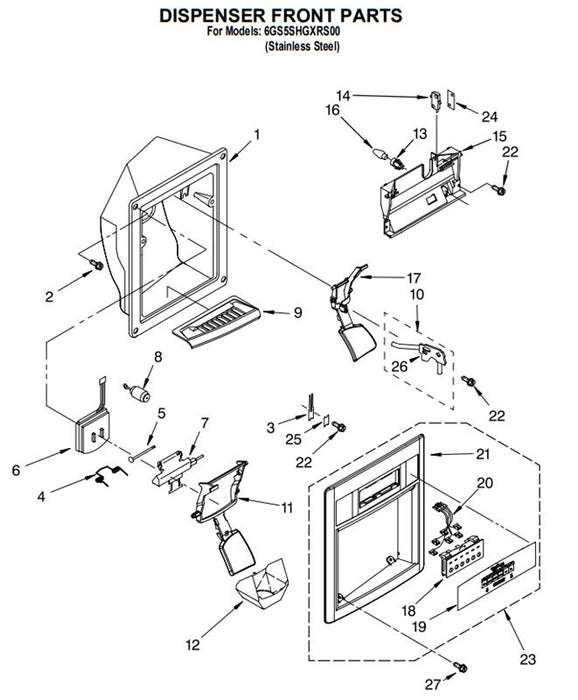

Housing, Dispenser (Not Serviced)

$0.00
$0.00
1
-

Screw

$0.00
$0.00
2
3196537

Retainer, Levers

$0.00
$0.00
3
2194719

Spring, Torsion

$0.00
$0.00
4
2256199

Pin

$0.00
$0.00
5
2196195

Door, Ice

$0.00
$0.00
6
2180353

Door Mechanism Assembly

$0.00
$0.00
7
2304355

Mechanism Delay

$0.00
$0.00
8
2205686

Grille, Overflow

$0.00
$0.00
9
-

Black

$0.00
$0.00
-
2207007B

Water Fitting Assembly (Includes Water Tube)

$0.00
$0.00
10
2209718

Lever, Ice Dispenser

$0.00
$0.00
11
-

Black

$0.00
$0.00
-
2255431B

Guide, Ice

$0.00
$0.00
12
2180224

Lamp Holder

$0.00
$0.00
13
2180200

Switch (4)

$0.00
$0.00
14
2162361

Bracket, Control

$0.00
$0.00
15
2183771

Bulb, Light

$0.00
$0.00
16
989331

Lever, Water Dispenser

$0.00
$0.00
17
-

Black

$0.00
$0.00
-
2255432B

Switch Assembly (Not Available, Order #23)

$0.00
$0.00
18
-

Overlay, Front Cover (Not Available, Order #23)

$0.00
$0.00
19
-

Wire Assembly

$0.00
$0.00
20
2187409

Front Cover, Housing (Not Available, Order #23)

$0.00
$0.00
21
-

Screw

$0.00
$0.00
22
489000

Front Cover Assembly (Includes Items 18, 19, 20 & 21)

$0.00
$0.00
23
2187409

Black

$0.00
$0.00
-
2207084B

Spacer, Switch (2)

$0.00
$0.00
24
625834

Strain Relief

$0.00
$0.00
25
2195051

Bracket, Dispenser

$0.00
$0.00
26
2188355

Screw

$0.00
$0.00
27
3400065
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

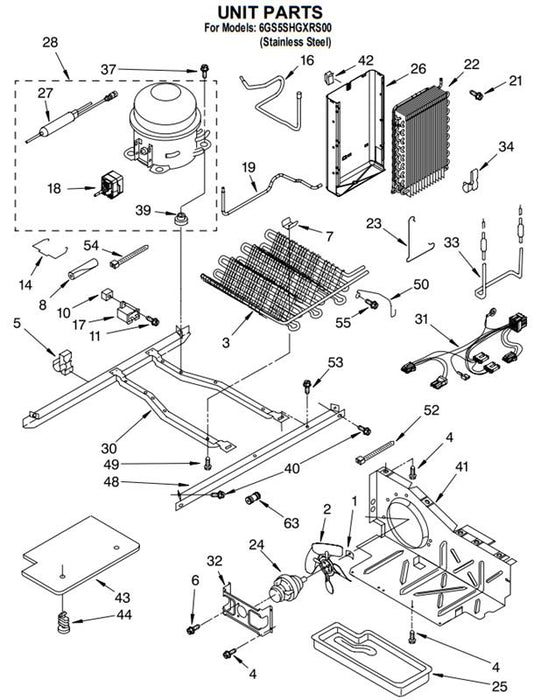

Fan, Blade

$0.00
$0.00
1
2190685

Speed Nut

$0.00
$0.00
2
486692

Condenser Assembly

$0.00
$0.00
3
2223953

Screw

$0.00
$0.00
4
489464

Clip, Wire

$0.00
$0.00
5
2208280

Screw

$0.00
$0.00
6
489099

Clip, Condenser

$0.00
$0.00
7
2216914

Sleeve

$0.00
$0.00
8
2161302

Screw Grommet

$0.00
$0.00
10
509812

Screw

$0.00
$0.00
11
488687

Strap, Bale

$0.00
$0.00
14
2302129

Tube Suction

$0.00
$0.00
16
2205765

Capacitor

$0.00
$0.00
17
2254217

Start−Device, Combination (Start Relay and Overload) for Production & Srvc

$0.00
$0.00
18
2303345

Tube, Condenser to Heat Loop

$0.00
$0.00
19
2261599

Screw

$0.00
$0.00
21
489478

Evaporator

$0.00
$0.00
22
2188822

Clamp

$0.00
$0.00
23
2161324

Fan, Motor

$0.00
$0.00
24
2188539

Tray, Evaporator

$0.00
$0.00
25
1105523

Heat Shield Drier

$0.00
$0.00
26
2304288

Production

$0.00
$0.00
27
2199167

Service

$0.00
$0.00
-
4387019

Compressor (Includes Items 18, 27 & 39) (Also Order 876765 Tube Kit)

$0.00
$0.00
-
2313118

Unit Mounting Frame

$0.00
$0.00
28
2157397

Unit, Harness

$0.00
$0.00
30
2187932

Fan, Motor Bracket

$0.00
$0.00
31
2181929

Heater, Defrost

$0.00
$0.00
32
2188176

Clip

$0.00
$0.00
33
2304287

Screw

$0.00
$0.00
34
489373

Grommet (4)

$0.00
$0.00
37
-

Production

$0.00
$0.00
39
1100826

Service

$0.00
$0.00
-
4387558

Screw

$0.00
$0.00
-
489340

Air Baffle

$0.00
$0.00
40
2196202

Clip, Heat Shield

$0.00
$0.00
41
2155547

Unit Cover, Bottom

$0.00
$0.00
42
2206281

Clip

$0.00
$0.00
43
489396

Unit Mounting Rail

$0.00
$0.00
44
1127911

Screw

$0.00
$0.00
48
8281232

Guard, Fan

$0.00
$0.00
49
2186495

Strap

$0.00
$0.00
50
2172840

Screw

$0.00
$0.00
52
489427

Strap

$0.00
$0.00
53
2205813

Screw

$0.00
$0.00
54
488649

Connector, Water Tube

$0.00
$0.00
55
2209709

Valve, Access (1/4")

$0.00
$0.00
63
978025

Valve, Access (5/16")

$0.00
$0.00
978026

Valve, Access (3/8")

$0.00
$0.00
978027

Valve, Access (5/8")

$0.00
$0.00
978029

Valve, Access (1/2")

$0.00
$0.00
978028

Valve, Access (3/4")

$0.00
$0.00
978030

Valve, Access (3/16")

$0.00
$0.00
876764
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

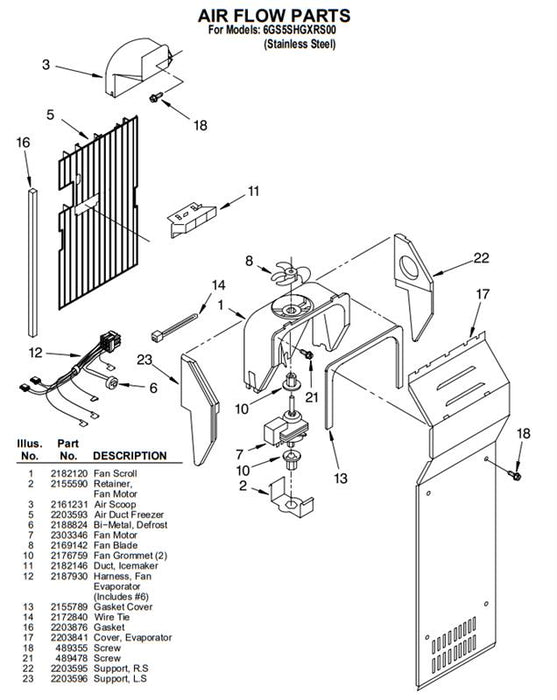

Fan Scroll

$0.00
$0.00
1
2182120

Retainer, Fan Motor

$0.00
$0.00
2
2155590

Air Scoop

$0.00
$0.00
3
2161231

Air Duct Freezer

$0.00
$0.00
5
2203593

Bi−Metal, Defrost

$0.00
$0.00
6
2188824

Fan Motor

$0.00
$0.00
7
2303346

Fan Blade

$0.00
$0.00
8
2169142

Fan Grommet (2)

$0.00
$0.00
10
2176759

Duct, Icemaker

$0.00
$0.00
11
2182146

Harness, Fan Evaporator (Includes #6)

$0.00
$0.00
12
2187930

Gasket Cover

$0.00
$0.00
13
2155789

Wire Tie

$0.00
$0.00
14
2172840

Gasket

$0.00
$0.00
16
2203876

Cover, Evaporator

$0.00
$0.00
17
2203841

Screw

$0.00
$0.00
18
489355

Screw

$0.00
$0.00
21
489478

Support, R.S

$0.00
$0.00
22
2203595

Support, L.S

$0.00
$0.00
23
2203596
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

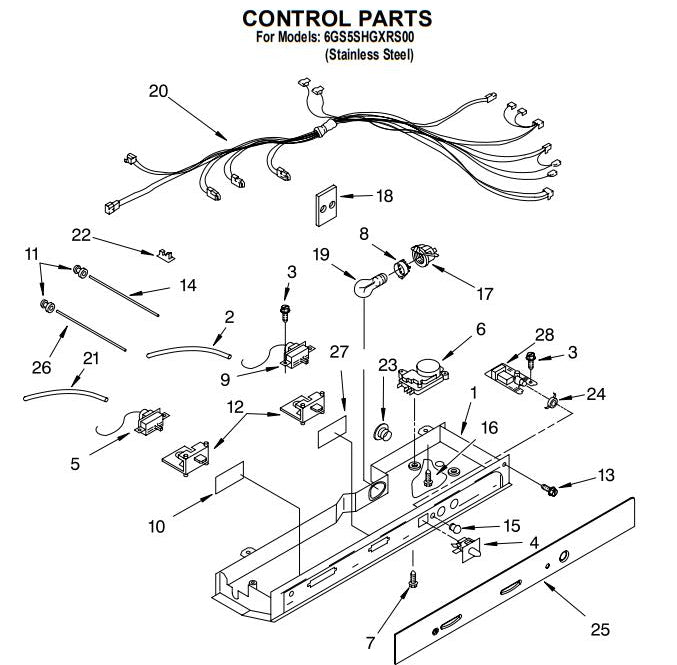

Control Box

$0.00
$0.00
1
2200135

Tube, Barrier Thermostat (RC)

$0.00
$0.00
2
2182150

Screw

$0.00
$0.00
3
489214

Light Switch

$0.00
$0.00
4
2149705

Thermostat (FC)

$0.00
$0.00
5
2187158

Defrost Timer

$0.00
$0.00
6
2188380

Screw (2)

$0.00
$0.00
7
489398

Shroud, Light

$0.00
$0.00
8
2175210

Thermostat (RC)

$0.00
$0.00
9
2161460

Window

$0.00
$0.00
10
2172940

Grommet, Light Bar

$0.00
$0.00
11
2172906

Slide, Thermostat

$0.00
$0.00
12
2161466

Screw (2)

$0.00
$0.00
13
489084

Light, Bar (RC)

$0.00
$0.00
14
2179920

Cover, Light Lens

$0.00
$0.00
15
2200096

Screw

$0.00
$0.00
16
489290

Light Socket

$0.00
$0.00
17
2162085

Heat Shield

$0.00
$0.00
18
2172931

Light Bulb

$0.00
$0.00
19
851682

Control Box Harness

$0.00
$0.00
20
2206516

Tube, Barrier Thermostat (FC)

$0.00
$0.00
21
2196003

Clip, Wiring

$0.00
$0.00
22
1115375

Hole Plug

$0.00
$0.00
23
940014

Retainer, Light Lens

$0.00
$0.00
24
2200097

Cover, Front Control

$0.00
$0.00
25
2261751

Light Bar (FC)

$0.00
$0.00
26
2179921

Window

$0.00
$0.00
27
2172941

P.C. Board Filter Indicator

$0.00
$0.00
28
2205787
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

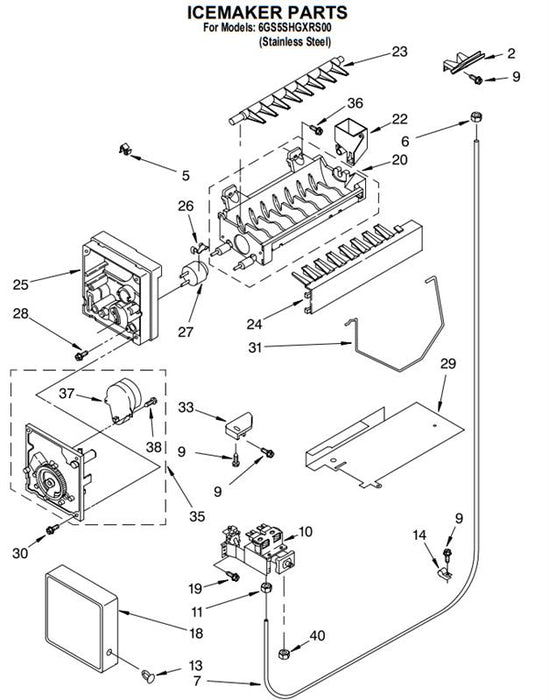

Chute, Water

$0.00
$0.00
2
2209774

Clip, Fuse

$0.00
$0.00
5
628379

Nut, Compression

$0.00
$0.00
6
2200083

Tube, Water

$0.00
$0.00
7
2223137

Screw

$0.00
$0.00
9
489478

Valve, Solenoid

$0.00
$0.00
10
2204400

Nut, Compression

$0.00
$0.00
11
627018

Clip

$0.00
$0.00
13
489115

Tube Clamp

$0.00
$0.00
14
489385

Cover

$0.00
$0.00
18
2174183

Screw

$0.00
$0.00
19
488649

Mold & Heater Assembly (Also Order 542638

$0.00
$0.00
20
628282

Cup, Water Fill

$0.00
$0.00
22
628356

Ejector

$0.00
$0.00
23
627843

Ice Striper

$0.00
$0.00
24
2182124

Support

$0.00
$0.00
25
2195914

Retainer, Thermostat

$0.00
$0.00
26
627796

Thermostat (Also Order 542369 Cement Alumilastic)

$0.00
$0.00
27
627985

Screw

$0.00
$0.00
28
8533917

Heat Shield

$0.00
$0.00
29
2182414

Screw

$0.00
$0.00
30
489276

Shut Off Arm

$0.00
$0.00
31
2209675

Bracket

$0.00
$0.00
33
628320

Module Assembly (Includes Items 37 and 38)

$0.00
$0.00
35
2187134

Screw

$0.00
$0.00
36
488208

Motor

$0.00
$0.00
37
2187135

Screw

$0.00
$0.00
38
489136

Nut, Compression

$0.00
$0.00
40
1129179

Primer, White (13 Oz. Spray Can)

$0.00
$0.00
350942

Enamel, Black (13 Oz. Spray Can)

$0.00
$0.00
350939

Enamel, White (13 Oz. Spray Can)

$0.00
$0.00
350930

Enamel, Almond (13 Oz. Spray Can)

$0.00
$0.00
350956

Brush Touch−Up Kit (White)

$0.00
$0.00
72017

Brush Touch−Up Kit (Almond)

$0.00
$0.00
72107

Brush Touch−up Kit (Black)

$0.00
$0.00
72032

Sealer, Gum (4 Feet)

$0.00
$0.00
212643

Tape, Vinyl (3/4 x 108")

$0.00
$0.00
479502

Kit, Insulation (2 Pcs. x 3" x 24" X 48")

$0.00
$0.00
876370

Kit, Insulation (14 Pcs. x 3" x 24" x 48")

$0.00
$0.00
876305

Insulation, Fiberglass (63−1/2" x 35−1/2" X 2−5/8)

$0.00
$0.00
978941

Kit, Foam Slab (30" x 32−1/2" x 1−1/2")

$0.00
$0.00
876029

Sealer, Mastic (1 Qt.)

$0.00
$0.00
505587

Cork, Sealer (1/4 Pound)

$0.00
$0.00
503695

Touch−Up, White Porcelain (2 Oz.)

$0.00
$0.00
511873

Grease, Silicone (1/2 Oz.)

$0.00
$0.00
542638

Cement, Alumilastic (1−1/4 Oz.)

$0.00
$0.00
542639

Bag, Insulation (36−5/8" x 46")

$0.00
$0.00
606755

Kit, Evaporator Repair (Aluminum Epoxy)

$0.00
$0.00
799833

Kit, Terminal Connector

$0.00
$0.00
833938

Ice Container Assembly

$0.00
$0.00
2209780

Enamel, Black (1 Qt. Uncut)

$0.00
$0.00
799340

Enamel, White (1 Qt. Uncut)

$0.00
$0.00
799344

Enamel, Almond (1 Qt. Uncut)

$0.00
$0.00
978883

Torx Key

$0.00
$0.00
1117510
