6GX0FHDXXY0

6GX0FHDXXY0

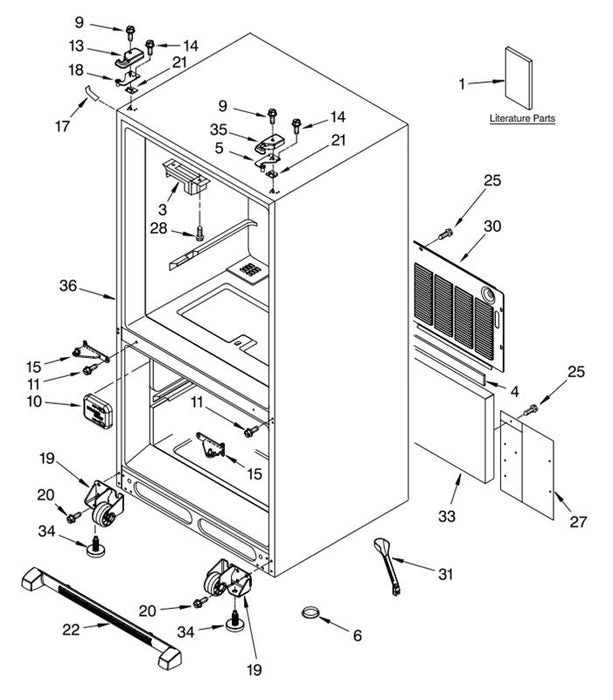

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Literature Parts Tech Sheet

$0.00
$0.00
1
W10308620

Owners Manual

$0.00
$0.00
-
12828189SP

Block, Pivot

$0.00
$0.00
3
12698403

Gasket

$0.00
$0.00
4
B5759655

Hinge, Top Right

$0.00
$0.00
5
12566604ED

Plug, Button

$0.00
$0.00
6
A3076901

Screw

$0.00
$0.00
9
12992602

Cover−Fill Tube

$0.00
$0.00
10
12477501

Screw (6)

$0.00
$0.00
11
12992201

Cover, Left Hinge Apollo Grey

$0.00
$0.00
13
W10217487

Screw (6)

$0.00
$0.00
14
12992403

Hinge, Center Apollo Grey

$0.00
$0.00
15
12655102AP

Cover, Corner Apollo Grey

$0.00
$0.00
17
12587703AP

Hinge, Top Left Roller Assembly

$0.00
$0.00
18
12566605ED

Left

$0.00
$0.00
19
W10275850

Right

$0.00
$0.00
-
W10275849

Screw

$0.00
$0.00
-
12991302

Shim, Hinge

$0.00
$0.00
20
12579702

Grille, Toe Apollo Grey

$0.00
$0.00
21
W10244558

Screw (10)

$0.00
$0.00
22
12990511

Cover, Water Valve

$0.00
$0.00
25
W10217701

Screw (2)

$0.00
$0.00
27
12990303

Cover, Unit

$0.00
$0.00
28
W10212203

Tube, Drain

$0.00
$0.00
30
W10210988

Insulation, Sound

$0.00
$0.00
31
12820505

Foot Brake

$0.00
$0.00
33
W10141622

Cover, Right Hinge Apollo Grey

$0.00
$0.00
34
12629801AP

Cabinet (Not a Servicable Part)

$0.00
$0.00
35
---

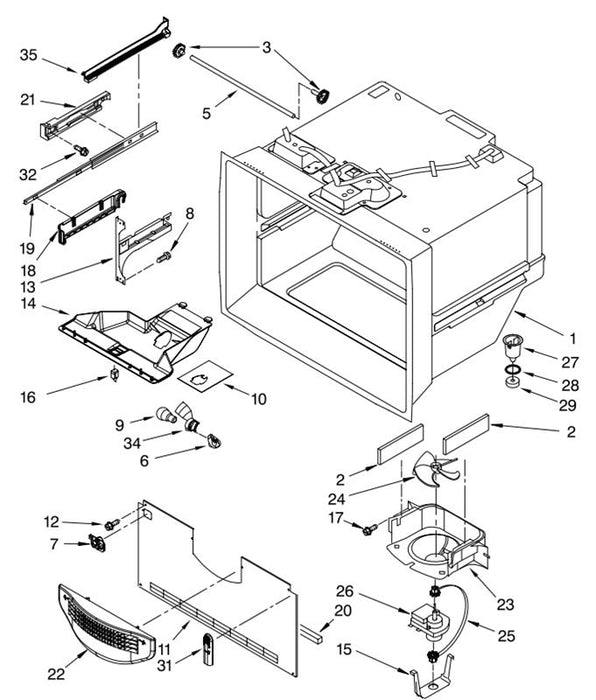

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Seviceable Part)

$0.00
$0.00
1
---

Gasket, Foam

$0.00
$0.00
2
A3189392

Gear (Includes LH & RH)

$0.00
$0.00
3
12002497

Shaft

$0.00
$0.00
5
12812903WD

Socket, Light

$0.00
$0.00
6
W10134764V

Guide, Fill Tube

$0.00
$0.00
7
12932103

Screw (8)

$0.00
$0.00
8
12990521

Bulb, Light

$0.00
$0.00
9
A0282808V

Foil−FZ Light

$0.00
$0.00
10
W10277466

Cover, Evaporator

$0.00
$0.00
11
W10308418

Screw (4)

$0.00
$0.00
12
12990511

Bracket, Door

$0.00
$0.00
13
---

Left

$0.00
$0.00
-
W10119064

Right

$0.00
$0.00
-
W10119295

Module−FZ Light

$0.00
$0.00
14
W10277025

Clip, Evap Motor

$0.00
$0.00
15
10623002

Switch, Light

$0.00
$0.00
16
12466114

Screw (2)

$0.00
$0.00
17
12990504

Cradle, Basket

$0.00
$0.00
18
---

Left

$0.00
$0.00
-
W10281115

Right

$0.00
$0.00
-
W10281116

Slide, Drawer (2)

$0.00
$0.00
19
13055901

Gasket, Bottom

$0.00
$0.00
20
A3189397

Adapter, Slide

$0.00
$0.00
21
---

Left

$0.00
$0.00
-
12846607

Right

$0.00
$0.00
-
12846608

Grille, Fz Air

$0.00
$0.00
22
13024803

Shroud, Evap Fan

$0.00
$0.00
23
13057901

Blade, Fan (Evaporator)

$0.00
$0.00
24
2169142

Grommet

$0.00
$0.00
25
W10121318

Motor, Evaporator

$0.00
$0.00
26
10449516

Funnel, Drain

$0.00
$0.00
27
D7753903

Seal

$0.00
$0.00
28
M0500703

Gasket

$0.00
$0.00
29
B8381501

Cover, Thermistor

$0.00
$0.00
31
12815301

Screw (6)

$0.00
$0.00
32
12990501

Shroud−Lght Socket

$0.00
$0.00
34
W10119914

Rack−Left

$0.00
$0.00
35
W10284696

Rack−Right

$0.00
$0.00
-
W10284697

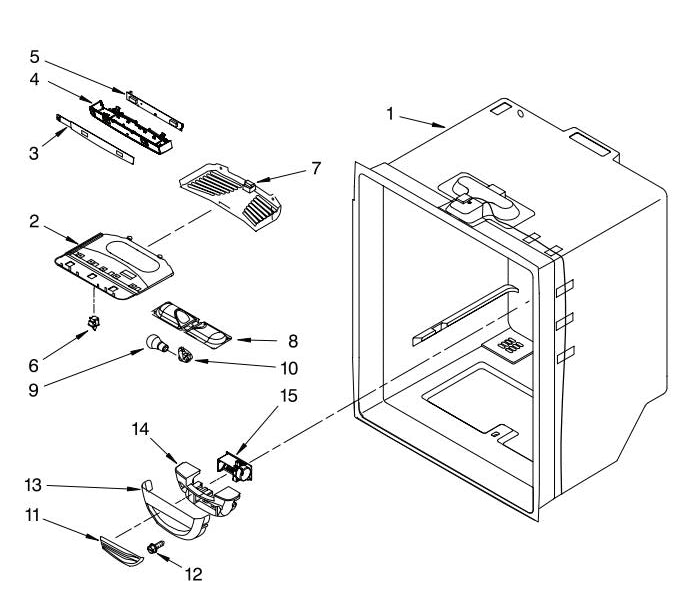

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
---

Bracket, Control and Lights

$0.00
$0.00
2
12806302

Keyboard

$0.00
$0.00
3
12816517

Housing, Control

$0.00
$0.00
4
12806406

Board, Control

$0.00
$0.00
5
12868515

Switch, Light (2)

$0.00
$0.00
6
C3680314

Housing, Light

$0.00
$0.00
7
12806601V

Cover, Light

$0.00
$0.00
8
12806501

Bulb, Light (2)

$0.00
$0.00
9
A0282808V

Socket, Light (2)

$0.00
$0.00
10
W10134764V

Insert, Damper Cover

$0.00
$0.00
11
12806801

Screw (2)

$0.00
$0.00
12
12990604

Cover, Damper

$0.00
$0.00
13
12806701

Insulation

$0.00
$0.00
14
13012402

Control, Damper (Incl. Harness)

$0.00
$0.00
15
W10177399

Harness, Control (Refrigerator)

$0.00
$0.00
-
12973603

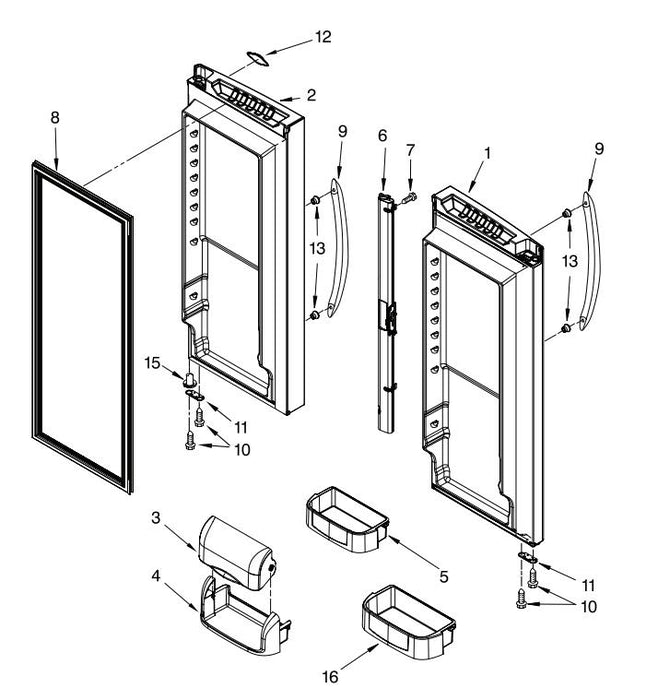

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Door, Left Stainless

$0.00
$0.00
1
13024093SQ

Door, Right Stainless

$0.00
$0.00
2
13024074SQ

Door, Dairy

$0.00
$0.00
3
12804701SP

Tray, Dairy

$0.00
$0.00
4
12369502SP

Bin, Shelf (3) (Medium)

$0.00
$0.00
5
12557212

Mullion, Door Apollo Grey

$0.00
$0.00
6
12722811AP

Screw

$0.00
$0.00
7
12990204

Handle, Door Stainless

$0.00
$0.00
8
W10223019

Gasket, Door (2) Apollo Grey

$0.00
$0.00
9
W10179332

Screw

$0.00
$0.00
10
12990504

Stop, Door Apollo Grey

$0.00
$0.00
11
10447114

Nameplate

$0.00
$0.00
12
2220214

Screw, Handle

$0.00
$0.00
13
12992902

Closure, Door Apollo Grey

$0.00
$0.00
15
12028505AP

Bin, Shelf (2) (Gallon)

$0.00
$0.00
16
12699004

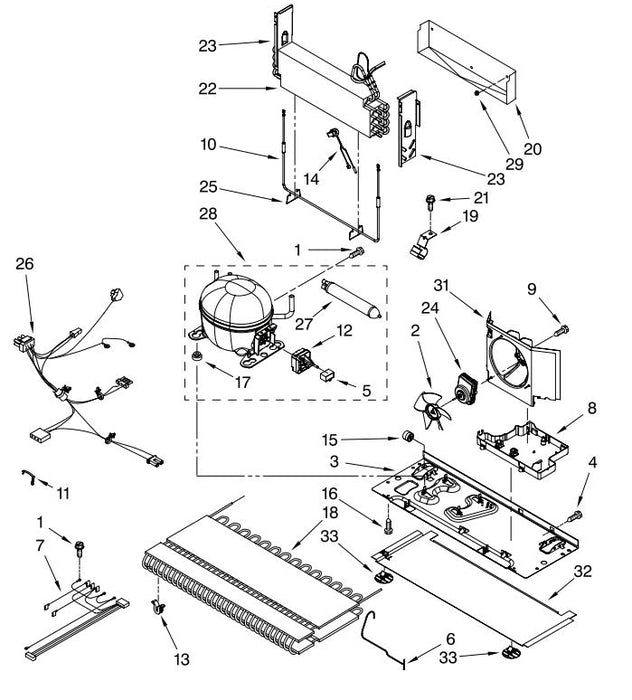

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Screw

$0.00
$0.00
1
12992301

Blade, Fan

$0.00
$0.00
2
12825803

Basepan

$0.00
$0.00
3
W10210985

Screw

$0.00
$0.00
4
12990511

Capacitor

$0.00
$0.00
5
2321245

Tube, Discharge

$0.00
$0.00
6
W10286438

Harness, Evap. Heater

$0.00
$0.00
7
W10280429

Pan, Drain

$0.00
$0.00
8
W10296785

Screw

$0.00
$0.00
9
12991001

Heater, Defrost

$0.00
$0.00
10
12729132

Strap, Bale

$0.00
$0.00
11
2302129

Start Device

$0.00
$0.00
12
2312007

Grommet, Cond (4)

$0.00
$0.00
13
W10137529

Thermostat, Defrost

$0.00
$0.00
14
12639322SP

Roller Assembly

$0.00
$0.00
15
12580304

Screw

$0.00
$0.00
16
12992101

Grommet (4)

$0.00
$0.00
17
10835903SP

Condenser

$0.00
$0.00
18
W10135027

Clip, Drier

$0.00
$0.00
19
10547003

Tray, Drip

$0.00
$0.00
20
W10292803

Screw

$0.00
$0.00
21
12990701

Evaporator Dam

$0.00
$0.00
22
12726403

Right Side

$0.00
$0.00
23
12225702

Left Side

$0.00
$0.00
-
12225602

Motor, Fan

$0.00
$0.00
-
W10246191

Clip, Heater

$0.00
$0.00
24
10428101

Harness, Unit with Power Cord

$0.00
$0.00
25
W10234312

Drier

$0.00
$0.00
26
W10143759

Compressor (Includes items 11,12,17,27)

$0.00
$0.00
27
W10223234

Clip, Evaporator

$0.00
$0.00
28
10623002

Shroud

$0.00
$0.00
29
W10189187

Extension−Basepan

$0.00
$0.00
31
W10225121

Fastener−Basepan

$0.00
$0.00
32
W10206339

Valve, Access (1/4")

$0.00
$0.00
33
978025

Valve, Access (5/16")

$0.00
$0.00
-
978026

Valve, Access (3/8")

$0.00
$0.00
-
978027

Valve, Access (1/2")

$0.00
$0.00
-
978028

Valve, Access (5/8")

$0.00
$0.00
-
978029

Valve, Access (3/4")

$0.00
$0.00
-
978030

Valve, Access (3/16")

$0.00
$0.00
-
876764

5.25 Ozs. (R−134A)

$0.00
$0.00
-
---

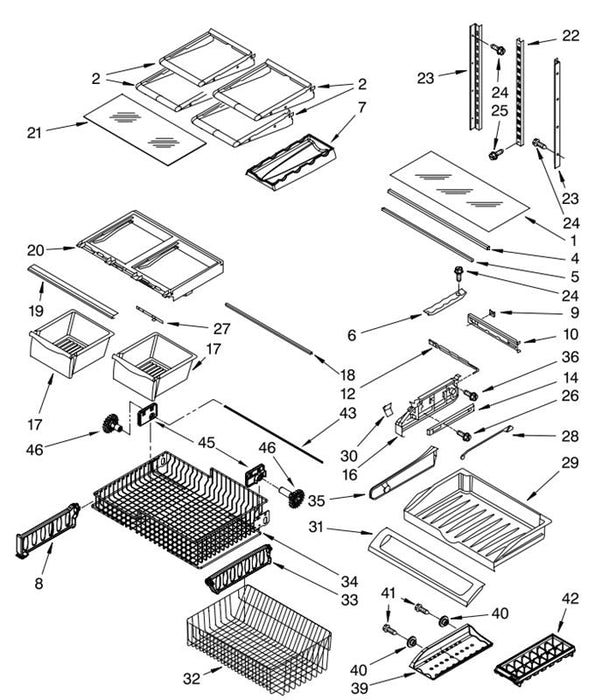

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Glass, Pantry

$0.00
$0.00
1
12204829

Shelf, Glide Out

$0.00
$0.00
2
12463911

Extr, Glass Support (2)

$0.00
$0.00
4
12655902SP

Brace, Pantry (2)

$0.00
$0.00
5
12227305WD

Track, Pantry

$0.00
$0.00
6
12531901

Trivet−Wine

$0.00
$0.00
7
12525101

Divider, Upper Basket

$0.00
$0.00
8
W10241046

Gasket, Pantry

$0.00
$0.00
9
12656901

Housing, Control

$0.00
$0.00
10
12656202

Slide, Temperature

$0.00
$0.00
12
12655402

Glide, Drawer (2)

$0.00
$0.00
14
W10235370

Endcap, Pantry

$0.00
$0.00
16
---

Left

$0.00
$0.00
-
12656105

Right

$0.00
$0.00
-
12656018

Pan, Crisper (2)

$0.00
$0.00
17
12531105

Brace, Crisper

$0.00
$0.00
18
12227304WD

Trim, Crisper

$0.00
$0.00
19
W10231346

Frame, Crisper

$0.00
$0.00
20
12531202SP

Glass, Crisper

$0.00
$0.00
21
12204821

Cover

$0.00
$0.00
-
---

Ladder, Center

$0.00
$0.00
22
W10273463

Ladder, Side

$0.00
$0.00
23
W10251971

Screw (6)

$0.00
$0.00
24
12990513

Screw (2)

$0.00
$0.00
25
W10215666

Screw (4)

$0.00
$0.00
26
12990512

Slide, Humidity Control

$0.00
$0.00
27
12530805SP

Rod, Temperature Control

$0.00
$0.00
28
12655303

Drawer, Pantry

$0.00
$0.00
29
12655702

Knob, Temperature Control

$0.00
$0.00
30
12655204V

Door, Pantry Drawer

$0.00
$0.00
31
12656813

Basket, Freezer (Lower)

$0.00
$0.00
32
W10150040

Divider, Lower Basket

$0.00
$0.00
33
W10150061

Basket, Freezer (Upper)

$0.00
$0.00
34
W10188805

Divider, Pantry Drawer

$0.00
$0.00
35
12709301

Screw (4)

$0.00
$0.00
36
12990504

Rack, Ice Tray

$0.00
$0.00
39
12646501

Spacer, Ice Rack

$0.00
$0.00
40
10972101

Screw, Ice Rack

$0.00
$0.00
41
12991001

Ice Cube Tray

$0.00
$0.00
42
D7725402S

Shaft−Rack

$0.00
$0.00
43
12812904WD

Mount−Gear

$0.00
$0.00
45
---

Right

$0.00
$0.00
-
W10233899

Left

$0.00
$0.00
-
W10233898

Gear

$0.00
$0.00
46
---

Long−Right

$0.00
$0.00
-
W10146446

Short−Left

$0.00
$0.00
-
W10158749

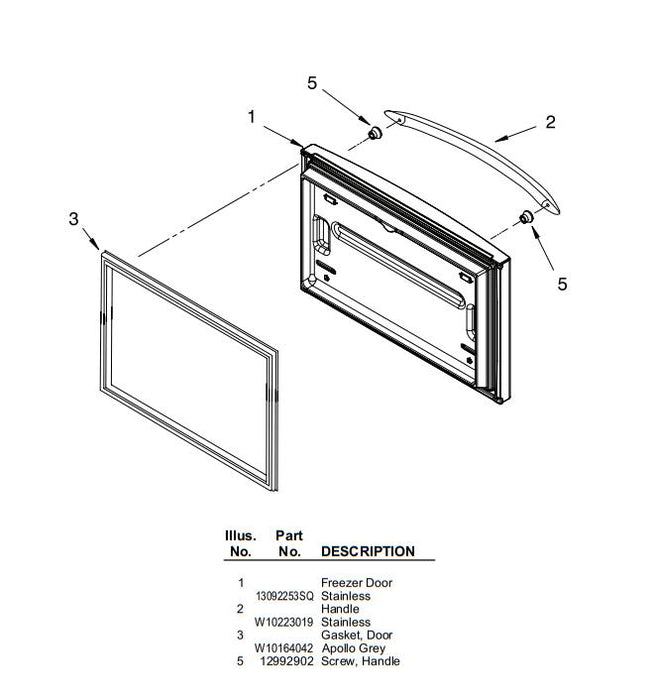

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer Door Stainless

$0.00
$0.00
1
13092253SQ

Handle

$0.00
$0.00
2
W10223019

Stainless Gasket, Door Apollo Grey

$0.00
$0.00
3
W10164042

Screw, Handle

$0.00
$0.00
5
12992902

Primer, White (13 Oz. Spray Can)

$0.00
$0.00
350942

Enamel, Black (13 Oz. Spray Can)

$0.00
$0.00
350939

Enamel, White (13 Oz. Spray Can)

$0.00
$0.00
350930

Brush Touch−Up Kit (White)

$0.00
$0.00
72017

Brush Touch−up kit (Black)

$0.00
$0.00
72032

Enamel, Black (1 Qt. Uncut)

$0.00
$0.00
799340

Enamel, White (1 Qt. Uncut)

$0.00
$0.00
799344

Cord, Power

$0.00
$0.00
W10289834

Sealer, Gum (4 Feet)

$0.00
$0.00
212643

Tape, Vinyl (3/4 x 108")

$0.00
$0.00
479502

Kit, Insulation (2 Pcs. x 3" x 24" X 48")

$0.00
$0.00
876370

Kit, Insulation (14 Pcs. x 3" x 24" x 48")

$0.00
$0.00
876305

Insulation, Fiberglass (63−1/2" x 35−1/2" X 2−5/8)

$0.00
$0.00
978941

Kit, Foam Slab (30" x 32−1/2" x 1−1/2")

$0.00
$0.00
876029

Sealer, Mastic (1 Qt.)

$0.00
$0.00
505587

Cork, Sealer (1/4 Pound)

$0.00
$0.00
503695

Cleaner, Stnls Steel Magic

$0.00
$0.00
20000008

Grease, Silicone (1/2 Oz.)

$0.00
$0.00
542638

Cement, Alumilastic (1−1/4 Oz.)

$0.00
$0.00
542639

Bag, Insulation (36−5/8" x 46")

$0.00
$0.00
606755

Kit, Evaporator Repair (Aluminum Epoxy)

$0.00
$0.00
799833

Kit, Terminal Connector

$0.00
$0.00
833938

Torx Key

$0.00
$0.00
1117510

IC514

$0.00
$0.00
W10261455
