6LER5434BQ0

6LER5434BQ0

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

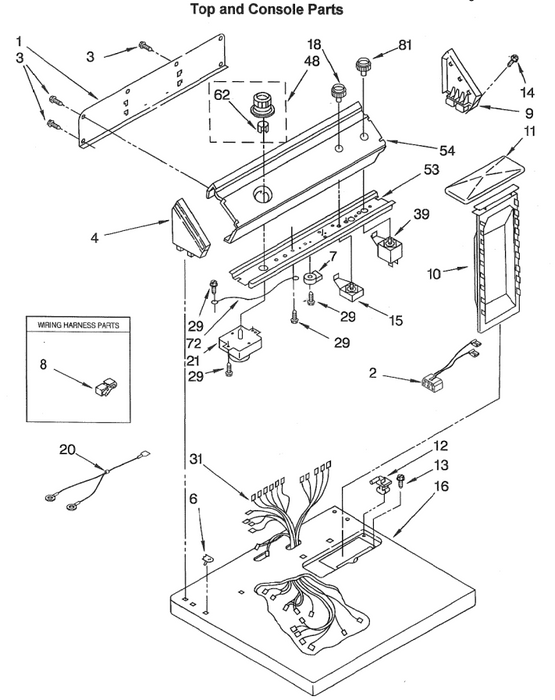

Panel, Rear Console

$0.00
$0.00
1
3397545

Wire Jumper Assembly

$0.00
$0.00
2
3396028

Screw, Hex Head

$0.00
$0.00
3
693995

Cap, End (L.H)

$0.00
$0.00
4
3358531

Cap, End (L.H) For Model 6LER5434BW

$0.00
$0.00
-
Not applicable

Cap, End (L.H) For Model 6LER5434BQ

$0.00
$0.00
-
Not applicable

Stop, Push - In

$0.00
$0.00
6
357213

Resistor

$0.00
$0.00
7
3388706

Clip, Retainer

$0.00
$0.00
8
689180

Cap, End (R.H)

$0.00
$0.00
9
3358516

Cap, End (R.H) 6LER5434BW

$0.00
$0.00
-
Not applicable

Cap, End (R.H) 6LER5434BQ

$0.00
$0.00
-
Not applicable

Screen, Lint

$0.00
$0.00
10
3399392

Cover, Lint Screen, white

$0.00
$0.00
11
688150

Hinge R.H

$0.00
$0.00
12
339229

Hinge L.H

$0.00
$0.00
12
339230

Screw, 8-18 X 5/8

$0.00
$0.00
13
688983

Screw, Console

$0.00
$0.00
14
3353145

Switch, Temperature

$0.00
$0.00
15
3354281

Top, white

$0.00
$0.00
16
3396022

Knob, Control, 6LER5434BW

$0.00
$0.00
18
3358431

Knob, Control, 6LER5434BQ

$0.00
$0.00
18
3358435

Harness, Ground

$0.00
$0.00
20
Not applicable

Timer 60Hz.

$0.00
$0.00
21
3396215

Screw, 8 - 18 X 5/16

$0.00
$0.00
29
3390646

Harness, Wiring

$0.00
$0.00
31
3401145

Switch, Push - To - Start

$0.00
$0.00
39
3395382

Knob, Timer, 6LER5434BW

$0.00
$0.00
48
3396145

Knob, Timer, 6LER5434BQ

$0.00
$0.00
48
3396146

Bracket, Control

$0.00
$0.00
53
3396293

Panel, Control, 6LER5434BW

$0.00
$0.00
54
3401060

Panel, Control, 6LER5434BQ

$0.00
$0.00
54
3401061

Clip

$0.00
$0.00
62
688805

Wire, Ground

$0.00
$0.00
72
690853

Knob, Push to start 6LER5434BQ

$0.00
$0.00
81
3396161
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

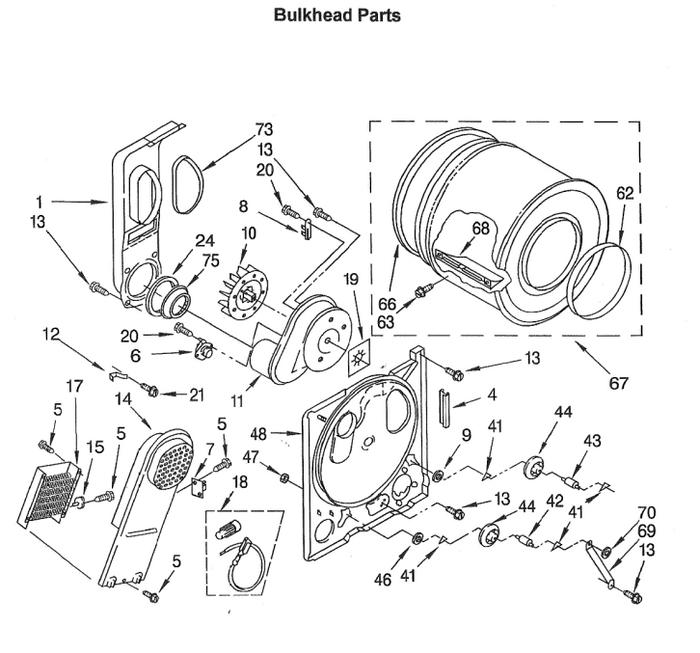

Lint Chute Assembly

$0.00
$0.00
1
694283

Pad, Cabinet (Blower Housing)

$0.00
$0.00
4
3392247

Screw, 8 X 3/8

$0.00
$0.00
5
90767

Thermostat, Internal -Bias

$0.00
$0.00
6
3387137

Thermal Cut - Off

$0.00
$0.00
7
3399848

Thermal Fuse

$0.00
$0.00
8
694511

Washer, Support

$0.00
$0.00
9
3388703

Wheel, Blower (Includes Illus. No. 19)

$0.00
$0.00
10
694089

Housing, Blower

$0.00
$0.00
11
695081

Clip

$0.00
$0.00
12
3398161

Screw, 10 - 16 X 1/2

$0.00
$0.00
13
343641

Box, Heater

$0.00
$0.00
14
695547

Thermostat, (High Limit) 82 °C (18 °F)

$0.00
$0.00
15
660368

Element, Heater

$0.00
$0.00
17
3393808

Wire kit (Heater wiring harness repair)

$0.00
$0.00
18
279457

Seal, Blower

$0.00
$0.00
19
3392123

Screw, 8 - 18 X 3/8

$0.00
$0.00
20
695239

Screw, 10 - 32 X 5/8

$0.00
$0.00
21
697776

Seal, Lint Chute

$0.00
$0.00
24
347139

Ring, Tri

$0.00
$0.00
41
690997

Shaft, L.H

$0.00
$0.00
42
3399506

Shaft, R.H

$0.00
$0.00
43
3399507

Roller, Support

$0.00
$0.00
44
3397588

Washer Support

$0.00
$0.00
46
348197

Nut, 3/8 - 16

$0.00
$0.00
47
3359452

Bulkhead

$0.00
$0.00
48
685775

Ring, Bearing

$0.00
$0.00
62
3394509

Screw, 11 - 16 X 7/8

$0.00
$0.00
63
97787

Seal, Rear Drum

$0.00
$0.00
66
337449

Drum Assembly

$0.00
$0.00
67
3396777

Baffle, Drum

$0.00
$0.00
68
342847

Bracket, Support

$0.00
$0.00
69
348945

Clip

$0.00
$0.00
70
90296

Seal

$0.00
$0.00
73
339956

Shield, Extract

$0.00
$0.00
75
696302
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

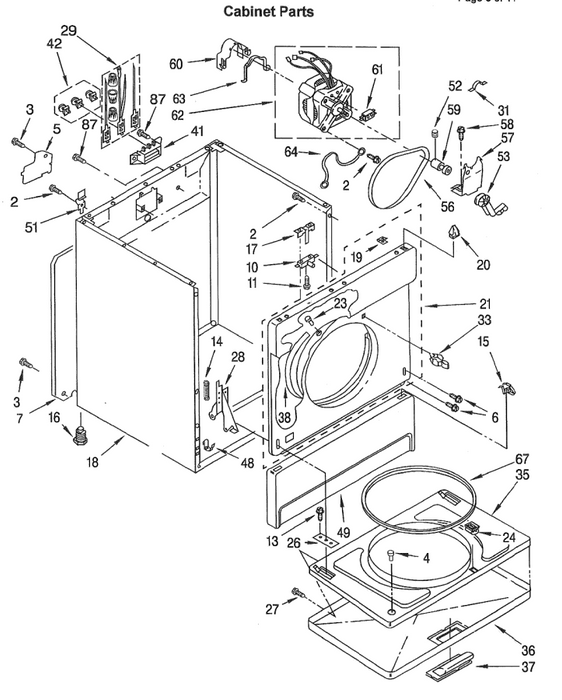

Screw, 10 - 16 X 1/2

$0.00
$0.00
2
343641

Screw, Hex Washer Head

$0.00
$0.00
3
693995

Bumper

$0.00
$0.00
4
238614

Cover, Terminal Block

$0.00
$0.00
5
3396795

Screw, 10 - 32 X 1/2

$0.00
$0.00
6
342043

Panel, Rear

$0.00
$0.00
7
3396807

Switch, Door

$0.00
$0.00
10
347207

Screw, 6 - 20 X 1 3/8 (2)

$0.00
$0.00
11
3394052

Screw, 10 - 16 X 1/2

$0.00
$0.00
13
3357011

Spring, Door (2)

$0.00
$0.00
14
237979

Clip, Toe Panel (2)

$0.00
$0.00
15
3388229

Foot (4)

$0.00
$0.00
16
3392100

Lever, Door Switch

$0.00
$0.00
17
691581

Cabinet, white

$0.00
$0.00
18
3394109

Clip, Ground (2)

$0.00
$0.00
19
98234

Lock, Front Top (2)

$0.00
$0.00
20
690363

Panel Assembly, Upper front

$0.00
$0.00
21
338012

Clip, Felt Pad (2)

$0.00
$0.00
23
685203

Catch, Door

$0.00
$0.00
24
690081

Clip, Hinge

$0.00
$0.00
26
337189

Screw (6)

$0.00
$0.00
27
694091

Hinge, R.H.

$0.00
$0.00
28
687905

Hinge, L.H.

$0.00
$0.00
28
687906

Terminal, Tinned brass (3) (Includes Item 42)

$0.00
$0.00
29
279318

Clip, Harness

$0.00
$0.00
31
98997

Strike, Door

$0.00
$0.00
33
696144

Door, Rear

$0.00
$0.00
35
695954

Door, Front, white

$0.00
$0.00
36
348728

Handle, Door, white

$0.00
$0.00
37
3390781

Seal & Bearing Assembly

$0.00
$0.00
38
349464

Block, Terminal

$0.00
$0.00
41
3397659

Terminal Block Kit For Terminal Block

$0.00
$0.00
42
279393

Clip, Hinge (2)

$0.00
$0.00
48
297092

Panel, Toe, white

$0.00
$0.00
49
697095

Hinge, Top (2)

$0.00
$0.00
51
238088

Screw, Set

$0.00
$0.00
52
690046

Idler & Pulley Assembly

$0.00
$0.00
53
691366

Belt, Drive

$0.00
$0.00
56
660996

Base, Motor

$0.00
$0.00
57
348780

Bolt, 5/16 - 18 X 3/4

$0.00
$0.00
58
172455

Pulley, 50Hz. (Includes Item No. 52)

$0.00
$0.00
59
685064

Clamp, Motor

$0.00
$0.00
60
Not applicable

Switch, Motor

$0.00
$0.00
61
3388235

Motor Assembly, 50/60Hz

$0.00
$0.00
62
685815

Clip, Motor

$0.00
$0.00
63
660658

(Alt.)

$0.00
$0.00
-
343481

(Alt.)

$0.00
$0.00
-
685441

Wire, Ground

$0.00
$0.00
64
690236

Seal, Door

$0.00
$0.00
67
3390733

Screw, 10 - 32 X 1/2 (Grounding)

$0.00
$0.00
87
697776

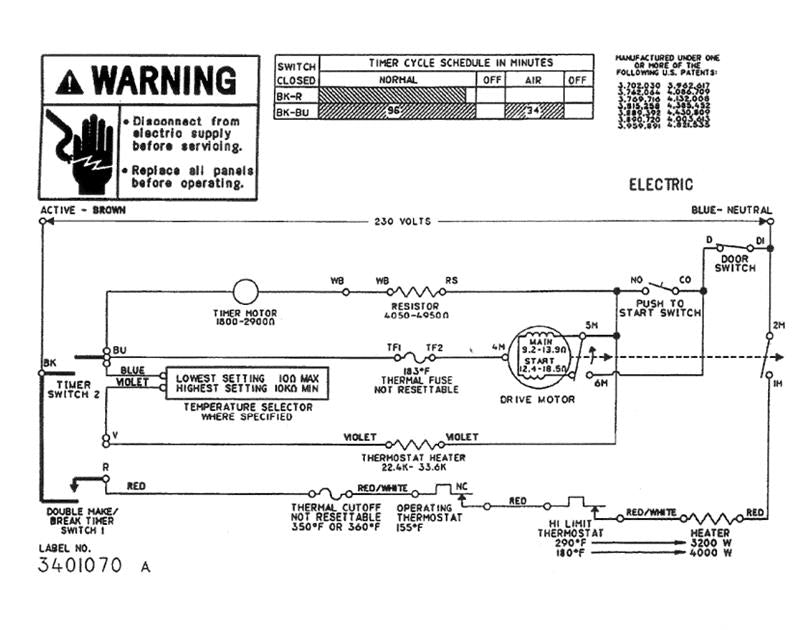

Wiring Diagram
