Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

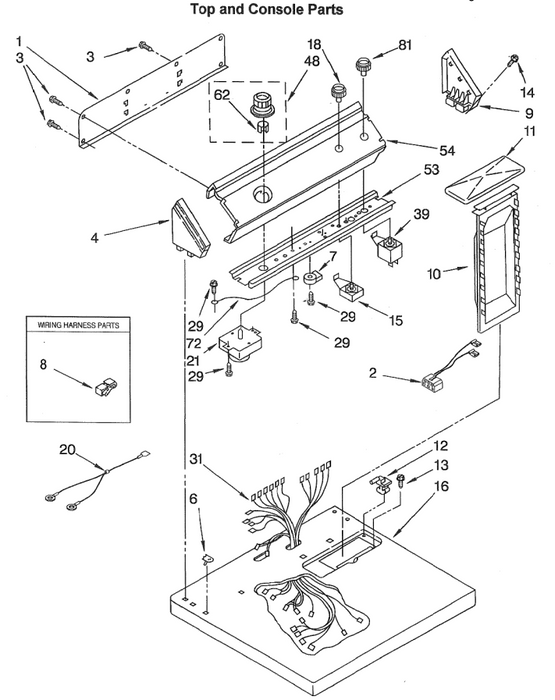

Panel, Rear Console

$0.00
$0.00
1
3397545

Wire Jumper Assembly

$1.00
$1.00
2
3396028

Screw, Hex Head

$2.00
$2.00
3
693995

Cap, End (L.H)

$3.00
$3.00
4
Not applicable

Cap, End (L.H) For Model 6LER5434BW

$4.00
$4.00
-
3358530

Cap, End (L.H) For Model 6LER5434BQ

$5.00
$5.00
-
3358528

Stop, Push - In

$6.00
$6.00
6
357213

Resistor

$7.00
$7.00
7
3388706

Clip, Retainer

$8.00
$8.00
8
689180

Cap, End (R.H)

$9.00
$9.00
9
Not applicable

Cap, End (R.H) 6LER5434BW

$10.00
$10.00
-
3358515

Cap, End (R.H) 6LER5434BQ

$11.00
$11.00
-
3358513

Screen, Lint

$12.00
$12.00
10
3399392

Cover, Lint Screen, white

$13.00
$13.00
11
688150

Hinge R.H

$14.00
$14.00
12
339229

Hinge L.H

$15.00
$15.00
12
339230

Screw, 8-18 X 5/8

$16.00
$16.00
13
688983

Screw, Console

$17.00
$17.00
14
388326

Switch, Temperature

$18.00
$18.00
15
3399638

Top, white

$19.00
$19.00
16
3396022

Knob, Control, 6LER5434BW

$20.00
$20.00
18
3358431

Knob, Control, 6LER5434BQ

$21.00
$21.00
18
3358435

Harness, Ground

$22.00
$22.00
20
3401688

Timer 60Hz.

$23.00
$23.00
21
3396215

Screw, 8 - 18 X 5/16

$24.00
$24.00
29
3390646

Harness, Wiring

$25.00
$25.00
31
3401145

Switch, Push - To - Start

$26.00
$26.00
39
3395382

Knob, Timer, 6LER5434BW

$27.00
$27.00
48
3396145

Knob, Timer, 6LER5434BQ

$28.00
$28.00
48
3396146

Bracket, Control

$29.00
$29.00
53
3396293

Panel, Control, 6LER5434BW

$30.00
$30.00
54
3401063

Panel, Control, 6LER5434BQ

$31.00
$31.00
54
3401064

Clip

$32.00
$32.00
62
688805

Wire, Ground

$33.00
$33.00
72
690853

Knob, Push to start 6LER5434BQ

$34.00
$34.00
81
3396161
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

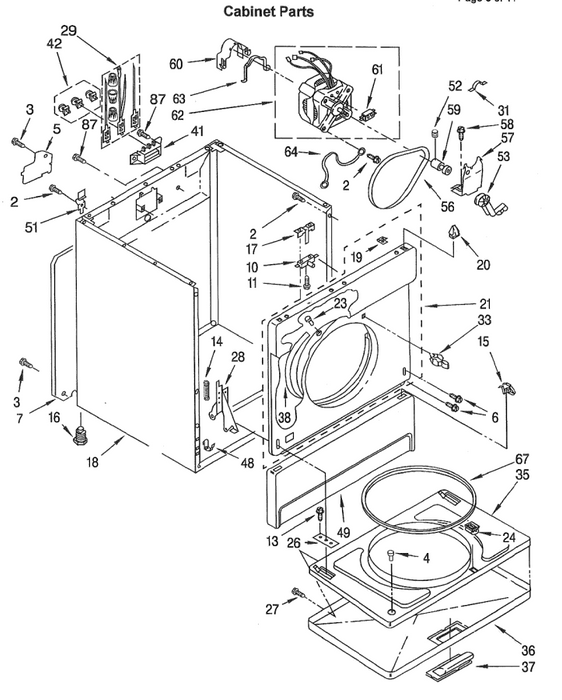

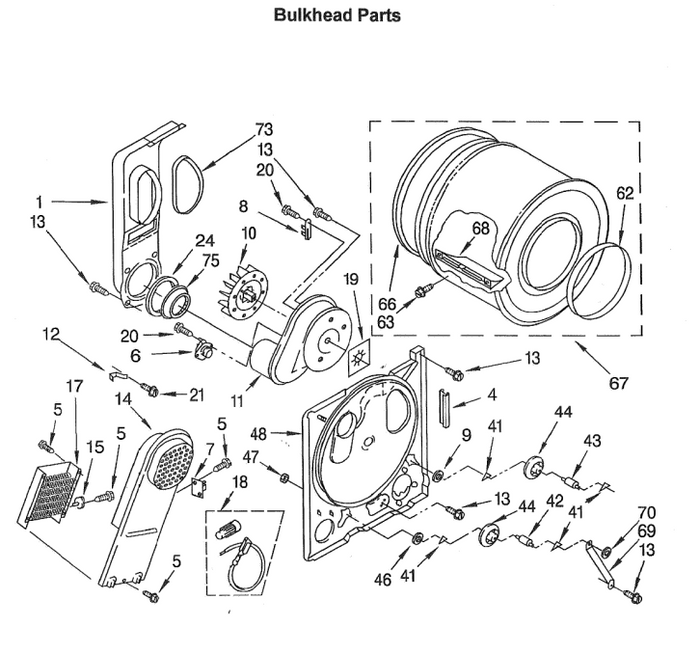

Lint Chute Assembly

$35.00
$35.00
1
694283

Pad, Cabinet (Blower Housing)

$36.00
$36.00
4
3392247

Screw, 8 X 3/8

$37.00
$37.00
5
90767

Thermostat, Internal -Bias

$38.00
$38.00
6
3387137

Thermal Cut - Off

$39.00
$39.00
7
3399848

Thermal Fuse

$40.00
$40.00
8
694511

Washer, Support

$41.00
$41.00
9
3388703

Wheel, Blower (Includes Illus. No. 19)

$42.00
$42.00
10
694089

Housing, Blower

$43.00
$43.00
11
3405016

Clip

$44.00
$44.00
12
3398161

Screw, 10 - 16 X 1/2

$45.00
$45.00
13
343641

Box, Heater

$46.00
$46.00
14
695547

Thermostat, (High Limit) 82 °C (18 °F)

$47.00
$47.00
15
660368

Element, Heater

$48.00
$48.00
17
3398068

Wire kit (Heater wiring harness repair)

$49.00
$49.00
18
279457

Seal, Blower

$50.00
$50.00
19
3392123

Screw, 8 - 18 X 3/8

$51.00
$51.00
20
3400800

Screw, 10 - 32 X 5/8

$52.00
$52.00
21
697776

Seal, Lint Chute

$53.00
$53.00
24
347139

Ring, Tri

$54.00
$54.00
41
690997

Shaft, L.H

$55.00
$55.00
42
3399506

Shaft, R.H

$56.00
$56.00
43
3399507

Roller, Support

$57.00
$57.00
44
3397588

Washer Support

$58.00
$58.00
46
348197

Nut, 3/8 - 16

$59.00
$59.00
47
3359452

Bulkhead

$60.00
$60.00
48
3397264

Ring, Bearing

$61.00
$61.00
62
3394509

Screw, 11 - 16 X 7/8

$62.00
$62.00
63
97787

Seal, Rear Drum

$63.00
$63.00
66
337449

Drum Assembly

$64.00
$64.00
67
3396777

Baffle, Drum

$65.00
$65.00
68
342847

Bracket, Support

$66.00
$66.00
69
348945

Clip

$67.00
$67.00
70
90296

Seal

$68.00
$68.00
73
339956

Shield, Extract

$69.00
$69.00
75
696302
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Screw, 10 - 16 X 1/2

$70.00
$70.00
2
343641

Screw, Hex Washer Head

$71.00
$71.00
3
693995

Bumper

$72.00
$72.00
4
238614

Cover, Terminal Block

$73.00
$73.00
5
3396795

Screw, 10 - 32 X 1/2

$74.00
$74.00
6
342043

Panel, Rear

$75.00
$75.00
7
3396807

Switch, Door

$76.00
$76.00
10
347207

Screw, 6 - 20 X 1 3/8 (2)

$77.00
$77.00
11
3394052

Screw, 10 - 16 X 1/2

$78.00
$78.00
13
3357011

Spring, Door (2)

$79.00
$79.00
14
237979

Clip, Toe Panel (2)

$80.00
$80.00
15
3388229

Foot (4)

$81.00
$81.00
16
3392100

Lever, Door Switch

$82.00
$82.00
17
691581

Cabinet, white

$83.00
$83.00
18
3394109

Clip, Ground (2)

$84.00
$84.00
19
98234

Lock, Front Top (2)

$85.00
$85.00
20
690363

Panel Assembly, Upper front

$86.00
$86.00
21
338012

Clip, Felt Pad (2)

$87.00
$87.00
23
685203

Catch, Door

$88.00
$88.00
24
690081

Clip, Hinge

$89.00
$89.00
26
337189

Screw (6)

$90.00
$90.00
27
694091

Hinge, R.H.

$91.00
$91.00
28
687905

Hinge, L.H.

$92.00
$92.00
28
687906

Terminal, Tinned brass (3) (Includes Item 42)

$93.00
$93.00
29
279318

Clip, Harness

$94.00
$94.00
31
98997

Strike, Door

$95.00
$95.00
33
696144

Door, Rear

$96.00
$96.00
35
695954

Door, Front, white

$97.00
$97.00
36
348728

Handle, Door, white

$98.00
$98.00
37
3390781

Seal & Bearing Assembly

$99.00
$99.00
38
349464

Block, Terminal

$100.00
$100.00
41
690261

Terminal Block Kit For Terminal Block

$101.00
$101.00
42
279393

Clip, Hinge (2)

$102.00
$102.00
48
297092

Panel, Toe, white

$103.00
$103.00
49
697095

Hinge, Top (2)

$104.00
$104.00
51
238088

Screw, Set

$105.00
$105.00
52
690046

Idler & Pulley Assembly

$106.00
$106.00
53
691366

Belt, Drive

$107.00
$107.00
56
660996

Base, Motor

$108.00
$108.00
57
348780

Bolt, 5/16 - 18 X 3/4

$109.00
$109.00
58
3400500

Pulley, 50Hz. (Includes Item No. 52)

$110.00
$110.00
59
685064

Clamp, Motor

$111.00
$111.00
60
3404162

Switch, Motor

$112.00
$112.00
61
3388235

Motor Assembly, 50/60Hz

$113.00
$113.00
62
685815

Clip, Motor

$114.00
$114.00
63
660658

(Alt.)

$0.00
$0.00
-
343481

(Alt.)

$0.00
$0.00
-
685441

Wire, Ground

$117.00
$117.00
64
690236

Seal, Door

$118.00
$118.00
67
3390733

Screw, 10 - 32 X 1/2 (Grounding)

$119.00
$119.00
87
697776

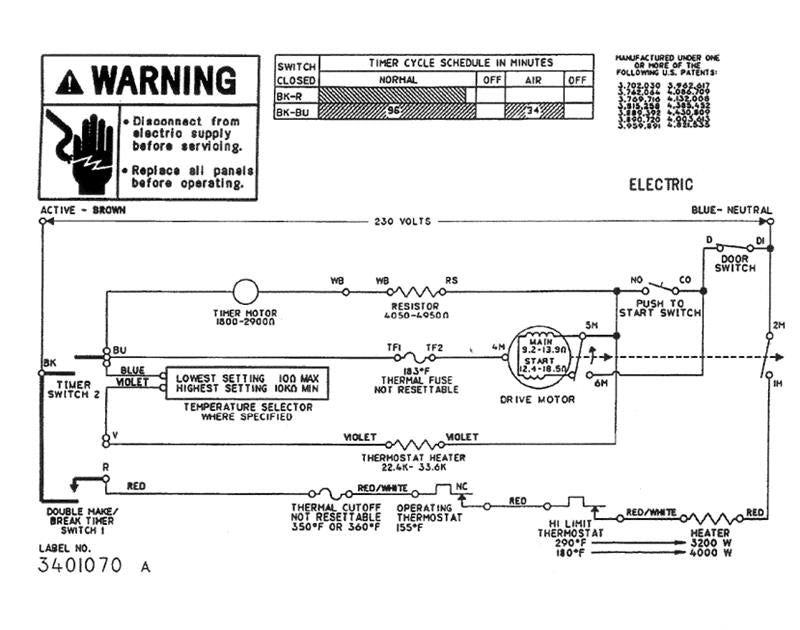

Wiring Diagram
