6WSC21N4XD00

6WSC21N4XD00

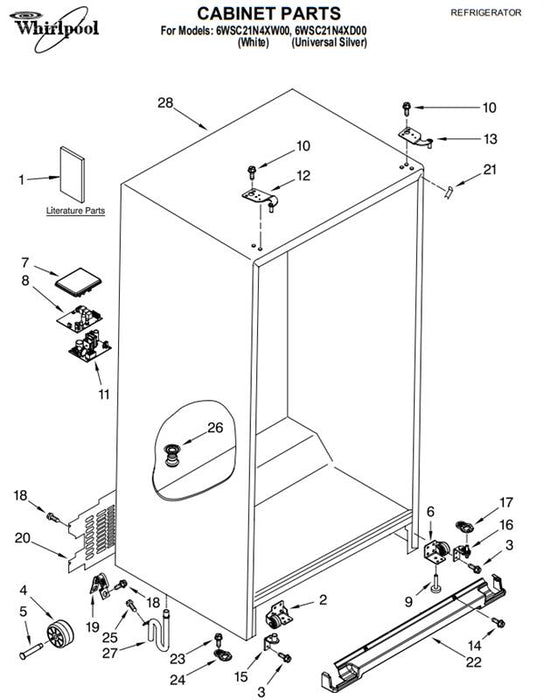

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Literature Parts

$0.00
$0.00
1
-

Use & Care Guide

$0.00
$0.00
-
W10299703

Service & Wiring Sheet

$0.00
$0.00
-
W10331704

Energy Label

$0.00
$0.00
-
W10299712

Roller Assy, FC

$0.00
$0.00
2
W10155677

Screw

$0.00
$0.00
3
W10297485

Roller (Rear)

$0.00
$0.00
4
12477102

Axle, Roller

$0.00
$0.00
5
12477202

Roller Assy, RC

$0.00
$0.00
6
W10155679

Cover

$0.00
$0.00
7
12957702

Elec. Control−15W

$0.00
$0.00
8
W10158418

Foot, Brake

$0.00
$0.00
9
W10141622

Screw

$0.00
$0.00
10
W10308750

Elec. Control

$0.00
$0.00
11
W10235418

Hinge, Top (FC)

$0.00
$0.00
12
-

White

$0.00
$0.00
-
W10247899

Apollo Grey

$0.00
$0.00
-
W10249922

Hinge, Top (RC)

$0.00
$0.00
13
-

White

$0.00
$0.00
-
W10247901

Apollo Grey

$0.00
$0.00
-
W10249925

Screw

$0.00
$0.00
14
W10142283

Bottom Hinge (FC)

$0.00
$0.00
15
-

White

$0.00
$0.00
-
W10249940

Apollo Grey

$0.00
$0.00
-
W10249943

Bottom Hinge (RC)

$0.00
$0.00
16
-

White

$0.00
$0.00
-
W10257188

Apollo Grey

$0.00
$0.00
-
W10257209

Door Closer (RC)

$0.00
$0.00
17
-

White

$0.00
$0.00
-
W10247905

Apollo Grey

$0.00
$0.00
-
W10257197

Screw

$0.00
$0.00
18
W10141645

Clamp, Service Cord

$0.00
$0.00
19
549193

Cover, Unit

$0.00
$0.00
20
W10257326

Filler, Wrapper

$0.00
$0.00
21
-

White

$0.00
$0.00
-
12587703W

Apollo Grey

$0.00
$0.00
-
12587703AP

Grille

$0.00
$0.00
22
-

White

$0.00
$0.00
-
W10257231

Midnight Grey

$0.00
$0.00
-
W10257234

Screw

$0.00
$0.00
23
W10142234

Door Closer (FC)

$0.00
$0.00
24
-

White

$0.00
$0.00
-
W10247903

Midnight Grey

$0.00
$0.00
-
W10257200

Screw

$0.00
$0.00
25
W10001250

Drain Fitting

$0.00
$0.00
26
W10247979

Extension Tube

$0.00
$0.00
27
W10280082

Cabinet (Not A Serviceable Part)

$0.00
$0.00
28
-
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Serviceable Part)

$0.00
$0.00
1
-

Cover, Thermistor

$0.00
$0.00
3
W10260399

Air Diffuser Assembly

$0.00
$0.00
4
W10281161

Air Diffuser Cover

$0.00
$0.00
5
W10260409

Switch Rocker Arm

$0.00
$0.00
6
C3680314

Wire Assy, Top Light

$0.00
$0.00
7
W10279406

Trim, Light

$0.00
$0.00
8
W10280178

Shield, Heat

$0.00
$0.00
9
2223680

Screw

$0.00
$0.00
10
W10141632

Light Bulb

$0.00
$0.00
11
W10173035

Socket, Light

$0.00
$0.00
12
W10130033

Lens, Top Light

$0.00
$0.00
13
W10280420

Socket, Light

$0.00
$0.00
14
W10134764

Air Filter Cover

$0.00
$0.00
15
W10251520

Light Bulb

$0.00
$0.00
16
851682

Lens, Light

$0.00
$0.00
17
W10295024

Thermistor

$0.00
$0.00
18
W10280385

Air Filter Housing

$0.00
$0.00
19
W10260411

Air Filter

$0.00
$0.00
20
W10315189

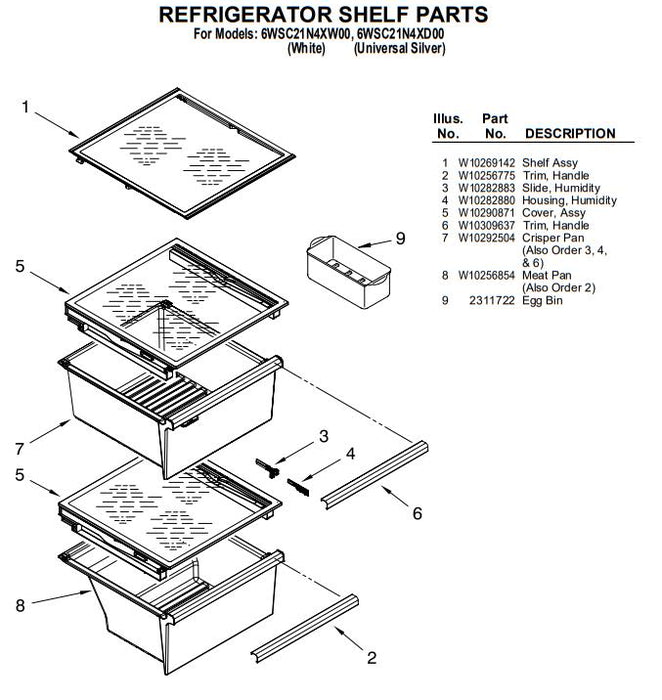

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Shelf Assy

$0.00
$0.00
1
W10269142

Trim, Handle

$0.00
$0.00
2
W10256775

Slide, Humidity

$0.00
$0.00
3
W10282883

Housing, Humidity

$0.00
$0.00
4
W10282880

Cover, Assy

$0.00
$0.00
5
W10290871

Trim, Handle

$0.00
$0.00
6
W10309637

Crisper Pan (Also Order 3, 4, & 6)

$0.00
$0.00
7
W10292504

Meat Pan (Also Order 2)

$0.00
$0.00
8
W10256854

Egg Bin

$0.00
$0.00
9
2311722

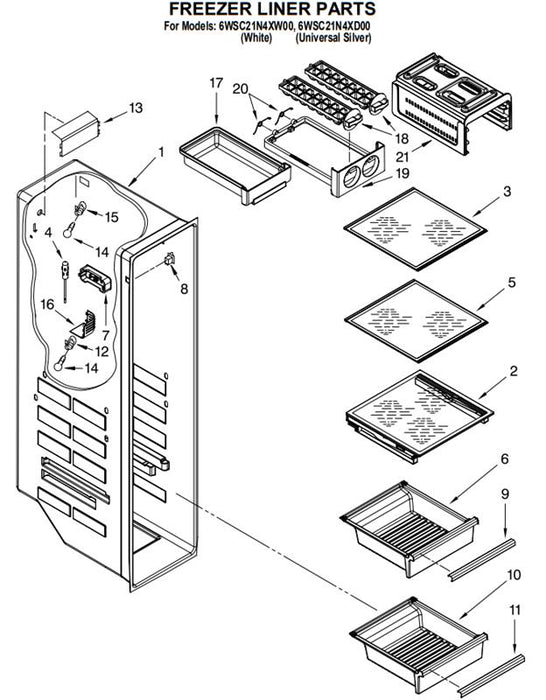

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Liner (Not A Seviceable Part)

$0.00
$0.00
1
-

Cover Assy

$0.00
$0.00
2
W10260977

Shelf, Glass Upper

$0.00
$0.00
3
W10238485

Thermistor

$0.00
$0.00
4
W10280386

Shelf, Glass Lower

$0.00
$0.00
5
W10269146

Pan, Freezer Upper (Also Order 9)

$0.00
$0.00
6
W10256858

Cover, Thermistor

$0.00
$0.00
7
W10323643

Switch, Rocker Arm

$0.00
$0.00
8
2321286

Trim, Handle

$0.00
$0.00
9
W10256778

Pan, Freezer Lower (Also Order 11)

$0.00
$0.00
10
W10256861

Trim, Handle

$0.00
$0.00
11
W10256778

Socket, Light

$0.00
$0.00
12
W10119935

Lens, Light

$0.00
$0.00
13
W10295030

Bulb, Light

$0.00
$0.00
14
851682

Socket, Light

$0.00
$0.00
15
W10134764

Cover, Light

$0.00
$0.00
16
W10260382

Pan, Ice Tray

$0.00
$0.00
17
W10216493

Ice Tray

$0.00
$0.00
18
W10304315

Support−Ice Tray

$0.00
$0.00
19
W10217296

Spring, Twist Ice

$0.00
$0.00
20
W10305289

Twist Ice Support

$0.00
$0.00
21
W10257379

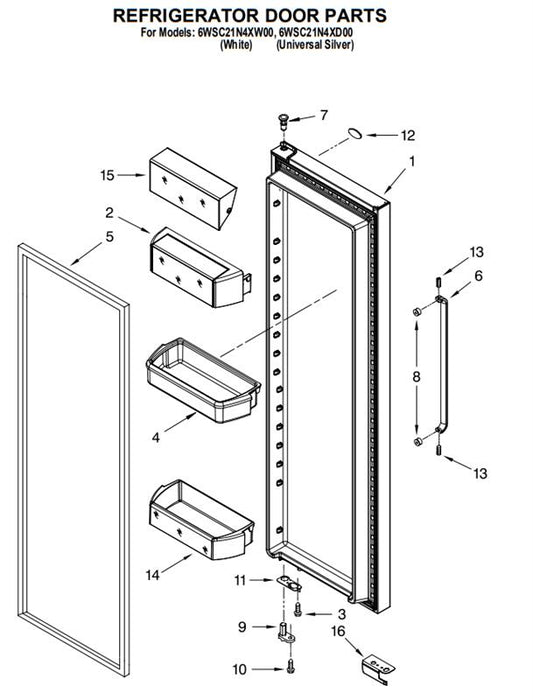

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Refrigerator Door (Includes Item 5)

$0.00
$0.00
1
-

White

$0.00
$0.00
-
W10287400

Universal Silver

$0.00
$0.00
-
W10287413

Door Compartment Assembly

$0.00
$0.00
2
W10326952

Screw

$0.00
$0.00
3
W10296816

Door Bin, Shallow

$0.00
$0.00
4
W10286561

Door Gasket, Magnetic

$0.00
$0.00
5
-

Mist Beige

$0.00
$0.00
-
W10247884

Apollo Grey

$0.00
$0.00
-
W10249916

Handle

$0.00
$0.00
6
-

Brushed Aluminum

$0.00
$0.00
-
W10277354

Thimble−Top

$0.00
$0.00
7
2200087

Stud, Handle

$0.00
$0.00
8
W10170540

Door Closer, Upper Cam

$0.00
$0.00
9
-

White

$0.00
$0.00
-
W10248011

Apollo Grey

$0.00
$0.00
-
W10257203

Screw

$0.00
$0.00
10
W10296804

Bracket, Door Stop

$0.00
$0.00
11
-

Chrome

$0.00
$0.00
-
W10247909

Nameplate

$0.00
$0.00
12
2255121

Set Screw

$0.00
$0.00
13
W10223573

Door Bin

$0.00
$0.00
14
W10323226

Door, Compartment

$0.00
$0.00
15
W10326677

Cover, Door Stop

$0.00
$0.00
16
-

White

$0.00
$0.00
-
W10248013

Midnight Grey

$0.00
$0.00
-
W10257218

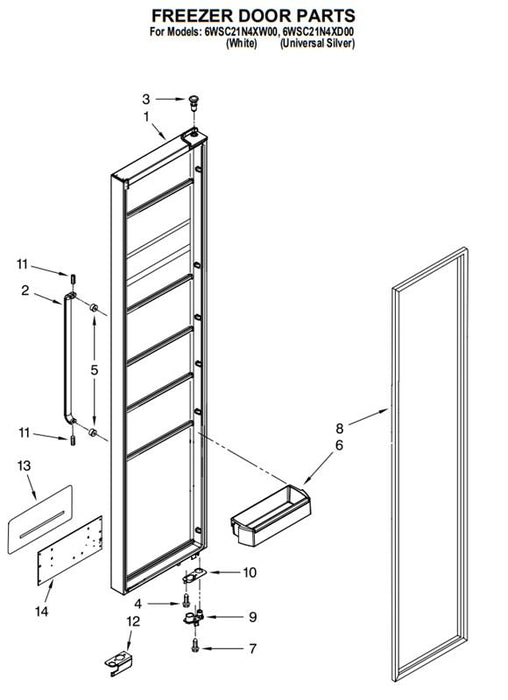

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Freezer Door (Includes Item 8 And Dispenser Front Parts)

$0.00
$0.00
1
-

White

$0.00
$0.00
-
W10281992

Universal Silver

$0.00
$0.00
-
W10290940

Handle

$0.00
$0.00
2
-

Brushed Aluminum

$0.00
$0.00
-
W10277354

Thimble−Top

$0.00
$0.00
3
2200087

Screw

$0.00
$0.00
4
W10296804

Stud, Handle

$0.00
$0.00
5
W10170540

Door Bin

$0.00
$0.00
6
W10286562

Screw

$0.00
$0.00
7
W10296816

Door Gasket, Magnetic

$0.00
$0.00
8
-

Mist Beige

$0.00
$0.00
-
W10247885

Apollo Grey

$0.00
$0.00
-
W10249917

Door Closer, Upper Cam

$0.00
$0.00
9
-

White

$0.00
$0.00
-
W10248015

Apollo Grey

$0.00
$0.00
-
W10257206

Bracket, Door Stop

$0.00
$0.00
10
-

Chrome

$0.00
$0.00
-
W10247907

Set Screw

$0.00
$0.00
11
W10223573

Cover, Door Stop

$0.00
$0.00
12
-

White

$0.00
$0.00
-
W10257220

Midnight Grey

$0.00
$0.00
-
W10257223

Front Cover, Control

$0.00
$0.00
13
W10276242

Control Board

$0.00
$0.00
14
W10255298
Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Air Baffle

$0.00
$0.00
1
W10251467

Fan, Blade

$0.00
$0.00
2
12825802

Condenser Assembly

$0.00
$0.00
3
W10240365

Screw

$0.00
$0.00
4
W10142231

Clip

$0.00
$0.00
5
2302129

Screw

$0.00
$0.00
6
W10171469

Clip, Heat Shield

$0.00
$0.00
7
2155547

Sleeve

$0.00
$0.00
8
W10303521

Screw

$0.00
$0.00
9
W10142294

Start Device Combination Relay & Overload

$0.00
$0.00
10
-

Production

$0.00
$0.00
-
2312007

Service

$0.00
$0.00
-
2312007

Tube Suction

$0.00
$0.00
11
W10219381

Clip, Condenser(2)

$0.00
$0.00
12
W10248621

Capacitor

$0.00
$0.00
13
-

Production

$0.00
$0.00
-
2321245

Service

$0.00
$0.00
-
2254217

Process Tube

$0.00
$0.00
14
2325479

Strap

$0.00
$0.00
15
2205813

Evaporator

$0.00
$0.00
16
2188822

Clamp

$0.00
$0.00
17
2161324

Fan, Motor

$0.00
$0.00
18
W10293680

Tray, Evaporator

$0.00
$0.00
19
W10251469

Heat Shield

$0.00
$0.00
20
W10274575

Drier

$0.00
$0.00
21
-

Production

$0.00
$0.00
-
W10177049

Service

$0.00
$0.00
-
W10143759

Unit Cover, Bottom

$0.00
$0.00
22
W10284726

Support Plate, Compressor

$0.00
$0.00
23
W10277704

Power Cord

$0.00
$0.00
24
W10123616

Clip

$0.00
$0.00
25
W10296661

Heater, Defrost

$0.00
$0.00
26
W10251470

Clip (2)

$0.00
$0.00
27
2304287

Compressor (Includes Items 10, 13, 21, & 29) (Also Order 876765 Tube Kit)

$0.00
$0.00
28
W10120455

Grommet (4)

$0.00
$0.00
29
-

Production

$0.00
$0.00
-
10835903

Service

$0.00
$0.00
-
1100826

Valve, Access (1/4")

$0.00
$0.00
978025

Valve, Access (5/16")

$0.00
$0.00
978026

Valve, Access (3/8")

$0.00
$0.00
978027

Valve, Access (1/2")

$0.00
$0.00
978028

Valve, Access (5/8")

$0.00
$0.00
978029

Valve, Access (3/4")

$0.00
$0.00
978030

Valve, Access (3/16")

$0.00
$0.00
876764

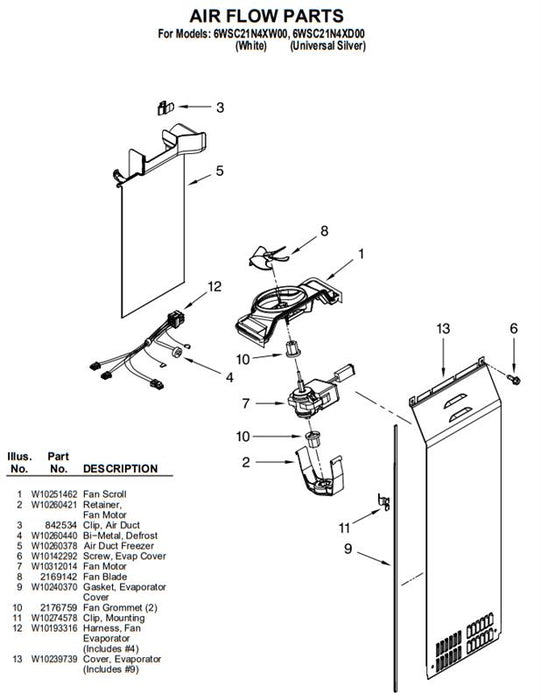

Product Details S.P. Ref. S.P. Code Substitute Code Industrial Code Buy Now

Fan Scroll

$0.00
$0.00
1
W10251462

Retainer, Fan Motor

$0.00
$0.00
2
W10260421

Clip, Air Duct

$0.00
$0.00
3
842534

Bi−Metal, Defrost

$0.00
$0.00
4
W10260440

Air Duct Freezer

$0.00
$0.00
5
W10260378

Screw, Evap Cover

$0.00
$0.00
6
W10142292

Fan Motor

$0.00
$0.00
7
W10312014

Fan Blade

$0.00
$0.00
8
2169142

Gasket, Evaporator Cover

$0.00
$0.00
9
W10240370

Fan Grommet (2)

$0.00
$0.00
10
2176759

Clip, Mounting

$0.00
$0.00
11
W10274578

Harness, Fan Evaporator (Includes #4)

$0.00
$0.00
12
W10193316

Cover, Evaporator (Includes #9)

$0.00
$0.00
13
W10239739

Primer, White PAINT, PRESSURIZED SPRAY (12 oz.)

$0.00
$0.00
350942

Black PAINT, PRESSURIZED SPRAY (12 oz.)

$0.00
$0.00
350939

White PAINT, PRESSURIZED SPRAY (12 oz.)

$0.00
$0.00
350930

Biscuit PAINT, PRESSURIZED SPRAY (12 oz.)

$0.00
$0.00
4392901

Graphite PAINT, PRESSURIZED SPRAY (12 oz.)

$0.00
$0.00
8171357

White PAINT, TOUCH−UP (1/2oz.)

$0.00
$0.00
72017

Black PAINT, TOUCH−UP (1/2oz.)

$0.00
$0.00
72032

Biscuit PAINT, TOUCH−UP (1/2oz.)

$0.00
$0.00
4392899

Graphite PAINT, TOUCH−UP (1/2oz.)

$0.00
$0.00
80051

Black PAINT, BULK (1 qt.)

$0.00
$0.00
799340

White PAINT, BULK (1 qt.)

$0.00
$0.00
799344

Biscuit PAINT, BULK (1 qt.)

$0.00
$0.00
4392900

Graphite PAINT, BULK (1 qt.)

$0.00
$0.00
8171358

Handle Installation Kit

$0.00
$0.00
W10300794

Sealer, Gum (4 Feet)

$0.00
$0.00
212643

Tape, Vinyl (3/4 x 108")

$0.00
$0.00
479502

Sealer, Mastic (1 Qt.)

$0.00
$0.00
505587

Cork, Sealer (1/4 Pound)

$0.00
$0.00
503695

Grease, Silicone (1/2 Oz.)

$0.00
$0.00
542638

Cement, Alumilastic (1−1/4 Oz.)

$0.00
$0.00
542639

Kit, Terminal Connector

$0.00
$0.00
833938

Torx Key

$22.99
$22.99
1117510
