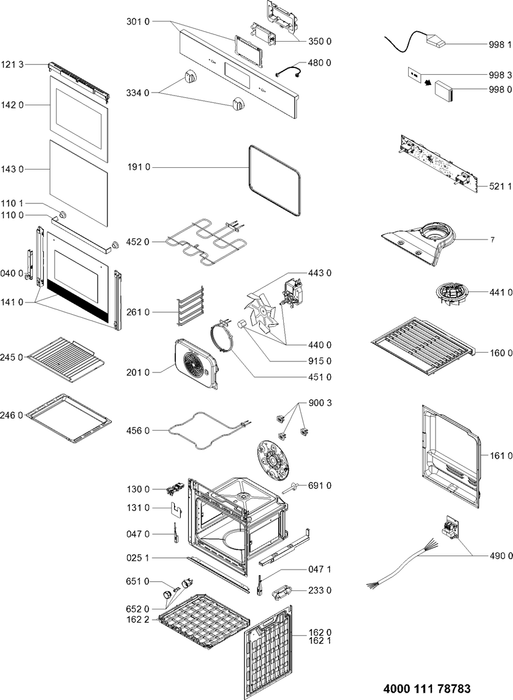

AKP3840PIXAUS

Product Details	S.P. Ref.	S.P. Code
Sold Out Trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	0251	4810 108 82575
Sold Out Hinge 3 glass Regular price $0.00 Sale price $0.00 Regular price Unit price	0400	4810 108 26405
Sold Out Hinge support left Regular price $0.00 Sale price $0.00 Regular price Unit price	0470	4810 108 22422
Sold Out Hinge support right Regular price $0.00 Sale price $0.00 Regular price Unit price	0471	4810 108 22421
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1100	4810 106 78868
Sold Out Support handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1101	4810 108 31792
Sold Out Exhaust fume pyro Regular price $0.00 Sale price $0.00 Regular price Unit price	1213	4810 108 26360
Sold Out Door latch assy Regular price $0.00 Sale price $0.00 Regular price Unit price	1300	4810 108 36705
Sold Out Cover screw Regular price $0.00 Sale price $0.00 Regular price Unit price	1310	4810 108 33136
Sold Out Oven glass black WHIRLPOOL Regular price $0.00 Sale price $0.00 Regular price Unit price	1410	4810 111 77588
Sold Out Inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1420	4810 108 26397
Sold Out Inner glass reflective Regular price $0.00 Sale price $0.00 Regular price Unit price	1430	4810 108 26520
Sold Out Cover top electric oven Regular price $0.00 Sale price $0.00 Regular price Unit price	1600	4810 109 10913
Sold Out Cover rear electric oven Regular price $0.00 Sale price $0.00 Regular price Unit price	1610	4810 109 10903
Sold Out Side panel right. Regular price $0.00 Sale price $0.00 Regular price Unit price	1620	4810 109 10906
Sold Out Side panel left. Regular price $0.00 Sale price $0.00 Regular price Unit price	1621	4810 109 10907
Sold Out Cover lower Std/Pyro Regular price $0.00 Sale price $0.00 Regular price Unit price	1622	4810 111 22328
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	1910	4810 108 62364
Sold Out Cover rear grey Regular price $0.00 Sale price $0.00 Regular price Unit price	2010	4810 108 29821
Sold Out Grip Regular price $0.00 Sale price $0.00 Regular price Unit price	2330	4810 108 69111
Sold Out Grid oven Regular price $0.00 Sale price $0.00 Regular price Unit price	2450	4810 108 28296
Sold Out Baking tray grey Regular price $0.00 Sale price $0.00 Regular price Unit price	2460	4810 110 91369
Sold Out Grid support Regular price $0.00 Sale price $0.00 Regular price Unit price	2610	4810 108 28289
Sold Out Control panel IX printed Regular price $0.00 Sale price $0.00 Regular price Unit price	3010	4810 111 78382
Sold Out Knob assy IX Regular price $0.00 Sale price $0.00 Regular price Unit price	3340	4810 111 10880
Sold Out Display board Regular price $0.00 Sale price $0.00 Regular price Unit price	3500	4810 108 48926
Sold Out Fan oven ass. ALMES pyro Regular price $0.00 Sale price $0.00 Regular price Unit price	4400	4810 108 68584
Sold Out Cooling fan assy pyro Regular price $0.00 Sale price $0.00 Regular price Unit price	4410	4810 108 36699
Sold Out Impeller fan 6-blades ALMES pyro Regular price $0.00 Sale price $0.00 Regular price Unit price	4430	4810 108 68324
Sold Out Heating element circular 1800W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	4510	4810 110 35381
Sold Out Heating element upper 2200W 230V pyro Regular price $0.00 Sale price $0.00 Regular price Unit price	4520	4810 108 36646
Sold Out Heating element lower 1000W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	4560	4810 108 36653
Sold Out Cable harness display Regular price $0.00 Sale price $0.00 Regular price Unit price	4800	4810 108 44200
Sold Out Mains cable 1000 mm. Regular price $0.00 Sale price $0.00 Regular price Unit price	4900	4810 108 87325
Sold Out Control board HOTTIMA blank Regular price $0.00 Sale price $0.00 Regular price Unit price	5211	4810 110 35253
Sold Out Lamp halogen assy 25W Regular price $0.00 Sale price $0.00 Regular price Unit price	6510	4810 108 36695
Sold Out Lamp halogen assy 25W Regular price $0.00 Sale price $0.00 Regular price Unit price	6520	4810 108 36695
Sold Out Sensor temper. oven pyro Regular price $0.00 Sale price $0.00 Regular price Unit price	6910	4810 108 36694
Sold Out Clip Regular price $0.00 Sale price $0.00 Regular price Unit price	9003	4810 108 31794
Sold Out Nut fan oven ALMES Regular price $0.00 Sale price $0.00 Regular price Unit price	9150	4810 108 68318
Sold Out C00383278 Adapter Smart Reader Regular price $0.00 Sale price $0.00 Regular price Unit price	9980	4820 000 21959
Sold Out C00255979 HARDWARE KEY ADAPTOR LOWEND+82 Regular price $0.00 Sale price $0.00 Regular price Unit price	9981	4820 000 23042
Sold Out CARD 8 KB MATERIA SW 400010836712 Regular price $0.00 Sale price $0.00 Regular price Unit price	9983	4810 108 85901

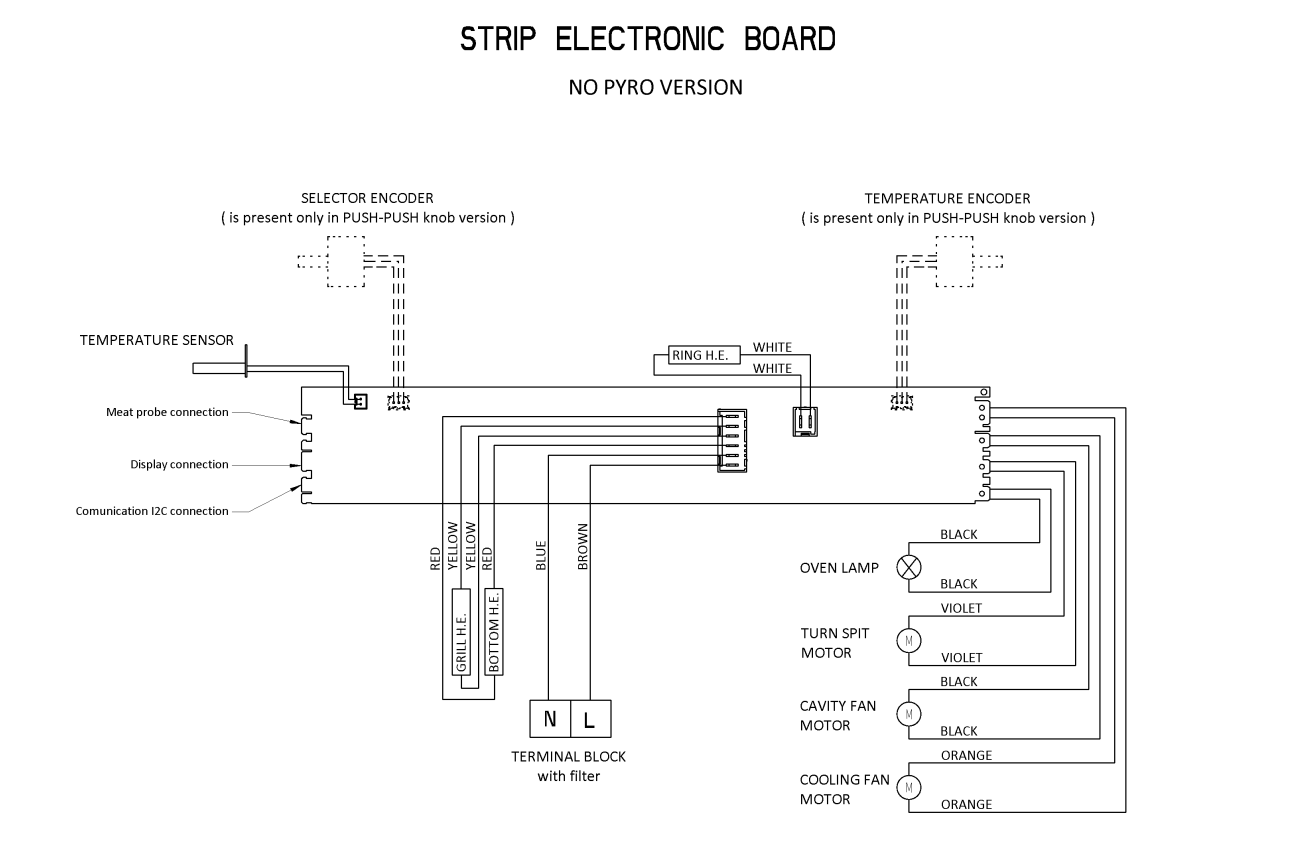

Wiring Diagram

Technical Data

Electrical Base Data

Rated Voltage	220 - 240	V
Main connection	220 - 240 V 1N~ 50/60	Hz

Power Consumption

Total connected load	3300	W
Grill heating element	2200	W
Lower heating element	1000	W
Forced air	1800	W

Electrical Components

Auto timer

Electronic timer

Accessories

Baking tray enameled	475.5 x 364.5	mm
Grid chrome	477 x 365	mm

Parts Manual
