AKP9785IX

Product Details	S.P. Ref.	S.P. Code
Sold Out trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	0252	4801 211 01163
Sold Out hinge oven door Regular price $0.00 Sale price $0.00 Regular price Unit price	0400	4810 105 31292
Sold Out hinge running mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	0470	4801 211 01154
Sold Out handle dynamic 9.7 Regular price $0.00 Sale price $0.00 Regular price Unit price	1100	4810 110 82226
Sold Out rubber door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1101	4812 466 68919
Sold Out washer door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1102	4810 104 10709
Sold Out exhaust fume Regular price $0.00 Sale price $0.00 Regular price Unit price	1214	4810 108 62641
Sold Out spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	1215	4810 103 55314
Sold Out door glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1410	4810 110 85382
Sold Out oven door inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1420	4801 211 01609
Sold Out support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1431	4801 211 01613
Sold Out support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1433	4801 2110 2664
Sold Out gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	1910	4801 211 01444
Sold Out cover fan Regular price $0.00 Sale price $0.00 Regular price Unit price	2010	4810 103 89996
Sold Out this item is not fitted to this model Regular price $0.00 Sale price $0.00 Regular price Unit price	2040	4820 000 91621
Sold Out grid oven Regular price $0.00 Sale price $0.00 Regular price Unit price	2450	4810 106 35612
Sold Out baking tray black Regular price $0.00 Sale price $0.00 Regular price Unit price	2460	4810 106 74818
Sold Out fat pan black Regular price $0.00 Sale price $0.00 Regular price Unit price	2470	4810 106 74817
Sold Out grid support minerva left/right Regular price $0.00 Sale price $0.00 Regular price Unit price	2610	4810 107 62741
Sold Out this item is not fitted to this model Regular price $0.00 Sale price $0.00 Regular price Unit price	2612	4820 000 91621
Sold Out screw Regular price $0.00 Sale price $0.00 Regular price Unit price	2614	4801 211 03347
Sold Out nut Regular price $0.00 Sale price $0.00 Regular price Unit price	2617	4810 417 01023
Sold Out control panel inv+holder akp9786 ix Regular price $0.00 Sale price $0.00 Regular price Unit price	3010	4880 005 17569
Sold Out knob thermostat p-p Regular price $0.00 Sale price $0.00 Regular price Unit price	3341	4810 110 92792
Sold Out knob p-p mf8 Regular price $0.00 Sale price $0.00 Regular price Unit price	3342	4810 110 92790
Sold Out clock electronic Regular price $0.00 Sale price $0.00 Regular price Unit price	3500	4810 103 83718
Sold Out lens red neon Regular price $0.00 Sale price $0.00 Regular price Unit price	3534	4810 109 57458
Sold Out motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4400	4810 107 81691
Sold Out fan assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	4410	4801 211 03444
Sold Out rear panel oven Regular price $0.00 Sale price $0.00 Regular price Unit price	4417	4810 602 80241
Sold Out blower fan for motor Regular price $0.00 Sale price $0.00 Regular price Unit price	4430	4810 107 81712
Sold Out heating element circular 2000w Regular price $0.00 Sale price $0.00 Regular price Unit price	4510	4801 211 01186
Sold Out heating element 1500w 230v no tilt Regular price $0.00 Sale price $0.00 Regular price Unit price	4520	4810 111 27121
Sold Out heating element lower 1150w 230v Regular price $0.00 Sale price $0.00 Regular price Unit price	4560	4810 105 51720
Sold Out mains cable 3x15 h05 rr-f. Regular price $0.00 Sale price $0.00 Regular price Unit price	4838	4810 006 28800
Sold Out clamp cable Regular price $0.00 Sale price $0.00 Regular price Unit price	4901	4812 290 68255
Sold Out cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	4902	4812 321 48026
Sold Out connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	4910	4812 290 68329
Sold Out this item is not fitted to this model Regular price $0.00 Sale price $0.00 Regular price Unit price	4914	4820 000 91621
Sold Out thermostat oven Regular price $0.00 Sale price $0.00 Regular price Unit price	5540	4801 211 02771
Sold Out thermostat 285â°c Regular price $0.00 Sale price $0.00 Regular price Unit price	5570	4810 105 52514
Sold Out thermostat 70°c Regular price $0.00 Sale price $0.00 Regular price Unit price	5571	4812 282 28356
Sold Out switch oven Regular price $0.00 Sale price $0.00 Regular price Unit price	6200	4810 103 99151
Sold Out lamp halogen 40w 230v Regular price $0.00 Sale price $0.00 Regular price Unit price	6510	4810 103 91431
Sold Out halogen lamp complete assembly 40w Regular price $0.00 Sale price $0.00 Regular price Unit price	6520	4810 106 38530
Sold Out glass cover Regular price $0.00 Sale price $0.00 Regular price Unit price	6560	4810 106 46361
Sold Out plug Regular price $0.00 Sale price $0.00 Regular price Unit price	6942	4810 103 50523
Sold Out spacer glass door Regular price $0.00 Sale price $0.00 Regular price Unit price	9040	4801 211 01594
Sold Out fan nut Regular price $0.00 Sale price $0.00 Regular price Unit price	9150	4810 107 81713
Sold Out support push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	9622	4810 107 53398
Sold Out holder push-push knob Regular price $0.00 Sale price $0.00 Regular price Unit price	9623	4810 107 36614
Sold Out damper black Regular price $0.00 Sale price $0.00 Regular price Unit price	9930	4810 105 78780
Sold Out kit oven fixation Regular price $0.00 Sale price $0.00 Regular price Unit price	9931	4801 211 04721

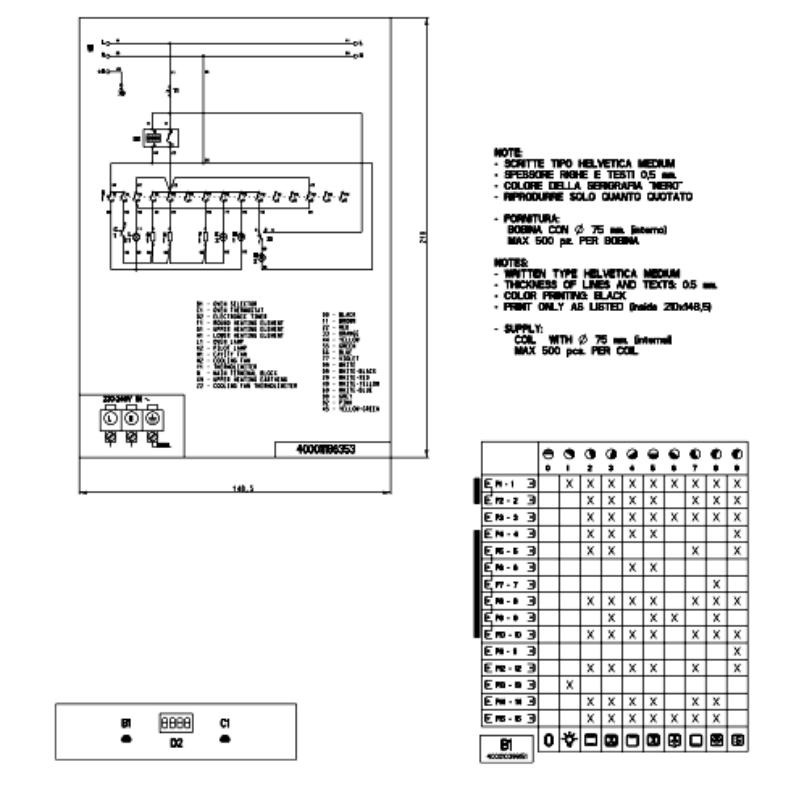

Wiring Diagram

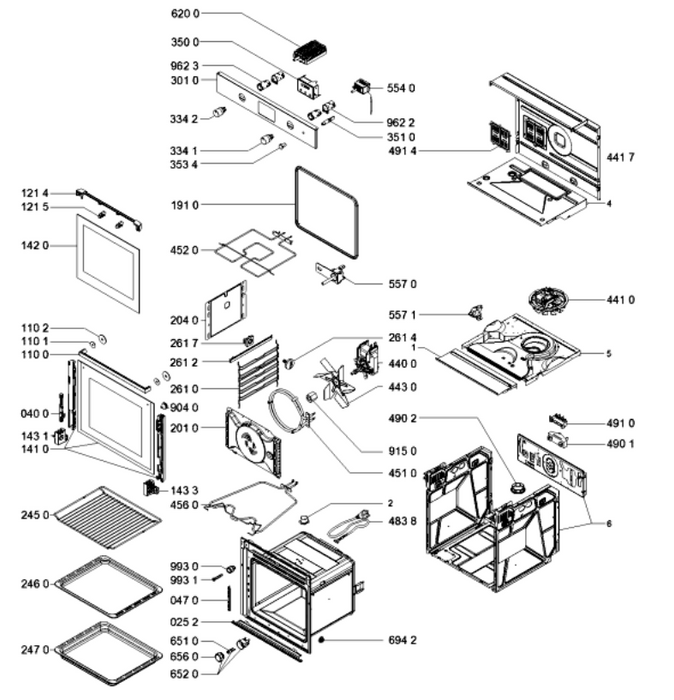

Parts Manual
