AKPM 759/WH

Product Details	S.P. Ref.	S.P. Code
Sold Out Profile Regular price $0.00 Sale price $0.00 Regular price Unit price	025 1	4801 211 01152
Sold Out Trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	025 2	4801 211 01163
Sold Out Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	040 0	4801 211 03202
Sold Out Hinge running mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	047 0	4801 211 01154
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	110 0	4801 211 01595
Sold Out Buffer piece door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	110 1	4812 466 68928
Sold Out Washer door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	110 2	4812 462 48451
Sold Out Exhaust fume Regular price $0.00 Sale price $0.00 Regular price Unit price	121 4	4801 211 01593
Sold Out Spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	121 5	4801 211 01615
Sold Out Oven door assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	141 0	4801 211 02667
Sold Out Inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	142 0	4801 211 01609
Sold Out Door glass Regular price $0.00 Sale price $0.00 Regular price Unit price	143 0	4801 211 01611
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	143 1	4801 211 01613
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	143 3	4801 211 02664
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	191 0	4801 211 01444
Sold Out Panel rear Regular price $0.00 Sale price $0.00 Regular price Unit price	201 0	4801 211 02821
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	245 0	4801 211 01183
Sold Out Fat pan enamelled Regular price $0.00 Sale price $0.00 Regular price Unit price	247 0	4801 211 03007
Sold Out Control panel assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	320 0	4801 211 04646
Sold Out Ring push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	320 1	4801 211 02715
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	334 1	4801 211 02839
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	334 2	4801 211 02841
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	334 8	4801 211 02842
Sold Out Kit Pilot lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	351 0	4801 310 00099
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	440 0	4812 361 18492
Sold Out Air cooling fan Regular price $0.00 Sale price $0.00 Regular price Unit price	441 0	4801 211 01162
Sold Out Gasket water leakage Regular price $0.00 Sale price $0.00 Regular price Unit price	441 2	4801 211 01151
Sold Out Fan 6-blades Regular price $0.00 Sale price $0.00 Regular price Unit price	443 0	4819 515 48065
Sold Out Heating element upper/grill Regular price $0.00 Sale price $0.00 Regular price Unit price	452 0	4801 211 03614
Sold Out Heating element lower 1150W Regular price $0.00 Sale price $0.00 Regular price Unit price	456 0	4801 211 01147
Sold Out Clamp cable Regular price $0.00 Sale price $0.00 Regular price Unit price	490 1	4812 290 68255
Sold Out Cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	490 2	4812 321 48026
Sold Out Connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	491 0	4812 290 68329
Sold Out Timer automatic off Regular price $0.00 Sale price $0.00 Regular price Unit price	503 0	4801 211 02772
Sold Out Thermostat oven Regular price $0.00 Sale price $0.00 Regular price Unit price	554 0	4801 211 02771
Sold Out Thermostat 155°C Regular price $0.00 Sale price $0.00 Regular price Unit price	557 0	4801 211 01181
Sold Out Thermostat 70°C Regular price $0.00 Sale price $0.00 Regular price Unit price	557 1	4812 282 28356
Sold Out Switch 7 position Regular price $0.00 Sale price $0.00 Regular price Unit price	620 0	4801 211 02837
Sold Out Lamp halogen 40W cpl (bulb 481010391431) Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4801 211 01148
Sold Out Switch door assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	655 0	4801 211 01182
Sold Out Screwed joint door switch Regular price $0.00 Sale price $0.00 Regular price Unit price	655 1	4801 211 01177
Sold Out Spacer glass door Regular price $0.00 Sale price $0.00 Regular price Unit price	904 0	4801 211 01594
Sold Out Damper oven door Regular price $0.00 Sale price $0.00 Regular price Unit price	904 1	4801 211 04065
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	915 0	4819 505 18145
Sold Out Washer Regular price $0.00 Sale price $0.00 Regular price Unit price	922 7	4819 532 28281
Sold Out Clamp fixation thermostat Regular price $0.00 Sale price $0.00 Regular price Unit price	930 0	4812 404 18649
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	964 0	4801 211 02934
Sold Out Spacer oven Regular price $0.00 Sale price $0.00 Regular price Unit price	993 0	4801 211 01185
Sold Out screw Regular price $0.00 Sale price $0.00 Regular price Unit price	993 1	4801 211 03541

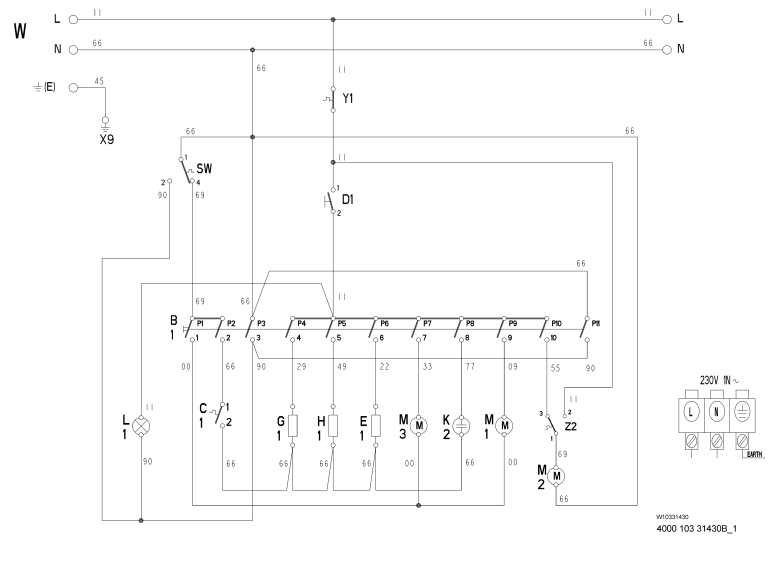

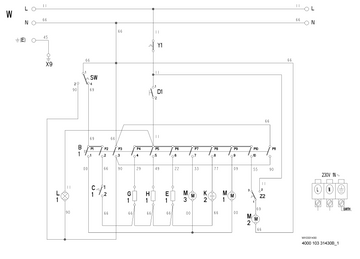

Wiring Diagram

Technical Data

Electrical Base Data

Rated Voltage	230-240	~	V
Main Connection	230-240 V	1N~ 50	Hz

Power Consumption

Total Connected Load	2700	W
Upper Heating Element/Grill	950/2600	W
Lower Heating Element	1200	W

Electrical Components

Auto timer

Automatic-off

Accessories

Fat Pan Enameled	452.5 x 375	mm
Grid Chrome	451 x 375.2	mm

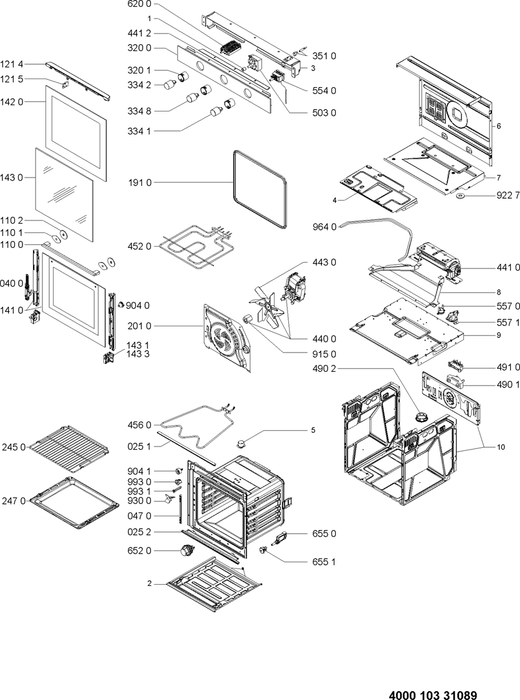

Parts Manual
