AKPM789IX

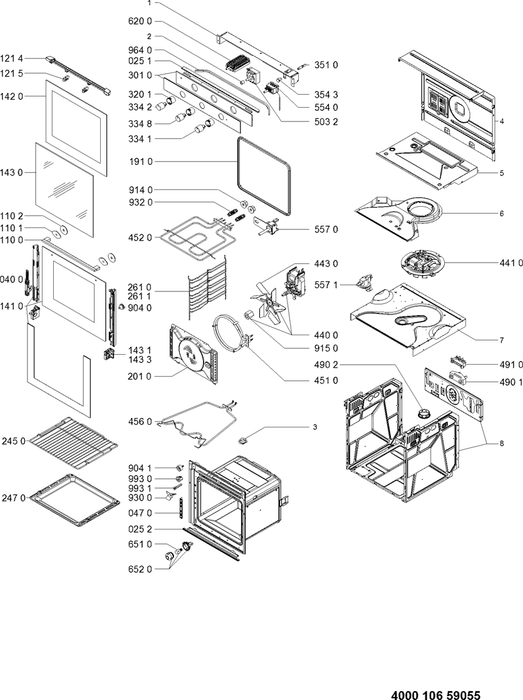

Product Details	S.P. Ref.	S.P. Code
Sold Out Profile ventilator Regular price $0.00 Sale price $0.00 Regular price Unit price	0251	4801 201 00539
Sold Out Trim lower Regular price $0.00 Sale price $0.00 Regular price Unit price	0252	4801 211 01163
Sold Out Hinge Regular price $0.00 Sale price $0.00 Regular price Unit price	0400	4801 211 03202
Sold Out Hinge running mechanism Regular price $0.00 Sale price $0.00 Regular price Unit price	0470	4801 211 01154
Sold Out Door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1100	4801 211 01595
Sold Out Buffer piece door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1101	4812 466 68928
Sold Out Washer door handle Regular price $0.00 Sale price $0.00 Regular price Unit price	1102	4812 462 48451
Sold Out Exhaust fume Regular price $0.00 Sale price $0.00 Regular price Unit price	1214	4810 103 57481
Sold Out Spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	1215	4810 103 55314
Sold Out Oven glass + trim Regular price $0.00 Sale price $0.00 Regular price Unit price	1410	4801 211 02838
Sold Out Oven door inner glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1420	4801 211 01609
Sold Out Door glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1430	4801 211 01611
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1431	4801 211 01613
Sold Out Support oven glass Regular price $0.00 Sale price $0.00 Regular price Unit price	1433	4801 211 02664
Sold Out Gasket door Regular price $0.00 Sale price $0.00 Regular price Unit price	1910	4801 211 01444
Sold Out Rear panel enamelled Regular price $0.00 Sale price $0.00 Regular price Unit price	2010	4801 211 01155
Sold Out Oven shelf Regular price $0.00 Sale price $0.00 Regular price Unit price	2450	4810 105 18218
Sold Out Fat pan enamelled Regular price $0.00 Sale price $0.00 Regular price Unit price	2470	4801 211 03007
Sold Out Inset grid left Regular price $0.00 Sale price $0.00 Regular price Unit price	2610	4801 211 03209
Sold Out Inset grid right Regular price $0.00 Sale price $0.00 Regular price Unit price	2611	4801 211 03211
Sold Out Control panel IX Regular price $0.00 Sale price $0.00 Regular price Unit price	3010	4810 103 95872
Sold Out Ring push-push Regular price $0.00 Sale price $0.00 Regular price Unit price	3201	4801 211 02715
Sold Out Knob thermostat IX Regular price $0.00 Sale price $0.00 Regular price Unit price	3341	4810 105 67986
Sold Out Knob IX Regular price $0.00 Sale price $0.00 Regular price Unit price	3342	4810 105 68039
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	3348	4801 211 02842
Sold Out Pilot lamp kit Regular price $0.00 Sale price $0.00 Regular price Unit price	3510	4801 211 03815
Sold Out Lens yellow Regular price $0.00 Sale price $0.00 Regular price Unit price	3543	4812 381 18301
Sold Out Motor fan Regular price $0.00 Sale price $0.00 Regular price Unit price	4400	4812 361 18492
Sold Out Fan assembly Regular price $0.00 Sale price $0.00 Regular price Unit price	4410	4801 211 03444
Sold Out Fan 6-blades Regular price $0.00 Sale price $0.00 Regular price Unit price	4430	4819 515 48065
Sold Out Heating element circular 2000W Regular price $0.00 Sale price $0.00 Regular price Unit price	4510	4801 211 01186
Sold Out Heating element upper/grill Regular price $0.00 Sale price $0.00 Regular price Unit price	4520	4810 104 52566
Sold Out Heating element lower 1150W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	4560	4810 105 51720
Sold Out Cable clamp Regular price $0.00 Sale price $0.00 Regular price Unit price	4901	4801 211 04772
Sold Out Cap feed through Regular price $0.00 Sale price $0.00 Regular price Unit price	4902	4801 211 00013
Sold Out Connection block Regular price $0.00 Sale price $0.00 Regular price Unit price	4910	4812 290 68329
Sold Out Timer automatic off Regular price $0.00 Sale price $0.00 Regular price Unit price	5032	4801 211 02772
Sold Out Thermostat oven Regular price $0.00 Sale price $0.00 Regular price Unit price	5540	4801 211 02771
Sold Out Thermostat 285°C Regular price $0.00 Sale price $0.00 Regular price Unit price	5570	4810 105 52514
Sold Out Thermostat 70°C Regular price $0.00 Sale price $0.00 Regular price Unit price	5571	4812 282 28356
Sold Out Selector switch Regular price $0.00 Sale price $0.00 Regular price Unit price	6200	4801 211 03455
Sold Out Lamp halogen 40W 230V Regular price $0.00 Sale price $0.00 Regular price Unit price	6510	4810 103 91431
Sold Out Lamp halogen 40W cpl (bulb 481010391431) Regular price $0.00 Sale price $0.00 Regular price Unit price	6520	4801 211 01148
Sold Out Spacer glass door Regular price $0.00 Sale price $0.00 Regular price Unit price	9040	4801 211 01594
Sold Out Damper oven door Regular price $0.00 Sale price $0.00 Regular price Unit price	9041	4801 211 04065
Sold Out Nut M4 Regular price $0.00 Sale price $0.00 Regular price Unit price	9140	4812 505 18421
Sold Out Nut fan motor Regular price $0.00 Sale price $0.00 Regular price Unit price	9150	4819 505 18145
Sold Out Clamp fixation thermostat Regular price $0.00 Sale price $0.00 Regular price Unit price	9300	4812 404 18649
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	9320	4819 492 68714
Sold Out Gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	9640	4810 104 02076
Sold Out Spacer oven Regular price $0.00 Sale price $0.00 Regular price Unit price	9930	4801 211 01185
Sold Out Kit Regular price $0.00 Sale price $0.00 Regular price Unit price	9931	4801 211 04721

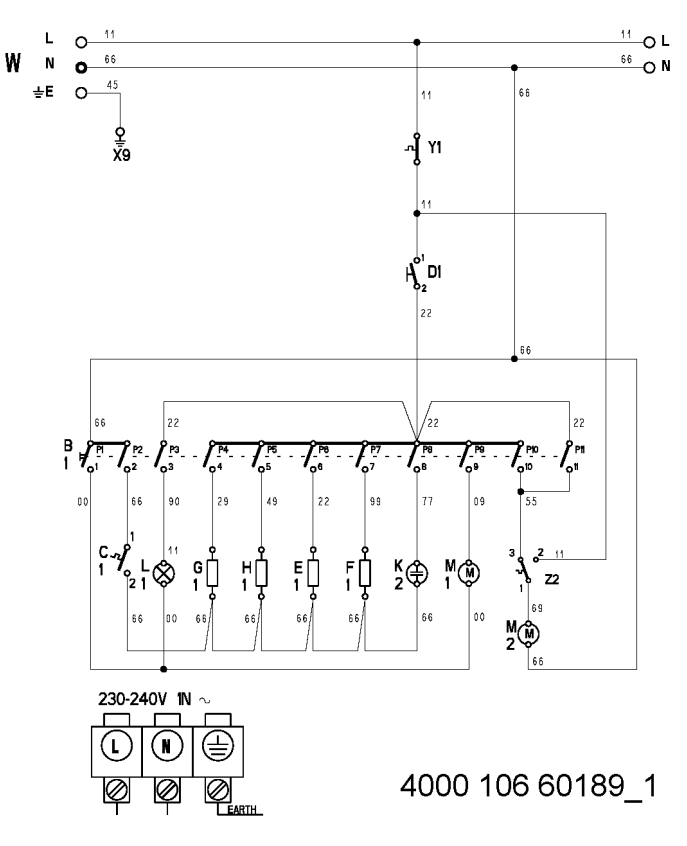

Wiring Diagram

Technical Data

Electrical Connection

Rated Voltage

230 - 240 V ~ 50/60

Power Consumption

Total Connected Load	2700	W
Upper Heating Element/Grill	950/2600	W
Forced Air	2100	W
Lower Heating Element	1200	W

Electrical Components

Auto timer

Automatic-off

Accessories

Fat Pan Enameled	452.5 x 375.2	mm
Grid Chrome	452.5 x 369.2	mm

Parts Manual
