AKR 428 WH

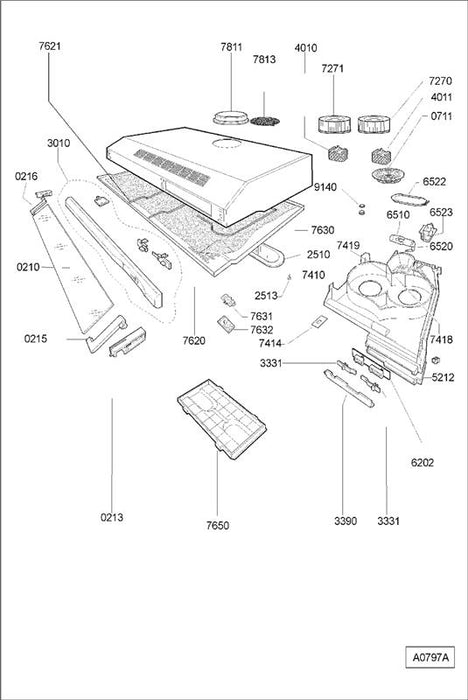

Product Details	S.P. Ref.	S.P. Code
Sold Out Vapour flap glass Regular price $0.00 Sale price $0.00 Regular price Unit price	021 0	4819 442 68347
Sold Out Hinge vapour flap, pair Regular price $0.00 Sale price $0.00 Regular price Unit price	021 3	4819 462 38568
Sold Out Support right Regular price $0.00 Sale price $0.00 Regular price Unit price	021 5	4812 404 88016
Sold Out Support left Regular price $0.00 Sale price $0.00 Regular price Unit price	021 6	4812 404 88017
Sold Out Support motor Regular price $0.00 Sale price $0.00 Regular price Unit price	071 1	4819 404 79315
Sold Out Cover Regular price $0.00 Sale price $0.00 Regular price Unit price	251 0	4812 442 69016
Sold Out Clip,fix Regular price $0.00 Sale price $0.00 Regular price Unit price	251 3	4819 492 68622
Sold Out Control panel cpl. Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4812 453 19571
Sold Out Knob,slide motor+light Regular price $0.00 Sale price $0.00 Regular price Unit price	333 1	4819 462 38771
Sold Out Support Regular price $0.00 Sale price $0.00 Regular price Unit price	339 0	4819 404 79316
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	401 0	4819 361 58281
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	401 1	4819 361 58279
Sold Out Cover,protect. Regular price $0.00 Sale price $0.00 Regular price Unit price	521 2	4819 462 88094
Sold Out Unit,pushbutton Regular price $0.00 Sale price $0.00 Regular price Unit price	620 2	4819 290 68372
Sold Out Lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 88088
Sold Out Holder,lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18173
Sold Out Reflector , lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 2	4819 460 49765
Sold Out Holder,lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 3	4819 255 18243
Sold Out Fan wheel Regular price $0.00 Sale price $0.00 Regular price Unit price	727 0	4819 515 28274
Sold Out Fan wheel Regular price $0.00 Sale price $0.00 Regular price Unit price	727 1	4819 515 28278
Sold Out Conveyor Regular price $0.00 Sale price $0.00 Regular price Unit price	741 0	4819 442 78411
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	741 4	4819 411 29571
Sold Out Flap Regular price $0.00 Sale price $0.00 Regular price Unit price	741 8	4819 442 78408
Sold Out Flap Regular price $0.00 Sale price $0.00 Regular price Unit price	741 9	4819 442 78409
Sold Out Metalfilter Regular price $0.00 Sale price $0.00 Regular price Unit price	762 0	4819 480 48273
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	762 1	4819 492 68862
Sold Out Grid greasefilter Regular price $0.00 Sale price $0.00 Regular price Unit price	763 0	4812 458 58157
Sold Out Blocking , grid Regular price $0.00 Sale price $0.00 Regular price Unit price	763 1	4819 404 49894
Sold Out Air regulator ,grid Regular price $0.00 Sale price $0.00 Regular price Unit price	763 2	4819 401 18447
Sold Out Carbon filter Regular price $0.00 Sale price $0.00 Regular price Unit price	765 0	4819 480 48316
Sold Out Flange Regular price $0.00 Sale price $0.00 Regular price Unit price	781 1	4819 462 79975
Sold Out Lid Regular price $0.00 Sale price $0.00 Regular price Unit price	781 3	4819 462 79992
Sold Out Nut motor Regular price $0.00 Sale price $0.00 Regular price Unit price	914 0	4819 505 18246

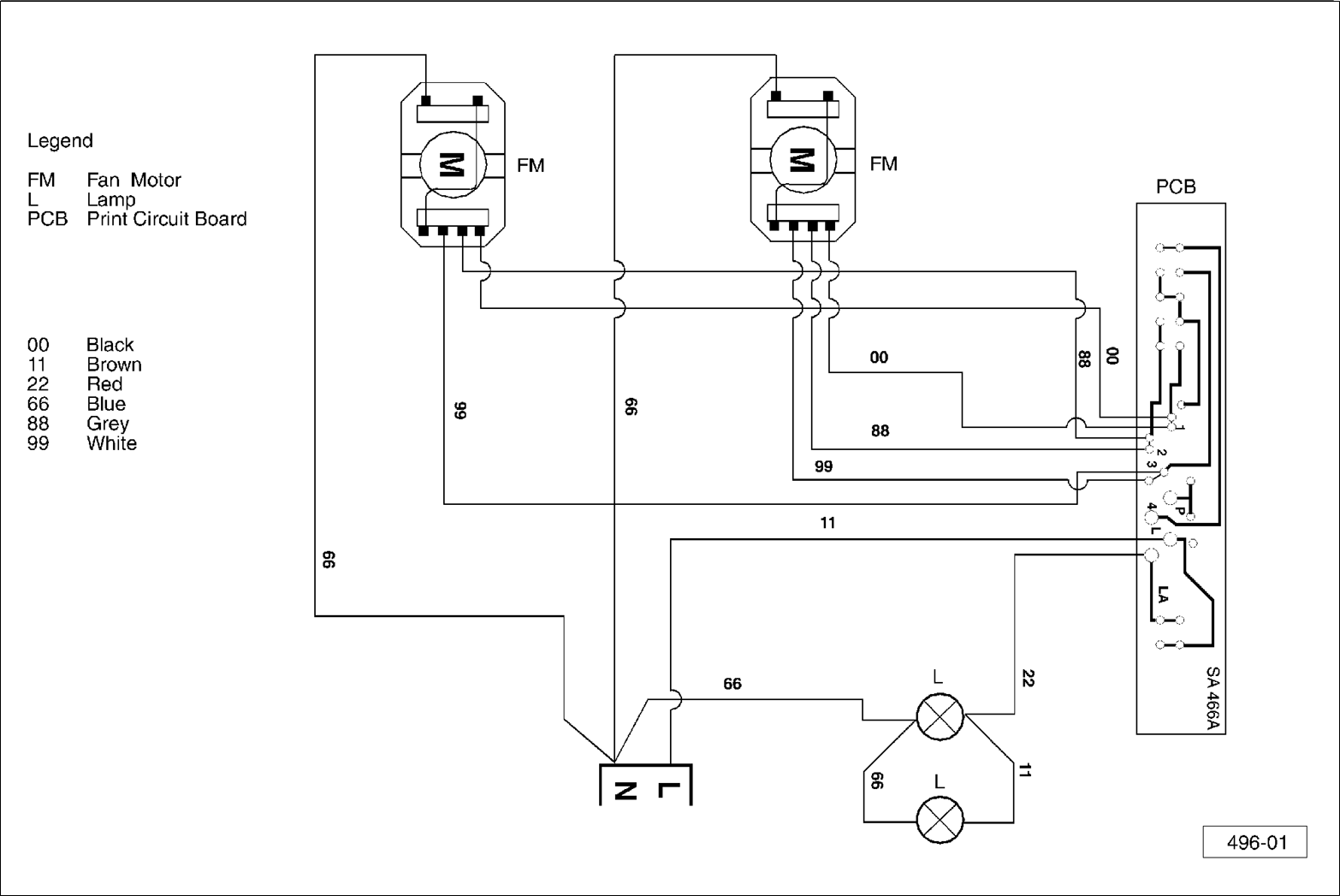

Wiring Diagram

Technical Data

Electricity

Voltage	220 - 240	V
Frequency	50	Hz

Power

Total	320	W
Fan motors	2x120	W
Illumination	2x40	W

Nominal air flow

Speed 1

Externally vented	170	m³ /h
Recirculation	118	m³ /h

Speed 2

Externally vented	223	m³ /h
Recirculation	145	m³ /h

Speed 3

Externally vented	316	m³ /h
Recirculation	163	m³ /h

Noise level

Speed 1

Externally vented	55	dB (A)
Recirculation	59	dB (A)

Speed 2

Externally vented	62	dB (A)
Recirculation	67	dB (A)

Speed 3

Externally vented	69	dB (A)
Recirculation	70	dB (A)

Distance from cooking area

Electric	600	mm
Gas	700	mm

Air exhaust

Flange

ø 120
