AKR 520 WH

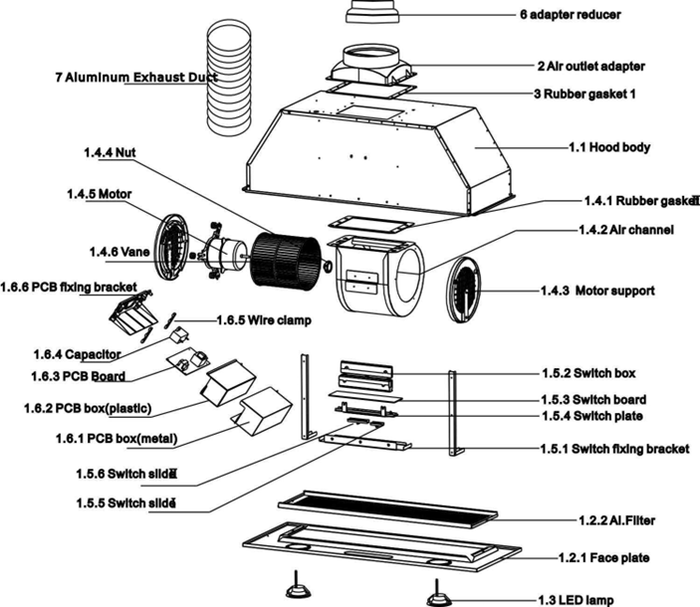

Product Details	S.P. Ref.	S.P. Code
Sold Out Hood body(white) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.1	9010101189001
Sold Out Face plate Regular price $0.00 Sale price $0.00 Regular price Unit price	1.2.1	9010101193001
Sold Out Al. filter Regular price $0.00 Sale price $0.00 Regular price Unit price	1.2.2	9070100115
Sold Out LED lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	1.3	9040400015
Sold Out Lamp wire Regular price $0.00 Sale price $0.00 Regular price Unit price	*1.3.1	9040600039
Sold Out Rubber gasket Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4.1	9030100061
Sold Out Air channel Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4.2	9010200003058
Sold Out Motor support Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4.3	9020000090
Sold Out Nut Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4.4	9100100030
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4.5	9040100081
Sold Out Vane Regular price $0.00 Sale price $0.00 Regular price Unit price	1.4.6	9140100030
Sold Out Switch fixing bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	1.5.1	9010600310001
Sold Out Switch box Regular price $0.00 Sale price $0.00 Regular price Unit price	1.5.2	9020300030
Sold Out Switch control board Regular price $0.00 Sale price $0.00 Regular price Unit price	1.5.3	90403000411
Sold Out Switch plate Regular price $0.00 Sale price $0.00 Regular price Unit price	1.5.4	9020100033
Sold Out Switch slide I Regular price $0.00 Sale price $0.00 Regular price Unit price	1.5.5	9020100035
Sold Out Switch slide II Regular price $0.00 Sale price $0.00 Regular price Unit price	1.5.6	9020100038
Sold Out Switch wire Regular price $0.00 Sale price $0.00 Regular price Unit price	*1.5.7	9040600005
Sold Out PCB box(metal) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.6.1	9010300011001
Sold Out PCB box(plastic) Regular price $0.00 Sale price $0.00 Regular price Unit price	1.6.2	9020300058
Sold Out PCB board Regular price $0.00 Sale price $0.00 Regular price Unit price	1.6.3	9040500001
Sold Out Capacitor Regular price $0.00 Sale price $0.00 Regular price Unit price	1.6.4	9040200012
Sold Out Wire clamp Regular price $0.00 Sale price $0.00 Regular price Unit price	1.6.5	9020000006
Sold Out PCB fixing bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	1.6.6	9020300061
Sold Out Air outlet adapter(including flag) Regular price $0.00 Sale price $0.00 Regular price Unit price	002	9020200080
Sold Out Rubber gasket I Regular price $0.00 Sale price $0.00 Regular price Unit price	003	9030100062
Sold Out Adapter reducer(150mm-120mm) Regular price $0.00 Sale price $0.00 Regular price Unit price	006	N/A
Sold Out Aluminum exhaust duct Regular price $0.00 Sale price $0.00 Regular price Unit price	007	N/A

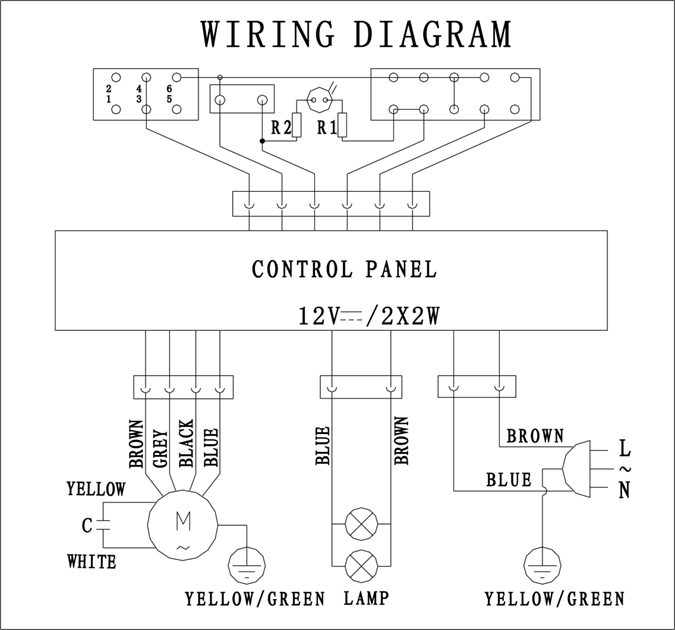

Wiring Diagram

Technical Data

Electricity

Voltage	220 - 240	V
Frequency	50	Hz

Power

Total	124	W
Fan motors	120	W
Illumination (LED lamp)	2x2	W

Nominal air flow

Speed 1

Externally vented

390

m³ /h

Speed 2

Externally vented

450

m³ /h

Speed 3

Externally vented

570

m³ /h

Noise level

Speed 1

Externally vented

46.3

dB (A)

Speed 2

Externally vented

50.4

dB (A)

Speed 3

Externally vented

52.5

dB (A)

Distance from cooking area

Electric	650	mm
Gas	750	mm

Air exhaust

Flange dia

150

Parts Manual
