AKR 628 NB
AKR 628 NB

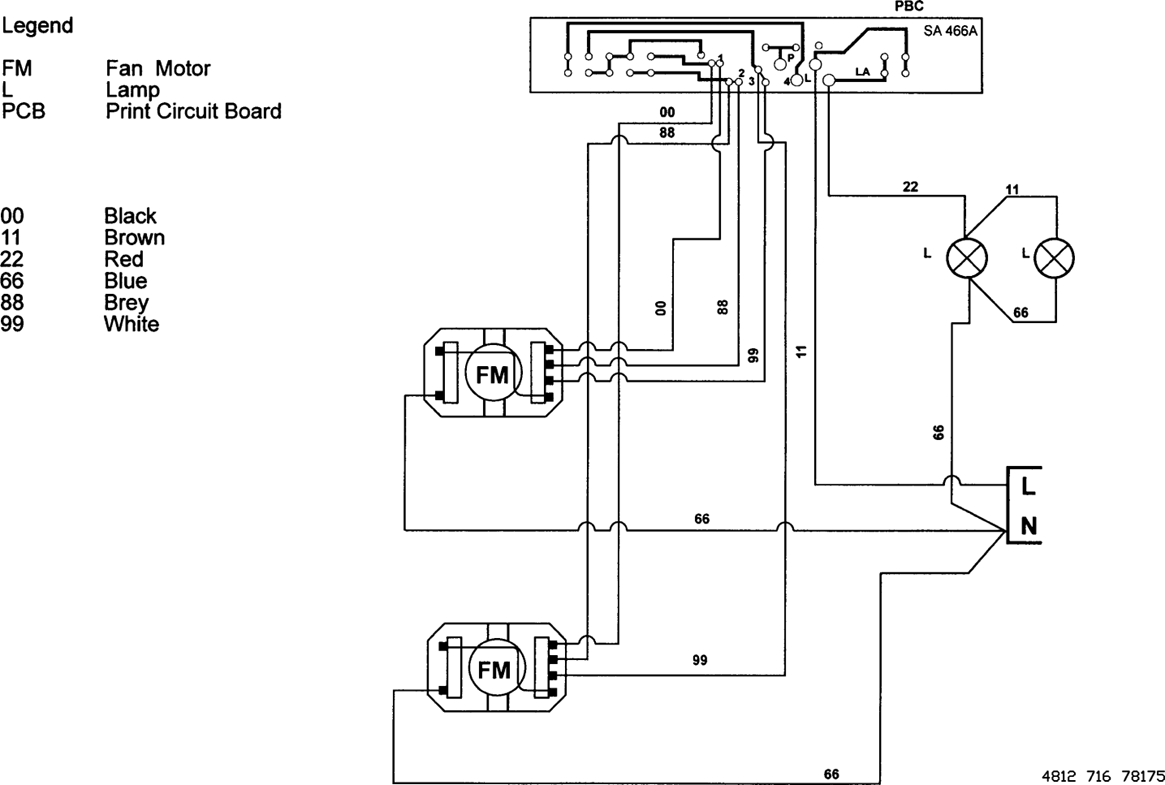

Wiring Diagram
Technical Data
Electrical base data
| Voltage | 240 | V |
| Frequency | 50 | Hz |
Power Consumption
| Total | 320 | W |
| Fan motor | 2x120 | W |
| Illumination | 2x40 | W |
Distance from cooking area
| Electric | 600 | mm |
| Gas | 700 | mm |
| Air exhaust Flange | 120 | mm |
Nominal air flow
Speed 1
| External exhaustion | 170 | m 3 /h |
| Recirculation | 118 | m 3 /h |
Speed 2
| External exhaustion | 233 | m 3 /h |
| Recirculation | 145 | m 3 /h |
Speed 3
| External exhaustion max | 316 | m 3 /h |
| Recirculation max | 163 | m 3 /h |
Noise level
Speed 1
| External exhaustion | 55 | dB (A) |
| Recirculation | 59 | dB(A) |
Speed 2
| External exhaustion | 62 | dB(A) |
| Recirculation | 67 | dB(A) |
Speed 3
| External exhaustion | 69 | dB(A) |
| Recirculation | 70 | dB(A) |
