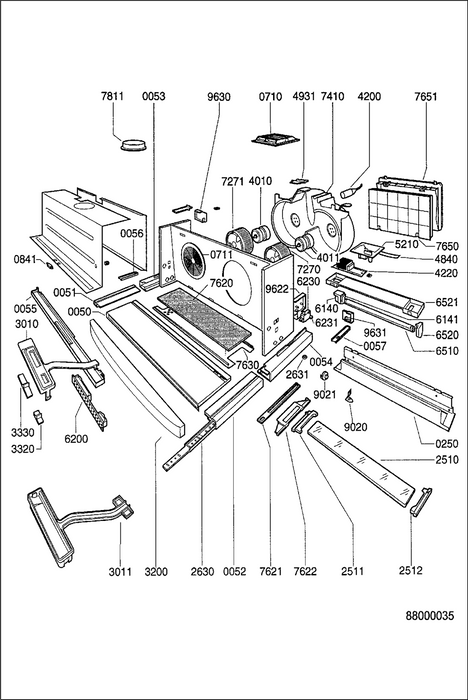

AKR 634/WH

Product Details	S.P. Ref.	S.P. Code
Sold Out Sliding base Regular price $0.00 Sale price $0.00 Regular price Unit price	005 0	4819 442 29323
Sold Out Guide Regular price $0.00 Sale price $0.00 Regular price Unit price	005 1	4812 404 48124
Sold Out Guide Regular price $0.00 Sale price $0.00 Regular price Unit price	005 2	4812 404 48122
Sold Out Profile Regular price $0.00 Sale price $0.00 Regular price Unit price	005 3	4812 404 48119
Sold Out Trim, side Regular price $0.00 Sale price $0.00 Regular price Unit price	005 4	4812 404 78028
Sold Out Cover Regular price $0.00 Sale price $0.00 Regular price Unit price	005 5	4819 462 79487
Sold Out Spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	005 6	4819 466 99072
Sold Out Spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	005 7	4819 466 99071
Sold Out Cabinet Regular price $0.00 Sale price $0.00 Regular price Unit price	025 0	4819 404 78369
Sold Out Air conveyor Regular price $0.00 Sale price $0.00 Regular price Unit price	071 0	4819 442 68527
Sold Out Grid,air Regular price $0.00 Sale price $0.00 Regular price Unit price	071 1	4819 526 48458
Sold Out Resonator Regular price $0.00 Sale price $0.00 Regular price Unit price	084 1	4819 529 18052
Sold Out Cover f. lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	251 0	4819 462 79484
Sold Out Clip,fix left Regular price $0.00 Sale price $0.00 Regular price Unit price	251 1	4819 466 98766
Sold Out Clip,fix right Regular price $0.00 Sale price $0.00 Regular price Unit price	251 2	4819 466 98765
Sold Out Rail Regular price $0.00 Sale price $0.00 Regular price Unit price	263 0	4819 462 38637
Sold Out Cam Regular price $0.00 Sale price $0.00 Regular price Unit price	263 1	4819 532 68563
Sold Out Control panel Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4819 452 99391
Sold Out Protector f.switch Regular price $0.00 Sale price $0.00 Regular price Unit price	301 1	4819 462 79486
Sold Out Front,panel set unbranded Regular price $0.00 Sale price $0.00 Regular price Unit price	320 0	4812 310 18507
Sold Out Front,panel set Whirlpool branded Regular price $0.00 Sale price $0.00 Regular price Unit price	320 0	4819 310 18612
Sold Out Knob,slide light Regular price $0.00 Sale price $0.00 Regular price Unit price	332 0	4812 277 18096
Sold Out Knob,slide motor Regular price $0.00 Sale price $0.00 Regular price Unit price	333 0	4812 277 18097
Sold Out Motor , left Regular price $0.00 Sale price $0.00 Regular price Unit price	401 0	4819 361 18304
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	401 1	4819 361 18305
Sold Out Capacitor Regular price $0.00 Sale price $0.00 Regular price Unit price	420 0	4819 121 18145
Sold Out Electron.ignit. Regular price $0.00 Sale price $0.00 Regular price Unit price	422 0	4819 219 88006
Sold Out Cable Regular price $0.00 Sale price $0.00 Regular price Unit price	484 0	4819 321 18225
Sold Out Cover Regular price $0.00 Sale price $0.00 Regular price Unit price	493 1	4819 462 79916
Sold Out Unit electrical Regular price $0.00 Sale price $0.00 Regular price Unit price	521 0	4819 214 78343
Sold Out Starter Regular price $0.00 Sale price $0.00 Regular price Unit price	614 0	4819 219 88005
Sold Out Holder,lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	614 1	4819 255 18161
Sold Out Control cover w.timer Regular price $0.00 Sale price $0.00 Regular price Unit price	620 0	4819 214 78344
Sold Out Microswitch Regular price $0.00 Sale price $0.00 Regular price Unit price	623 0	4819 271 38095
Sold Out Lever Regular price $0.00 Sale price $0.00 Regular price Unit price	623 1	4819 535 98603
Sold Out Lamp,neon Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 28032
Sold Out Holder,lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18159
Sold Out Support lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 1	4819 255 18181
Sold Out Fan wheel Regular price $0.00 Sale price $0.00 Regular price Unit price	727 0	4819 515 28261
Sold Out Fan wheel Regular price $0.00 Sale price $0.00 Regular price Unit price	727 1	4819 515 28262
Sold Out Conveyor Regular price $0.00 Sale price $0.00 Regular price Unit price	741 0	4819 442 68528
Sold Out Filter,grease Regular price $0.00 Sale price $0.00 Regular price Unit price	762 0	4819 480 48179
Sold Out Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	762 1	4819 404 78371
Sold Out Grip Regular price $0.00 Sale price $0.00 Regular price Unit price	762 2	4819 498 58449
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	763 0	4819 458 19842
Sold Out Carbon filter DKF 24 Regular price $0.00 Sale price $0.00 Regular price Unit price	765 0	4819 480 48151
Sold Out Support Regular price $0.00 Sale price $0.00 Regular price Unit price	765 1	4819 404 79216
Sold Out Flange Regular price $0.00 Sale price $0.00 Regular price Unit price	781 1	4819 532 78219
Sold Out Spring Regular price $0.00 Sale price $0.00 Regular price Unit price	902 0	4819 492 68618
Sold Out Spacer Regular price $0.00 Sale price $0.00 Regular price Unit price	902 1	4819 466 98672
Sold Out Protec,el.parts Regular price $0.00 Sale price $0.00 Regular price Unit price	962 2	4819 462 58265
Sold Out Lid Regular price $0.00 Sale price $0.00 Regular price Unit price	963 0	4819 462 58129
Sold Out Lid f.side panel right Regular price $0.00 Sale price $0.00 Regular price Unit price	963 1	4819 462 58128

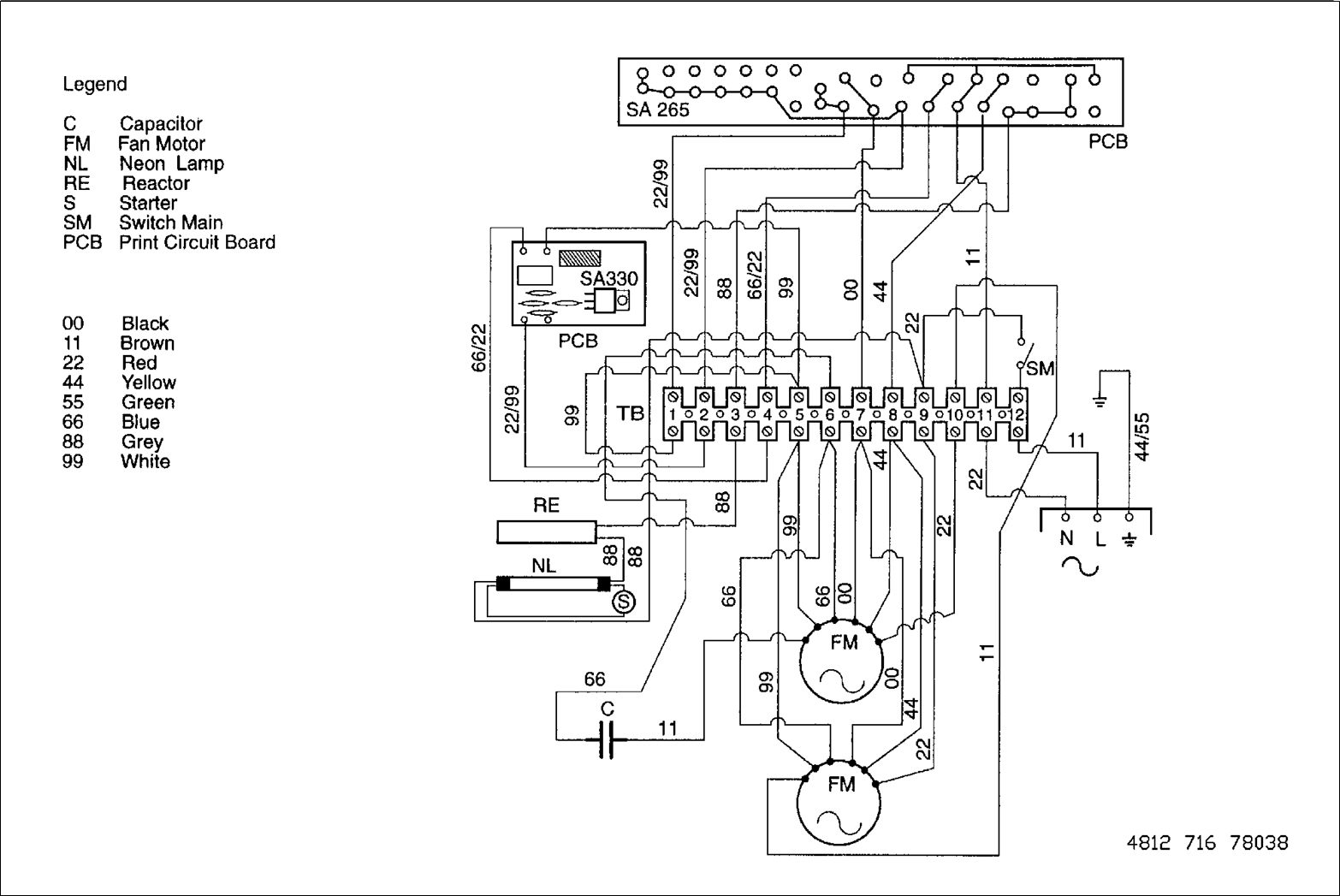

Wiring Diagram

Technical Data

Electricity

Voltage	230	V
Frequency	50	Hz

Power

Total	234	W
Fan motor	2 x 110	W
Illumination	14	W

Nominal air flow

Speed 1

External exhaustion	280	m³ /h
Recirculation	125	m³ /h

Speed 2

External exhaustion	286	m³ /h
Recirculation	180	m³ /h

Speed 3

External exhaustion	398	m³ /h
Recirculation	235	m³ /h

Intensive Speed

External exhaustion	500	m³ /h
Recirculation	268	m³ /h

Noise level

Speed 1

External exhaustion	50	dB (A)
Recirculation	52	dB (A)

Speed 2

External exhaustion	57	dB (A)
Recirculation	60	dB (A)

Speed 3

External exhaustion	64	dB (A)
Recirculation	65	dB (A)

Intensive Speed

External exhaustion	69	dB (A)
Recirculation	71	dB (A)

Distance from cooking area

Electric	430	mm
Gas	650	mm

Air exhaust

Flange

120
