AKR 674 IX
AKR 674 IX

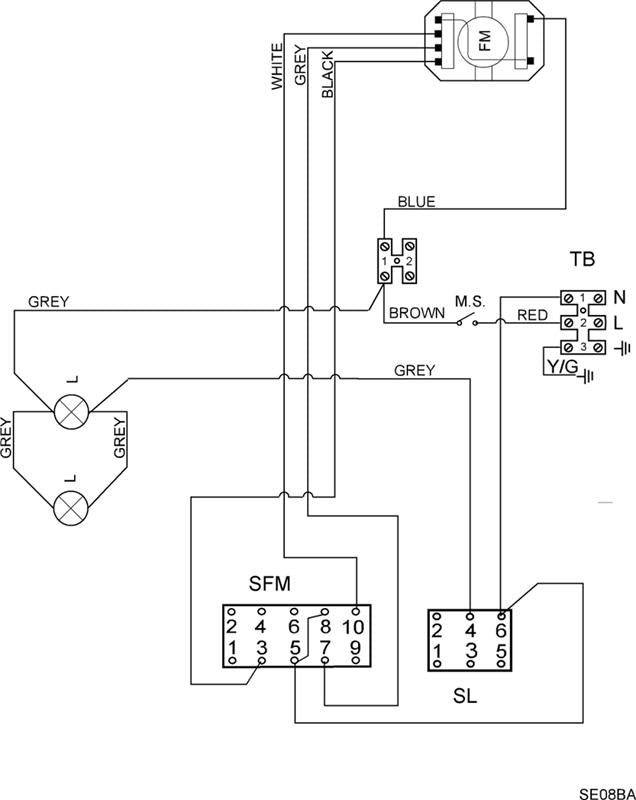

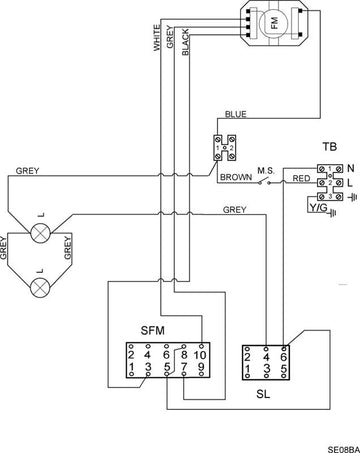

Wiring Diagram
Technical Data
Electrical base data
| Voltage | 220 - 240 | V |
| Frequency | 50 - 60 | Hz |
Power Consumption
| Total | 200 | W |
| Fan motor | 120 | W |
| Illumination | 2 x 40 | W |
Distance from cooking area
| Electric | 600 | mm |
| Electronic Pure Halogen | 600 | mm |
| Gas | 750 | mm |
| Air exhaust Flange | 120 | mm |
Nominal air flow
Speed 1
| External exhaustion | 140 | m 3 /h |
| Recirculation | 70 | m 3 /h |
Speed 2
| External exhaustion | 180 | m 3 /h |
| Recirculation | 80 | m 3 /h |
Speed 3
| External exhaustion max | 230 | m 3 /h |
| Recirculation max | 90 | m 3 /h |
Noise level
Speed 1
| External exhaustion | 48 | dB (A) |
| Recirculation | 58 | dB(A) |
Speed 2
| External exhaustion | 55 | dB(A) |
| Recirculation | 64 | dB(A) |
Speed 3
| External exhaustion | 62 | dB(A) |
| Recirculation | 67 | dB(A) |
