AKR 675/IX

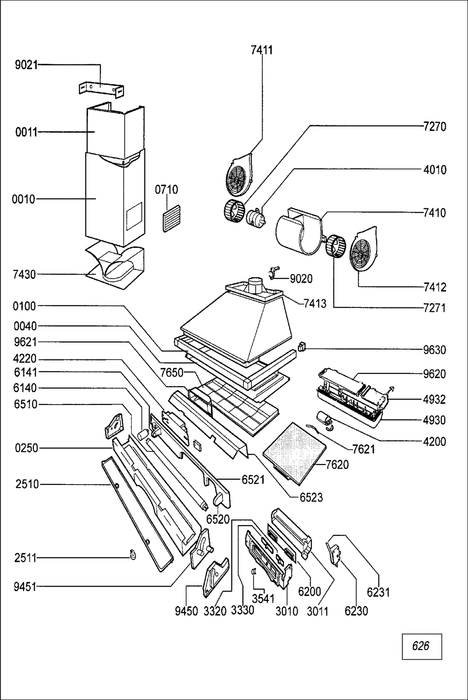

Product Details	S.P. Ref.	S.P. Code
Sold Out Chimney Regular price $0.00 Sale price $0.00 Regular price Unit price	001 0	4819 310 88672
Sold Out Chimney Regular price $0.00 Sale price $0.00 Regular price Unit price	001 1	4819 310 88671
Sold Out Frame Regular price $0.00 Sale price $0.00 Regular price Unit price	004 0	4812 440 68011
Sold Out Frame Regular price $0.00 Sale price $0.00 Regular price Unit price	010 0	4819 459 48422
Sold Out Support Regular price $0.00 Sale price $0.00 Regular price Unit price	025 0	4819 404 78778
Sold Out Vapour catcher Regular price $0.00 Sale price $0.00 Regular price Unit price	071 0	4819 442 68532
Sold Out Cover frame Regular price $0.00 Sale price $0.00 Regular price Unit price	251 0	4819 442 28299
Sold Out Knob Regular price $0.00 Sale price $0.00 Regular price Unit price	251 1	4819 401 18449
Sold Out Control panel Regular price $0.00 Sale price $0.00 Regular price Unit price	301 0	4819 452 99602
Sold Out Support Regular price $0.00 Sale price $0.00 Regular price Unit price	301 1	4819 404 79218
Sold Out Knob,slide light Regular price $0.00 Sale price $0.00 Regular price Unit price	332 0	4819 276 18138
Sold Out Knob,slide motor Regular price $0.00 Sale price $0.00 Regular price Unit price	333 0	4819 276 18137
Sold Out Lens Regular price $0.00 Sale price $0.00 Regular price Unit price	354 1	4819 381 18121
Sold Out Motor Regular price $0.00 Sale price $0.00 Regular price Unit price	401 0	4819 361 18352
Sold Out Capacitor Regular price $0.00 Sale price $0.00 Regular price Unit price	420 0	4812 121 18096
Sold Out Electron.ignit. Regular price $0.00 Sale price $0.00 Regular price Unit price	422 0	4819 219 88006
Sold Out Elect.parts box Regular price $0.00 Sale price $0.00 Regular price Unit price	493 0	4819 418 79419
Sold Out Cover,conn.bloc Regular price $0.00 Sale price $0.00 Regular price Unit price	493 2	4819 462 79917
Sold Out Starter Regular price $0.00 Sale price $0.00 Regular price Unit price	614 0	4819 219 88005
Sold Out Holder,lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	614 1	4819 255 18161
Sold Out Board,printed Regular price $0.00 Sale price $0.00 Regular price Unit price	620 0	4819 214 78499
Sold Out Microswitch Regular price $0.00 Sale price $0.00 Regular price Unit price	623 0	4819 271 38095
Sold Out Lever Regular price $0.00 Sale price $0.00 Regular price Unit price	623 1	4819 535 98336
Sold Out Lamp,neon Regular price $0.00 Sale price $0.00 Regular price Unit price	651 0	4819 134 28032
Sold Out Holder,lamp Regular price $0.00 Sale price $0.00 Regular price Unit price	652 0	4819 255 18159
Sold Out Reflector F.FLUOR.LAMP Regular price $0.00 Sale price $0.00 Regular price Unit price	652 1	4812 440 68009
Sold Out Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	652 1	4819 404 79219
Sold Out Fan wheel Regular price $0.00 Sale price $0.00 Regular price Unit price	727 0	4819 515 28263
Sold Out Fan wheel Regular price $0.00 Sale price $0.00 Regular price Unit price	727 1	4819 515 28262
Sold Out Conveyor Regular price $0.00 Sale price $0.00 Regular price Unit price	741 0	4819 442 68529
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	741 1	4819 458 58701
Sold Out Grid Regular price $0.00 Sale price $0.00 Regular price Unit price	741 2	4819 458 58699
Sold Out Coupling piece Regular price $0.00 Sale price $0.00 Regular price Unit price	741 3	4819 526 48462
Sold Out Filter Regular price $0.00 Sale price $0.00 Regular price Unit price	743 0	4819 480 48298
Sold Out Filter,grease Regular price $0.00 Sale price $0.00 Regular price Unit price	762 0	4819 480 48155
Sold Out Holder Regular price $0.00 Sale price $0.00 Regular price Unit price	762 1	4819 492 68617
Sold Out Carbon filter Regular price $0.00 Sale price $0.00 Regular price Unit price	765 0	4819 480 48151
Sold Out Hook Regular price $0.00 Sale price $0.00 Regular price Unit price	902 0	4819 401 18448
Sold Out Bracket Regular price $0.00 Sale price $0.00 Regular price Unit price	902 1	4819 404 78947
Sold Out Bearing Regular price $0.00 Sale price $0.00 Regular price Unit price	945 0	4819 466 88855
Sold Out Support Regular price $0.00 Sale price $0.00 Regular price Unit price	945 1	4819 418 79421
Sold Out Cover,conn.bloc Regular price $0.00 Sale price $0.00 Regular price Unit price	962 0	4819 462 79918
Sold Out Guard Regular price $0.00 Sale price $0.00 Regular price Unit price	962 1	4819 462 58266
Sold Out Cap Regular price $0.00 Sale price $0.00 Regular price Unit price	963 0	4812 462 78067

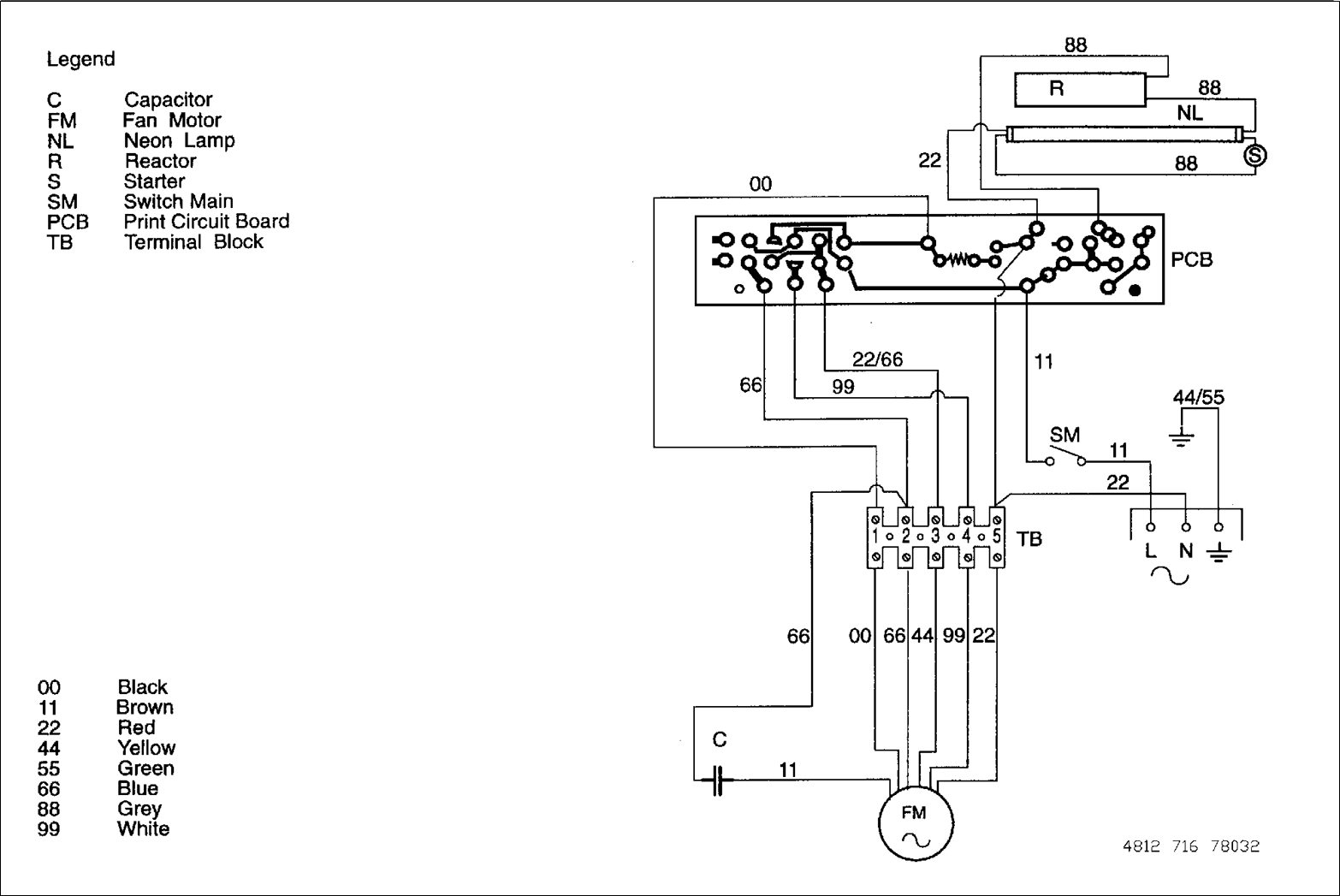

Wiring Diagram

Technical Data

Electricity

Voltage	230	V
Frequency	50	Hz

Power

Total	200	W
Fan motor	186	W
Illumination	14	W

Nominal air flow

Speed 1

External exhaustion	194	m³ /h
Recirculation	155	m³ /h

Speed 2

External exhaustion	312	m³ /h
Recirculation	256	m³ /h

Speed 3

External exhaustion	417	m³ /h
Recirculation	340	m³ /h

Intensive Speed

External exhaustion	510	m³ /h
Recirculation	420	m³ /h

Noise level

Speed 1

External exhaustion	50	dB (A)
Recirculation	51	dB (A)

Speed 2

External exhaustion	61	dB (A)
Recirculation	62	dB (A)

Speed 3

External exhaustion	68	dB (A)
Recirculation	69	dB (A)

Intensive Speed

External exhaustion	71	dB (A)
Recirculation	73	dB (A)

Distance from cooking area

Electric	650	mm
Gas	750	mm

Air exhaust

Flange

120

Parts Manual
