AKR 799 IX
AKR 799 IX

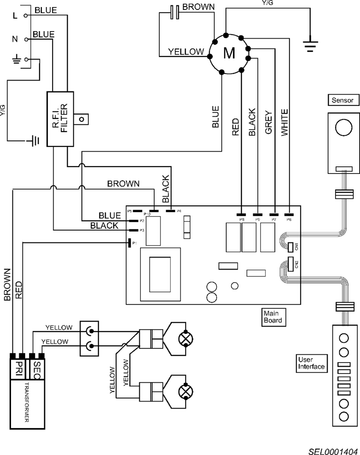

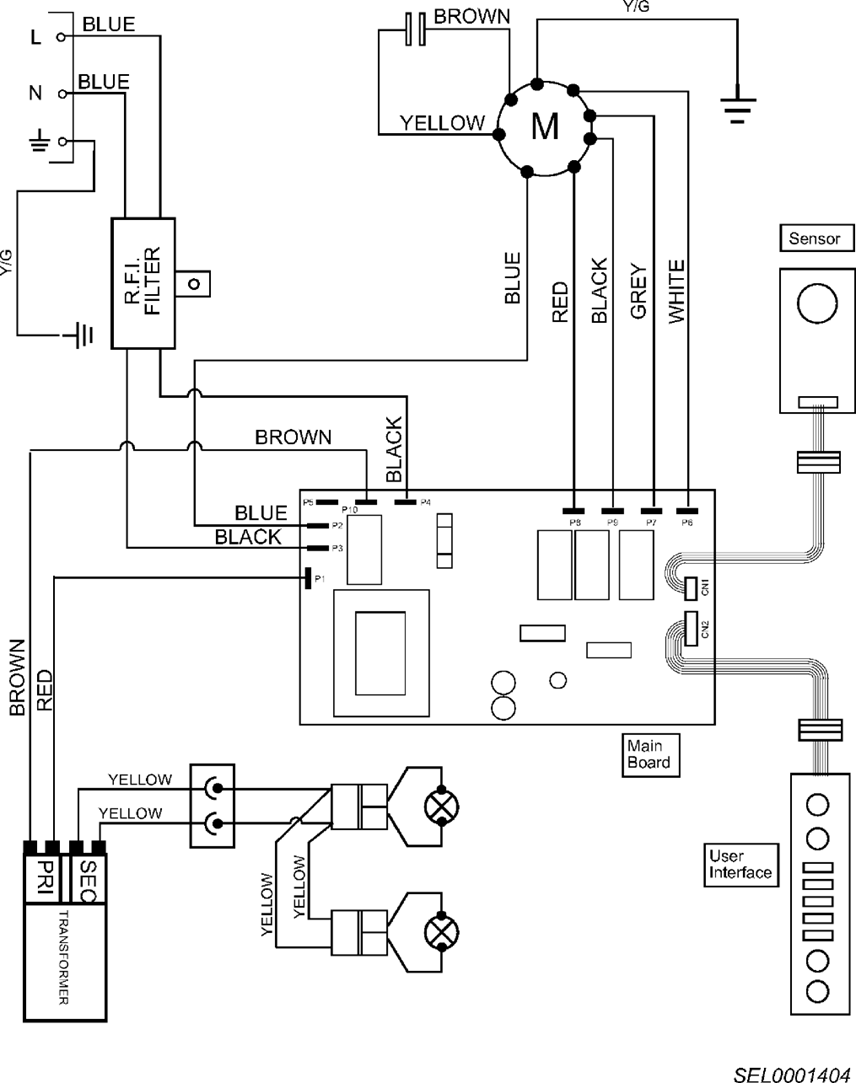

Wiring Diagram
Technical Data
Electrical base data
| Voltage | 220 - 240 | V |
| Frequency | 50 | Hz |
Power Consumption
| Fan motor | 175 | W |
| Illumination | 2x20 | W |
Distance from cooking area
| Electric | 650 | mm |
| Gas | 750 | mm |
| Air exhaust Flange | ø 150 | mm |
Nominal air flow
Speed 1
| External exhaustion | 265 | m 3 /h |
| Recirculation | 200 | m 3 /h |
Speed 2
| External exhaustion | 415 | m 3 /h |
| Recirculation | 310 | m 3 /h |
Speed 3
| External exhaustion max | 630 | m 3 /h |
| Recirculation max | 455 | m 3 /h |
Noise level
Speed 1
| External exhaustion | 46 | dB (A) |
| Recirculation | 54 | dB(A) |
Speed 2
| External exhaustion | 55 | dB(A) |
| Recirculation | 62 | dB(A) |
Speed 3
| External exhaustion | 62 | dB(A) |
| Recirculation | 67 | dB(A) |
