AKR 901 IX-2
AKR 901 IX-2

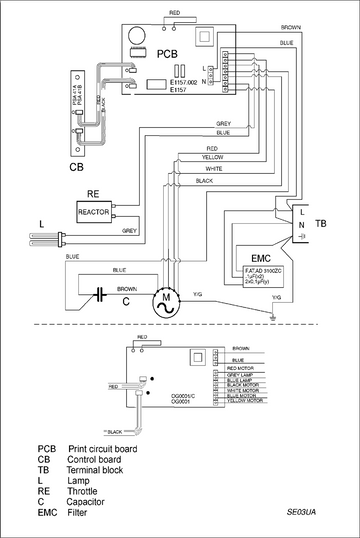

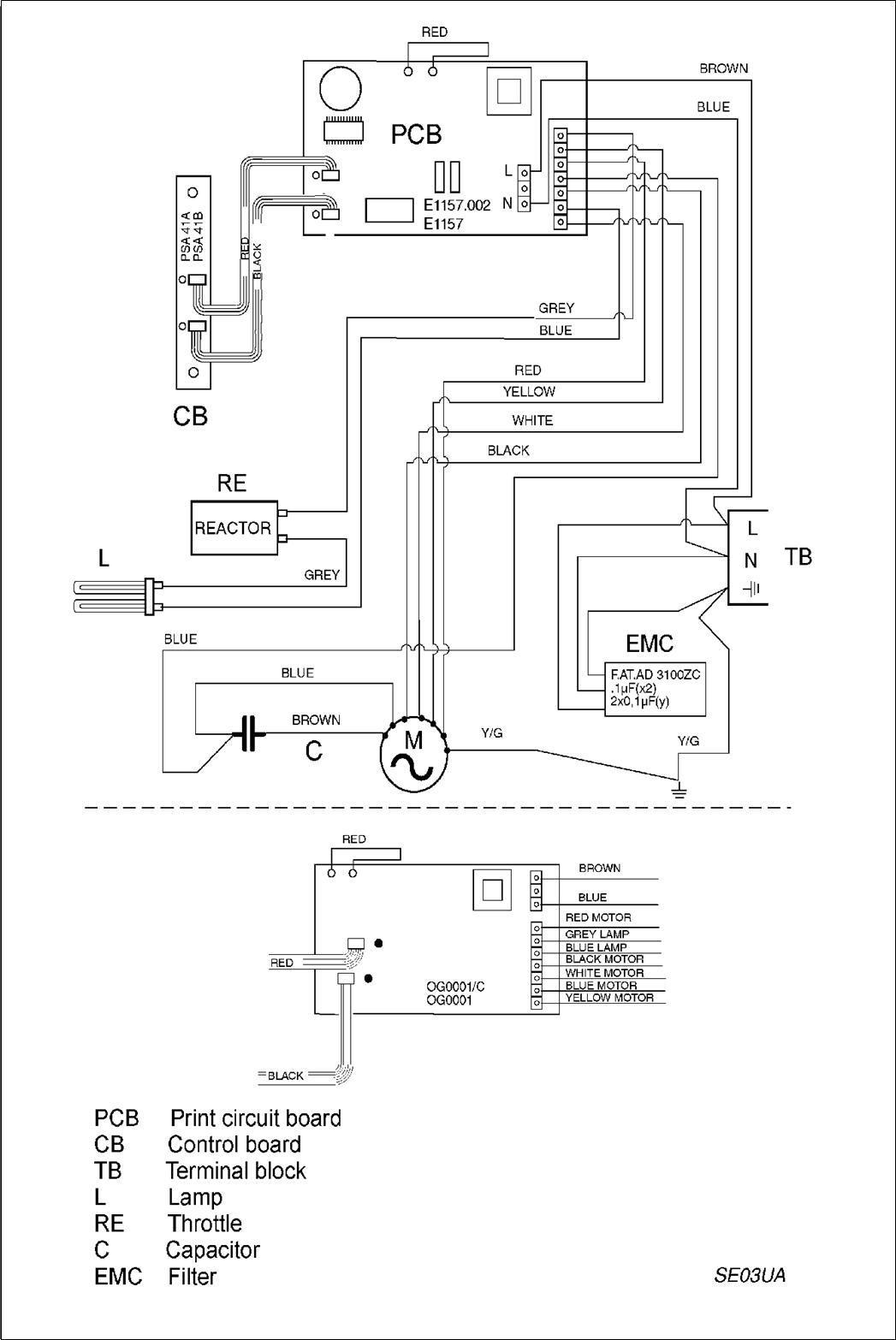

Wiring Diagram
Technical Data
Electricity
| Voltage | 220-240 | V |
| Frequency | 50 | Hz |
Power
| Total | 211 | W |
| Fan motor | 211 | W |
| Illumination | 11 | W |
Nominal air flow
Speed 1
| External exhaustion | 251 | m³ /h |
| Recirculation | 157 | m³ /h |
Speed 2
| External exhaustion | 369 | m³ /h |
| Recirculation | 232 | m³ /h |
Speed 3
| External exhaustion | 489 | m³ /h |
| Recirculation | 261 | m³ /h |
Intensive Speed
| External exhaustion | 581 | m³ /h |
| Recirculation | 274 | m³ /h |
Noise level
Speed 1
| External exhaustion | 50 | dB (A) |
| Recirculation | 56 | dB (A) |
Speed 2
| External exhaustion | 60 | dB (A) |
| Recirculation | 66 | dB (A) |
Speed 3
| External exhaustion | 67 | dB (A) |
| Recirculation | 69 | dB (A) |
Intensive Speed
| External exhaustion | 71 | dB (A) |
| Recirculation | 73 | dB (A) |
Distance from cooking area
| Electric/Pure Halogen | 650 | mm |
| Gas/Gas-Mix | 750 | mm |
Air exhaust
| Flange | ø 150 | mm |
